dx69 semi auto pipe connect crimping machine
- Category: >>>
- Supplier: Henan Chengyitong Machinery Equipment Co. Ltd.
Share on (1600924343344):
Product Overview
Description
Product Description

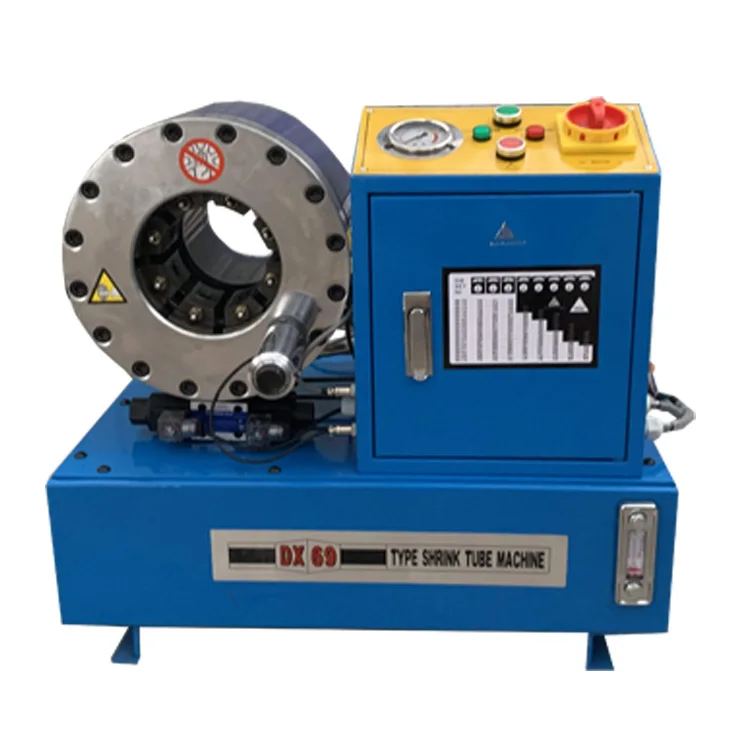

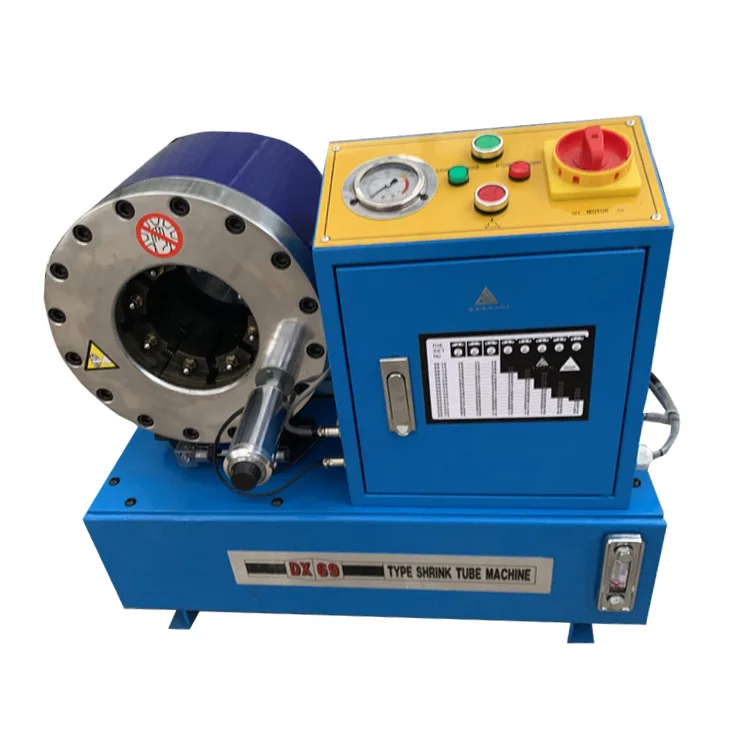

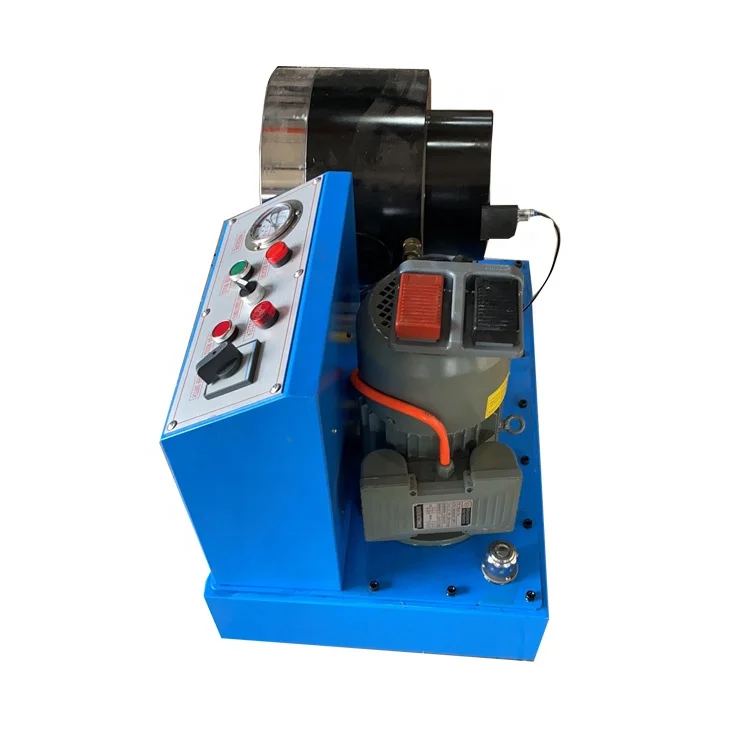

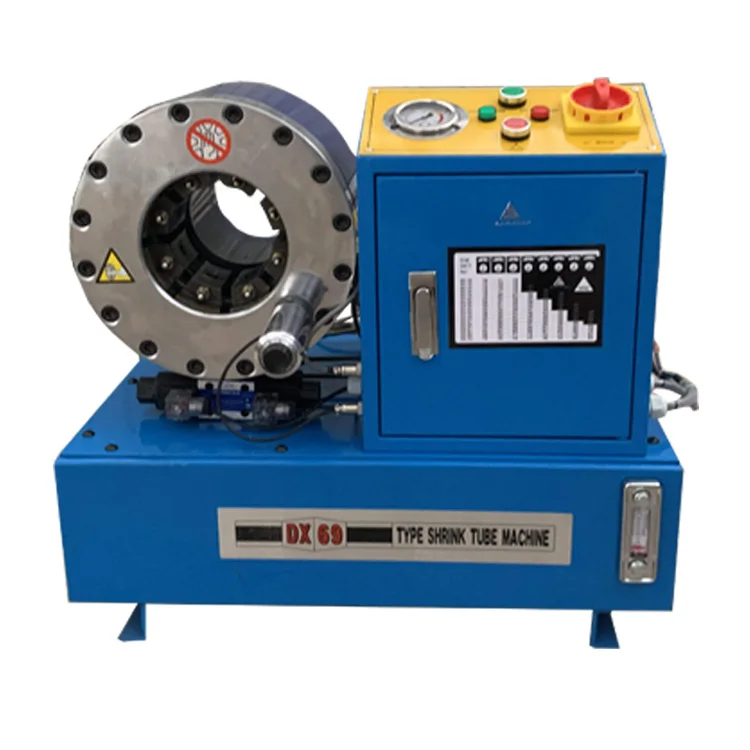

dx69 semi-auto pipe connect crimping machine
Product Application of dx69 semi-auto pipe connect crimping machine
henghua precise hydraulic pipe press crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.
SPECIFICATIONS of dx69 semi-auto pipe connect crimping machine | ||||||
Crimping Range | 1/4" to 2" | |||||
Quantity of dies | 10 Sets | |||||
Item No. of dies | 15.19.23.27 length 60mm | |||||
31.36.41 length 70mm | ||||||
47.53.58 length 80mm | ||||||
Accuracy | 0.02mm | |||||
Hydraulic oil | 76liters #46 hydraulic oil | |||||
System Pressure | 31.5Mpa | |||||
Motor Power | 3KW | |||||
Voltage | 220V/380V/110V | |||||
Buckling Pressure | 449T | |||||
Effciency | 200pcs/h | |||||
Max Open Diameter | 136mm | |||||
The max open tolerance | ±25mm | |||||
Machine Dimension | 630*750*800mm | |||||
Net Weight | 230kg | |||||
Main Features of dx69 semi-auto pipe connect crimping machine
1) It is small and portable .
2) Big force , low noise and easy to operate.
3) The buckling amount can be precise adjusted through a scale.
4) It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
Detailed Images
Machine Parts

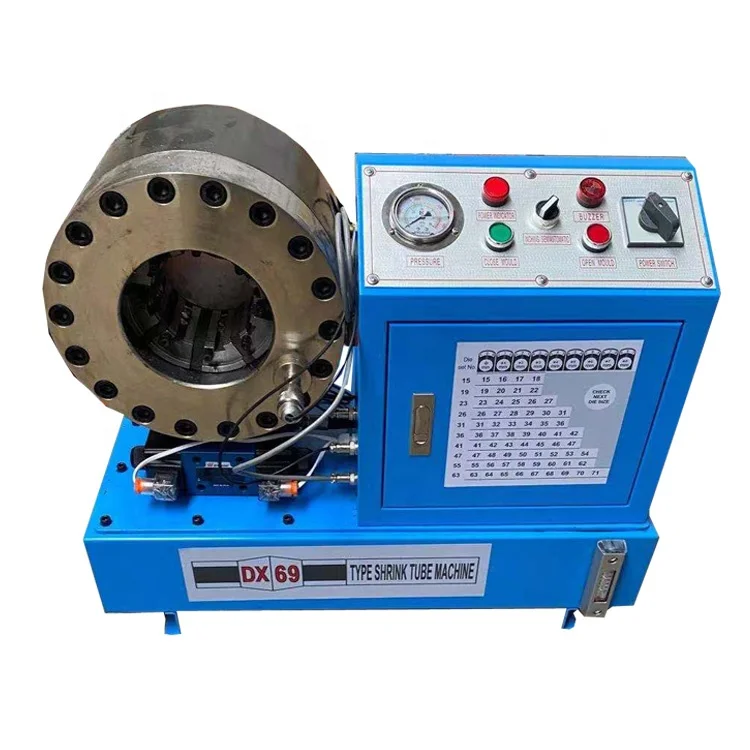

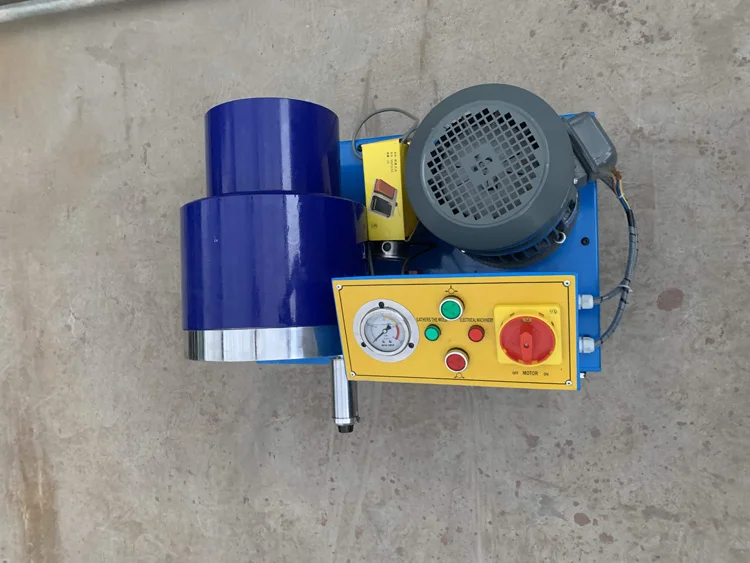

Name: Operating panel
Automatic and semi-automatic, safety and effcient.
Machine Parts

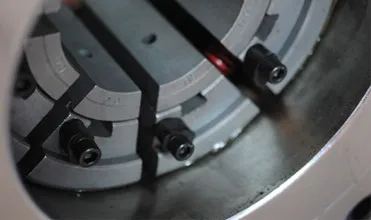

Name: Localizer
Durable and it can be used in varity of machine.
Machine Parts

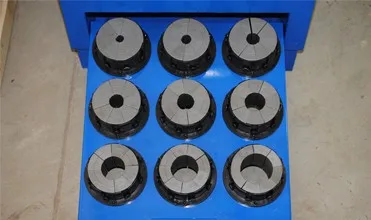

Name: Dies Box
Dust proof, space saving.
Machine Parts
Name: Microcalliper
Notice
1. According the temperature to choose right hydraulic oil .In general use 46# .
2. Hydraulic oil must be screening .The volume of oil can be 70% of tank .
3. Every six month should change the hydraulic oil ,the fist change at two month later.
4. Every six month should check the pressure gauge.
5. Out of work please switch off the power.
6. When you change dies please turn off machine.
7. Under the semi-automatic ,Please don't put hands in the crimping head.
8.Don't heat the machine with heavy things. If any questions, kindly please contact me without
hesitation.
Our Company
Henan Chengyitong Machinery Equipement Co., Ltd specializes in dx69 semi automatic hydraulic hose crimping machine , hose skiving machine and other equipment. We insist Quality Create Value and will provide one-stop service for our customers.

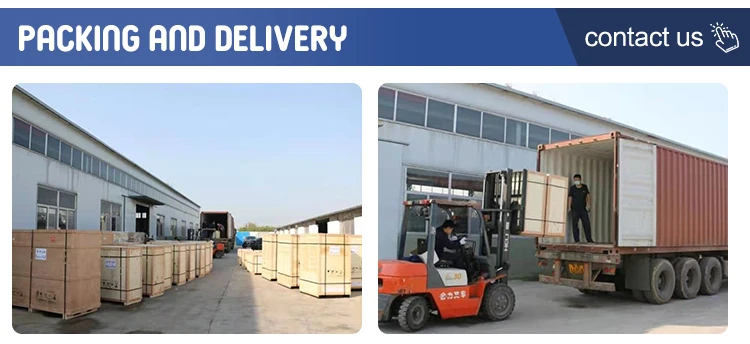

Packing & Delivery
1. Prepare fumigation-free wooden pallets as export standards for packaging and inspecting Conveniently.
2. Fix the machine on the wooden pallet to avoid slipping and shaking.
3. Wrap moisture-proof film to prevent dampness and abrasion during transportation.
4. Add wooden cases to ensure transportation and prevent collision.
5. Wooden case is secured by overall steel strapping to ensure the package is firm and the machine is not damaged.
6.Trailer / Forklift loading.
FAQ
1.Q:Do you have CE certificate?
A:Yes,the following is our CE certificate.
2.Q:What's the packing of the machine?
A: we use the fumigation wooden case.
3.Q:What mode of payment do you usually accept?
A:Usually we accept T/T in advance.
4.Q:How long does it usually take you to make delivery?
A:within 7 days after receiving your payment,we will send the machine to our customer.
5.Q:Is professional oversea engineer service available?
A:Of course.For your mentioned questions,our engineer will help you solve it patiently.
6.Q:Do you offer other products?
A:Yes,we have rubber hose ,PVC hose , hose fittings and so on.
