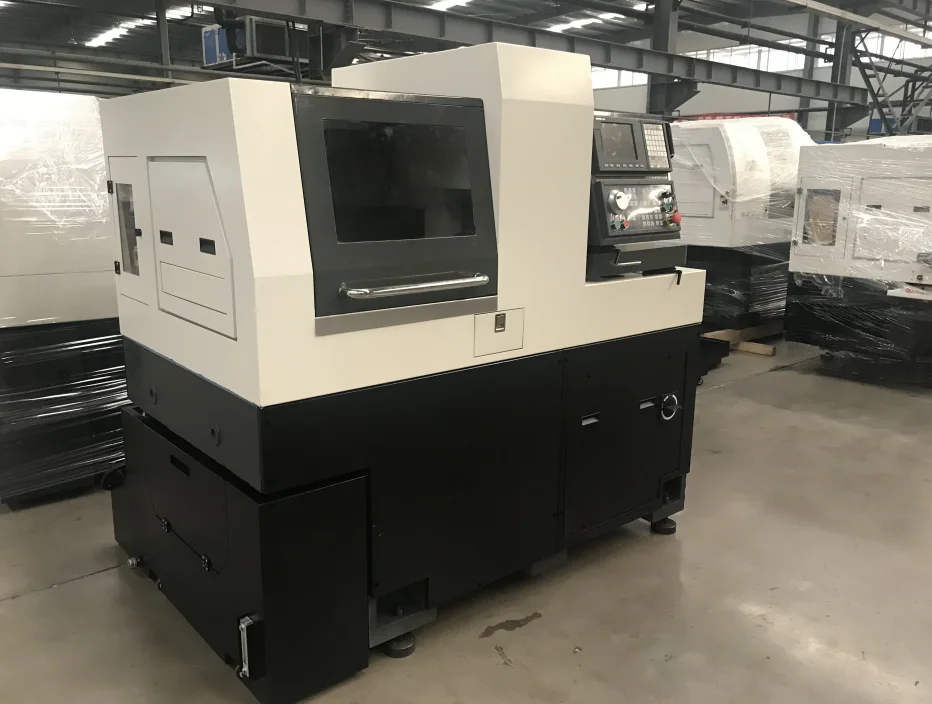

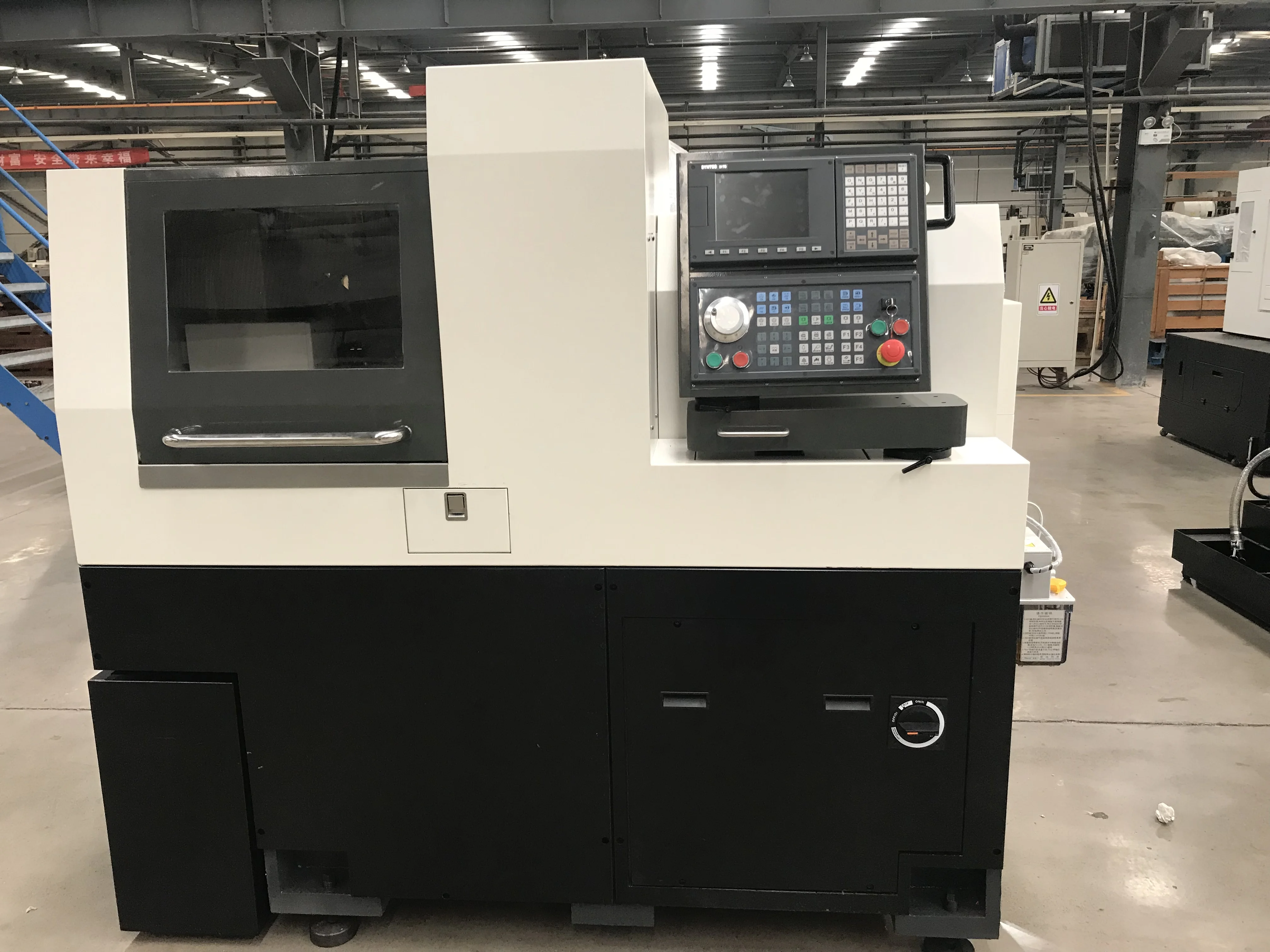

Swiss Four axis CNC Lathe Swiss Type High Speed Precision Automatic Lathe
Swiss Four axis CNC Lathe Swiss Type High Speed Precision Automatic Lathe
Swiss Four axis CNC Lathe Swiss Type High Speed Precision Automatic Lathe
Swiss Four axis CNC Lathe Swiss Type High Speed Precision Automatic Lathe
Swiss Four axis CNC Lathe Swiss Type High Speed Precision Automatic Lathe
Swiss Four axis CNC Lathe Swiss Type High Speed Precision Automatic Lathe
Swiss Four axis CNC Lathe Swiss Type High Speed Precision Automatic Lathe

Swiss Four axis CNC Lathe Swiss Type High Speed Precision Automatic Lathe

Share on (1600924373429):


Price:$16,222.13 - $19,100.28

Quantity:


Product Overview

Description







Items

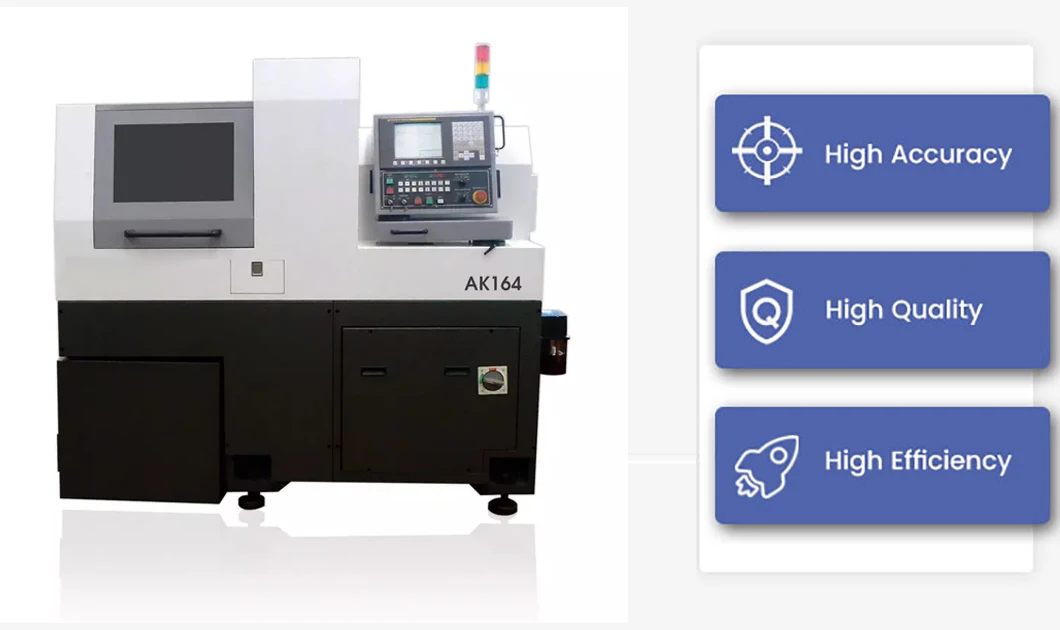

AK164
Mechanic

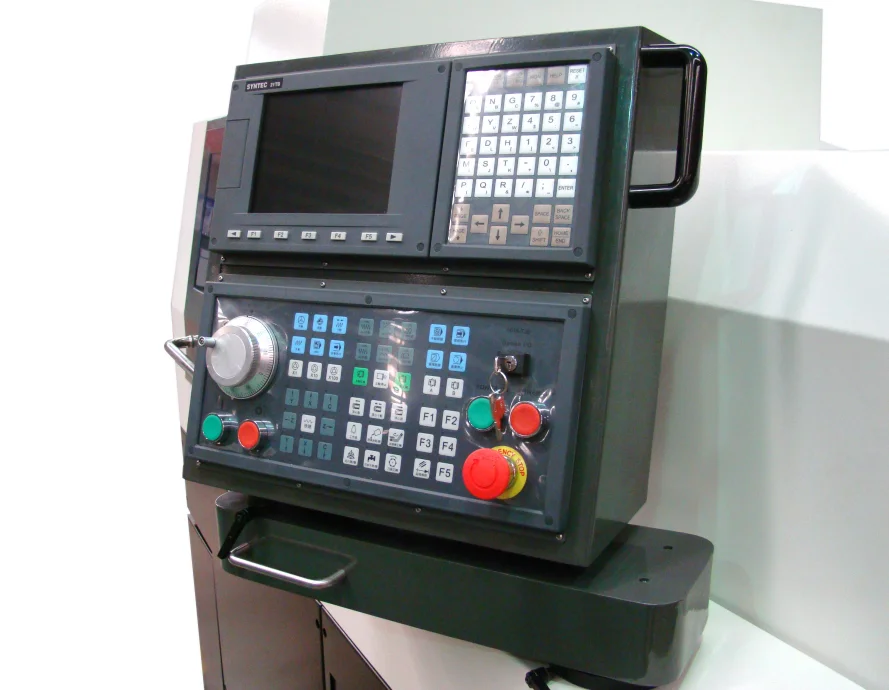

System
FANUC 0i TF-PLUS
SYTENC 22TB
Max.RPM
Main10,000min-1/Sub8,000min-1
Main8,000min-1/Sub6,000min-1
Max.Turning Diameter
φ16mm
Main Spindle Stroke
150mm
 Rapid traverse speed
24m/min

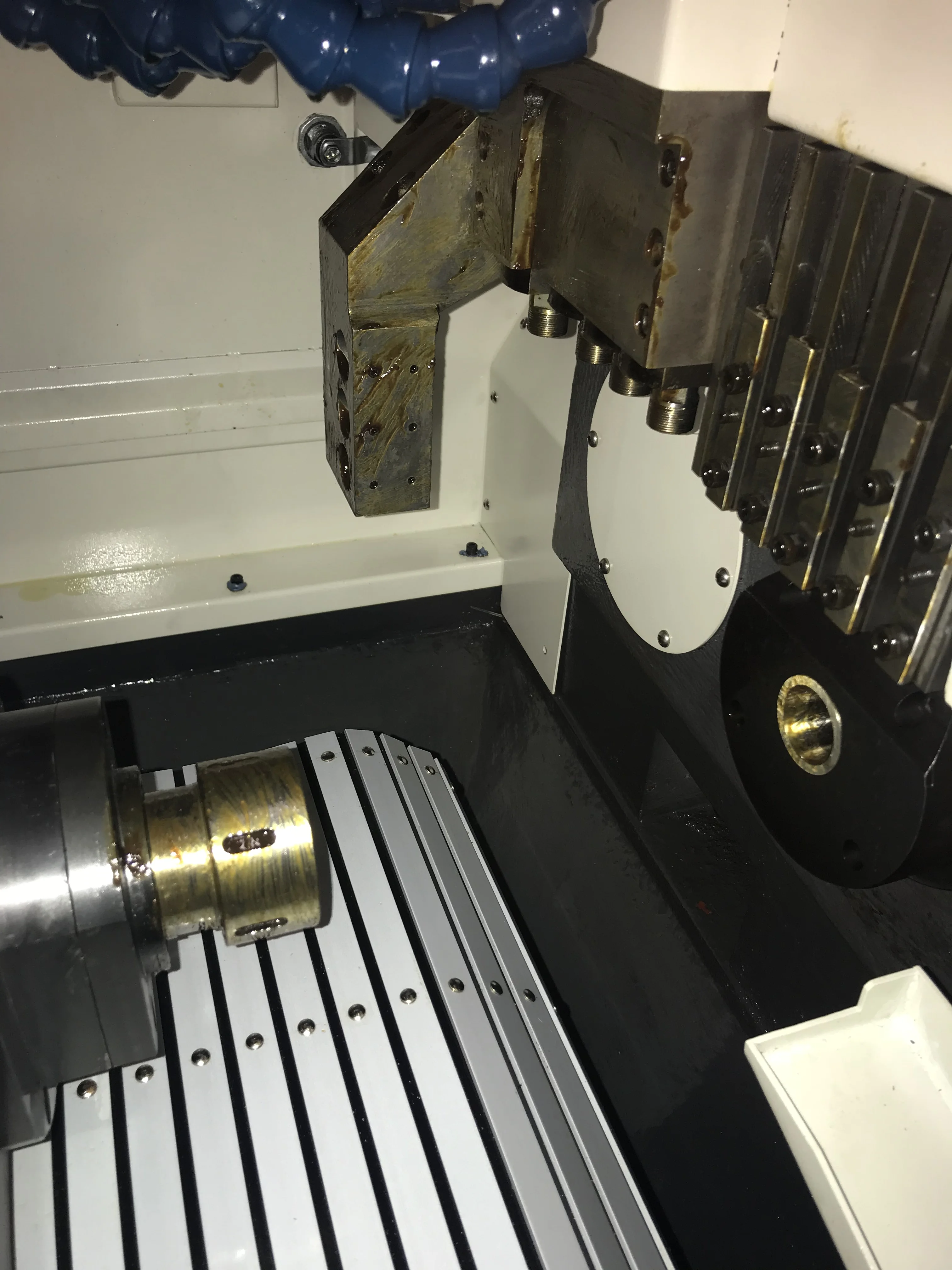

Tools
O.D Tools
6X [□12×12]
 I.N Tools
3X[φ25-ER16]
Cross Driven Tools（integration）
3X[ER16]
Motors
 Main
3.7/5.5KW
3.9KW
 Sub
0.55/1.1KW
0.75KW
Cross
0.5KW
0.75KW
Drive
0.75KW
Coolant
0.25KW
Others
Coolant tank capacity
180L
Lubrication tank capacity
1.8L
Central Height
1,050mm
 Weight
3,000Kg
The size （L×W×H）
1985×1321×1692mm
NC Control
Controllable Axes
5axis/4axis
LCD
LCD 8.4"
System standard parameters
Standard
Rigid tapping
Standard
Helical interpolation
 Standard
