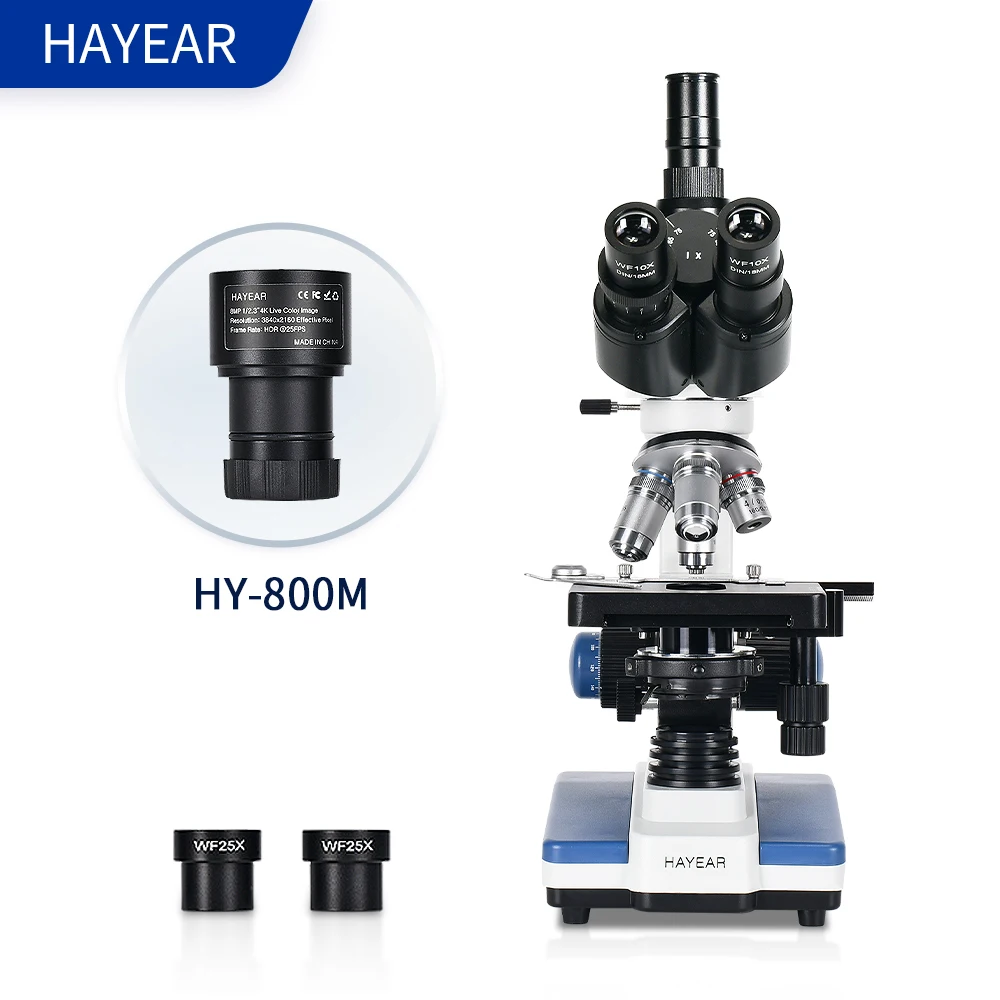

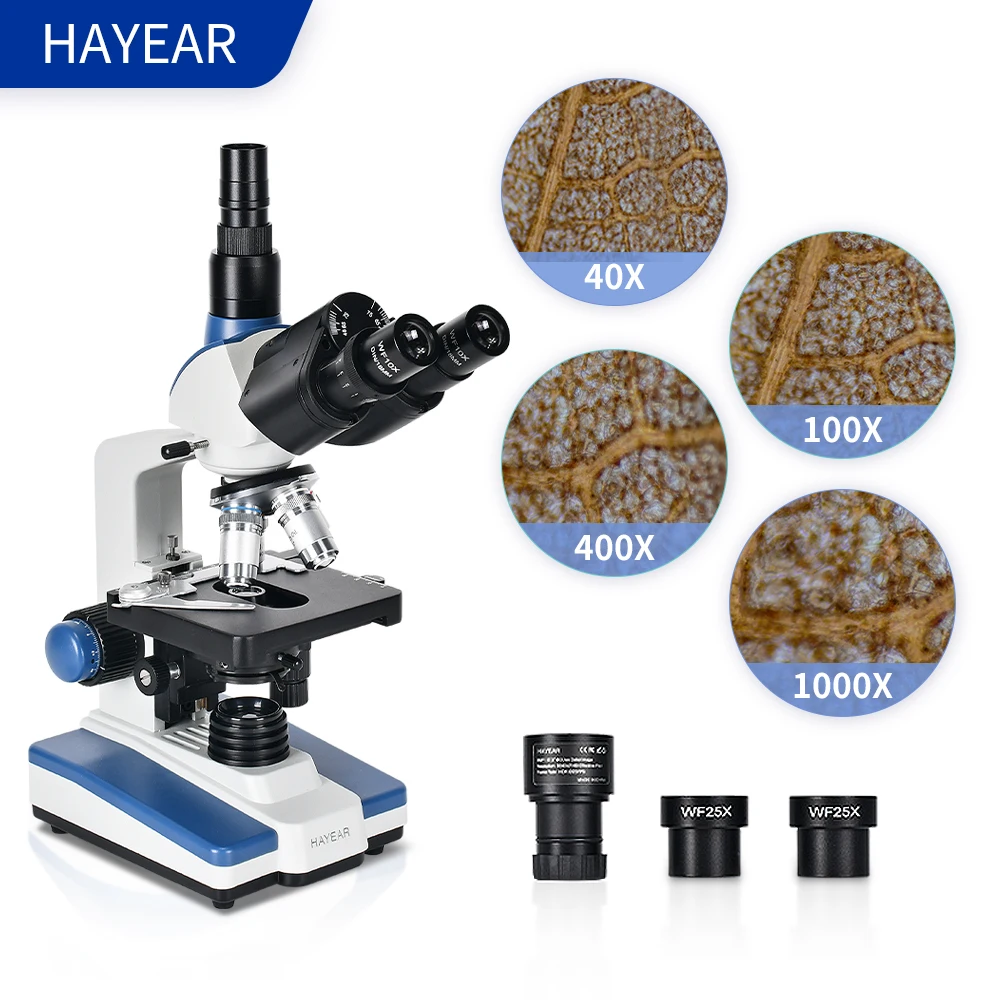

HAYEAR Biological Trinocular Microscope with 8MP USB2.0 type C Digital Eyepiece Camera set

Product Overview

Description

Specifications

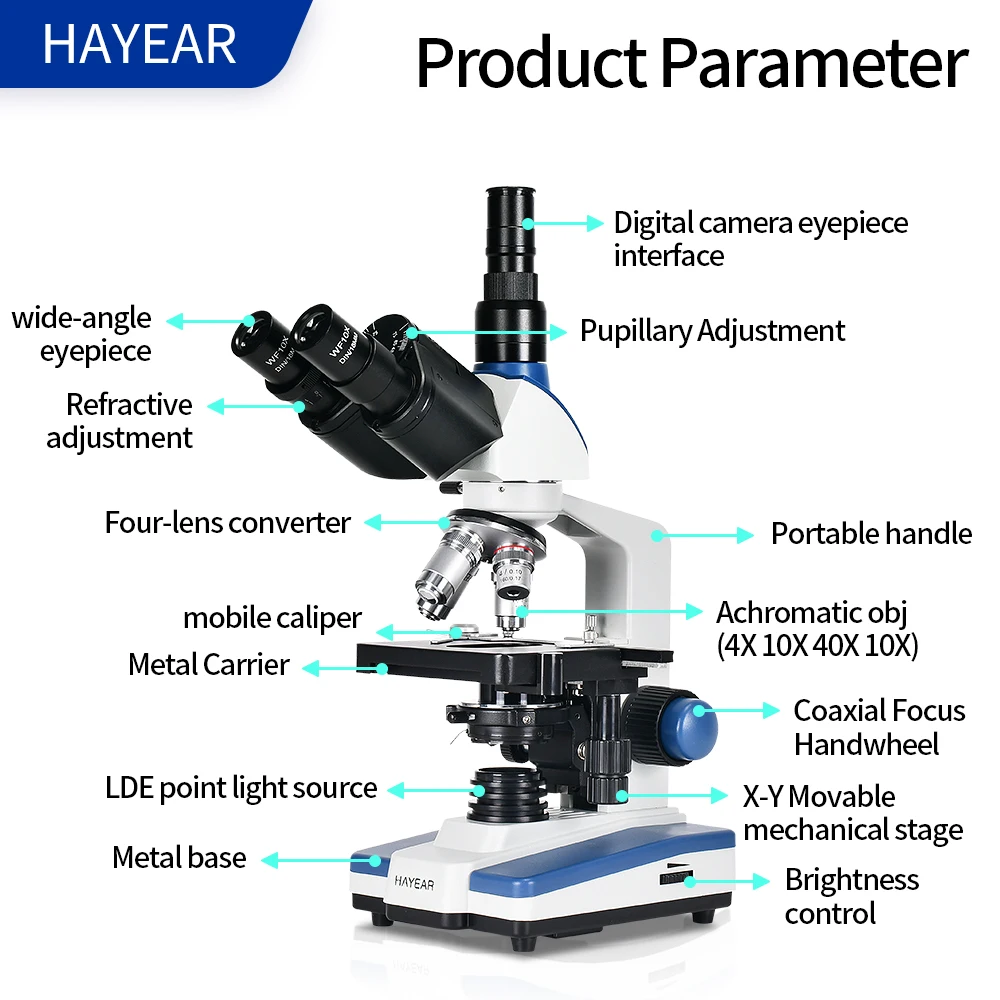

Item Name: biological microscope

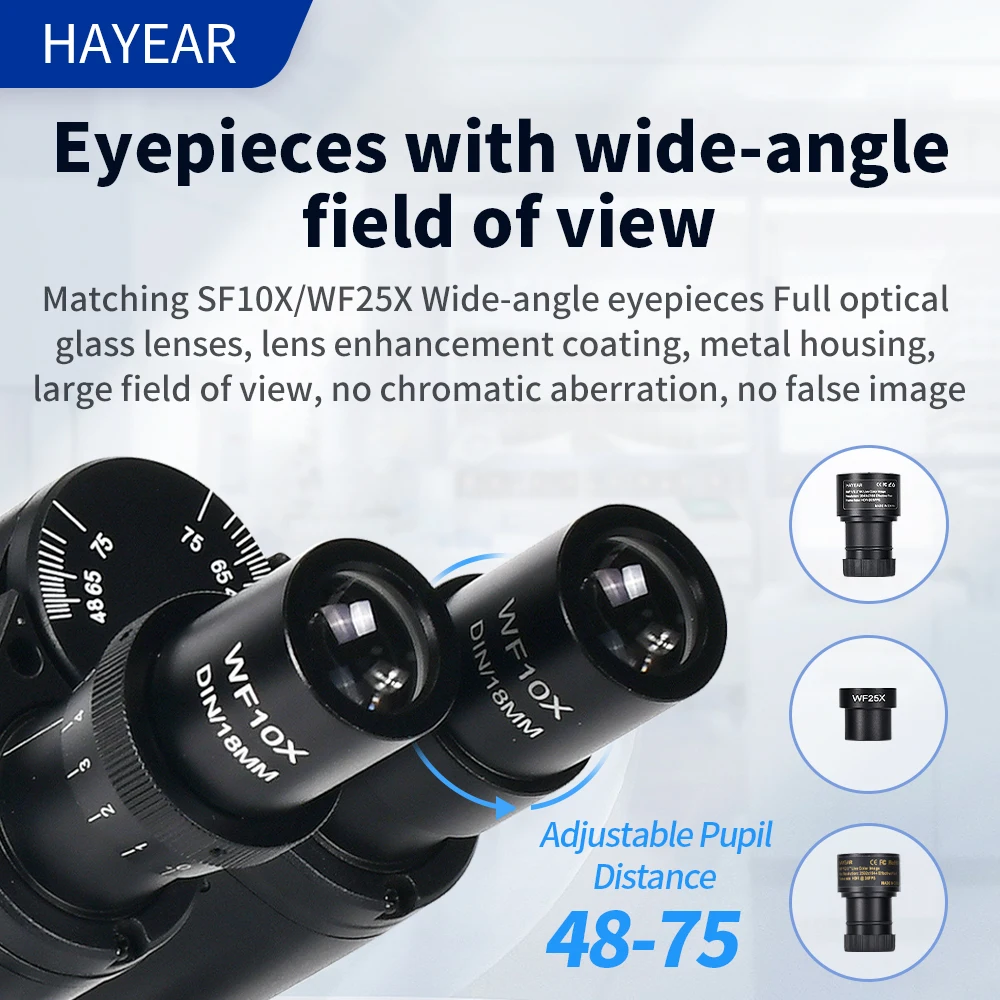

Eyepiece: WF10X, WF25X

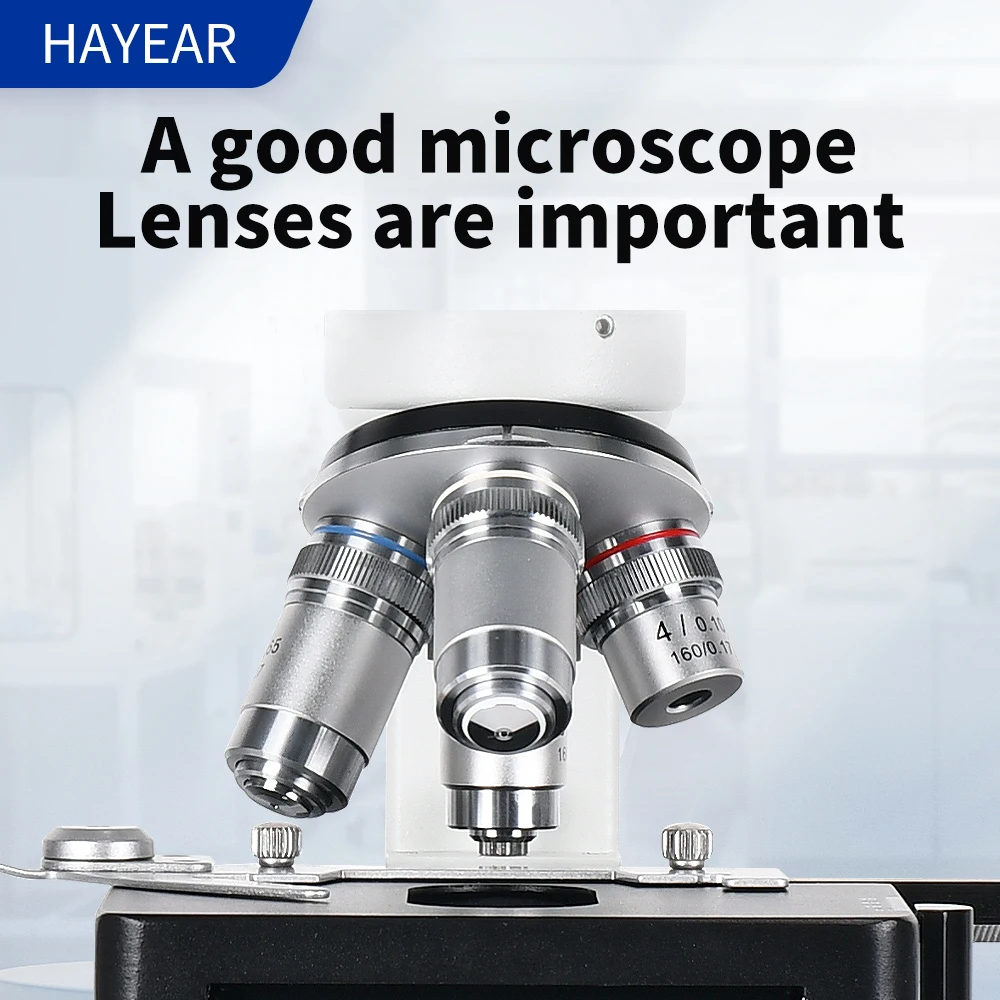

45mm DIN Achromatic Objective: 4X  10X 40X(S), 100(S Oil)
Material of the body: metal
Material of the lens: optical glass
Head: articulated free trinocular head, interpupillary distance: 48-75mm; 30° inclined, 360°rotatable

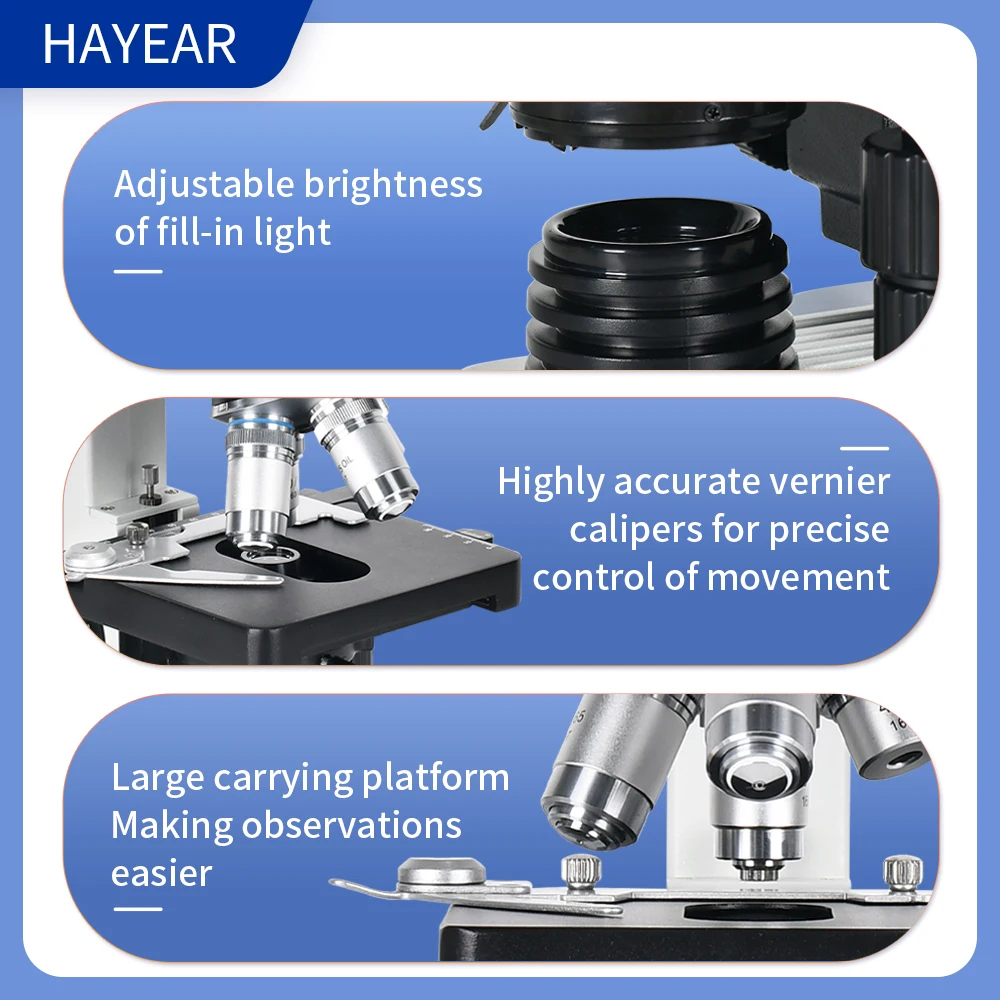

Illumination: Built-in adjustable brightness 1W LED lamp
Condenser: ABBE condenser: N.A.1.25; DIA2-DIA30mm iris diaphragm and DIA32 Filter
Focusing Adjustment: coaxial coarse and fine focusing adjustable mechanism: 20mm,



Model :HY-800M

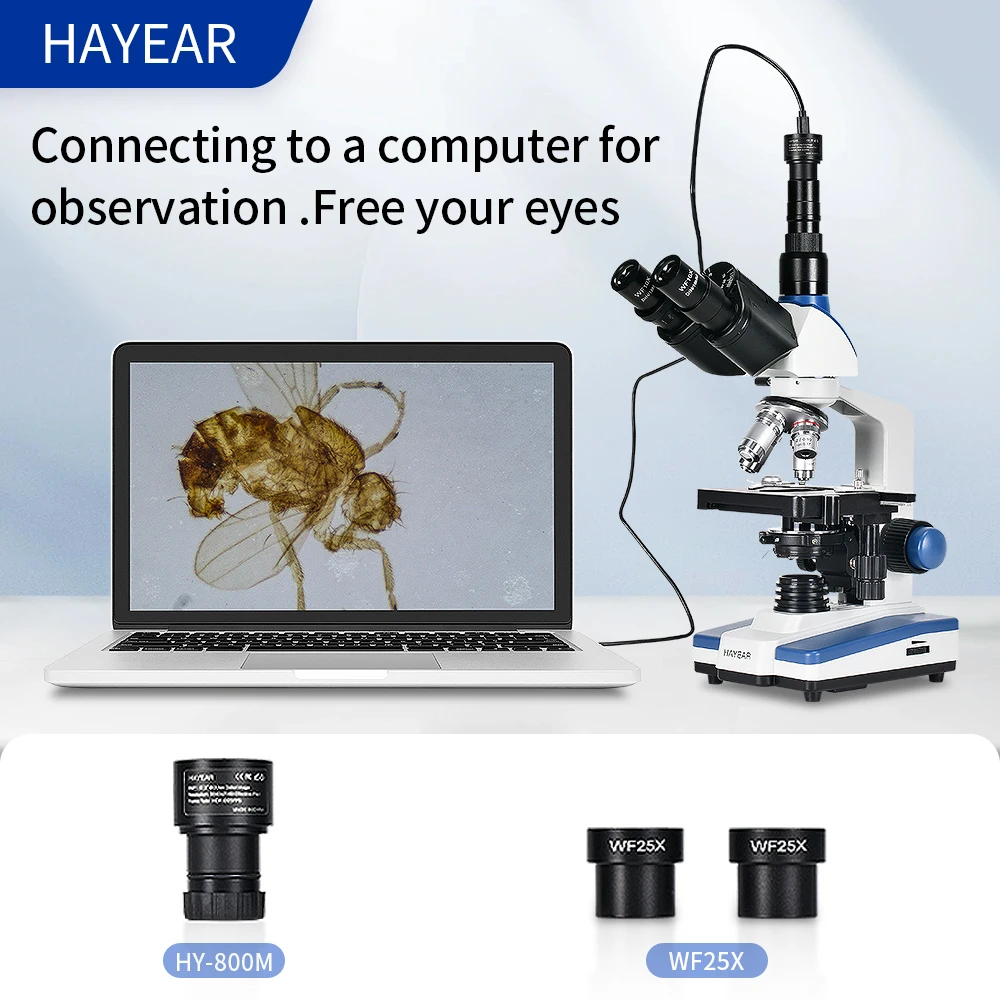

Name :4K USB2.0 color 8MP UVC Digital Camera
Image Sensor :SONY 1/2.3" Color IMX377 CMOS Image sensor
Pixel Size :1.55μm(H)×1.55μm(V)
Frame rate: @25FPS
Spectral response: 400nm~700nm
Scanning method :line by line scanning,Real 8 megapixel image sensor, no compression, no interpolation
Resolution
:3840x2160;2592x1944;2084x1536;1920x1080;1280x720;640x480
Image output format :MJPEG (compressed format)
Video record: 3840x2160 @ 25fps; 2592x1944 @ 25fps
2084x1536 @ 25fps; 1920x1080 @ 25fps
1280x720 @ 25fps; 800x600 @ 25fps
640x480 HDR @ 25fps
YUV422 (compressed format)
3840x2160 @ 1fps; 2592x1944 @ 1fps
2084x1536 @ 1fps; 1920x1080 @ 5fps
1280x720 @ 10fps; 800x600 @ 15fps
640x480 HDR @ 15fps



Package Including

1xDigital Eyepiece Camera

1x Microscope
1x 4X Objective
1x 10X Objective
1x 40X Objective
1x 100X Objective
2x WF10 Eypieces
2x WF25 Eypieces
1x Charging Plug
