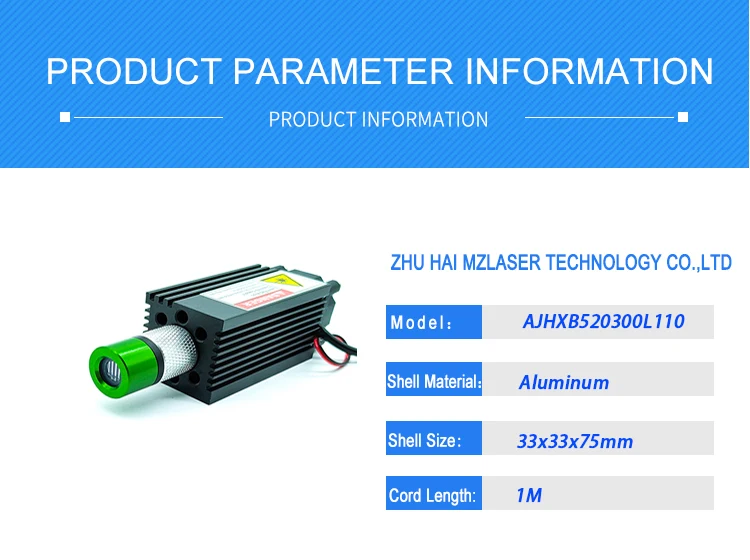

High Power High Brightness Adjustable Focusing Glass Lens 520nm 300mW 110 Degrees 12V 24V Green Line Laser Module With Adapter
- Category: >>>
- Supplier: Zhuhai MZLASER Technology Co. Ltd.
Share on (1600924420164):
Product Overview
Description
Product Paramenters
OPTICAL PARAMETERS | ||||||||
1 | Lens Type | Glass | ||||||
2 | Divergence Angle | 110degrees | ||||||
3 | Line Width | Adjustable | ||||||
4 | Output Power | ＜300mW | ||||||
5 | Wavelength | 520nm | ||||||
6 | Laser Safety | Class III B | ||||||
7 | Pattern | Line | ||||||
TEMPERATURE PARAMETERS (T=25℃） | ||||||||
1 | Operating Temperature | -20℃ ~ +60℃ | ||||||
2 | Storage Temperature | -40℃ ~ +80℃ | ||||||
3 | Power Stability | ＜8% | ||||||
4 | Wavelength Drift (nm/℃） | 0.25nm | ||||||
ELECTRONIC PARAMETERS (T=25℃） | ||||||||
1 | Circuit Model | CW | ||||||
2 | Operating Voltage | 12-24V | ||||||
3 | Operating Current | ＜600mA | ||||||
4 | Drive Type | ACC | ||||||
5 | Service Life | ＞10000H | ||||||
Applications
Company Profile
Certifications
Customized services
Shipping & Delivery

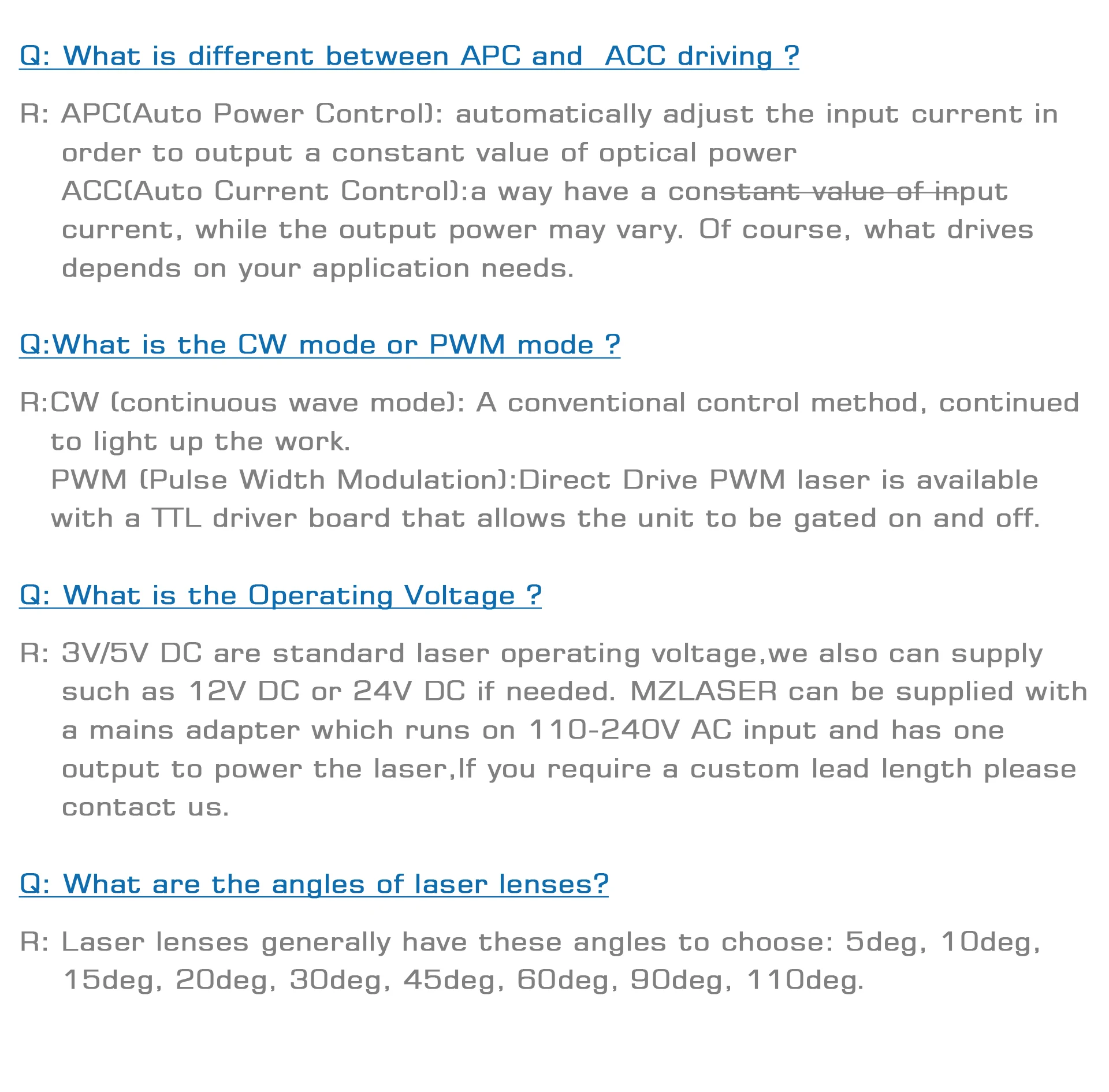

FAQ
