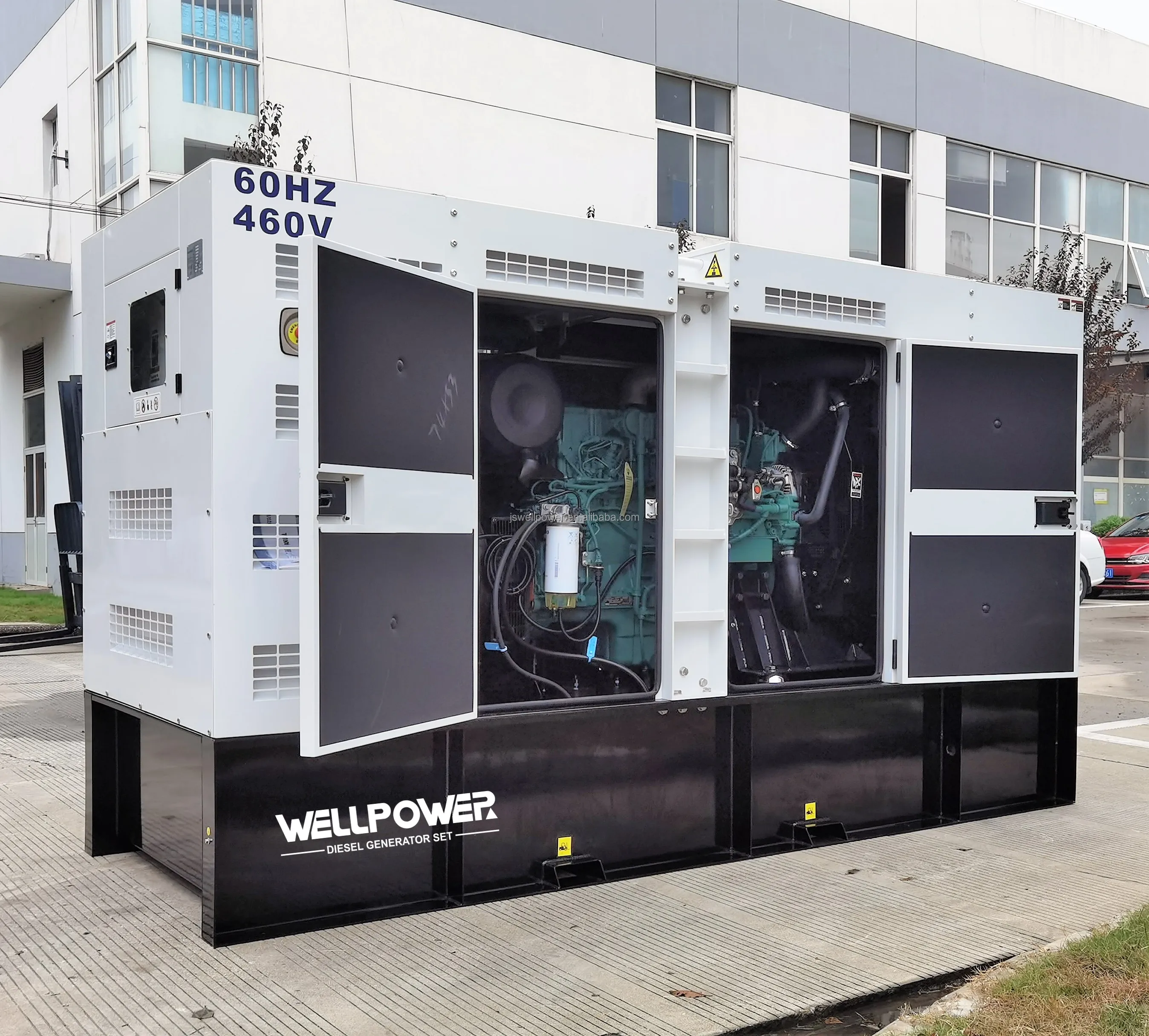

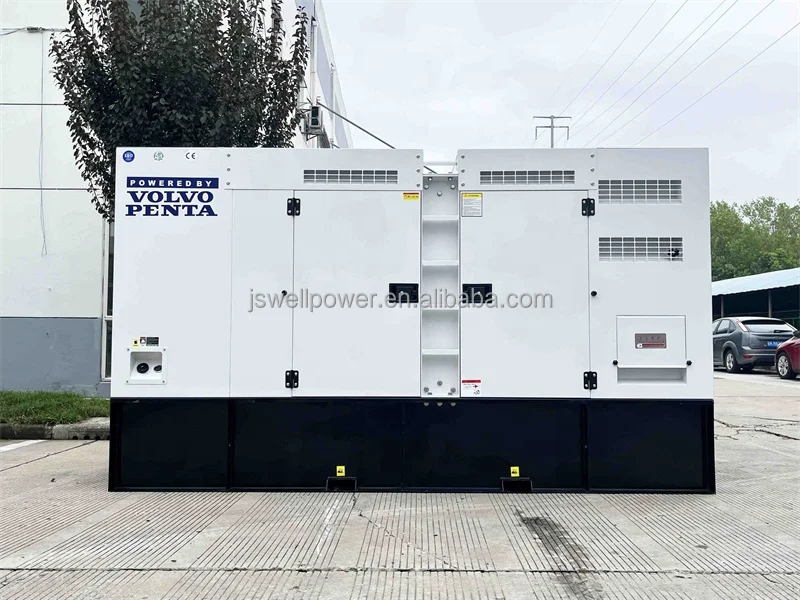

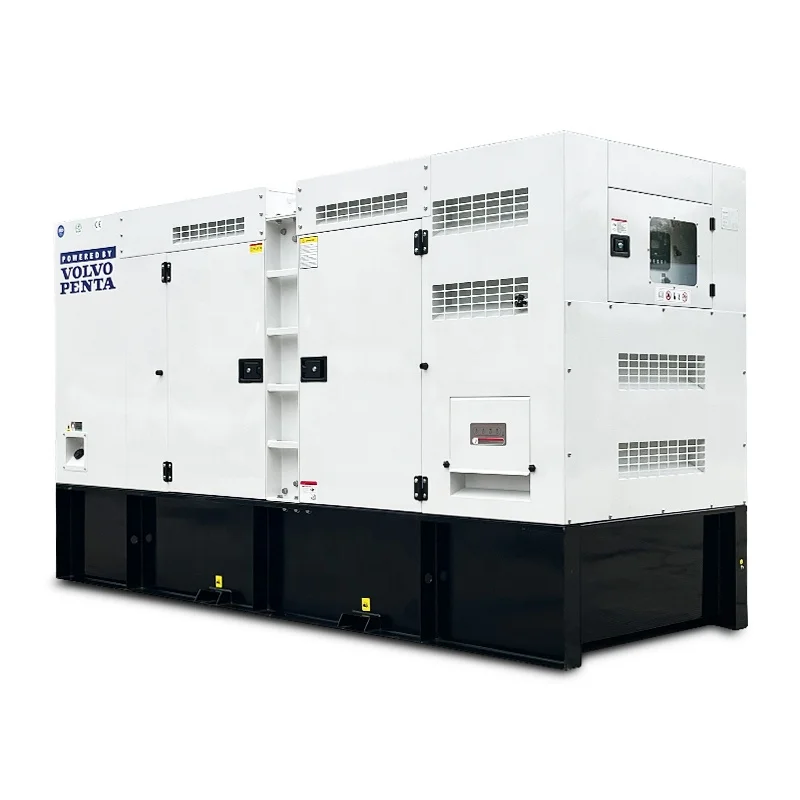

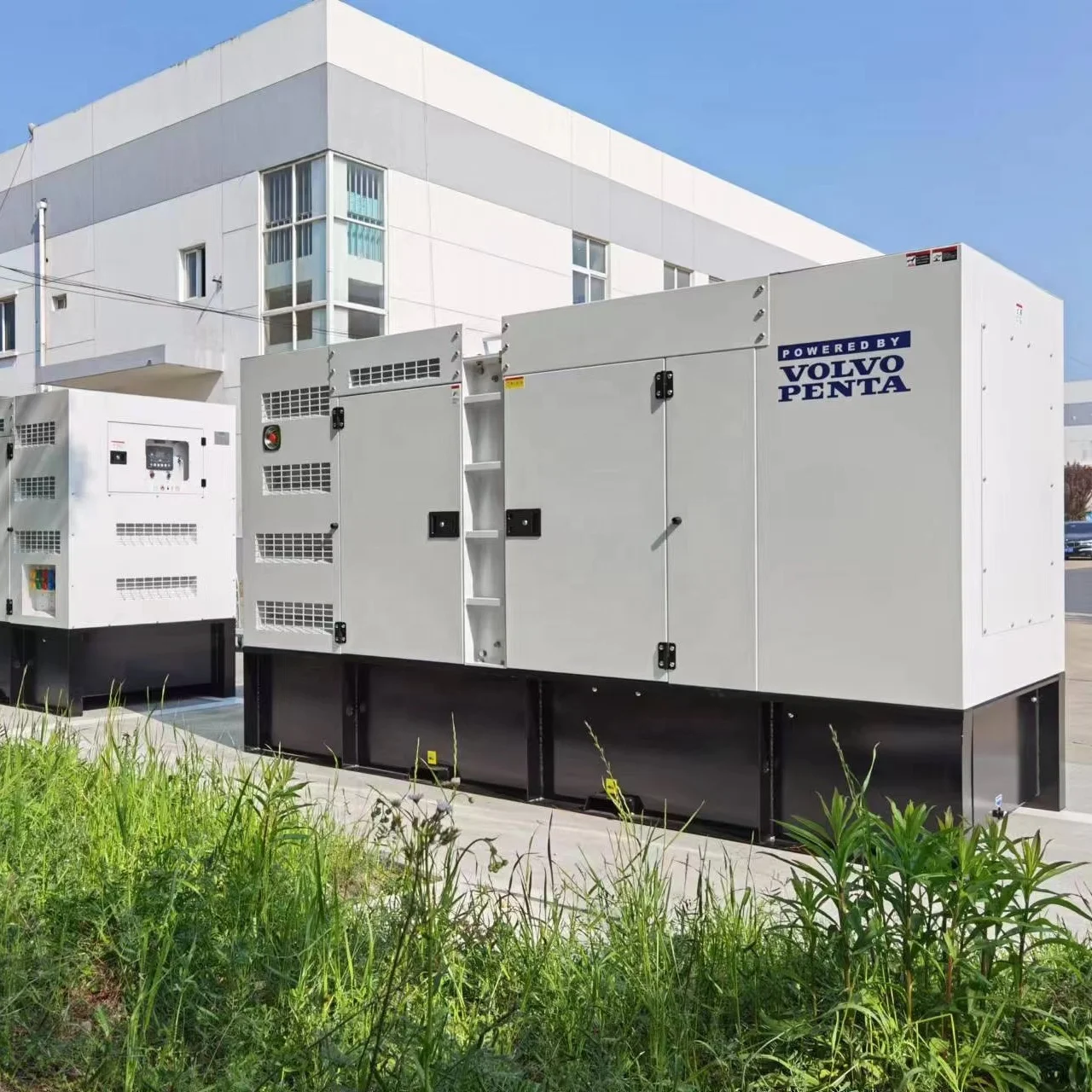

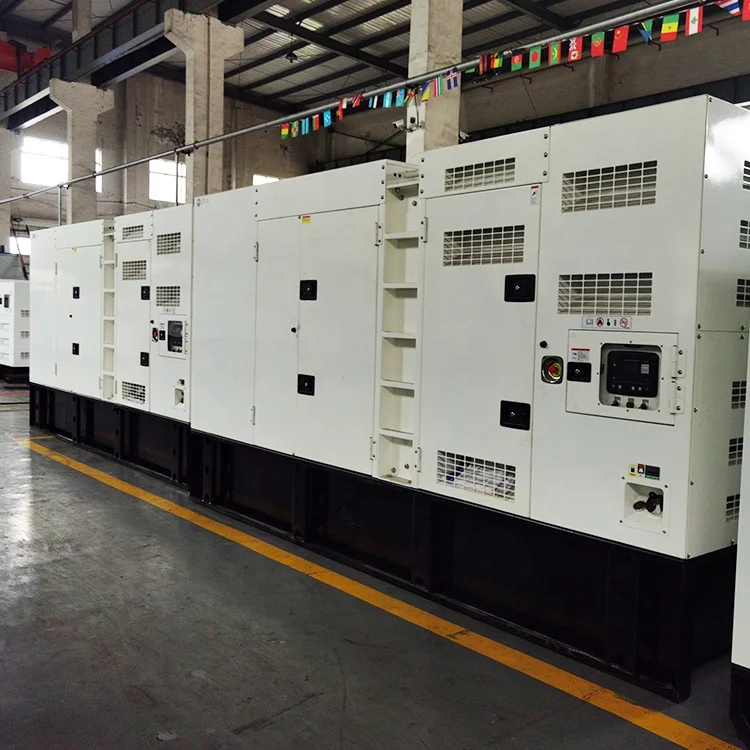

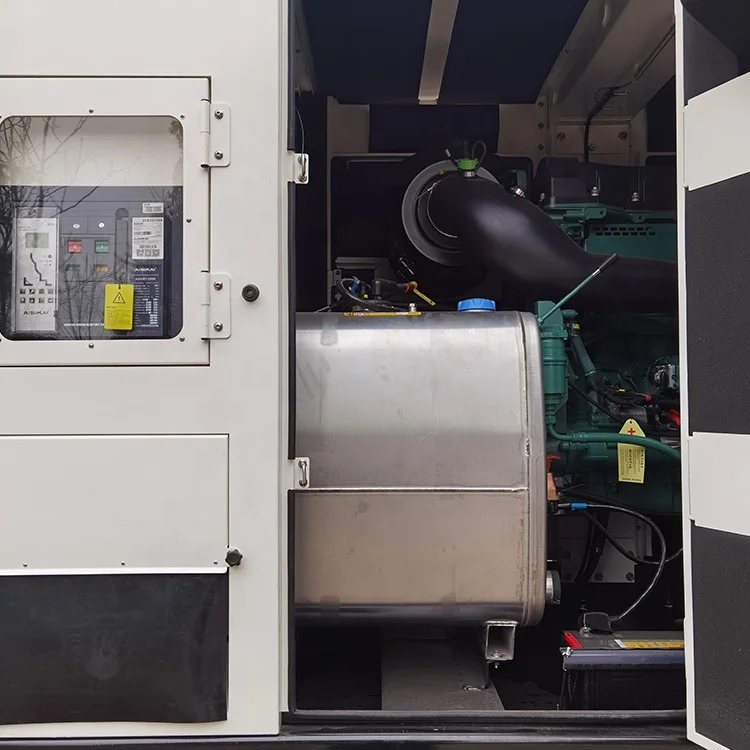

Powered by Volvo Penta engine 3 phase 400kw silent generator 500kva diesel generator set
- Category: >>>
- Supplier: Jiangsu Wellpower Generator Co. Ltd.
Share on (1600924569176):
Product Overview
Description
Product Parameters
Cummins Engine Parameters | ||
Engine Model | Volvo Penta TAD1650GE | |
Cylinder Arrangement | 6 cylinders vertical in line, 4 cycle | |
Combustion System | Direct injection | |
Displacement | 16.12 litres | |
Bore x Stroke | 144 x 165 mm | |
Compression Ration | 16.5:1 | |
Output Power/Speed | 439KW/1800rpm | |
Speed Governor | Electric | |
Cooling System | 23 litres | |
Steady Speed Droop | ＜1% | |
Total Lubrication System Capacity | 60 litres | |
Fuel Consumption at 100% Load | 208g/kWh | |
Starter Motor | 24V | |
Alternator Parameters | ||
Alternator Brand | Stamford/Leory Somer/Mecc Alt | |
Prime Power | 500kva | |
Frequency/Speed | 50Hz/1500rpm | |
Exciter Type | Brushless, Single Bearing, Self-excited | |
Power Factor | 0.8 | |
Voltage Adjust Range | ≥5% | |
Voltage regulation NL-FL | ≤±1% | |
Insulation Grade | H | |
Protection Grade | IP23 | |

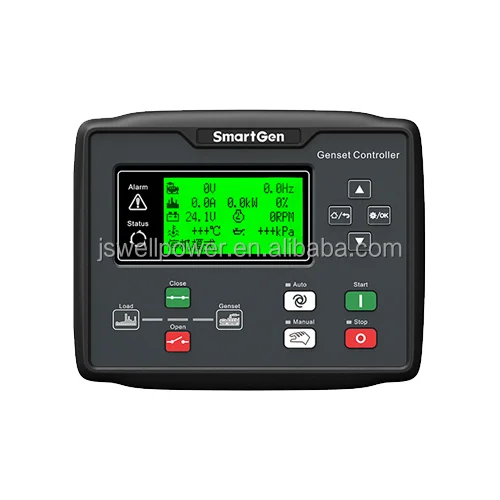

Smartgen/Deepsea/ComAP
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts
12+ Years' Manufacturing Experience
WELLPOWER GENERATORS, PROFESSIONAL POWER SOLUTION.

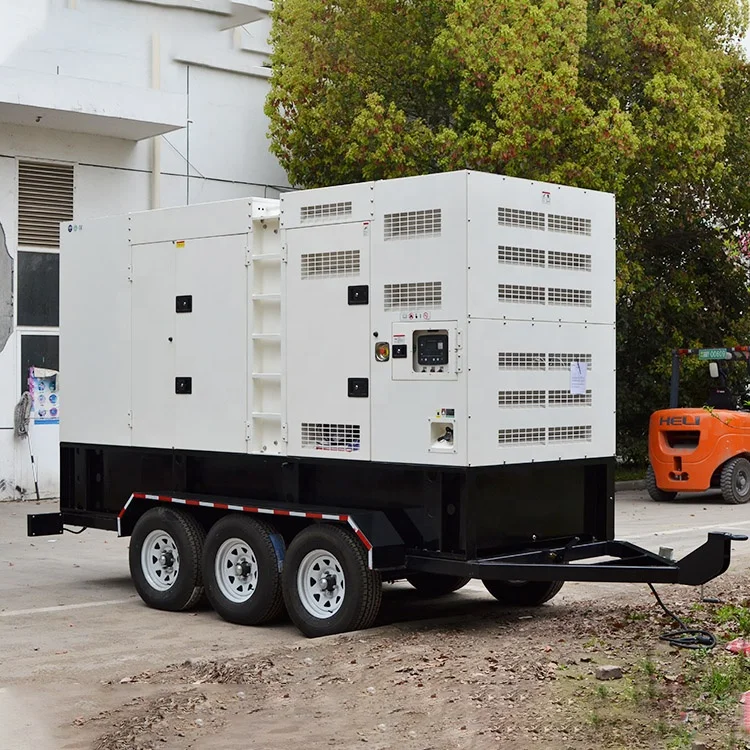

Jiangsu WellPower Generator Co., Ltd which is one of the largest diesel generator set manufacturers in China mainland.Until now,Wellpower has been exported to more than 80 countries and regions and have got a lot of praise from our customers.Our production capacity amounts to 9000 sets per year. We are specialized in making 5kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA...Our generator mainly use DEEPSEA and SMARTGEN control panel.According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts,customer satisfaction is our pursuit.
Selected Supply Chain
Quality Control & Certification
Our Service
Quality Assurance
Selected material, engine, alternator and control system etc.;
SOP throughout the whole production process;
Comprehensive OQC test to make sure each generator sent out with correct settings and functions, test video and report available.
Pre-sales Service
Free consultation on capacity analysis, right generator selection and detailed specification list;
Assistance with generator room collocation and facilities installation planning
Sales Service
For a easy operation and maintenance, we offer our users full set of wiring diagram, operation & maintenance manual and video training, on-site training also available upon request.
After Sales Service
12 months or 1000 working hours warranty for the genset supplied;
Equipped with quality backup system, 24 hours after-sales team for quick response that detailed to person, time and process;
All costs caused by quality defect during the warranty period will be taken by our party.
Feedback from Our Users
Related Products
FAQ
1.Q: What is your MOQ of this item?
2.Q: What is the lead time?
3.Q: Is it all right to make customer's own brand name?
4.Q: Where is your Loading Port?
5.Q: What are your payment terms?
6.Q: What is your company's available production capacity?
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
A:1 Set
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
