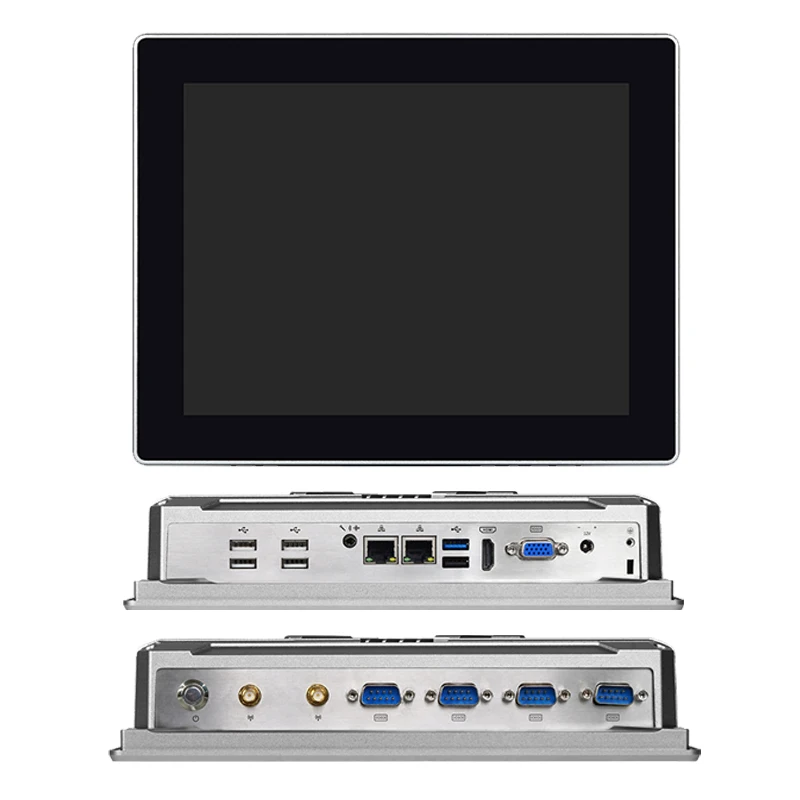

  • Zeroone 12.1 Inch Intel Celeron J1900 Embedded Industrial Fanless Panel Industrial PC HMI Panel PC
Zeroone 12.1 Inch Intel Celeron J1900 Embedded Industrial Fanless Panel Industrial PC HMI Panel PC
Zeroone 12.1 Inch Intel Celeron J1900 Embedded Industrial Fanless Panel Industrial PC HMI Panel PC
Zeroone 12.1 Inch Intel Celeron J1900 Embedded Industrial Fanless Panel Industrial PC HMI Panel PC
Zeroone 12.1 Inch Intel Celeron J1900 Embedded Industrial Fanless Panel Industrial PC HMI Panel PC
Zeroone 12.1 Inch Intel Celeron J1900 Embedded Industrial Fanless Panel Industrial PC HMI Panel PC
Zeroone 12.1 Inch Intel Celeron J1900 Embedded Industrial Fanless Panel Industrial PC HMI Panel PC
Zeroone 12.1 Inch Intel Celeron J1900 Embedded Industrial Fanless Panel Industrial PC HMI Panel PC

Zeroone 12.1 Inch Intel Celeron J1900 Embedded Industrial Fanless Panel Industrial PC HMI Panel PC

Share on (1600924586384):


Price:

Quantity:


Product Overview

Description



Specification


Product Model
HPC-1211
Display
12.1
Touch Screen
Resistive Touch Screen
Resolution Ratio
1024*768
Luminance
300cd/㎡
BIOS
AMI BIOS
Processor
Support Intel ® Bay Trail J1900/Gemini lake J4125/J4105/N4000/J6412/J6413/Intel®Kaby Lake & Sky Lake processor （6-7th）/Intel®Generation 8 Whiskeylake&Generation 10 Cometlake-Uprocessor
Chipset
Intel® SOC
Graphic display
Intel ® HD Graphics integrated graphics card
Network
Realtek RTL8106E
Audio
Realtek ALC662HD
Memory
DDR3L/ DDR4 -4G/8G/16G optional
Hard disk
M-SATA/M.2 2280 Sata -128G/256G/512G optional
Functions
Support WiFi, Bluetooth, 4G, watchdog, diskless startup, wake-on-LAN, power on startup

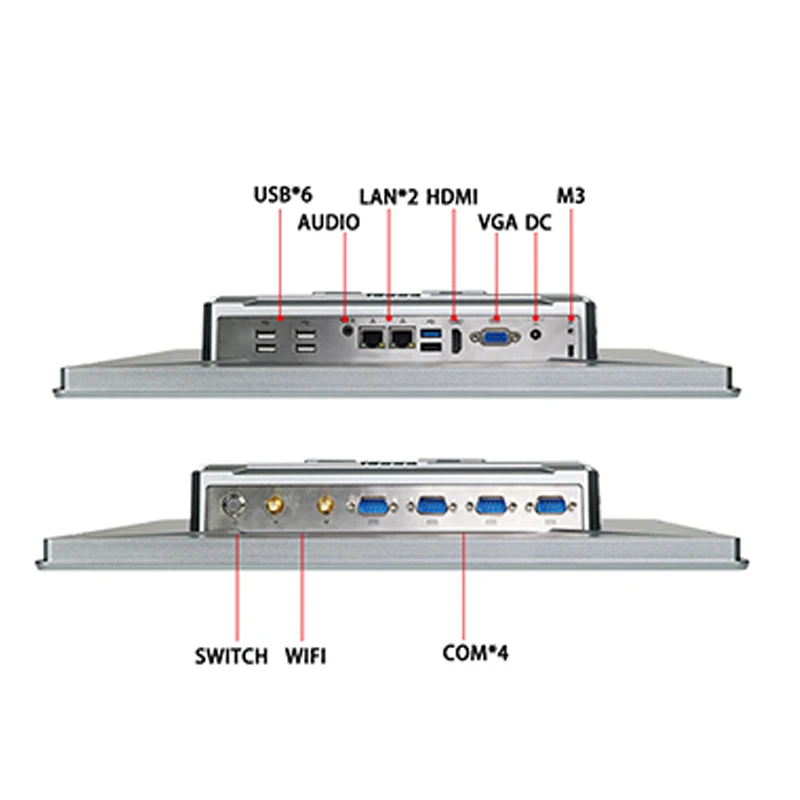

Front I/O
1 * Switch 2 * Antenna 4*COM
Rear I/O
1 * Audio interface
2 * LAN interface
1 * USB2.0 interface
1 * USB3.0 interface
1 * HDMI interface
1 * VGA interface
1 * DC IN interface
4 * USB interface
1 * M3 grounding screw hole
Power IN
DC 9V~24V wide voltage input
OS support
Windows 7 / Windows 10 / Linux
Power Adapter
INPUT : 100-240V 50/60Hz Output : 12.0V/5.0A
Heat dissipation
Fanless
Overall Power Consumption
<18W (screen 4W)
Installation Method
Compatible with embedded, wall mounted, and desktop versions
Dimensions
292x230x60mm
Weight
< 3.0kg
Product colour
Space Gray
Chassis material
Aluminum alloy structure


Product Paramenters


Detailed
-Support for Intel ® Bay Trail, Gemini lake, Elkhart lake, 6th generation Sky lake&7th generation Kaby lake, 8th generation
Whiskeylake&10th generation Cometlake U processors
-Supports SO-DIMM, M-SATA, M.2 Sata, M.2 NVME storage
-Standard 12.1-inch high-definition display screen, resistive touch screen, supporting dual display
-Standard dual network ports, some configurations support Intel encryption TPM2.0, and support 8 * GPIO
-Supports 1 * Mini PCIE (for WIFI), 1 * SIM, and supports 3G, 4G, and 5G modules
-Supports VESA bracket installation, wall mounted and desktop mounted
-Panel protection level: IP65 waterproof and dustproof
-ESD Protection: ±6kV (Contact ), ± 12kV (Air)
-The product can be widely used in industries such as industrial automation, environmental monitoring, wind power generation, 3D machine vision inspection, etc


If you do not have custom requirements, you can choose the following basic configuration：
10.1 inch
HPC-1011-J1900,HPC-1011-J4125,HPC-1011-J6412,HPC-1011-i5 6200U,HPC-1011-i3 8145U
12.1 inch
HPC-1211-J1900,HPC-1211-J4125,HPC-1211-J6412,HPC-1211-i5 6200U,HPC-1211-i3 8145U
15.6 inch
HPC-1511-J1900,HPC-1511-J4125,HPC-1511-J6412,HPC-1511-i5 6200U,HPC-1511-i3 8145U,HPC-1512-i5 8365U,HPC-1512 4LAN-i5 8365U
17.3 inch
HPC-1711-J1900,HPC-1711-J4125,HPC-1711-J6412,HPC-1711-i5 6200U,HPC-1712-i5 8365U

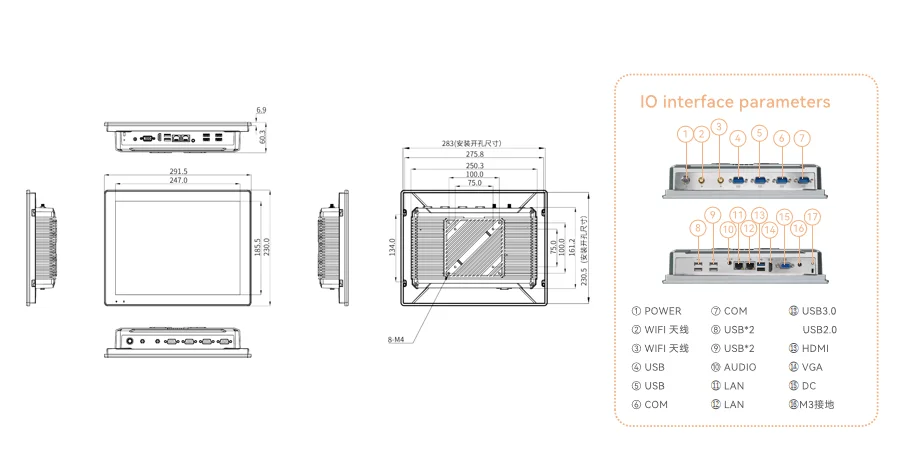

Drawing
