HSM New Type Four Roller Crusher Dolomite Crusher 4 Roller for Sand Making Machine
- Category: >>>
- Supplier: Gongyi City Huashengming Heavy Industry Machinery FactoryGongyi Factory
Share on (1600924630320):
Product Overview
Description
Products Description
Product introduction
zhengzhou four roller crusher applies to cement, chemical industry, electric industry, metallurgy, construction, refractory material etc. zhengzhou four roller crusher is usually used in middle and fine crushing stage to crushed medium hardness materials including limestone, coke, coal, gravel, gypsum, ores, mine refuse, furnace slag, steel slag etc. We also has 2pg roll crusher, teeth roll crusher.
It is suitable for crushing sticky stone material into medium size. Roller crusher utilizes two rollers rotating in opposite
direction to crush the material, which consists of motor, bracket, fixed rollers, movable rollers and springs. Most of its roller surfaces are glossy, and the bearings of the movable rollers can be moved along the machine frame and held against it by springs.
Therefore, When a particularly hard object accidentally drops into the machine, the bearing can be moved out of the way to expel it.
direction to crush the material, which consists of motor, bracket, fixed rollers, movable rollers and springs. Most of its roller surfaces are glossy, and the bearings of the movable rollers can be moved along the machine frame and held against it by springs.
Therefore, When a particularly hard object accidentally drops into the machine, the bearing can be moved out of the way to expel it.
Furthermore, before the machine runs, the gap between the two rolls should be adjusted with shims to ensure the crushing size.
Pictures of high manganese steel Roll skin (wear parts of four roll stone crushing machine). Huashengming use high manganese steel casting roll skin which is through heat treatment. Because of less quick-wear part which is only roll skin, so four roll stone crushing machine is most popular nowadays.
Application
Applicable materials:River pebble, calcite, quartzite, marble, pebble, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, diabase, granite, basalt and so on
Application scope: Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.
Application scope: Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.
Product Paramenters
Model | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Motor Power (Add Heavy) (kw) | Protection Mode | Transmission Mode | ||
4PG0404PT | <20 | 0.1-10 | 2-30 | 7.5(11) | 11(15) | Spring | Coupling or V-belts | |
4PG0605PT | <40 | 0.1-15 | 5-60 | 22(30) | 30(37) | |||
4PG0806PT | <40 | 0.1-20 | 8-90 | 30(37) | 37(45) | |||
4PG0809PT(Y) | <60 | 0.1-20 | 12-120 | 37(45) | 45(55) | Spring or Hydraulic | ||
4PG0812PT(Y) | <60 | 0.1-20 | 20-180 | 45(55) | 55(75) | |||
4PG1012PT(Y) | <80 | 0.1-30 | 30-220 | 55(75) | 75(90) | |||
4PG1212PT(Y) | <90 | 0.1-40 | 45-320 | 75(90) | 90(110) | |||
4PG1216PT(Y) | <90 | 0.1-50 | 55-400 | 90(110) | 110(132) | |||
4PG1218PT(Y) | <90 | 0.1-50 | 70-500 | 110(132) | 132(160) | |||

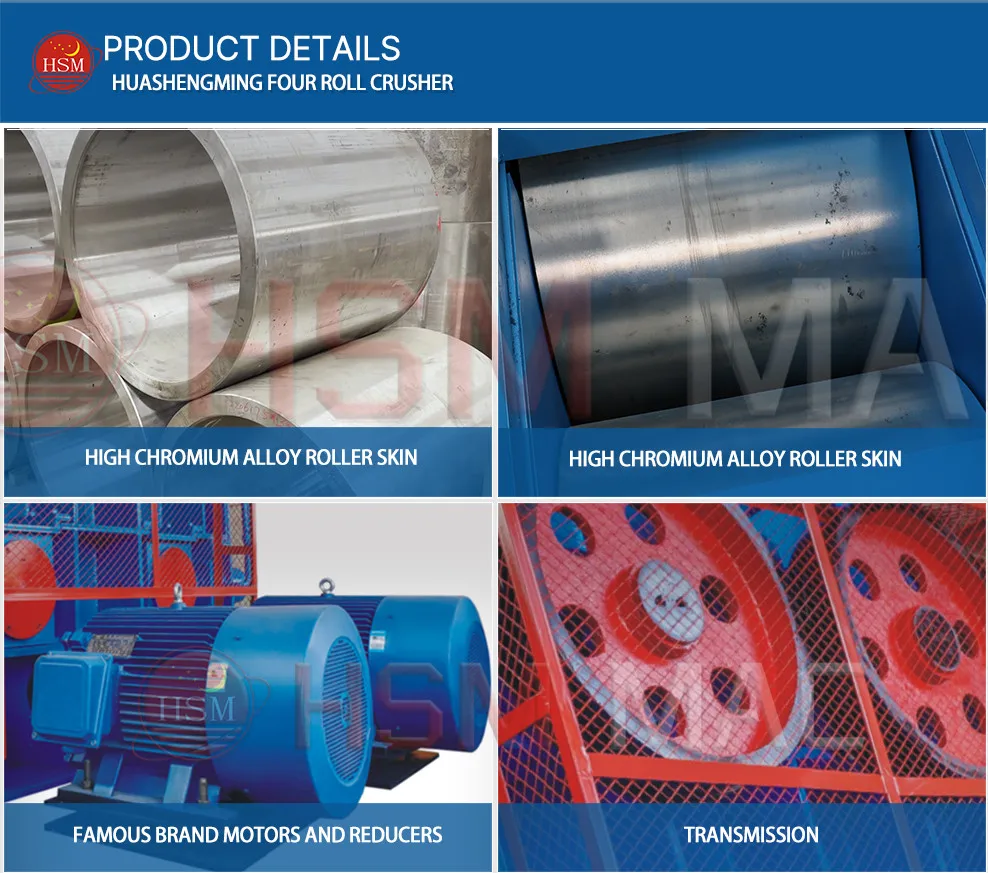

Details Images
Reasons for choosing us
1. Compared with hammer sand making machine, double roller sand making machine does not need to replace wearing parts.
2.The finished product features pretty shape, well gradation, low over-crushing rate and high output.
3. Fine crushing sand making machine is superior to hammer crusher and impact crusher, and the average service life of its roller sleeve is more than 2 years.
4．Roller skin contains high content of chromium, manganese and other rare metal materials.
Adjustable discharge size.
2.The finished product features pretty shape, well gradation, low over-crushing rate and high output.
3. Fine crushing sand making machine is superior to hammer crusher and impact crusher, and the average service life of its roller sleeve is more than 2 years.
4．Roller skin contains high content of chromium, manganese and other rare metal materials.
Adjustable discharge size.

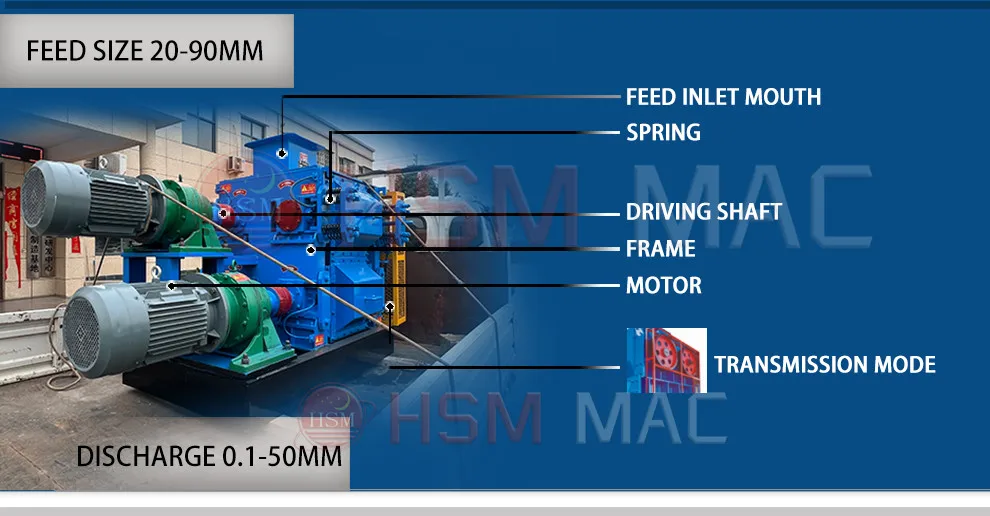

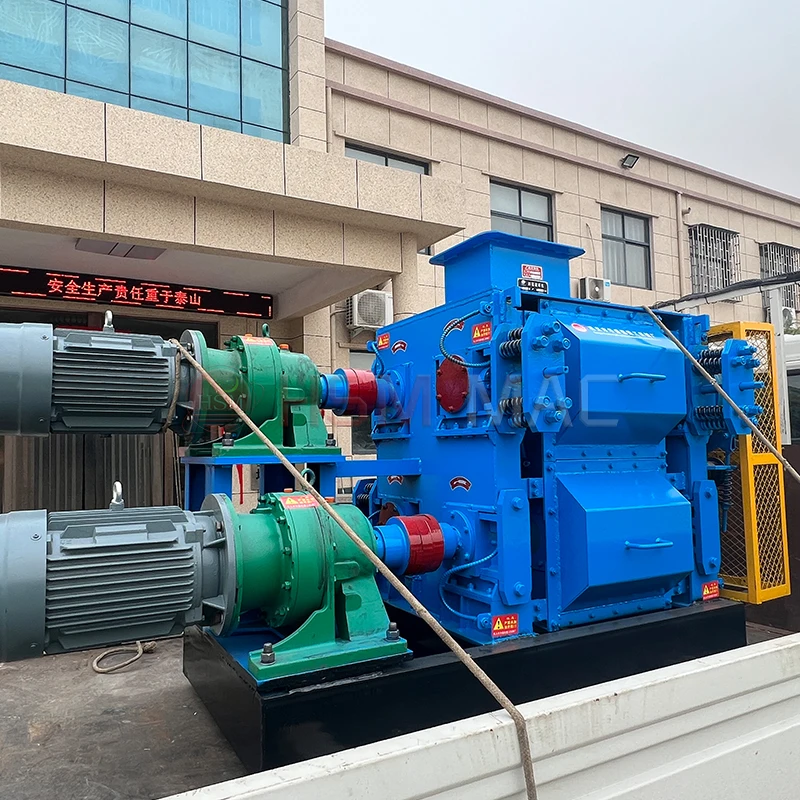

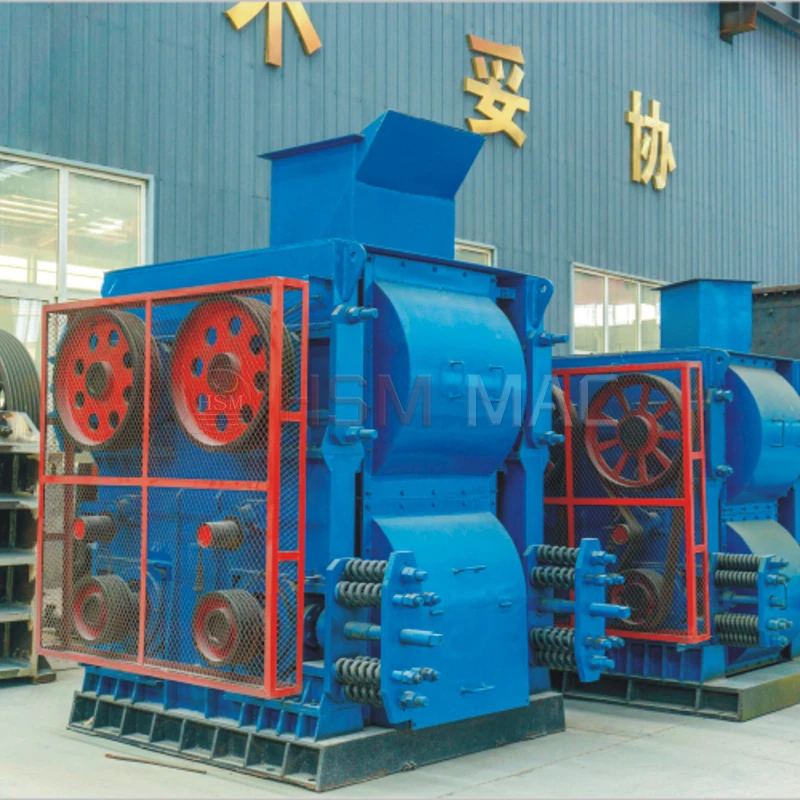

Four roller crusher consists of roll wheel, roll bearing, pressing device, adjusting device and driving device
etc.Four roller crusher has two kinds of roll surface, one is smooth surface called roll crusher, one is tooth
surface called toothed roll crusher.
This kind of four roller crusher machine consists of two motors, which take two rolls to rotate reversely by the decelerator. When the materials drop on the rolls through the charge hole, under the friction of the rolls, they are dragged between the two rolls, and grinded by the roll's crushing, the ground materials are pushed rotatory by the rolls
etc.Four roller crusher has two kinds of roll surface, one is smooth surface called roll crusher, one is tooth
surface called toothed roll crusher.
This kind of four roller crusher machine consists of two motors, which take two rolls to rotate reversely by the decelerator. When the materials drop on the rolls through the charge hole, under the friction of the rolls, they are dragged between the two rolls, and grinded by the roll's crushing, the ground materials are pushed rotatory by the rolls
Advantages
1. Four roller crusher gives a very fine product size distribution and produces very little dust or fines.
2. Four roller crusher is effectively used in minerals crushing where the ores are not too abrasive and it is also used in smaller scale production mining of more abrasive metal ores, such as gold.
3. Coal is probably the largest user of roll crusher currently. Coal plants will use roll crushers, either single roller or double roller. Usually, this crusher will have teeth or raised forms on the face of the roll.
4. Besides, four roller crusher is easy to operate, low in consumption, stable in running and simple in fabrication.
5. Four roller crusher is stable operation, easy maintenance, low cost, output size adjustable.
2. Four roller crusher is effectively used in minerals crushing where the ores are not too abrasive and it is also used in smaller scale production mining of more abrasive metal ores, such as gold.
3. Coal is probably the largest user of roll crusher currently. Coal plants will use roll crushers, either single roller or double roller. Usually, this crusher will have teeth or raised forms on the face of the roll.
4. Besides, four roller crusher is easy to operate, low in consumption, stable in running and simple in fabrication.
5. Four roller crusher is stable operation, easy maintenance, low cost, output size adjustable.
Company Profile
Exhibition
Customer Photos
Installation Instructions
Packing
1.Rustproof and moisture proof before delivery. 2.Free fumigation plywood case for single machine,larger parts are wrapped by
plastic sheeting. 3.Export standard container 20GP, 40GP, 40HQ, etc. for production line.
4. Other packaging according to your special requirement.
Shipment
We usually accept EXW, FOB and CIF etc. terms.
1.By sea or by train. we have 20 years cooperate transport company. best\u007Ffreight, fast delivery.
2.Send B/L in 3-5 days after ship leaving. will remind you before ship arrival
Training & service
1.Design most suitable flow chart and layout freely according to your request.
2.Provide operating instruction and relative drawing.
3.We can send 1-2 technicians to the site for guiding the installation and commissioning.
4.We offer training service for free.
5.We offer the components with favorable price.
1.Rustproof and moisture proof before delivery. 2.Free fumigation plywood case for single machine,larger parts are wrapped by
plastic sheeting. 3.Export standard container 20GP, 40GP, 40HQ, etc. for production line.
4. Other packaging according to your special requirement.
Shipment
We usually accept EXW, FOB and CIF etc. terms.
1.By sea or by train. we have 20 years cooperate transport company. best\u007Ffreight, fast delivery.
2.Send B/L in 3-5 days after ship leaving. will remind you before ship arrival
Training & service
1.Design most suitable flow chart and layout freely according to your request.
2.Provide operating instruction and relative drawing.
3.We can send 1-2 technicians to the site for guiding the installation and commissioning.
4.We offer training service for free.
5.We offer the components with favorable price.
FAQ
1. Q: Can I visit your factory?
A: Yes. Many domestic and overseas customers visited our factory every year.
2. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is 1 years(12 months), and we can supply spare parts also.
3. Q: Do you provide after-sales service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
4. Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All
of our engineers have passport.
5. Q: Do you provide a production flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for stone-crushing plants and various ores
beneficiation lines.
6. Q: Can you test our sample raw material??
A: Yes. You can send your samples to us for testing and analysis.
7. Q: Have you made the whole stone crushing line?
A: Yes. We have made many large&small scale stone crushing line at home and abroad.
1. Q: Can I visit your factory?
A: Yes. Many domestic and overseas customers visited our factory every year.
2. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is 1 years(12 months), and we can supply spare parts also.
3. Q: Do you provide after-sales service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
4. Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All
of our engineers have passport.
5. Q: Do you provide a production flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for stone-crushing plants and various ores
beneficiation lines.
6. Q: Can you test our sample raw material??
A: Yes. You can send your samples to us for testing and analysis.
7. Q: Have you made the whole stone crushing line?
A: Yes. We have made many large&small scale stone crushing line at home and abroad.
