Raw materials photovoltaic solar panel EVA lamination film for solar cell encapsulation
- Category: >>>
- Supplier: Nuuko Power Co. Ltd.Nuuko Ltd.
Share on (1600924643268):
Product Overview
Description
Product Description
1.Excellent optical performance;
2.Less lamination time,high encapsulation efficiency;
3.Excellent durability performance(Including high temperature/humidity resistance and UV test);
4.Excellent performance for Anti-PID;
5.Excellent performance for Anti- Snail track.

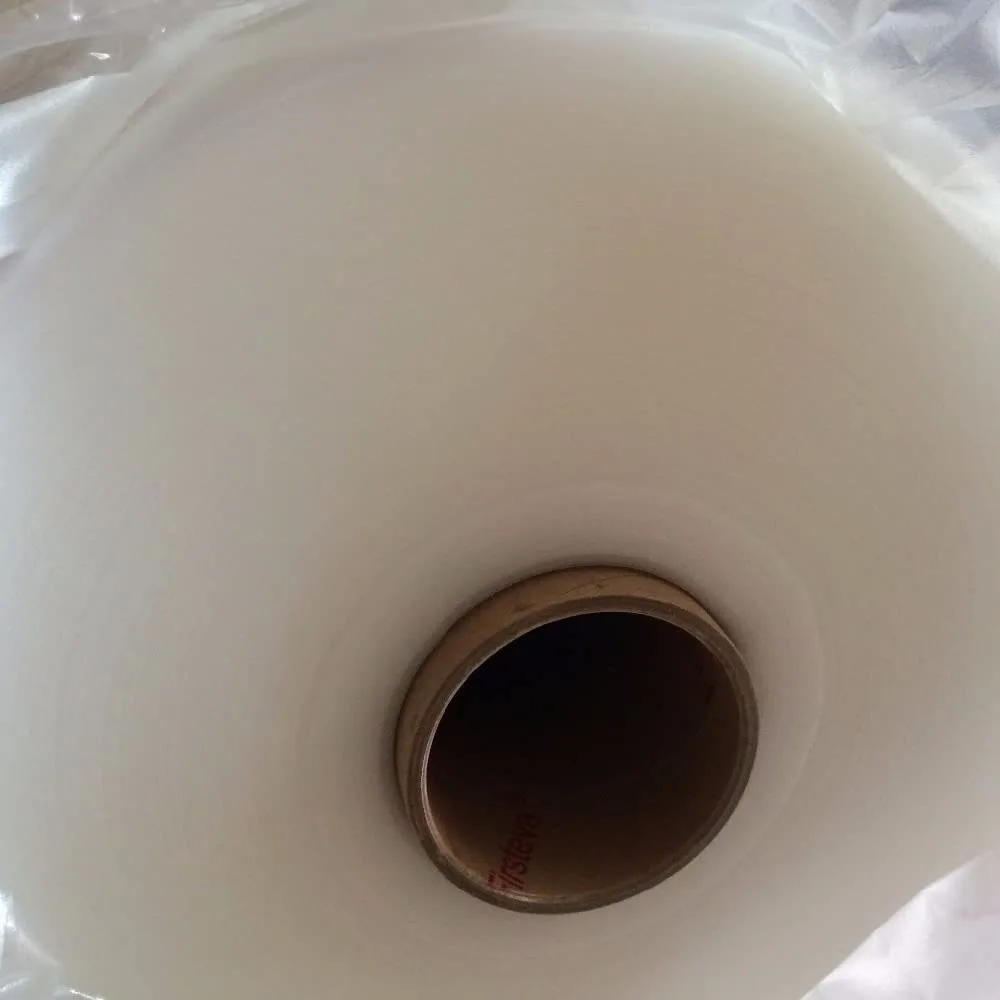

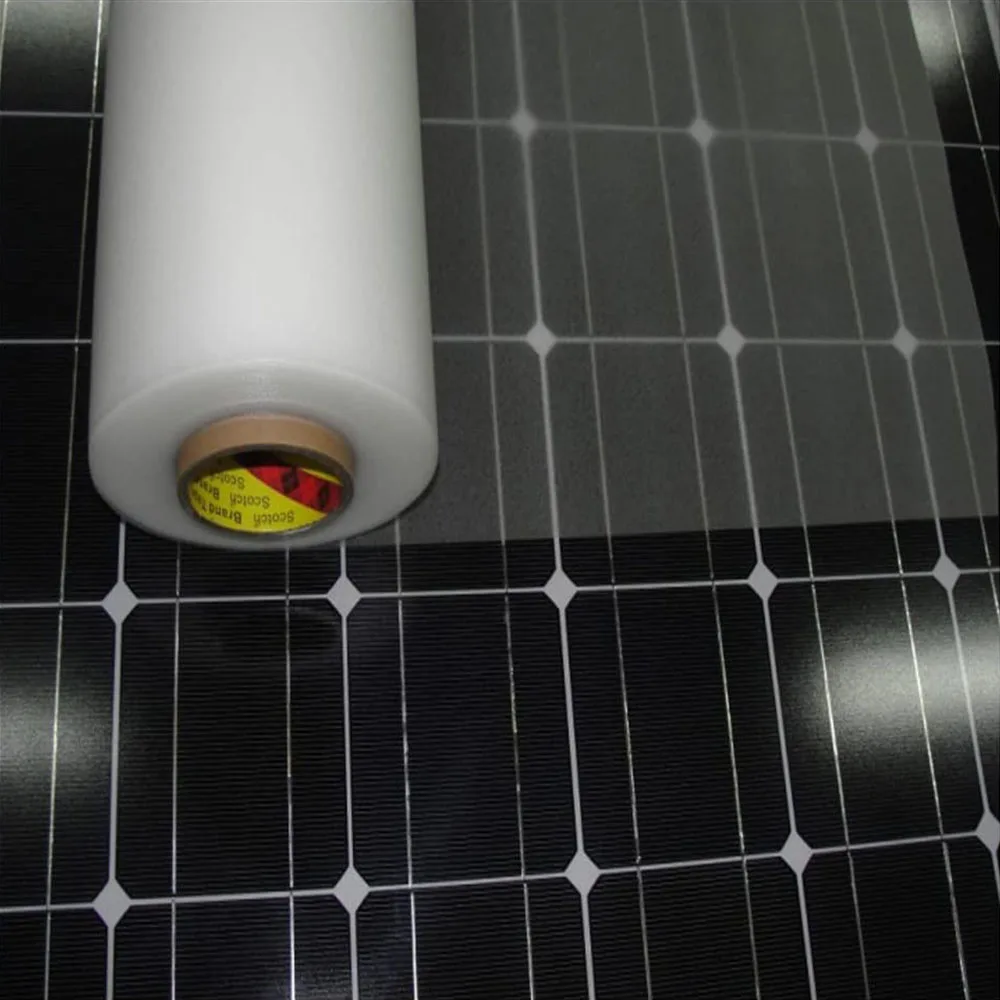

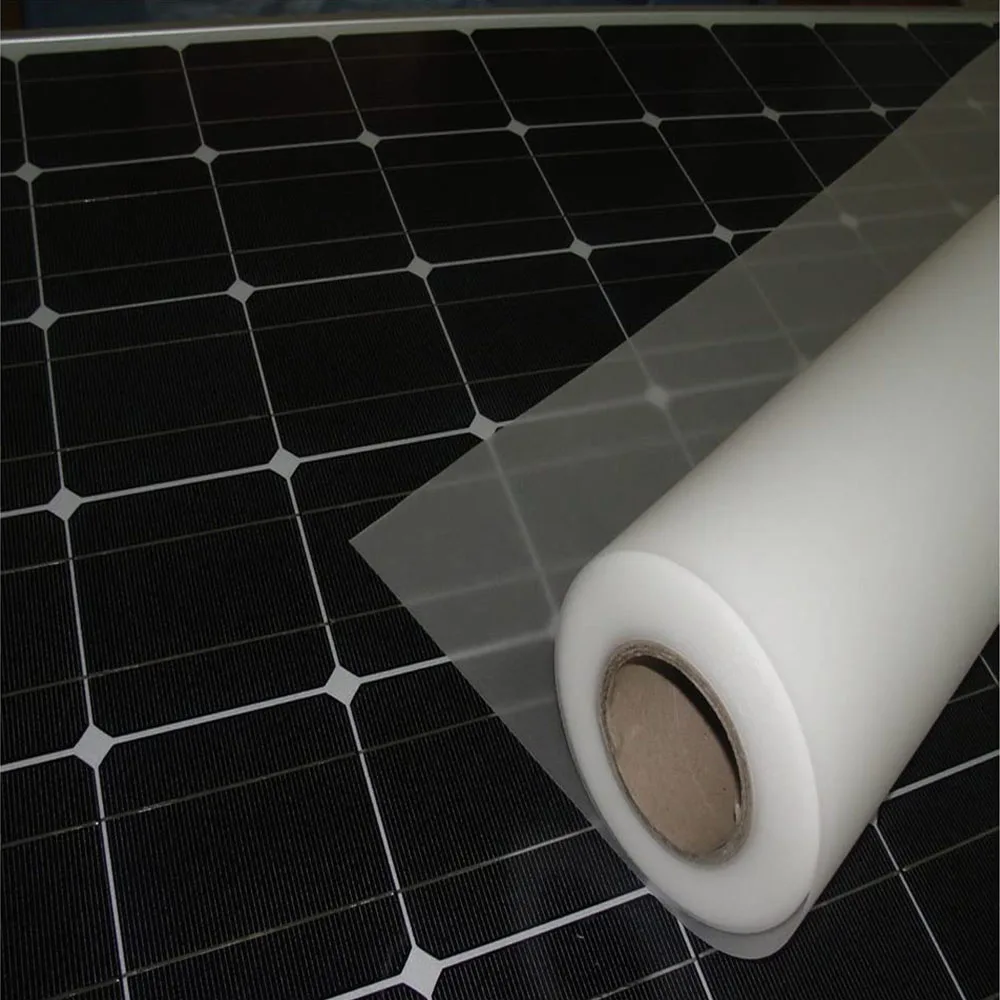

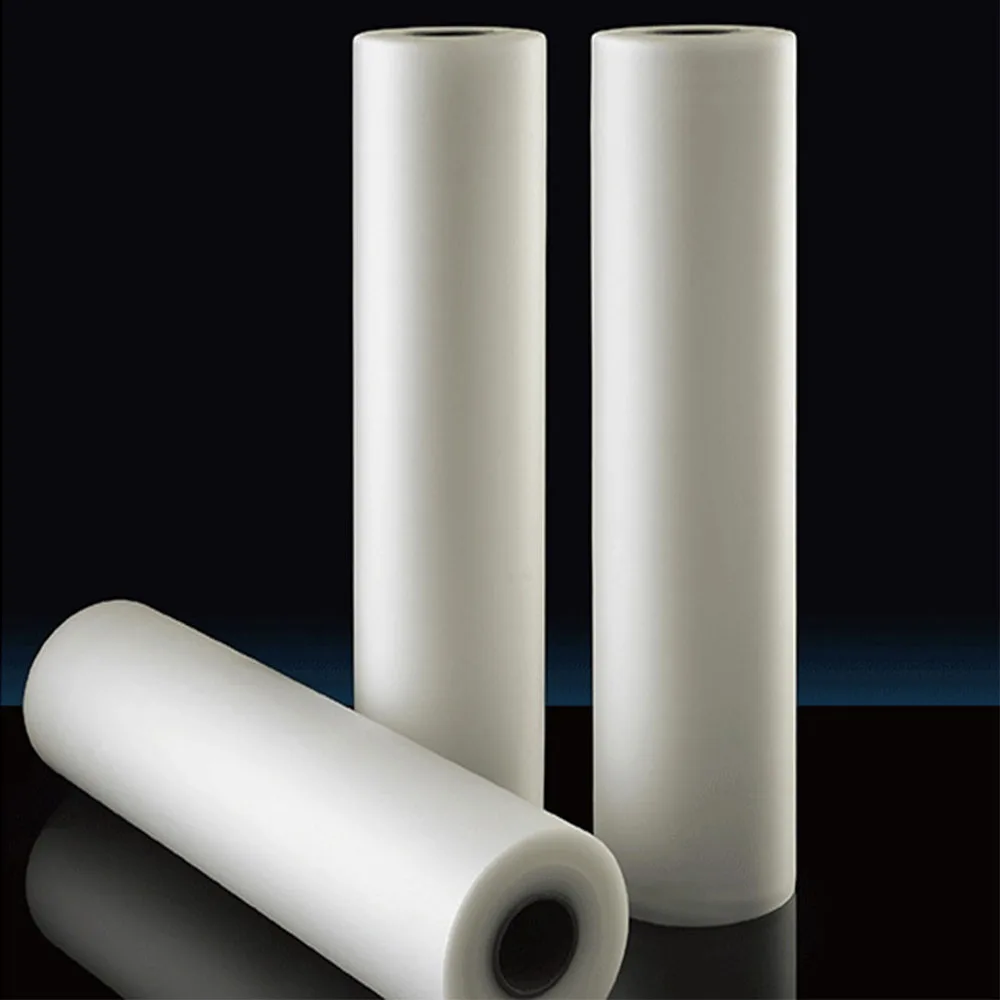

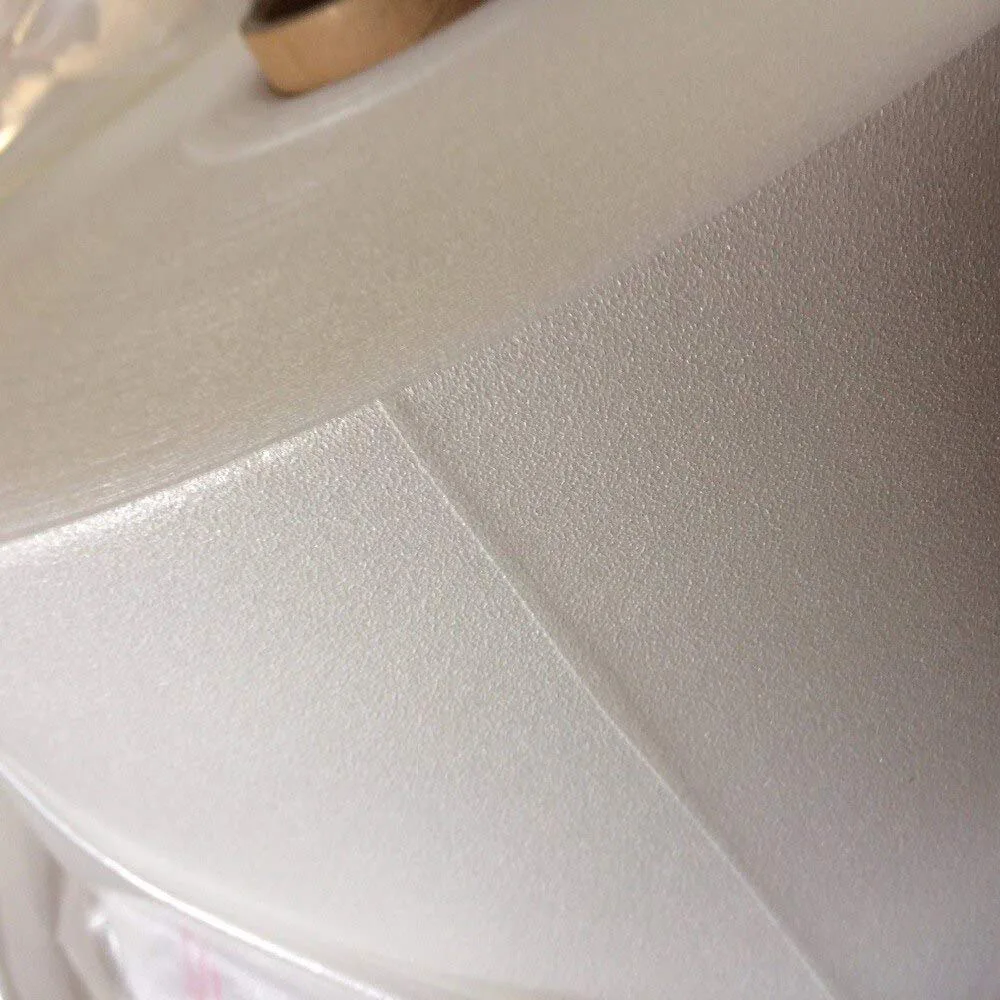

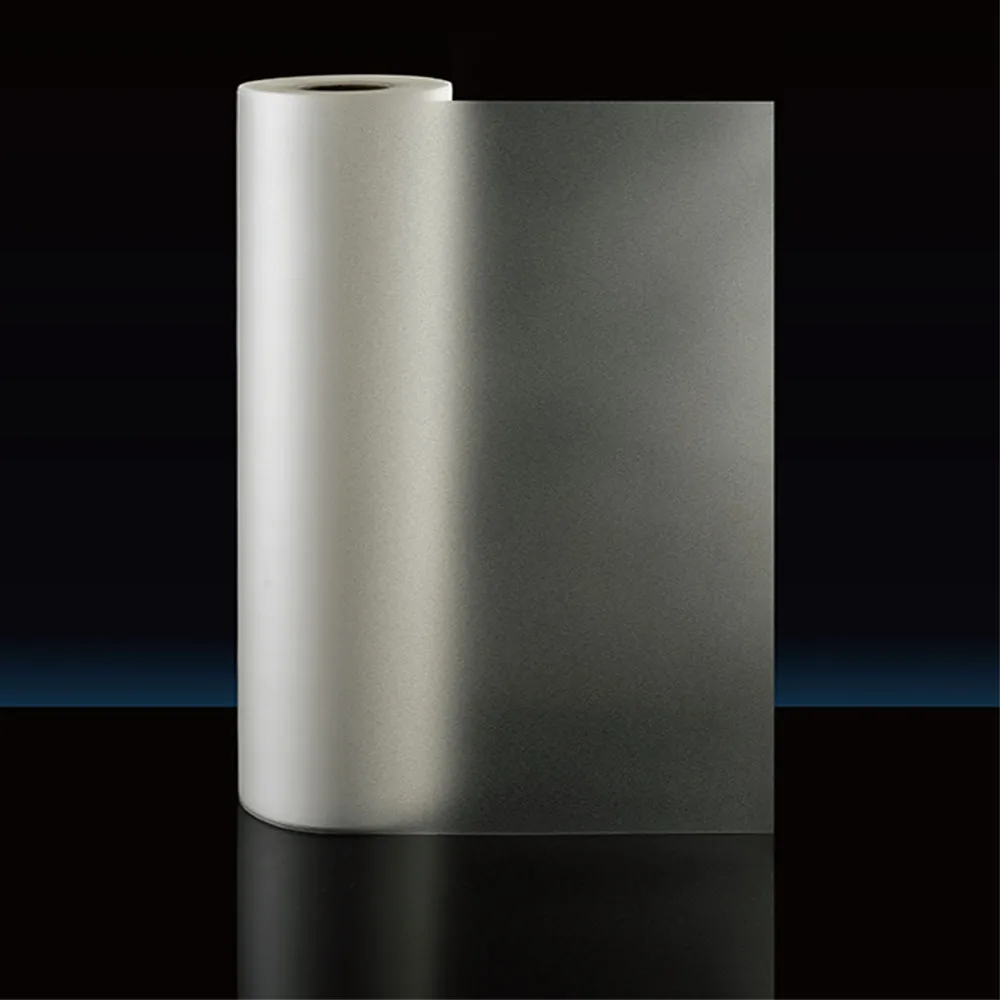

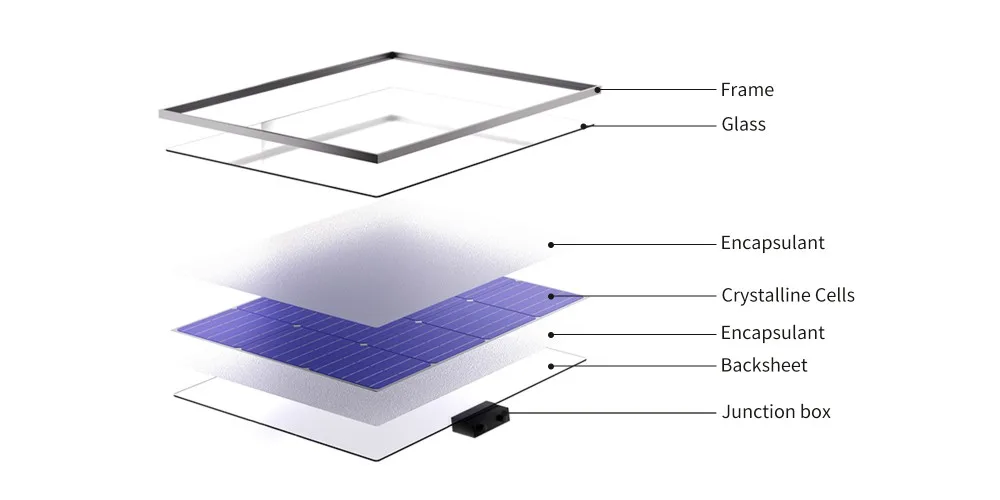

Detailed Images
It is the ultrafast cure EVA, with excellent Anti-PID Anti-Snail track. Compared to normal EVA, the Lamination time of ultrafast cure type is shorter, which can improve module production efficiency greatly.
Performance:
| Property | Unit | Test Method | High Transparent | UV Cut off |
| Width | mm | HIUV method | 970-1300 | 970-1300 |
| Thickness | mm | 0.60±0.10 | 0.60±0.10 | |
| Optical Transmission (290-380nm) | >70 | <30 | ||
| Optical Transmission (380-1100nm) | % | >91 | > 91 | |
| Gel content | Gel% | HIUV method | >70 | >70 |
| Shrinkage Rate ( 120°C, 3min) | % | MD≤4.0
| MD≤4.0 | |
TD≤1.5 | TD≤1.5 | |||
| Peeling Strength With Glass | N/cm | ASTM D903 | >60 | >60 |
| Peeling Strength With Backsheet | N/cm | >50 | >50 | |
| Volume Insulating Resistance | Ω. cm | GB/ T1410-2006 | ≥1x10∧15 | ≥1x10∧15 |
| UV Light Resistance (120kWh/ m2) | ΔYI | ASTM G154 | <5.0 | <5.0 |
| Heat/ Humidity Resistance(80°C.85%RH,2000hr) | ΔYI | ASTM E313 | <5.0 | <5.0 |
Production Flow
Certifications
Trade Shows
Our team has nearly 10 years experience in photovoltaic industry. If you have any need, kindly send us inquiry or contact with me as below:
