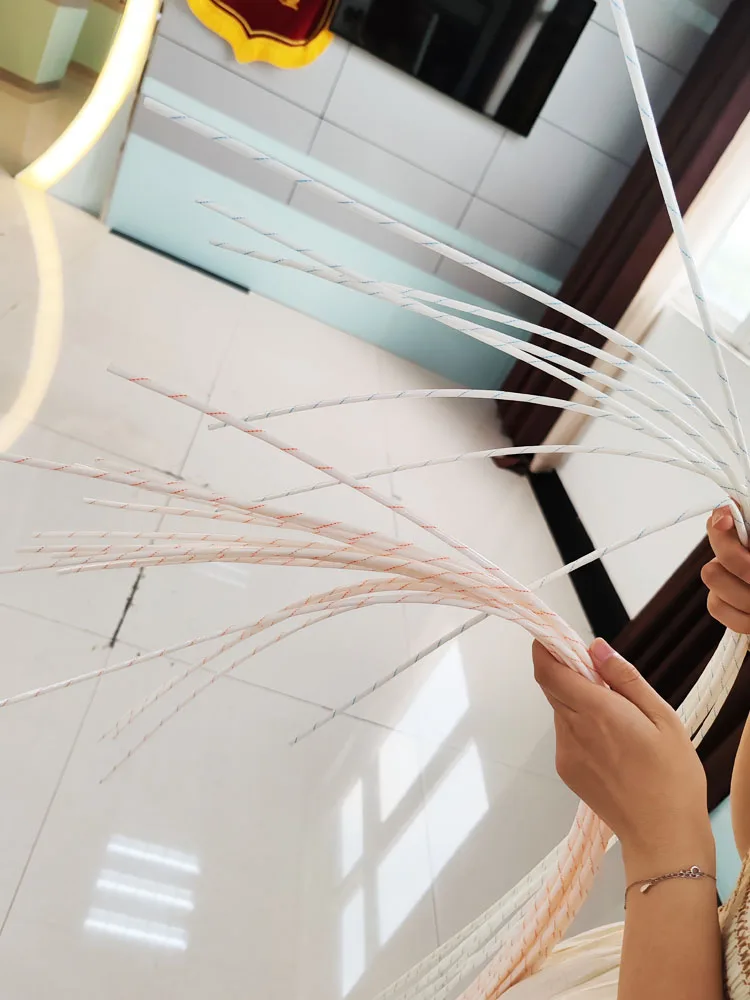

Yaan electrical wire pvc fiberglass insulation sleeving 4kv 2715 pvc fiberglass sleeves insulation tube
Yaan electrical wire pvc fiberglass insulation sleeving 4kv 2715 pvc fiberglass sleeves insulation tube
Yaan electrical wire pvc fiberglass insulation sleeving 4kv 2715 pvc fiberglass sleeves insulation tube
Yaan electrical wire pvc fiberglass insulation sleeving 4kv 2715 pvc fiberglass sleeves insulation tube
Yaan electrical wire pvc fiberglass insulation sleeving 4kv 2715 pvc fiberglass sleeves insulation tube
Yaan electrical wire pvc fiberglass insulation sleeving 4kv 2715 pvc fiberglass sleeves insulation tube
Yaan electrical wire pvc fiberglass insulation sleeving 4kv 2715 pvc fiberglass sleeves insulation tube

Yaan electrical wire pvc fiberglass insulation sleeving 4kv 2715 pvc fiberglass sleeves insulation tube

Share on (1600924659082):


Price:$0.10 - $0.30

Quantity:


Product Overview

Description



Product Introduction


heat resistant wire sleeving non-shrinking electrical pvc pipe insulation sleeve 2715 pvc insulation tube


2715 fiberglass sleeves.
2715 polyvinyl chloride fiberglass sleeve is referred to as yellow wax tube for short. The product is an electrical insulating sleeve made of alkali-free glass fiber tube coated with modified polyvinyl chloride resin and plasticized. Applied to the wiring and mechanical protection of motors, circuits, instruments, meters and household electrical appliances.It has good dielectric properties and chemical resistance, good mechanical strength.


Product Features:
2715 PVC Fiberglass Sleeving has excellent flexibility and elasticity as well as good dielectric properties and chemical resistance.


Type:
2715 PVC Fiberglass Sleeving
Standard voltage:
1.5/2.5/4KV
Insulation grade:
Grade A
Color:

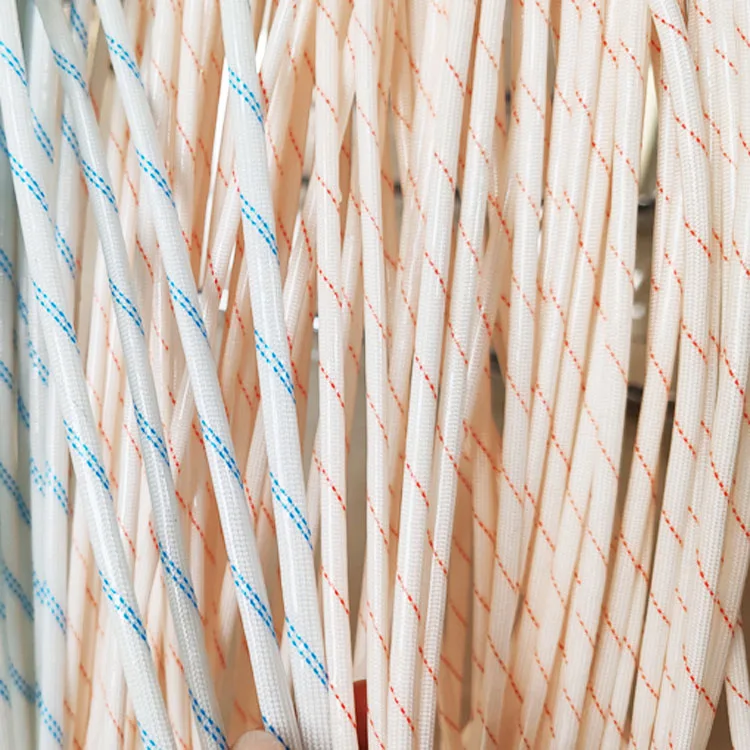

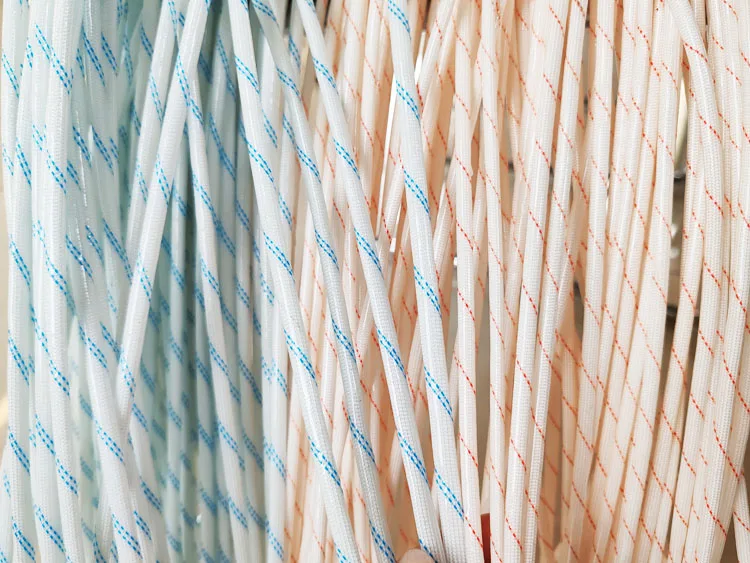

Red line/Blue Line
Length:
1m
Inner diameter:
1-35mm




Product Details




Yellow wax tube is a kind of glass fiber insulating sleeve, which is an electrical insulating tube made of non-alkali glass fiber tube coated with modified polyvinyl chloride resin and plasticized. It has excellent softness and elasticity, good dielectric properties and chemical resistance, and is suitable for wiring insulation and mechanical protection of motors, electrical appliances, instruments, radios and other devices.


Different inner diameter roll packaging
1M insulating tube packaging

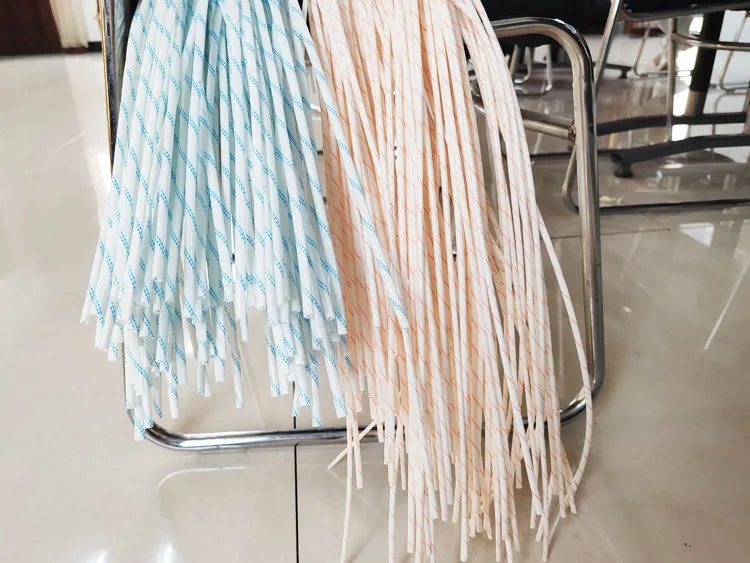

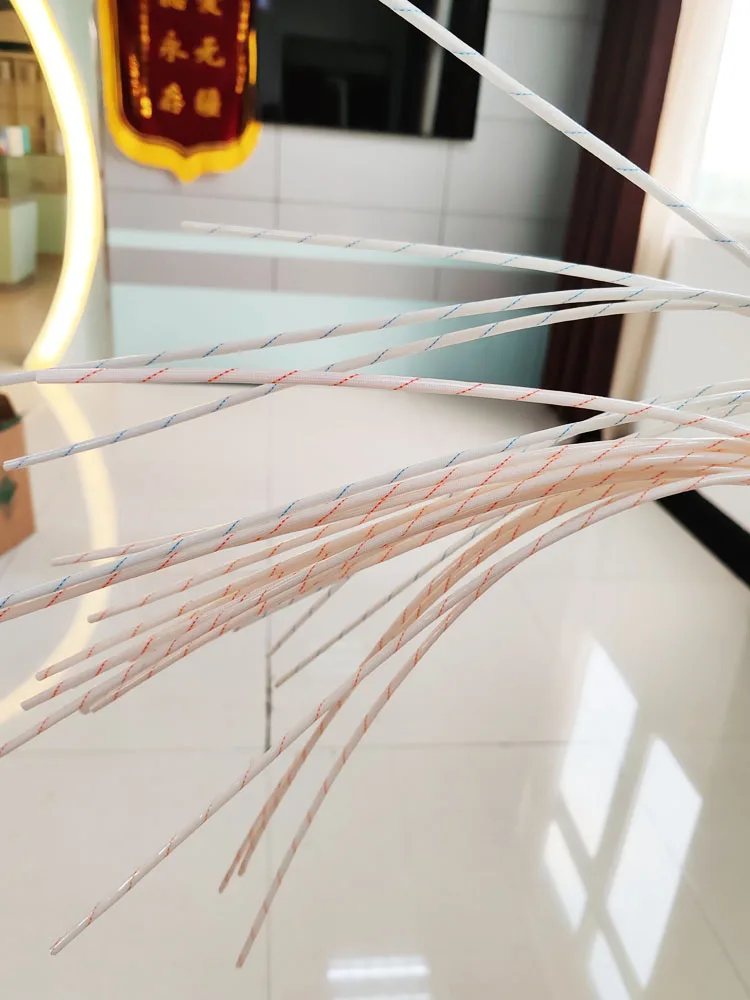

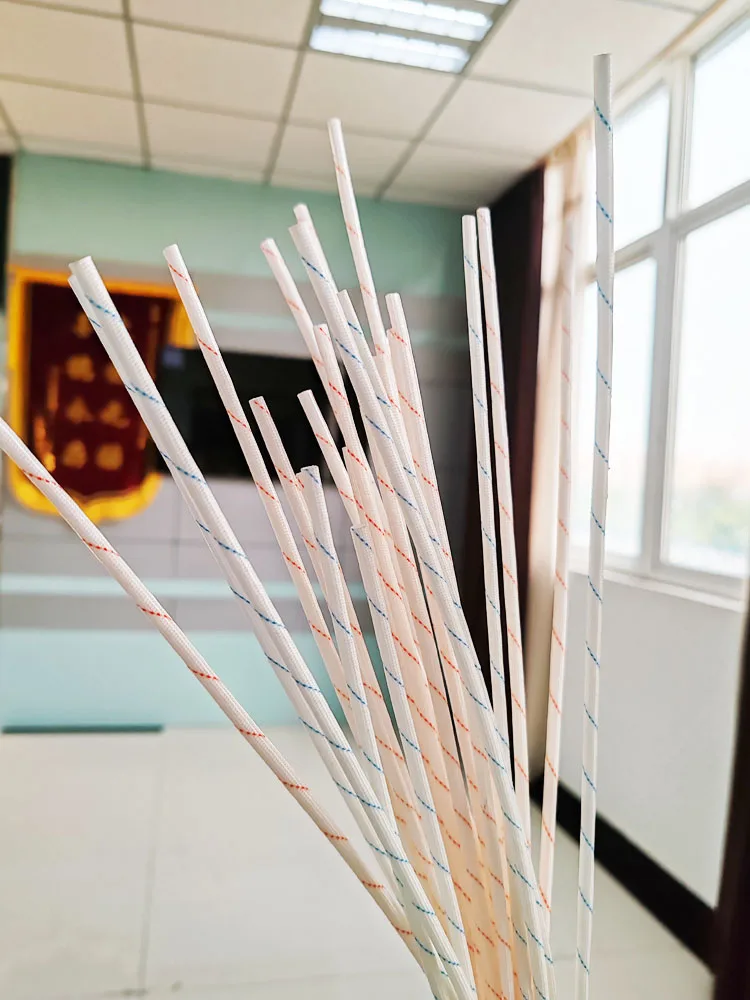

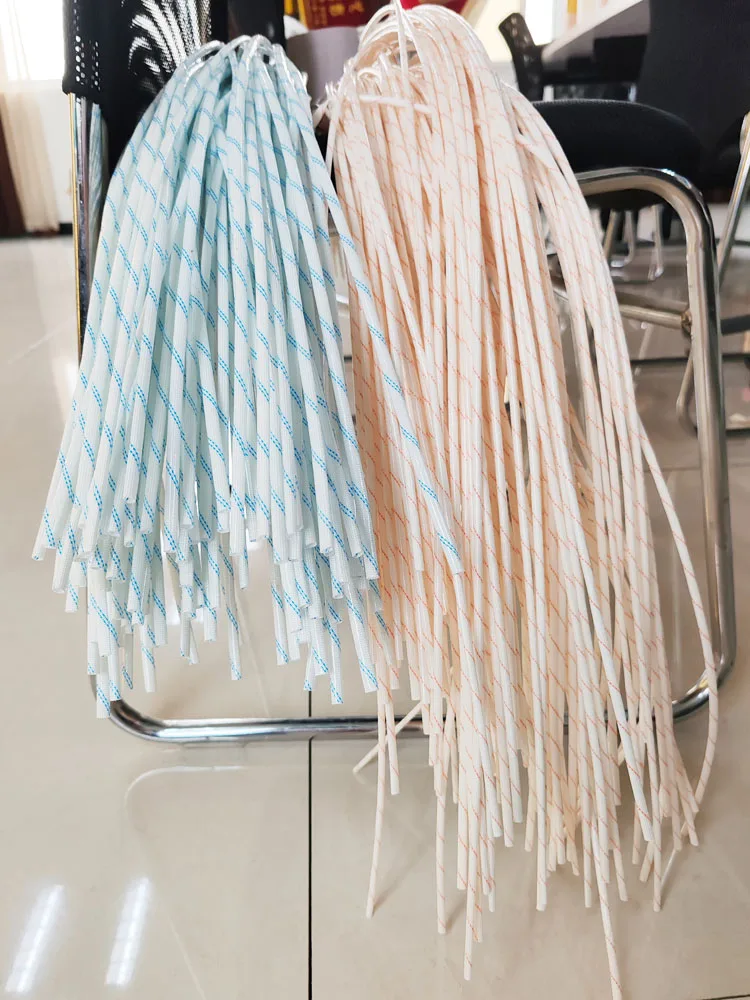

double line insulation sleeve

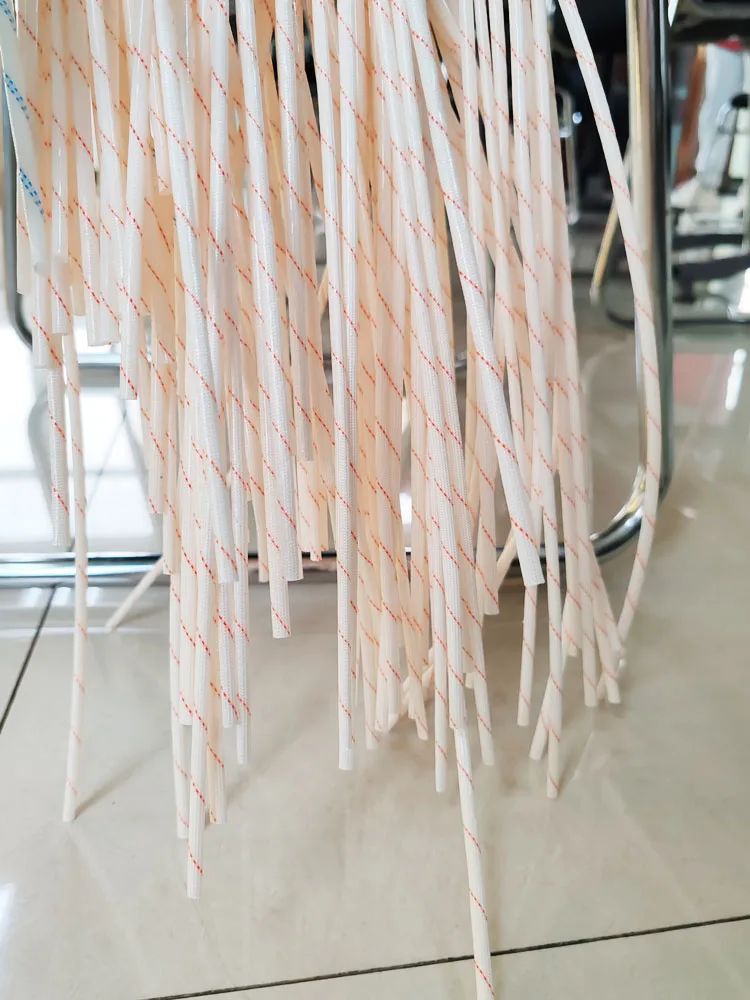

single line insulation sleeve
Compare Photos




Item
Unit
Inner diameter
Inner diameter
Inner diameter
Wall thickness
Wall thickness
Wall thickness
Wall thickness
Inner diameter and wall thickness
mm
1
0.15
0.3
0.25
0.9
0.2
0.75
Inner diameter and wall thickness
mm
1.5
0.15
0.3
0.35
0.9
0.2
0.75
Inner diameter and wall thickness
mm
2
0.2
0.4
0.35
0.9
0.2
0.75
Inner diameter and wall thickness
mm
2.5
0.2
0.4
0.4
0.9
0.2
0.75
Inner diameter and wall thickness
mm
3
0.25
0.5
0.4
0.9
0.2
0.75
Inner diameter and wall thickness
mm
4—6
0.25
0.5
0.5
0.9
0.3
0.75
Inner diameter and wall thickness
mm
8
0.5
1
0.5
1.2
0.3
0.9
Inner diameter and wall thickness
mm
10—25
0.5
1
0.65
1.2
0.4
0.9

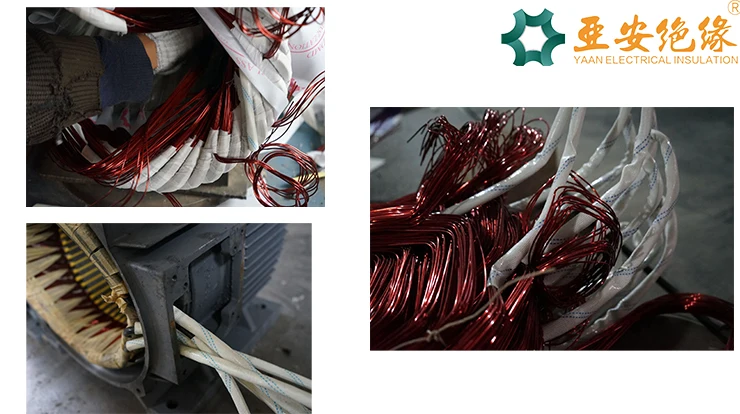

Application


2715 PVC Fiberglass Sleeving is suitable for wiring insulation and mechanical protection of motors, electrical appliances, meters, and radios.
