LED Display IGBT Inverter Digi AC DC TIG MMA MIG Welding Machine 3IN1 WELDER Aluminum Welders
- Category: >>>
- Supplier: Beijing Aland Welding Co. Ltd.
Share on (1600924856632):
Product Overview
Description
DC MMA, ACTIG, DCTIG, PULSE TIG 3 IN 1 Welder
DIGI-TIG 250AC DC PULS LCD

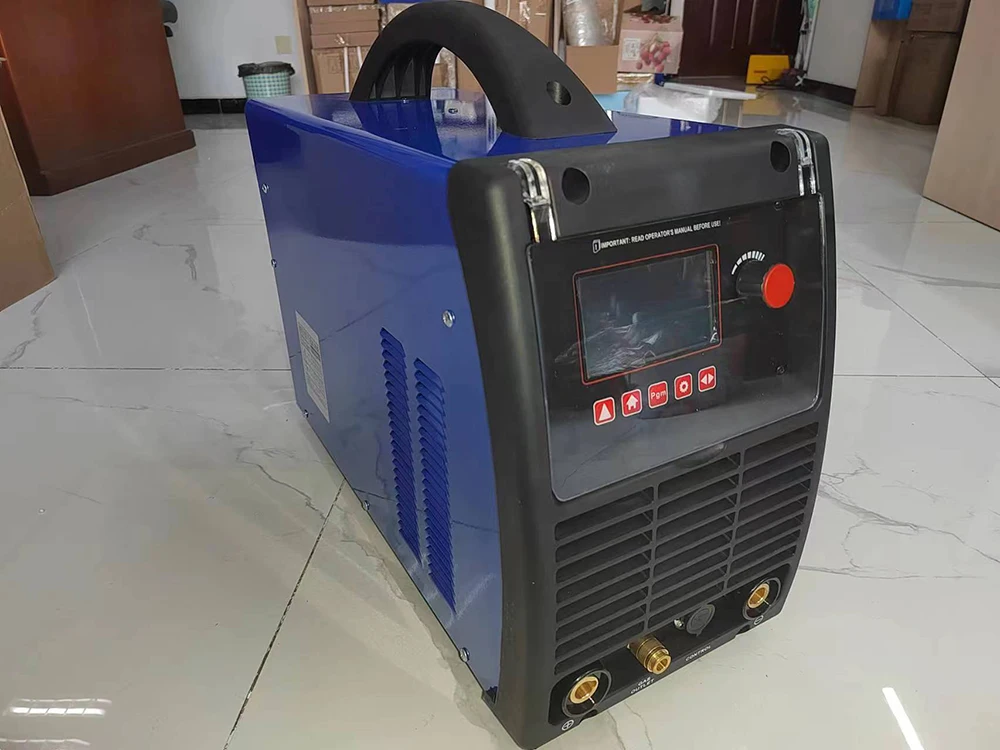

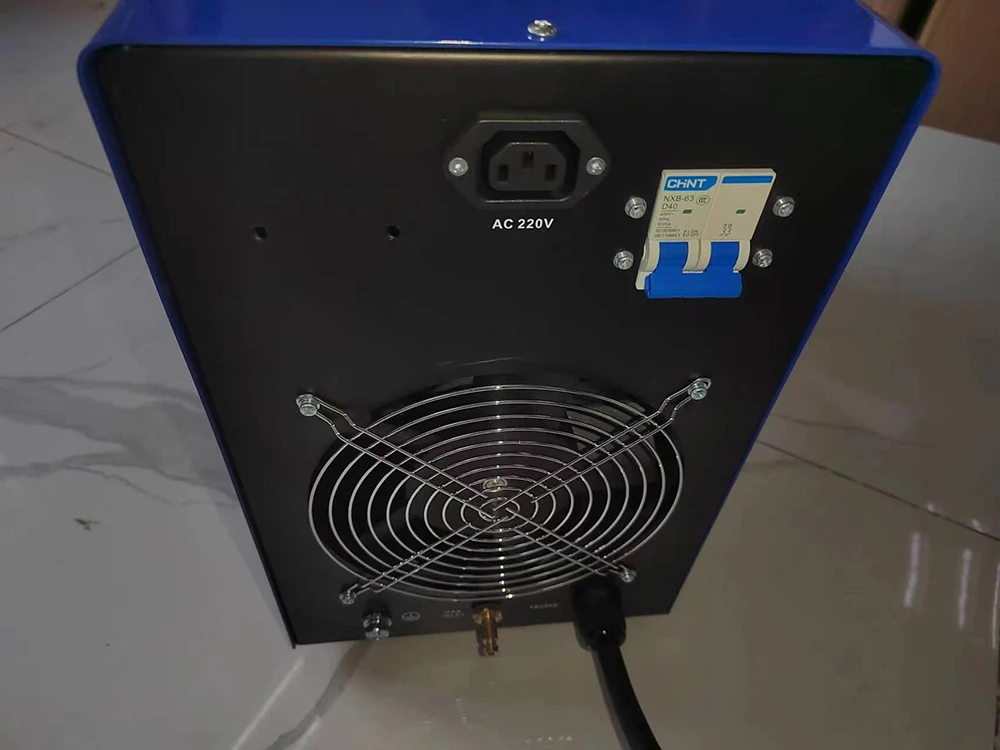

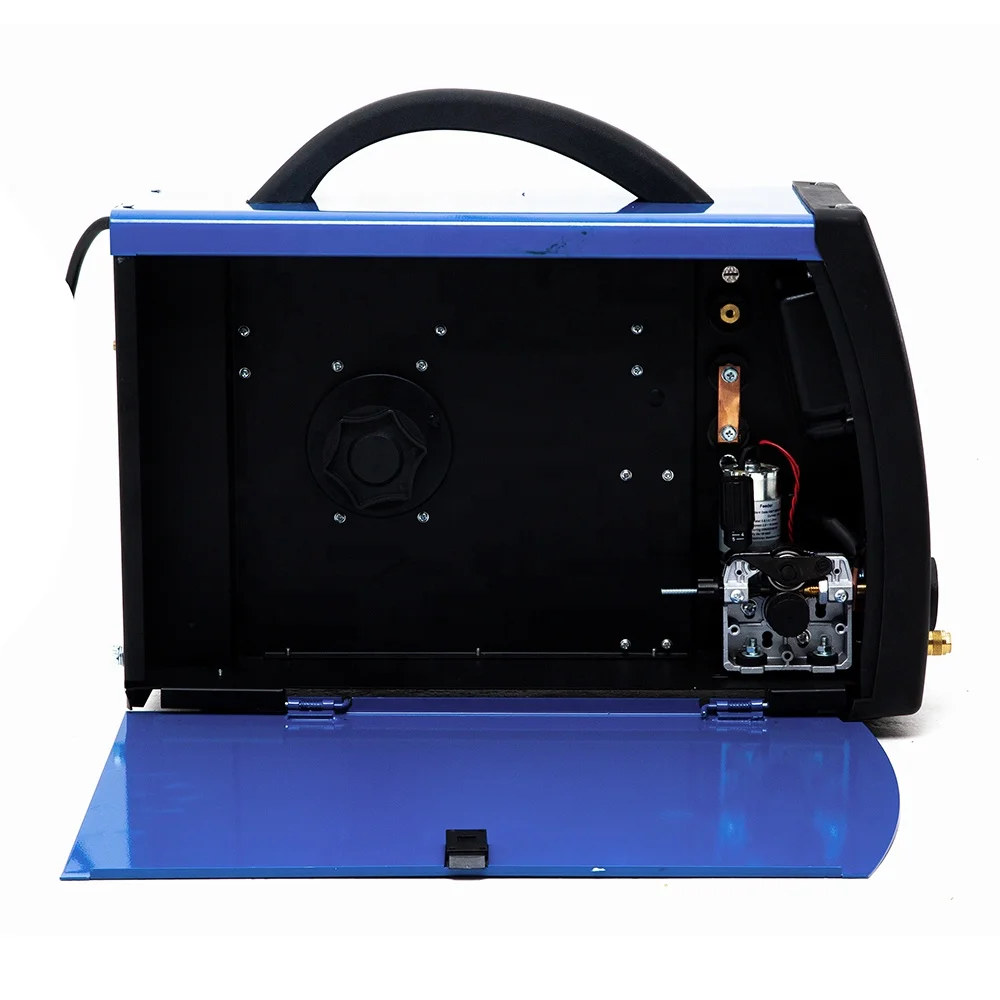

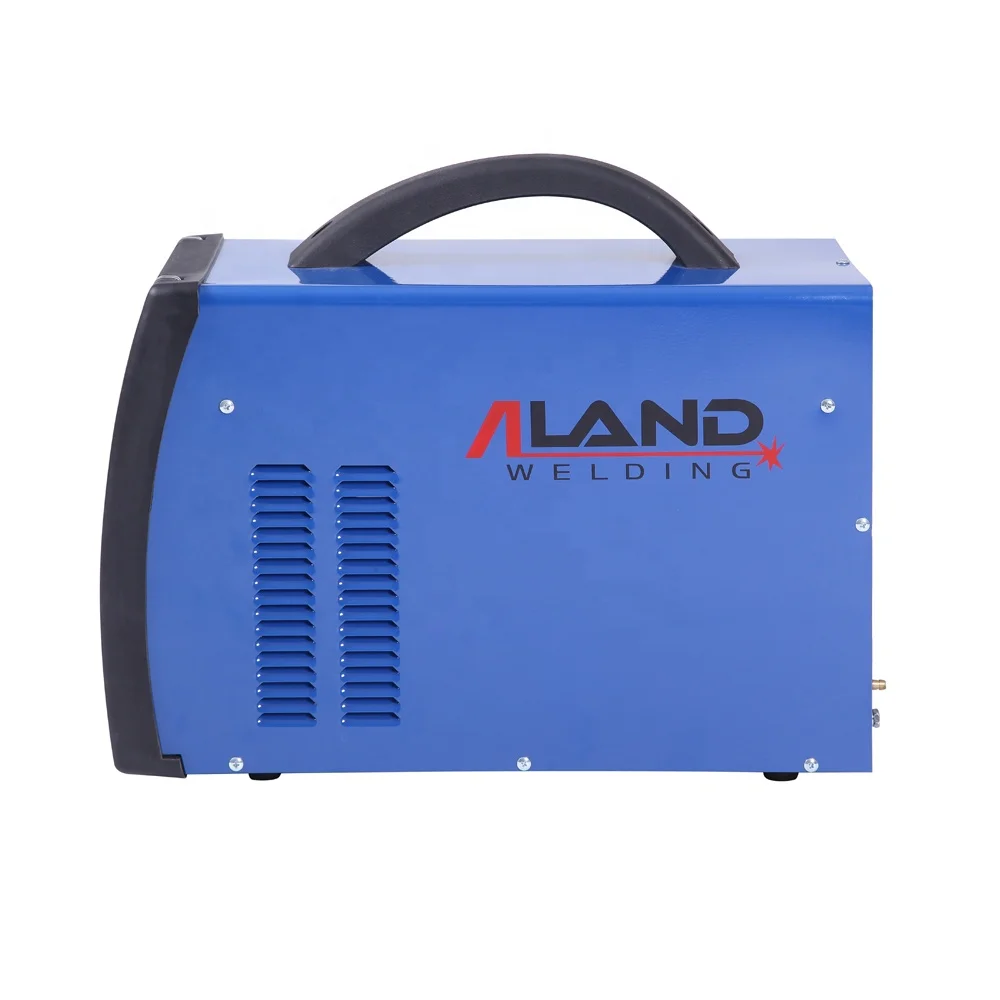

Product Photos
Specifications
Model | DIGI-TIG250ACDC PULSE LCD |
Power Supply Voltage | 1*230V 50/60Hz |
Rate Input Capacity (K VA) | 9.2 |
Rate Input Current | 40 |
No Load Voltage | 80 |
Output Current Range | TIG:5-250A, MMA:5-200A |
Duty Cycle | 60% |
Net Weight | 28kg |
G.W of Package Kit | 42kg |
Machine size L*W*H(mm) | 560*240*460 |
MODEL | Model | PULSE MIG250P | |
INPUT | Voltage | 1xAC230V, 50/60Hz | |
Rated Input Current | 40A | ||
Rated Input power | 9KVA | ||
MMA | No-load Voltage | 60V | |
Current Adjusting Range | 10~200A | ||
Rated Output Current | 200A | ||
Rated Duty Cycle | 35% | ||
TIG | No-load Voltage | 60V | |
Current Adjusting Range | 10~250A | ||
Rated Output Current | 250A | ||
Rated Duty Cycle | 35% | ||
Base Current Adjusting Range | 10-250A | ||
Pulse width | 10%~90% | ||
Pulse freq. | 0.1~500Hz | ||
MIG | No-load Voltage | 60V | |
Pulse / base Voltage Adjusting Range | 14-30V | ||
Rated Output Current | 250A | ||
Current Range | 30~250A | ||
Rated Duty Cycle | 35% | ||
Wire Speed Adjusting Range | 1.5~15m/min | ||
Base/Pulse voltage | 10~100% | ||
Voltage Adjusting Range | 15.5~22V | ||
Pulse width | 10%~90% | ||
Pulse freq. | 10~250Hz | ||
Suitable wire | 0.024'',0.030'',0.035'' (0.6/0.8/1.0mm) | ||
Spot / Stitch time | 0.1~15s | ||
Pre gas Flow Time | 0~5s | ||
Post gas Flow Time | 0~10s | ||
Efficiency | ≥80% | ||
Mass | 25kg | ||
Protection Class of enclosure | IP21S | ||
Machine Dimension | 430*200*290mm | ||

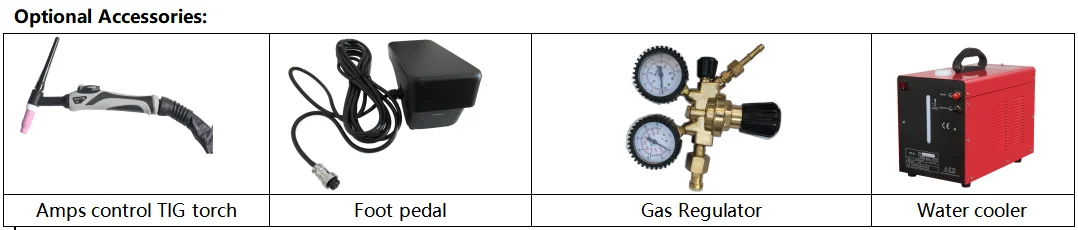

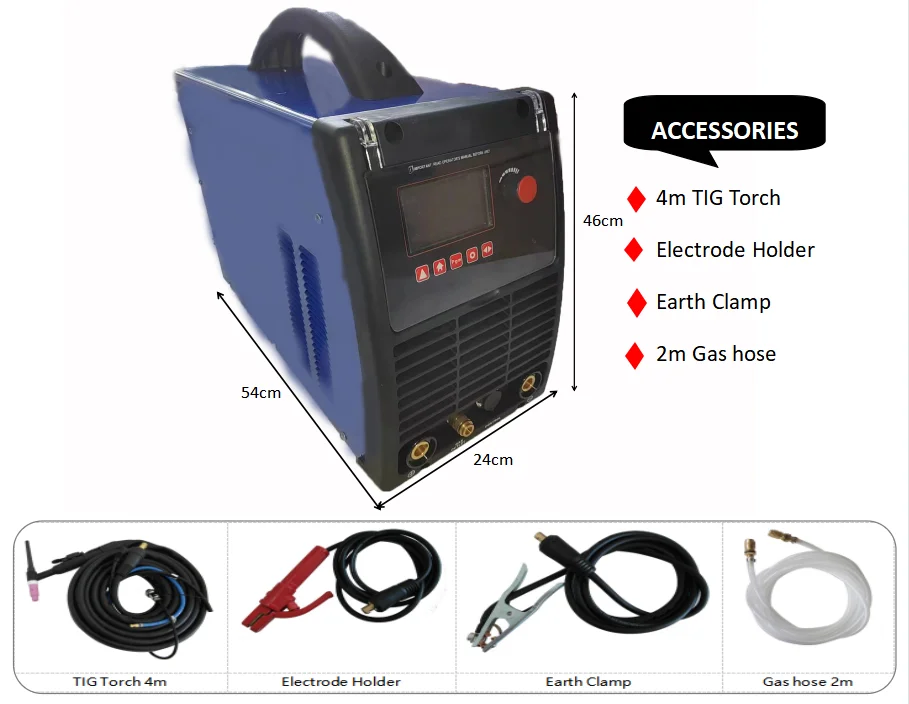

Product Accessories

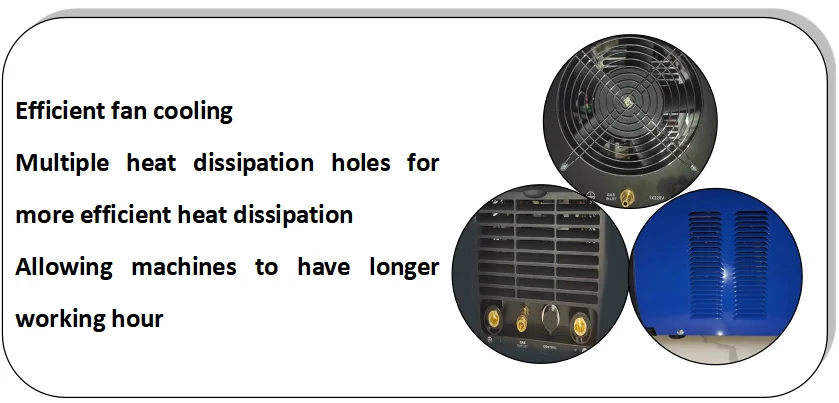

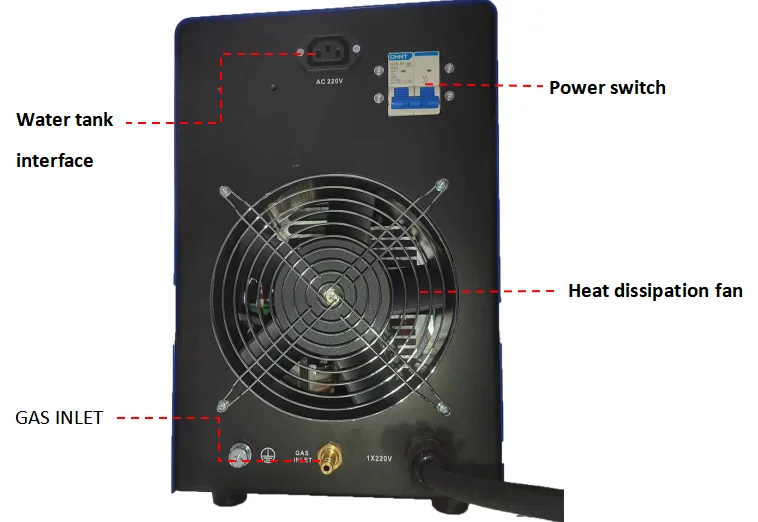

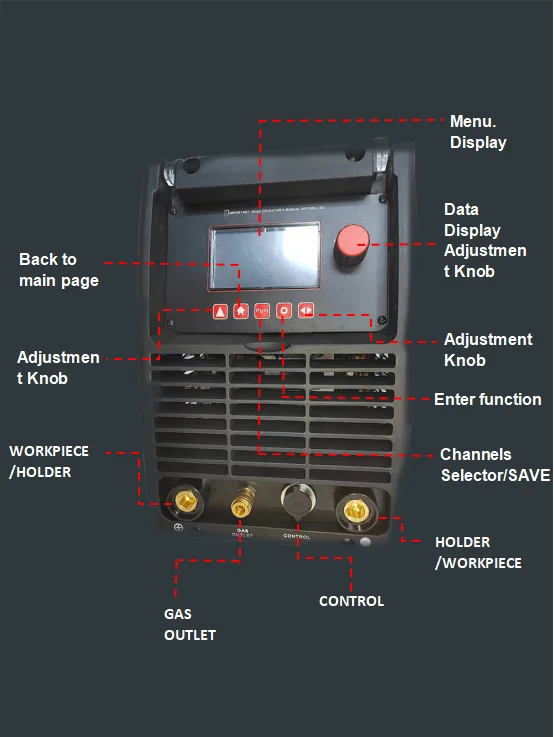

Details Images
Products Description
Recommend Products
Company Profile
FAQ
Q1. Why Choose us?- We have nearly 10 years experience in welding industry and export to all over the world. - We have experienced
R&D team. We can
adjust the parameter and panels design as per your request.
- Most of key parts are adopted top brand to ensure the quality. Such as the IGBT of Infineon (Simens). - Each machine will be
inspected before shipping. - One year warranty, life-long technical support and design service.
Q2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.It also includes OEM service.
Q3. How is your quality control?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class
quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work
safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements,
acting as excellent quality and the best possible welding results.
Q4. What voltage could you provide?110V/220v, 220/380V, 230V etc.
We can make it as per your country voltage.Q5. Can you send me the video to show how the machine works?
At present, some machines have video. We will try to make video of featured machine in future.
Q6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
Q7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
