Product Overview

Description

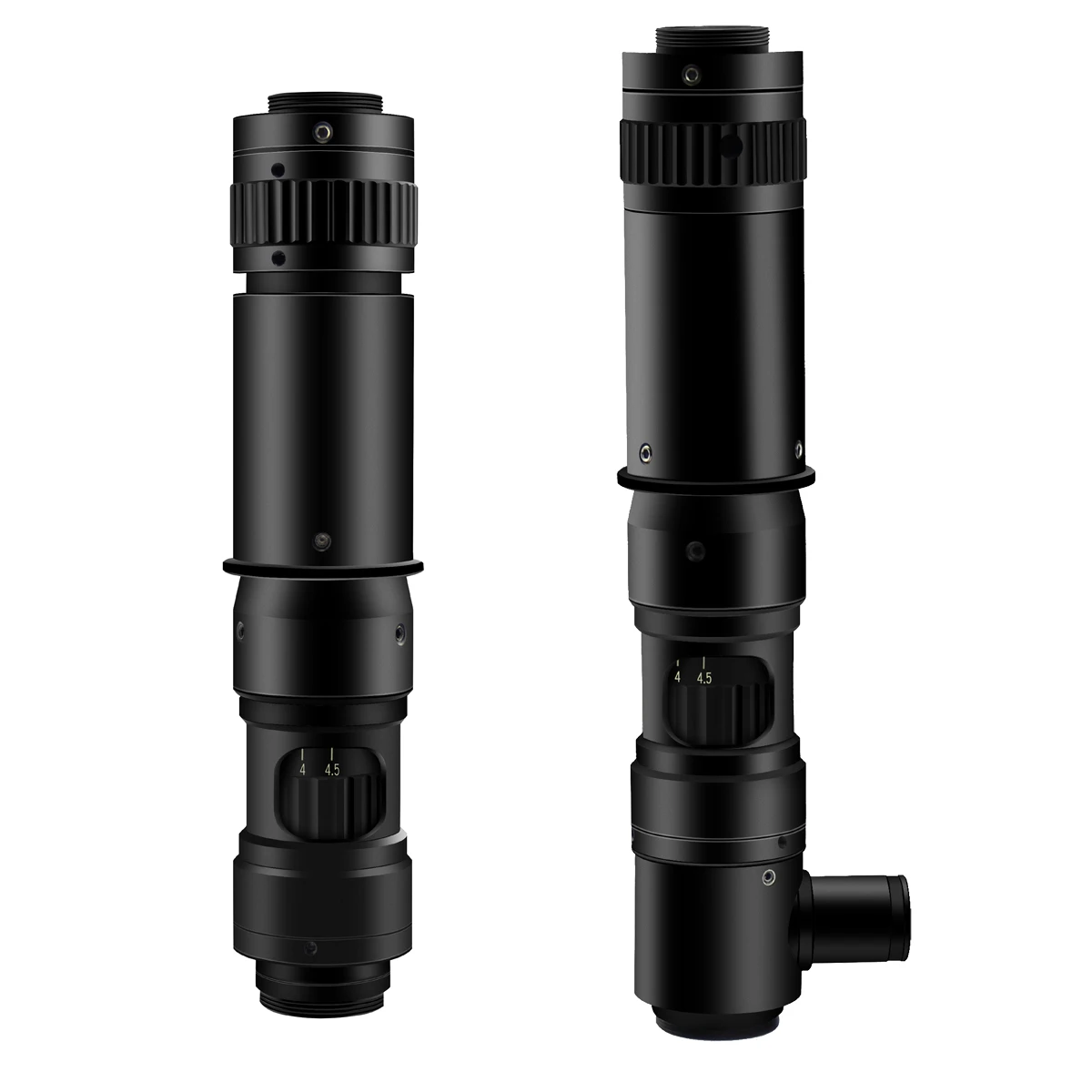

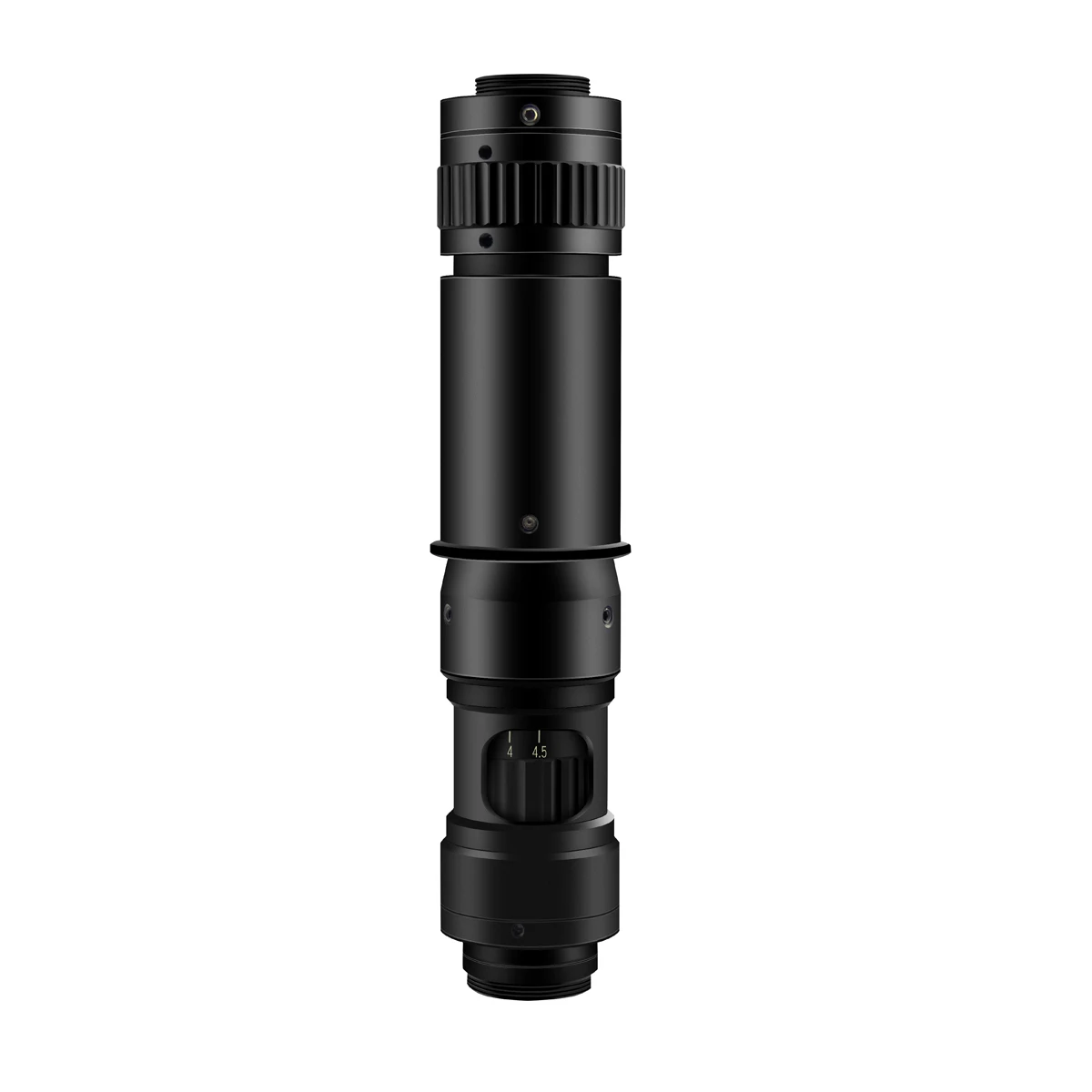

Monocular Microscope Lens Unit
Zoom Body: 0.7-4.5X
CCD mount: 1X standard
High Definition


Descriptions


◆Made of building block structure, parallel optical system.
◆0.7-4.5X zoom magnification, 1:6.4 big zoom ratio. Standard working distance is 86mm.
◆High resolution and high contrast image. High repeat positioning accuracy, repeat precision can reach 1 um.
◆high hardness wear-resistant aluminum alloy materials, anode oxidation surface treatment, long service life.
◆Mounting size for focusing mount (holder) Dia.φ39.6mm.
◆Standard C mount.
◆Big range field of view 0.036mm-100mm.
◆Standard working distance：86mm
◆Different magnification C-mount optional：0.3X ,0.45X,0.5X,0.67X ,1X (standard),1.5X,2X,3X；
◆Different mag. Auxiliary objective optional：0.3X,0.4X,0.5X ,0.6X,1.5X,2X；
◆LED illumination or fiber optic illumination optional to meet different required .
◆Widely used in electrical equipment, semiconductor, PCB, LED observation




Image Effect




Optional Setting Design


FB0745 monocular microscope lens unit +90° inverted image device
FB0745 monocular microscope lens unit+90° Upright image device

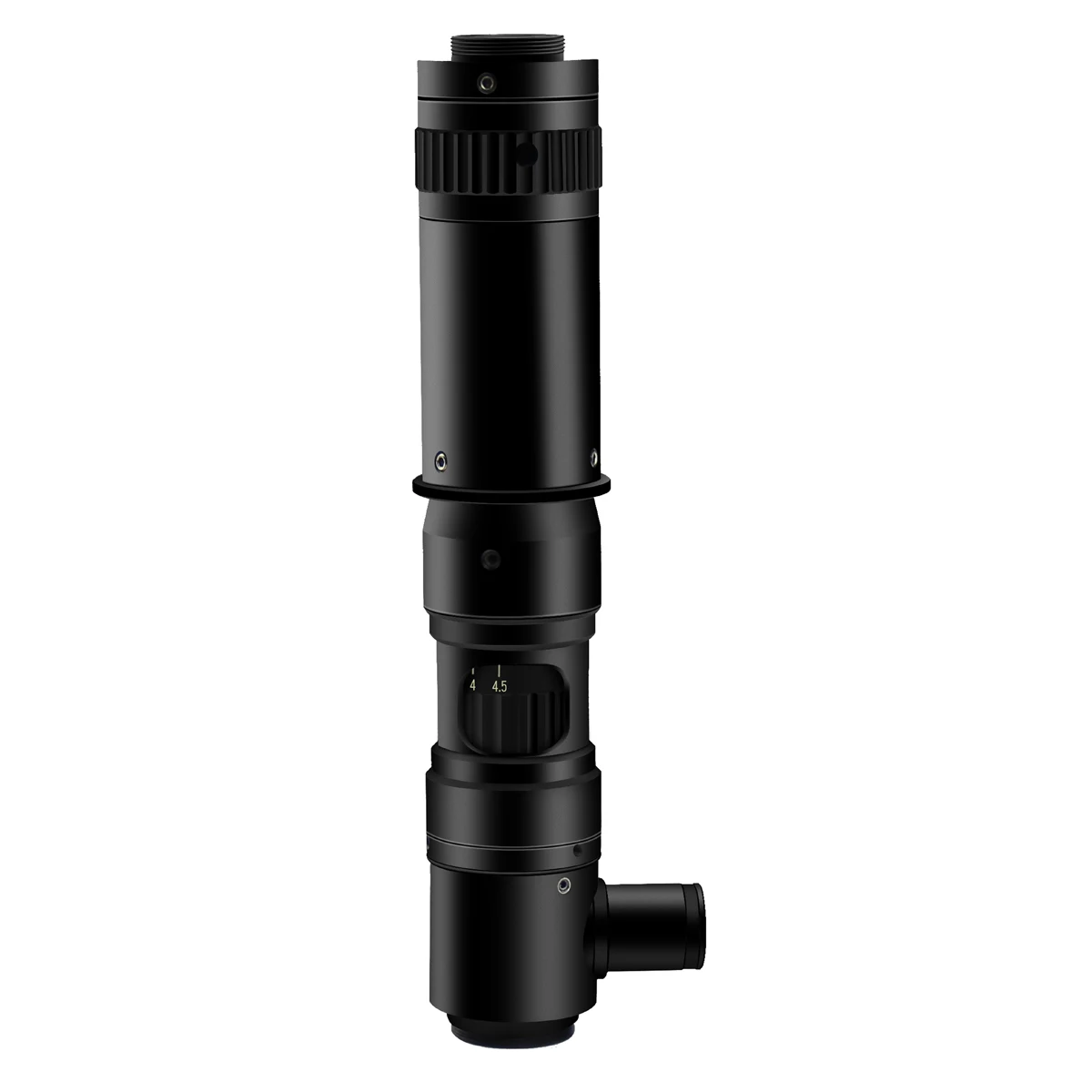

FB0745 monocular microscope lens unit + coaxial light device
FB0745 monocular microscope lens unit + coaxial light device + adjustable light box

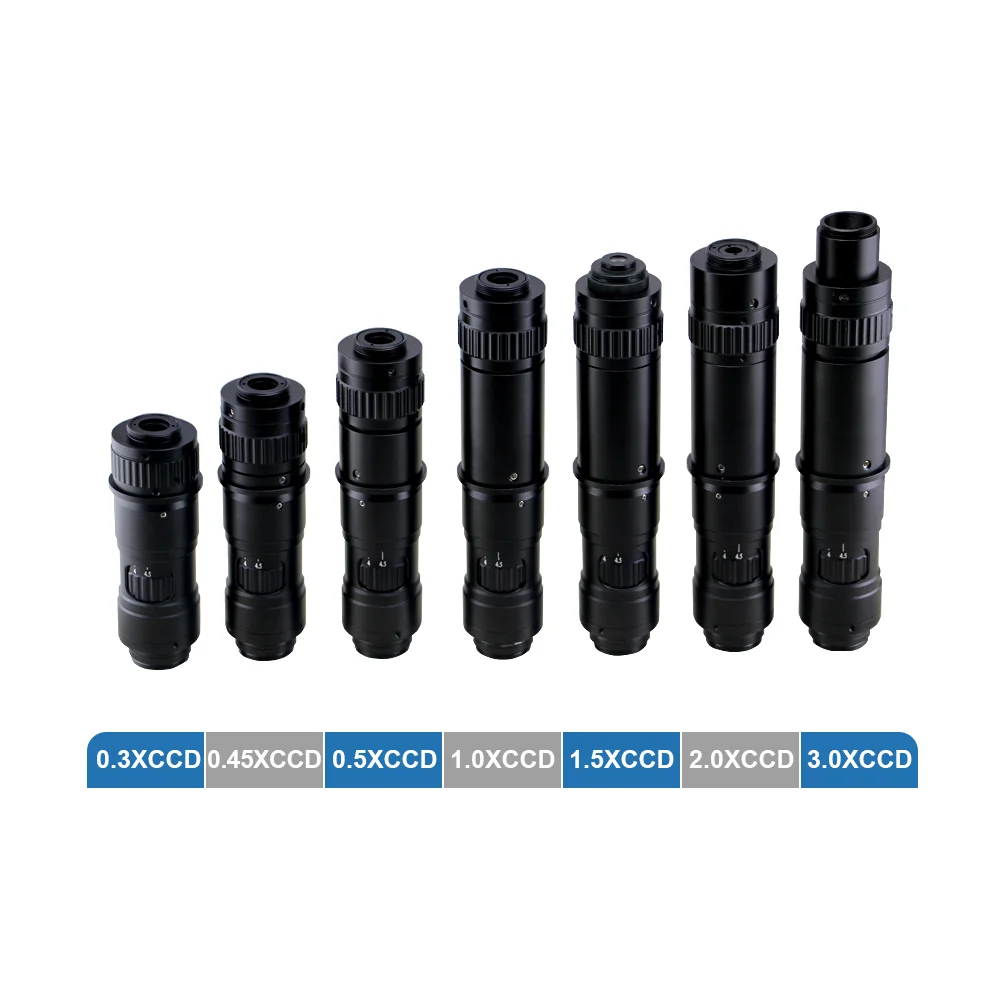

Optional CCD adapter can choose as follows




Standard models


Model
C mount+zoom body+objecitve
Mag.
WD
Light
FB0745
1XCCD+0.7-4.5X zoom body+1X objective
0.7-4.5X
86mm
-
FB0745D
1XCCD+0.7-4.5X zoom body(detent)+1X objective
0.7-4.5X
86mm
-
FB0745C
1XCCD+0.7-4.5X zoom body+1X objective
0.7-4.5X
86mm
Coaxial
FB0745CD
1XCCD+0.7-4.5X zoom body(detent)+1X objective
0.7-4.5X
86mm
Coaxial
FB0745TV05
0.5XCCD+0.7-4.5X zoom body+1X objective
0.35-2.25X
86mm
Coaxial
FB0745DTV05
0.5XCCD+0.7-4.5X zoom body(detent)+1X objective
0.35-2.25X
86mm
Coaxial
FB0745CTV05
0.5XCCD+0.7-4.5X zoom body+1X objective
0.35-2.25X
86mm
Coaxial
FB0745CDTV05
0.5XCCD+0.7-4.5X zoom body(detent)+1X objective
0.35-2.25X
86mm
Coaxial


Optional Accessories


Model
Name
Specification
C4503
0.3X C mount
Standard C-mount
C45045
0.45X C mount
Standard C-mount
C4505
0.5X C mount
Standard C-mount
C4505R
0.5X C mount
Standard C-mount with iris
C4510R
1.0X C mount
Standard C-mount with iris
C45067
0.67X C mount
Standard C-mount
C4515
1.5X C mount
Standard C-mount
C4520
2X C mount
Standard C-mount
C4530
3X C mount
Standard C-mount
AW4503
0.3X Auxiliary objective
Use for 1X, WD.270mm
AW4504
0.4X Auxiliary objective
Use for 1X, WD.205mm
AW4505
0.5X Auxiliary objective
Use for 1X, WD.160mm
AW4506
0.6X Auxiliary objective
Use for 1X, WD.130mm
AW4515
1.5X Auxiliary objective
Use for 1X, WD.50mm
AW4520
2.0X Auxiliary objective
Use for 1X, WD.39mm
LC4511
coaxial device
adaptor for light is 11mm,use with L6511 LED point light
LC4511P
polarized coaxial light
adaptor for light is 11mm,use with L6511 LED point light
L4511
LED point light
3W, light diameter is 11mm, standard color: white. Red, green, blue, green, purple optional
LR65
LED ring light
12V 5W,0-100% brightness control
LR65P
Polarized LED ring light
12V 5W,0-100% brightness control
OD4590
Objective angle Device 90°
Reverted image
OD45180
Objective angle Device 90°
erect image
AW0342
Adjustable auxiliary objective
0.3X,WD:270mm to 0.42X，WD:160mm
