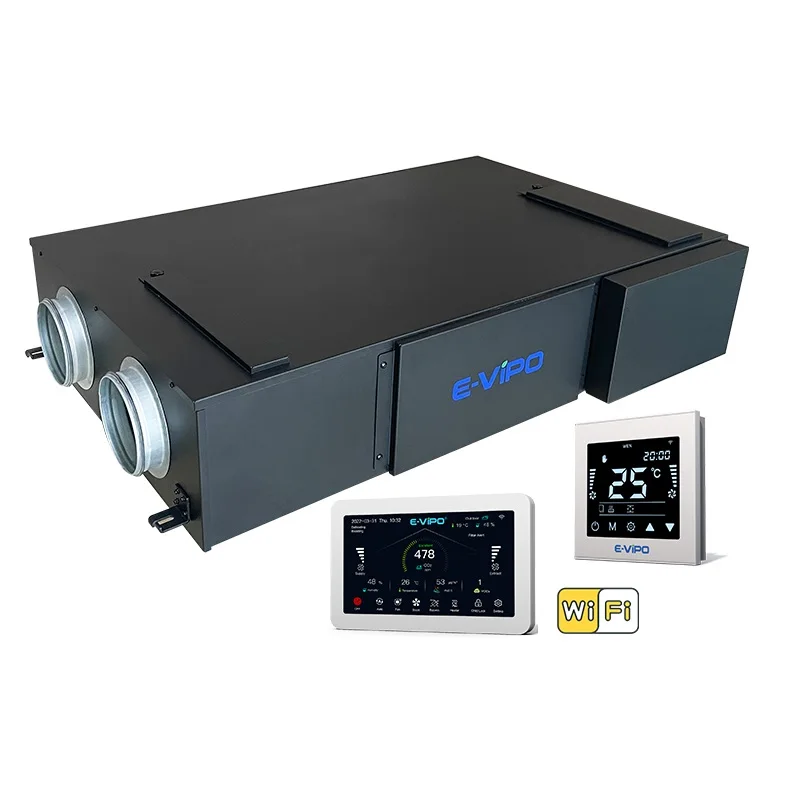

Fresh Air Ventilation System MVHR Mechanical Ventilation HVAC HRV Heat Recovery System with Bypass Freecooling Function
Fresh Air Ventilation System MVHR Mechanical Ventilation HVAC HRV Heat Recovery System with Bypass Freecooling Function
Fresh Air Ventilation System MVHR Mechanical Ventilation HVAC HRV Heat Recovery System with Bypass Freecooling Function
Fresh Air Ventilation System MVHR Mechanical Ventilation HVAC HRV Heat Recovery System with Bypass Freecooling Function
Fresh Air Ventilation System MVHR Mechanical Ventilation HVAC HRV Heat Recovery System with Bypass Freecooling Function
Fresh Air Ventilation System MVHR Mechanical Ventilation HVAC HRV Heat Recovery System with Bypass Freecooling Function
Fresh Air Ventilation System MVHR Mechanical Ventilation HVAC HRV Heat Recovery System with Bypass Freecooling Function

Fresh Air Ventilation System MVHR Mechanical Ventilation HVAC HRV Heat Recovery System with Bypass Freecooling Function

Share on (1600924924659):


Price:$539.00 - $560.00

Quantity:


Product Overview

Description





Features & Description
▶ Coated sheet steel housing are equipped with 15mm-20mm internal heat and sound insulation.

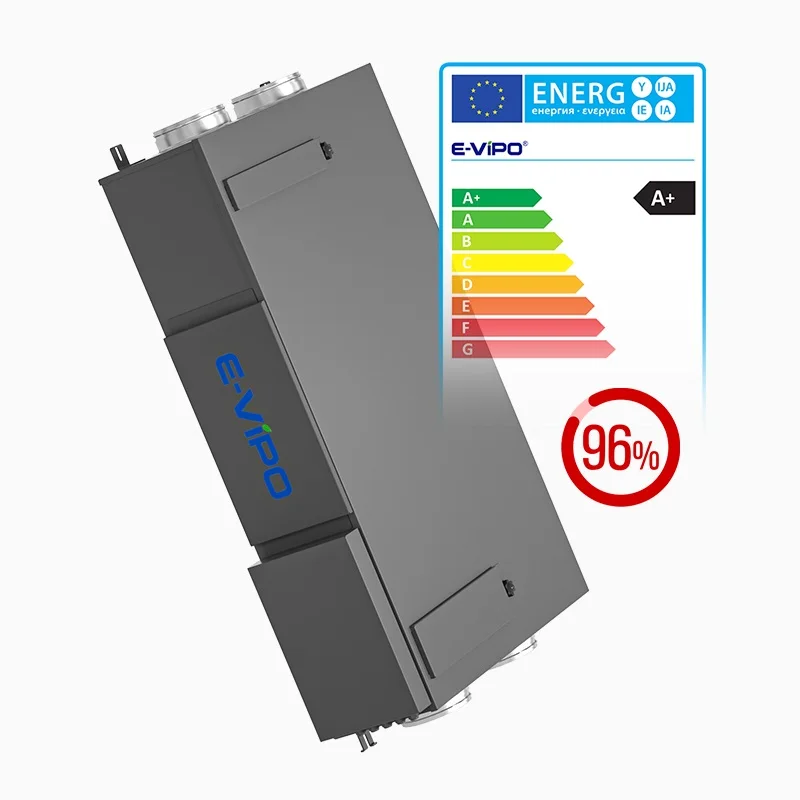

▶ High-efficiency heat recovery up to 96%

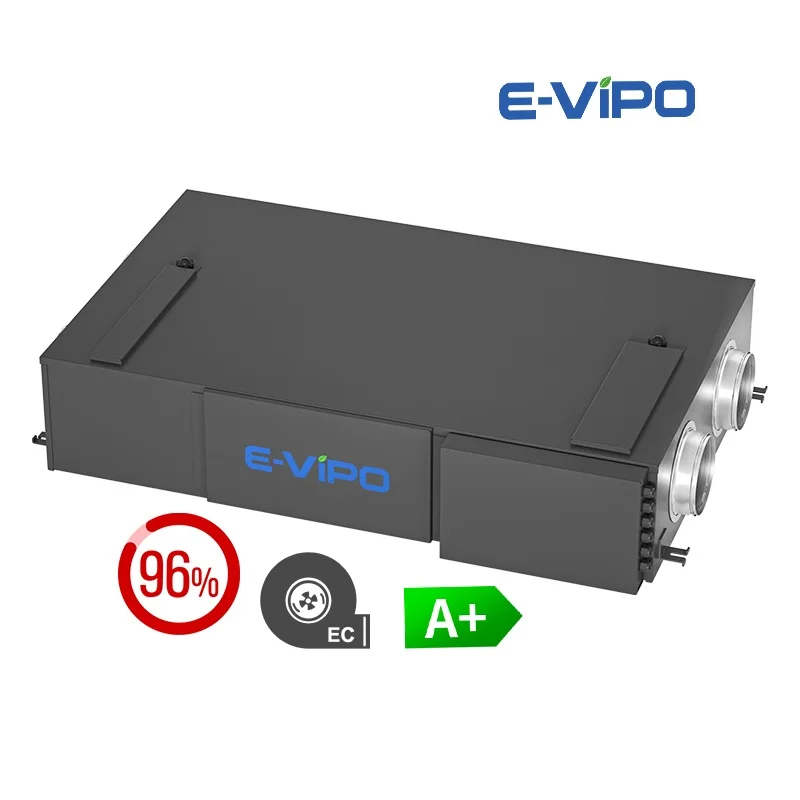

▶ EC Energy Saving Motor (High Static Pressure)
▶ Low Energy Consumption
▶ Efficient Sound Reduction
▶ Strong Thermal Insulation

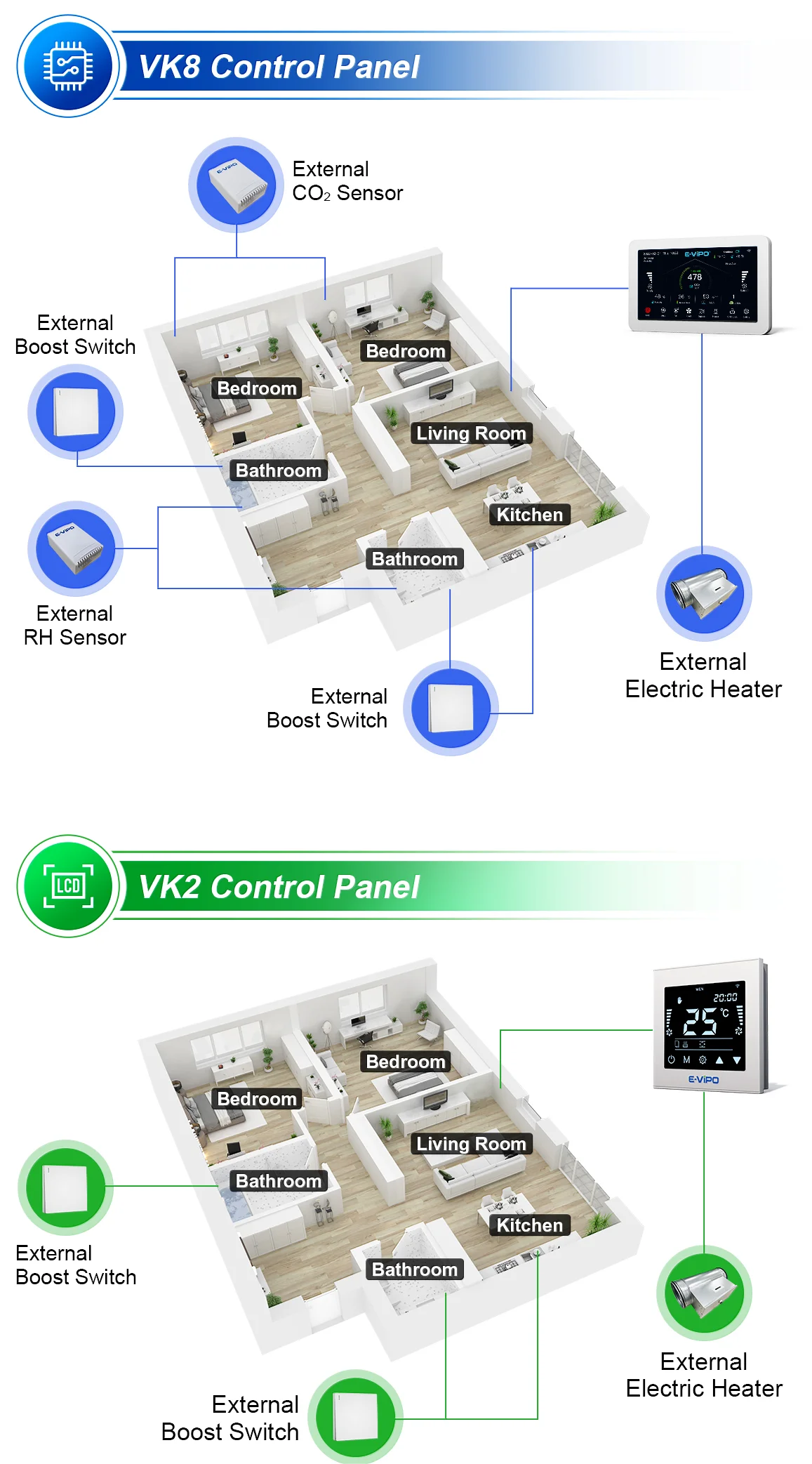

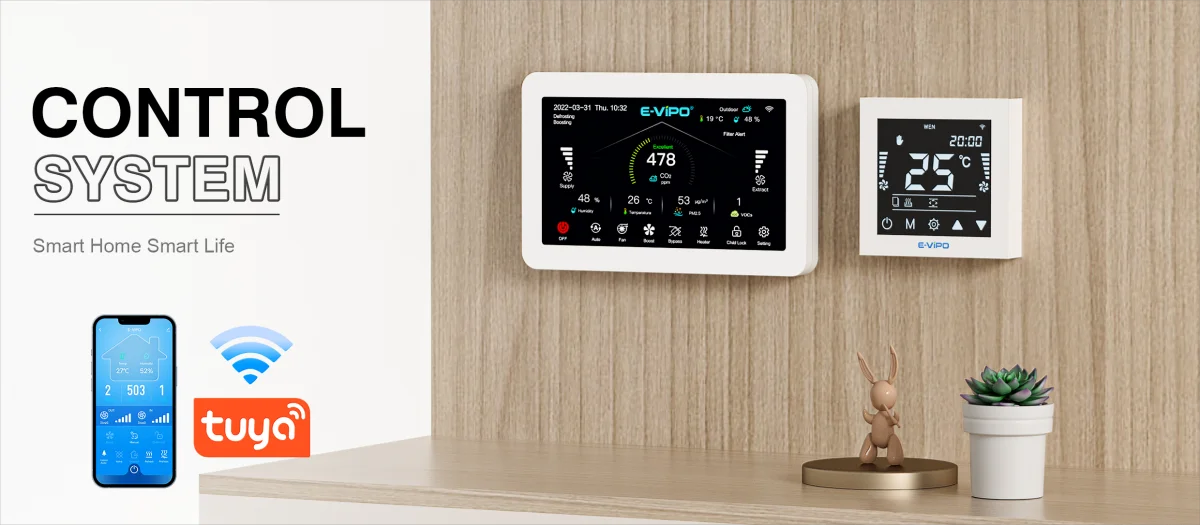

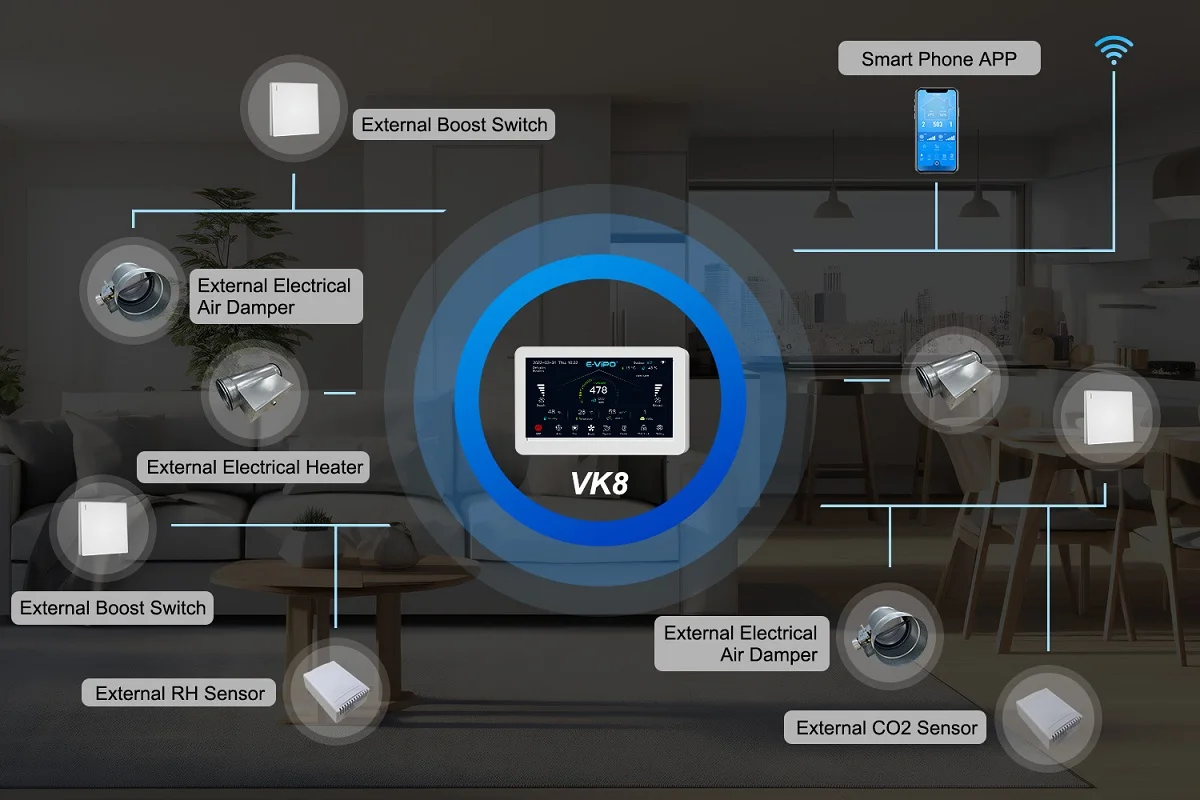

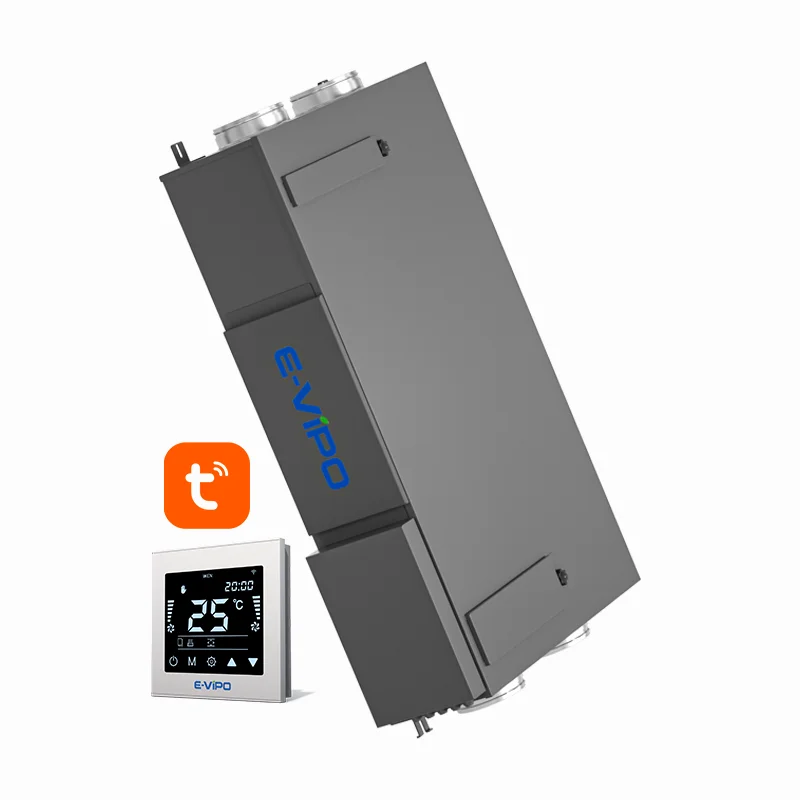

▶ WiFi Control - APP for Android / iOS

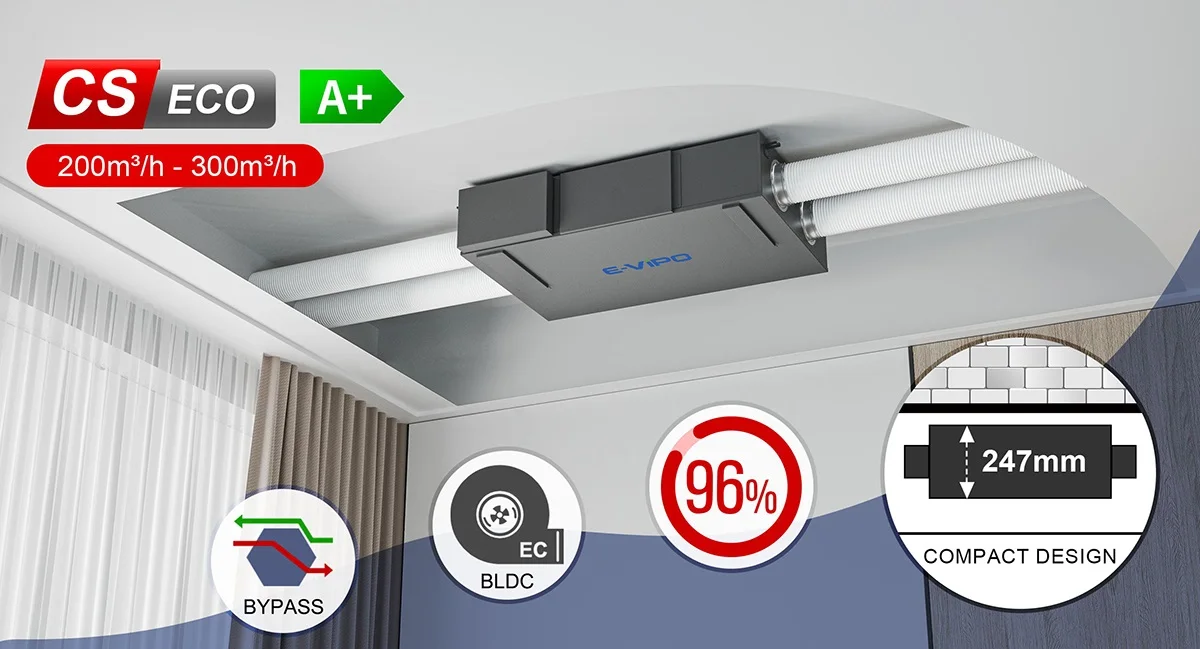

Model
Airflow

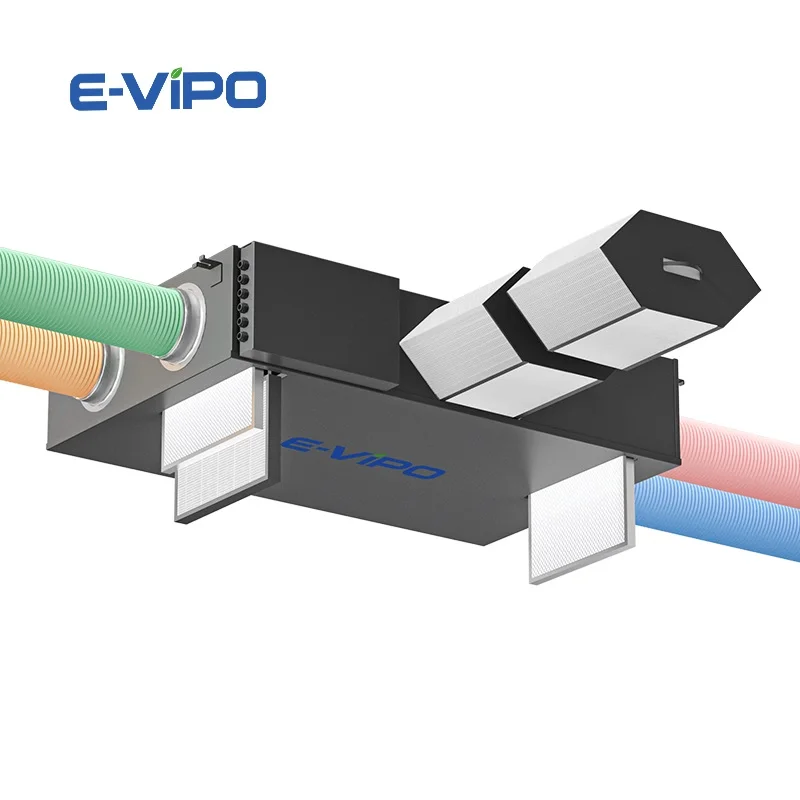

Filters
Motor
Heat Exchanger
Air Duct Diameter
CS200
200m3/h
G4 Supply Filter
G4 Extract Filter
F8/HEPA for option
EC
(BLDC)
Counter-flow
Φ150mm
CS250
250m3/h
G4 Supply Filter
G4 Extract Filter
F8/HEPA for option
EC
(BLDC)
Counter-flow
Φ150mm
CS300
300m3/h
G4 Supply Filter
G4 Extract Filter
F8/HEPA for option
EC
(BLDC)
Counter-flow
Φ150mm



SUMMER BYPASS
Without exchanging the heat at the heat exchanger, the fresh air with comfortable temperature level from outdoor can be delivered into the room directly.

You may choose bypass automation works based on Indoor temperature or Outdoor temperature.

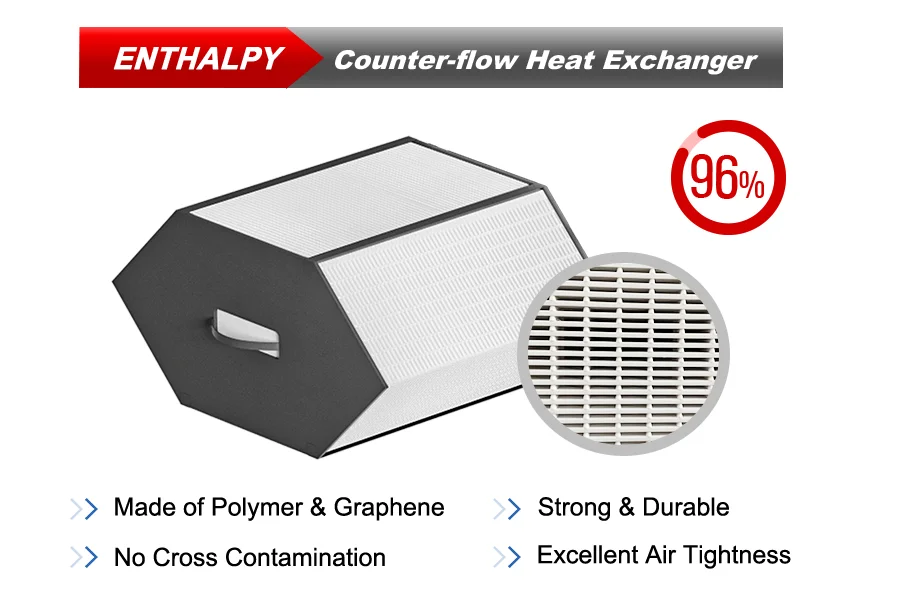

Counter-flow Plate Heat Exchanger
With an optimal distance between layers to ensure a high heat recovery efficiency and a smooth movement of the airflows. Comparing to traditional cross-flow heat exchanger, counter-flow heat exchanger provides a longer distance flows of air and with a larger plate area. Material with Graphene used also has a higher heat recovery efficiency than traditional paper material core, where the counter-flow heat exchanger is washable and durable, anti-viral and anti-bacterial.

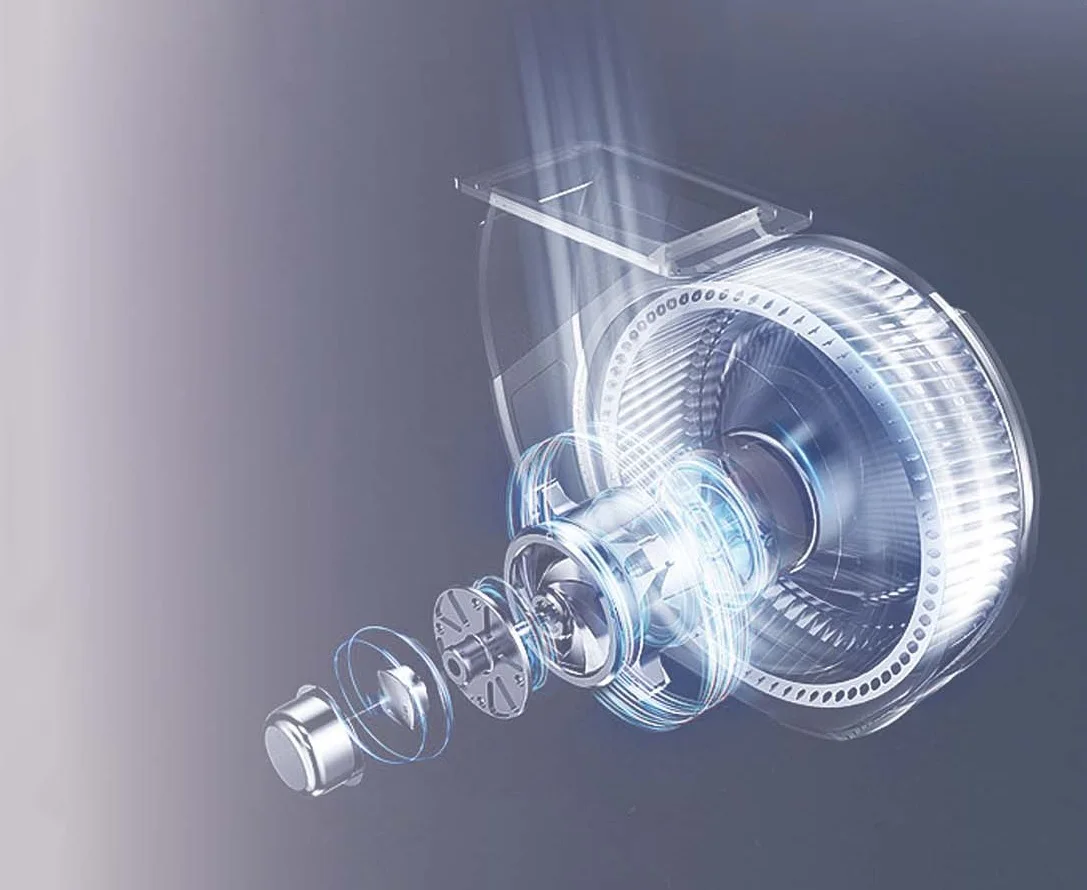

Energy Saving EC Motor
The high performance EC motor equipped in the unit has the features of low power consumption, quiet and high static pressure. This not only reduces the long run electricity cost, but also ensures the air delivering to the room is sufficient after ducting. Comparing to traditional AC motor, EC motor provides a better overall performance including energy saving.








HOT SELL
▶ TP Series designed with EPP housing has a insulation of 30-45mm

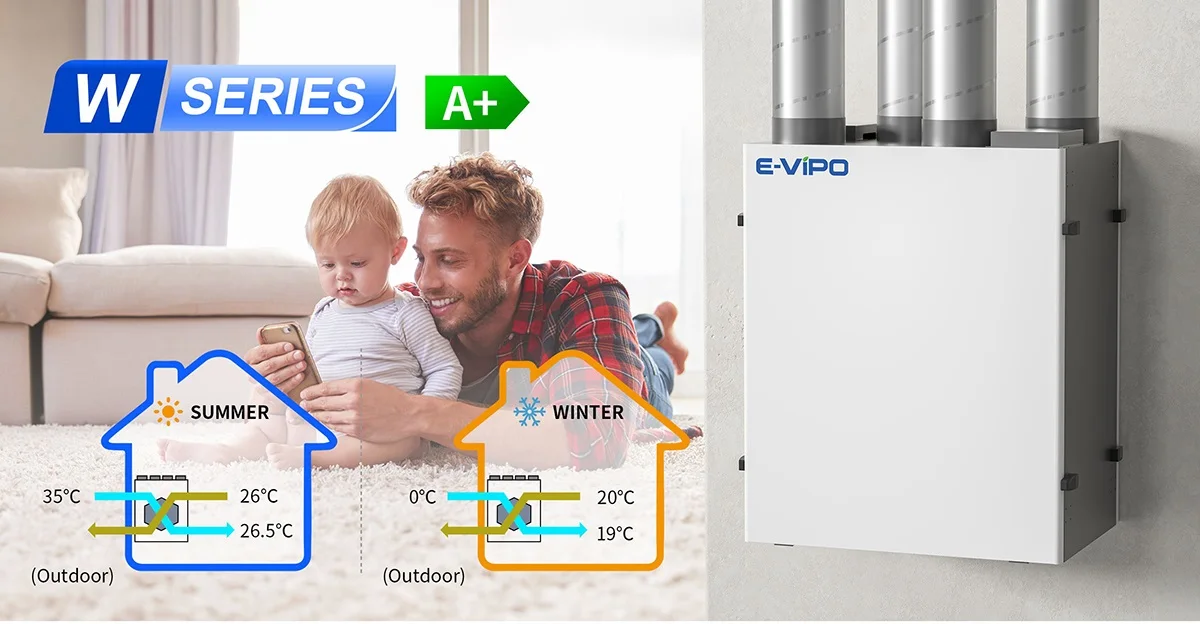

▶ W Series is with coated sheet steel housing with 15mm-20mm internal heat and sound insulation
