Trina Bipv High Capacity Solar Panels 380 Watt 415 Watt 550W 665W Europe Warehouse Solar Pv Panel
- Category: >>>
- Supplier: Sunpal Power Co. Ltd.
Share on (1600924998931):
Product Overview
Description

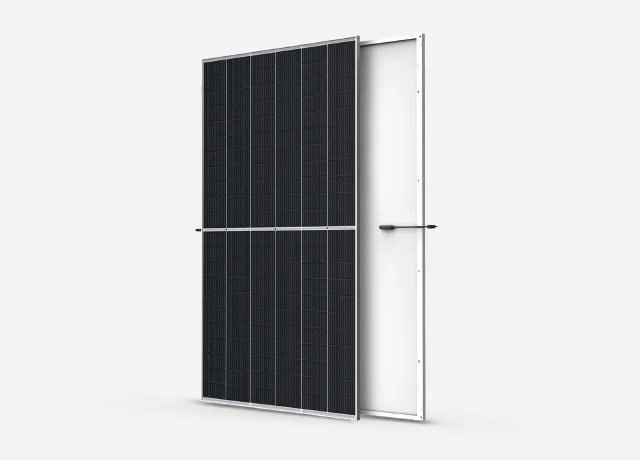

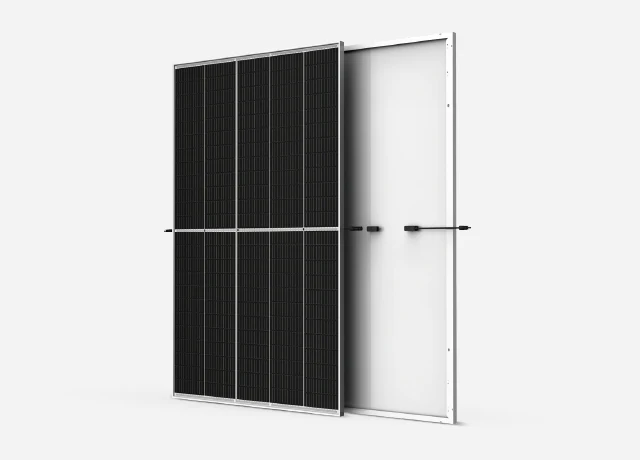

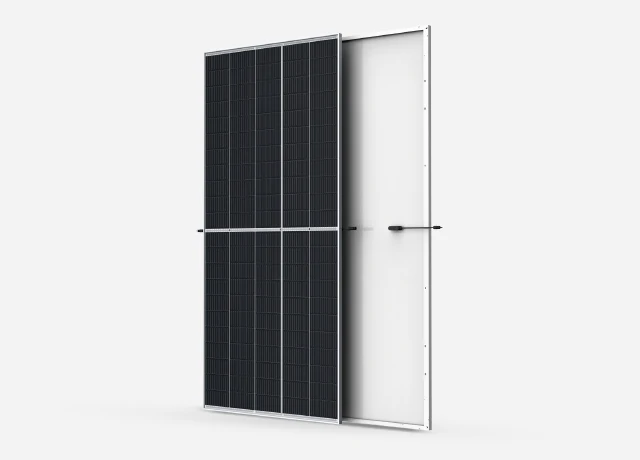

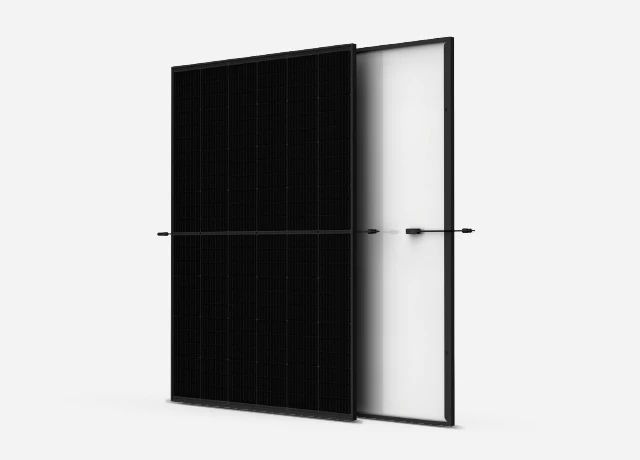

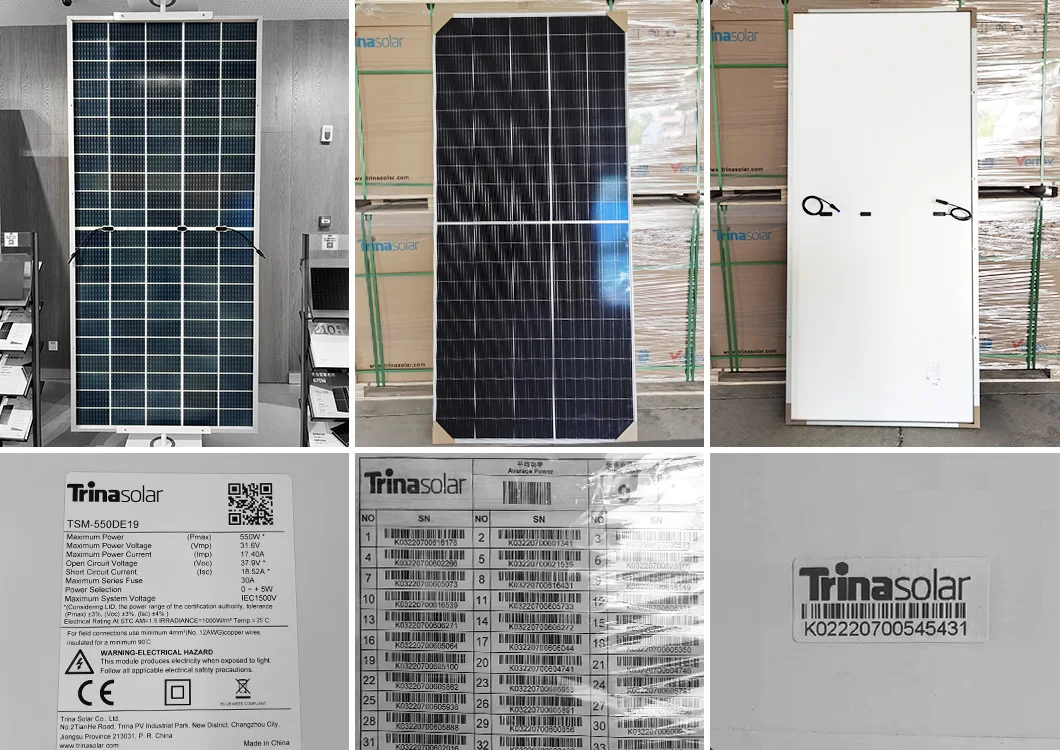

Trina Solar Panel

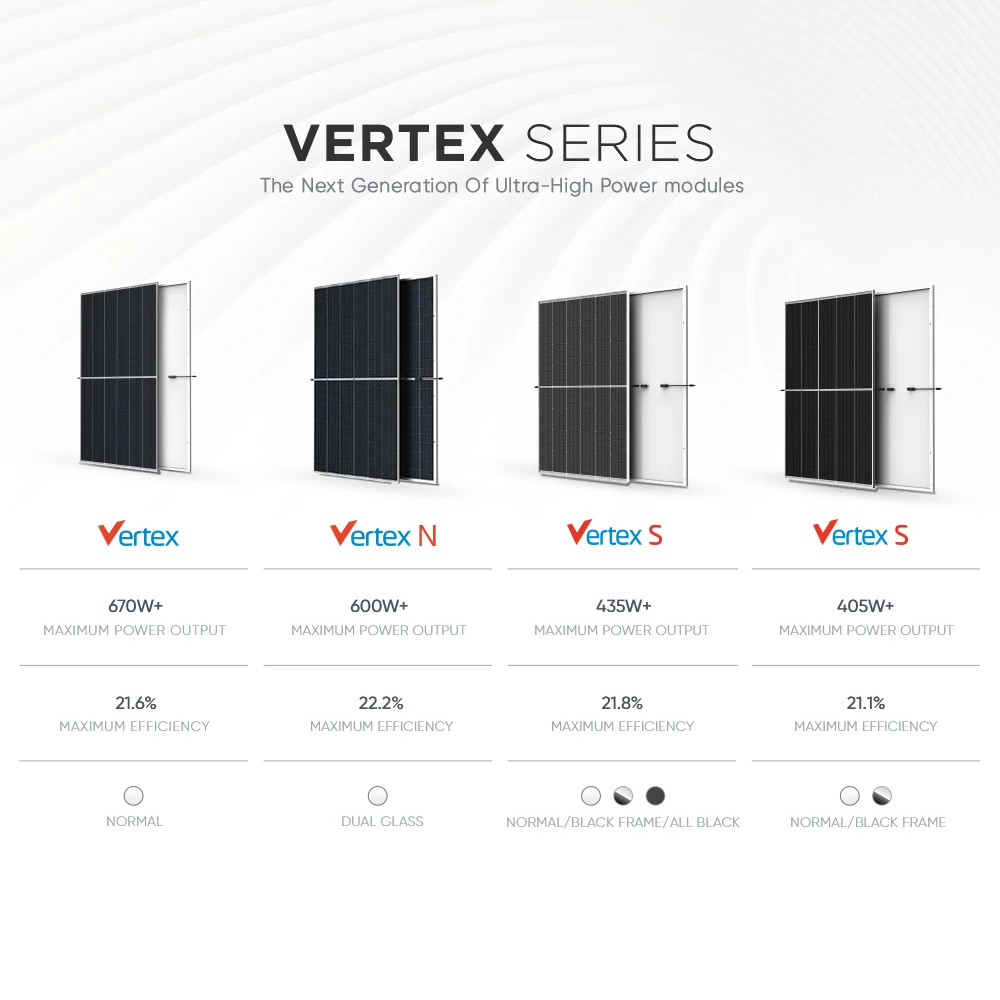

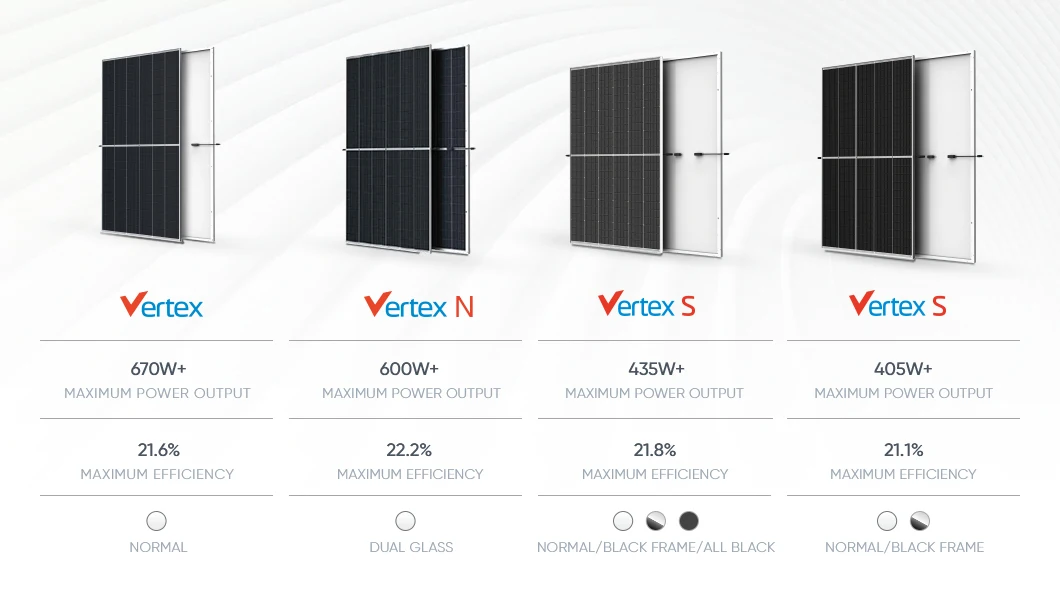

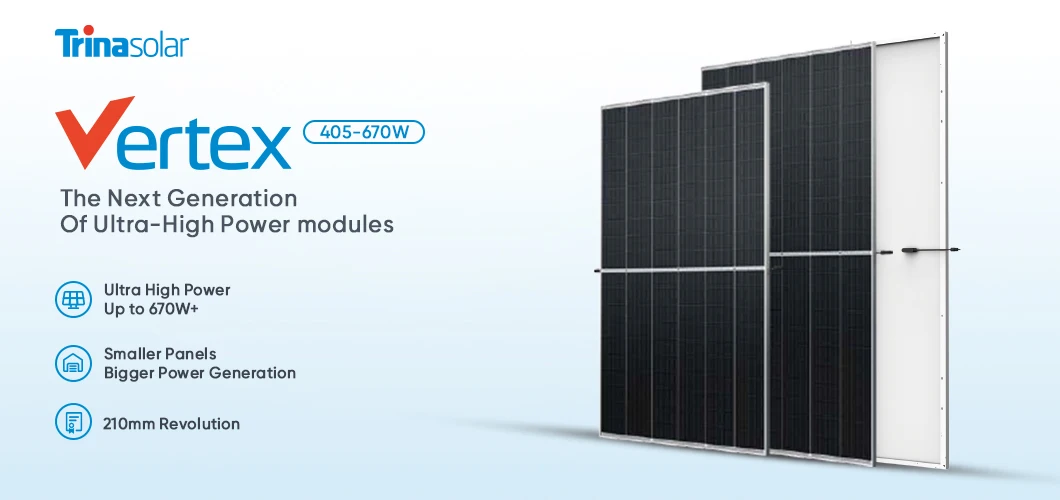

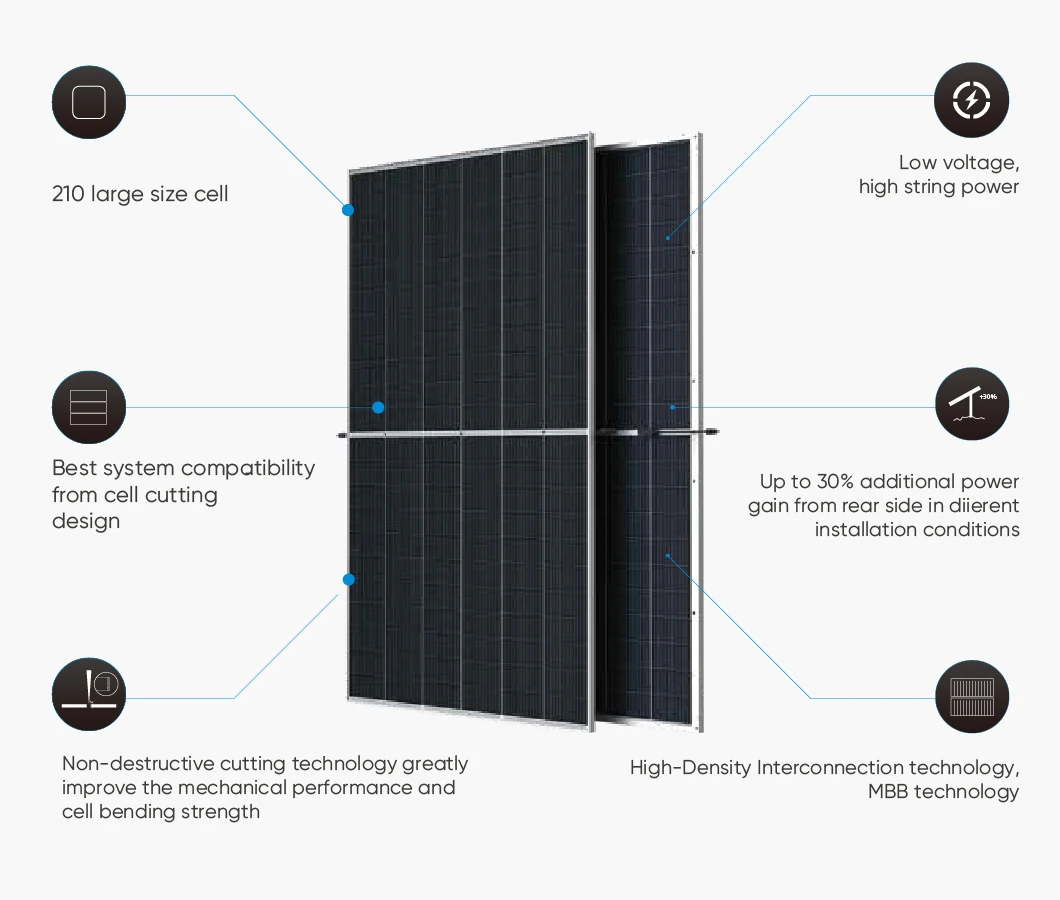

Vertex Series
ELECTRICAL DATA (STC) | ||||||||||
Maximum Power（Pmax/W） | 415 | 420 | 425 | 430 | 435 | |||||
Voltage at Maximum Power(Vmp/V) | 41.7 | 42.0 | 42.2 | 42.3 | 42.5 | |||||
Current at Maximum Power(Imp/A) | 9.94 | 10.01 | 10.08 | 10.17 | 10.24 | |||||
Open Circuit Voltage（Voc/V) | 50.0 | 50.1 | 50.2 | 50.3 | 50.4 | |||||
Short Circuit Current(lsc/aA) | 10.55 | 10.58 | 10.61 | 10.64 | 10.67 | |||||
Module Efficiency(%) | 20.8 | 21.0 | 21.3 | 21.5 | 21.8 | |||||
TSM-NEG19RC.20 ELECTRICAL DATA (STC) | ||||||||||||
Maximum Power（Pmax/W） | 570 | 575 | 580 | 585 | 595 | 600 | ||||||
Voltage at Maximum Power(Vmp/V) | 38.6 | 38.9 | 39.2 | 39.5 | 40.00 | 40.3 | ||||||
Current at Maximum Power(Imp/A) | 14.75 | 14.78 | 14.79 | 14.82 | 14.89 | 14.91 | ||||||
Open Circuit Voltage（Voc/V) | 46.6 | 46.9 | 47.2 | 47.5 | 48.1 | 48.4 | ||||||
Short Circuit Current(lsc/aA) | 15.61 | 15.63 | 15.65 | 15.68 | 15.76 | 15.8 | ||||||
Module Efficiency(%) | 21.1 | 21.3 | 21.5 | 21.6 | 22.0 | 22.2 | ||||||
TSM-DE21 ELECTRICAL DATA (STC) | ||||||||||||
Maximum Power（Pmax/W） | 645 | 650 | 655 | 660 | 665 | 670 | ||||||
Voltage at Maximum Power(Vmp/V) | 37.2 | 37.4 | 37.6 | 37.8 | 38 | 38.2 | ||||||
Current at Maximum Power(Imp/A) | 17.35 | 17.39 | 17.43 | 17.47 | 17.51 | 17.55 | ||||||
Open Circuit Voltage（Voc/V) | 45.1 | 45.3 | 45.5 | 45.7 | 45.9 | 46.1 | ||||||
Short Circuit Current(lsc/aA) | 18.39 | 18.44 | 18.48 | 18.53 | 18.57 | 18.62 | ||||||
Module Efficiency(%) | 20.8 | 20.9 | 21.1 | 21.2 | 21.4 | 21.6 | ||||||
Power Range: 390-405W
No. of Cells: 120 cells
Dimension: 1754×1096×30 mm
Weight: 21.0 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimension: 1754×1096×30 mm
Weight: 21.0 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Power Range: 415-435W
No. of Cells: 120 cells
Dimension: 1754×1096×30 mm
Weight: 21.0 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimension: 1754×1096×30 mm
Weight: 21.0 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Range: 570-600W
No. of Cells: 132 cells
Dimension: 2384×1134×30 mm
Weight: 33.7 kg
Modules per box: 36pcs
Modules per 40' container: 504pcs
No. of Cells: 132 cells
Dimension: 2384×1134×30 mm
Weight: 33.7 kg
Modules per box: 36pcs
Modules per 40' container: 504pcs
Power Range: 645-670W
No. of Cells: 132 cells
Dimension: 2384×1303×35 mm mm
Weight: 33.6 kg
Modules per box: 31pcs
Modules per 40' container: 558pcs
Dimension: 2384×1303×35 mm mm
Weight: 33.6 kg
Modules per box: 31pcs
Modules per 40' container: 558pcs
Tier 1 Solar Module
About Us

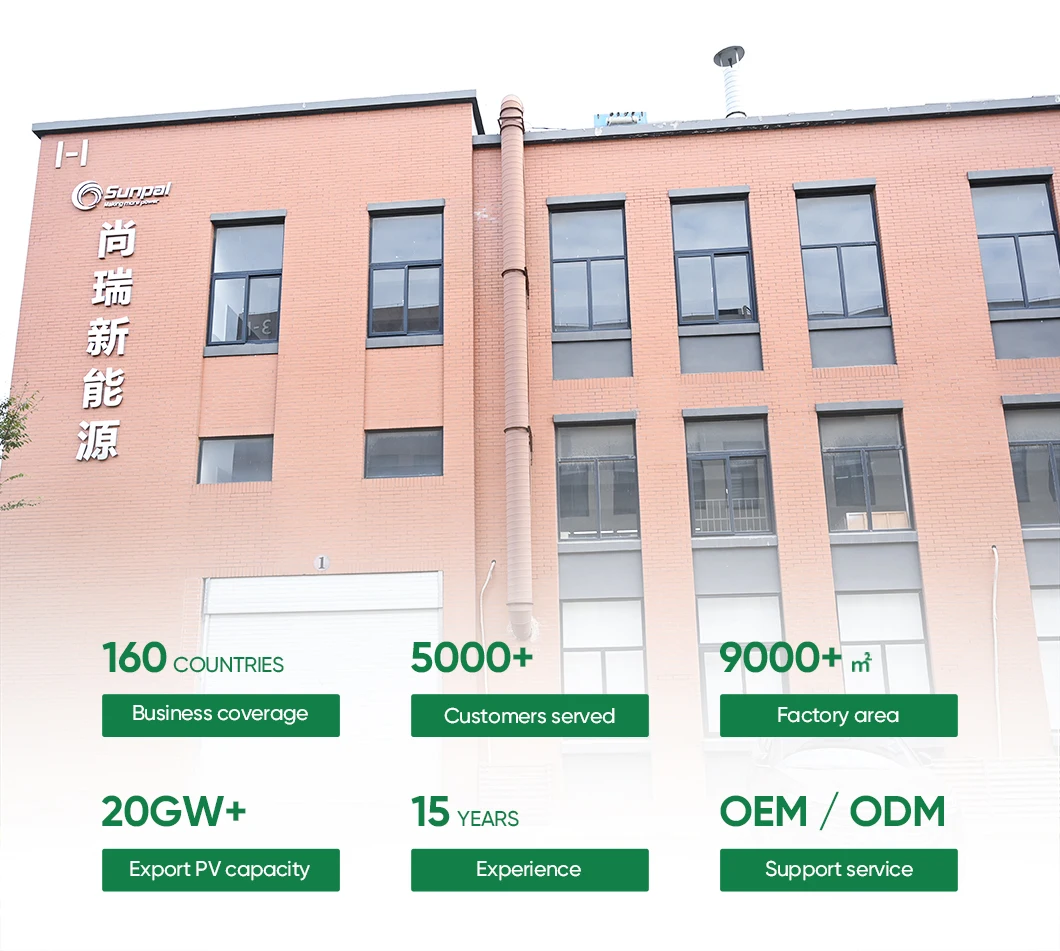

Company Overview
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels.
Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.

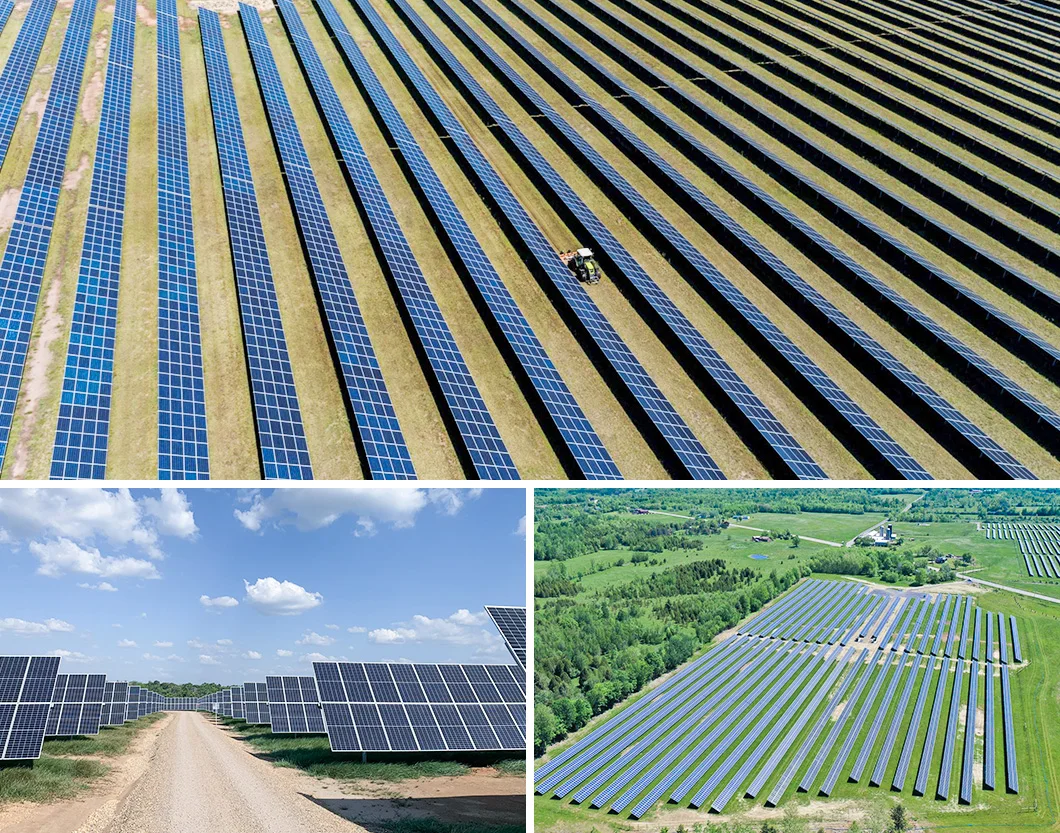

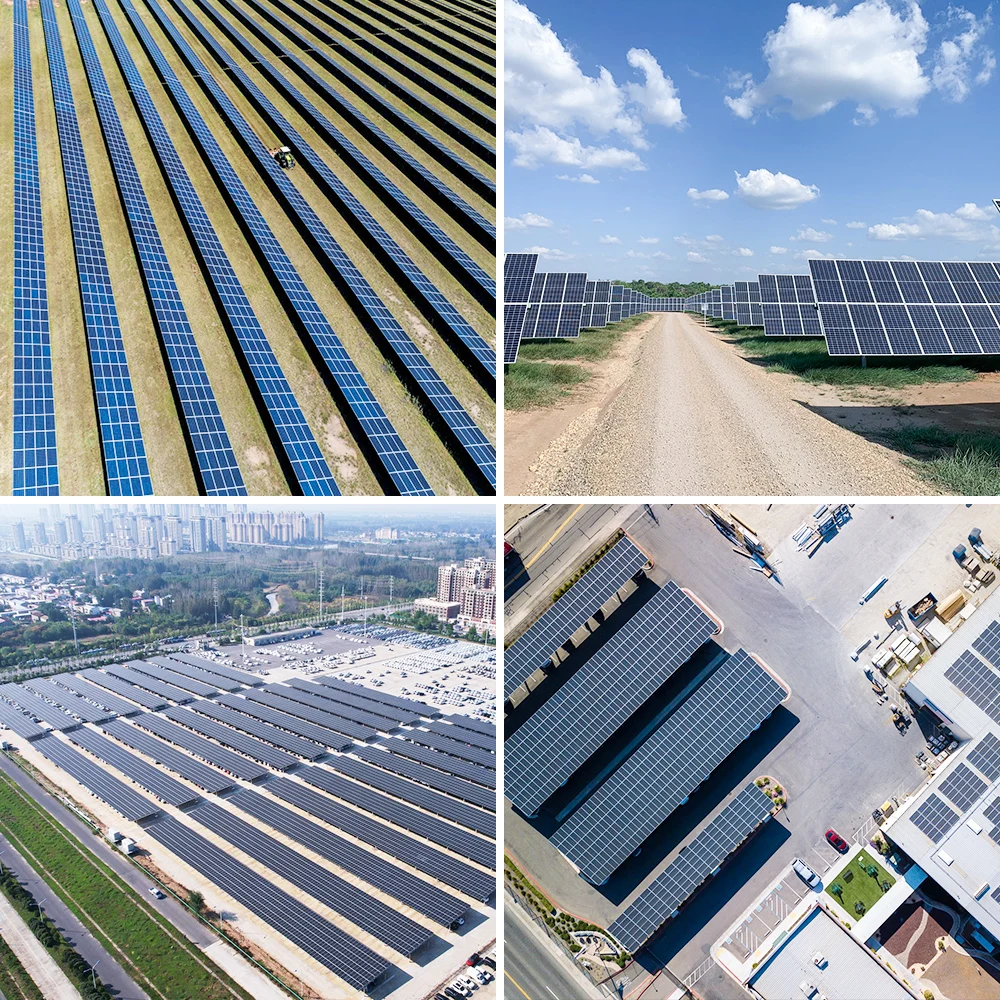

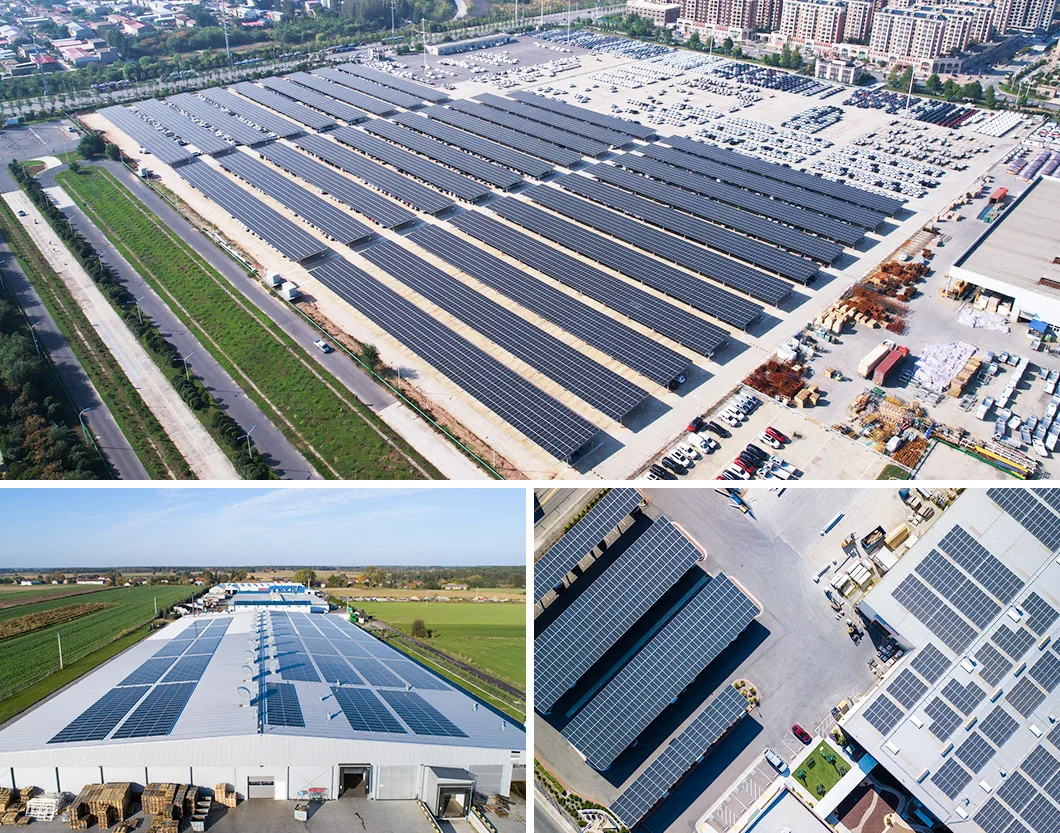

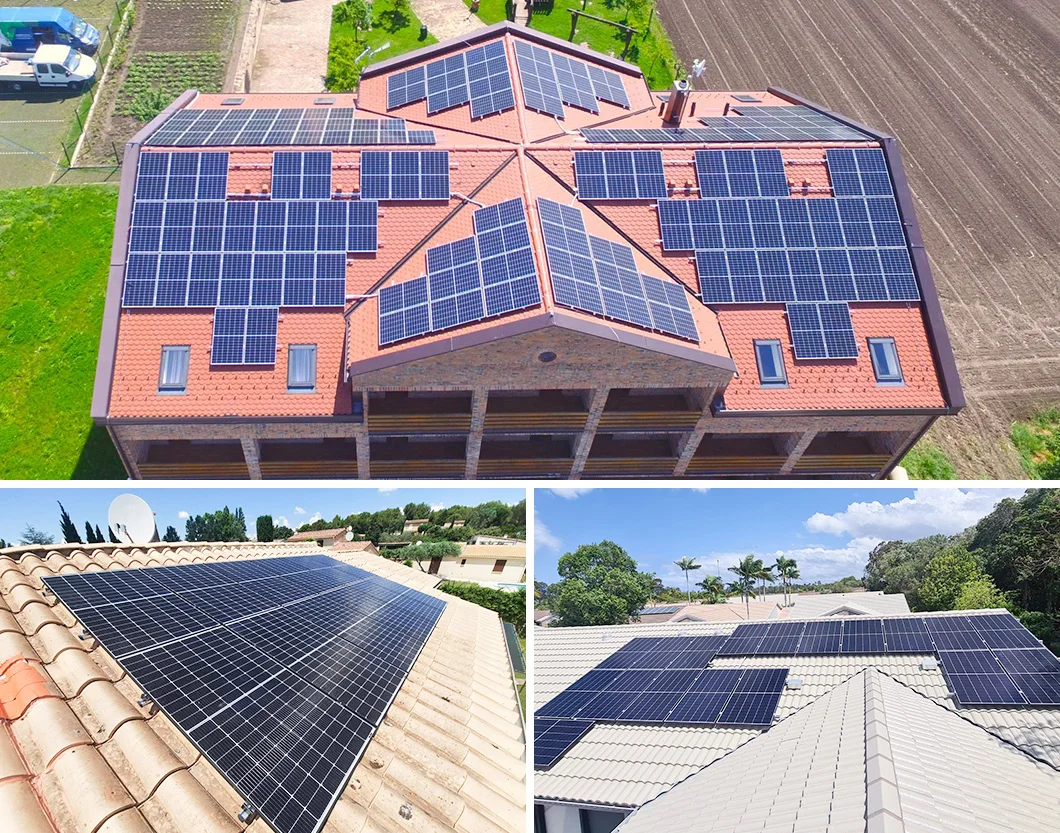

Project Cases
Contact Us
FAQ
A: What are your main products?
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries and solar mounting systems, and all related solar accessories.
B: Are you a factory or trading company?
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?

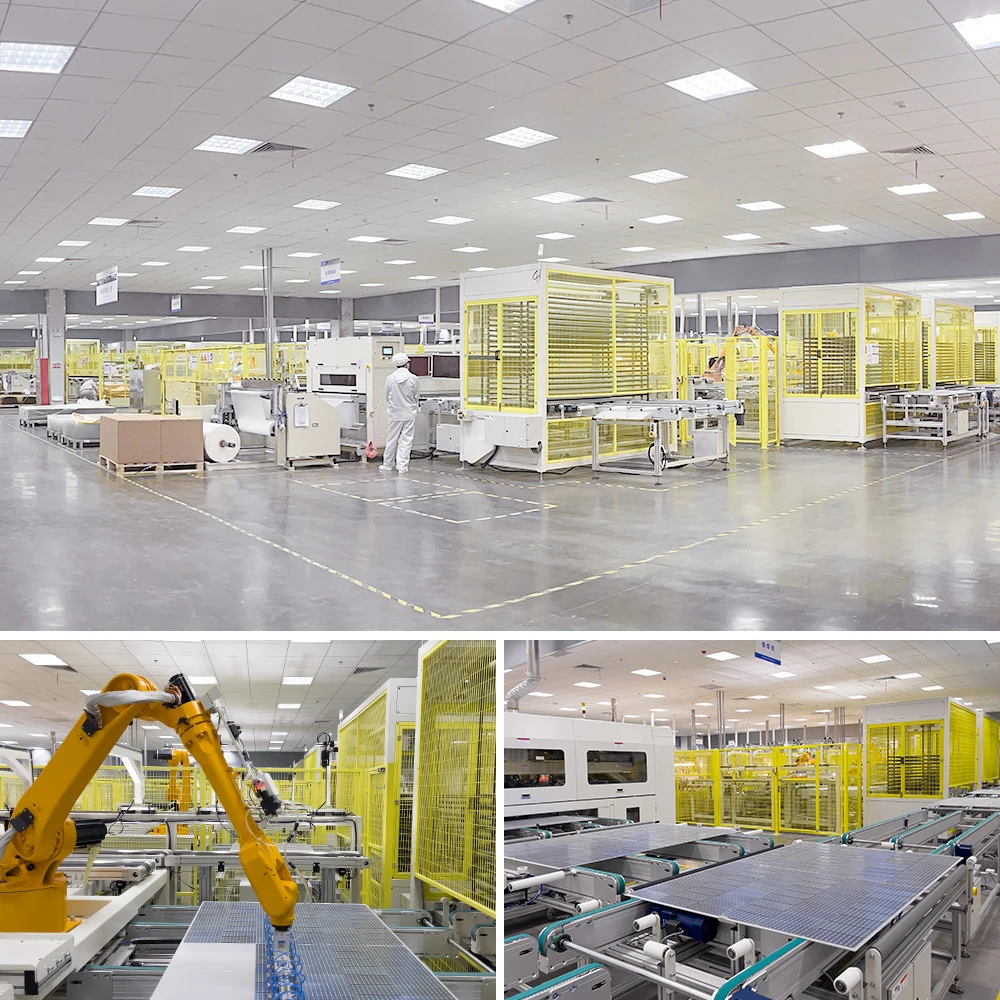

Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately
If you want to know more information, you can send inquiry to our team, we will cover more details.
B: Are you a factory or trading company?
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately
If you want to know more information, you can send inquiry to our team, we will cover more details.
