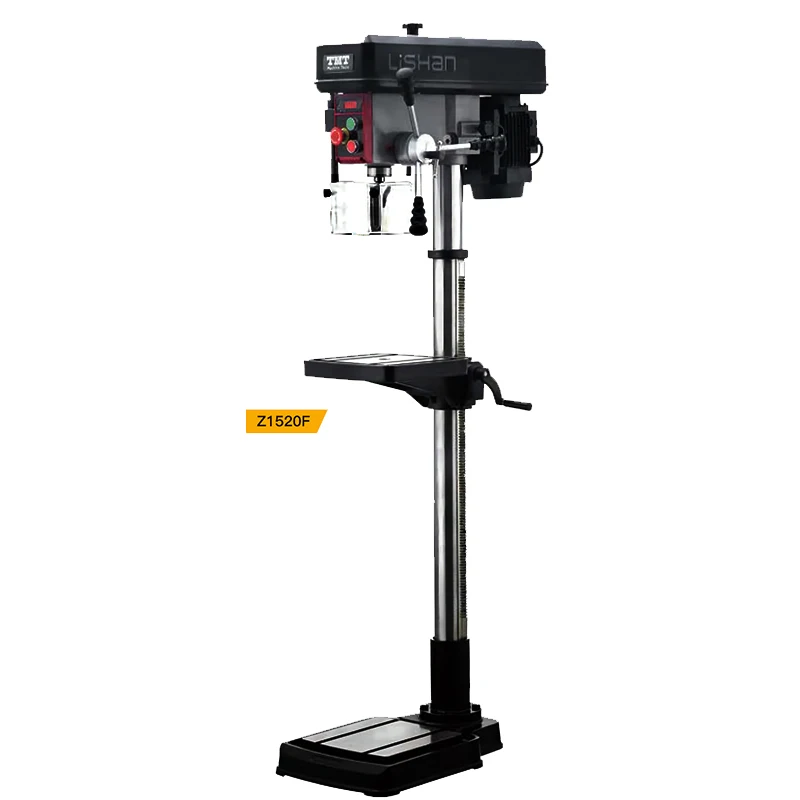

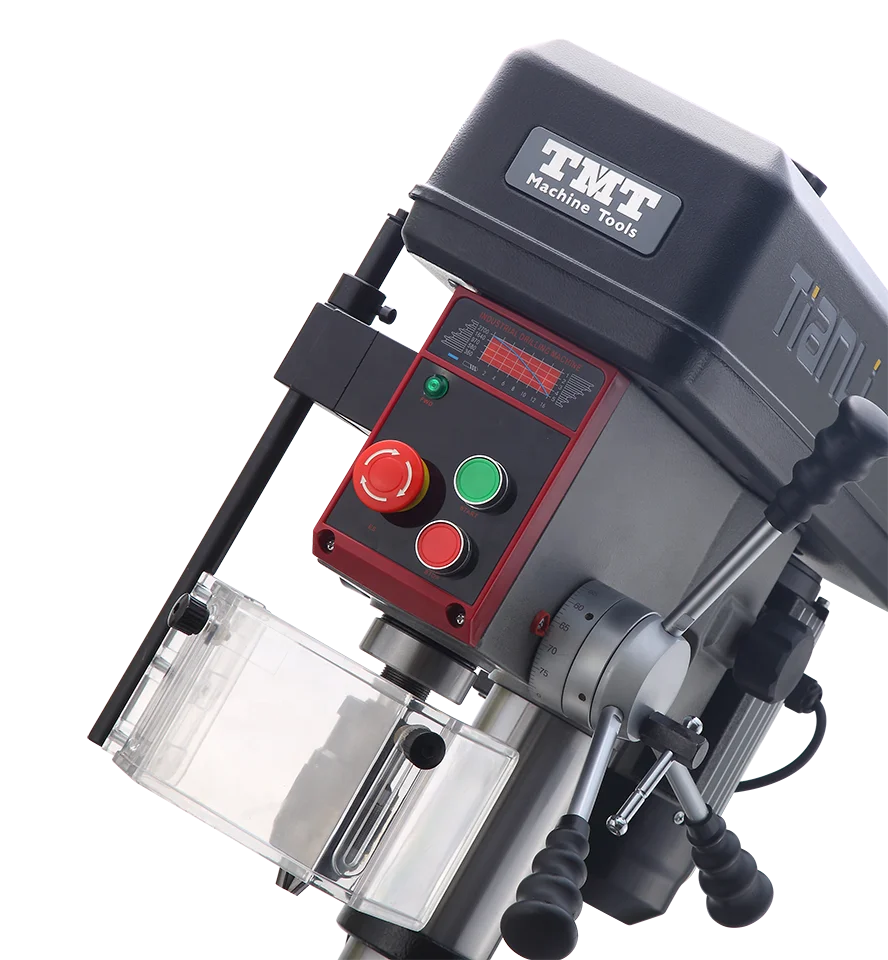

Z1520F Small Drilling Machine Mini 16mm Bench Drilling Machine with long performance life
- Category: >>>
- Supplier: Wuxi Mingxu Machinery Equipment Co. Ltd.
Share on (1600925014288):
Product Overview
Description
Products Description
The above price is a deposit, and you need to contact customer service for quotation.
Product Paramenters
MODEL | Z1520F |
Feature | Driting |
Drill Capacity | 16mm |
Chuck Capecity | B16 1-16mm |
Column Diameter | 73mm |
Spindle Travel | 85mm |
Swing | 360mm |
Max.Distance spi | 900mm |
Max Distance spindl | 1210mm |
Spindle Taper | B16 |
Speed Range | 200-2400rpm |
No.of Speed | 5 |
Table Stze | 280*280mm |
Base Stze | 520*330mm |
Ovoral Hoight | 1620mm |
Motor | 550W/400V/50Hz |
Weight | 90kg |
Packing Size | 1525*655*440mm |
Quantity for 20ft | 58PCS |
MODEL | |||
Feature | Drilling | Drilling | Driting |
Drill Capacity | 16mm | 20mm | 25mm |
Chuck Capecity | B16 1-16mm | B16 1-16mm | B16 1-16mm |
Column Diameter | 70mm | 70mm | 80mm |
Spindle Travel | 85mm | 100mm | 100mm |
Swing | 360mm | 410mm | 410mm |
Max.Distance spi | 335mm | 320mm | 850mm |
Max Distance spindl | 540mm | 530mm | 1160mm |
Spindle Taper | B16 | MT2 | MT2 |
Speed Range | 200-2400rpm | 200-2400rpm | 200-2400rpm |
No.of Speed | 5 | 5 | 5 |
Table Stze | 267*230mm | 283*248mm | 320*320mm |
Base Stze | 490*310mm | 520*345mm | 600*365mm |
Ovoral Hoight | 980mm | 1010mm | 1630mm |
Motor | 550W/400V/50Hz | 750W/400V/50Hz | 750W/400V/50Hz |
Weight | 85kg | 106kg | 128kg |
Packing Size | 1055*610*380mm | 1066*610*380mm | 1525*655*440mm |
Quantity for 20ft | 114PCS | 114PCS | 58PCS |
