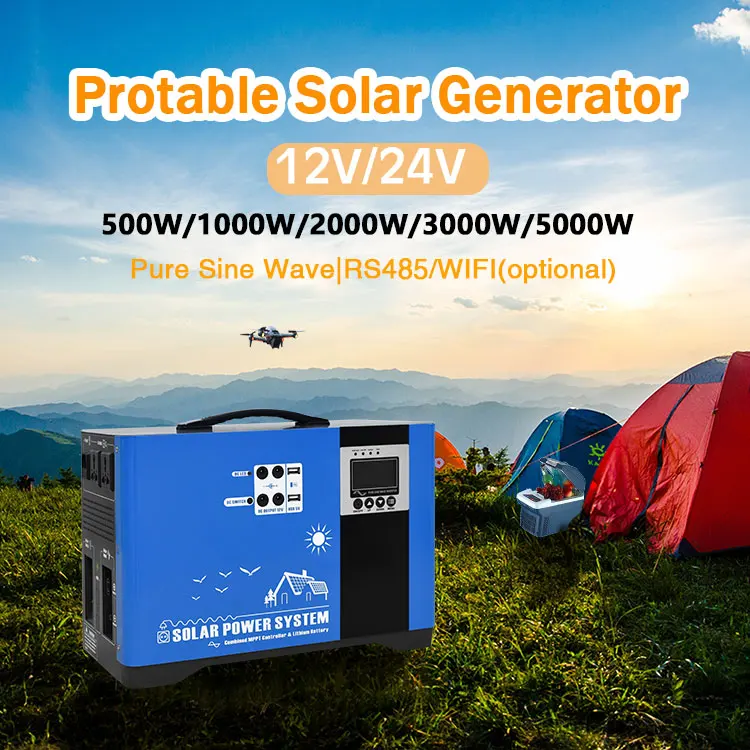

Anern solar power generator 3000w home system Kit solar power portable generator
- Category: >>>
- Supplier: Guangzhou Anern Energy Technology Co. Ltd.
Share on (1600925058438):
Product Overview
Description
Product Description
Anern's latest smart solar storage system with built-in lithium battery. Hardware, software comprehensive upgrade, better stability, Just connect the solar panels to power the load. double CPU intelligent control technology, MPPT Controller greatly improving the charging efficiency more than 20%, Safe and reliable.
★ All-in-one design
★ No installation
★ Using directly
★ All-in-one design
★ No installation
★ Using directly
Specification
Model | MPSG-N500 | MPSG-N1000 | MPSG-N2000 | MPSG-N3000 | MPSG-N5000 | |||||
Battery Voltage | 12.8V | 25.6V | 25.6V | 25.6V | 48V | |||||
Inverter | ||||||||||
RATED POWER | 500W | 1000W | 2000W | 3000W | 5000W | |||||
Input Voltage Range | 110/220VAC±10% | |||||||||
Input Frequency | 45-65Hz | |||||||||
Output Voltage | 110/120/220/240VAC(optional) | |||||||||
Output Frequency | 50/60Hz | |||||||||
Output Wave | Pure Sine Wave | |||||||||
Speficifation Of Built-in Lithium Battery | 600WH | 1200WH | 2500WH | 3000WH | 5000WH | |||||
Communication | RS485/WIFI(optional) | |||||||||
Solar Input | ||||||||||
Max. PV Power | 240W | 480W | 800W | 1500W | 3000W | |||||
Range Of Charging Voltage | 15-90VDC | 30-90VDC | 30-90VDC | 30-130VDC | 60-160VDC | |||||
Rated Charge Current | 20A | 30A | 60A | 60A | ||||||
DC Output | ||||||||||
5VDC USB Output | 2个/MAX 2A | |||||||||
12VDC Output Ports | 2个/MAX 2A | |||||||||
PHYSICAL | ||||||||||
Heat Dissipation/Cooling | Temperature control by intelligent exhaust fan | |||||||||
Display | Digital LCD | |||||||||

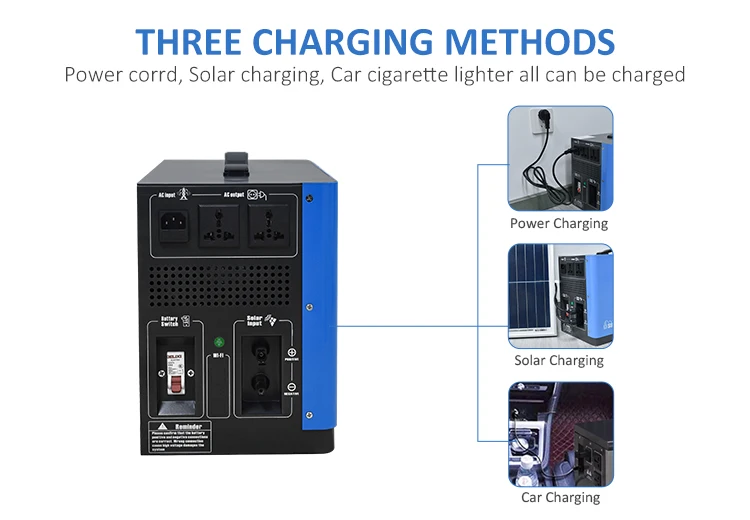

Electricity Charging | Yes | |||||||||

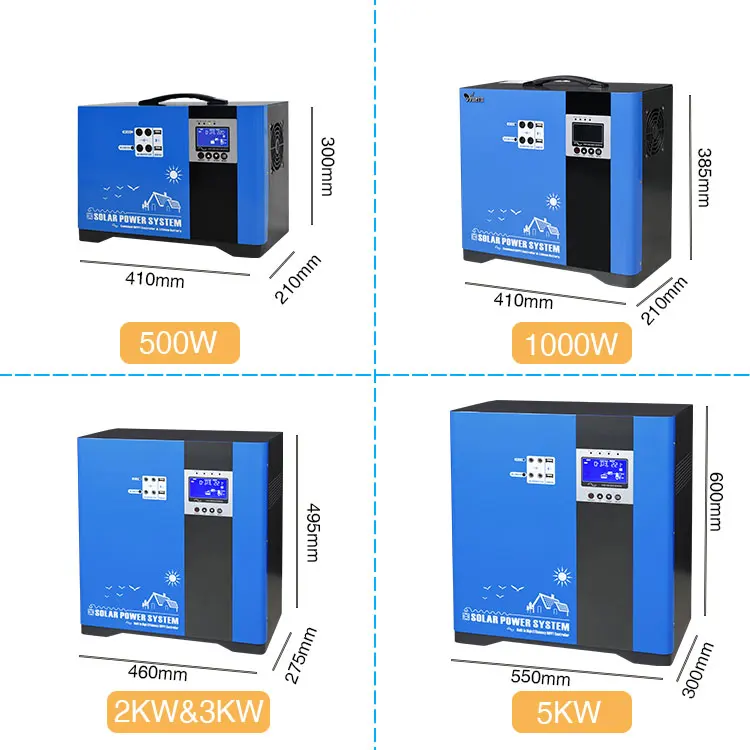

External Size：W*D*H（mm） | 410*210*300mm | 410*210*385mm | 460*275*495mm | 460*275*495mm | 550*300*600mm | |||||
Package Size：W*D*H（mm） | 458*258*348mm | 458*258*433mm | 495×290×640mm | 495×290×640mm | 585×315×760mm | |||||
G.W.(Gross Weight) | 18kg | 27kg | 50kg | 59kg | 90kg | |||||
Product Details

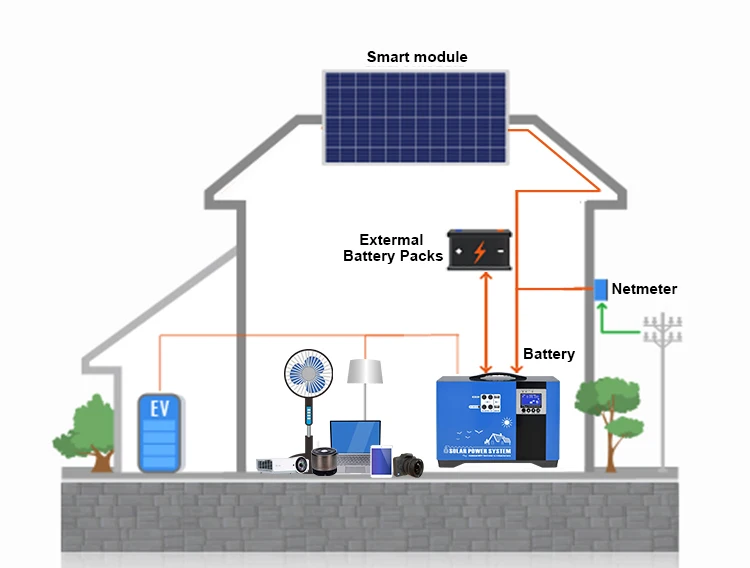

SOLAR STORAGE SOLUTION

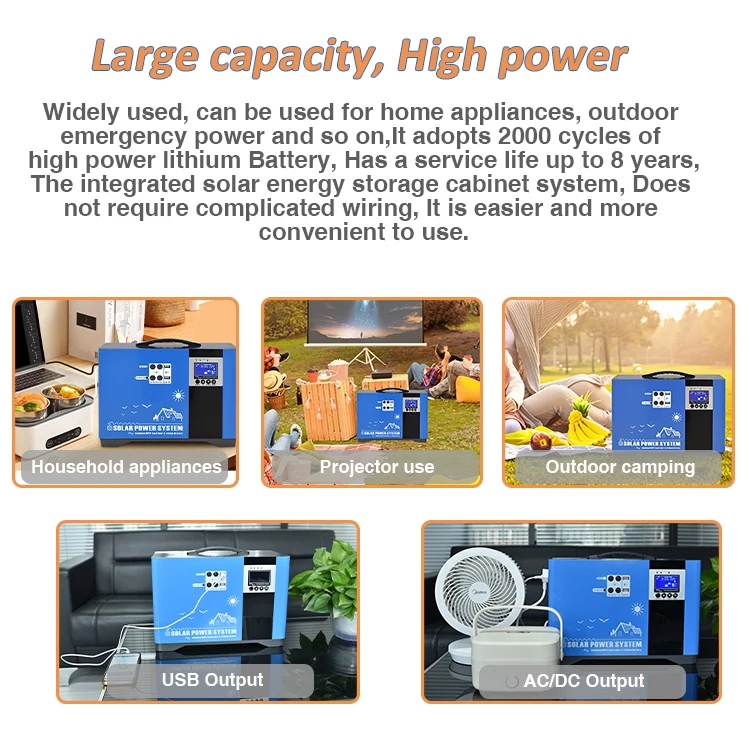

★ It adopts 2000 cycles of high power lithium Battery
★ Has a service life up to 8 years
★ The integrated solar energy storage cabinet system
★ Does not require complicated wiring
★ It is easier and more convenient to use
★ Has a service life up to 8 years
★ The integrated solar energy storage cabinet system
★ Does not require complicated wiring
★ It is easier and more convenient to use

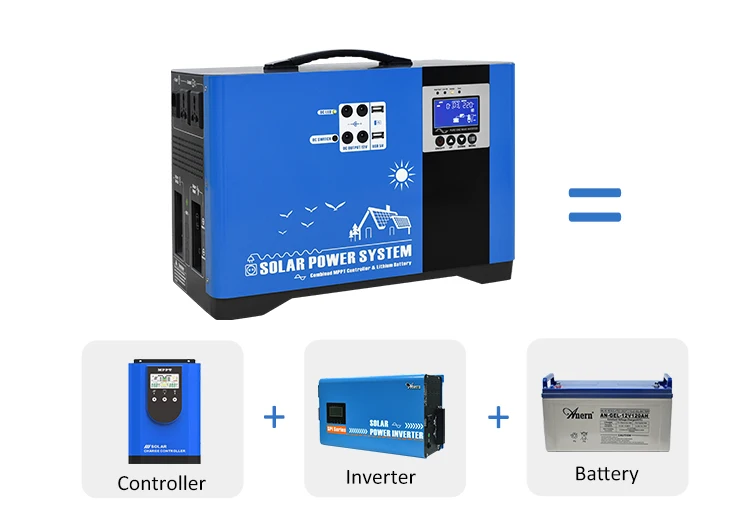

All-IN-ONE DESIGN
★ Excellent performance because of double CPU intelligent control technology
★ MPPT Controller greatly improving the charging efficiency more than 20%
★ Digital LCD and LEDs for visualization of operation status of the equipment
★ MPPT Controller greatly improving the charging efficiency more than 20%
★ Digital LCD and LEDs for visualization of operation status of the equipment
EASY TO USE
★ Safe and reliable with intelligent exhaust fan control

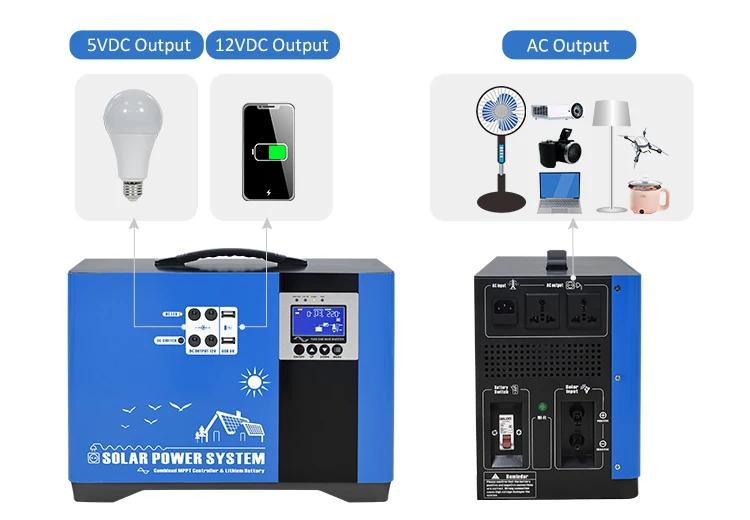

★ Convenient and practical 5VDC-USB output port and 12VDC output port
★ The mains supply mode/energy-saving mode/battery mode can be set for flexible

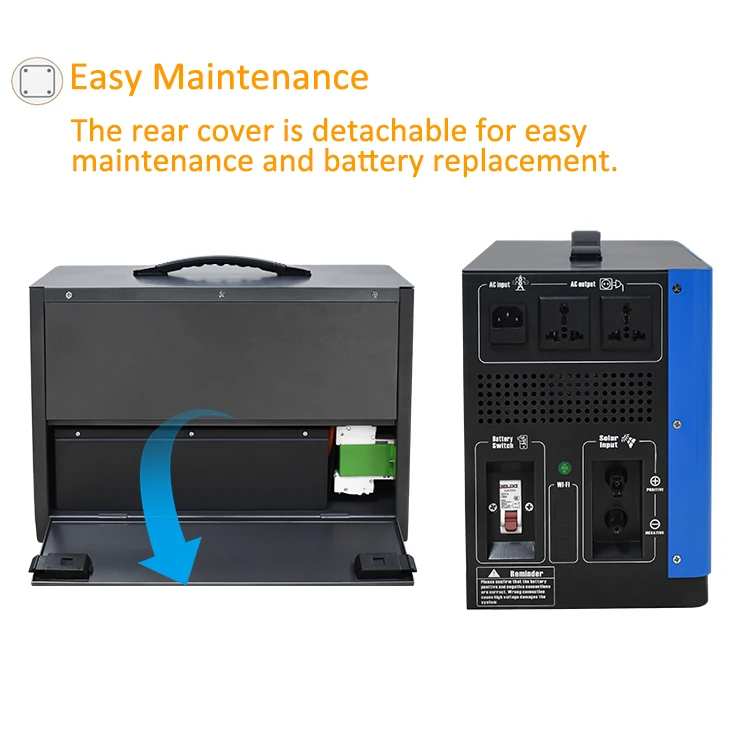

★ Making subsequent maintenance and management more convenient
★ Convenient and practical 5VDC-USB output port and 12VDC output port
★ The mains supply mode/energy-saving mode/battery mode can be set for flexible
★ Making subsequent maintenance and management more convenient
EASIER AND MORE SPACE
★ Overcharge protechon and overdischarge protection for a longer battery life
★ Overall automatic protection and alarms induding AC output overload protection . short arcuit protection . Etc
★ Flexibly adjust the installation position
★ Overall automatic protection and alarms induding AC output overload protection . short arcuit protection . Etc
★ Flexibly adjust the installation position
Anern Factory
Anern Group company, owning three factories, big production capacity, OEM/ODM available. Anern is a reputable and famous trademark in China and abroad. Business scope covering diversified models of solar panels, hybrid inverters, lithium battery, solar power systems, etc.

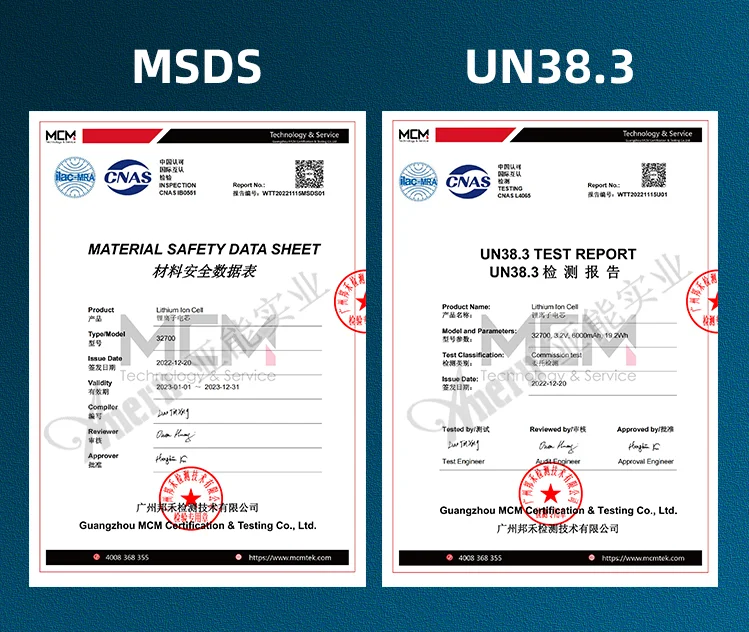

Certificate
Anern products are ISO9001, CE, ROHS,TUV(solar panels), ISO, FC approved and MSDS UN38.3 certifications for lithium battery, meeting various certification requirements for different countries, Our products have been exported to more than 200 countries and regions.We also have participated in many important governmental projects over the world.

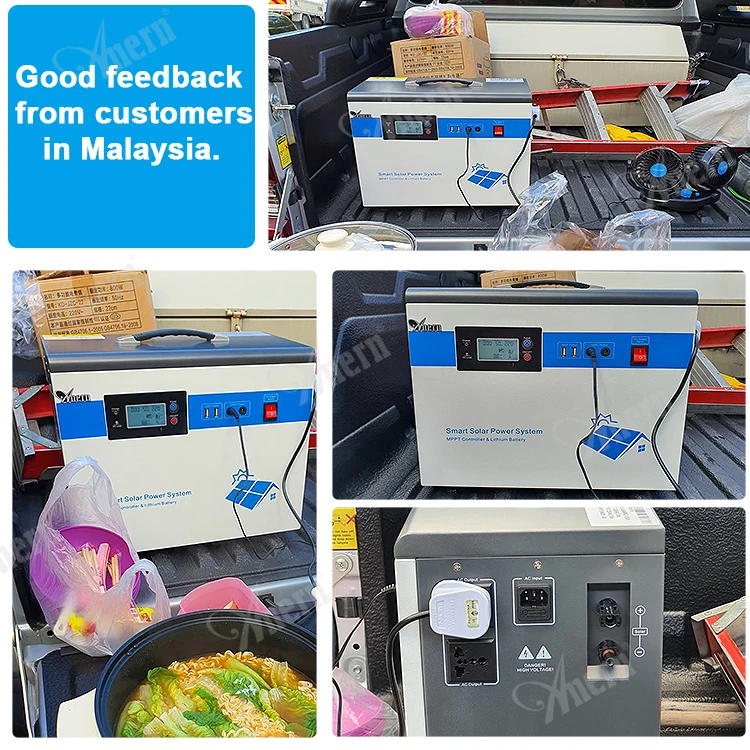

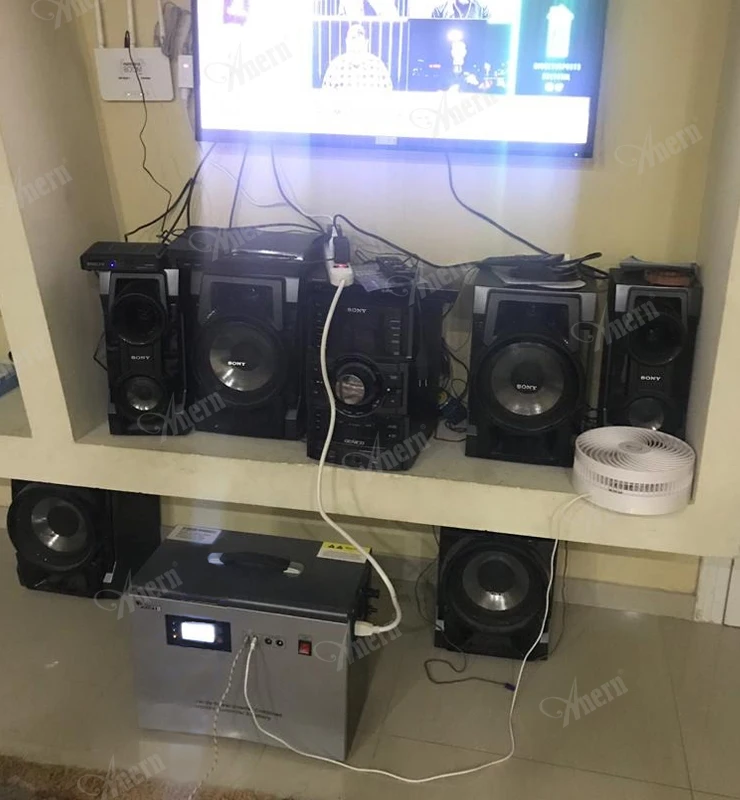

Customer Feedback
Global Exhibitions
Anern participates in high quality exhibitions in many areas every year.Such as the Canton Fair, Middle East Electricity in Dubai, EXPO ELECTRICA INTERNACIONAL in Mexico, etc.Each year there are over 1,000 personnel from various countries clients and government institutions come to visit us.
Company Profile
Anern has 14 years of manufacturer experience in solar energy system field with strong R&D ability. We have a professionable technique team engaged in R&D, with our own patents and unique features.
