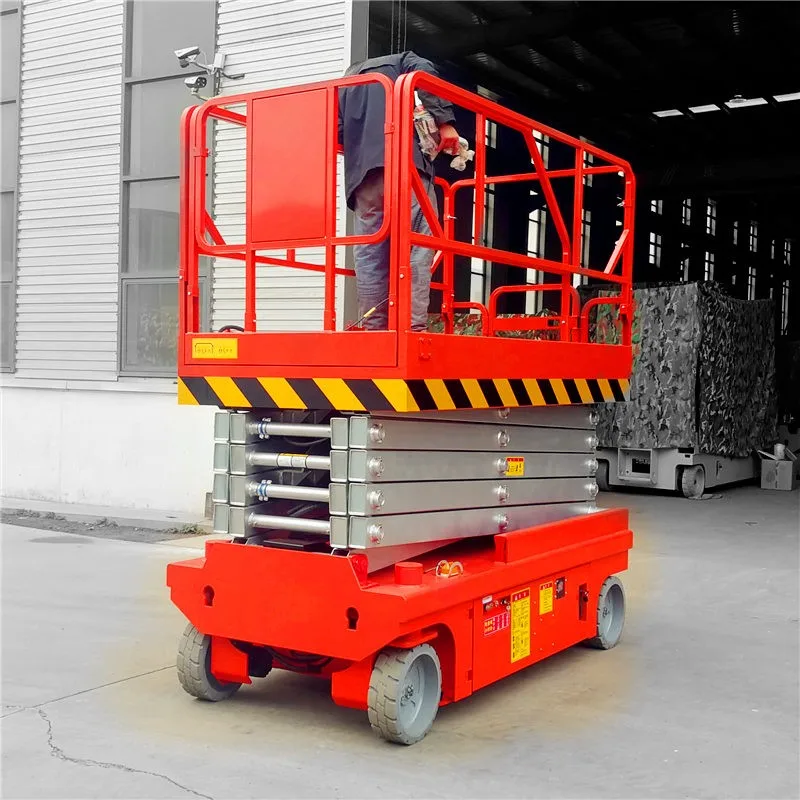

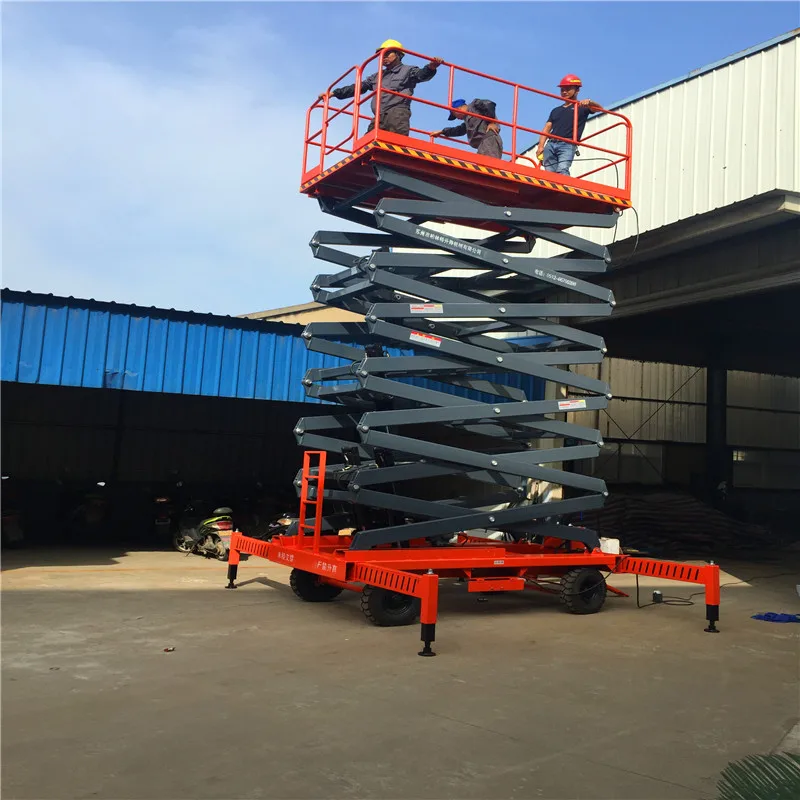

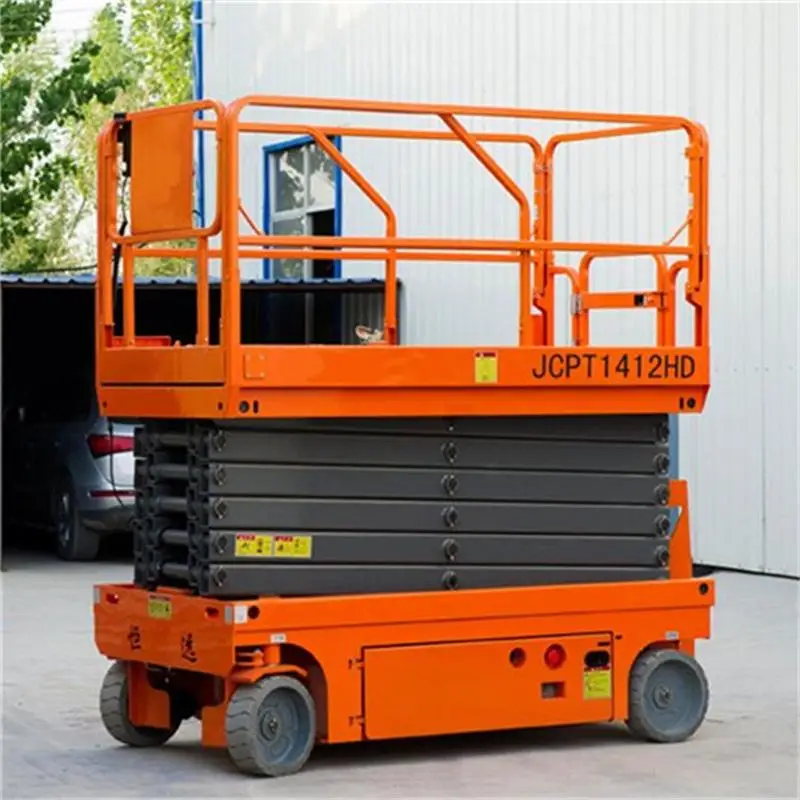

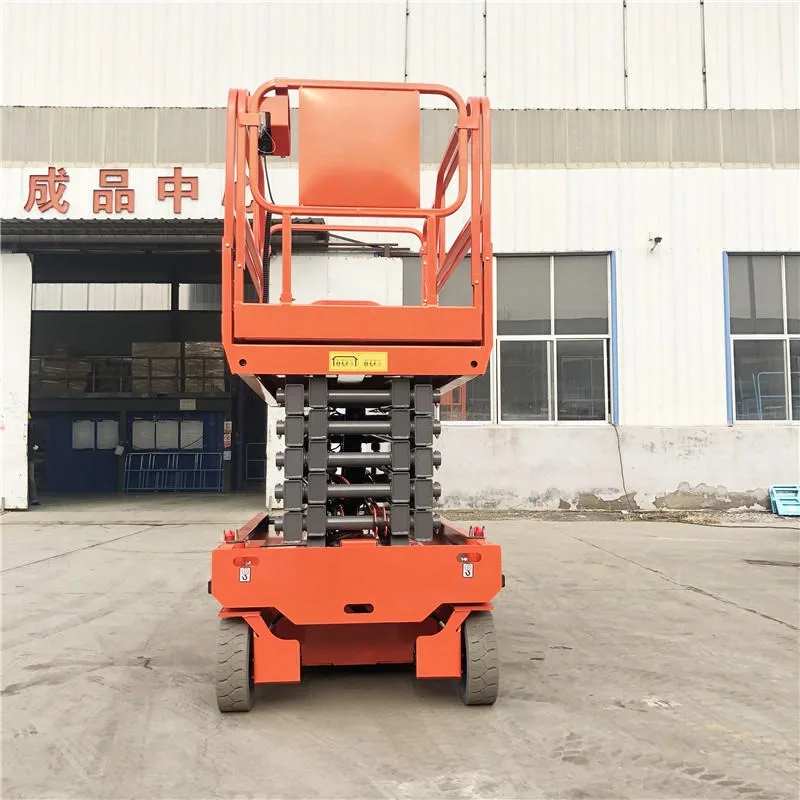

10m Self Propelled Telescopic Automatic Hydraulic Battery Scissor Ladder Lift 6m~18m for Hydraulic Mobile Electric Scissor Lift
- Category: >>>
- Supplier: Zhongpu Crane Co. Ltd.
Share on (1600925149407):
Product Overview
Description

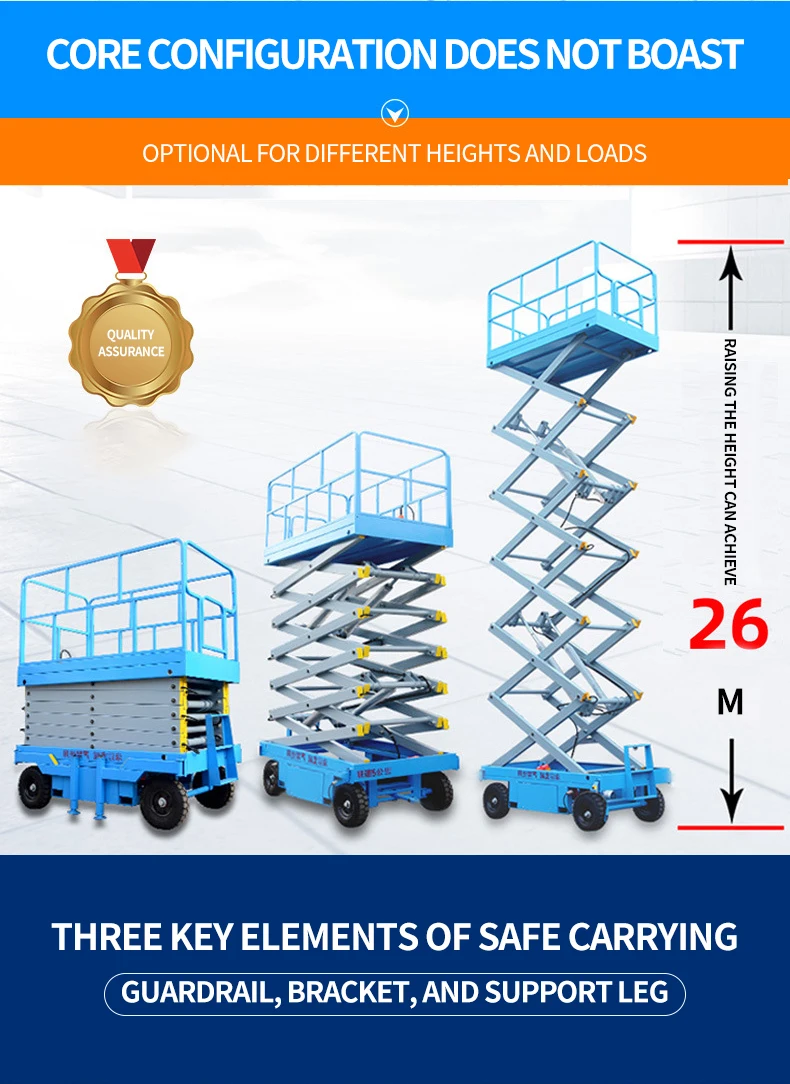

Products Description

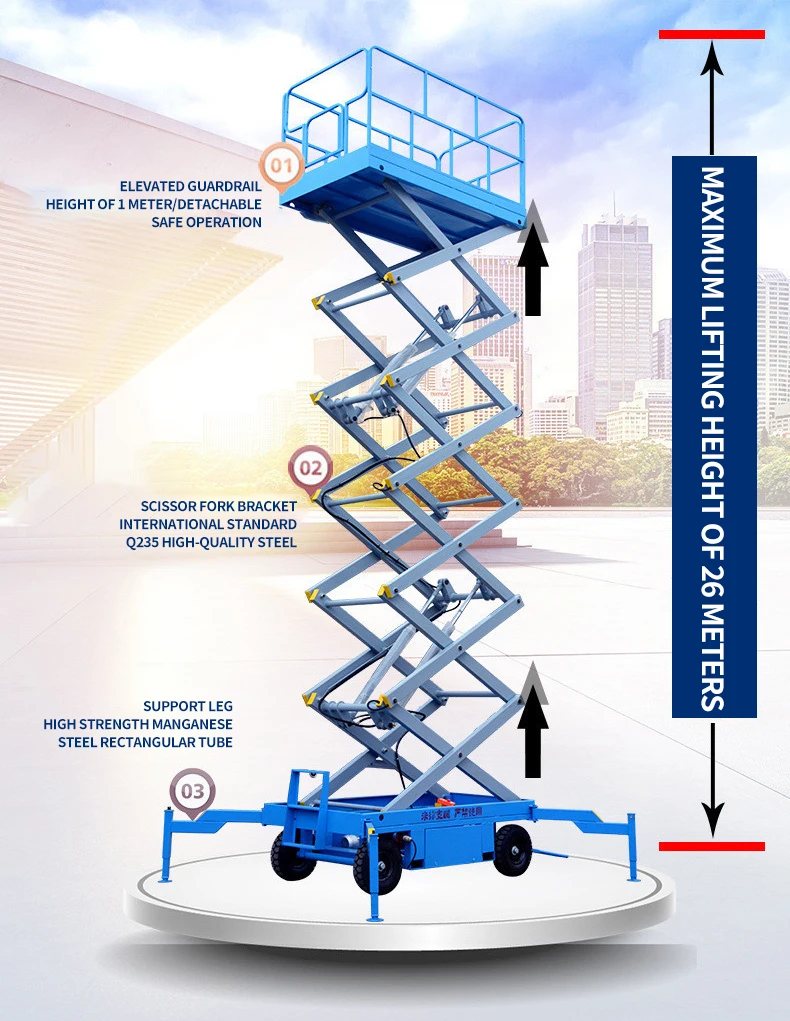

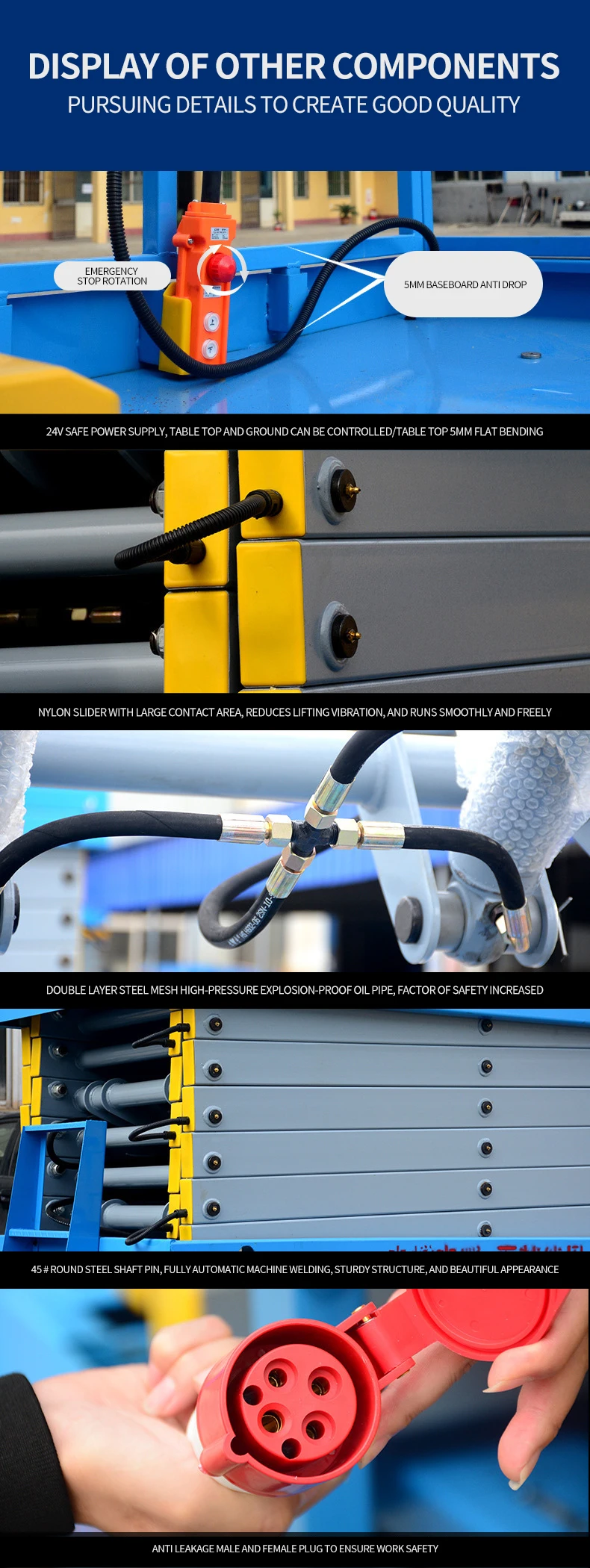

Details Images

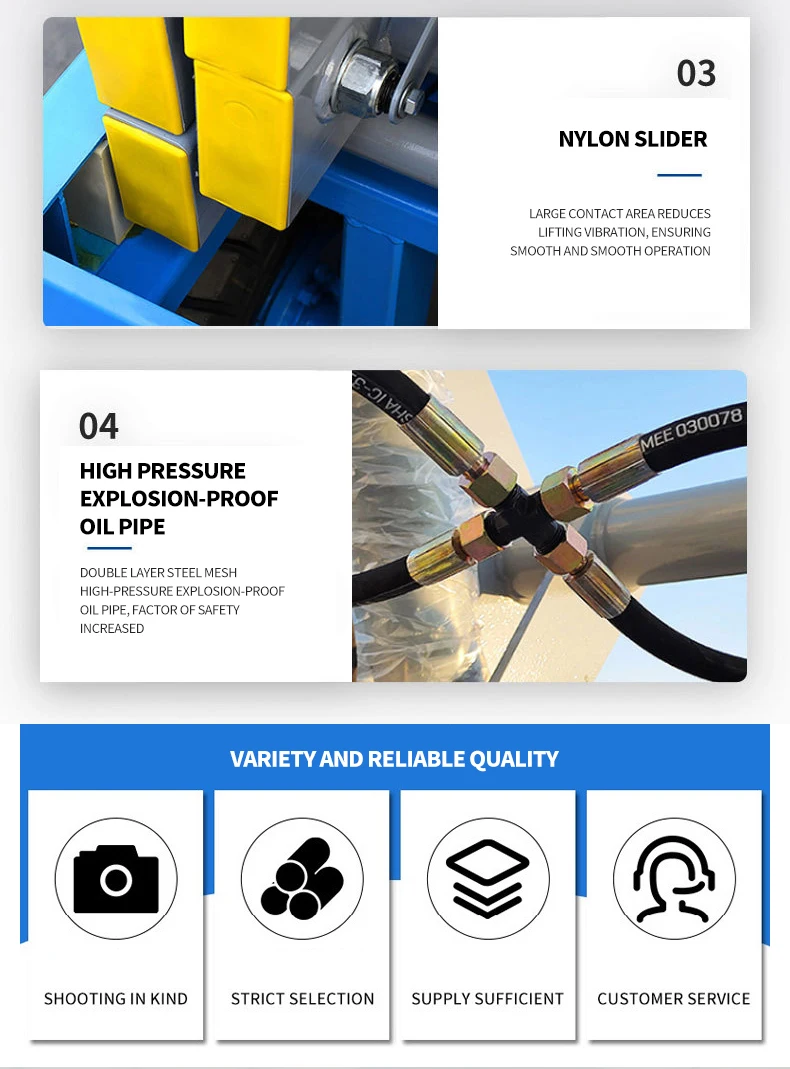

Our Advantages
Certifications
Product Paramenters
Trpe | GTJZO6A | GTJZ06 | GTJZO8A | GTJZ08 | GTJZ10 | GTJZ12 |
Maximum working height | 8.00m | 8.00m | 10.00m | 10.00m | 12.00m | 14.00m |
Maximum platform height | 6.00m | 6.00m | 8.00m | 8.00m | 10.00m | 12.00m |
Safe working loads | 230kg | 230kg | 230kg | 230kg | 230kg | 230kg |
Extend the safe working load of the platform | 100kg | 100kg | 100kg | 100kg | 100kg | 100kg |
Working platform dimensions (length x width x height) | 2.26×0.81x1.1m | 2.26x1.13x1.1m | 2.26x0.81×1.1m | 2.26x1.13x1.1m | 2.26x1.13x1.1m | 2.26x1.13x1.1m |
Overall dimensions (length x width x height) | 2475x0.81x2,158m | 2.475x1.15×2.158m | 2.475x0.81×2,286m | 2.475x1.15x2.286m | 2.475x1.15x2,414m | 2.475x1.15×2,542m |
Overall dimensions (L×WxH) | 2.475x0.81x1.708m | 2.475x1.15x1.708m | 2.475x0.81x1.863m | 2.475x1.15x1.863m | 2.475x1.15x1.964m | 2475×1.15x2.094m |
Countertop extension size | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m |
Minimum ground clearance | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m |
wheelbase | 1.89m | 1.89m | 1.89m | 1.89m | 1.89m | 1.89m |
Turning radius (inside/outside) | 0/2.1m | 0/2.2m | 0/2.1m | 0/2.2m | 0/2.2m | 0/2.2m |
Lifting/driving motors | 24V/4.5kw | 24V/4.5kw | 24V/4.5kw | 24V/4.5kw | 24V/4.5kw | 24V/4.5kw |
Lifting speed L | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
Machine travel speed (collapsed state) | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h |
Machine travel speed (lifting state) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
accumulator | 4x6V/225ah | 4x6V/225ah | 4×6V/225ah | 4x6V/22Sah | 4×6V/225ah | 4×6V/225ah |
charger | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A |
Maximum climbing capacity | 25% | 25% | 25% | 25% | 25% | 25% |
Maximum allowable angle of operation | 1.5/3° | 2/3° | 1.5'/3° | 2°/3° | 2°/3° | 1.5°/3° |
tyre | φ381×127mm | φ381×127mm | φ381×127mm | φ381×127mm | φ381×127mm | φ381×127mm |
Total weight | 1685kg | 1900kg | 1845kg | 2060kg | 2300kg | 2460kg |
Why Choose Us

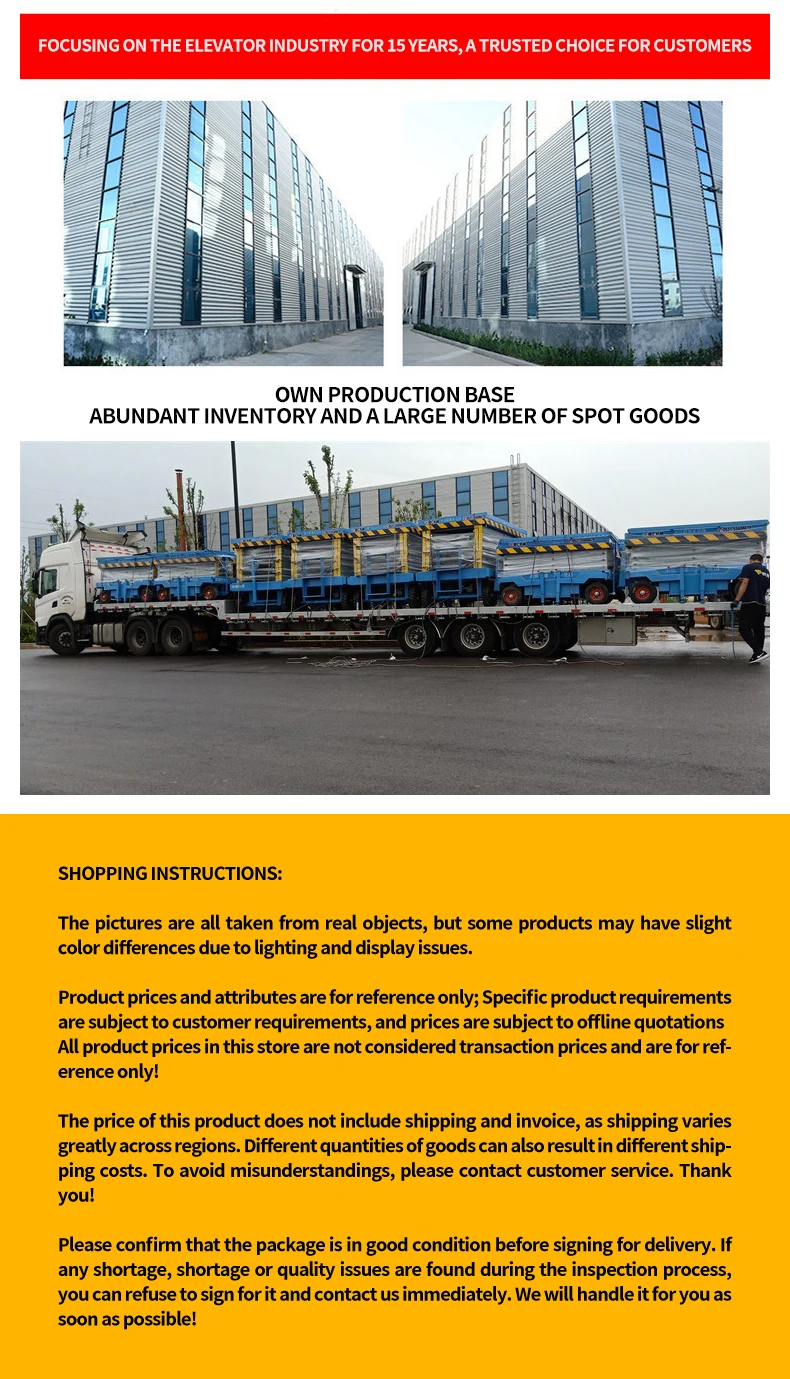

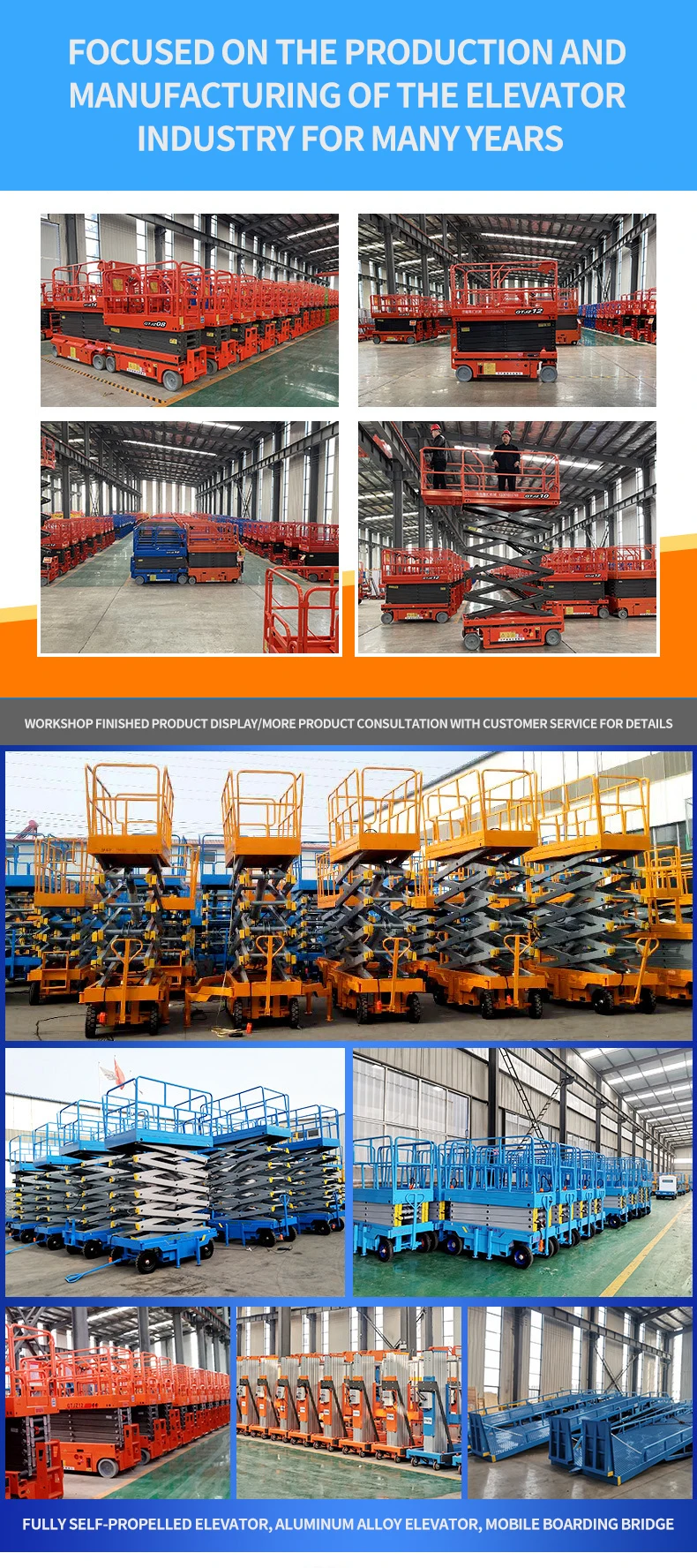

Company Profile
FAQ
Q: What is a lifting platform?
A: The lifting platform is a kind of mechanical equipment used to transport items, goods or personnel vertically. It usually consists of a platform and an electric or hydraulic system that can move the platform vertically to different heights.
Q: What are the applications of the lifting platform?
A: Lifting platforms have a wide range of applications in many industries. It can be used in various occasions such as cargo loading and unloading, logistics warehousing, building construction, vehicle maintenance, and barrier-free passage for the disabled.
Q: What are the different types of lifting platforms?
A: There are many types of lifting platforms, common ones include fixed lifting platforms, mobile lifting platforms, scissor lifting platforms, hydraulic lifts, etc. Each type has its specific purpose and function.
Q: How to choose a lifting platform that suits your needs?
A: When choosing a lifting platform, you should consider the following factors: load capacity, lifting height, platform size, power requirements, safety features, etc. According to your specific needs and application scenarios, consult our company for better advice and customized solutions.
Q: How safe is the lifting platform?
A: The safety of the lifting platform is very important. They are usually equipped with safety features such as safety railings, protective doors, overload protection devices and emergency stop buttons. When using the lifting platform, the operator should receive the necessary training and follow the operation guidelines and safety procedures.
Q: Does the lifting platform need regular maintenance?
A: Yes, the lifting platform needs regular maintenance to ensure its normal operation and safety. Regular inspection, lubrication and maintenance of the key components of the lifting platform is the key to maintaining its good working condition.
Q: What is the price of the lifting platform?
A: The price of the lifting platform varies according to the type, size, function, and brand. The price of smaller stationary lifting platforms is relatively low, while the price of larger, more complex mobile lifting platforms or special customized models will be higher.
A: The lifting platform is a kind of mechanical equipment used to transport items, goods or personnel vertically. It usually consists of a platform and an electric or hydraulic system that can move the platform vertically to different heights.
Q: What are the applications of the lifting platform?
A: Lifting platforms have a wide range of applications in many industries. It can be used in various occasions such as cargo loading and unloading, logistics warehousing, building construction, vehicle maintenance, and barrier-free passage for the disabled.
Q: What are the different types of lifting platforms?
A: There are many types of lifting platforms, common ones include fixed lifting platforms, mobile lifting platforms, scissor lifting platforms, hydraulic lifts, etc. Each type has its specific purpose and function.
Q: How to choose a lifting platform that suits your needs?
A: When choosing a lifting platform, you should consider the following factors: load capacity, lifting height, platform size, power requirements, safety features, etc. According to your specific needs and application scenarios, consult our company for better advice and customized solutions.
Q: How safe is the lifting platform?
A: The safety of the lifting platform is very important. They are usually equipped with safety features such as safety railings, protective doors, overload protection devices and emergency stop buttons. When using the lifting platform, the operator should receive the necessary training and follow the operation guidelines and safety procedures.
Q: Does the lifting platform need regular maintenance?
A: Yes, the lifting platform needs regular maintenance to ensure its normal operation and safety. Regular inspection, lubrication and maintenance of the key components of the lifting platform is the key to maintaining its good working condition.
Q: What is the price of the lifting platform?
A: The price of the lifting platform varies according to the type, size, function, and brand. The price of smaller stationary lifting platforms is relatively low, while the price of larger, more complex mobile lifting platforms or special customized models will be higher.
