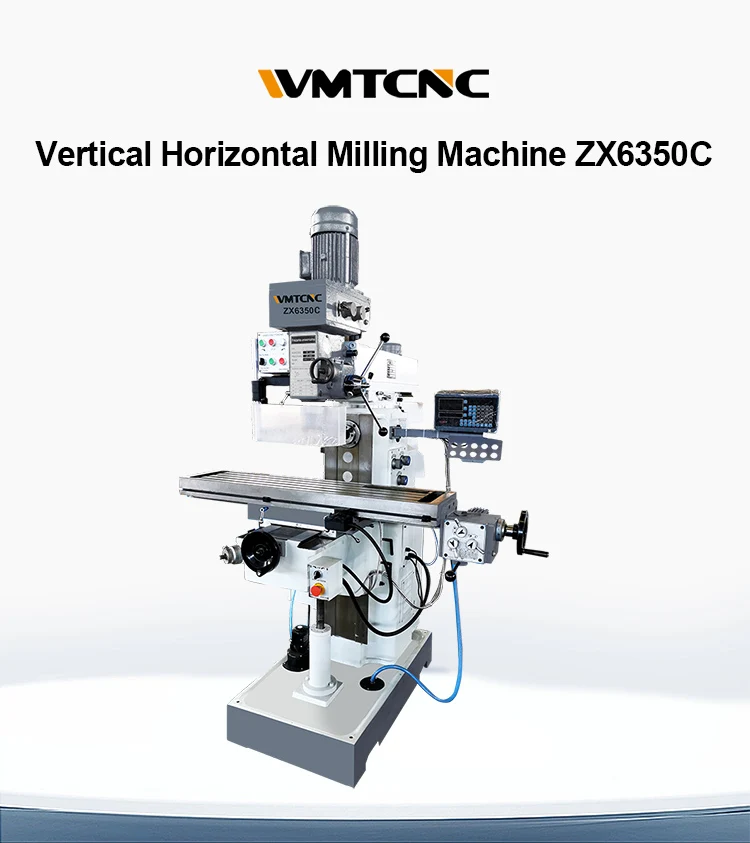

Industrial milling machine ZX6350C universal tool milling machine with milling collet chuck
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600925162761):
Product Overview
Description
Product Description

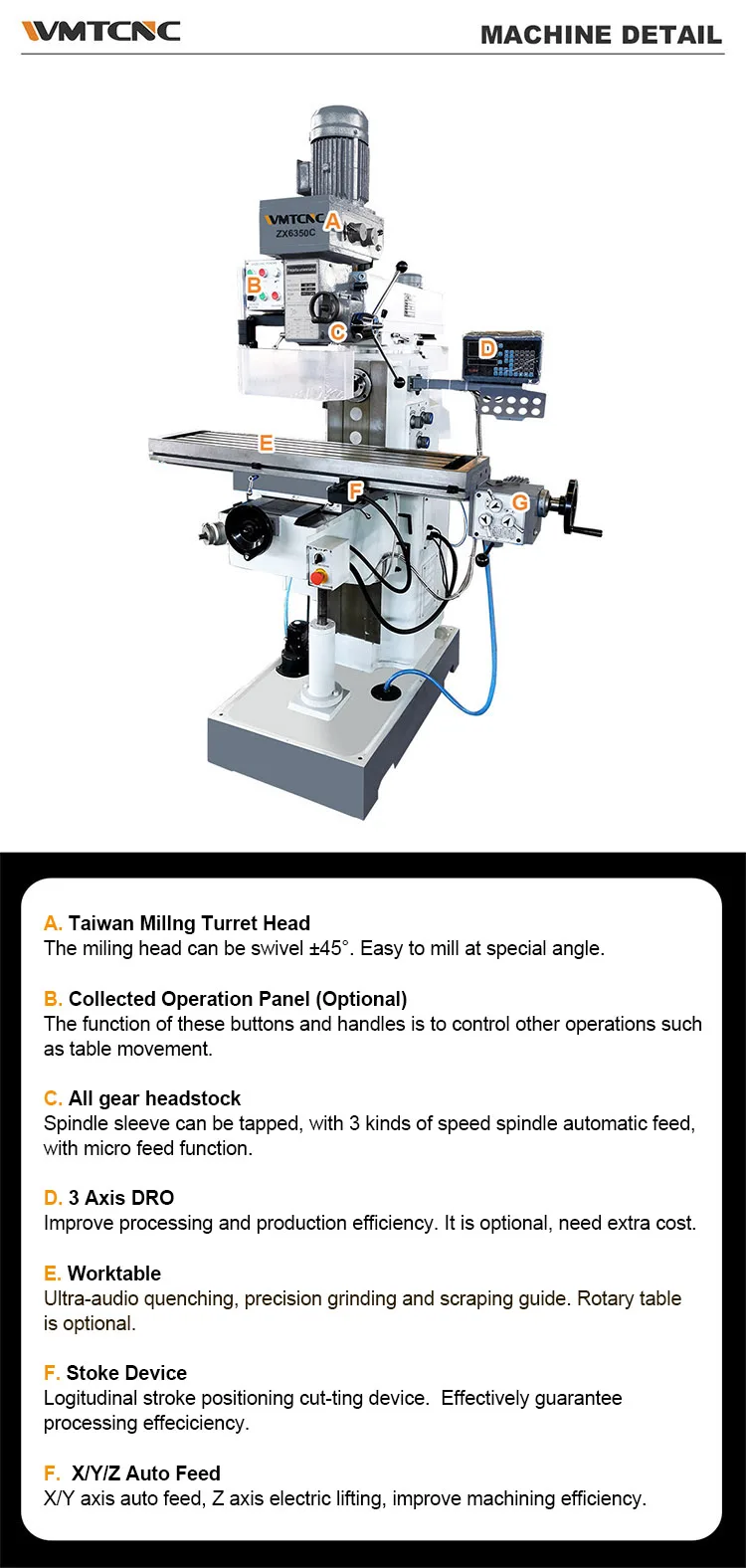

Main Features:
1. Headstock swivels ±45°;
2. ZX6350C Vertical milling spindle by manual;
3. ZX6350Z Vertical milling spindle by Auto-feeding;
4. ZX6350ZA X/Y/Z axis auto feeding, vertical milling head auto feeding, coolant pump, working lamp, oil pan, controlled operation box.
2. ZX6350C Vertical milling spindle by manual;
3. ZX6350Z Vertical milling spindle by Auto-feeding;
4. ZX6350ZA X/Y/Z axis auto feeding, vertical milling head auto feeding, coolant pump, working lamp, oil pan, controlled operation box.
Specification | ZX6350C | ZX6350Z | ZX6350ZA | ||
Max.drilling dia | Φ50/Φ30mm | Φ50/Φ30mm | Φ50/Φ30mm | ||
Spindle taper | ISO30/ISO40/R8/MT4 | ||||
Max.vertical milling dia | 25mm | ||||
Max boring dia | 120mm | ||||
Distance spindle to table surface | 100-480mm | 100-480mm | 80-460mm | ||
Spindle speeds range(V/H) | V:115-1750 H:40-1300 | V:90-2000 H:38-1310 | V:90-2000 H: 40-1300 | ||
Spindle travel | 120mm | ||||
Table size (L×W) | 1120×280mm | 1120×280mm | 1250×320mm | ||
Table travel | 600×260mm | 600×260mm | 600×300×430mm | ||
Main motor power(V/H) | 0.85/1.5,2.2kw | 2.2,2.2kw | 1.5,2.2kw | ||
Packing size | 1400×1630×2350mm | 1400×1630×2350mm | 1680×1480×2250mm | ||
N.W/G.W | 1200/1350kgs | 1200k/1350kgs | 1450/1560kgs | ||
Details Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
