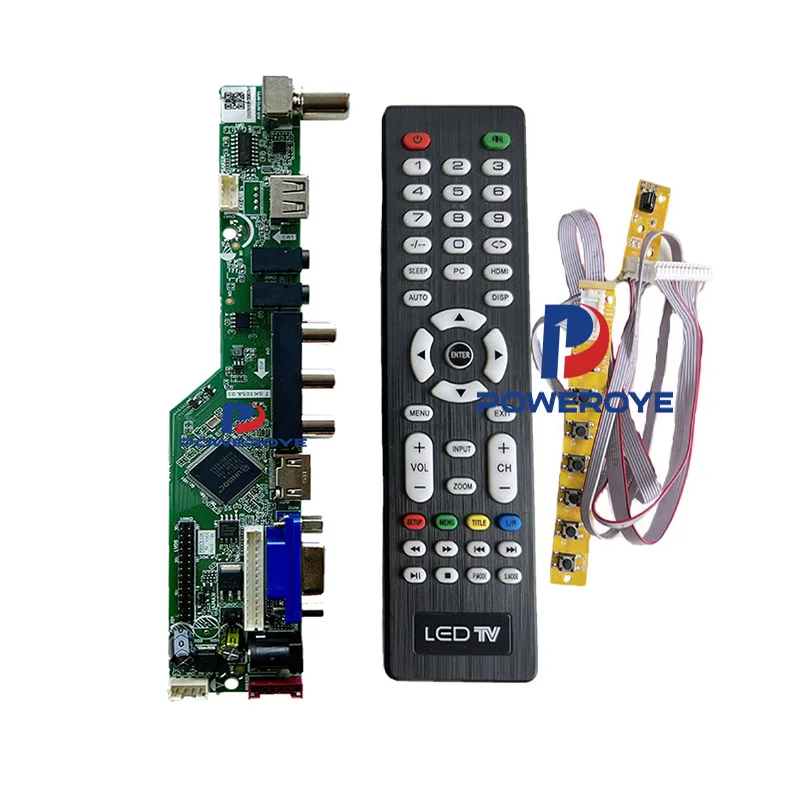

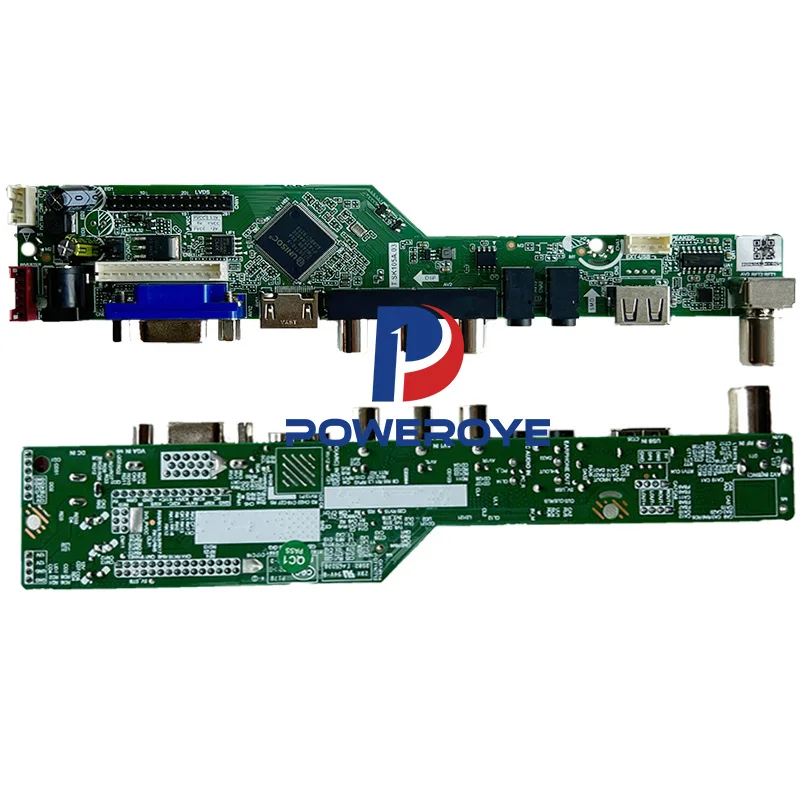

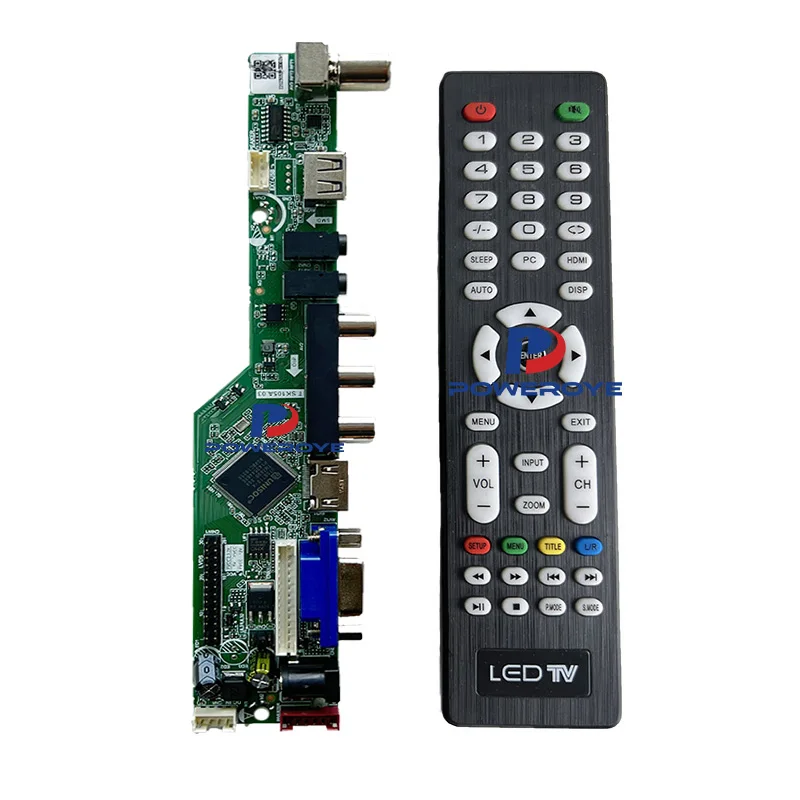

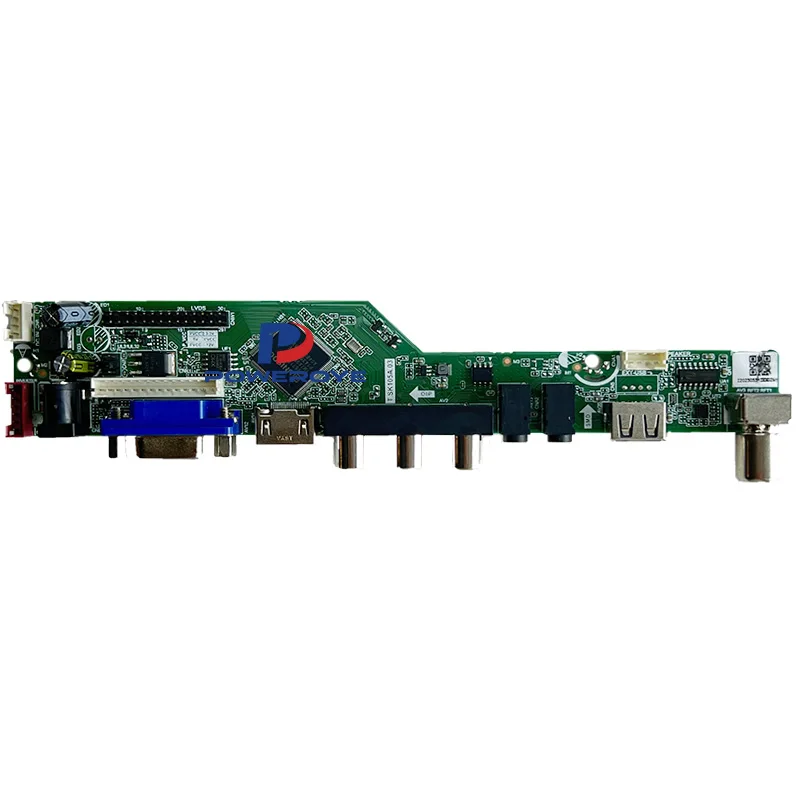

Wholesale Price SK105A.03 Led TV Mainboard Small Size Driving Mother Maibiard 14 32inches Universal Lcd TV Controller Board
- Category: >>>
- Supplier: Chengdu Weierpai Electronics Co. Ltd.
Share on (1600925180926):
Product Overview
Description
Product Description
Wholesale Price SK105A.03 Led TV Mainboard Small Size
Driving Mother Maibiard 14-32inches Universal Lcd TV Controller Board
OSD Language | English/Chinese/French/Spanish.... | ||||||
LCD Panel | Type | TFT-LCD, LED backlight LCD | |||||
Resolution | up to 1920*1080 | ||||||
Panel power | 3.3V,5V,12V optional | ||||||
Interface | 8bit LVDS | ||||||
AV | Video System | PAL/NTSC/SECAM | |||||
Component | 480i, 480p, 720p, 1080i, 1080p | ||||||
HDMI | 480i, 480p, 720p, 1080i, 1080p | ||||||
PC-RGB | up to 1920*1080@60Hz | ||||||
PC-RGB | Earphone Input | 0.2 － 2.0 Vrms | |||||
AV/Component | L/R RCA Input | 0.2 － 2.0 Vrms | |||||
Max Output Power | 2*3W(4ohm)/2*1.5W(8ohm) | ||||||
EARPHONE | 2*10mW(32ohm)(max) | ||||||
Receiving Range | 48.25MHz~865.25MHz | ||||||
Video System | PAL,SECAM,NTSC | ||||||
Input Impedance | 75 ohm | ||||||
Sound System | BG, DK, I, M,N | ||||||
Max Storage channels | 199CH | ||||||
Input | DC12V | ||||||
Power Management | Standby Power Consumption <0.6W(board only | ||||||
Terminal | Output | EARPHONE | 1 Earphone Terminal | ||||
TV | 1 IEC type，75 | ||||||
AV | 1 RCA Terminal(YELLOW) | ||||||
AV Audio | 2 RCA Terminal(RED/WHITE) | ||||||
PC-RGB | 1 D-Sub Terminal(15PIN)PC-RGB Audio | ||||||
PC-RGB Audio | 1 Earphone Terminal | ||||||
HDMI | 1 HDMI Terminal | ||||||
USB | 1 HDMI Terminal | ||||||
12V_DC IN | 1 DC Terminal | ||||||
Key Function | POWER,INPUT,MENU,CH+,CH-,VOL+,VOL | ||||||
