individual tunnel quick freezer french fries chicken meat strawberry iqf tunnel blast freezer
- Category: >>>
- Supplier: Yantai Guangwei Food Cold-Chain Technology Co. Ltd.
Share on (1600925199262):
Product Overview
Description
Tunnel Freezers are specialized IQF Freezers that are capable of freezing large quantities of produce in short periods of time while ensuring that the products are frozen without causing any clumps from developing or having the product stick together, thereby compromising quality. This specialized method of freezing is known as IQF.

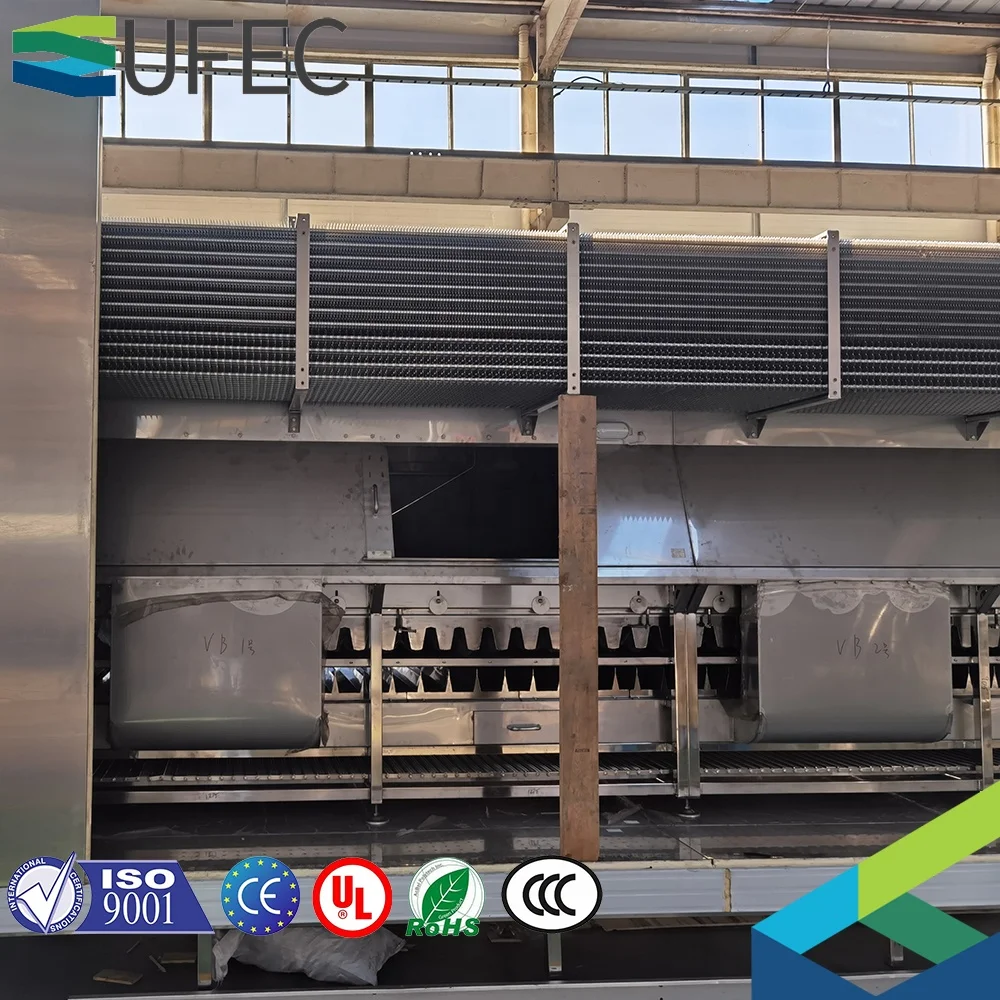

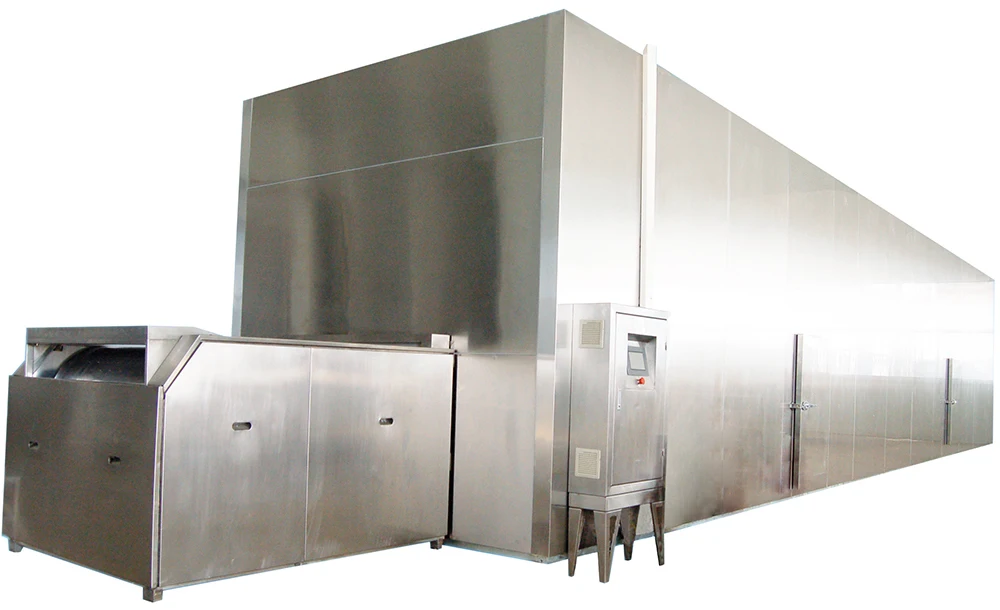

Plate or Mesh belt impinging individual quick freezer
Unique impinging system, breaking the traditional layout of the distribution structure and the concept of freezing. When the cold air flow through the upper and lower air guider, will change into a uniform vertical high-speed wind knife-type collision cold air flow, frozen goods with the conveyor belt transmission, frozen surface and frozen goods center rapid hot and cold exchange, so ensure the purpose of quick freezing. "Impinging system " with the wind device to ensure that the two-way frozen frozen goods to reduce theloss weight of frozen goods, improve product quality.
Features
The casing plate is stainless steel for double side, hard polyurethane high pressure foaming process.

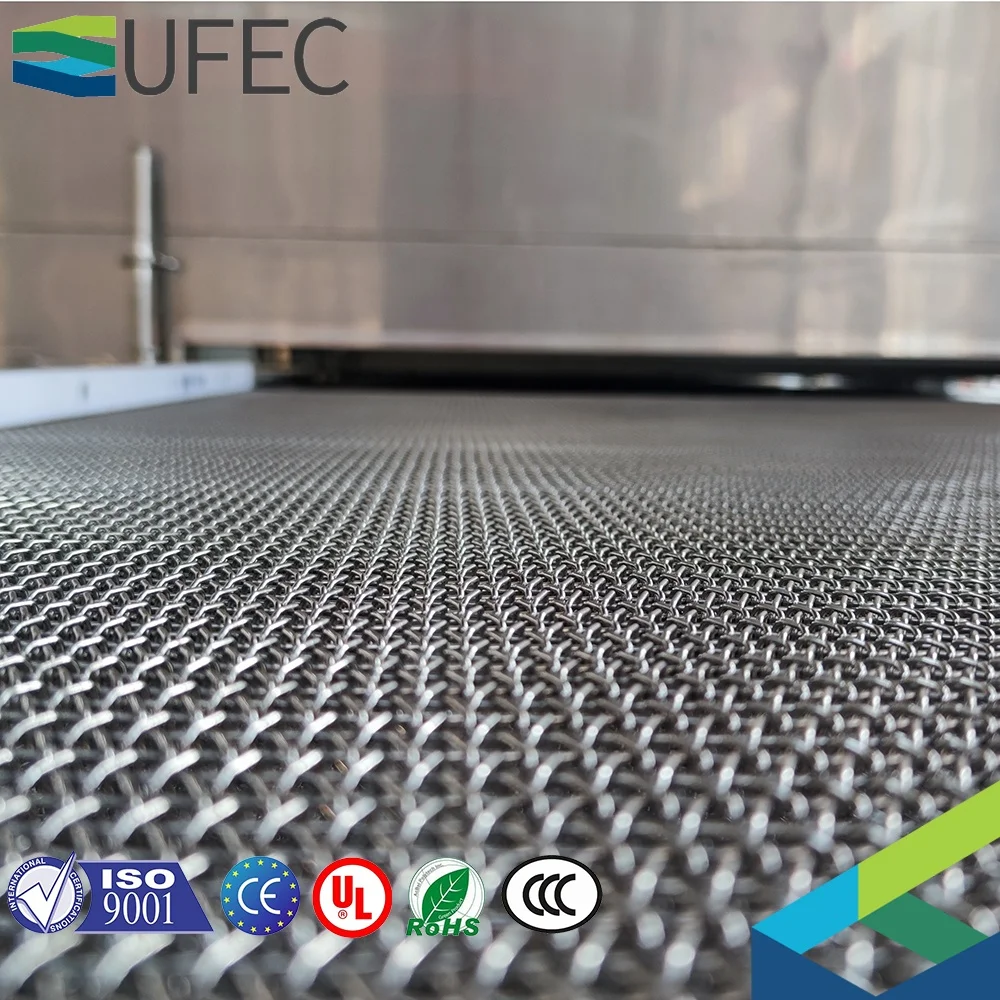

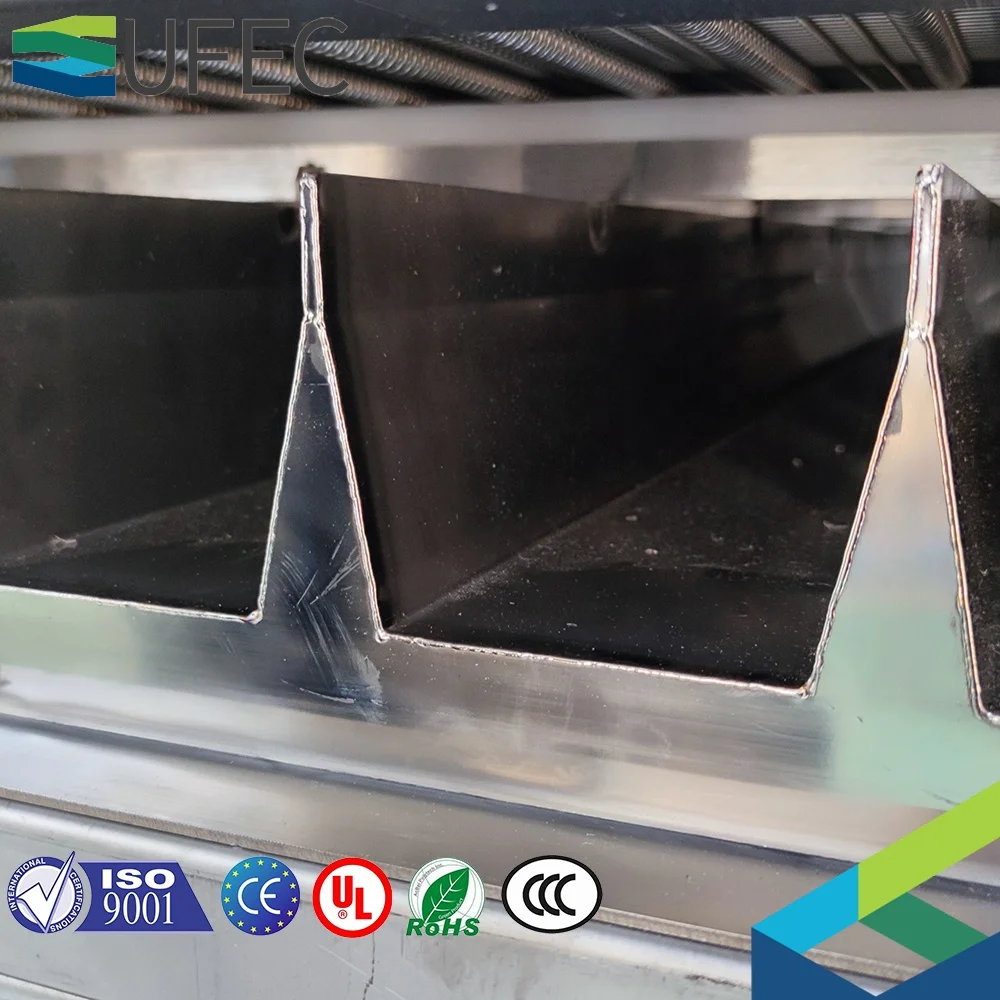

Conveyor belt is high-quality stainless steel plate, the strength is more than double times with the ordinary plate , small wave, small bending, the operation is stable and reliable.
With the unique patented technology (Patent No.: 200720026378.4), “Impinging direction airflow collision” Air supply device , the high speed air flow and the impinging expansion heat transfer principle can ensure the loss weight and quality of the food.
Centrifugal fan with low noise, high efficiency, the turbine blade is made of stainless steel, and the casing is stainless steel.

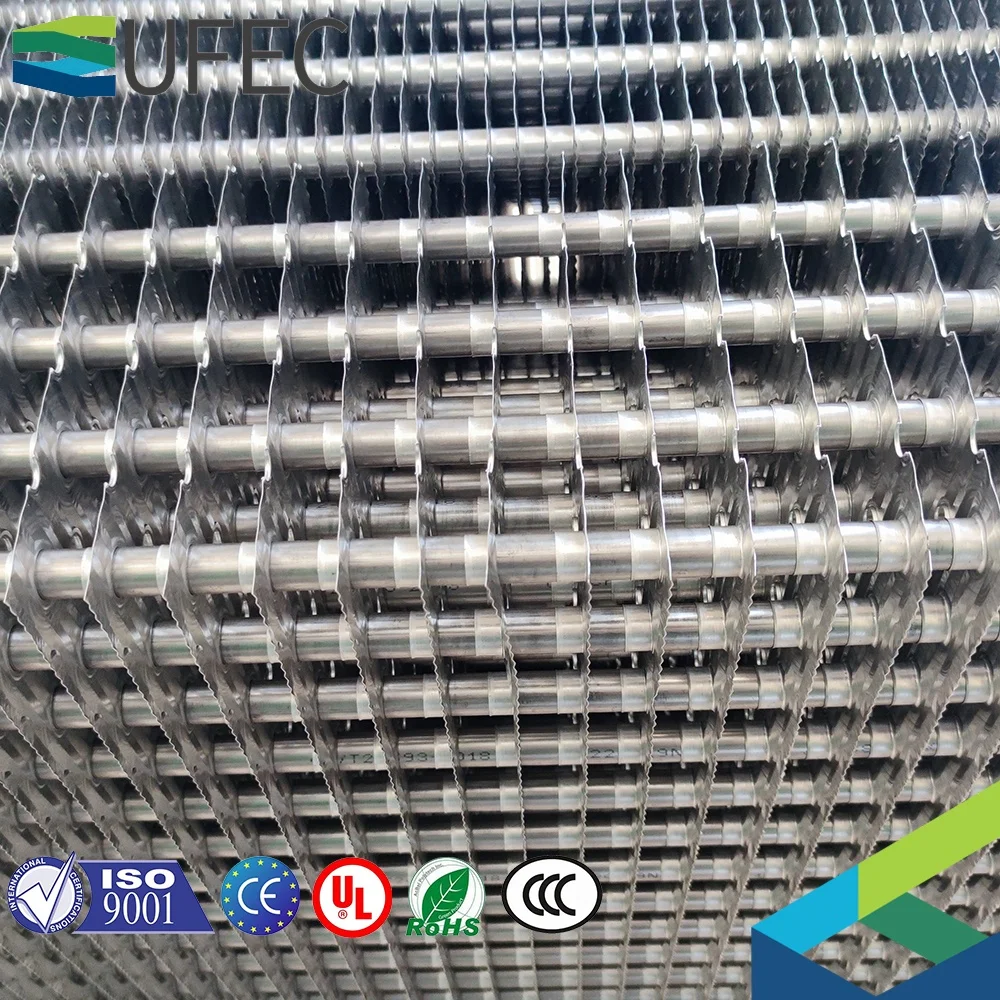

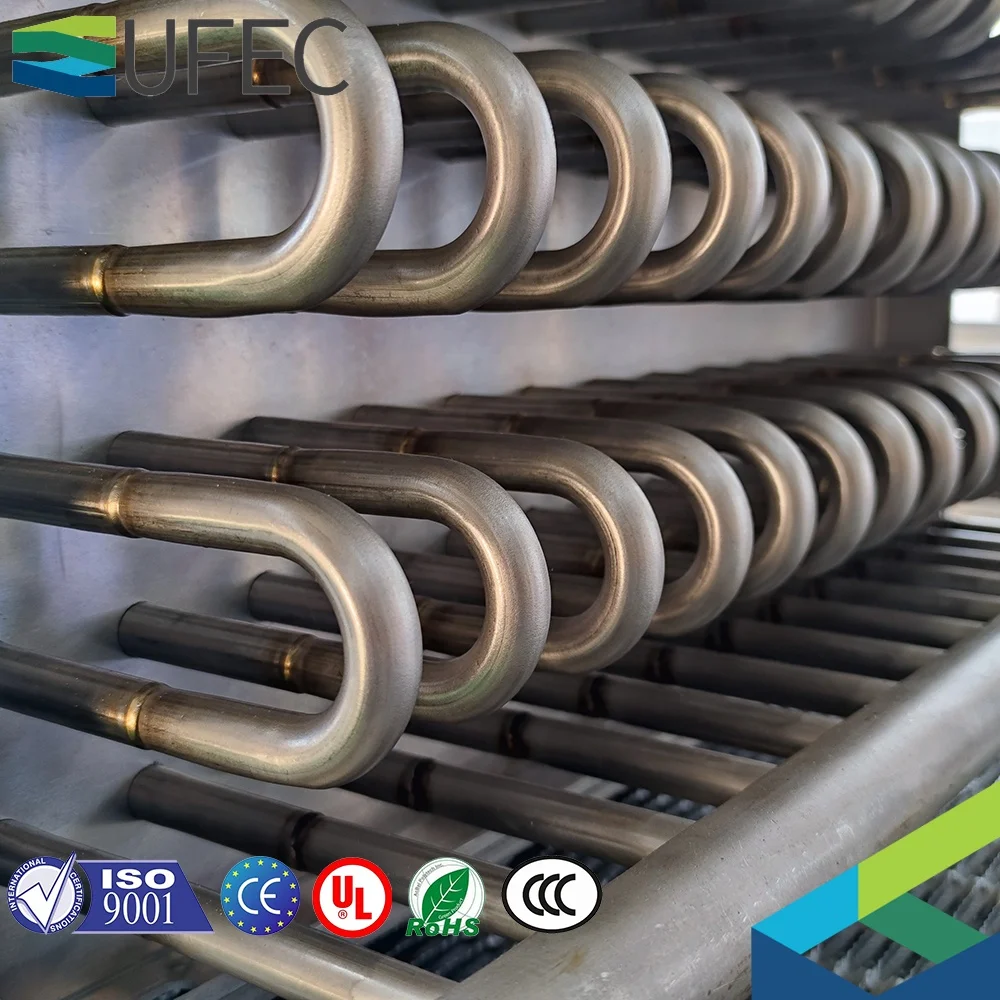

Evaporator uses large size and variable space fin, with the best air flow organization form, less frost and long efficient continuous working time.
With well-known brand of electronic components, stainless steel cabinet, waterproof, dedusting, dehumidification design, complying with food processing workshop requirements
Conveyor belt is high-quality stainless steel plate, the strength is more than double times with the ordinary plate , small wave, small bending, the operation is stable and reliable.
With the unique patented technology (Patent No.: 200720026378.4), “Impinging direction airflow collision” Air supply device , the high speed air flow and the impinging expansion heat transfer principle can ensure the loss weight and quality of the food.
Centrifugal fan with low noise, high efficiency, the turbine blade is made of stainless steel, and the casing is stainless steel.
Evaporator uses large size and variable space fin, with the best air flow organization form, less frost and long efficient continuous working time.
With well-known brand of electronic components, stainless steel cabinet, waterproof, dedusting, dehumidification design, complying with food processing workshop requirements
Model | QSD series | ||||
Freezing capability | 100~5000kg/h | ||||
Effective width of plate belt mm | 1100 | 1500 | 2000 | ||
Product passing height | 50~100 mm(Adjustable) | ||||
Input/outlet Temperature | +15/-18 ℃ | ||||
Freezing temperature | -35~-38 ℃ | ||||
refrigerant | Ammonia or Freon | ||||
Cooling Consumption kW | 100~300 kW | ||||
Installed Power kW | 25.2~58 | ||||
Defrosting water quantity | 14~50 m³/s | ||||
Defrosting interval time | 10-16 Hours | ||||
Example display

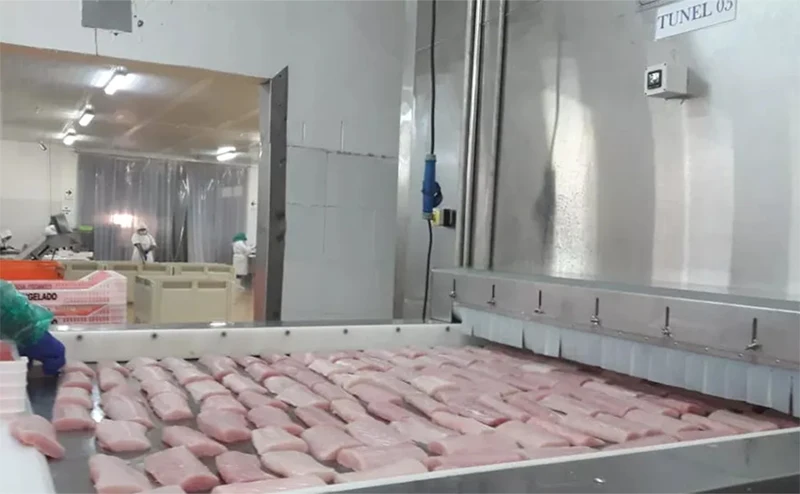

Using a tunnel freezer to freeze fish
Example Display

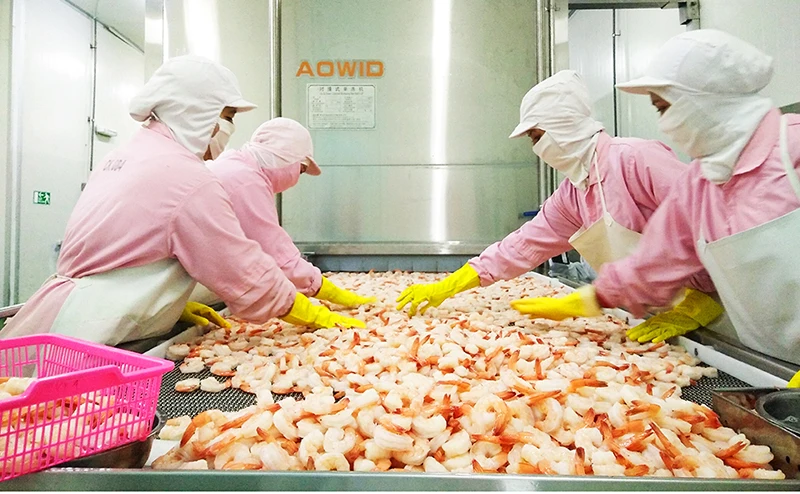

Using a tunnel freezer to freeze shrimp
Example Display

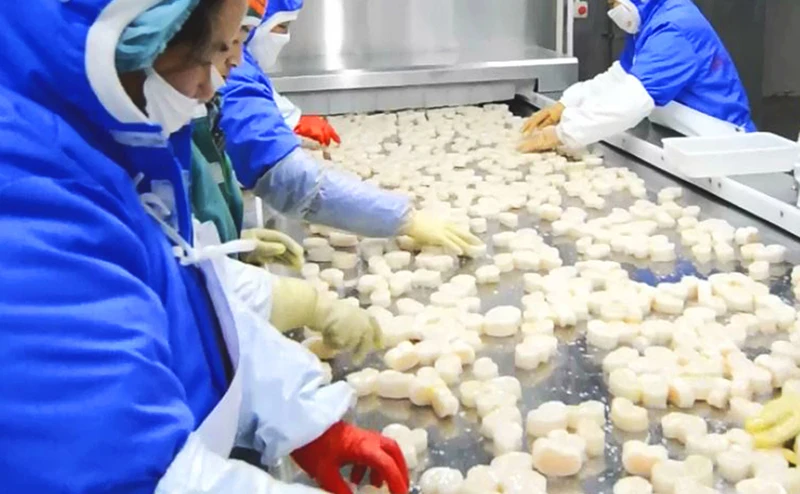

Using a tunnel freezer to quickly freeze scallops
Example Display

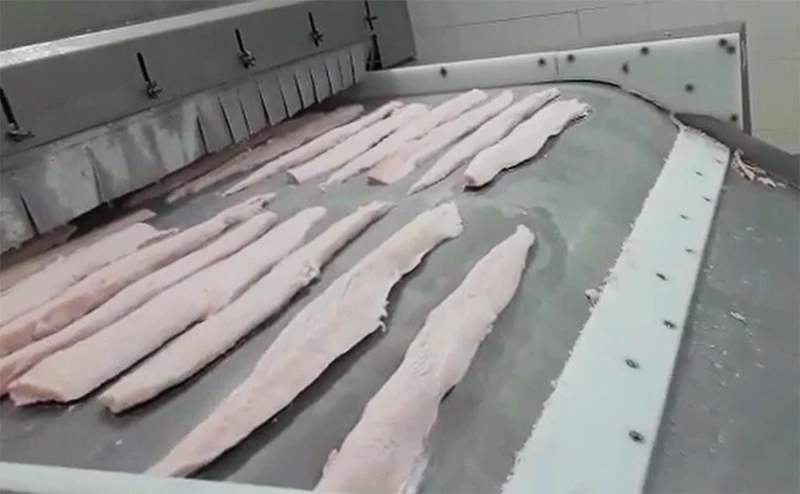

Using a tunnel freezer to quickly freeze fish
Why choose us?
1.We are a professional refrigeration equipment manufacturer integrating design, manufacturing, sales and service.
We can provide you with more comprehensive and reliable equipment and services.
2.We have many overseas branches that can provide you with reliable after-sales service (including on-site service and remote
guidance service).
3.Our equipment adopts the latest design. Compared with traditional products, it has a more compact volume, more efficient output
and more complete supporting facilities, which greatly reduces the cost of equipment maintenance and extends the service life of
the equipment.
4.Our products use better materials, for example, the evaporator coil of the quick-freezer, we use more reliable and
pressure-bearing stainless steel tubes, even copper tubes; For another example, our evaporative condenser, of the same model, uses
thicker pipes and guard plates, so it has a heavier weight.
5.We are a factory designed, manufactured and sold by ourselves. We can achieve lower prices.
How I believe you?
We welcome and invite you to visit our customers' factories, overseas branches and China's head office to inspect our equipment
and services on the spot. If it is not convenient for you to go abroad, we can also provide live video and other means to explore
the factory online.
Where are you?

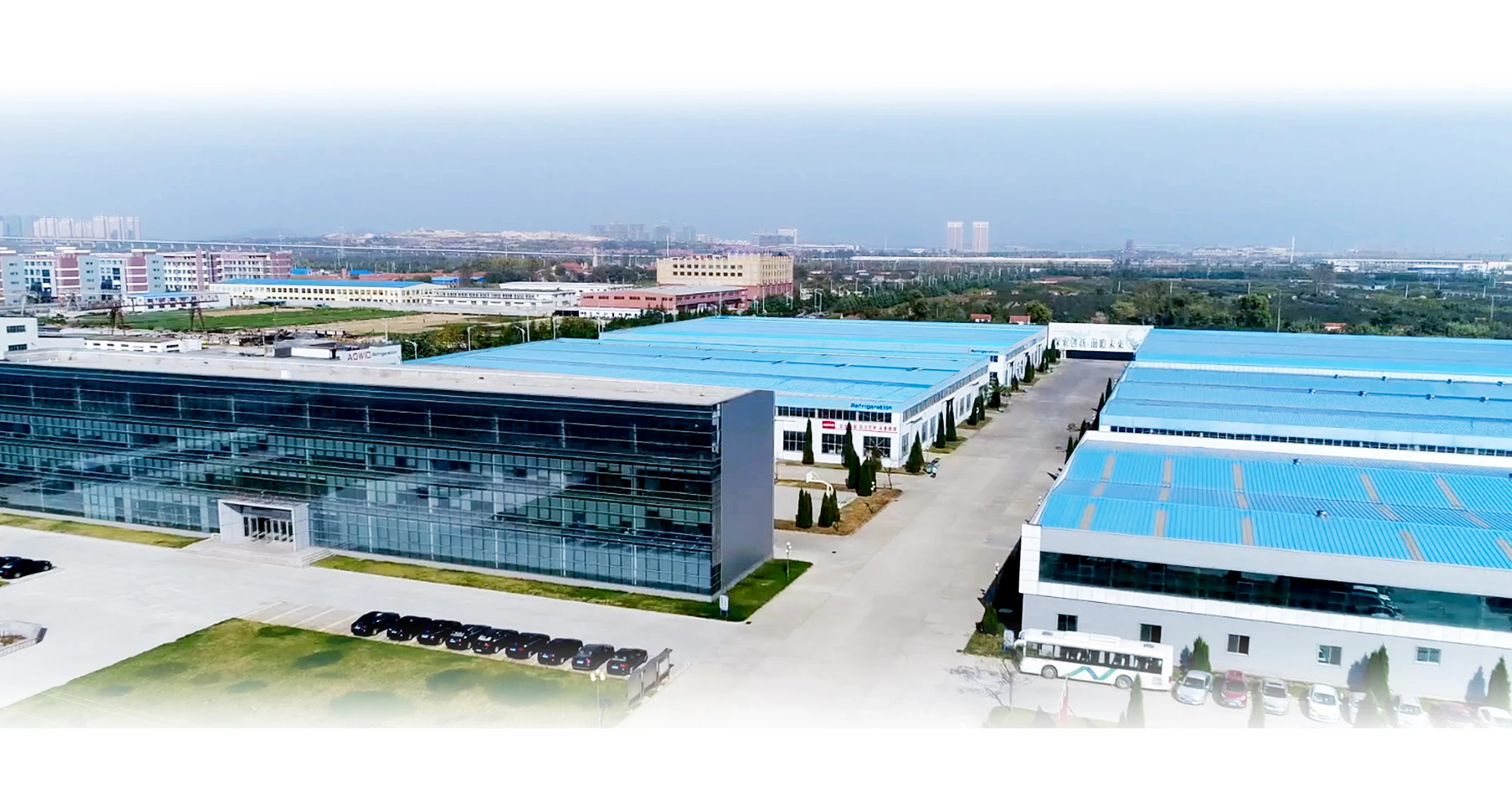

Our head office is set up in Yantai, Shandong, China, and has branches, offices or partners around the world. You can contact us
through field visits, phone calls, email, WhatsApp or WeChat, etc.
How about the delivery time?
Different equipment requires different construction periods. Generally, we will clearly mark our construction period and delivery
time for you in the quotation.
What kind of payment does your company support?
A: T/T, 100% L/C at sight, if you have other payment,please contact me.
We can provide you with more comprehensive and reliable equipment and services.
2.We have many overseas branches that can provide you with reliable after-sales service (including on-site service and remote
guidance service).
3.Our equipment adopts the latest design. Compared with traditional products, it has a more compact volume, more efficient output
and more complete supporting facilities, which greatly reduces the cost of equipment maintenance and extends the service life of
the equipment.
4.Our products use better materials, for example, the evaporator coil of the quick-freezer, we use more reliable and
pressure-bearing stainless steel tubes, even copper tubes; For another example, our evaporative condenser, of the same model, uses
thicker pipes and guard plates, so it has a heavier weight.
5.We are a factory designed, manufactured and sold by ourselves. We can achieve lower prices.
How I believe you?
We welcome and invite you to visit our customers' factories, overseas branches and China's head office to inspect our equipment
and services on the spot. If it is not convenient for you to go abroad, we can also provide live video and other means to explore
the factory online.
Where are you?
Our head office is set up in Yantai, Shandong, China, and has branches, offices or partners around the world. You can contact us
through field visits, phone calls, email, WhatsApp or WeChat, etc.
How about the delivery time?
Different equipment requires different construction periods. Generally, we will clearly mark our construction period and delivery
time for you in the quotation.
What kind of payment does your company support?
A: T/T, 100% L/C at sight, if you have other payment,please contact me.
