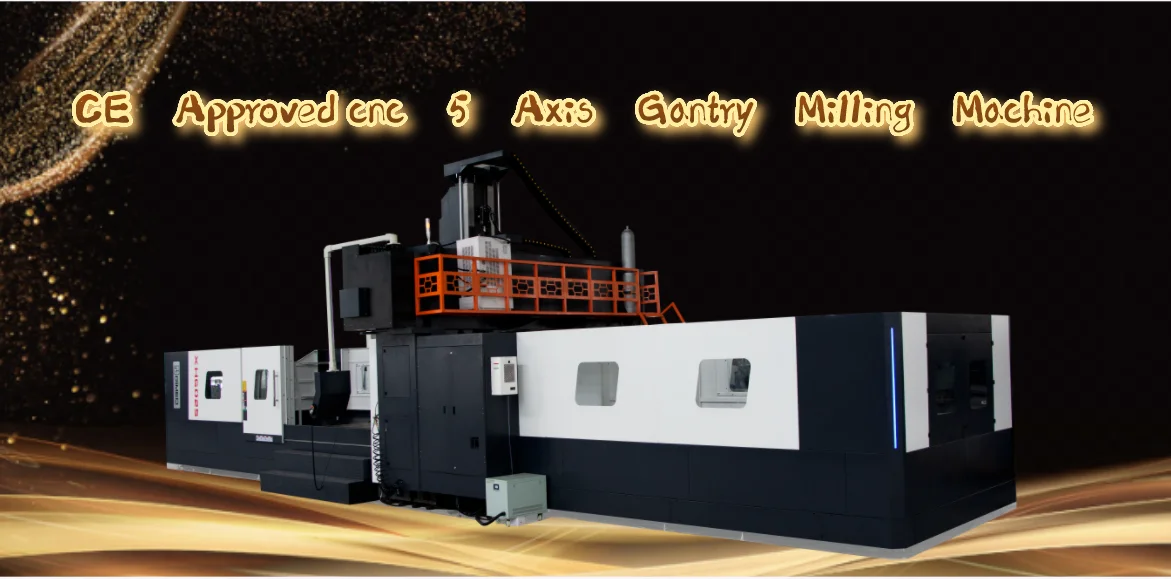

XH6025 CNC Double Column Machining Center Big Gantry/Gantry Machining Center
- Category: >>>
- Supplier: Tengzhou Wellon Machinery Co. Ltd.
Share on (1600925279617):
Product Overview
Description
Product Description
Item | Unit | XH6025 |

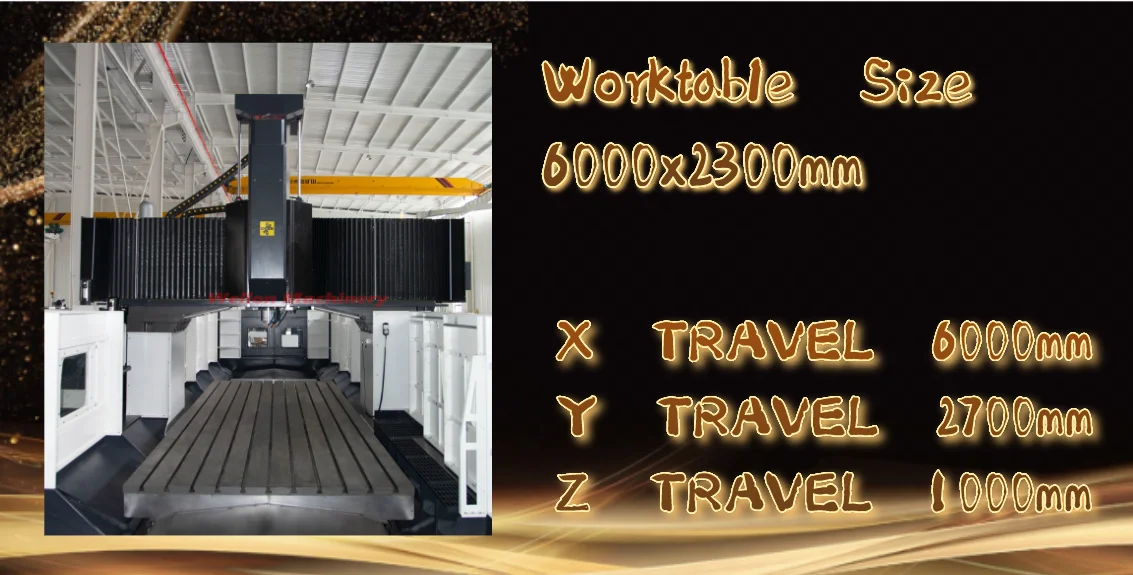

X axis travel | mm | 6000 |
Y axis travel | mm | 2700 |
Z axis travel | mm | 1000 |
Spindle nose to worktable | mm | 280-1280 |
Distance between two column | mm | 2700 |
Leadscrew diameter | mm | 100/63/50 |
Linear guideway width | mm | 55/55/Rectangle |
Worktable Length | mm | 6000 |
Worktable width | mm | 2300 |
T slot qty-width*distance | mm | 11-28*200 |
Max loading capacity | Ton | 18 |
Spindle speed | rpm | 6000/belt |
Spindle motor power | kw | 22 |
Fast moving speed | m/min | 10/10/10 |
Cutting speed | mm/min | 1-8000 |
Spindle taper |
| BT50 |
Feed motor power | kw | 8/6/5 |
X/Y/Z axsis motor torque | Nm | 50/40/30 |
Tool Magazine Capacity | pcs | Disc/24 |
Positioning accuracy | mm | 0.025/0.020/0.018 |
Repeat accuracy | mm | 0.015/0.012/0.012 |
Length | mm | 14500 |
Width | mm | 5500 |
Height | mm | 6000 |
Weight | kg | 53000 |
Standard accessories:
Mitsubishi M80B controller

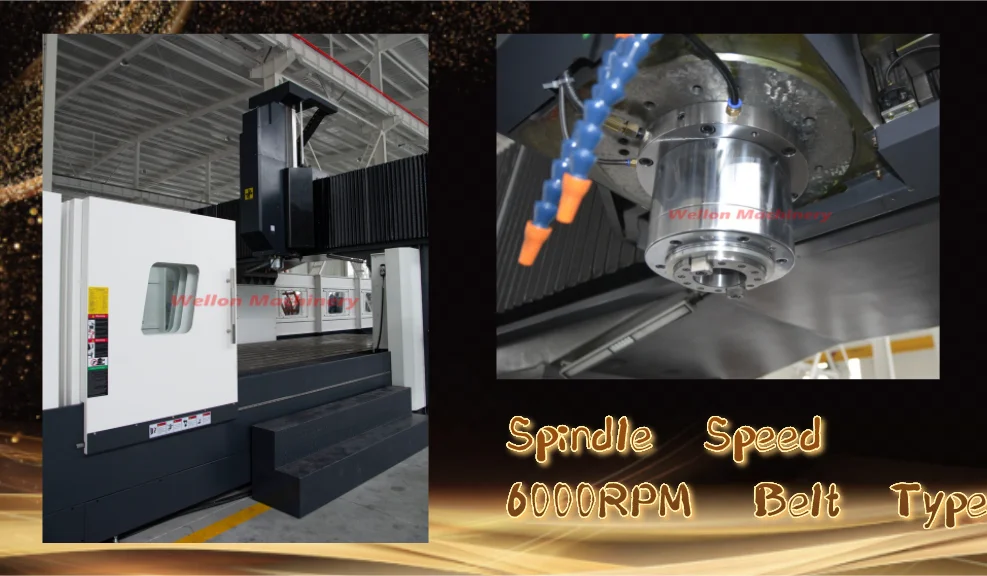

Spindle speed 6000rpm belt type
24 tools disc type
Screw type chip conveyor & chip bucket *2
Chain type chip conveyor & chip bucket *1
Nitrogen balance cylinder
Air conditioner in cabinet
Air gun+Water gun
Automatic lubricating system
2-Axis linear guideway from Taiwan Hiwin
Ball leadscrew from Taiwan Hiwin
Levelling pad,nut and bolts
