Automatic Portable Foldable Dust Free Table Saw For Woodworking Cutting Wood Machine Wood Saw Machines Sliding Table Saw
- Category: >>>
- Supplier: Zhengzhou The Right Time Import And Export Co. Ltd.
Share on (1600925284490):
Product Overview
Description
Product Description
ZDS-100 Classic Upgraded Sliding Table Saw
ZDS100 adopts two 60 mm upgraded aluminum alloy linear precision square rails, reinforced by double beams on both sides, and four 500 mm widened and thick inclined beams. It is classic upgraded model.
Up-pressure aluminum alloy backer, universal for left and right.
No need to disassemble the folding beam, the support is stable and reliable, the installation is simplified, highly practical, and can be operated by a single person.
Angle adjustment, suitable for vertical cutting at different angles.
Up-pressure aluminum alloy backer, universal for left and right.
No need to disassemble the folding beam, the support is stable and reliable, the installation is simplified, highly practical, and can be operated by a single person.
Angle adjustment, suitable for vertical cutting at different angles.
Specification
Model | ZDS-100 Classic Upgraded Sliding Table Saw |
Table size | 120*100cm stainless steel plate |

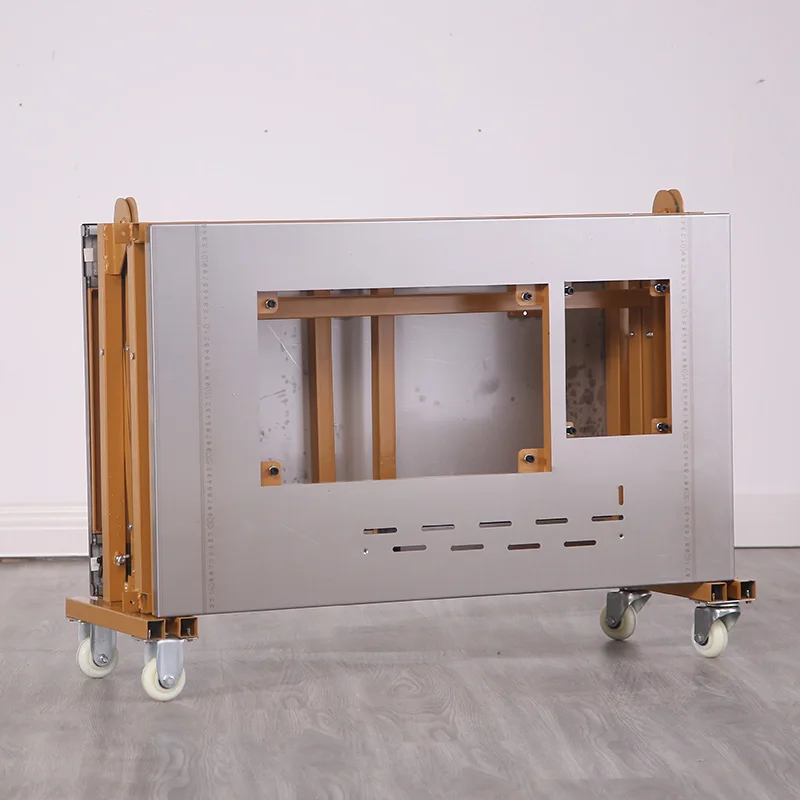

Folding dimension | 100*60*35 cm |
Expanded size | 215*250*75 cm |
Guide rail size | 10*6*100 cm |
Type of rail | Aluminum alloy Precision guide rail |
Main frame structure | Non detachable right angle folding inclined beam |
Weight | 60kg |
Flip plate | 50*30cm |
Manual lift saw head | Optional |
Electric lift saw head | Optional |
Electric upgrade brushless saw head | Optional |

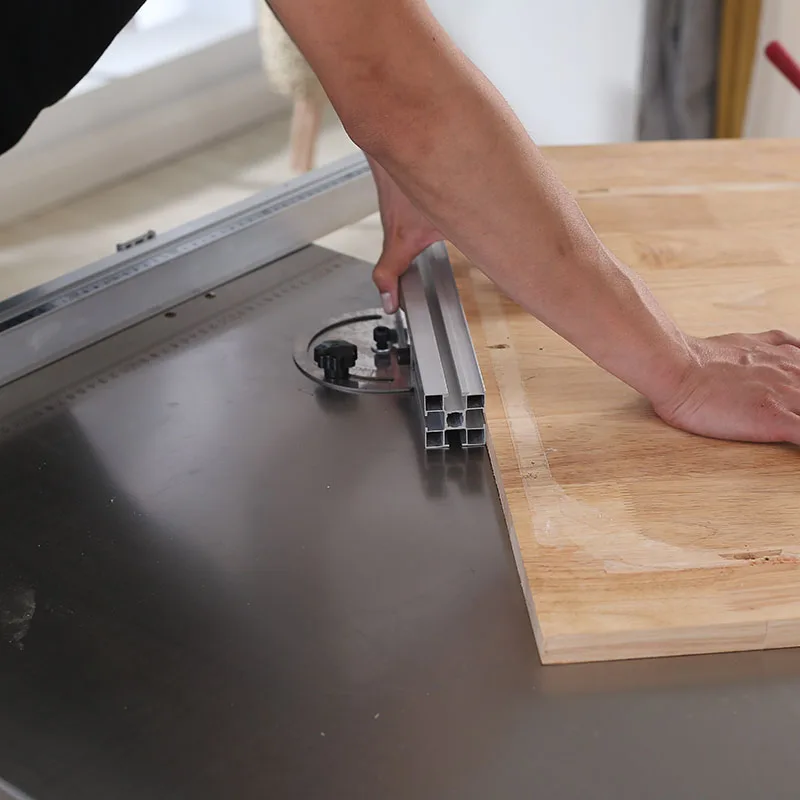

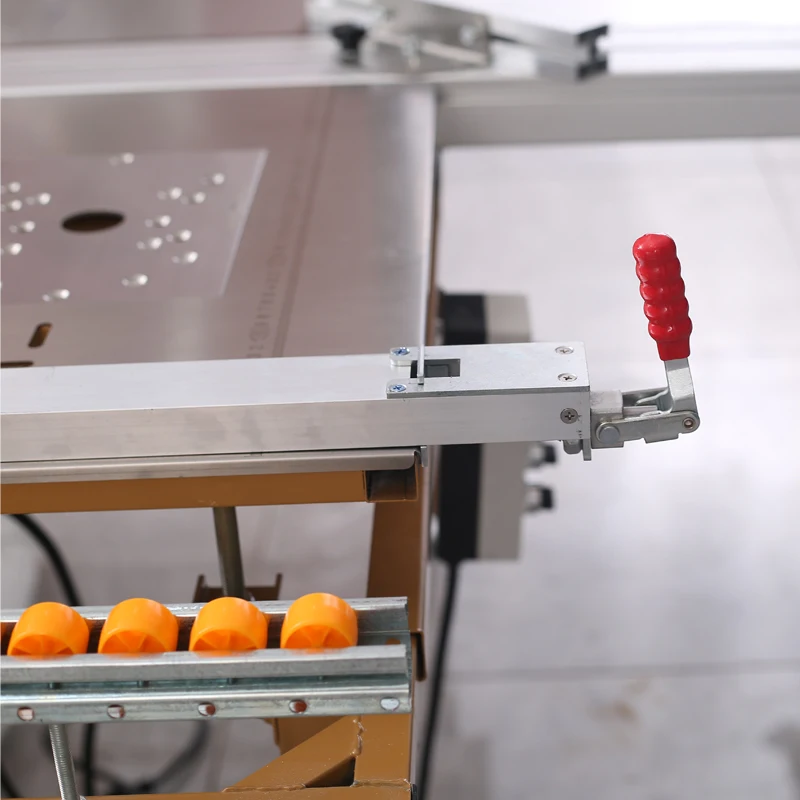

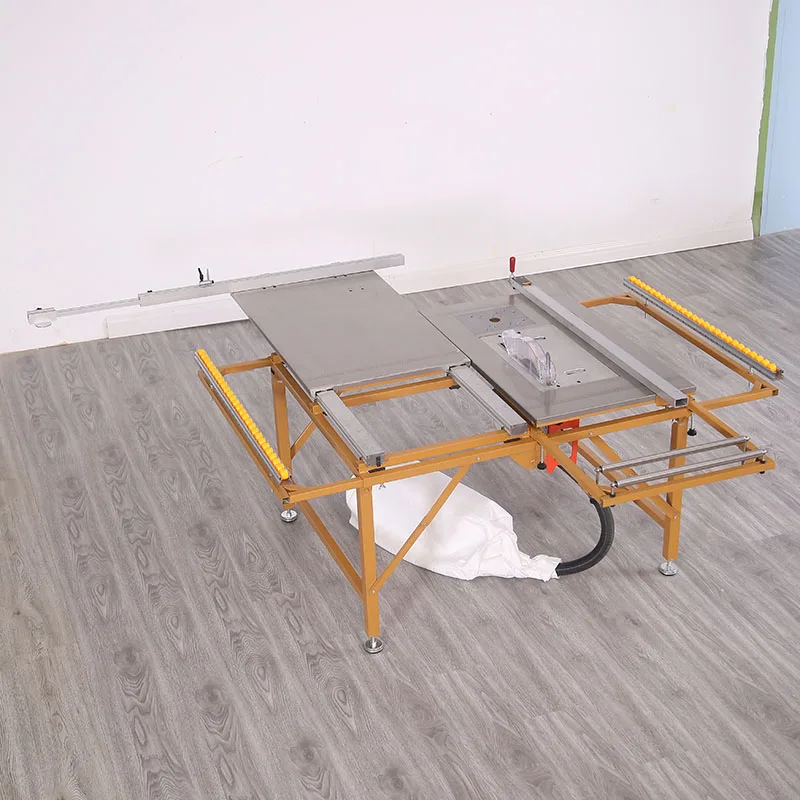

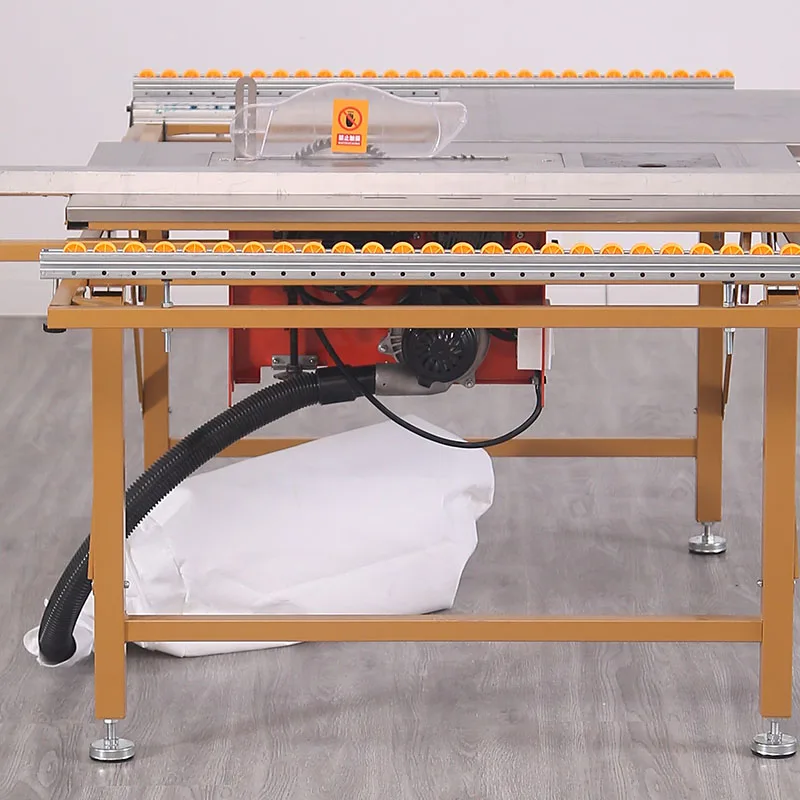

Details Images
Advantages
1. Precision linear square rail: special aluminum alloy linear precision square rail, double invisible sliding rails, compact and tight, smooth and stable, no push plate setback, no scaly incision.
2. Up-pressing vertical backing: Up-pressing aluminum alloy four-corrugated flat vertical backing, extreme lever push clip, universal left and right, comprehensively solve the drawbacks of reversing, and the design is more reasonable.
3. Dismantling-free folding inclined beam: no dismantling of the right-angle folding inclined beam, the push table does not need to be disassembled for folding, which simplifies the installation. Reinforced bending protection, support firm and stable.
4. Ultra-light push table design: the net weight of the push table is 40 kg, the technology is more advanced, the ultimate lightweight design, strengthens the portability, improves the adaptability, and can enter and exit at will for on-site operations in small spaces on high floors.
2. Up-pressing vertical backing: Up-pressing aluminum alloy four-corrugated flat vertical backing, extreme lever push clip, universal left and right, comprehensively solve the drawbacks of reversing, and the design is more reasonable.
3. Dismantling-free folding inclined beam: no dismantling of the right-angle folding inclined beam, the push table does not need to be disassembled for folding, which simplifies the installation. Reinforced bending protection, support firm and stable.
4. Ultra-light push table design: the net weight of the push table is 40 kg, the technology is more advanced, the ultimate lightweight design, strengthens the portability, improves the adaptability, and can enter and exit at will for on-site operations in small spaces on high floors.

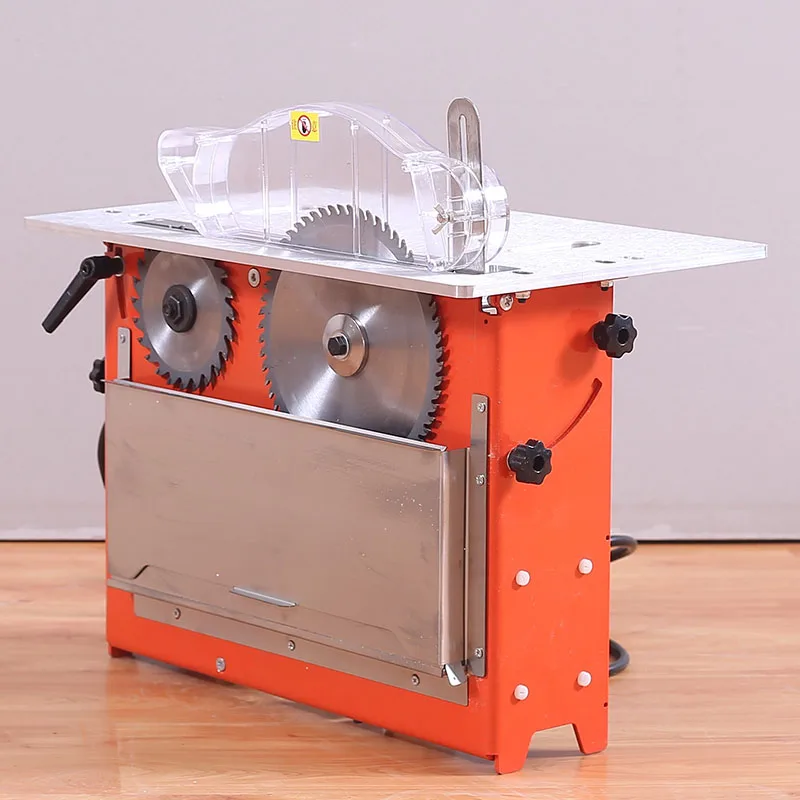

Name | Dust-free saw | ||||||||
Model | ZDS10 | ZDS11 | ZDS20 | ZDS21 | |||||
Working voltage | 220v/50Hz | 220v/50Hz | 220v/50Hz | 220v/50Hz | |||||
Big saw power | 2600w | 1600w | 2600w | 1600w | |||||
Small saw power | 1600w | 550w | 1600w | 550w | |||||
Big saw speed | 4500r/min | 4500r/min | 4500r/min | 4500r/min | |||||
Small saw speed | 13000r/min | 5500r/min | 13000r/min | 5500r/min | |||||
Vacuuming power | 1200w | 1200w | 1200w | 1200w | |||||
Overall size | 50*30*35cm | 50*30*35cm | 50*30*35cm | 50*30*35cm | |||||
Weight | 23kg | 23g | 26kg | 26kg | |||||
Saw blade size | Big saw | 8/9inch | 8/9inch | 8/9inch | 8/9inch | ||||
Small saw | 4inch | 5inch | 4inch | 5inch | |||||
Lifting height method | Big saw | Manually | Manually | Electric | Electric | ||||
Small saw | Manually | Manually | Manually | Manually | |||||
Motor | Hanchuan Copper core motor | Custom Brushless Motors | Hanchuan Copper core motor | Custom Brushless Motors | |||||
ZDS-100 Classic Upgraded Sliding Table Saw
ZDS-100 Classic Upgraded Sliding Table Saw, with optional mini edge bander and electric Router for sawing, edge banding, routering and trimming seperately. So that can cut shaped plates and can be edged at the same time.
