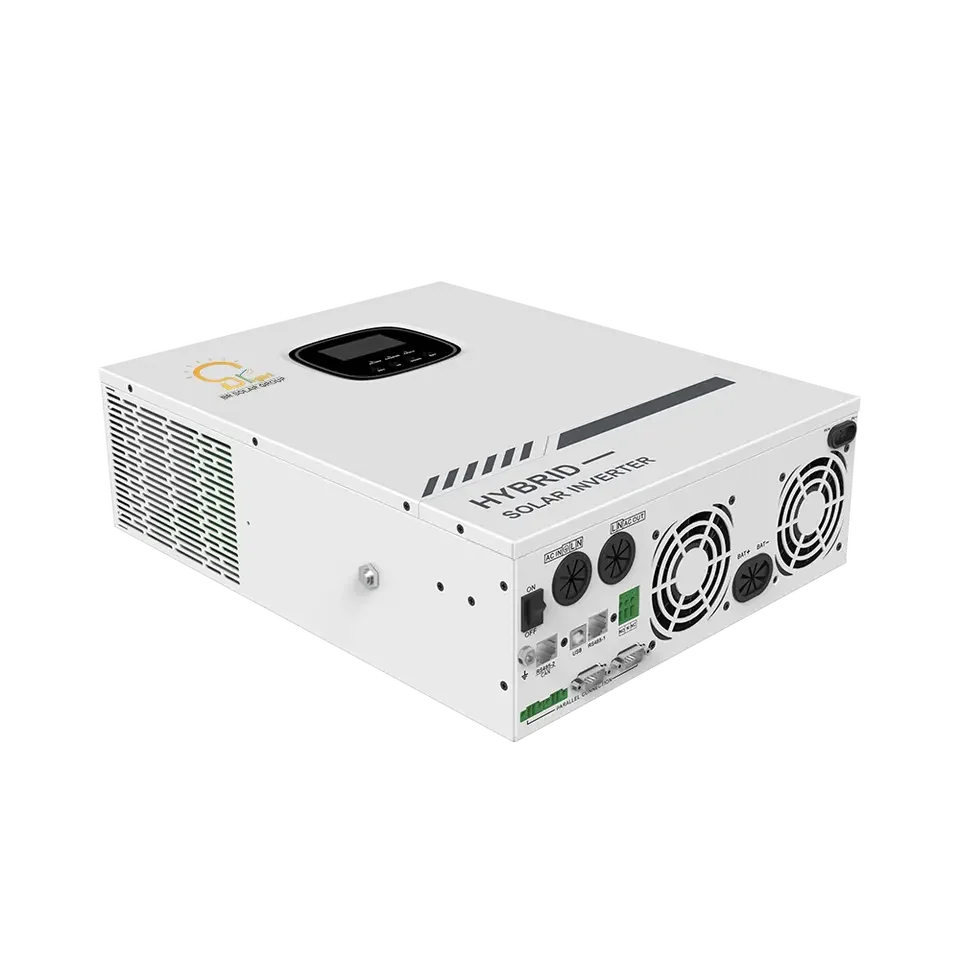

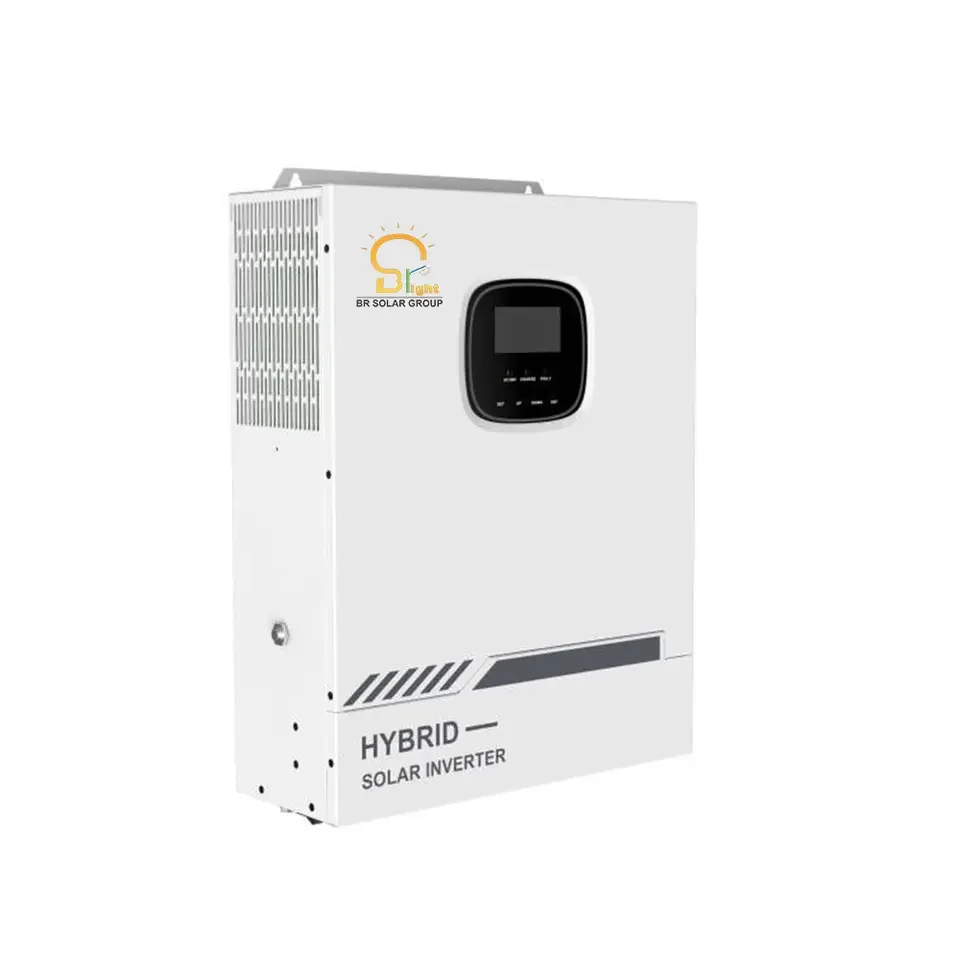

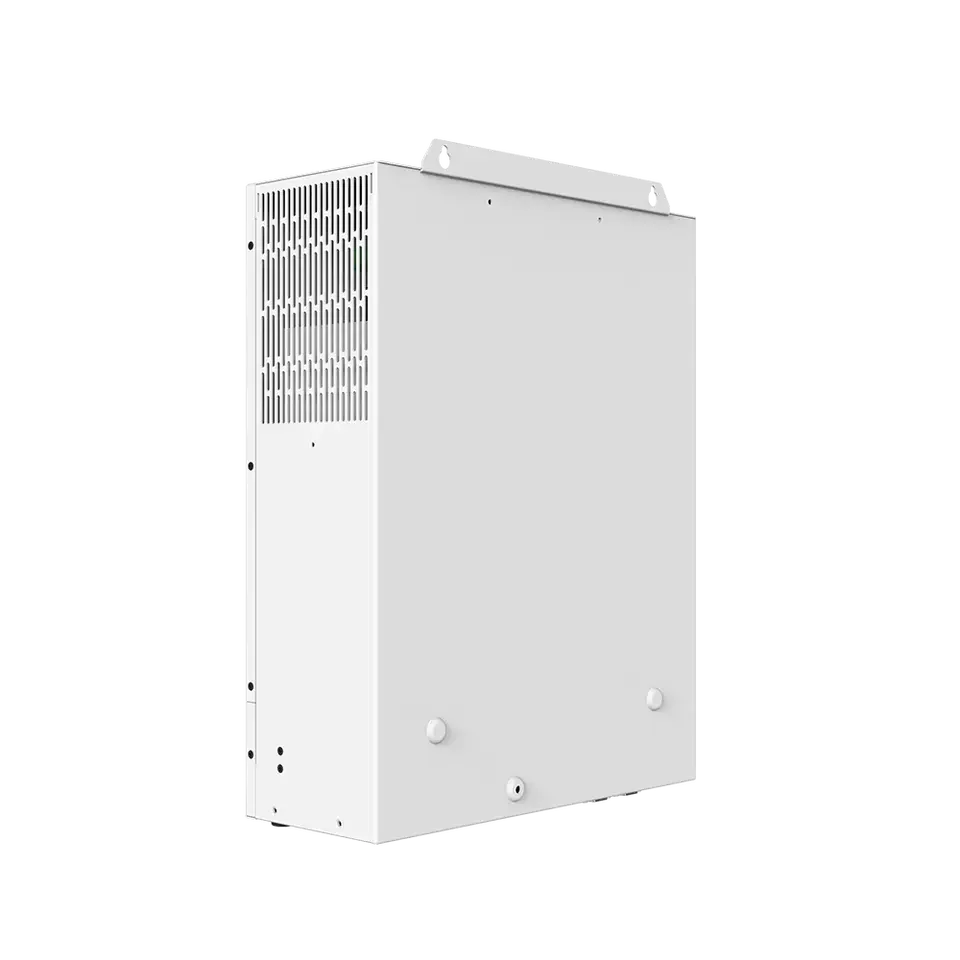

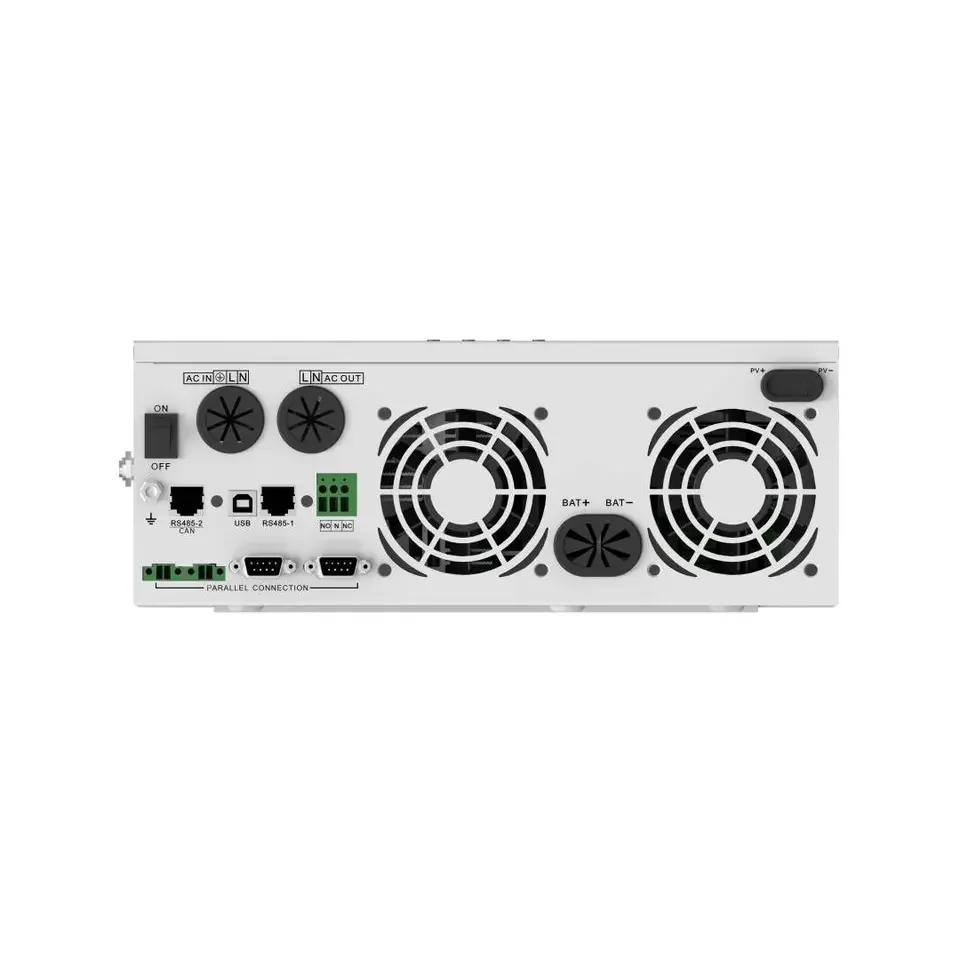

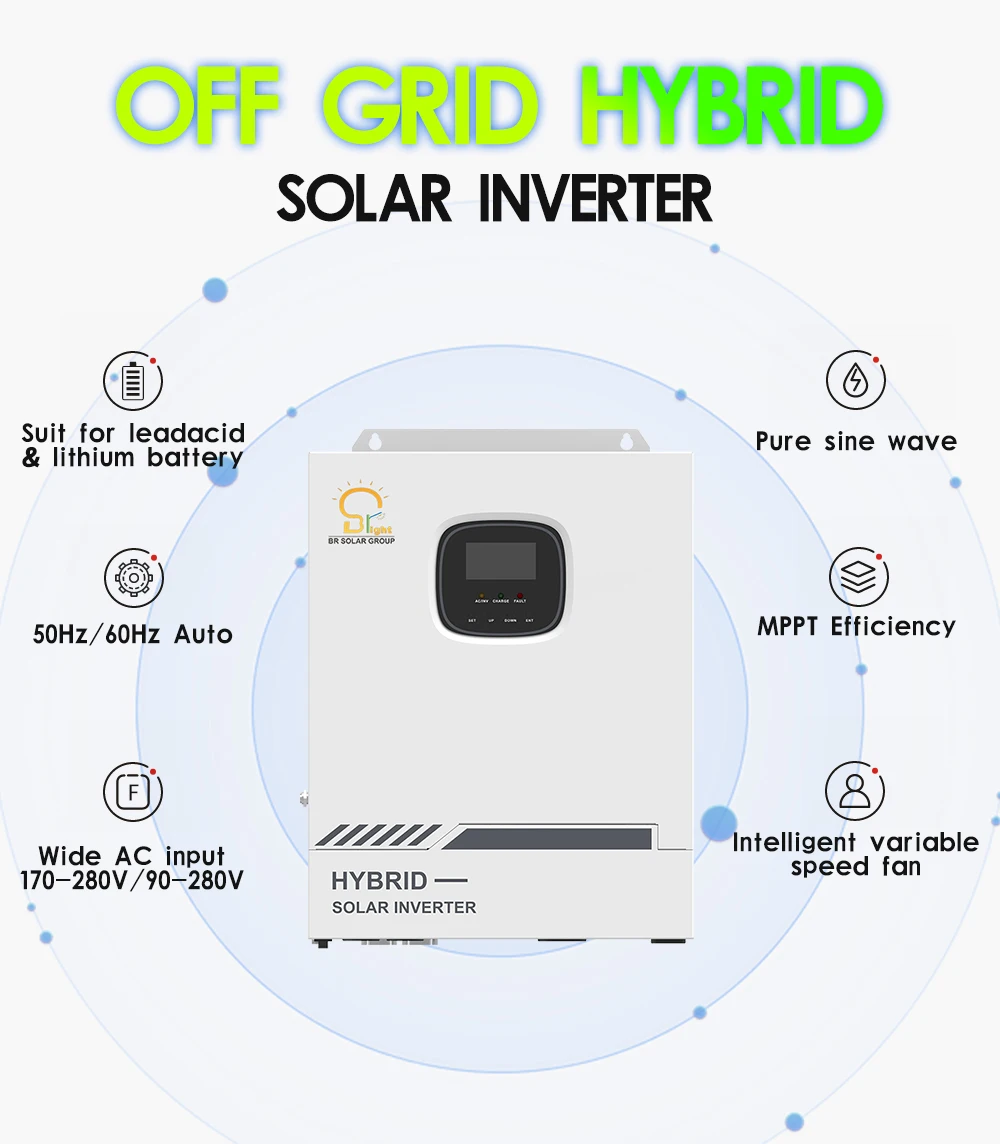

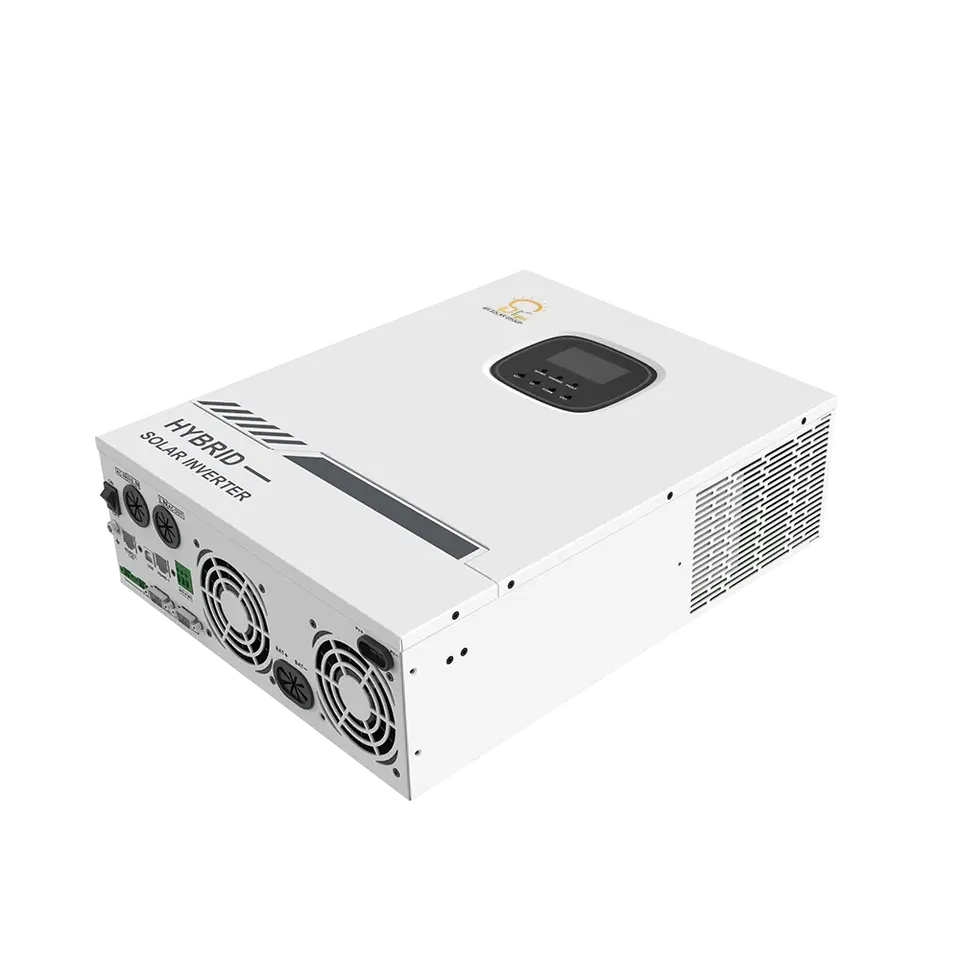

BR solar inverter solar system mppt charge controller hybrid 3.5kw .5kw hybrid solar inverter
- Category: >>>
- Supplier: Yangzhou Bright Solar Solutions Co. Ltd.
Share on (1600925316100):
Product Overview
Description
Model | BR HSI 3500 | Adjustable |
Battery Input | ||
Battery type | Sealed,FLood, GEL, LFP, Ternary | √ |
Rated Battery Input Voltage | 24V(Minimam Startup Voltage 22V) | |
Hybrid Charging Maxi mum Charging Current | 80A | √ |
Battery Voltage Range | 20Vdc-33Vdc±0.3Vdc(Undervoltage Warning/Shutdown Voltage/Overvoltage Warning/Overvoltage Recovery..) | √ |
Solar Input | ||
Maximum PV Open-circult Vohtage | 500Vdc | |
PV Working Voltage Range | 120-500Vdc | |
MPPT Volage Range | 120-450Vdc | |
Masimum PV Input Current | 13A | |
Madmum PV Iput Power | 4000W | |
Maomum PV Charging Current | 80A | √ |
AC Input(generator/grid) | ||
Mains Maximum Charging Current | 80A | √ |
Rated Input Voltage | 220/230Vac | |
Input Voltage Range | UPS Mains Mode(170Vac-280Vac)±2% APL Generator Mode:(90Vac-280Vac)±2% | √ |
Frequency | 50HZ/60HZ (Automatic Detection) | |
Mains Chargang Efficiency | >95% | |
Switch Time Ibypass and inverter | 10ms(Typical Value) | |
Masimum Bypess Overload Cument | 30A | |
AC Output | ||
Output Voltage Waveform | Pure Sine Warve | |
Rated Output Voftage (Vac) | 230Vac | √ |
Rated Output Power (VA) | 3500 | |
Rated Output Powm(W) | 3500 | |
Peak Power | 6000VA | |
On-koad Molor Capacity | 2HP | |
Output Frequency Range(Hx) | 50Hz±03H/60Hz±0.3Hz | √ |
Masimum Efficiency | ≥92% | |
No-load Loss | Non Energy-saving Mode:≤50W Energy-Saving Mode:≤25W (Manual Setup) | |
General | ||
Certihcate | CE (IEC 62109-1J)/FCC/SAA | |
EMC Centification Level | EN61000.C2 | |
Working Temperature Range | -10℃-55℃ | |
Storage Temmperature Range | -25"℃-60℃ | |
Humidity Range | 5% to 95%(Conformal Coating Protection) | |

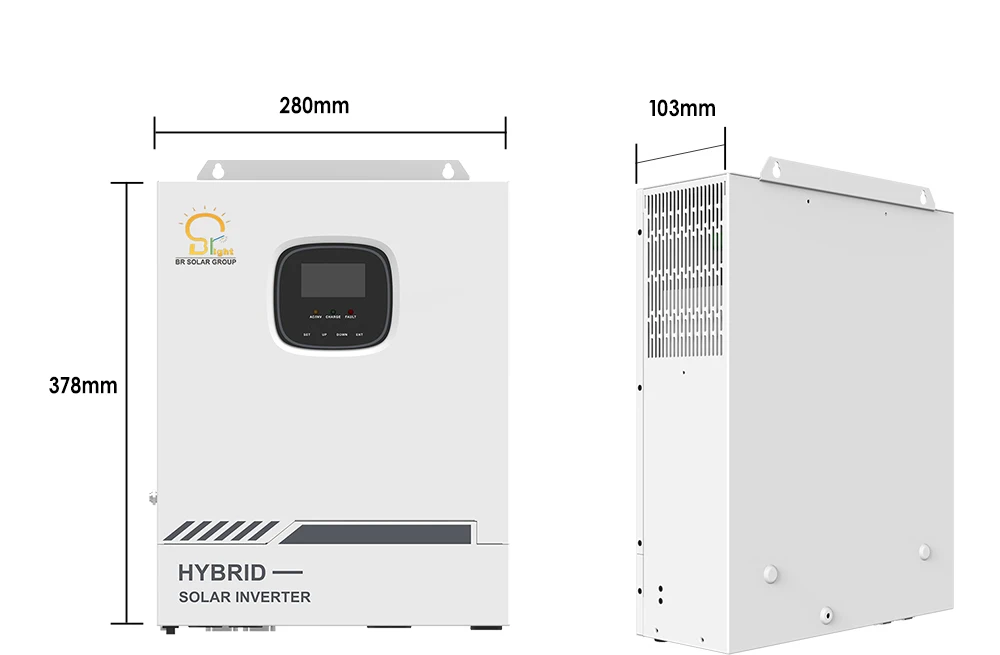

Dimensions | 378mm*280mm*103mm | |
Weight (KG) | 7.4 |
FAQ
Q1: What kind of Solar Cells we have?
A1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
Q2: What is the lead time?
A2:Normally 15 working days after advance payment.
Q3: What is your monthly capacity?
A3:Monthly capacity is about 200MW.
Q4:What is the warranty period, how many years?
A4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
Q5: How is your technical support?
A5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Q6:How to become your agent?
A6:Contact us through email, we can talk details to confirm.
Q7: Is sample available and free?
A7:Sample will charge cost, but the cost will be refund after bulk order.
Q1: What kind of Solar Cells we have?
A1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
Q2: What is the lead time?
A2:Normally 15 working days after advance payment.
Q3: What is your monthly capacity?
A3:Monthly capacity is about 200MW.
Q4:What is the warranty period, how many years?
A4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
Q5: How is your technical support?
A5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Q6:How to become your agent?
A6:Contact us through email, we can talk details to confirm.
Q7: Is sample available and free?
A7:Sample will charge cost, but the cost will be refund after bulk order.
