CE certification vacuum emulsifying mixing machine high viscosity menthocamphorate cooling ointment homgenizer mixer
- Category: >>>
- Supplier: Yangzhou Lianhe Chemical Machinery Co. Ltd.
Share on (1600925365591):
Product Overview
Description
VR
Products Description

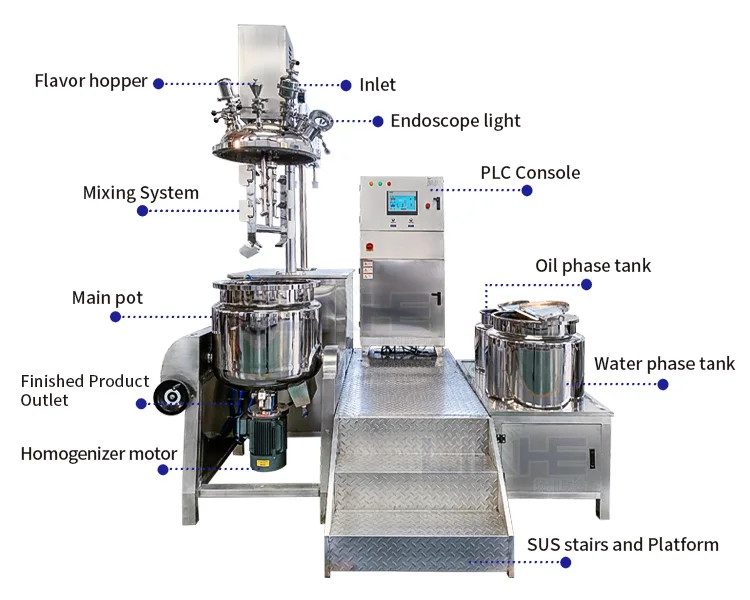

◆The vacuum emulsifiers produced by our company include many varieties. The homogenizing systems include top homogenization, bottom homogenization, internal and external circulating homogenization. The mixing systems include single-way mixing, double-way mixing and helical ribbon mixing. The lifting systems include single-cylinder lifting and double-cylinder lifting. Various high quality products can be customized according to customer requirements.
◆The triple mixing adopts the imported frequency converter for speed adjustment, which can meet different technological demands.
◆The triple mixing adopts the imported frequency converter for speed adjustment, which can meet different technological demands.
◆The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 4,200rpm and the highest shearing fineness can reach 0.2-5μm.
◆The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking is adopted, and especially for the powder materials, vacuum sucking can avoid dust.

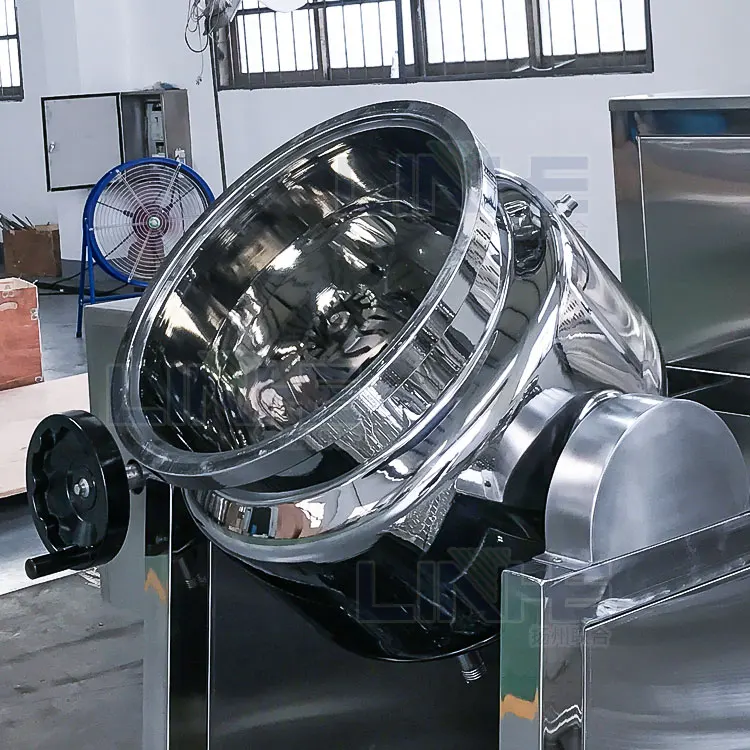

◆The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.
◆According to technological requirements, the tank body can heat or cool the materials. The heating modes mainly include steam heating or electric heating.
◆To ensure the control of the whole machine is more stable, the electric appliances adopt imported configurations, so as to fully meet the international standards.
◆To ensure the control of the whole machine is more stable, the electric appliances adopt imported configurations, so as to fully meet the international standards.
Product Feature

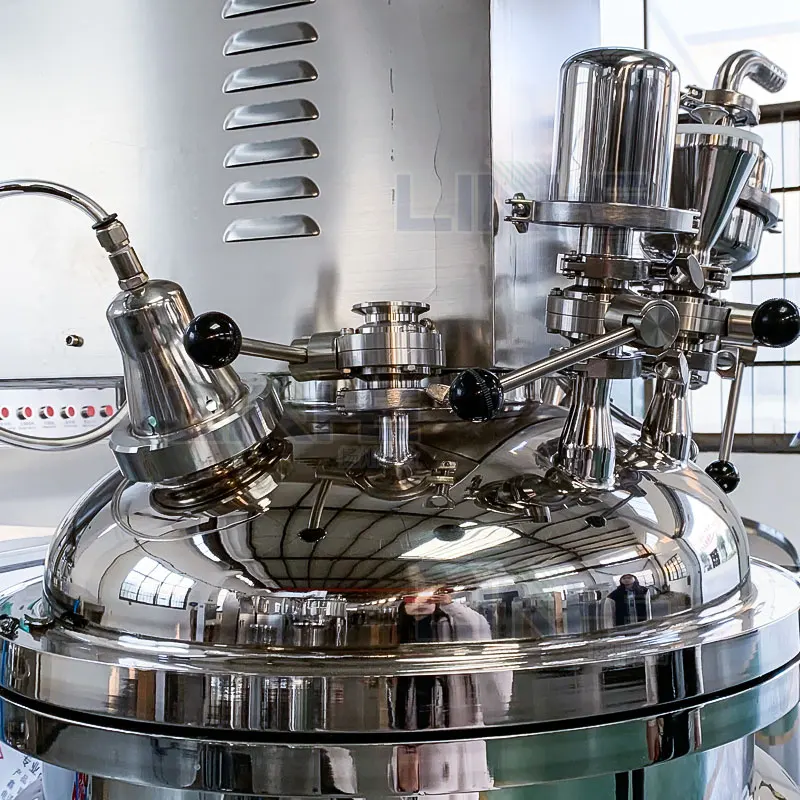

Cover Accessories
Various of cover accessories:Material inlet,fragrance hopper,air filter,vacuum pressure gauge&protector, view window,LED light,etc

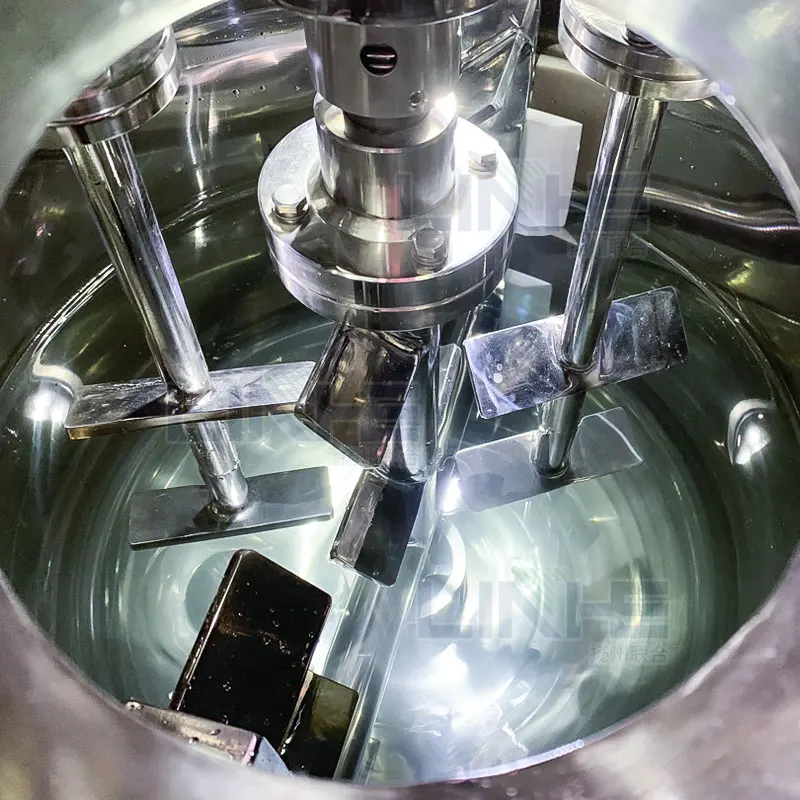

Mixing paddle
top wall-scraper mixer 0-60RPM and bottom homogenizer 0-3000RPM, speed VFD adjustable.

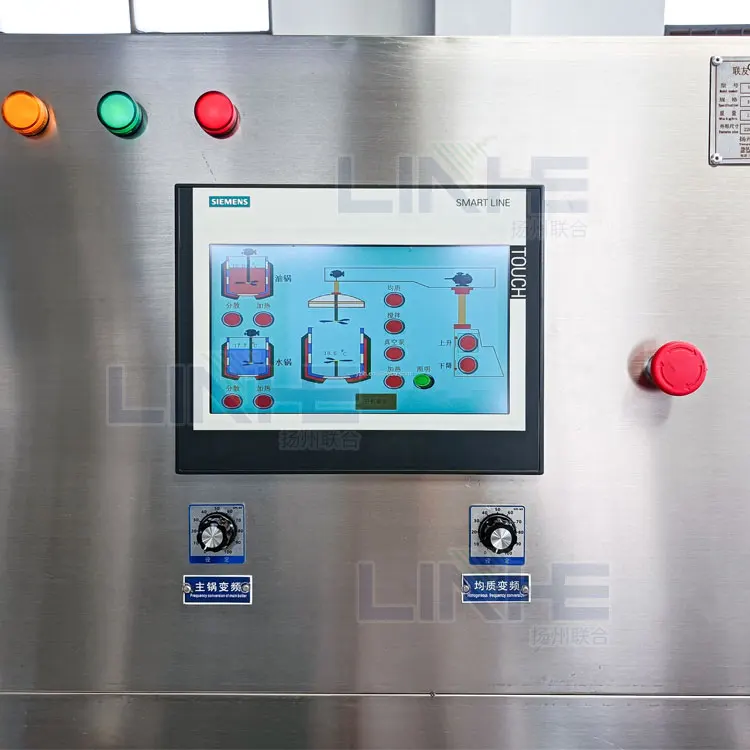

Button Control Box
All functions clearly show one the control box ,easier to operate , suitable for green hands
Electric box
Electrical components adopt well-know international brands,with long life
homogenizer
High-speed homogenization allows the product to be fully mixed, emulsified, dispersed and homogenized
Electric heating at the bottom to ensure that the product reaches the ideal temperature during the mixing process
Model | Emulsify | Agitator | Outside Dimension | The merit rate | ||||||||||
kw | r/min | kw | r/min | lengrth | width | height | electric heating | steam heating | ||||||
VMB-50L | 2.2 | 0-3600 | 0.37 | 0-65 | 2700 | 2000 | 2015 | 25 | 5 | |||||
VMB-100L | 3 | 0-3600 | 1.5 | 0-65 | 2920 | 2120 | 2200 | 27 | 9 | |||||
VMB-150L | 3 | 0-3600 | 1.5 | 0-65 | 3110 | 2120 | 2200 | 27 | 9 | |||||
VMB-200L | 4 | 0-3600 | 1.5 | 0-65 | 3150 | 2200 | 2200 | 40 | 12 | |||||
VMB-350L | 4 | 0-3600 | 2.2 | 0-65 | 3650 | 2650 | 2550 | 50 | 16 | |||||
VMB-500L | 5.5 | 0-3600 | 2.2 | 0-65 | 3970 | 2800 | 2700 | 50 | 16 | |||||
VMB-1000L | 11 | 0-3600 | 4 | 0-65 | 3900 | 3400 | 3150 | 100 | 30 | |||||
VMB-2000L | 15 | 0-3600 | 7.5 | 0-65 | 4850 | 4300 | 3600 | 120 | 50 | |||||
Company Profile
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory specialized in daily cosmetic and perfume equipment and other pressure vessels. Such as, water treatment,vacuum emulsifier, shampoo and liquid soap mixers , perfume making machine, storage tank, filling and packing machines etc. And we have relative pressure certificate to remove your worries.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Jiangsu, China, welcome to visit us at any time. You can take the plane to Shanghai and then take the highway to Zhenjiang Station(1 hour and 40 minutes), then we will pick u up.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.
Q4: What’s the guarantee if we purchase from you?
A4: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any wearing part be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free.
Q5: How about the after service?
A5: There’s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.
Q6:Can you make the machine as per our request?
Yes, customized machines are acceptable. We can make the machine as per your request.
A1: We are a factory specialized in daily cosmetic and perfume equipment and other pressure vessels. Such as, water treatment,vacuum emulsifier, shampoo and liquid soap mixers , perfume making machine, storage tank, filling and packing machines etc. And we have relative pressure certificate to remove your worries.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Jiangsu, China, welcome to visit us at any time. You can take the plane to Shanghai and then take the highway to Zhenjiang Station(1 hour and 40 minutes), then we will pick u up.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.
Q4: What’s the guarantee if we purchase from you?
A4: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any wearing part be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free.
Q5: How about the after service?
A5: There’s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.
Q6:Can you make the machine as per our request?
Yes, customized machines are acceptable. We can make the machine as per your request.
