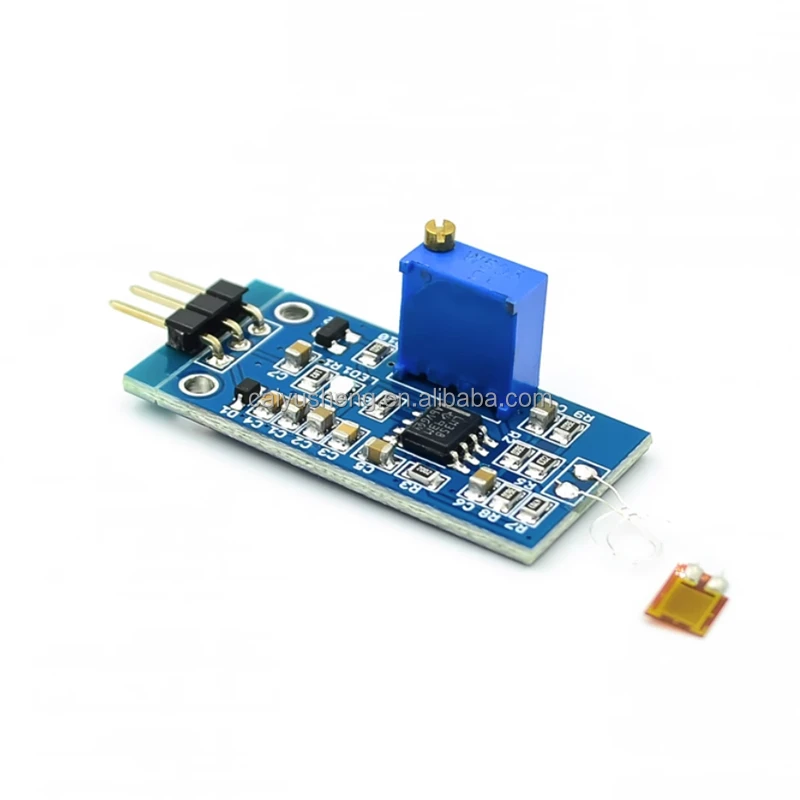

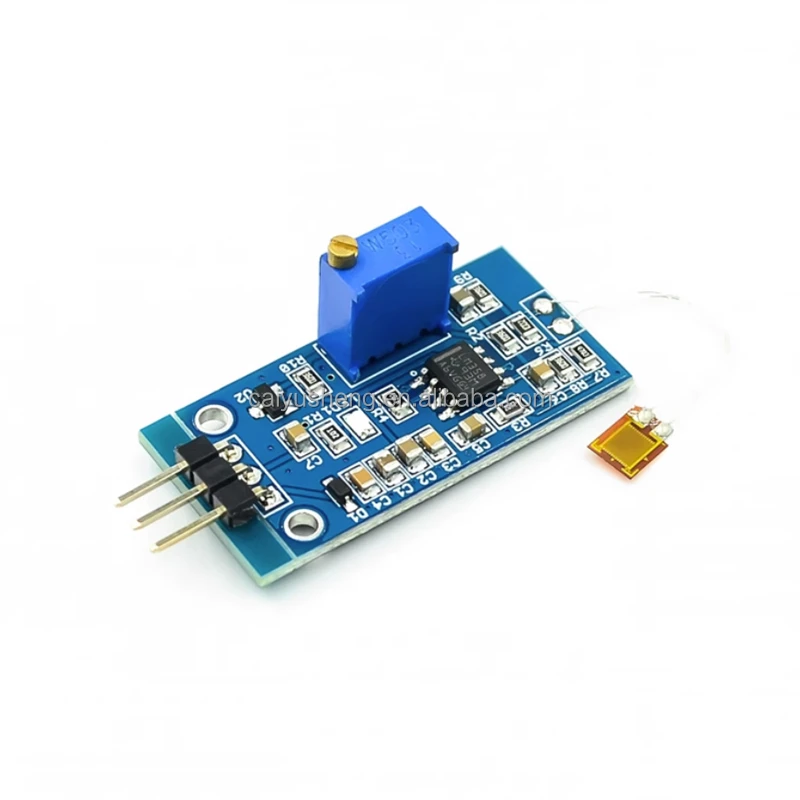

Strain gauge Bending Sensor module Y3 Weighing Enlarge Finished product Send program Data
1. Component
Introduction Model: BF350-3AA/1.5AA
Gauge factor: 2.0
Strain: 2%
Grid wire: length x width 2x3.5mm
Base size: length x width 5x4.5mm
Substrate material: Modified phenolic substrate.
Grid Material: Constantan
Resistance: 350 ohms
Fatigue life: >10000000 times
Flux: ordinary solder rosin
The working principle of the resistance strain gauge is based on the strain effect, that is, when the conductor or semiconductor material is mechanically deformed under the action of an external force, its resistance value changes accordingly. This phenomenon is called "strain effect".
Attach the strain gauge to the object to be measured so that it bends with the strain of the object to be measured, so that the metal foil inside bends with the strain. Many metals change their electrical resistance when they are mechanically bent.
2. Product Introduction
Voltage: 5V
Diode reverse protection~ (to prevent the power supply from being reversed)
Red LED power indicator on board
Analog output
Bending angle 0-30 degrees
The greater the curvature, the higher the output voltage
with zero potentiometer
The output starting voltage can be adjusted with a potentiometer
Output analog voltage 0-3.5V
Board Size: 32 X 17mm

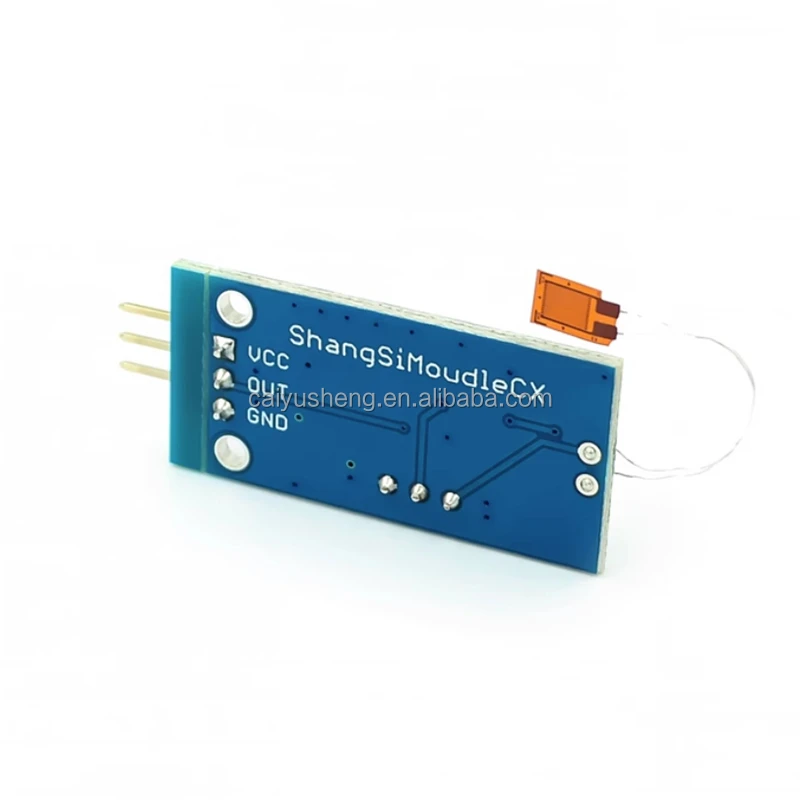

The pin output definition is printed on the back of the board
(The output voltage can be changed by bending the strain gauge)
Introduction Model: BF350-3AA/1.5AA
Gauge factor: 2.0
Strain: 2%
Grid wire: length x width 2x3.5mm
Base size: length x width 5x4.5mm
Substrate material: Modified phenolic substrate.
Grid Material: Constantan
Resistance: 350 ohms
Fatigue life: >10000000 times
Flux: ordinary solder rosin
The working principle of the resistance strain gauge is based on the strain effect, that is, when the conductor or semiconductor material is mechanically deformed under the action of an external force, its resistance value changes accordingly. This phenomenon is called "strain effect".
Attach the strain gauge to the object to be measured so that it bends with the strain of the object to be measured, so that the metal foil inside bends with the strain. Many metals change their electrical resistance when they are mechanically bent.
2. Product Introduction
Voltage: 5V
Diode reverse protection~ (to prevent the power supply from being reversed)
Red LED power indicator on board
Analog output
Bending angle 0-30 degrees
The greater the curvature, the higher the output voltage
with zero potentiometer
The output starting voltage can be adjusted with a potentiometer
Output analog voltage 0-3.5V
Board Size: 32 X 17mm
The pin output definition is printed on the back of the board
(The output voltage can be changed by bending the strain gauge)
