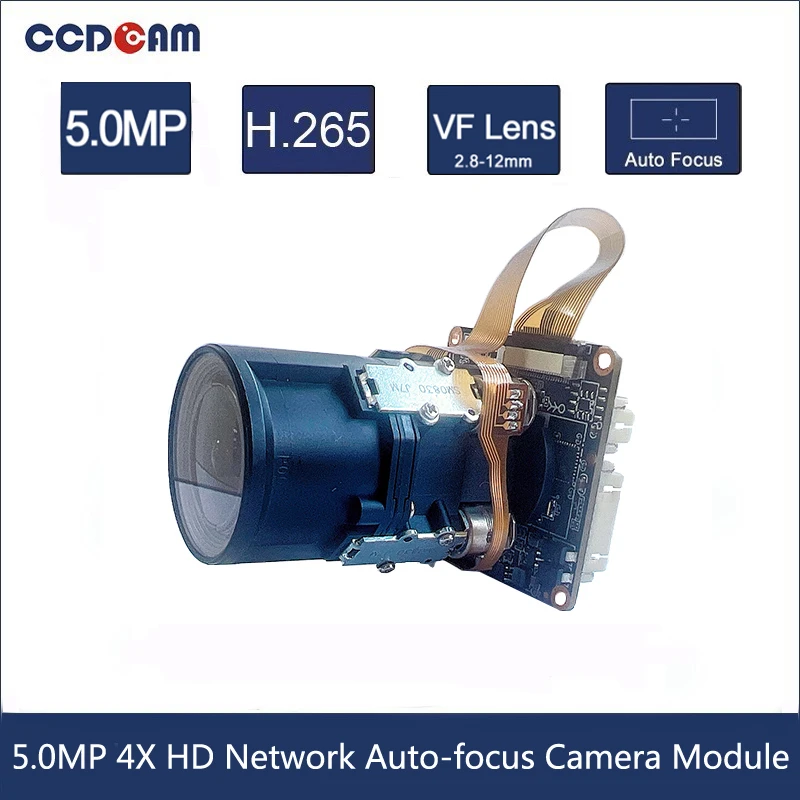

5MP 4XAuto focus IP Camera Module GK7205V300 IMX335 IPC Module for PTZ Camera use
- Category: >>>
- Supplier: Shenzhen Ccdcam Technology Co. Limited
Share on (1600925425914):
Product Overview
Description
Custom Sensor Selection
In all fields, a high level of technology is required, requiring high resolution, and low power consumption. Our well-trained R&D team would provide satisfying camera modules pro type and great support according to your application, from design to manufacturing, we offer a one-stop service so u could focus on what you are good at.
Resolution | 2MP，4MP，5MP，8MP，12MP |
Sensor | GC2053，GC2063，IMX307，IMX327，GC4653，500AI，IMX335，IMX347，IMX385，IMX334，IMX485，IMX412，IMX323IMX291，IMX290，MN32443，IMX274，IMX226，IMX178，OV4689 |
Size | 1/1.2"，1/1.8"，1/2.3"，1/2.8"，1/2.9"，1/3" |
Frame Frequency | 20fps，25fps，30fps，50fps，60fps，90fps，120fps |
DSP model | GK7205V200，GK7205V300，GK7605V100，Hi3516CV500，Hi3516DV300，HI3516AV300，HI3519AV100，SD3403，SSC338G，SSC339G，Hi3516CV200，Hi3516CV300，Hi3516DV100，HI3516AV100，HI3519AV101 |
Lenses / Custom Filter/FoV Options
From the field of view, it could be divided into ordinary lenses (about 50 degrees to 70 degrees), wide-angle lenses,ultra-wide-angle lenses and fisheye lenses.
The field of view of the wide-angle lens is generally around 80°, which is mainly used for shooting general scenes. The ultra-wide-angle lens is used for shooting scenes such as landscapes, buildings, and group photos. The fisheye lens is an extreme wide-angle lens and the view angle even reaches 180°, the diameter of the lens is very short and protrudes outward, similar to the eyes of fish, and is widely used in the fields of scene monitoring, robot navigation and measurement.
According to your FOV request, flexibly match the most suitable lens, a wide selection of view angles such as :
According to your FOV request, flexibly match the most suitable lens, a wide selection of view angles such as :
Diagonal (°) | Vertical (°) | Horizontal (°) |
180 | 180 | 180 |
170 | 161.1 | 166 |
120.0 | 90 | 111.1 |
115.2 | 81.2 | 102 |
107.1 | 73.9 | 95.1 |
90.5 | 61.9 | 82.4 |
80.1 | 53.1 | 73.7 |
63.4 | 37.8 | 54.4 |
46.8 | 27 | 39.6 |
34.4 | 19.5 | 28.8 |
Camera Module

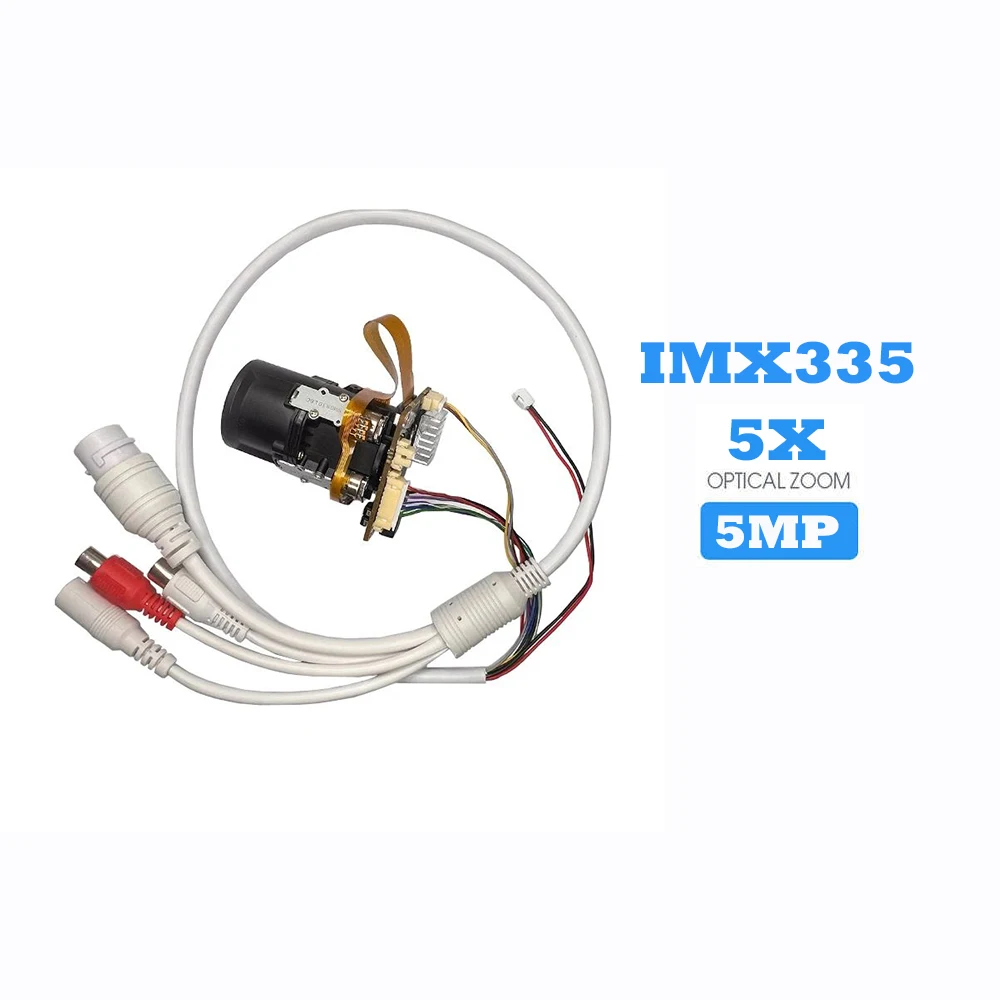

l 1/2.8 "5MP IMX335 CMOS image sensor;
l Minimum illumination 0.05Lux F1.2 Colorful, 0.01Lux F1.2 Black and white;
l 5x optical synchronous focusing, with clear images throughout the zoom process;
l Two sets of motor drives, capable of directly driving a 12V motor
l Built in audio amplifier, can be directly connected to the speaker, and supports bidirectional voice
l Supports multiple night vision modes with dual light sources/single infrared light
l Intelligent 2D and 3D noise reduction algorithms, AE exposure algorithms, clean and refreshing night scenes;
l Support H.265 Main profile/H.264 Main profile/M-JPEG encoding, achieving lower bitstream high-definition image quality;
l Maximum resolution achievable 2592X1944@20fps ;
l Minimum illumination 0.05Lux F1.2 Colorful, 0.01Lux F1.2 Black and white;
l 5x optical synchronous focusing, with clear images throughout the zoom process;
l Two sets of motor drives, capable of directly driving a 12V motor
l Built in audio amplifier, can be directly connected to the speaker, and supports bidirectional voice
l Supports multiple night vision modes with dual light sources/single infrared light
l Intelligent 2D and 3D noise reduction algorithms, AE exposure algorithms, clean and refreshing night scenes;
l Support H.265 Main profile/H.264 Main profile/M-JPEG encoding, achieving lower bitstream high-definition image quality;
l Maximum resolution achievable 2592X1944@20fps ;
l Supports 1 mobile detection area and 4 privacy areas;
l Support for mobile detection and SMTP and FTP alarm functions
l Supports P2P access on Android and iOS mobile phones, allowing users to view images anytime, anywhere
l Supports SD card storage, with a maximum scalability of 128GB;
l Supports standard ONVIF 2.4 protocol, RTSP protocol, Haikang, and Xiongmai private protocols;
l Seamless integration with PC software platforms such as Hikvision IVMS-4200, Xiongmai CMS, Tianshitong, and NVR backend;
l An open system that provides Linux, Windows SDK development kits, and CGI protocol for rapid secondary development.
l Support for mobile detection and SMTP and FTP alarm functions
l Supports P2P access on Android and iOS mobile phones, allowing users to view images anytime, anywhere
l Supports SD card storage, with a maximum scalability of 128GB;
l Supports standard ONVIF 2.4 protocol, RTSP protocol, Haikang, and Xiongmai private protocols;
l Seamless integration with PC software platforms such as Hikvision IVMS-4200, Xiongmai CMS, Tianshitong, and NVR backend;
l An open system that provides Linux, Windows SDK development kits, and CGI protocol for rapid secondary development.
Specification
Model | IM50L35-X5 | ||
5.0MP 5x automatic zoom network module | |||
SENSOR | sensor | 1/2.8" 5 Mege Pixel Progressive Scan CMOS | |
Maximum Resolution | 2592x1944 20fps | ||
Minimun illumination | 0.05Lux 1.2 (Color mode); 0.01Lux F1.2 (Black and white mode);0Lux (led on) | ||
shot | focal length | 2.8-12mm,F1.7-F3.0; | |
viewing angle | 135 ° (near focus)~34 ° (far focus) | ||
Lamp control mode | Infrared light mode | support | |
White light mode | support | ||
Dual light control mode | support | ||
audio frequency | input | Passive MIC | |
output | Built in amplifier for direct speaker connection | ||
P2P | Deng Hong/Graffiti | Support for graffiti and Rainbow P2P | |
PTZ | Motor interface | 2 sets of motor interfaces, 1 set vertical, 1 set horizontal | |
Pan tilt angle | Vertical 90 °, Horizontal 360 °° | ||
Power outage memory | Support power outage memory function | ||
Guard position | Support the setting of guard positions and return to preset positions on a regular basis | ||
Preset position | Supports preset point settings, up to 254 | ||
cruise | Support for preset point to point cruise function | ||
function | Motion detection | Support for mobile detection and alarm | |
AI humanoid detection | Support for human shape detection | ||
Support for human shape detection | support | ||
Alarm push | Mobile app, SMTP, FTP alarm push | ||
RESET | Support hardware reset and unbinding P2P function | ||
Local Storage | storage | Supports up to 128G TF card storage | |
Local Storage | High definition/standard definition options | ||
Recording method | Manual recording, alarm recording | ||
View recording | Support remote video playback | ||
General protocol | network protocol | TCP/IP,HTTP,NTP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,P2P | |
ONVIF protocol | standardONVIF2.4 | ||
compatibility | Support access to platforms such as Hikvision, Xiongmai CMS, and Tianshitong UC2, as well as mainstream NVR ONVIF protocol access | ||
network interface | wired | 10/100M RJ45 network interface | |
WIFI | 2.4G, IEEE802.11 b/g/n protocol, supporting WEP, WPA, WPA2 encryption methods | ||
other | power supply | 12VDC 0.20A | |

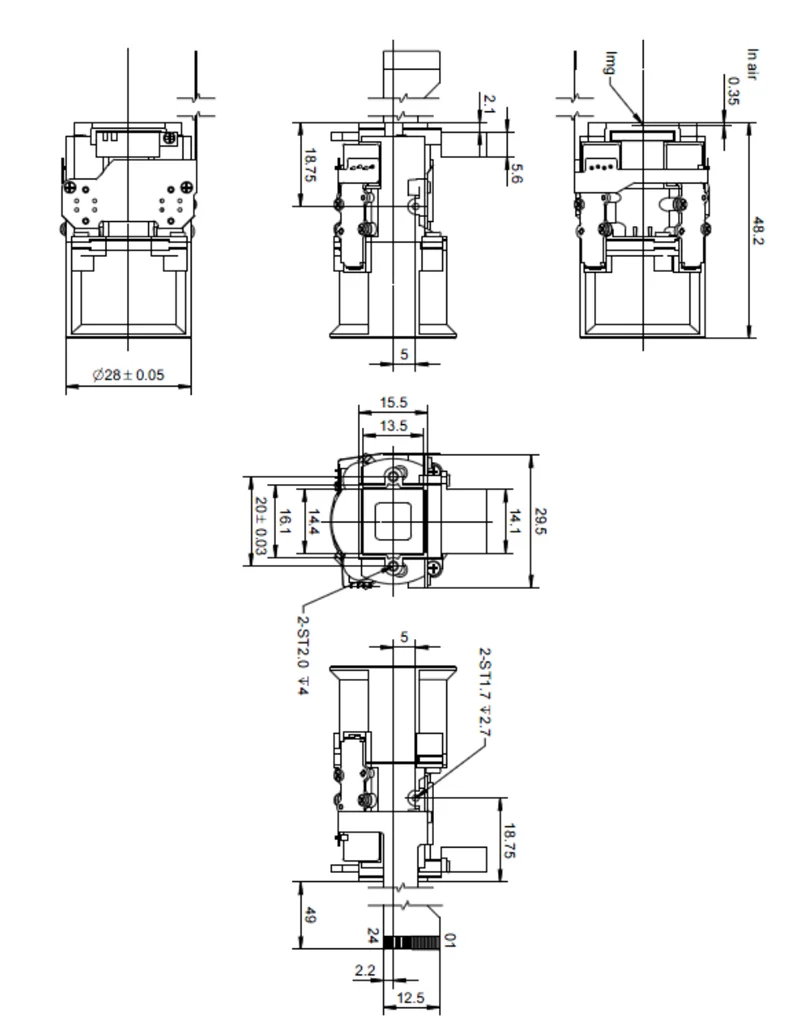

specifications | Encoding motherboard: 38X44mm, overall height: 60mm | ||
operation temperature | -30°C ~60°C | ||
Working humidity | 0% -90% RH (non condensing) | ||
Motorized Lens Selection Assembly
2.7-13.5mm Lens
View More
6-22mm Lens
View More
5-50mm Lens
View More
Application Solution
FAQ
1 years free repair and lifetime technical support provided after the shipment date.
> If you could repair the products by yourself, we will supply the spare parts.
> If you couldn't repair the products, please sent back to us, and you need to afford the shipping cost to us, we will afford the
shipping cost to your side.
All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 1%
OEM & ODM
> OEM and ODM Projects is welcome, and pls kindly send your logo, so we can discuss more details.
Payment Terms
T/T, Paypal, Western Union, Alibaba payment
> We accept T/T 30% deposit to start the order,70% balance payment when goods finish.
> If order value less than 20,000USD$, we should get 100% payment before production
MOQ
Sample order is weclome!
OEM product logo MOQ 100pcs, OEM box design MOQ 1000pcs.
How to order from us?
> Please confirm the model no. & quantity to us.
> We will send a Proforma Invoice for PO the order.
> After you paid, we will start the production, and finish the order ASAP.
> When the goods are ready, generally we will send by express, like Fedex, DHL, UPS, TNT. and send the tracking number.
Technical Support
We have professional enginner team to support for you.
> If you could repair the products by yourself, we will supply the spare parts.
> If you couldn't repair the products, please sent back to us, and you need to afford the shipping cost to us, we will afford the
shipping cost to your side.
All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 1%
OEM & ODM
> OEM and ODM Projects is welcome, and pls kindly send your logo, so we can discuss more details.
Payment Terms
T/T, Paypal, Western Union, Alibaba payment
> We accept T/T 30% deposit to start the order,70% balance payment when goods finish.
> If order value less than 20,000USD$, we should get 100% payment before production
MOQ
Sample order is weclome!
OEM product logo MOQ 100pcs, OEM box design MOQ 1000pcs.
How to order from us?
> Please confirm the model no. & quantity to us.
> We will send a Proforma Invoice for PO the order.
> After you paid, we will start the production, and finish the order ASAP.
> When the goods are ready, generally we will send by express, like Fedex, DHL, UPS, TNT. and send the tracking number.
Technical Support
We have professional enginner team to support for you.
