1200W Pure Sine Wave Inverter with AC Charger DC 12V to AC 120V Output Off Grid Low Frequency Inverter for Lithium, Sealed,AGM
- Category: >>>
- Supplier: Yiwu Yi Fan E-Commerce Firm
Share on (1600925599249):
Product Overview
Description
Products Description
* Continuous 1200 Watt Peak 3600 watts Low frequency pure sine wave inverter,Support 24-hour load air conditioning and other household appliances
* charging current and charging voltage can be adjusted;customizable voltage for low voltage protection and voltage for low voltage recovery.
* Adjustable charge current off-0%-100%, Five Stage Smart Charger, 15A battery AC charger max Support lifep04，Sealed Gel AGM Flooded Lithium, Sealed, Gel, and Flooded Batteries
* Working Mode(optional): 1.AC Input Priority; 2.Battery Prioritye; 3.ECO Mode; 4.Generator Mode; 5.Unattended Mode;
* High-definition LCD display,full-vision real-time monitoring data,UPS 5-10msec typical transfer time
* charging current and charging voltage can be adjusted;customizable voltage for low voltage protection and voltage for low voltage recovery.
* Adjustable charge current off-0%-100%, Five Stage Smart Charger, 15A battery AC charger max Support lifep04，Sealed Gel AGM Flooded Lithium, Sealed, Gel, and Flooded Batteries
* Working Mode(optional): 1.AC Input Priority; 2.Battery Prioritye; 3.ECO Mode; 4.Generator Mode; 5.Unattended Mode;
* High-definition LCD display,full-vision real-time monitoring data,UPS 5-10msec typical transfer time
Rated Power : | 1200W |
Peak Power : | 3600W |
AC Input : | 120V±25%, 60HZ±5HZ |
AC Output : | 120V±3%, 60HZ±0.5HZ |
Max AC Charge Current : | 15A |
Wave Form : | Pure Sine Wave |
Transformer Time : | ≤8ms |
Transformer Efficiency : | ≥90% |
Battery Voltage : | 12V |
Battery Type : | GEL, SLA, AGM, Flooded, Lithium(lifep04) |
DC Charge Voltage : | 13.8V |
Overcharge Protection : | 17VDC |
Operating Temperature : | 0 ~ 60℃ |
1200W Pure Sine Wave Inverter
* Five modes of operation, working Mode(optional): 1.AC Input Priority; 2.Battery Priority; 3.ECO Mode; 4.Generator Mode;
5.Unattended Mode.
* High transfer efficiency is above 90%, , complete isolate surge interference of input & output's voltage and current, Impact
resistance, super load capacity, built-in AVR stabilizer, continuous stable pure sine wave output.
* Protections: AC input over voltage protection/AC Input low voltage protection/Low battery alarm/High battery alarm /Over temperature protection/Over load protection Short Circuit protection (1s after fault) /Back feeding protection
* Five modes of operation, working Mode(optional): 1.AC Input Priority; 2.Battery Priority; 3.ECO Mode; 4.Generator Mode;
5.Unattended Mode.
* High transfer efficiency is above 90%, , complete isolate surge interference of input & output's voltage and current, Impact
resistance, super load capacity, built-in AVR stabilizer, continuous stable pure sine wave output.
* Protections: AC input over voltage protection/AC Input low voltage protection/Low battery alarm/High battery alarm /Over temperature protection/Over load protection Short Circuit protection (1s after fault) /Back feeding protection

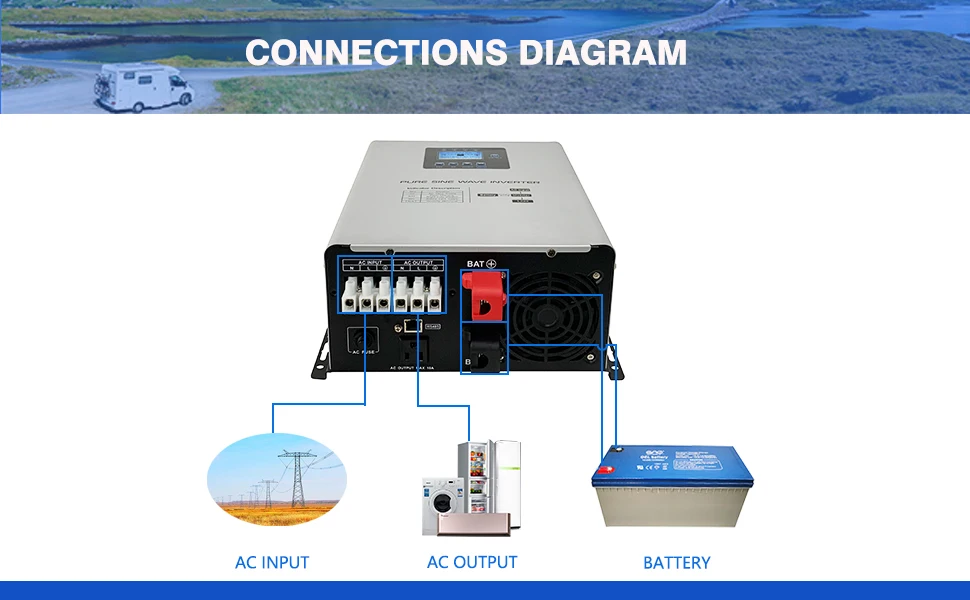

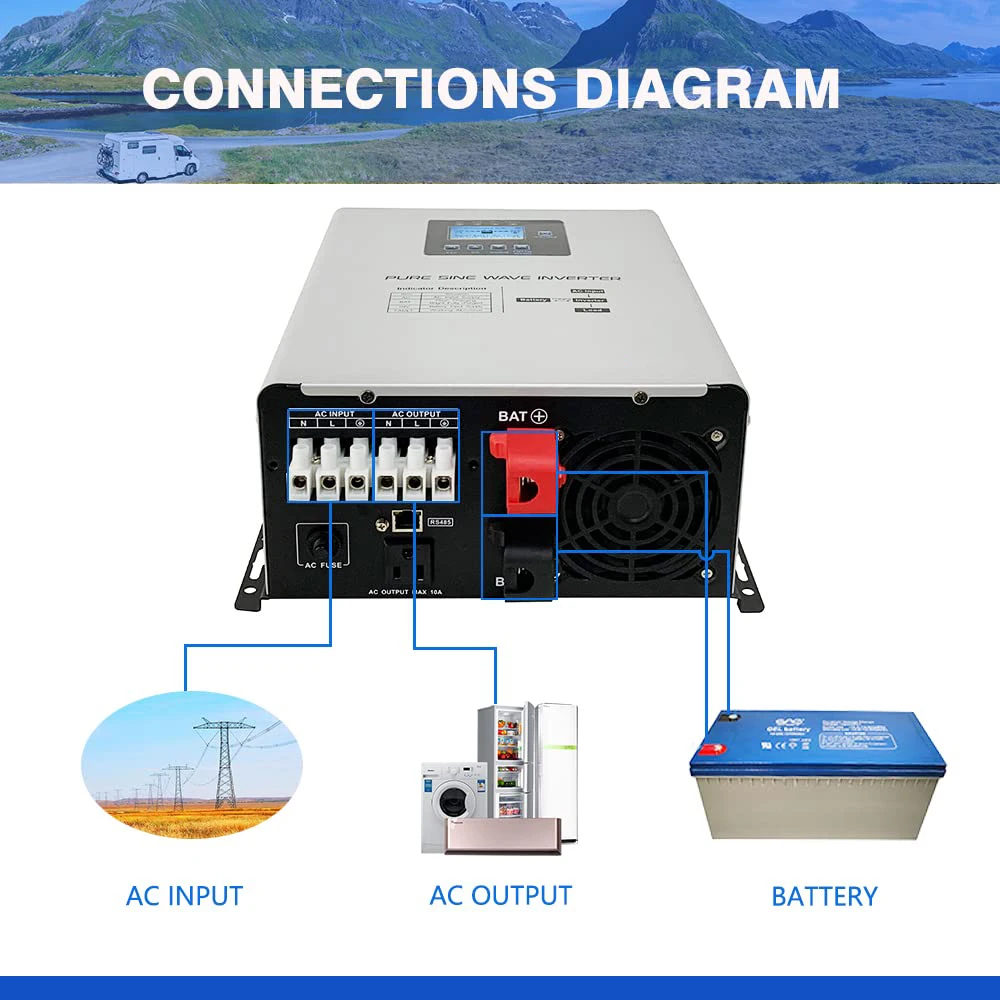

This Power inverter is able to charge the battery bank when AC power is connected to the inverter.
This inverter can ONLY work with 12V battery system.
The inverter CAN NOT can in parallel
Battery MUST BE connected first
1200 watt is continuous output power, peak power is 3600W
This inverter can ONLY work with 12V battery system.
The inverter CAN NOT can in parallel
Battery MUST BE connected first
1200 watt is continuous output power, peak power is 3600W
Note: Different types of loads have different starting impulse currents. Customers need to select the appropriate inverter model according to the actual equipment power, current, and load characteristics.
What kind of the inverter is suitable for your appliances?
Pls know that load is divided into resistive load and inductive load .If you need the inverter to run the resistive load (like
laptop, TV, electric cooker ), please choose the inverter with continuous power higher than the appliance's rated power. And it is best to use 80% of the rated power. If you use microwaves, water pumps, air conditioners and other appliances with motors or compressors ,please choose the inverter whose continuous power is 3-10 times higher than your appliances.
Working Mode Setting:
1. AC/Line priority mode -- always use ac power as priority input, provide ac output, and automatically charge the battery.
2. Battery priority mode -- Priority should be given to battery power supply. After low voltage protection, the battery will be
transferred to ac grid power supply. When the battery is full, the battery will be transferred back to battery power.
3. ECO Mode---Load < 10% automatic sleep and stop output, load > 10% automatic boot back to normal inversion.
4. Generator mode -- The generator is connected to the AC input of the inverter, and the output is stabilized through AVR while
the battery is recharged.
5. Unattended Mode---When the battery is low voltage, the inverter goes into standby state(Power saving state). When the battery restores the voltage value set by yourself (such as solar charging), the inverter will restore the normal output of the inverter, and realize unattended full automatic operation!
What kind of the inverter is suitable for your appliances?
Pls know that load is divided into resistive load and inductive load .If you need the inverter to run the resistive load (like
laptop, TV, electric cooker ), please choose the inverter with continuous power higher than the appliance's rated power. And it is best to use 80% of the rated power. If you use microwaves, water pumps, air conditioners and other appliances with motors or compressors ,please choose the inverter whose continuous power is 3-10 times higher than your appliances.
Working Mode Setting:
1. AC/Line priority mode -- always use ac power as priority input, provide ac output, and automatically charge the battery.
2. Battery priority mode -- Priority should be given to battery power supply. After low voltage protection, the battery will be
transferred to ac grid power supply. When the battery is full, the battery will be transferred back to battery power.
3. ECO Mode---Load < 10% automatic sleep and stop output, load > 10% automatic boot back to normal inversion.
4. Generator mode -- The generator is connected to the AC input of the inverter, and the output is stabilized through AVR while
the battery is recharged.
5. Unattended Mode---When the battery is low voltage, the inverter goes into standby state(Power saving state). When the battery restores the voltage value set by yourself (such as solar charging), the inverter will restore the normal output of the inverter, and realize unattended full automatic operation!
