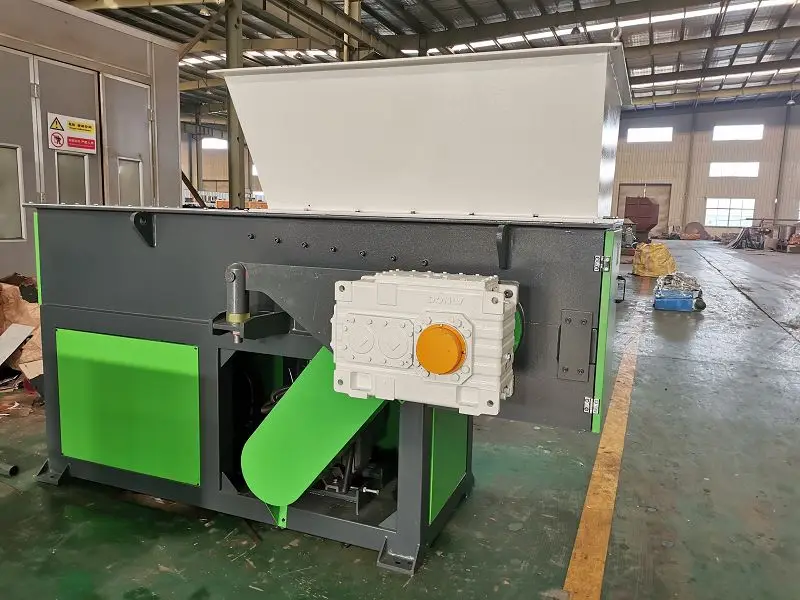

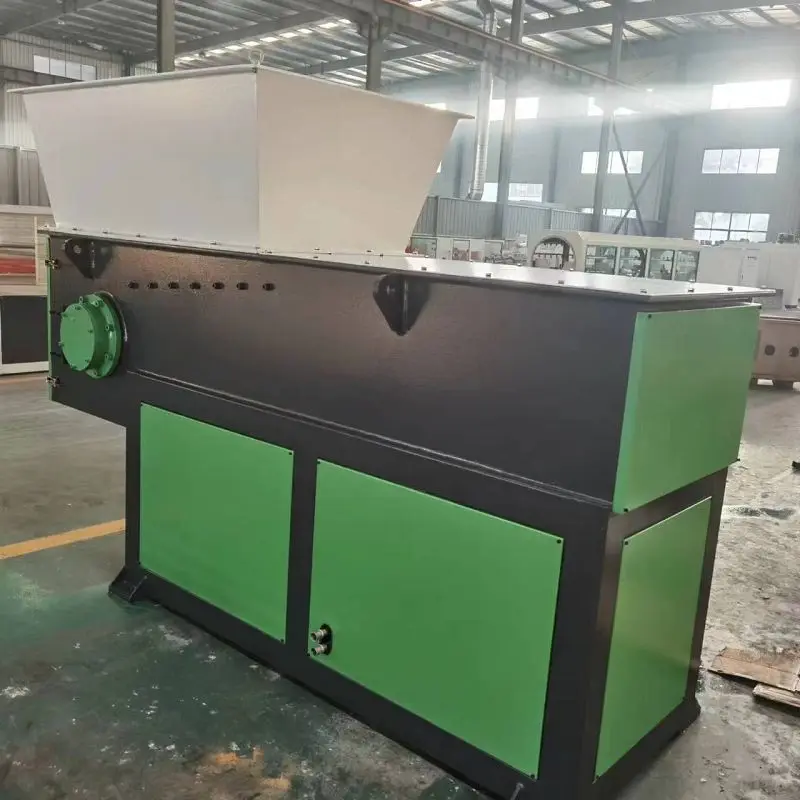

Greenlandplast large Plastic waste shredder single shaft strong crushing plastic machine crusher
- Category: >>>
- Supplier: Zhangjiagang Greenlandplast Machinery Co. Ltd.
Share on (1600925624663):
Product Overview
Description
Product Overview

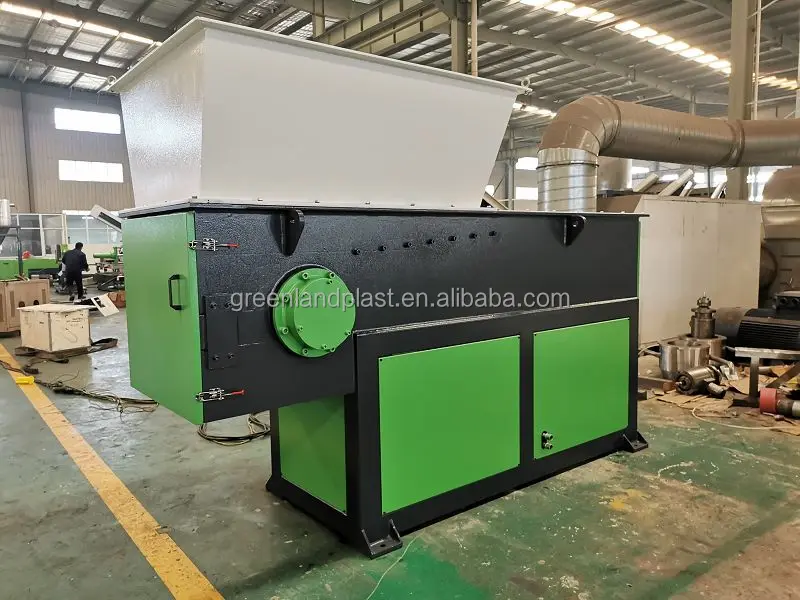

Greenlandplast large Plastic waste shredder single shaft strong crushing plastic machine crusher
This Single Shaft Shredder is designed to process with tough ,hard and solid plastics lumps ,also such as large thick pipes, buckets, pallets,rubber, wood, etc. Working with medium speed , low noise, low power consumption. Rotary blades has 4 sides can be exchanged four times for use, which prolong using life. When push materials by hydraulic, can select speed and presure freely according to different materials load. It is with low labor strength, safe& reliable operation.
FEATURES AT A GLANCE
Compact Dimension
Strong shredding shaft&blades
Safety Frame
Simple Control
Easy Maintenance
Widely Used
High Capacity
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | GLSS-600 | GLSS-800 | GLSS-1000 | GLSS-1200 | GLSS-1500 |
Main Motor Power(kw) | 22 | 37 | 45 | 55 | 75 |
Hydraulic Motor Power(kw) | 2.2 | 3 | 3 | 5.5 | 5.5 |
Cylinder Stroke(mm) | 750 | 850 | 900 | 1000 | 1000 |
Rotor Diameter (mm) | Φ300 | Φ400 | Φ400 | Φ400 | Φ450 |
Main Shaft Speed(r/min) | 83.7 | 87.5 | 73.5 | 73.5 | 83.3 |

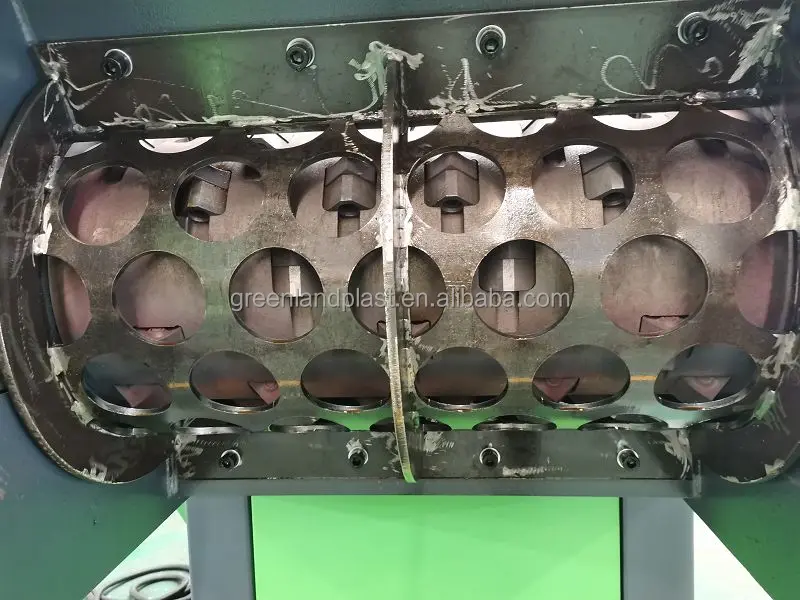

Screen Mesh(mm) | Φ50 | Φ50 | Φ55 | Φ55 | Φ55 |
Rotating Blades(PCS) | 26+4 | 42+4 | 54+4 | 66+4 | 84+4 |
Fixed Blades(PCS) | 4 | 4 | 2 | 2 | 3 |
Dimenesion(mm) | 2400*1400*1700 | 2800*1700*1800 | 2800*2000*1800 | 2800*2500*1800 | 2800*3000*2200 |
Weight(KG) | 1650 | 3000 | 4000 | 5000 | 6000 |
PRODUCT CONFIGURATION

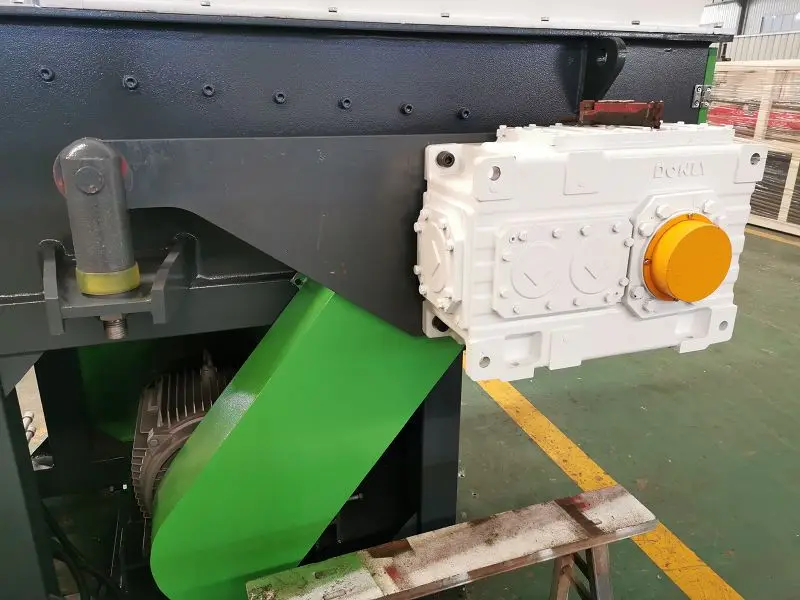

Gearbox
Using hardened teeth gearbox, safe and stable.
Main Shaft
The main shaft is high-strength solid shaft. The blades are fix on the shaft in a V-shaped
arrangement ,also may adopt different design according to the material condition and customized demand!
arrangement ,also may adopt different design according to the material condition and customized demand!

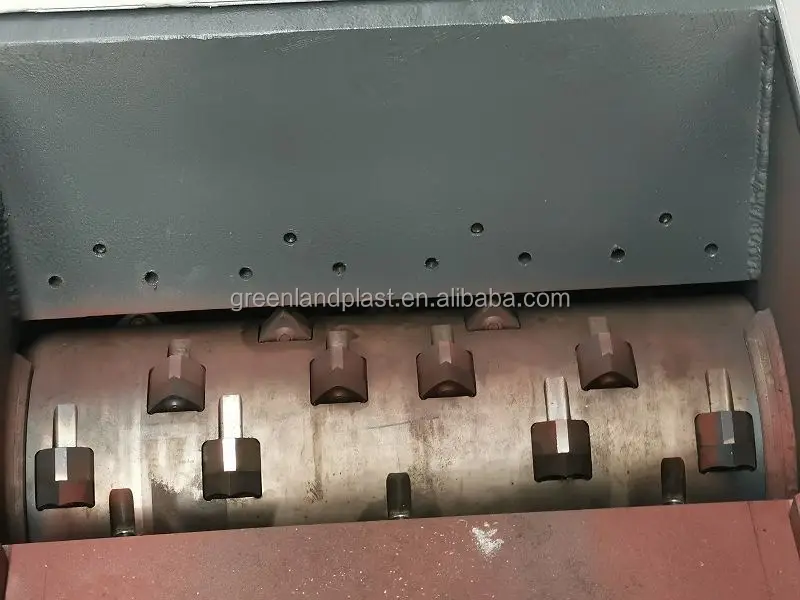

Rotation Blades
Rotary blades have 4 sides can be exchanged four times for use, prolong using life

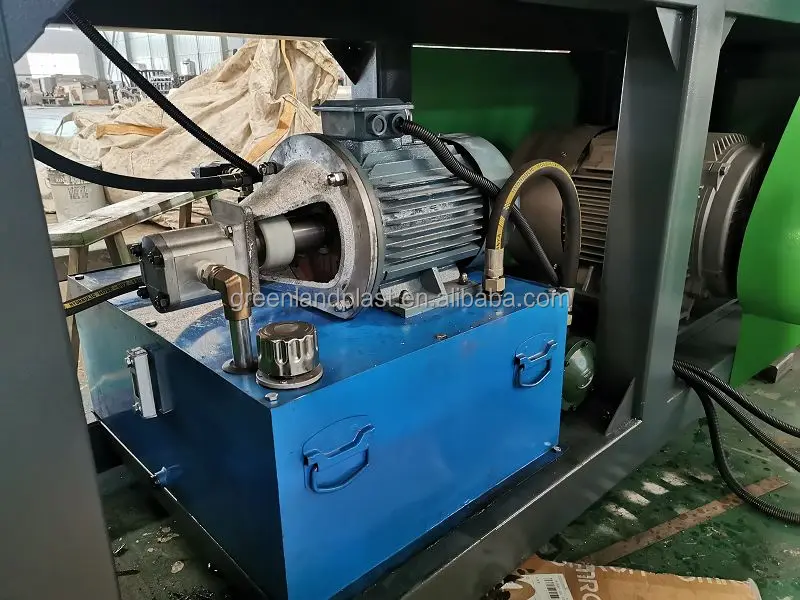

Hydraulic pushing system
Hydraulic pushing system,automatical reverse rotate and back, prevent motor over-load ,easy and safe operation

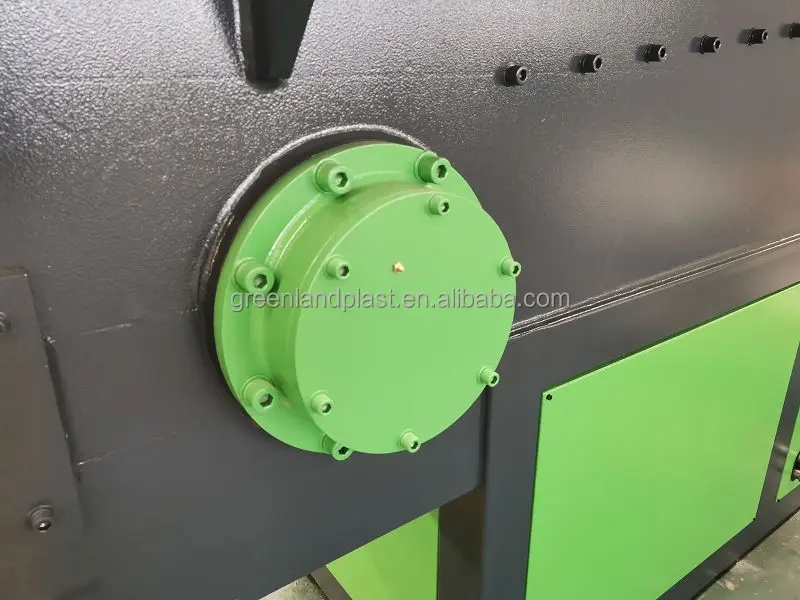

Out-side design bearing
The bearing block is installed outside the shredding chamber, effectively prevent particles of crushed material in the crushing
chamber entering into bearing house, so that improve the bearing life. set up regular adding oil nozzle
chamber entering into bearing house, so that improve the bearing life. set up regular adding oil nozzle

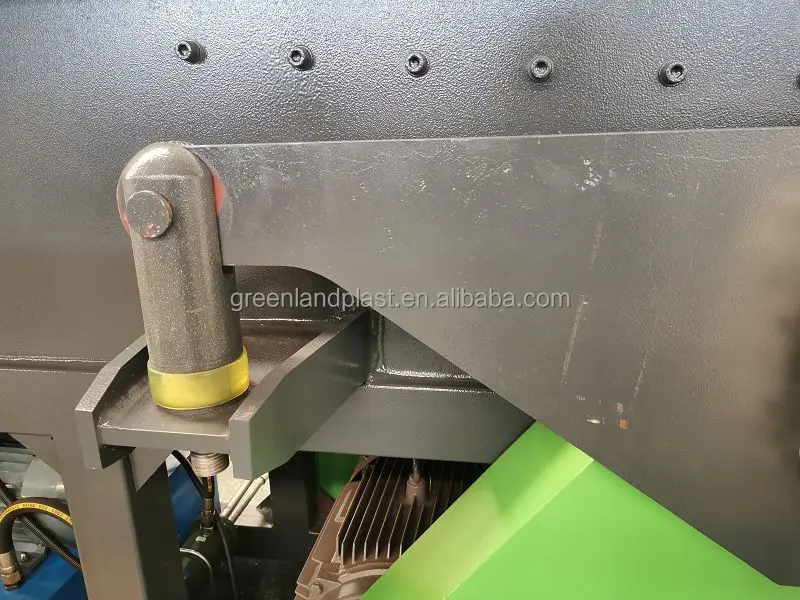

Shock Absorber
Absorb the vibration generated during the shredding process ,to make it shred smoothly.
SIMILAR PRODUCTS
Why Choose Us
Technical innovation ,Quality first
Greenlandplast Machinery pays attention to technology research & development and product quality. Based on the company's mature R&D design team, we carry out technical reforms on traditional plastic recycling equipment. It insists on high-quality configuration for each component and detail of the equipment, compared with traditional recycling equipment ,more stable, high performance and efficiency, increase the economic benefits of recycling manufacturers!
Offer different customers customized solutions of plastic recycling
Greenlandplast Machinery provides customized and integrated crushing washing and pelletizing solutions according to different recycling materials and capacity requirements of customers, which can help customers recycle various of materials and different pollution levels.Includ PET bottles, PP/PE Films/plastic bags/bottle, waste plastic packages agricultural film greenhouse film, jumpo bag, home appliance plastic, etc.
One-stop turnkey project concept
Since the customer consider setting up recycling project, we will design the most suitable production line process and installation plan according to the customer's capacity demand, workshop condition, etc. Our design and engineering team will provide customers with one-stop turnkey plastic recycling project. With complete pre-sale and after-sales service
Installation ,training & Good after-sales service
We have professional technicians who can come to customer's factory provide installation and commissioning, train operators, so that ensure the correct operation and maintenance of the equipment! We have dedicated after-sales personnel and spare parts warehouse to ensure the timely supply of some conventional accessories parts!
