PP Woven Bag Shuttle Circular Loom Machine PP Bag flat Loom PP Woven Bag Making Machine Circular Loom

Product Overview

Description

PP Woven Bag 4 Shuttles Circular Loom Machine



Performance and characteristics:

1. Plane cam and connecting rod rolling wheel transmission , which is the most advanced technology, is adopted, making it easy and stable to run.

2. Rolling transmission is adopted in entire structure instead of slide block and slide rod, which doesn’t need lubricant and decrease the wearing part.

3.  It can be configured with automatically stop & detecting unit, when meeting the situation of warp/weft breaking , and weft ending, The stoppage unit is sensitive and reliable.

4.  PLC centralized control is adopted for electric controlling , frequency speed regulation is adopted as well, which is convenient and stable.

5.  It is high-efficient and energy economical/ The highest rotation speed of the main motor can reach 180r/min and the power is 3 KW, which can save 10 thousand degree electricity one year , compared with the traditional small-sized six shuttle circular loom whose power is 4 KW.

6.  As required, electronic intelligent fabric-lifting unit can be configured as well, which is featured with the compensation setting to the warp/weft density casually.



Main Technical Parameters:

Type	YZJ-750/4
Number of shuttle	4
Folding width of weaving	350-750
Max. number of warp	768
Rotational speed of main motor(r/min)	140-180
Production (m/min)	1.4-1.8
Total power(kw)	2/2.7
Weight(kg)	1800
Installing dimensions(L*W*H)(mm)	8400X2210X2650

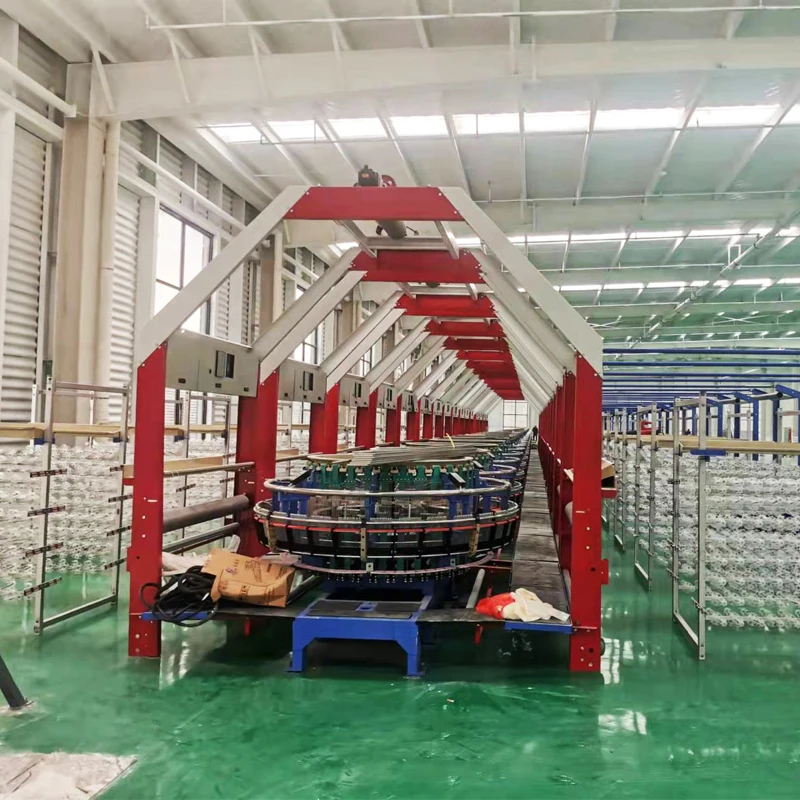

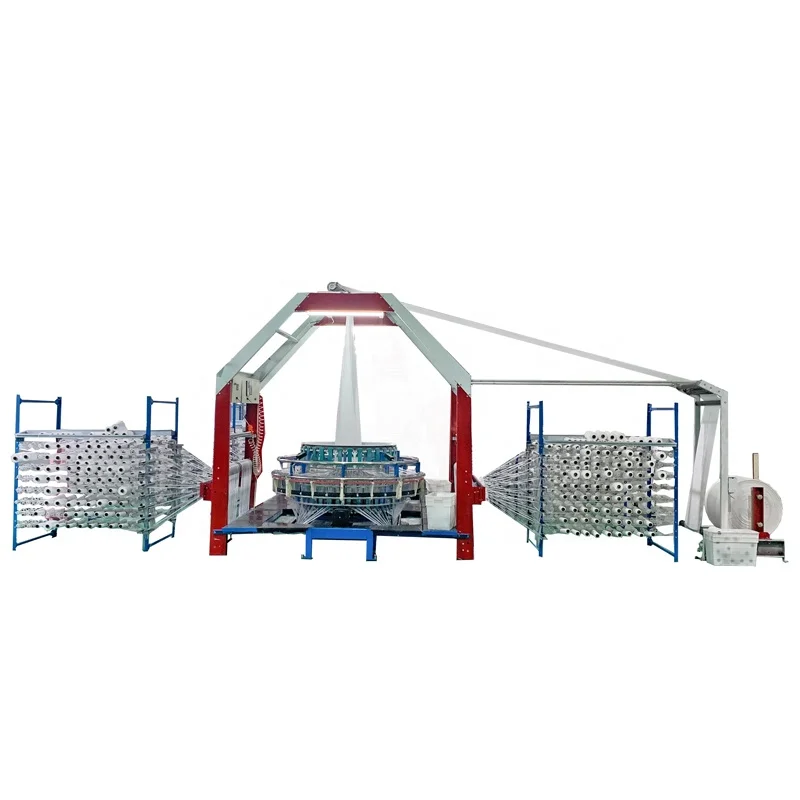

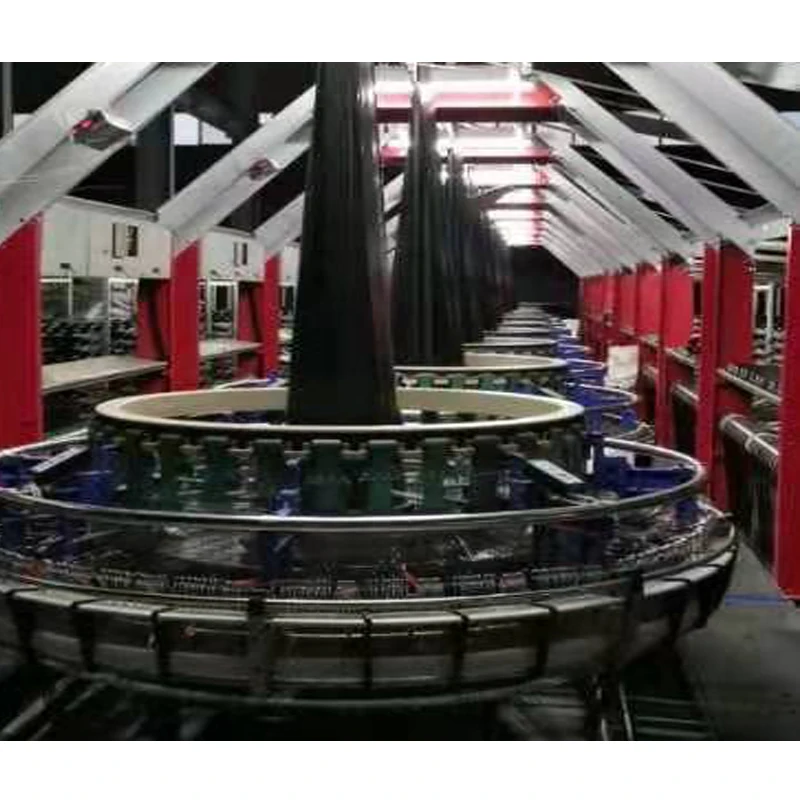

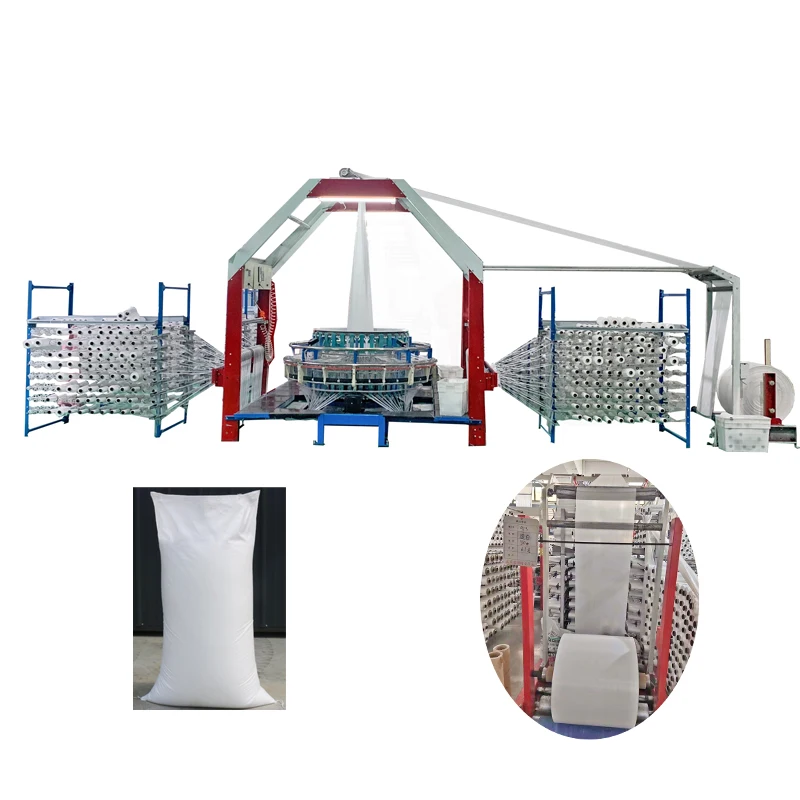

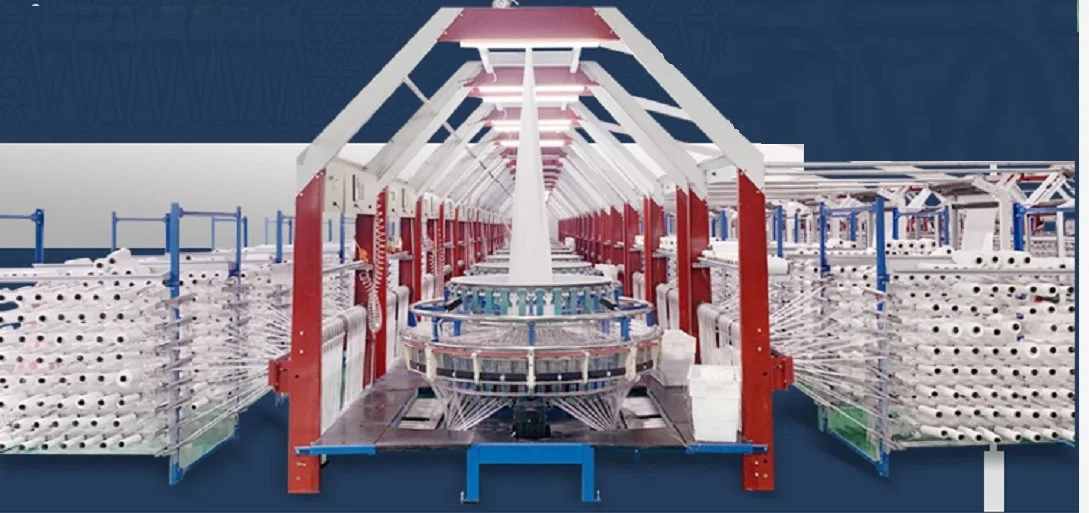

 Machine Pics:















Q1:Are Your manufacturer or trading company?

A1:We are manufacture,also poseess ISO 9001 and paten certificates,products covering PE film /PP woven bag production line,bag making machine,siltting machine etc.



Q2: How long is your delivery time?

A2: Generally it is 7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.



Q3:How could we do if the parts broken within warranty?

A3:We would express the free replacement parts during the warranty date.



Q4: Does oversea service available?

A4: YES,it does.We have a experience service team,every member has gone aboard for several times,with rich experience in installing the machine.



Q5.:How do we solve the machine problem after your engineer leaving?

A5:In case you have any problem.You can contact our sales at any time. Our engineer will take a solution video according to your description.
