Changeover Switches Automatic Transfer Dual Power Switches 50/60Hz 220V 80A
- Category: >>>
- Supplier: Yueqing Nova Electronics Co. Ltd.
Share on (1600925711468):
Product Overview
Description
Product Description

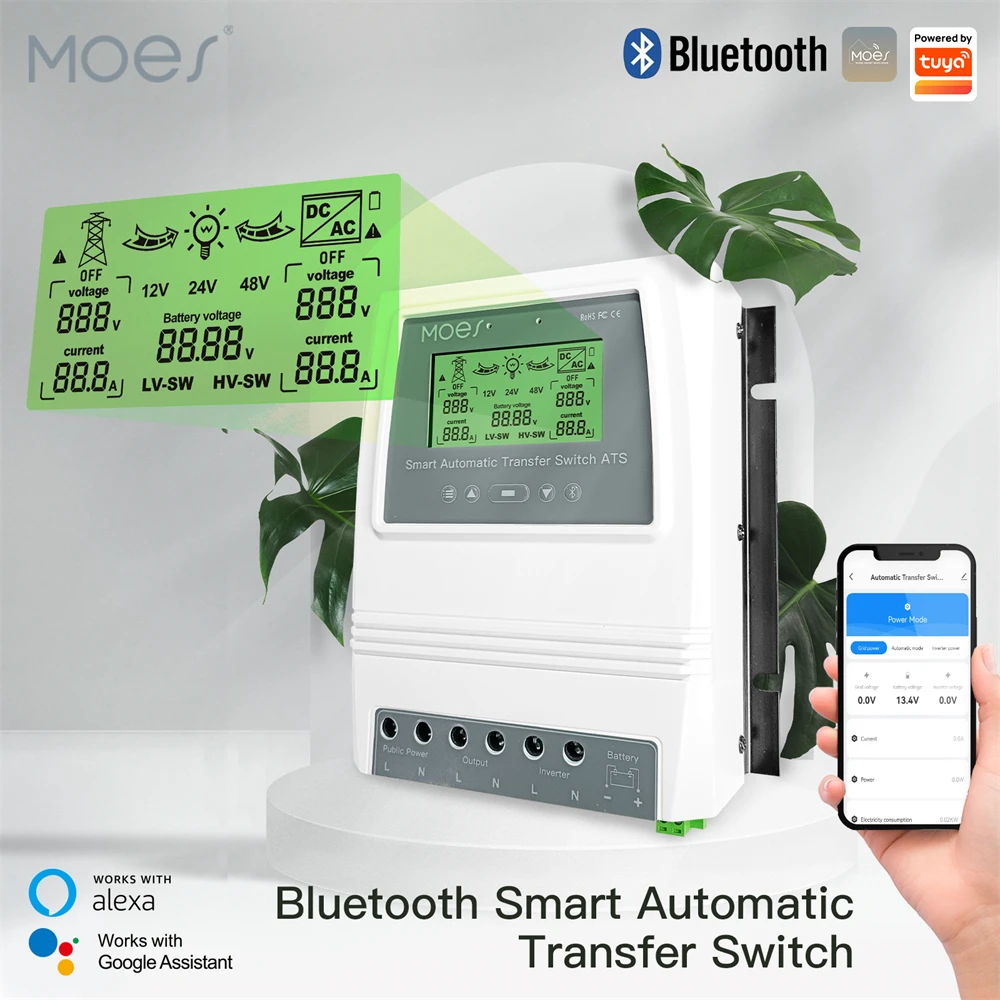

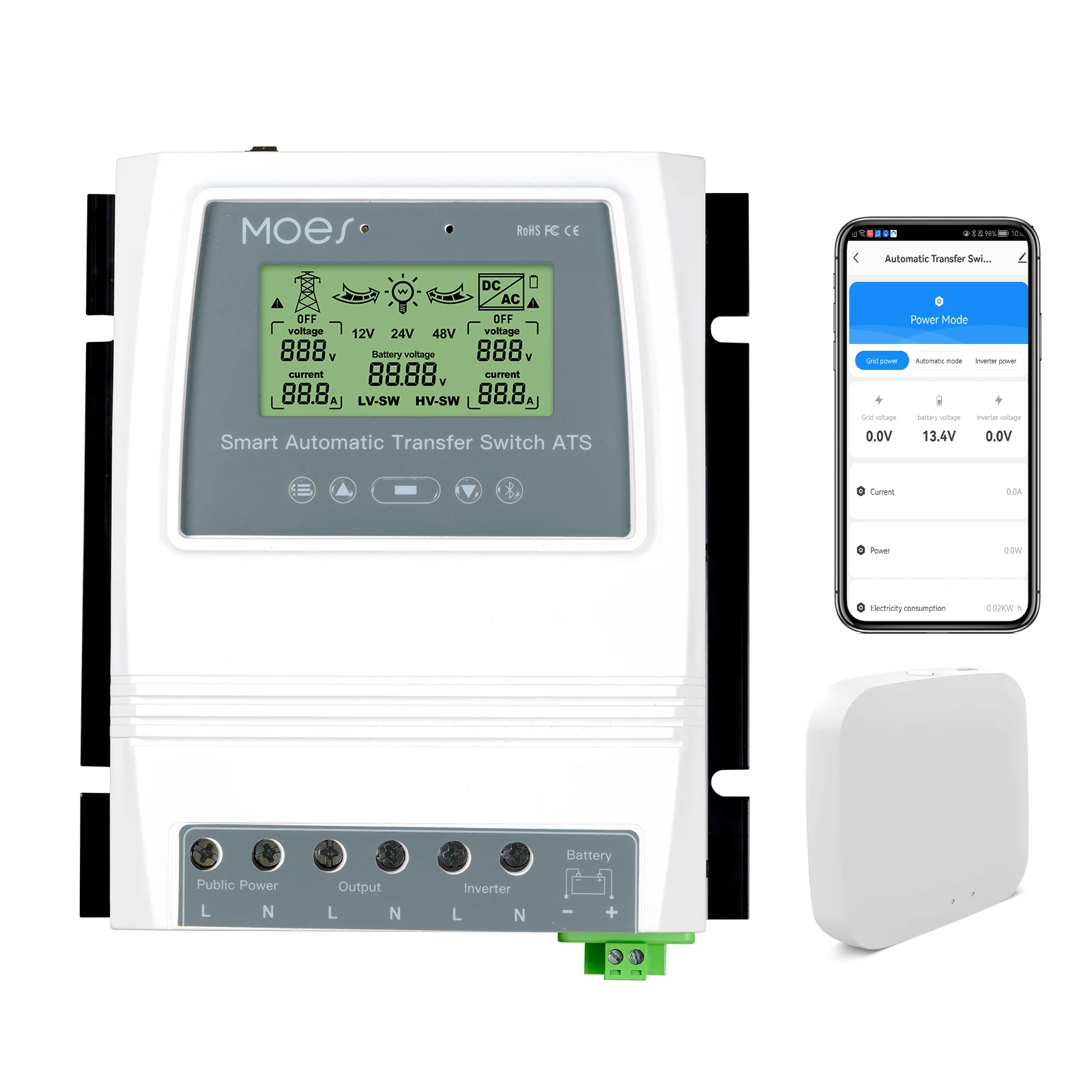

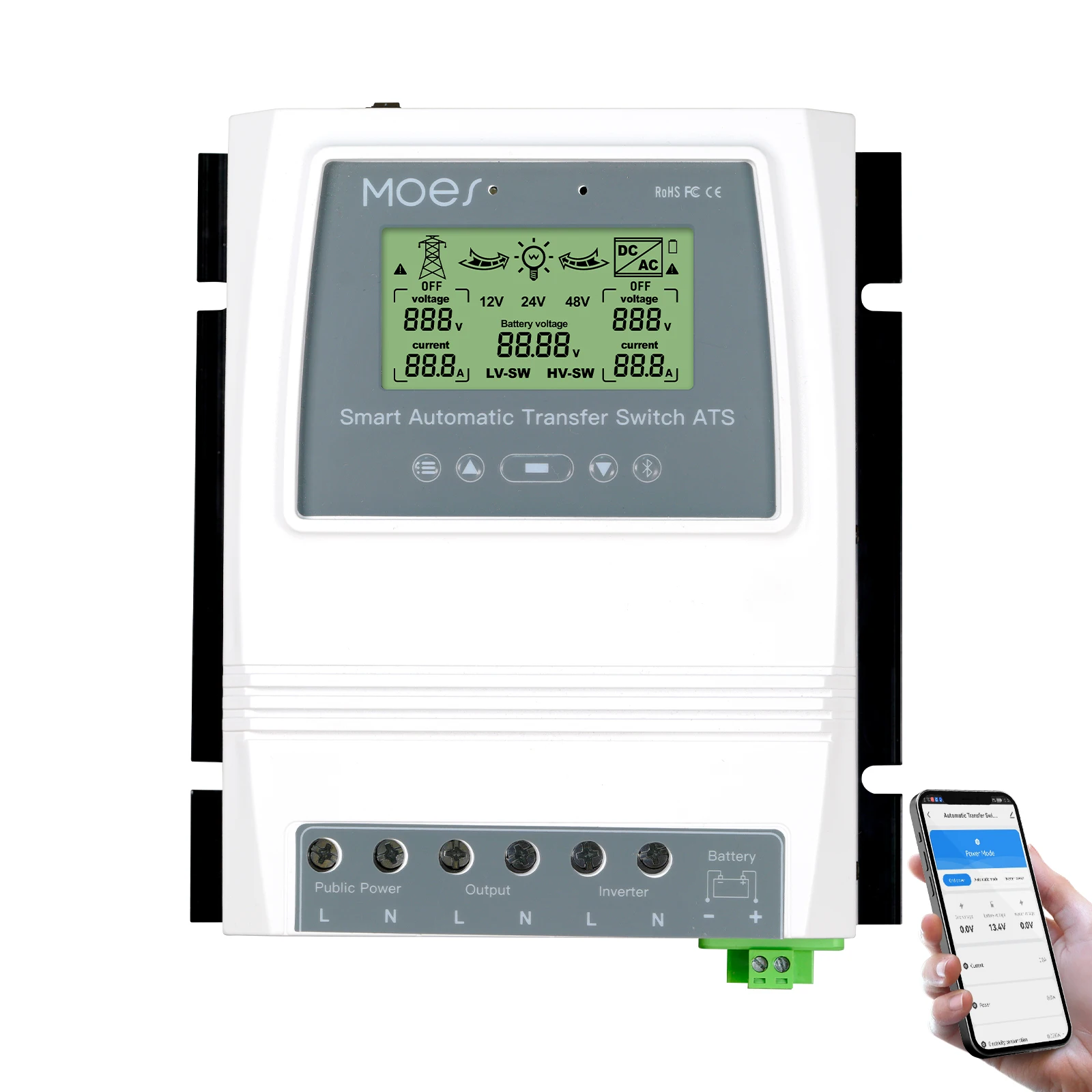

New Smart Blue tooth Dual Power Controller 80A 16KW Automatic Transfer Switch Energy Saving for Off Grid Solar Wind System ATS DC 12V 24V 48V AC 110V 220V MOES APP for Smart Control with Bluetooth Hub for Remote Control
Main Features:

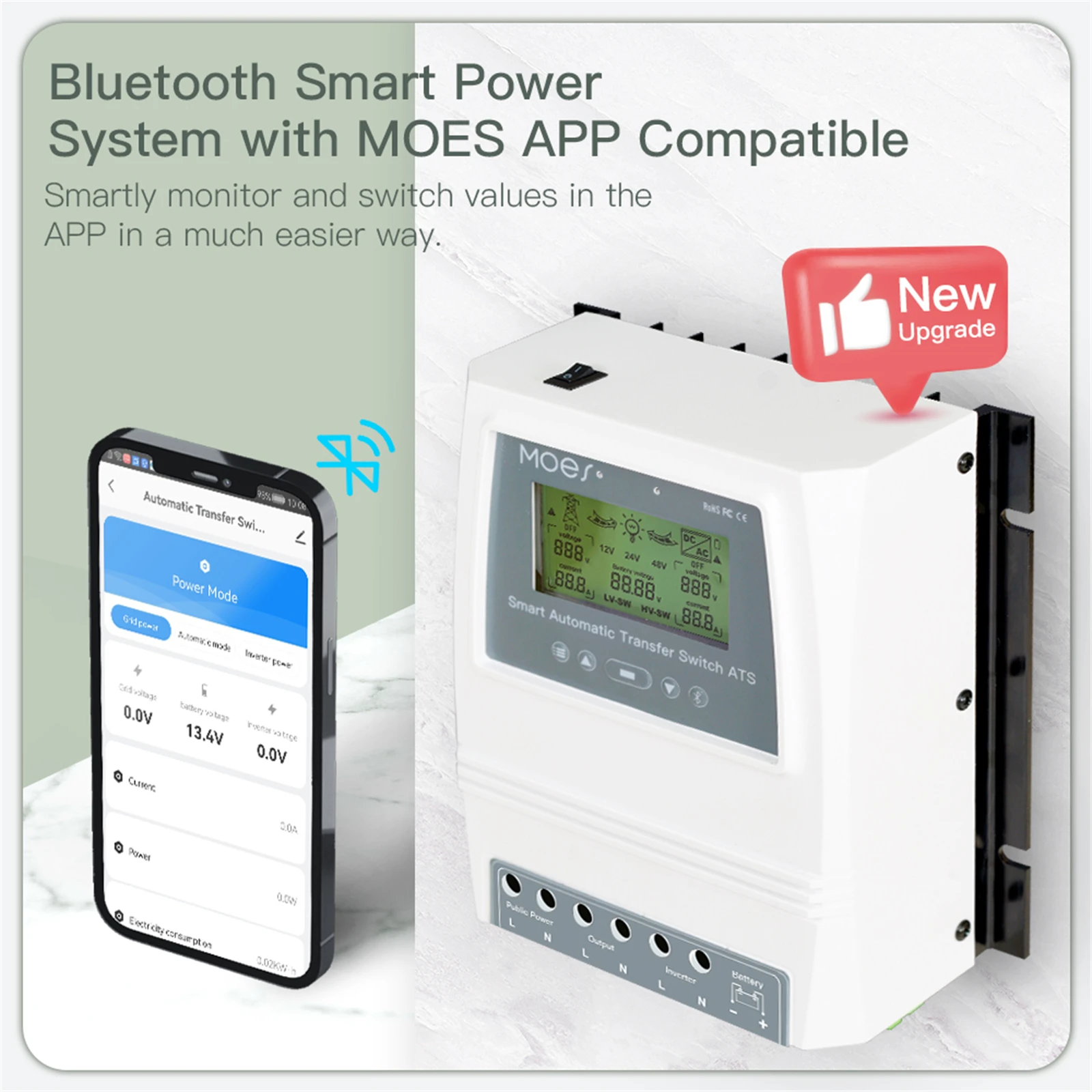

【New Compatibility with MOES APP for Energy Saving】MOES APP compatible ensures its smart controls by APP for flexible transfer and usage between the public power and battery, featured with the three functional values as grid power, automatic mode and inverter power in the APP for power supply, clarifying the concept of energy-saving in a real-sense. (Note: All functions on the ATS itself work without any interference to the APP.)
【Smart Monitor on Electrical Values with Surge Protection】Timely access to the current voltage of grid, battery and inverter, specially the current, power and electricity consumption of the load, performing as the advanced power system with surge protection featured for over-current protection. Blue tooth hub is required for smart scene automation, but with fast network pairing featured under phone Blue tooth and 2.4G WiFi.
【Beneficial to Solar or Wind System with Manual Switch】On cloudy or windless days when your battery gets low, it will automatically switch to grid power to protect your battery, especially for the condition that when battery voltage is lower than cut off point, it will automatically switch back to battery power when the battery voltage is higher than recovery point, working like an opposite direction UPS with the updated manual switch function for your convenience.
【Auto Distinguish with Adjustable Set-points and AC Test】DC 12/24/48V, AC 100-120V 60HZ / 220-240V 50HZ auto distinguish. User can define the Cut-Off and Recovery Voltage. Recovery voltage must be higher than Cut-off voltage. Suitable for various battery types as Sealed,Gel,Lead-acid,Lithium battery and so on, the battery low voltage transfer and battery recovery set-points are freely adjustable up to the battery type. AC test is functional well as the device will automatically switch to public power when the inverter AC output is abnormal.

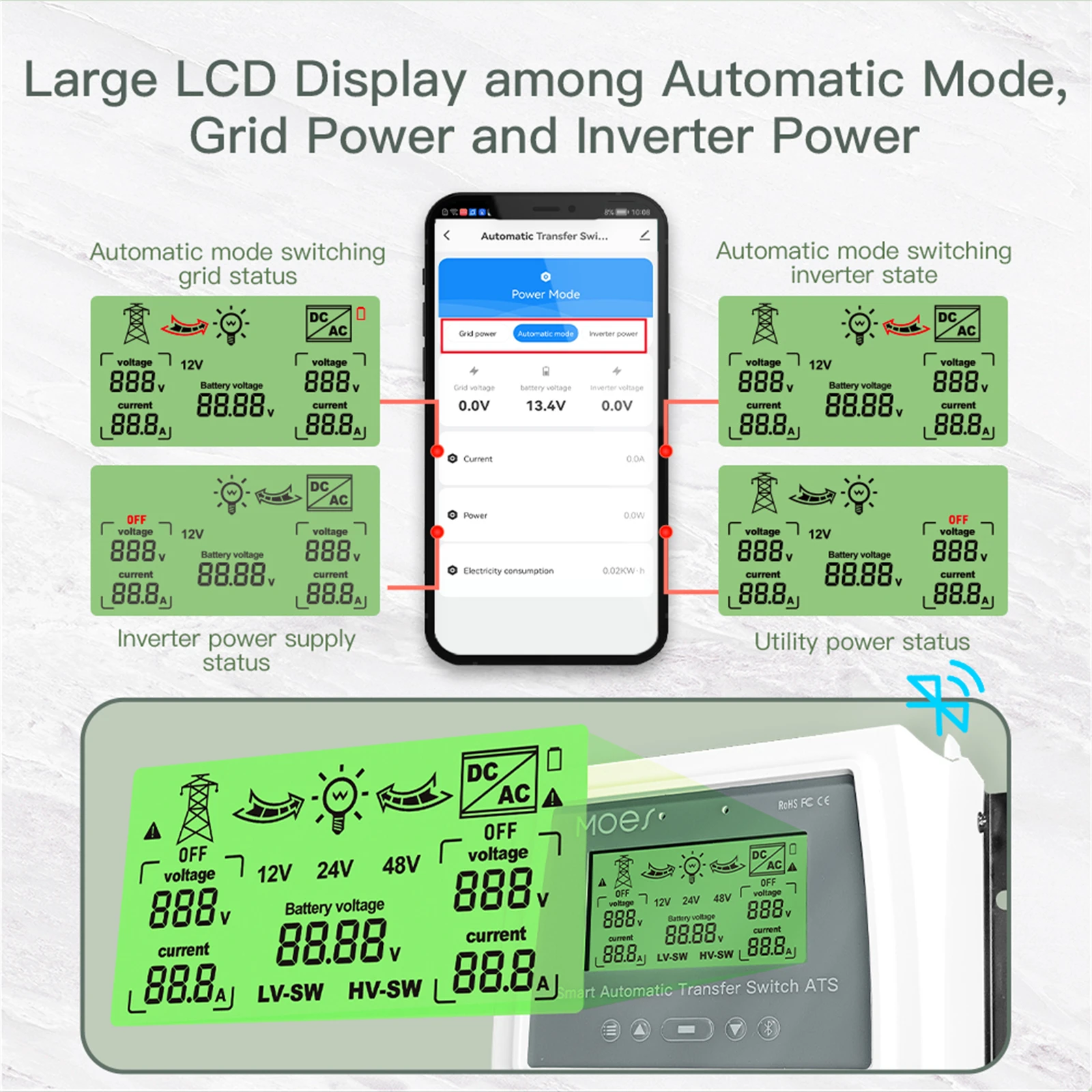

【Bigger Power with Large LCD Display】Updated rated power: 8KW (110V) or 16KW (220V) and 80A, Fast Transfer time: Inverter transfer to public power ≤10ms, public power transfer to inverter ≤16ms, designed with large LCD display for showing battery real-time voltage, working status of public power,inverter and battery.
⭐Note: The controller needs to connect the battery, powered by the battery and get battery power data.
【New Compatibility with MOES APP for Energy Saving】MOES APP compatible ensures its smart controls by APP for flexible transfer and usage between the public power and battery, featured with the three functional values as grid power, automatic mode and inverter power in the APP for power supply, clarifying the concept of energy-saving in a real-sense. (Note: All functions on the ATS itself work without any interference to the APP.)
【Smart Monitor on Electrical Values with Surge Protection】Timely access to the current voltage of grid, battery and inverter, specially the current, power and electricity consumption of the load, performing as the advanced power system with surge protection featured for over-current protection. Blue tooth hub is required for smart scene automation, but with fast network pairing featured under phone Blue tooth and 2.4G WiFi.
【Beneficial to Solar or Wind System with Manual Switch】On cloudy or windless days when your battery gets low, it will automatically switch to grid power to protect your battery, especially for the condition that when battery voltage is lower than cut off point, it will automatically switch back to battery power when the battery voltage is higher than recovery point, working like an opposite direction UPS with the updated manual switch function for your convenience.
【Auto Distinguish with Adjustable Set-points and AC Test】DC 12/24/48V, AC 100-120V 60HZ / 220-240V 50HZ auto distinguish. User can define the Cut-Off and Recovery Voltage. Recovery voltage must be higher than Cut-off voltage. Suitable for various battery types as Sealed,Gel,Lead-acid,Lithium battery and so on, the battery low voltage transfer and battery recovery set-points are freely adjustable up to the battery type. AC test is functional well as the device will automatically switch to public power when the inverter AC output is abnormal.
【Bigger Power with Large LCD Display】Updated rated power: 8KW (110V) or 16KW (220V) and 80A, Fast Transfer time: Inverter transfer to public power ≤10ms, public power transfer to inverter ≤16ms, designed with large LCD display for showing battery real-time voltage, working status of public power,inverter and battery.
⭐Note: The controller needs to connect the battery, powered by the battery and get battery power data.
Specification:
1. Rated Power: 8kw (Utility Power 100-120V)
16kw (Utility Power 220-240V)
2. Input Voltage: Auto Selection: AC 100-120V or AC 220-240V
3. Output Voltage: Auto Selection: AC 100-120V or AC 220-240V
4. Transfer time: Inverter transfer time to utility power. Utility power transfer time to inverter
5. LCD Display: Battery voltage; Power source: Utility power or battery-inverter.
6. System Voltage: Auto Select: 12V or 24V or 48V
7. Battery low voltage transfer set-points: Default: 10.5V/21V/42V, adjustable
8. Battery recovery set-points:Default: 12.5V/25V/50V, adjustable
9. Application:Off grid solar system; Wind generator; Hydro generator
16kw (Utility Power 220-240V)
2. Input Voltage: Auto Selection: AC 100-120V or AC 220-240V
3. Output Voltage: Auto Selection: AC 100-120V or AC 220-240V
4. Transfer time: Inverter transfer time to utility power. Utility power transfer time to inverter
5. LCD Display: Battery voltage; Power source: Utility power or battery-inverter.
6. System Voltage: Auto Select: 12V or 24V or 48V
7. Battery low voltage transfer set-points: Default: 10.5V/21V/42V, adjustable
8. Battery recovery set-points:Default: 12.5V/25V/50V, adjustable
9. Application:Off grid solar system; Wind generator; Hydro generator
Packing & Delivery

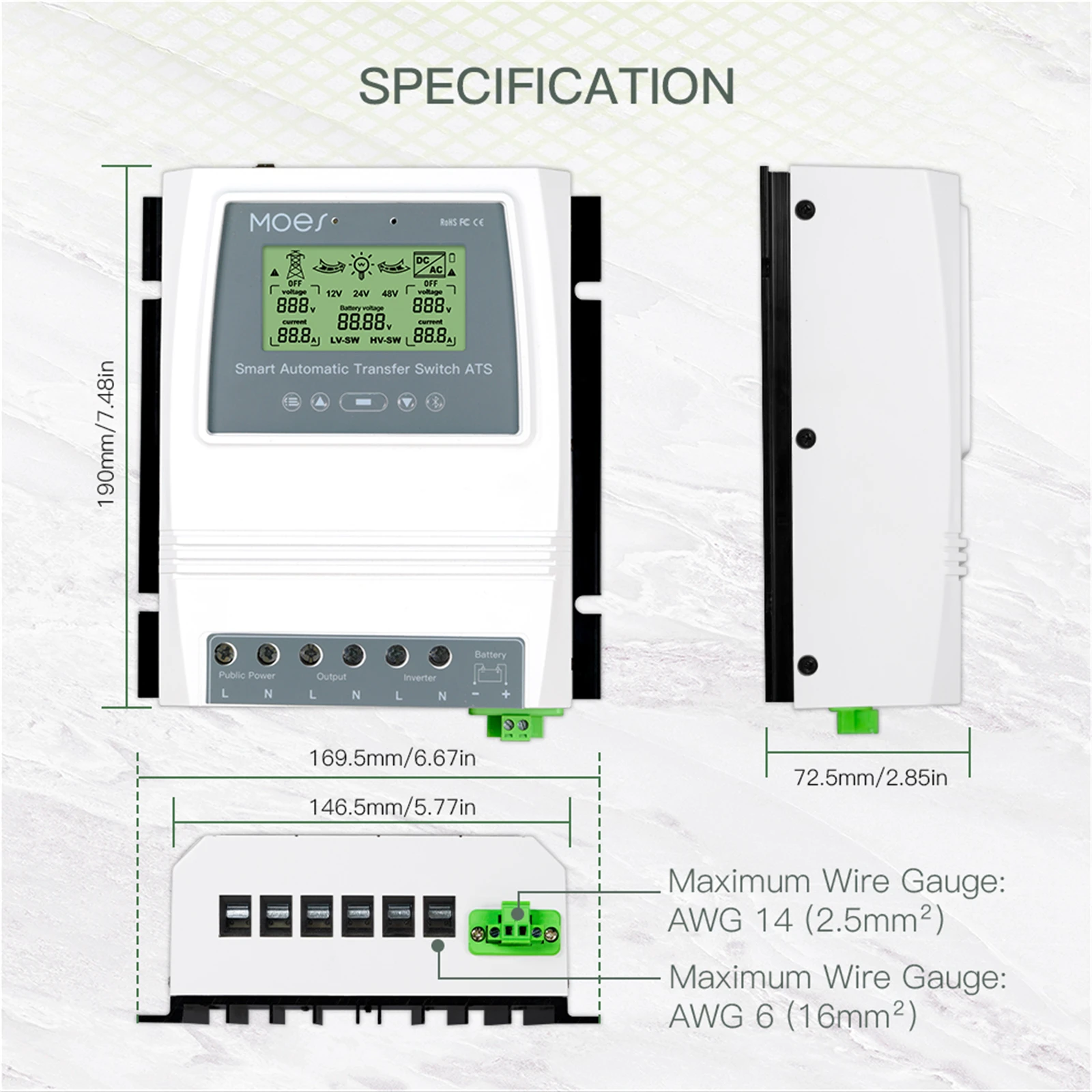

Product Size:190*170*725mm
N.W./PC:1.32kgs
N.W./PC:1.32kgs
Company Profile
Nova New Energy , a high-tech enterprise specialized in the research, manufacture and marketing of solar and wind products . We have our own professional research and development team , engage in new products creation and existing products improvement. Holding the top production line and advanced devices , we commit ourself to providing high efficient and steady products .
At present , our products including : Power Inverter, Solar Controller, Solar System, Solar Panel, Solar connector, Solar cable and Wind System .
With sophisticated technology and exquisite design , our products have been passed the international authoritative certificates such as CE, Rohs, FCC, TUV, ETL, UL etc .
Oriented by the principle of good quality, best price, fast delivery and considerate Service , we are trying our best to meet all our customers' requirements , spare no efforts to supply the most perfect products and service . For these 10 years , we are enjoying a 100% positive feedback .
So far, we have set up 3 branches in China,and successfully explored large market in EU,North America ,South America,Australia,Asia and Africa .
At present , our products including : Power Inverter, Solar Controller, Solar System, Solar Panel, Solar connector, Solar cable and Wind System .
With sophisticated technology and exquisite design , our products have been passed the international authoritative certificates such as CE, Rohs, FCC, TUV, ETL, UL etc .
Oriented by the principle of good quality, best price, fast delivery and considerate Service , we are trying our best to meet all our customers' requirements , spare no efforts to supply the most perfect products and service . For these 10 years , we are enjoying a 100% positive feedback .
So far, we have set up 3 branches in China,and successfully explored large market in EU,North America ,South America,Australia,Asia and Africa .
FAQ
1.Q: Can I have the correct wiring diagram because the manual is showing that the Neutral is going to the line side on the public power?
A: White wire to white wire black to black green to green.
2.Q: Is this compatible for grid power 220V 60hz? Because the grid power in our area is 220-240v 60hz.
A: It says 220-240 50hz, but it will work with 60hz as it doesn’t monitor the frequency. It’s just a big switch which switches between supplies when the batteries supplying your inverter reach a preset level.
3.Q: Can I wireless monitor the public voltage on smart phone when I am not at home?
A: Yes,it’s the new update Tuya smart version compatible with MOES APP for smart control.
4.Q：Is it the hub required for APP configuration?
A: You can pair the new ATS into the APP with WiFi and Bluetooth,but with Bluetooth hub required for wireless remote control and smart scene automation.
A: White wire to white wire black to black green to green.
Watch this video please: https://www.youtube.com/watch?v=ni0A_ZdH7aU
2.Q: Is this compatible for grid power 220V 60hz? Because the grid power in our area is 220-240v 60hz.
A: It says 220-240 50hz, but it will work with 60hz as it doesn’t monitor the frequency. It’s just a big switch which switches between supplies when the batteries supplying your inverter reach a preset level.
3.Q: Can I wireless monitor the public voltage on smart phone when I am not at home?
A: Yes,it’s the new update Tuya smart version compatible with MOES APP for smart control.
4.Q：Is it the hub required for APP configuration?
A: You can pair the new ATS into the APP with WiFi and Bluetooth,but with Bluetooth hub required for wireless remote control and smart scene automation.
