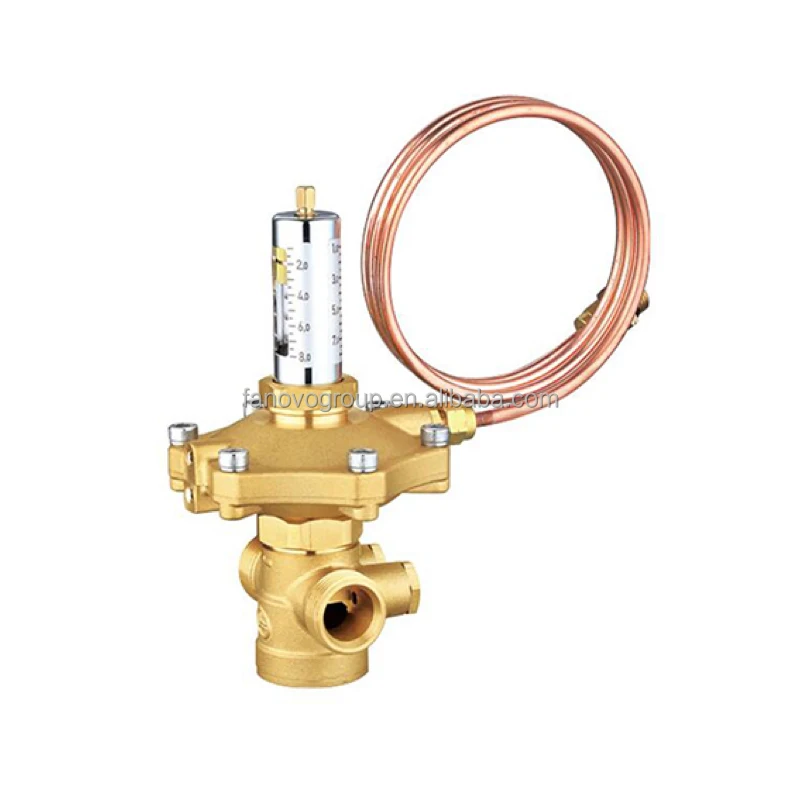

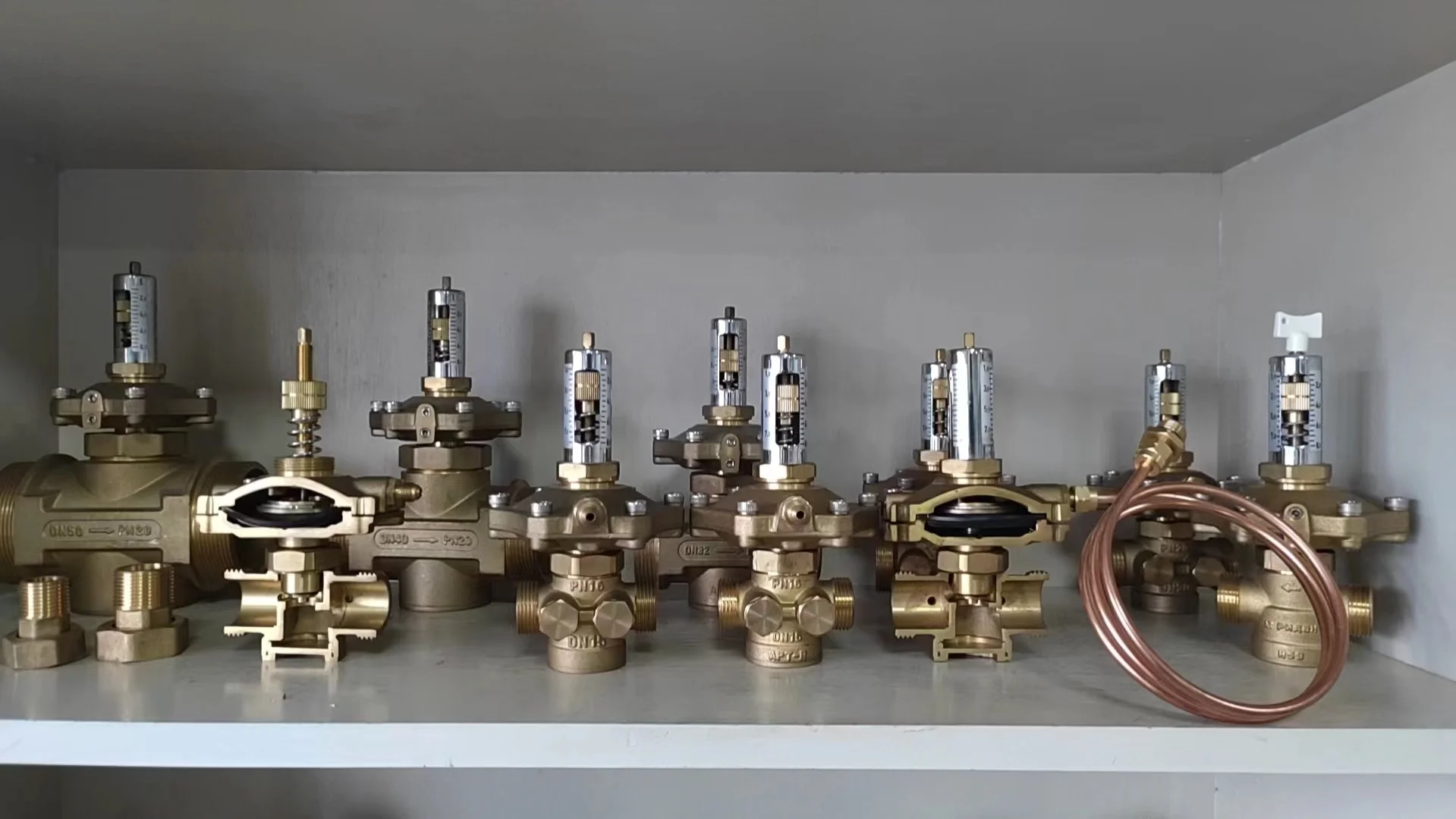

3/4inch Brass Differential Pressure Control Valve DPCV Valve Dynamic balancing control valves

Share on (1600925723490):


Price:$32.29 - $32.99

Quantity:


Product Overview

Description



Product Description

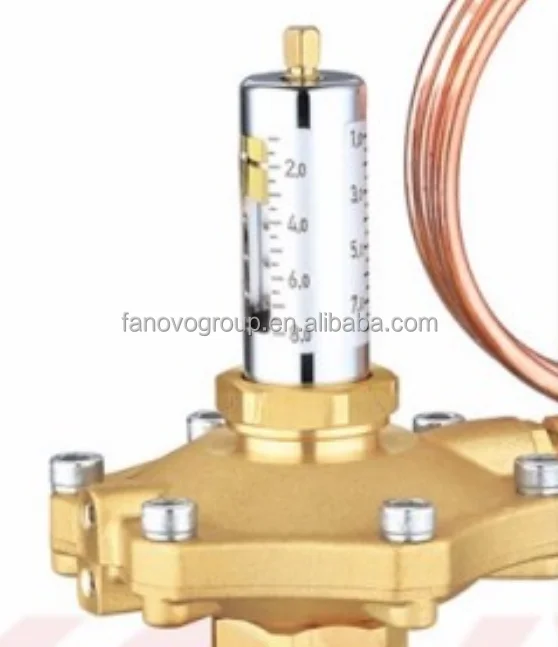

The desired differential pressure can be set between 5-35 kPa and is automatically kept at the set level, so this valve can also be called an automatic differential pressure controller.

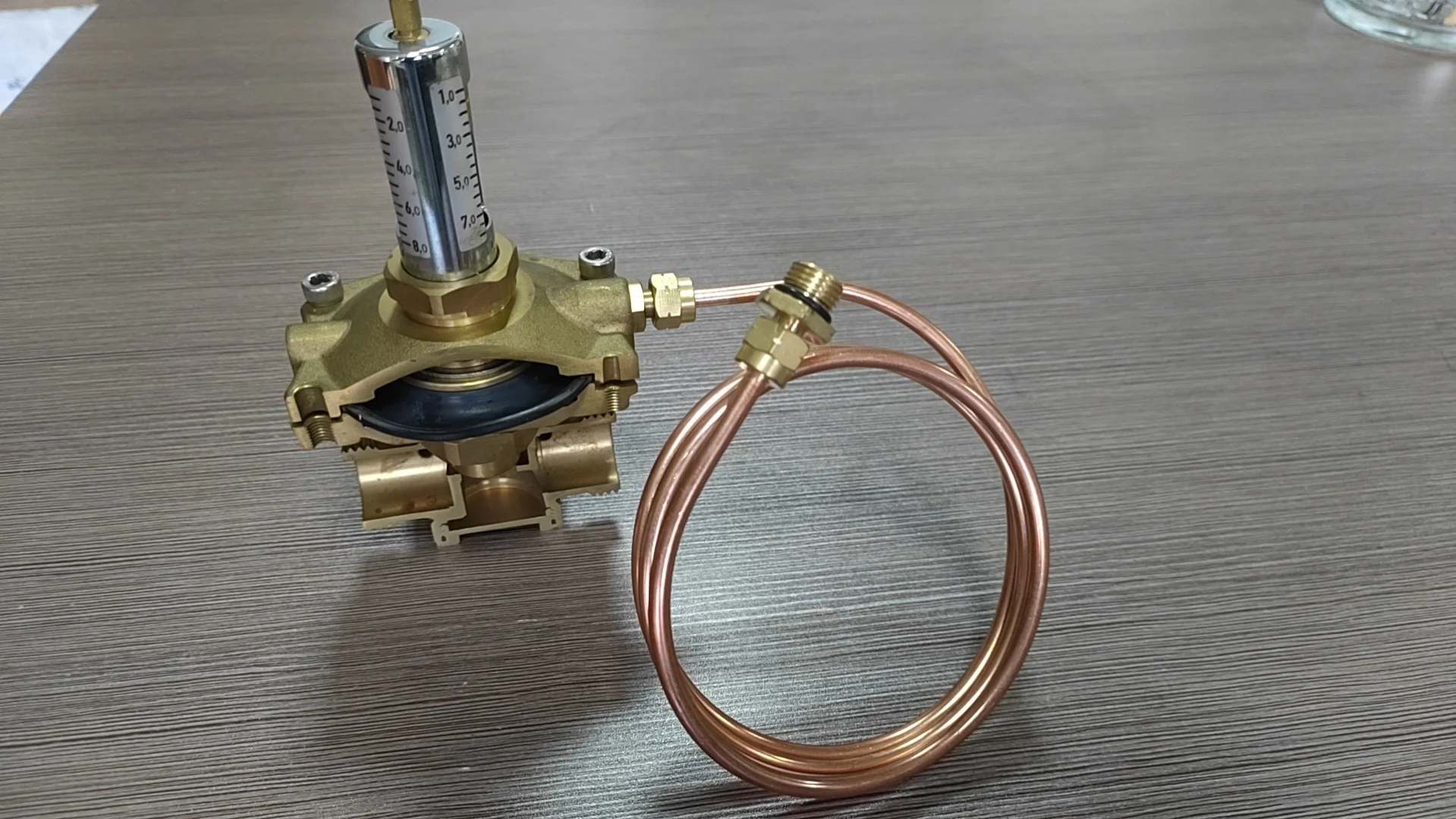

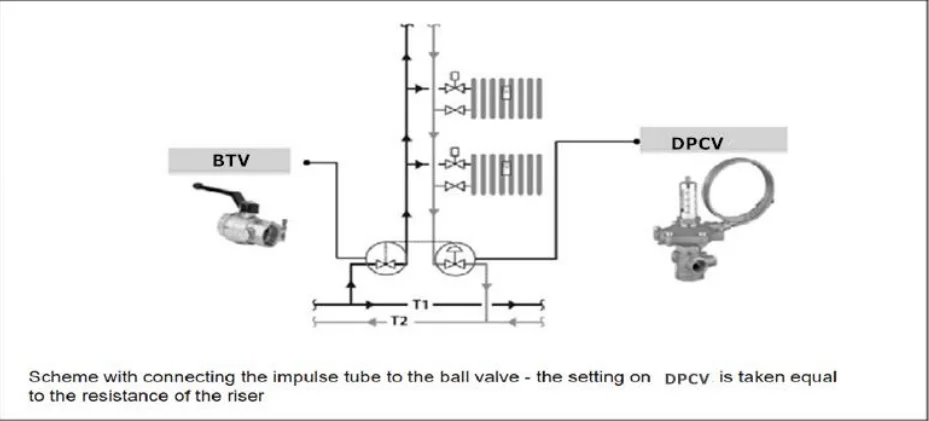

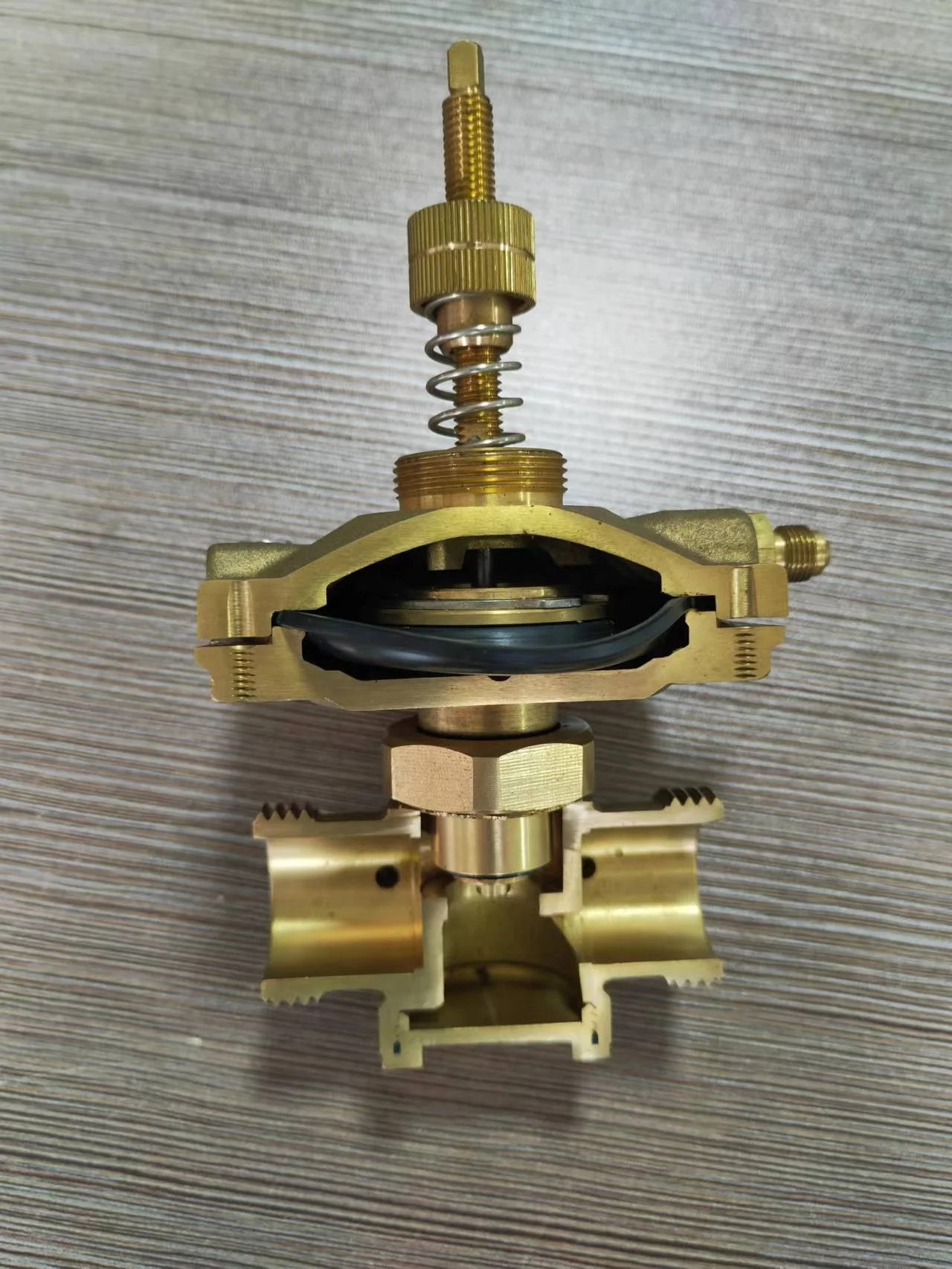

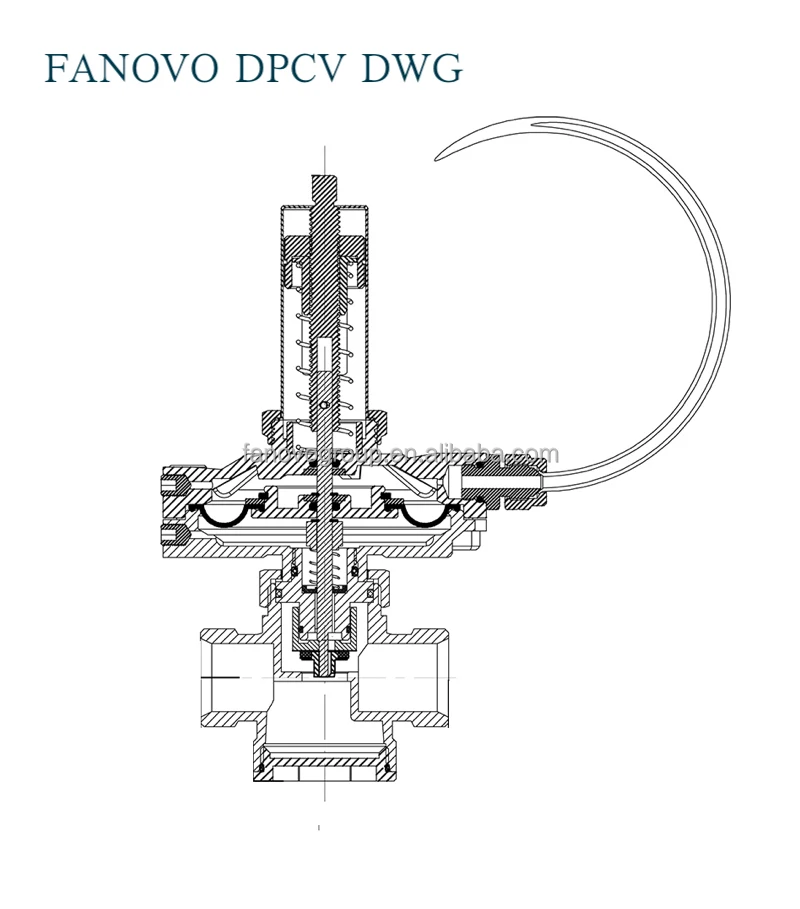

Different Pressure Control Valve(DPCV) is intended mainly for two-pipe heating systems with automatic temperature controllers, as well as for heating and cooling systems with variable flow.Thanks to the built-in diaphragm block, the valve ensures that the required differential pressure is maintained for a certain zone of the hydraulic system.

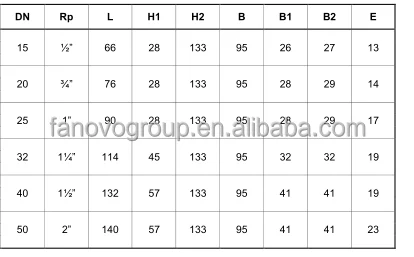

Specification


item
value
Warranty
3 years
Type
Adjustable Relief Valves, Balancing Valves
Customized support
OEM, ODM
Place of Origin
China
Brand Name
FANOVO
Model Number
FDPVC
Application
Two-pipe system
Temperature of Media
Medium Temperature
Power
hydrualic
Media
Water
Port Size
DN20 3/4 INCH
Structure
Control
Body material
brass
Parts
impulse tube and block settting

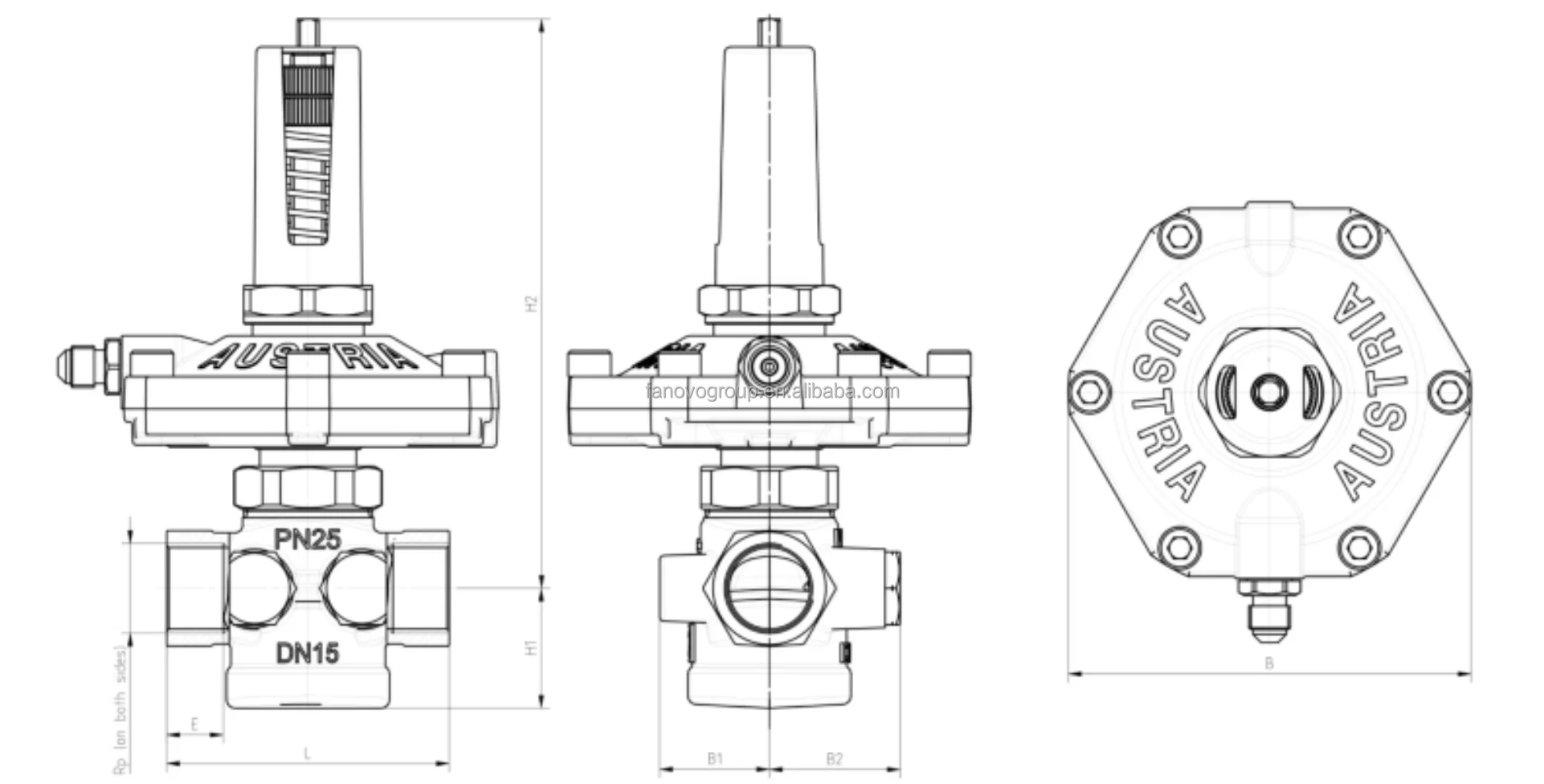

Size
3/4" (DN 20)
Differential setting pressure
5--35KPA
Max pressure
PN 20
Temperature
0--120°C
Capacity
2.9m³/h
Connection
male RP 1"
application
in a horizontal two pipe heating system
Material of spring
Steel


Company Profile






Fanovo is an invented name. Fan is the family name of factory founder who was an intelligent ironsmith, Novo is intended to represent new in Latin.Fanovo are keeping up with time and innovating for life through motion&flow control technology.

Fanovo Industries is a leading manufacturer in the manufacturing and distribution of valves, fittings, A/C parts and casting custom parts. We have over 20 yearsexperience to provide domestic sellers and OEM&ODM for Europe and America market.

Fanovo Industries built our own brand-Fanovo, Our vision is Engineering the Next, Our Mission is to be global leader in Flow Control Solutions. Until Now our operation more comprehensive and competitive. We have excelled in the development of new products and innovative manufacturing processes.

Offering the widest selection of products and the most powerful production capability is only the first step of our commitment to our customers. We provide our team with very extensive training in our Training and Education Center to study how better meet our customer's need. Our focus on superior customer service is strengthened by an integrated customer service system that allows the same service representative to support each of our customers from order entry to order fulfillment.

In order to continuously offer finest quality products to our superior customers, most of them are designed to meet ISO, JIC, IAPMO, DIN and CE requirements. We are producing the "lead-free" NSF brass plumbing products, compliant with California AB 1953 and Vermont's S-152 requirements. We have established a well-earned reputation that lives on today, for producing the superior quality products in the industry.

We are constantly innovating our service to meet the needs of our growing family of customers more than at any time. Whether you are a long-standing, loyal customer, or someone who is visiting us for the very first time, welcome to Fanovo Industries.


Packing & Delivery




STANDARD PACKAGING
ACCORDING TO CUSTOMIZED NEEDS
