  • GROWATT SPF 6000ES Plus Solar Inverter With MPPT Charge Controller 6KW Inverter
GROWATT SPF 6000ES Plus Solar Inverter With MPPT Charge Controller 6KW Inverter
GROWATT SPF 6000ES Plus Solar Inverter With MPPT Charge Controller 6KW Inverter
GROWATT SPF 6000ES Plus Solar Inverter With MPPT Charge Controller 6KW Inverter
GROWATT SPF 6000ES Plus Solar Inverter With MPPT Charge Controller 6KW Inverter
GROWATT SPF 6000ES Plus Solar Inverter With MPPT Charge Controller 6KW Inverter
GROWATT SPF 6000ES Plus Solar Inverter With MPPT Charge Controller 6KW Inverter
GROWATT SPF 6000ES Plus Solar Inverter With MPPT Charge Controller 6KW Inverter

GROWATT SPF 6000ES Plus Solar Inverter With MPPT Charge Controller 6KW Inverter

Share on (1600925795412):


Price:$550.00-580.00

Quantity:


Product Overview

Description















PRODUCT INFORMATION

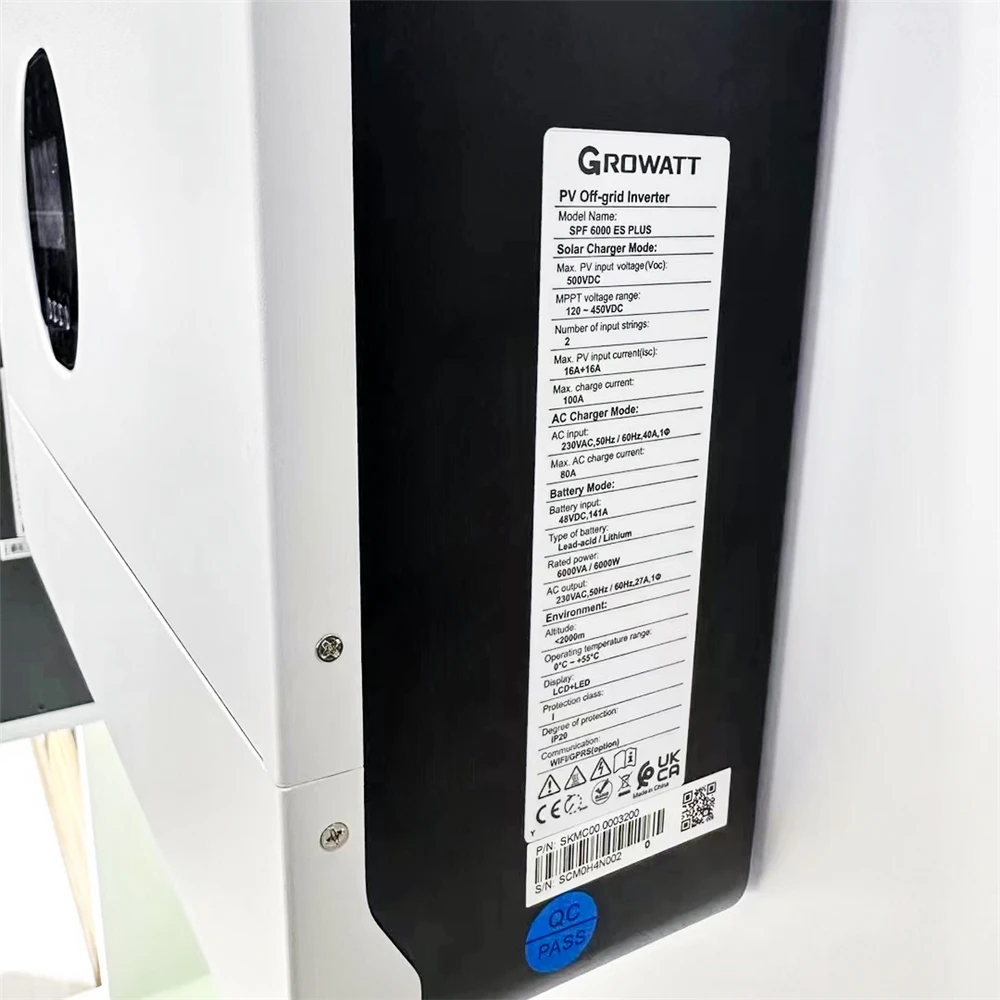

Datasheet



SPF 6000 ES Plus



Battery Voltage



48VDC



Battery Type



Lithium/Lead-acid




Inverter Output




Rated Power



6000VA/6000W



Parallel Capability



Yes, 6 units maximum



AC Voltage Regulation (Battery Mode)



230VAC ± 5% @ 50/60Hz



Surge Power



12000VA



Efficiency (Peak)



93%



Waveform



Pure sine wave



Transfer Time



10ms typical,20ms Max




Solar Charger




Maximum PV Array Power



8000W



MPPT Range @ Operating Voltage



20VDC ~ 450VDC



Number of Independent MPP Trackers/
Strings Per MPP Tracker



2/1



Max. input current per MPP tracker



16A



Maximum PV Array Open
Circuit Voltage



500VDC



Maximum Solar Charge Current



100A




AC Charger




Charge Current



80A



AC Input Voltage



230VAC



Frequency Range



50Hz/60Hz (Auto sensing)




Physical




Protection Degree



IP20



Dimension (W/H/D)



460/395/132mm



Net Weight (kgs)



13.5




Operating Environment




Altitude



<2000m



Operating Temperature



0°C - 55°C



Storage Temperature



-15°C - 60°C

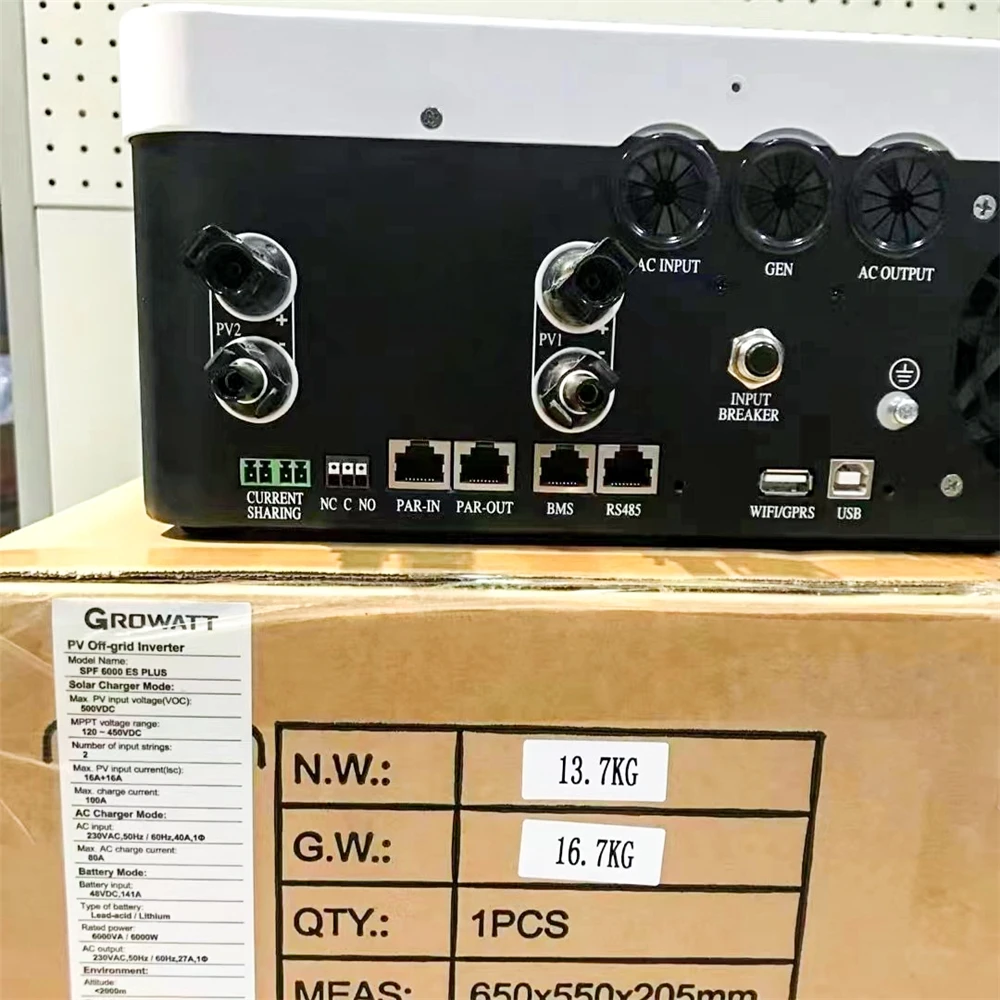

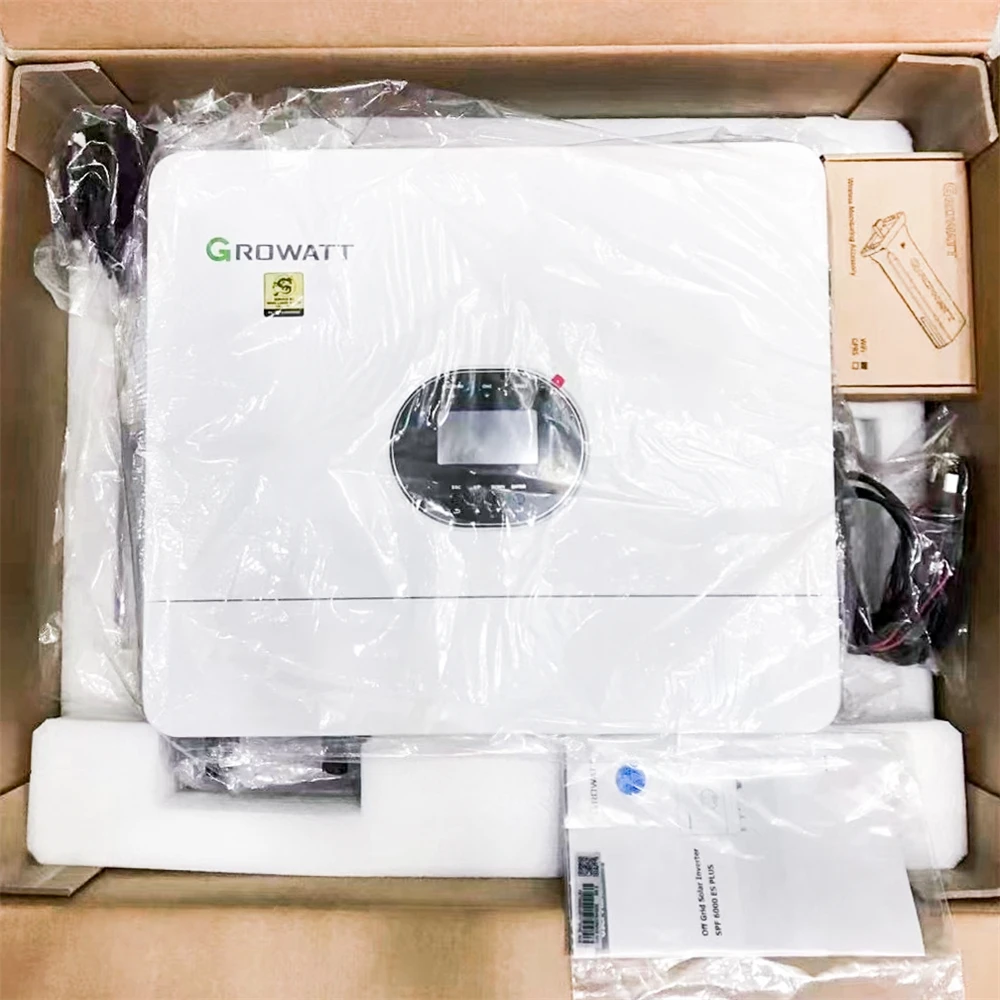

PRODUCT DISPLAY


































Parallel Operation in Single Phase

WARNING! All inverters must be connected to the same batteries and ensure each group of cables from the inverters to the batteries in the same length.





























PRODUCT CATEGORY















































FAQ


















Q1: Why you should choose us? Years of experience in electrical equipment production Professional sales team and R & D team Qualified product and competitive price Delivery in time Sincerely services Q2: How is your after-sale service? We provide 1-2years warranty and 1% sapre parts for free We will repair the PCB or provide new one Q3: What kind of certification you have? ISO9001,ISO14001, CE,ROHS,UL,and so on All series product pass different labor testing according to different countries’ requirements. Q4: Delivery time: Standard products could be delivered within 15 days; Q5. Can I have a sample order? Yes, we welcome sample order to test and check quality.
