1 10 Piece Wet Tissue Auto Packing Wet Tissue Machine Paper Product Making Machinery
- Category: Wet Wipe Making Machines >>>
- Supplier: Zhengzhou,Suny,Industrial,Co.,Ltd.
Share on:
Product Overview
Description

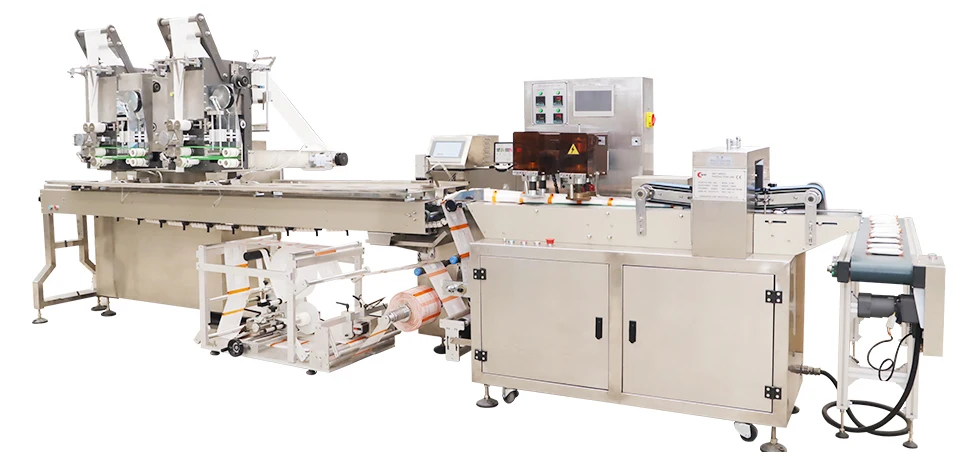

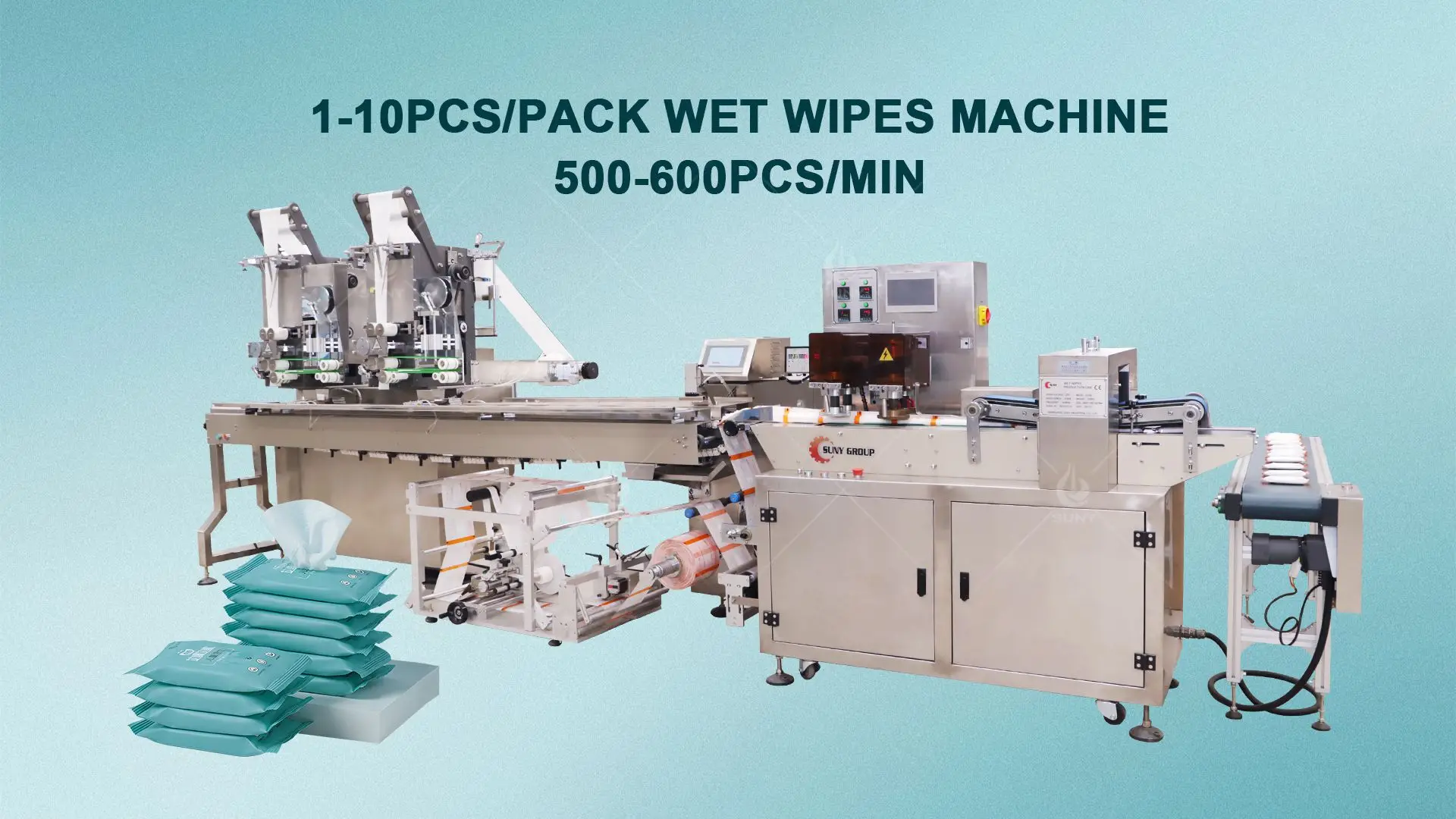

1-10 Piece Wet Tissue Auto Packing Wet Tissue Machine Paper Product Making Machinery
PRODUCT DESCRIPTION

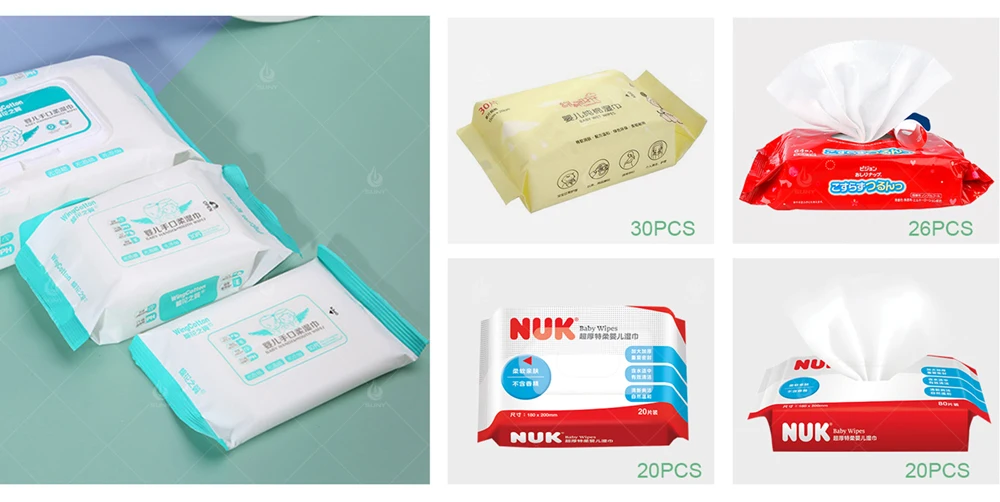

It's suitable for 1-25 pieces of wet wipes machine, its operation is simple and stable.
The parts that come into contact with the liquid are all made of stainless steel, and the whole machine is controlled by PLC, and the machine is beautiful.
The workflow of the automatic wet wipe packaging machine is to fold the base paper, add liquid,cut the length, count the stack, and then automatically transfer it to the packaging machine for packaging. All the processes are
completed on the machine from raw materials to finished products,and the production process is fast and healthy.
The workflow of the automatic wet wipe packaging machine is to fold the base paper, add liquid,cut the length, count the stack, and then automatically transfer it to the packaging machine for packaging. All the processes are
completed on the machine from raw materials to finished products,and the production process is fast and healthy.
MODEL PARAMETER
The equipment for producing 1-25 wet wipes has a high degree of automation, simple equipment and integrated installation-free model, which allows you to make small investment and gain more benefits.There are three models of this equipment for you to choose from, with different models and different prices.
Please contact us for detailed quotations:
TYPE1.1-20pcs wet wipes can be produced, and the number of wet wipes can be adjusted at will.
TYPE2.Low-speed towel machine producing one piece of packaging, the production speed can reach 200 pieces/min
TYPE3.produce one piece of packaged high-speed wet wipes with a production speed of over 300 pieces/min.
Please contact us for detailed quotations:
TYPE1.1-20pcs wet wipes can be produced, and the number of wet wipes can be adjusted at will.
TYPE2.Low-speed towel machine producing one piece of packaging, the production speed can reach 200 pieces/min
TYPE3.produce one piece of packaged high-speed wet wipes with a production speed of over 300 pieces/min.
TECHNICAL SPECIFICATION | ||
Production Capacity | 30-120 Bags/min(can adjust) Depending on packing materials | |
Packing Size | L100-300mm,W40-110mm,H10-45mm(can adjust) | |
Folding method | Horizontal: Maximum 2 folding, 4-6 fold in length (freely adjustable) | |
Wipes material | Non-woven fabric The maximum diameter:1.1m | |
Cut Size | L100-240mm,W 100-280mm | |
Rated Frequency | 50Hz/60hz | |
Rated Voltage | AC220V | |
Total Power | 10.8KW | |
Weight | 1500kg | |
Overall Dimension | (L*W*H) 4670*820*1500mm | |
1-10 Piece Wet Tissue Auto Packing Wet Tissue Machine Paper Product Making Machinery
FEATURE
1.Double inverter control, the bag length can be set and cut, no need to adjust empty, one step in place, saving time and film.
2.Human-machine interface, parameter setting is convenient and quick.
3.With fault self-diagnosis function, the fault display is clear at a glance
4.High-sensitivity photoelectric eye color tracking,digital input sealing position,
making the sealing and cutting position more accurate.
5.Temperature independent PID control,better suited to a variety of packaging materials.
6.End sealing horn device,the bag shape is more beautiful, and the product grade is improved.
7.Positioning stop function, no sticking knife, no waste packaging film.
8.The equipment is equipped with two sets of servo motors; computer touch screen control panel; equipped with imported photoelectric eyes,high tracking accuracy, easy adjustment; equipped with date printing device.
9.The transmission system is simple, the work is more reliable,and the maintenance is more convenient.
10.All control is realized by software, which is convenient for function adjustment and technical vitality,and never lags behind.
2.Human-machine interface, parameter setting is convenient and quick.
3.With fault self-diagnosis function, the fault display is clear at a glance
4.High-sensitivity photoelectric eye color tracking,digital input sealing position,
making the sealing and cutting position more accurate.
5.Temperature independent PID control,better suited to a variety of packaging materials.
6.End sealing horn device,the bag shape is more beautiful, and the product grade is improved.
7.Positioning stop function, no sticking knife, no waste packaging film.
8.The equipment is equipped with two sets of servo motors; computer touch screen control panel; equipped with imported photoelectric eyes,high tracking accuracy, easy adjustment; equipped with date printing device.
9.The transmission system is simple, the work is more reliable,and the maintenance is more convenient.
10.All control is realized by software, which is convenient for function adjustment and technical vitality,and never lags behind.
PACKING AND DELIVERY
1-10 Piece Wet Tissue Auto Packing Wet Tissue Machine Paper Product Making Machinery
