BROAD ceiling ERV Energy Recovery Ventilation System electrostatic air cleaner fresh air ventilator
- Category: >>>
- Supplier: BROAD CLEAN AIR TECHNOLOGY CO. LTD
Share on (1600925870122):
Product Overview
Description
Product Description
BROAD ceiling ERV Energy Recovery Ventilation System electrostatic air cleaner fresh air ventilator

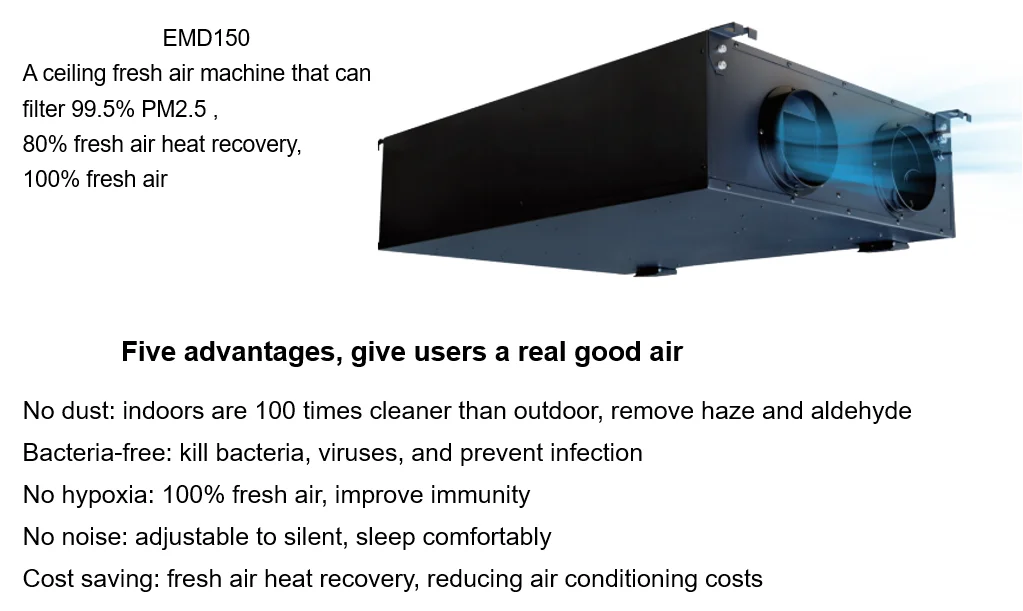

Model: EMD400 (Ceiling - mounted), bidirectional ERV fresh air ventilation home air ventilation system
Air volume: 400m3/h

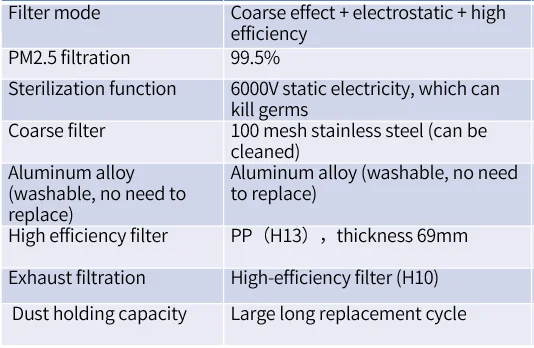

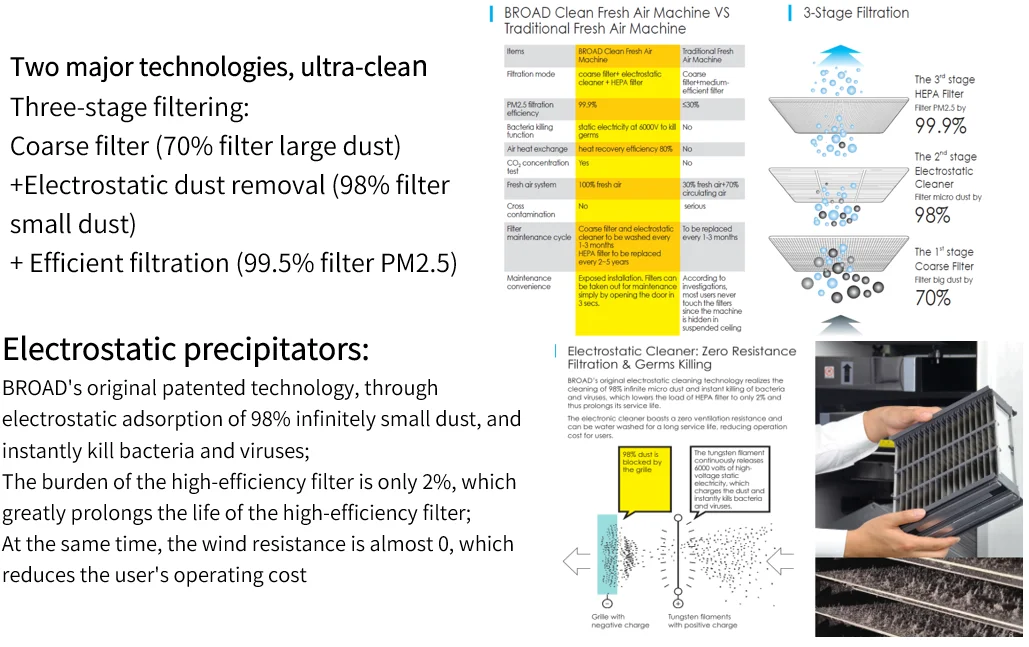

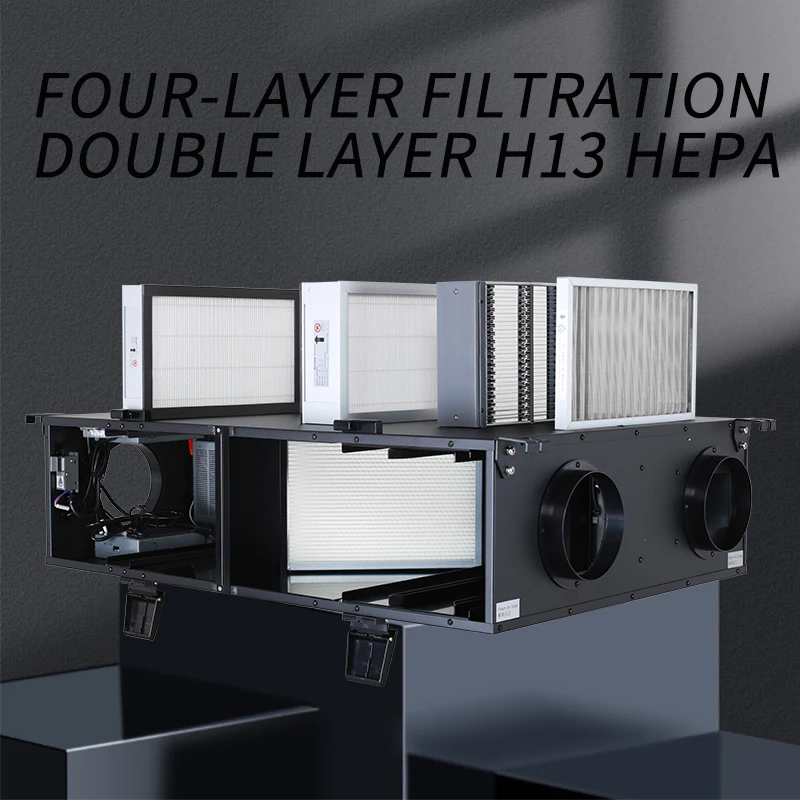

Fresh air Filter: 3-stage filtration, PTFE H13 HEPA filter + Electrostatic precipitator + Coarse filter
Exhaust air filter: 1-stage filtration,
Performance: 99.9% PM2.5 filtration efficiency
100% fresh air ventilation without mixing recycled air;
80% ERV heat recovery efficiency;
Applicable places: 80-120㎡ Room
100% fresh air ventilation without mixing recycled air;
80% ERV heat recovery efficiency;
Applicable places: 80-120㎡ Room

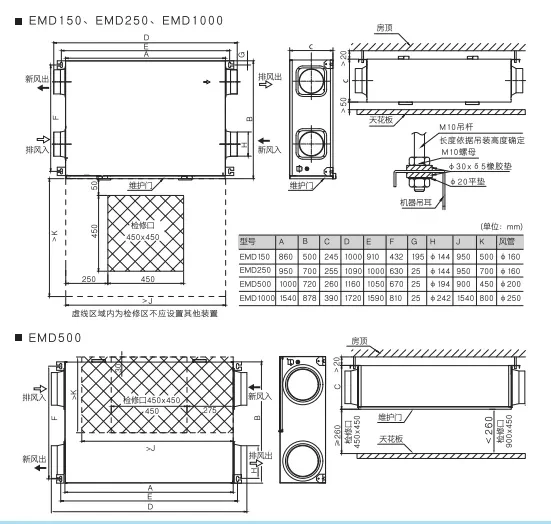

Size: 950*740*255mm, 48kg
Noise: 50dB
Power: 0.17kw

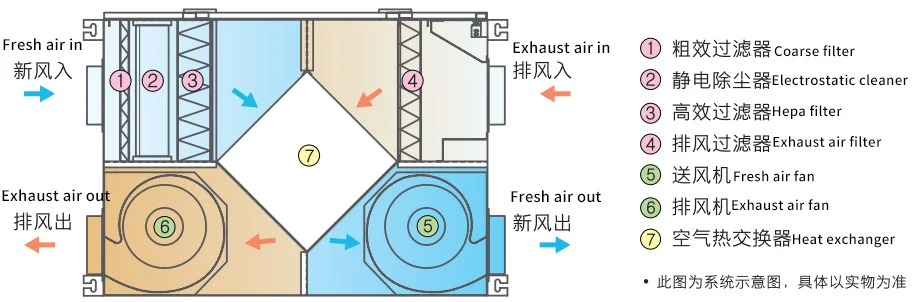

Advantages:1. Bi-directional fresh air ventilation machine, 100% fresh & clean air without mixing recycled air, NO cross-contamination
2. 3-stage filtration system, 99.9% dust filtration effect: Indoor air is 100 times cleaner than outdoor air
3. 80% heat recovery effect: Recover heat and cooling from exhaust air, saving Air conditioner operation cost
4. Coarse filter and Electrostatic cleaner are metal material, washable: Long service life, no consumable
5. H13 PTFE HEPA filter could be replaced in 1-2 years: Low consumable cost
6. 40 years machine design life: Long service life
Model | Rated Airflow （m³/h） | Rated E.S.P（Pa） | Noise （dB(A)) | Power input (W) | Size(mm) | N.W(Kg) |
SH260 | 260 | 40 | 39 | 112 | 580*280*1200 | 40 |
SQ260 | 260 | 40 | 39 | 112 | 530*260*1100 | 37 |
SQ500 | 500 | 53 | 41 | 243 | 540*470*1650 | 91 |
SQ1000 | 1000 | 100 | 47 | 600 | 800*620*1900 | 215 |
SQ1500 | 1500 | 200 | 47 | 940 | 1100*700*1950 | 265 |
SQ3000 | 3000 | 200 | 48 | 1900 | 1400*930*2380 | 385 |
SQ1.0 | 10000 | 300 | 60 | 6000 | 4200*2100*2200 | 2050 |
SQ2.0 | 20000 | 300 | 62 | 15000 | 5000*2200*2500 | 2600 |
EMD300 | 300 | 120 | 48 | 165 | 900*700*230 | 36 |
EMD400 | 400 | 150 | 53 | 300 | 900*700*250 | 40 |
EMD550 | 550 | 100 | 55 | 450 | 1000*750*250 | 47 |
EMD1000 | 1000 | 200 | 67 | 800 | 1540*878*392 | 84 |
VR
Company Profile
Company Introduction
Since 1988
1,000,000 square meters
Government Designated Supplier
Participating Unit of China Fresh Air Industry Standard
Over 400 patent technologies
Sales network covers 80 countries
BROAD's International and domestic awards
Since 1988, BROAD Group won many international and domestic awards in the Environmental protection industry, Prefabricated building industry, Non-electric air conditioning industry, and Air purification industry.
BROAD Clean Air Technology Co., Ltd, founded in 2005, provides Air purifiers and Fresh air ventilation machines that can filter dust by 99. 9 %, which have a heat recovery efficiency of 80%.
BROAD's products have been frequently used in important venues such as the Zhongnanhai(headquarters of China's government) and renowned events such as the BOAO Forum for Asia.
1.Company Strength: 34 years of professional experience in clean air products. Parental company BROAD Group has exported products to 80+ countries.
2.Product Advantages: More than 180 Patents possessed. BROAD Fresh Air has won the "A W E Award", known as the Oscar Award in the home appliance industry.
3.Technical Advantages: All technologies are BROAD's proprietaries . R & D staffers account for 57% of the BROAD Air Quality Research Center.
4.Customer Service: BROAD assigns professional service engineers around the world to provide superior after-sales services. BROAD has sold its fresh air products to Asia, Europe, South Africa, and other parts of the world.
BROAD is committed to the mission of "For humanity's Future", and is proud to protect every family in the world with its unique products.
BROAD's products have been frequently used in important venues such as the Zhongnanhai(headquarters of China's government) and renowned events such as the BOAO Forum for Asia.
1.Company Strength: 34 years of professional experience in clean air products. Parental company BROAD Group has exported products to 80+ countries.
2.Product Advantages: More than 180 Patents possessed. BROAD Fresh Air has won the "A W E Award", known as the Oscar Award in the home appliance industry.
3.Technical Advantages: All technologies are BROAD's proprietaries . R & D staffers account for 57% of the BROAD Air Quality Research Center.
4.Customer Service: BROAD assigns professional service engineers around the world to provide superior after-sales services. BROAD has sold its fresh air products to Asia, Europe, South Africa, and other parts of the world.
BROAD is committed to the mission of "For humanity's Future", and is proud to protect every family in the world with its unique products.
