New and Used Smd Mounting Machine Decan S2 Hanwha Pick and Place Machine For SMT Production Line

Product Overview

Description

Original High Quality Smd Mounting Machine Decan S2 Hanwha Pick and Place Machine For SMT Production Line

whatsapp:+8613728632793,skype:Joaquin Xie,wechat:Joaquin15



WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.



Decan S2 Hanwha Pick and Place Machine Specification:

Name:Decan S2 Hanwha
Brand:Decan S2 Hanwha
Model:Decan S2 Hanwha
Specification:SMT PICK AND PLACE MACHINE
Condition:original
Quality:top qualiy
Stock:large
Payment:T/T before shipment
Shipment:on-time shipment
Warranty: 1 year
Delivery:fedex,ups,dhl,as required
Package:wooden case

Modle Name	Decan S2 Hanwha
Alignment:	Flying Vision
Number of Spindles	2Gantryx10Spindles/Head
Placement Speed:	92000 CPH (Optimum)
Placement Accuracy:	±28μm Cpk≥1.0(03015 chip) ±25μm CPK≥1.0(IC)
Component Range:	03015-12mm(H10mm)
Board Dimension:	50*40-510*460mm(Standard) -740*460mm(Option) Max.-1200*460mm(Option)
Conveyor Configurations:	Standard:1-2-1 Option:1-2-2/2-2-2/2-2-1/1-1-1 Factory Option:Single Conveyor(Jadec Tray 2ea)
Feeder Capacity(8mmbasis):	120ea(8mm)
Power:	Voltage: 3 phase AC200/208/220/240/380/415 V ±10% Frequency:50/60Hz Power Consumption:Max.5.0kVA
Air Consumption:	50NL/min
Mass(Kg):	Approx. 1,800Kg
Equipment Size (mm):	1,430 (L) x 1,740 (D) x 1,485 (H)





Successful Experience:

Meraif's Customer In 35 Countries Around the World

1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.

2. Training More Than 500 Experts and Technician for Customers.

3. Became the Most Reliable Chinese Partner for You.

For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT

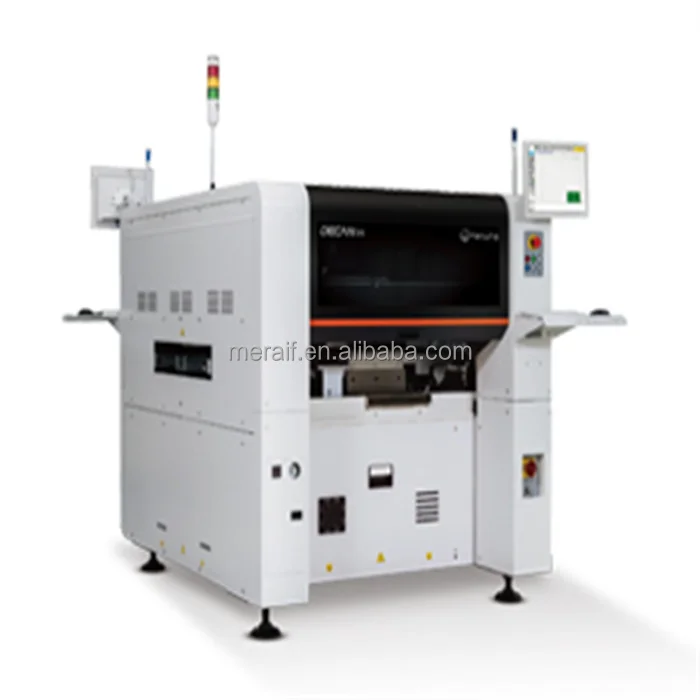

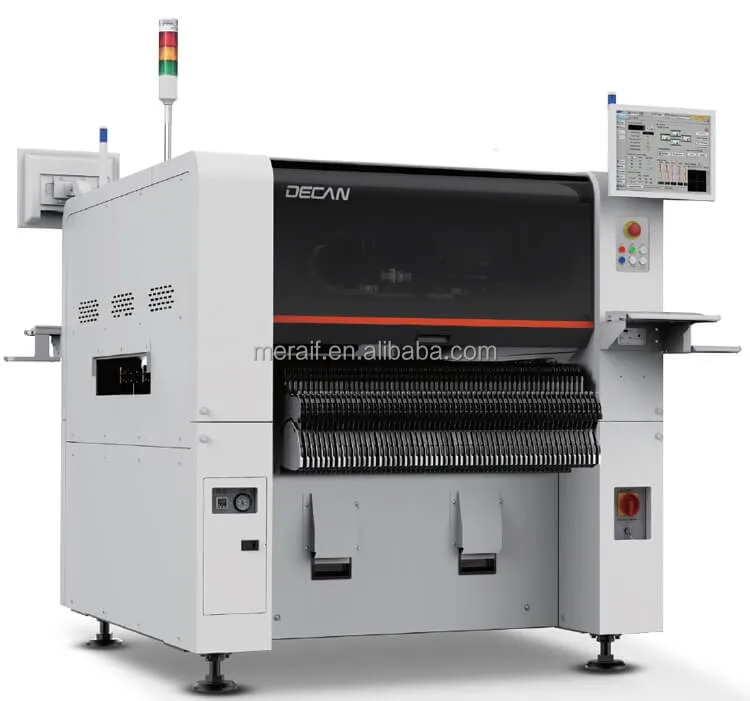

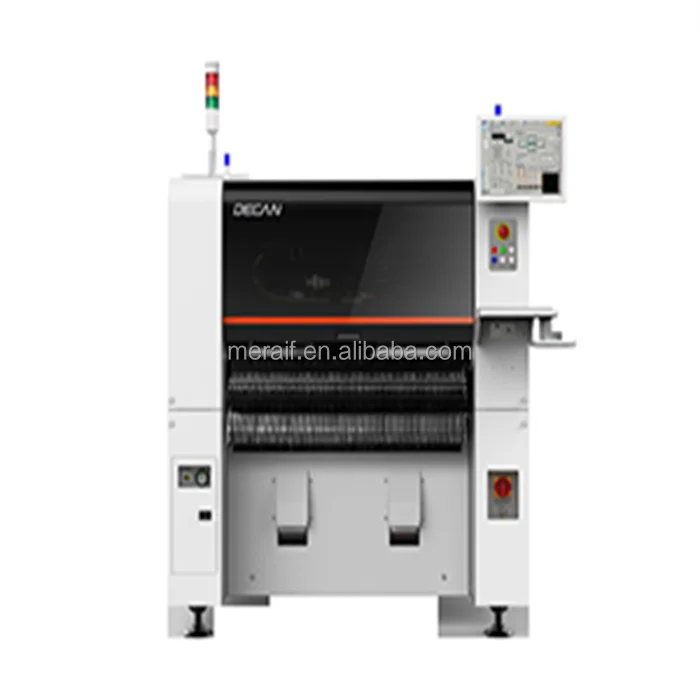

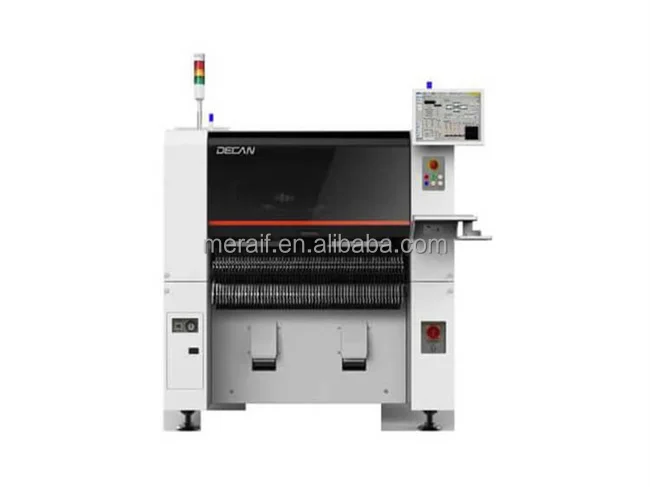

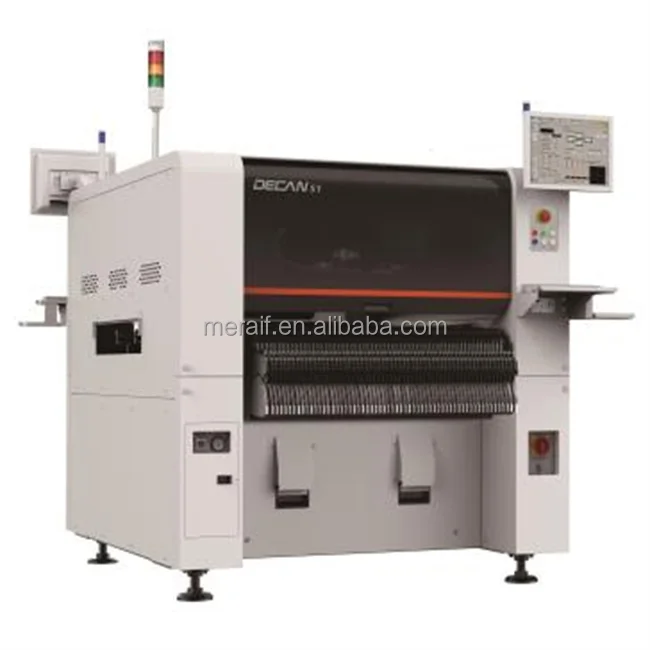

S2 Hanwha Pick and Place Machine picture show
