Cheap price touch screen PVC PE plastic material HDT VST heat deformation Vicat softening point temperature testing machine

Product Overview

Description

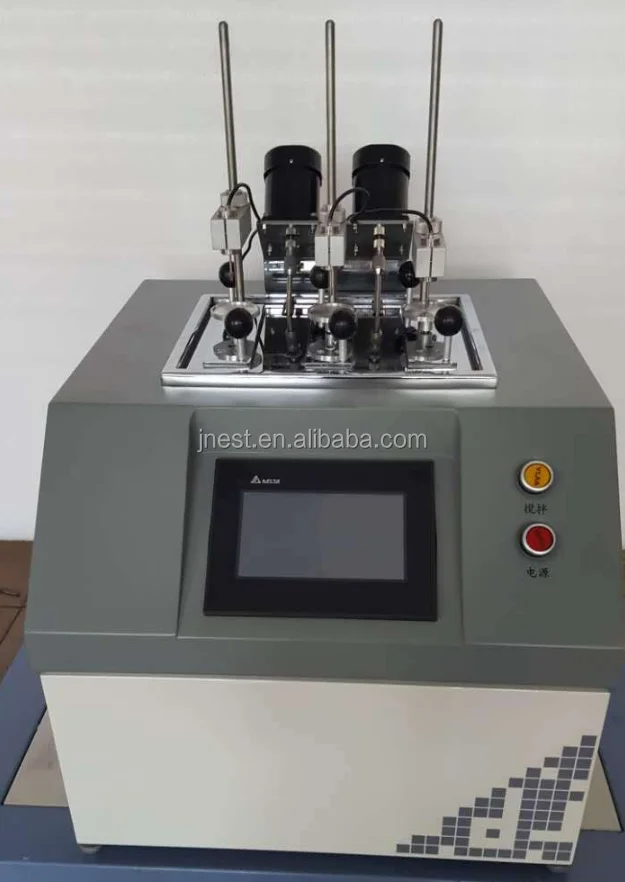

 HDT VST TESTING MACHINE



 l Function :

The thermal deformation vicat softening point testing machine is mainly used to determine the heat distortion temperature and Vicat softening point temperature of non-metallic materials such as plastics, rubber, nylon, electrical insulation materials.

It meet the test standard: IS0 75(E),IS0 306(E),GB/T8802,GB/T1633,GB/T1634 etc.

l Feature:

The test machine is simple in operation, convenient to use, stable in performance, high precision.

.The machine can monitor the test temperature and deformation amount during the test.

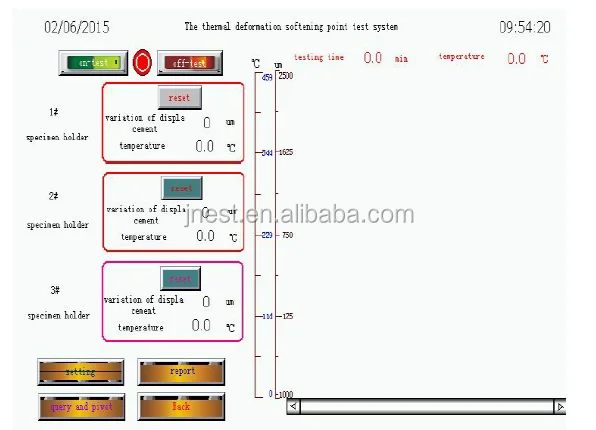

The system automatically stops heating at the end of the test, and the test curve can be displayed.

 The test software has Chinese and English version, you can choose any one.

The machine has temperature limit protection.

l Main technical parameters:

1. Temperature range: room temperature-300℃

2. Heating rate:(120±10)℃/h  (12±1)℃/6min

          (50±5)℃/h   (5±0.5)℃/6min

3. Temperature indication error:0.1℃

4. Temperature control accuracy:±0.5℃

5. Max. deformation indication error: ±0.001mm

6. Deformation range: 0-1.5mm

7. The test frame: 3 pieces

8. Heating medium:

Methyl silicone oil(Kinematic viscosity is usually 200CST)or transformer oil.

9. Cooling mode:

above 150 natural cooling, below 150 water cooling or natural cooling.

10. Heating power: 4KW

11. Power: single phase, AC220V, 50HZ
