5V USB 3 Speeds Control Mini Solar Extractor Fan 10W Solar Powered Vent Fan for Cat House Doghouse Kennel
- Category: >>>
- Supplier: Shenzhen Minxin Industry Co. Ltd.
Share on (1600926823809):
Product Overview
Description
Product Description
Product Name | 5V USB 3 Speeds Control Mini Solar Extractor Fan Solar Powered Vent Fan for Cat House Doghouse Kennel |

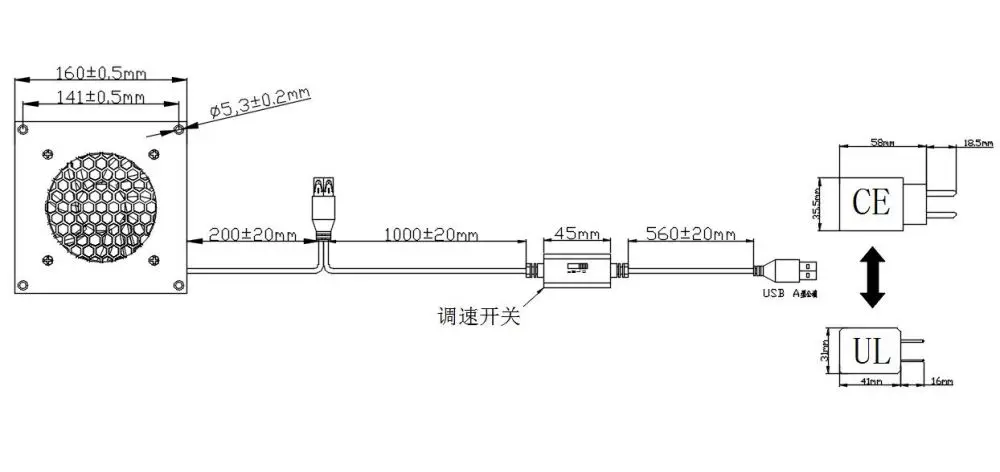

Fan Size | 120x120x25mm |
Fan Frame Material | Aluminum |
Fan Impeller Material | PBT (UL94V-0), flame-retardant |
Wire | USB connector |
Voltage | DC5V |
Power | 10W |

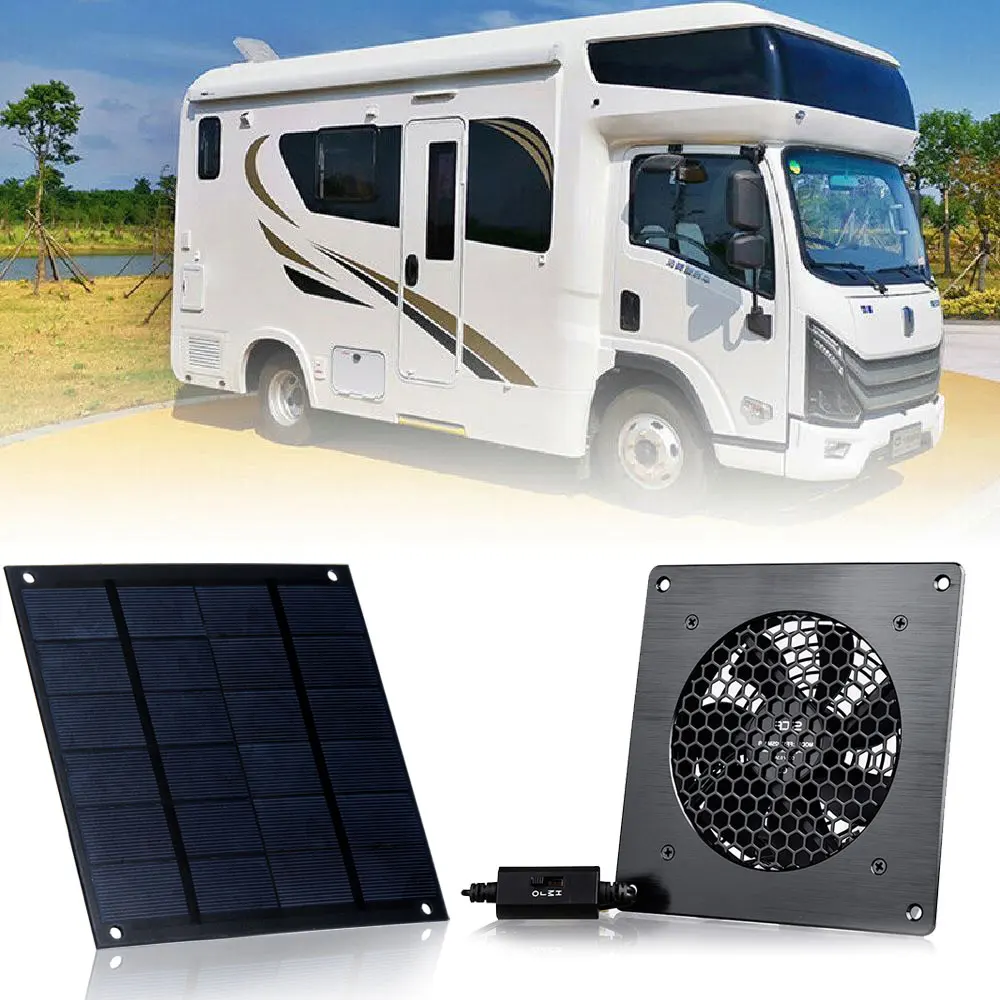

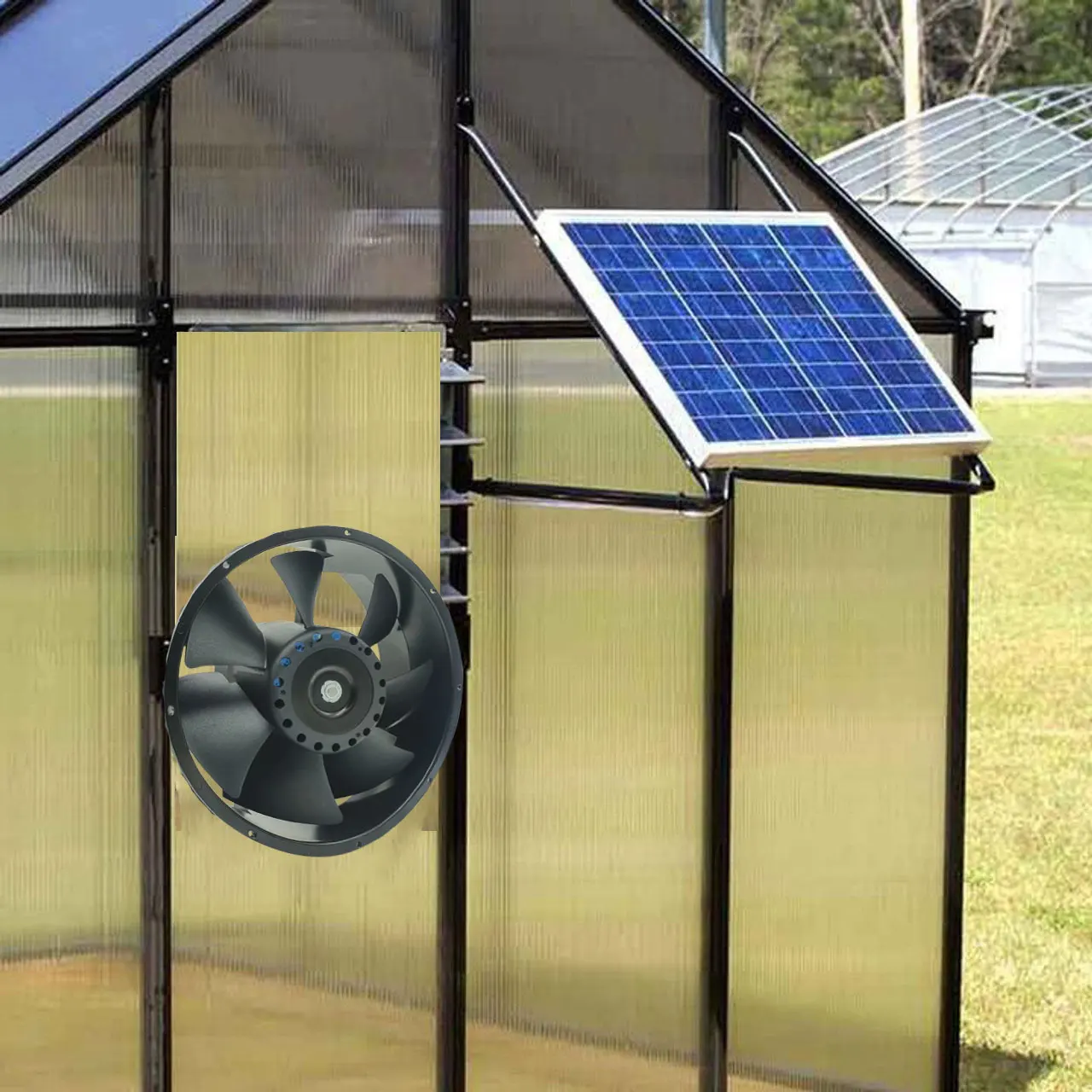

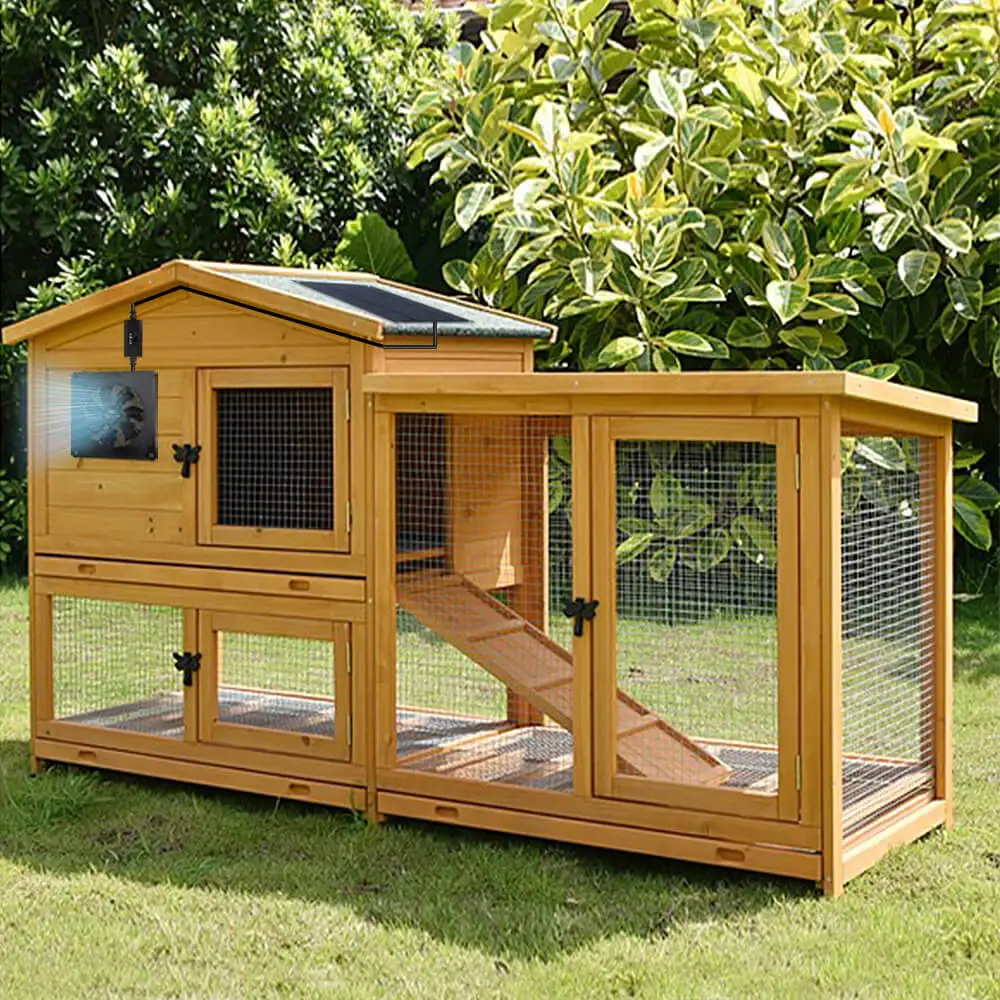

Applications | chicken coop, greenhouse, attic, doghouse, kennel, pet house, etc. |

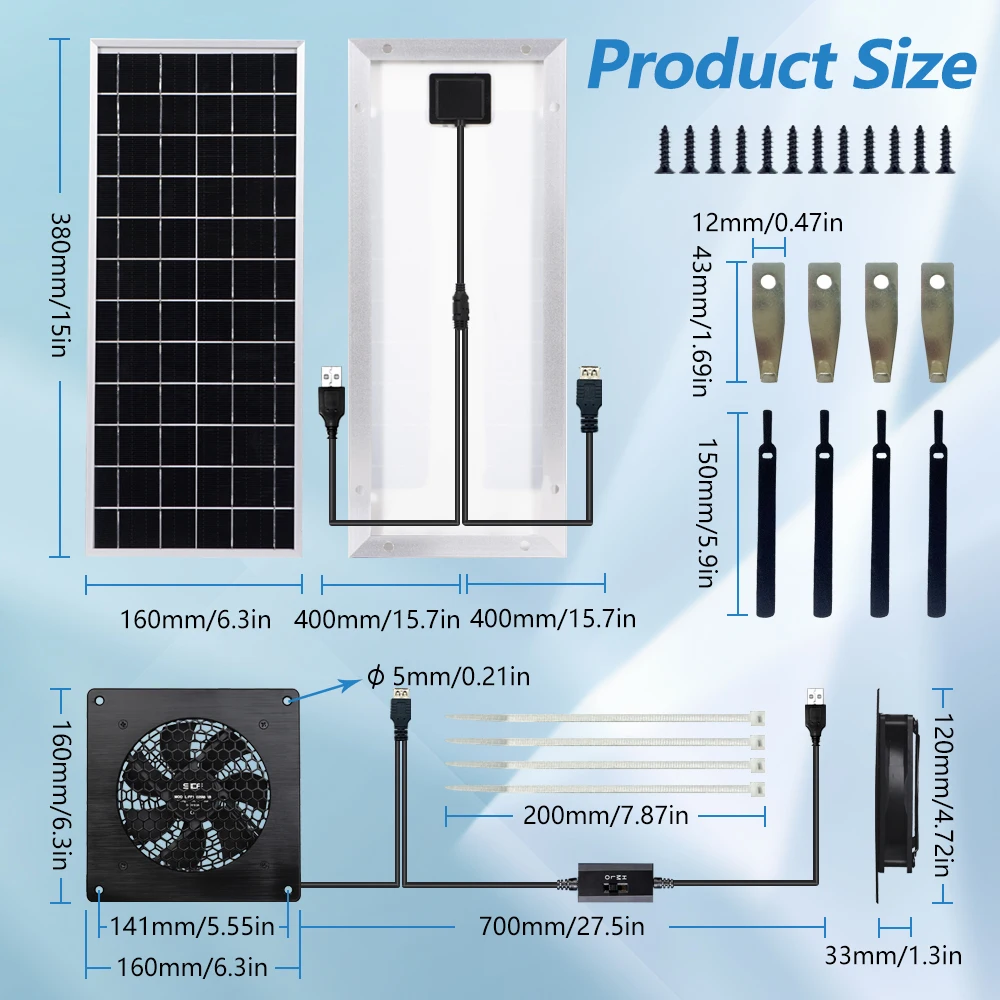

Package Includes | *2 x 120mm Fan with faceplate *1 x 1.8m Solar 5V USB cable with 3 speed controller *2 x fan grill |
Product Features
1. Containing dual ball bearings and pure copper motor for long operation life
2. Can run continuously for 50,000 hours and be mounted in any direction.
3. Beautifully designed faceplate to match any type of cabinets
3. Beautifully designed faceplate to match any type of cabinets
4. With 5V USB connector for direct use in low voltage applications
5. Speed control with 3 gear, extremely convenient.
6. Powered by efficient solar panels
Details Images
Daisy Chain Connection

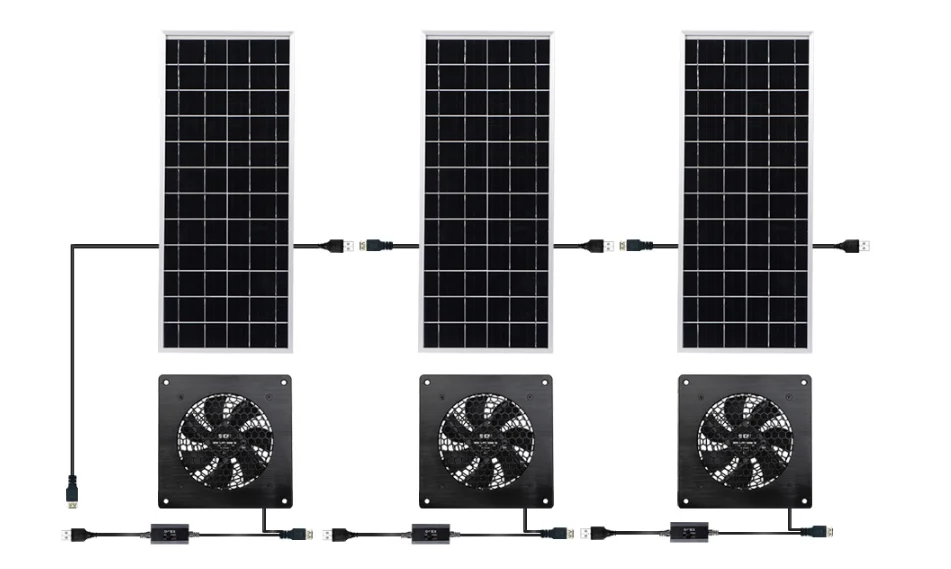

The solar panels and fans have reserved ports for series connection, you can connect two solar panels in series, which can make the output power 20W, if 3 solar panels are connected in series the output power is 30W, and so on. Note: the output voltage remains unchanged

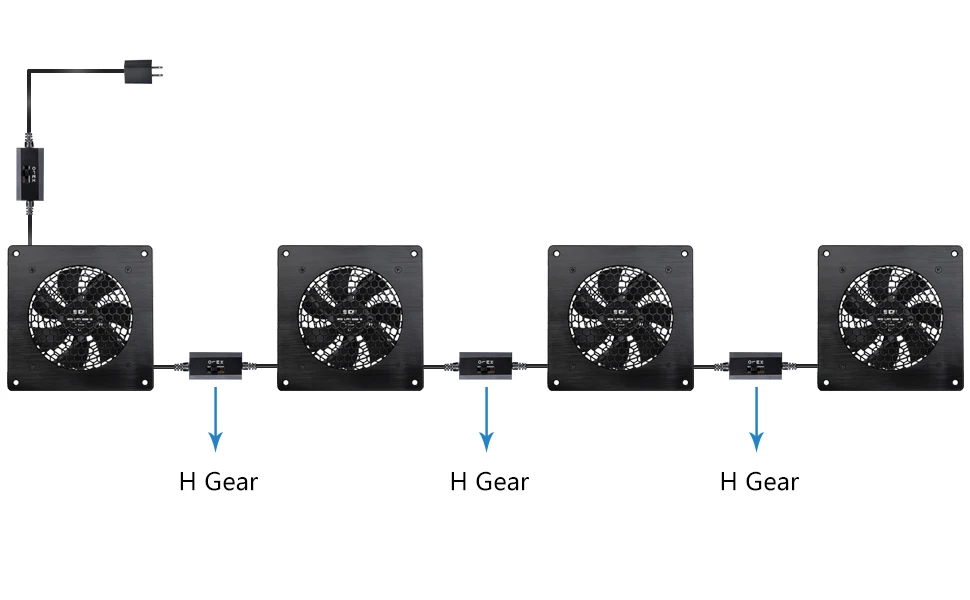

Daisy Chain Connection USB Fans
The fan also has a daisy connection port to connect an identical usb fan that shares the same speed controller and adapter. The fan's daisy connection port can connect up to 4 identical fans working at full speed with a 10W solar panel power supply, and up to 3 fans with a 5V1A adapter power supply.
We manufacture cabinet cooling fans for high durability use in chicken coop, greenhouse, doghouses, attics, etc. , it is silent and high cfm.

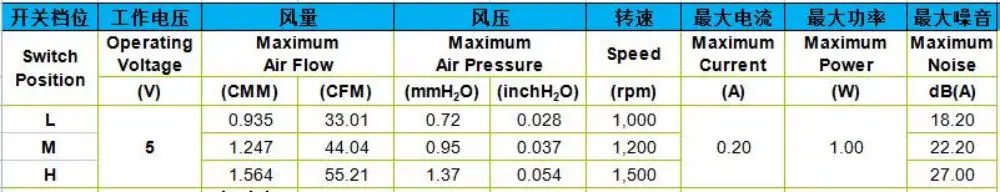

Because the speed of the fan is greatly affected by the sunlight. When the sun shines directly on the solar panel, the fan can reach up to 2000 rpm, when the sunlight is weak, the fan will work slowly or even stop working, so our usb solar fan uses an ultra-low voltage start-up solution, only 2V is required to get the fan running at a minimum, and there is a multi-speed controller to set the fan speed to the best noise and airflow level. 3 speeds, low (L), medium (M) and high (H).
Product Features
【High-end and high quality】 The fan panel is made of aluminum frame and black metal grille with a modern brushed black finish, these are both beautiful and protect hands.

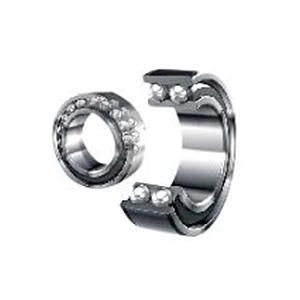

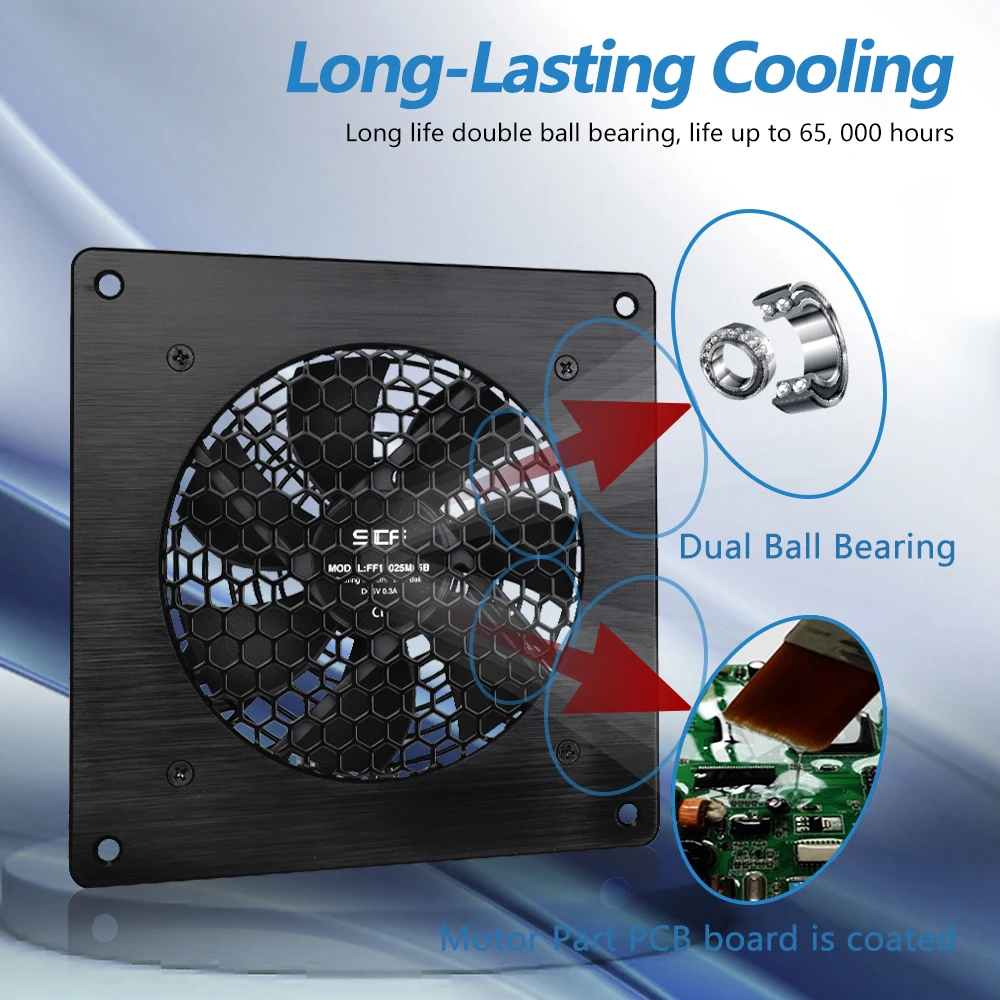

The fan features a double ball bearing with a life expectancy of 65,000 hours under normal use.
The fan motor part(PCB board/wiring/bearing) is coated to prevent damage from short circuits or rain. Waterproof grade up to IPX5, suitable for outdoor.
Products Applications
Company Introduction
Manufacturing Procedure
Certifications
FAQ
Q: What connector does the cooling fan come with?
A: It can come with any type of connectors you require, be it a multi-pin connector, or a USB connector, or a plug, just let us know your requirements and we will customize for you.
Q: I am looking for this fan size but with higher static pressure or airflow, can you make it?
A: Of course we can! Just let us know your desired static pressure, airflow or noise level for your application, and we will customize the fan as close to your requirements as possible.
Q：Is there a thermostat available for the cooling fan?
A: Yes it can come with built-in thermostat, however, it is advisable that you use a external thermostat and controller for easier and more flexible control
Q: Can this cooling fan withstand high humidity?
A: It is IP53 rating by default, but if you are using it in a high humidity environment, we will have to add a procedure in production of this cooling fan to make it weatherproof, IP67 rating or even IP68 rating, you name it.
Q: Do you have an alternative that runs on 230V?
A: Besides those voltages which are states on the product description, these cooling fans can be built for 5V DC & 12V DC & 24V DC & 48V DC & 117VAC & 220V AC & 240V AC, just let us know the voltage you use and we shall be happy to customize for you.
Q: Can it come with a variable speed control?
A: Yes it can be custom made with speed control functions with a speed controller ,even the controller with on/off switch.
Q: Can I order just one or several fans?
A: well, we don’t really do retail at the moment, we are mainly focused on OEM and ODM. But if you are looking for samples for your project, we shall be happy to customize the samples for you, the sampling normally takes no more than 5 workdays.
Q: Can it run almost constantly?
A: Yes the cooling fans are supposed to work 24/7, however, The temp and cleanliness will make a big difference.
