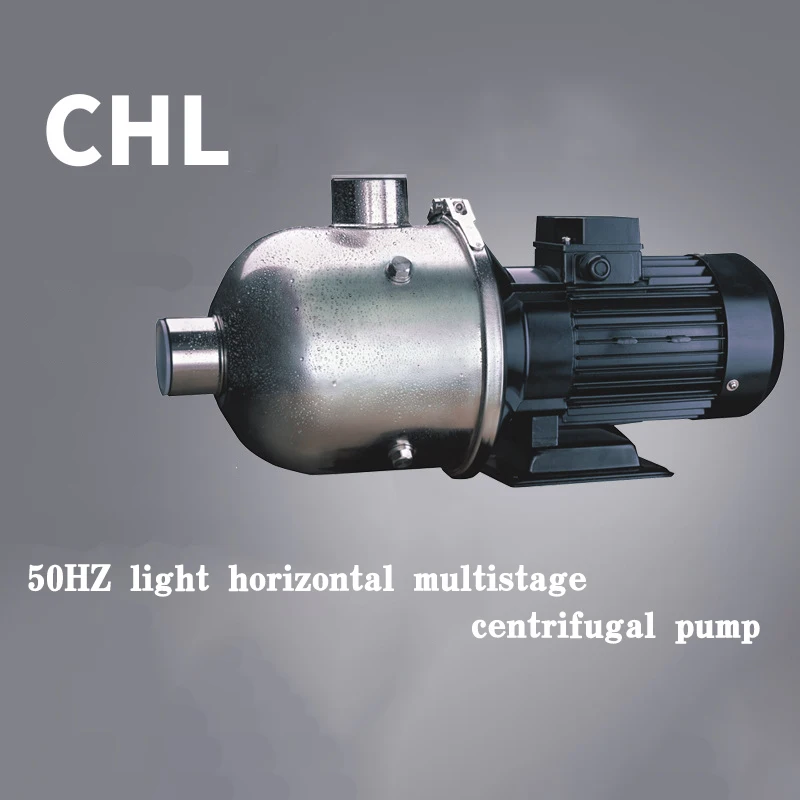

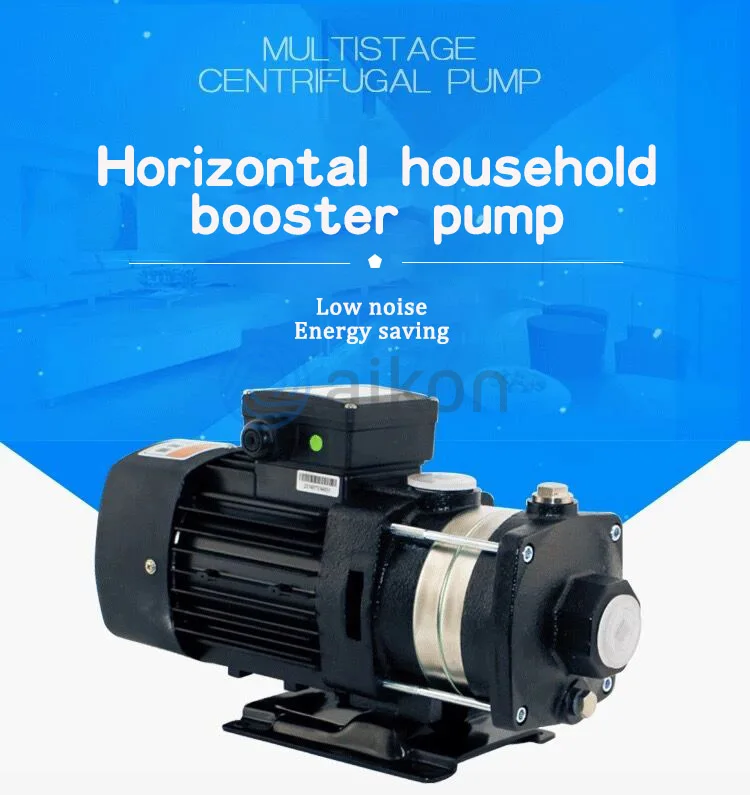

Factory direct sales high efficiency and energy saving High pressure cast iron horizontal multistage centrifugal pump

•


  Introduction:




  1. CHL impeller and wet parts are made of stainless steel.




  2. It's with the merits of small size, light weight, compact structure, low noise, easy to install and used.
  3. Horizontal multistage non-self-priming centrifugal pump, attached with long shaft electric motor.
  4. Axial inlet and radial outlet.




  5. CHL flow passage components stainless steel 304 or 316, CHLF is stainless steel 304 or 316 segmental type pump body, CHLF(T) is segmental type pump body and discharge are made of cast iron.





• Working conditions



  CHL, CHLF and CHLF(T) type pump are mainly used in industrial field:




  Air-conditioning system




  Cooling system




  Industrial cleaning




  Water treatment (Water purification)




  Aquiculture




  Fertilizing / metering system




  Environmental application




  Other special applications





• Liquid temperature:



  Normal temperature type:-15°C to +70°C




  Hot water type: -15°C to 110°C




  Ambient temperature: up to +40°C




  Max.operation pressure: 10 bar




  Max. Inlet pressure is limited by max. Operation pressure





•


  Applicable medium




  Thin and clean non-flammable and non-explosive liquid without solid granules and fibers.




  Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.




  When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor of high-power.




  Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value, temperature, solvent and oil content.

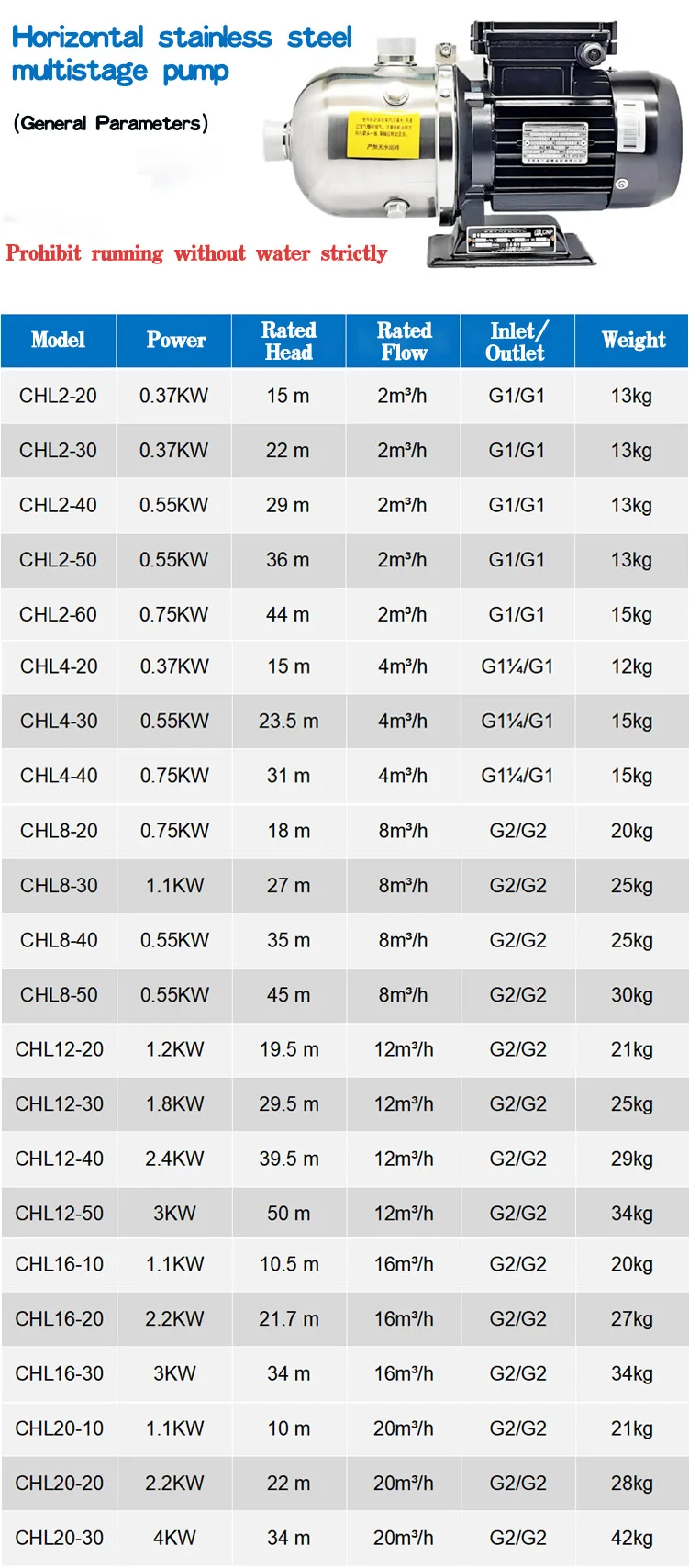

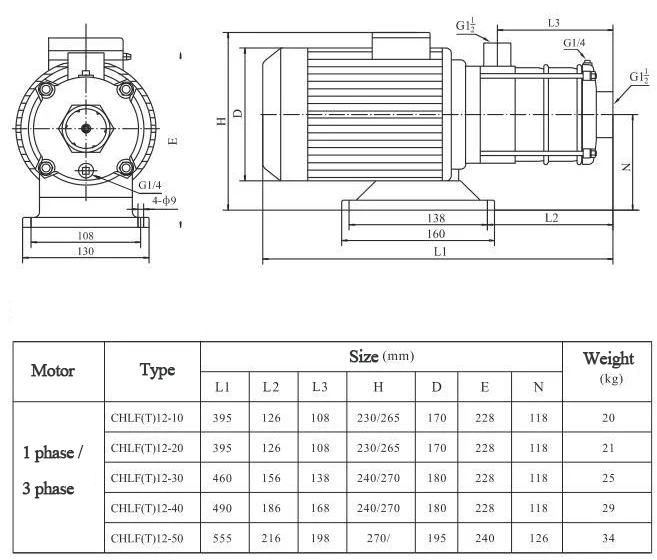

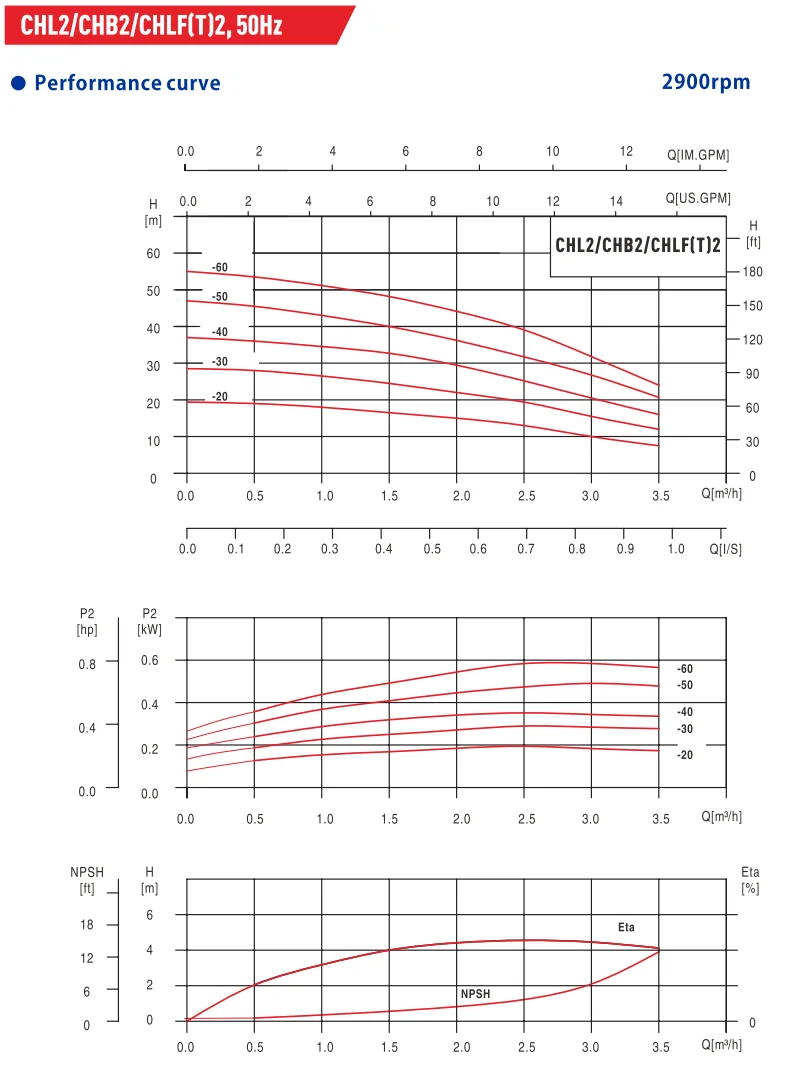

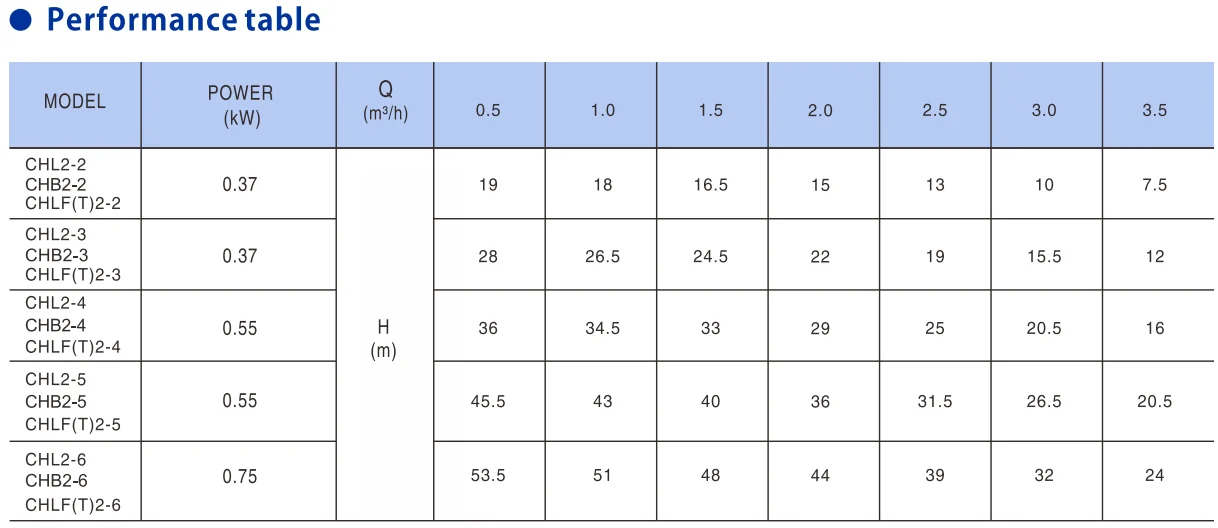

Parameters

More Performance please click here to contact us.

About us

Mission

With constantly innovating and developing, brands that go out of China are no longer inferior to other international mega brands. We simplify the complexity and push the best to the world. We aim number one.

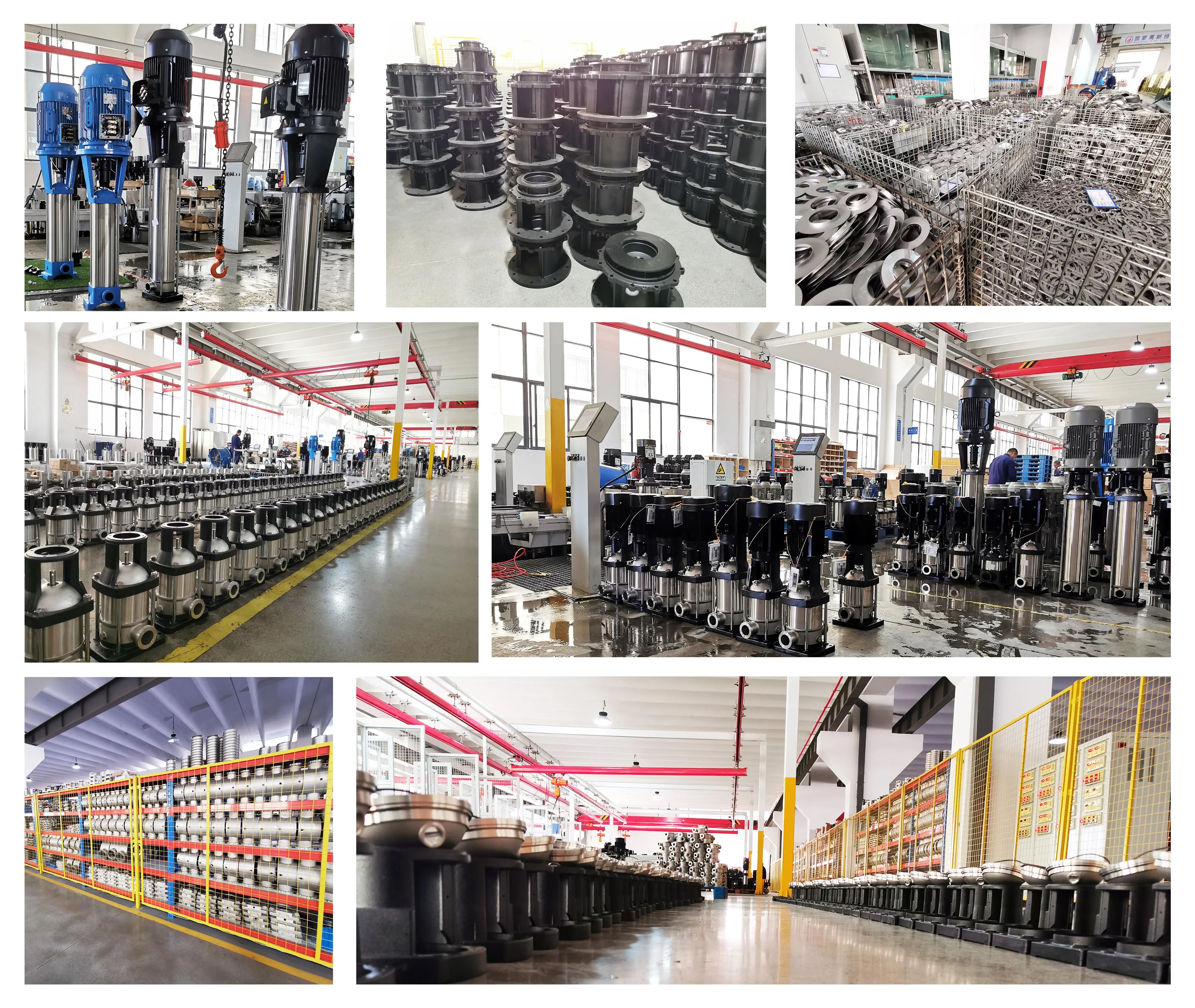

 Our factory
