Support one shipment Boiler Supplier Electric Industrial Steam Small Electric Generator
- Category: >>>
- Supplier: Wuhan Nobeth Thermal Energy Environmental Protection Technology Co. Ltd.
Share on (1600926849869):
Product Overview
Description
Product Description

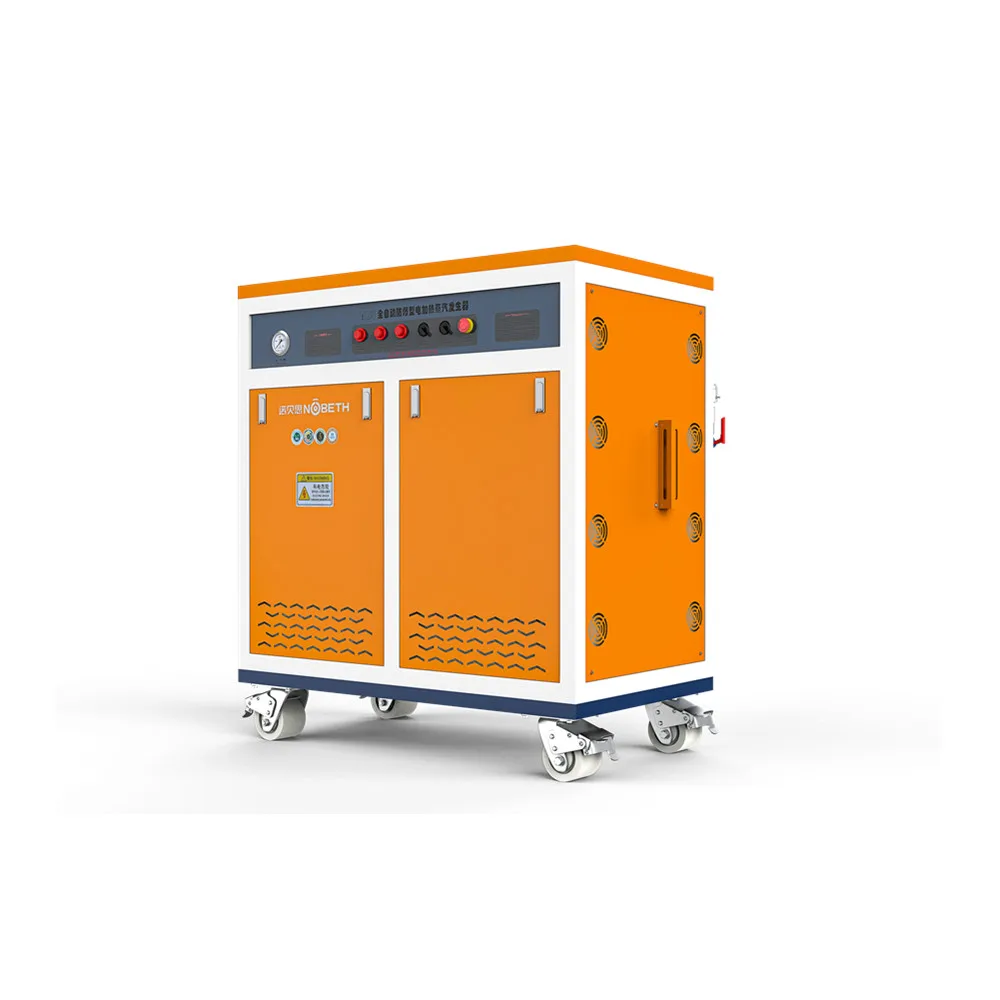

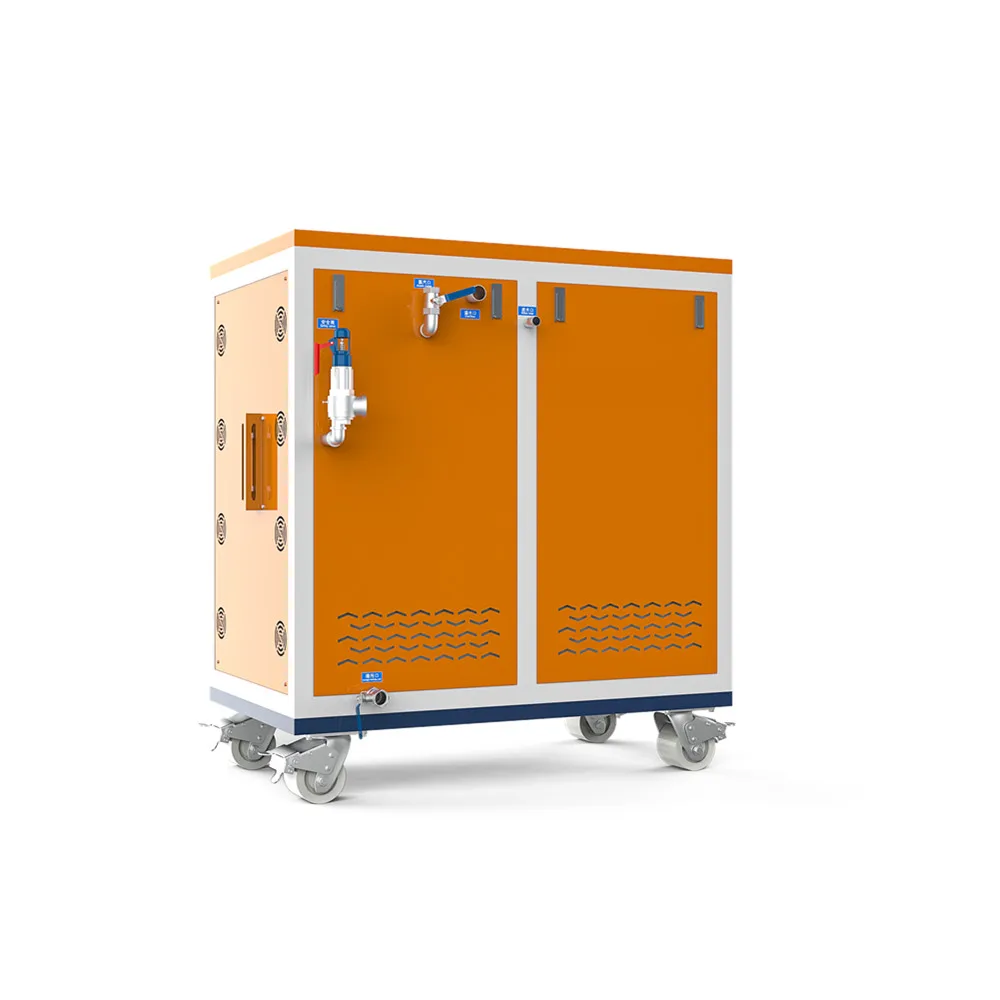

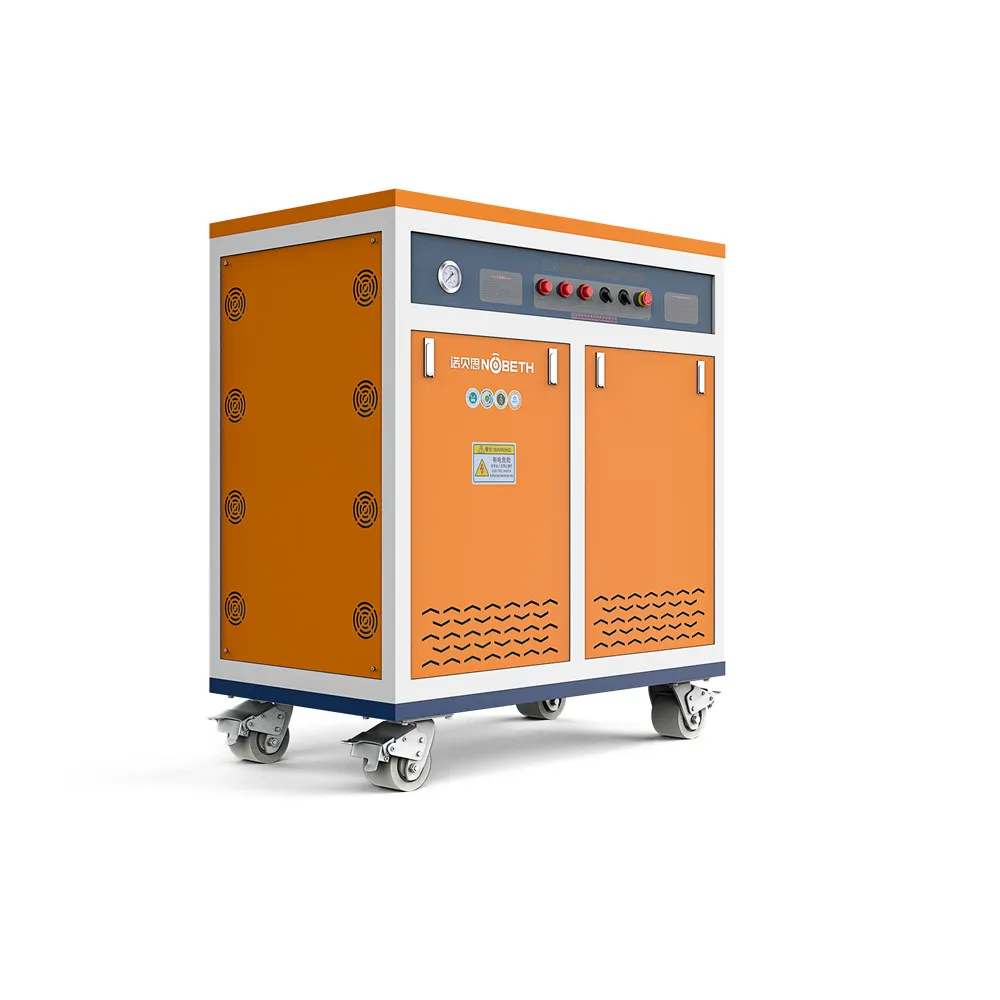

The Detail Of Nobeth A Series Steam Generator
(1) The shell of the product is made of thickened steel plate with special painting process, which is exquisite and durable, and has a very good protection effect on the internal system. The color can also be customized according to your needs.
(2) The internal design of water and electricity separation is scientific and reasonable, and the function is modularized and
operated independently, which enhances the stability during operation and extends the service life of the product.
operated independently, which enhances the stability during operation and extends the service life of the product.
(3) The protection system is safe and reliable. The pressure, temperature and water level multiple safety alarm control mechanism can be automatically monitored and guaranteed. It is equipped with safety valves with high safety performance and good quality to protect production safety in all aspects.
(4) It can develop a microcomputer fully automatic control system, independent operation platform and human-computer interactive terminal operation interface, reserve 485 communication interface, and cooperate with 5G Internet of Things communication technology to realize local and remote dual control.
(5) The internal electric control system can be operated by one button, with controllable temperature and pressure, convenient and fast operation, saving a lot of time and labor costs, and improving production efficiency.
(6) The power can be adjusted by multiple gears according to the needs, and different gears can be adjusted according to different production needs, so as to save production costs.
(7) The bottom is equipped with a universal wheel with brake, which can move freely, and can also be customized with skid-mounted design to save installation space.
Model | Power | Voltage | Steam Capacity | Steam pressure | Steam Temperature | Size(mm) |
NBS-AM-6KW | 6 Kw | 220/380V | 8KG/H | 0.7Mpa | 339.8℉ | 900*720*1000 |
NBS-AM-9KW | 9 Kw | 220/380V | 12KG/H | 0.7Mpa | 339.8℉ | 900*720*1000 |
NBS-AM-12KW | 12 Kw | 220/380V | 16KG/H | 0.7Mpa | 339.8℉ | 900*720*1000 |
NBS-AM-18KW | 18 Kw | 380V | 24KG/H | 0.7Mpa | 339.8℉ | 900*720*1000 |
NBS-AM-24KW | 24 Kw | 380V | 32KG/H | 0.7Mpa | 339.8℉ | 900*720*1000 |
NBS-AM-36KW | 36 Kw | 380V | 50KG/H | 0.7Mpa | 339.8℉ | 900*720*1000 |
NBS-AM-48KW | 48 Kw | 380V | 65KG/H | 0.7Mpa | 339.8℉ | 900*720-1000 |
NBS-AS-54KW | 54 Kw | 380V | 75KG/H | 0.7Mpa | 339.8℉ | 1060*720*1200 |
NBS-AS-60KW | 60 Kw | 380V | 83KG/H | 0.7Mpa | 339.8℉ | 1060*720*1200 |
NBS-AS-72KW | 72 Kw | 380V | 100KG/H | 0.7Mpa | 339.8℉ | 1060*720*1200 |
NBS-AS-90KW | 90 Kw | 380V | 125KG/H | 0.7Mpa | 339.8℉ | 1060*720*1200 |
NBS-AN-108KW | 108 Kw | 380V | 150KG/H | 0.7Mpa | 339.8℉ | 1460*860*1870 |
NBS-AN-120KW | 120 Kw | 380V | 166KG/H | 0.7Mpa | 339.8℉ | 1160*750*1500 |
NBS-AN-150KW | 150 Kw | 380V | 208KG/H | 0.7Mpa | 339.8℉ | 1460*880*1800 |
NBS-AH-180KW | 180 Kw | 380V | 250KG/H | 0.7Mpa | 339.8℉ | 1460*840*1450 |
NBS-AH-216KW | 216 Kw | 380V | 300KG/H | 0.7Mpa | 339.8℉ | 1560*850*2150 |
NBS-AH-360KW | 360 Kw | 380V | 500KG/H | 0.7Mpa | 339.8℉ | 1950*1270*2350 |
NBS-AH-720KW | 720 Kw | 380V | 1000KG/H | 0.7Mpa | 339.8℉ | 3200*2400*2100 |
