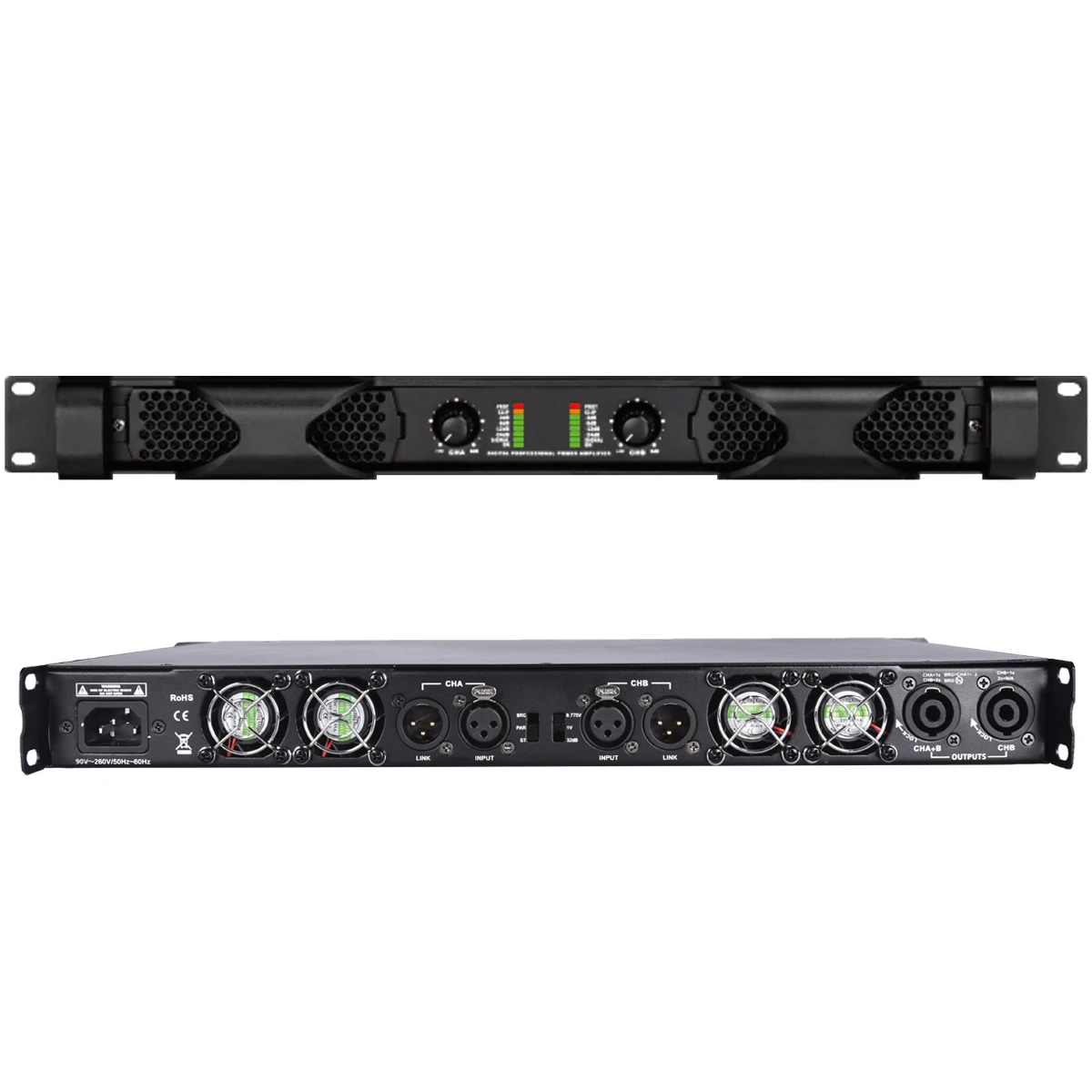

PX8000 Dual Channel 8000W High Power Digital Amplifier 2 x 3600 Watt 4Ohm Drive Subwoofer Speaker For Stage Karaoke Studio
- Category: >>>
- Supplier: Shanghai Huanqi Electronic Technology Co. Ltd.
Share on (1600926930948):
Product Overview
Description
Welcome To Our Company Alibaba Official Site - MiCWL Audio Inc.
Certification | 3C/CE |
Private Mold | Yes |
Brand Name | MICWL |
Model Number | D1000-D2400 |
Style | Digital Amplifier |
Communication | Wired/Speaker |
Use | Stage Performance / Karaoke / Church / Sing etc. |
Place of Origin | China |
Material | metal, Plastic |
Function | Noise Cancelling, Light-weight |
Power | 2x2400W at 8Ohms RMS / 2x3600W at 4Ohm |
MiCWL Audio Inc.
MiCWL Professional D Series
MiCWL Professional D Series
Digital Power Amplifier
Can Drive Linear Array Acoustic
2 Channel Digital Amplifiers / 1U Rack mount design
2 Channel Digital Amplifiers / 1U Rack mount design
( 4 Power Versions options )
1. 3600 Watts @ 4 Ohms ( 2 x 1800W )
2000 Watts @ 8 Ohms ( 2x 1000W )
2000 Watts @ 8 Ohms ( 2x 1000W )
2. 4600 Watts @ 4 Ohms ( 2 x 2300W )
2800 Watts @ 8 Ohms ( 2x 1400W )
2800 Watts @ 8 Ohms ( 2x 1400W )
3. 7000 Watts @ 4 Ohms ( 2 x 3500W )
4000 Watts @ 8 Ohms ( 2x 2000W )
With bridging function
Bridging Power (Mono Channel mode) :
8000 Watts @ 4 Ohms RMS
6000 Watts @ 8 Ohms RMS
4000 Watts @ 8 Ohms ( 2x 2000W )
With bridging function
Bridging Power (Mono Channel mode) :
8000 Watts @ 4 Ohms RMS
6000 Watts @ 8 Ohms RMS

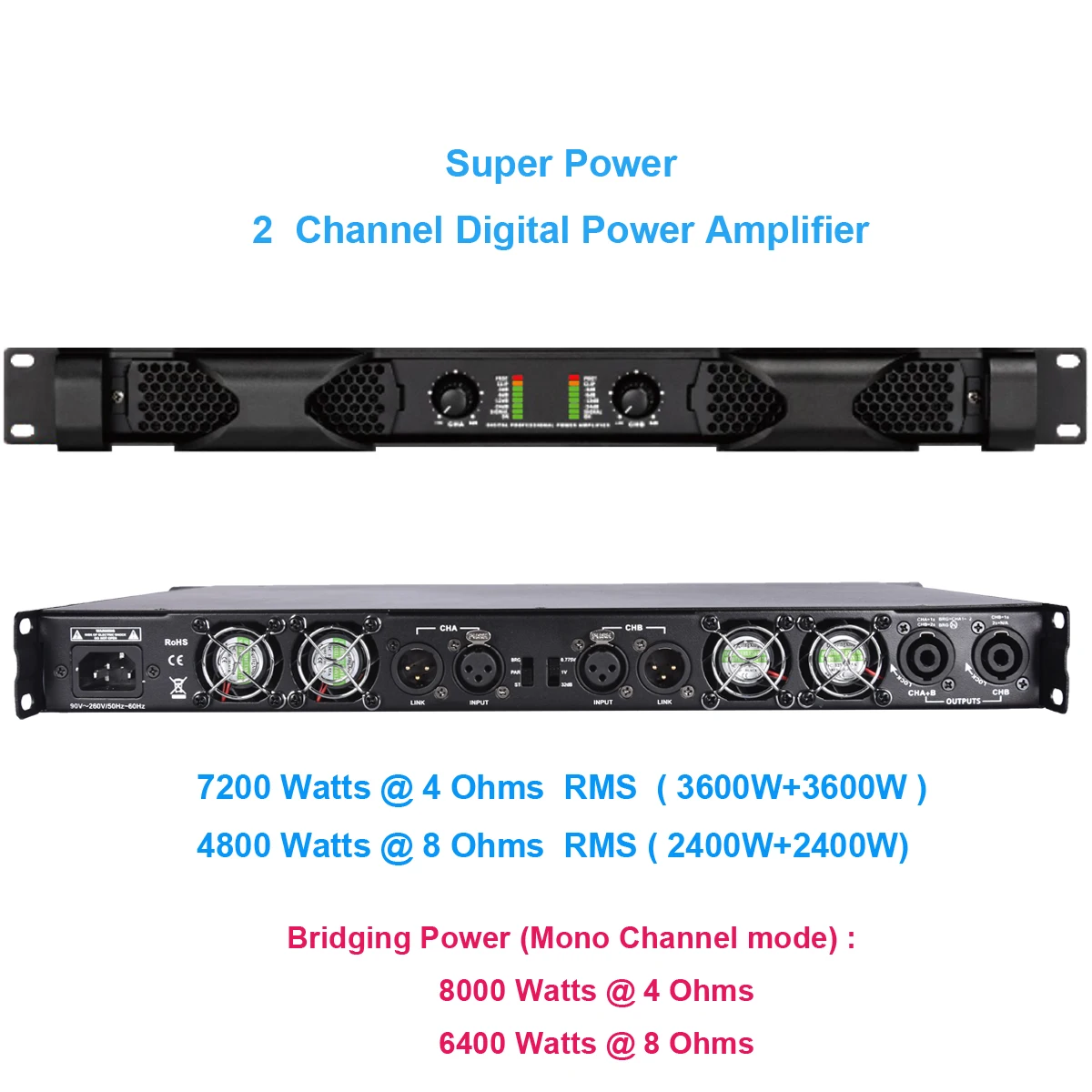

4. 2x Channel
7200 Watts @ 4 Ohms ( 2 x 3600W )
4800 Watts @ 8 Ohms ( 2x 2400W )
With bridging function
Bridging Power (Mono Channel mode) :
8000 Watts @ 4 Ohms RMS
6400 Watts @ 8 Ohms RMS
Bridging Power (Mono Channel mode) :
8000 Watts @ 4 Ohms RMS
6400 Watts @ 8 Ohms RMS
MSRP: $2499.00
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.
D Series D2400 Amplifer is a Professional 2 Channel Digital Power Amplifier that was developed using the expertise of
professional
sound engineers,
working musicians and professional DJ's. For its price range, it's rare to find a professional power amplifier that compares with
the D2400 awesome performance,
flexibility and crystal clear sound quality.
◆ Ultra -large switching power amplifier
◆ The protection functions such as automatic limit output, short -circuit, overload, over -temperature, boot delay and other
protection functions
◆ The power amplifier is equipped with a delay startup system, which is damaged by protecting the speaker from impact
◆ The rear panel is equipped with dual channels,
◆ Balance input interface
◆ Speakon output connector

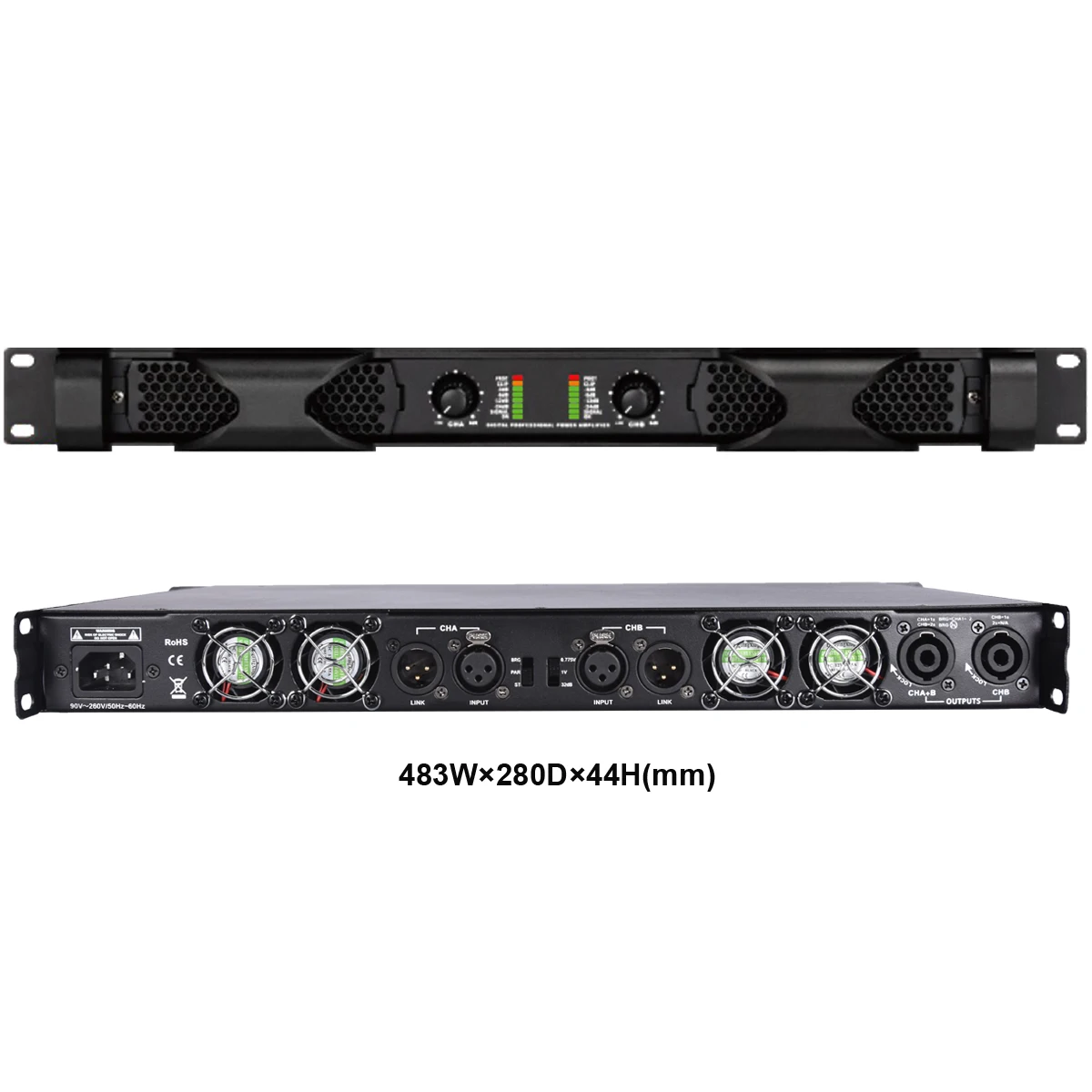

◆ 483mm standard rack structure
◆ The power amplifier part of the switching power supply part has a separate cooling system
◆ The heat dissipation fan is controlled by advanced stepless transmission circuit
◆ 1U design, light body, easy to carry and install
2x Channel versions ( 4 Power Versions options )
7200 Watts @ 4 Ohms ( 2 x 3600W )
4800 Watts @ 8 Ohms ( 2x 2400W )
Output/output (8Ω, 1kHz): 2x240W
Output/OUTPUT (4Ω, 1kHz): 2x3600W
Frequency response/FREQUENCY Response: 20Hz ~ 20KHz ± 3dB
Total distortion/Total Distortion:
1%(8Ω, 350W/time)
Enter sensitivity/Input Sensitivity:+4DB * (1.23V)
Input impedance/input Impedance: 10kΩ (electronic balance/BALANCED)
Signal ratio/S/N Ratio: ≥80dB

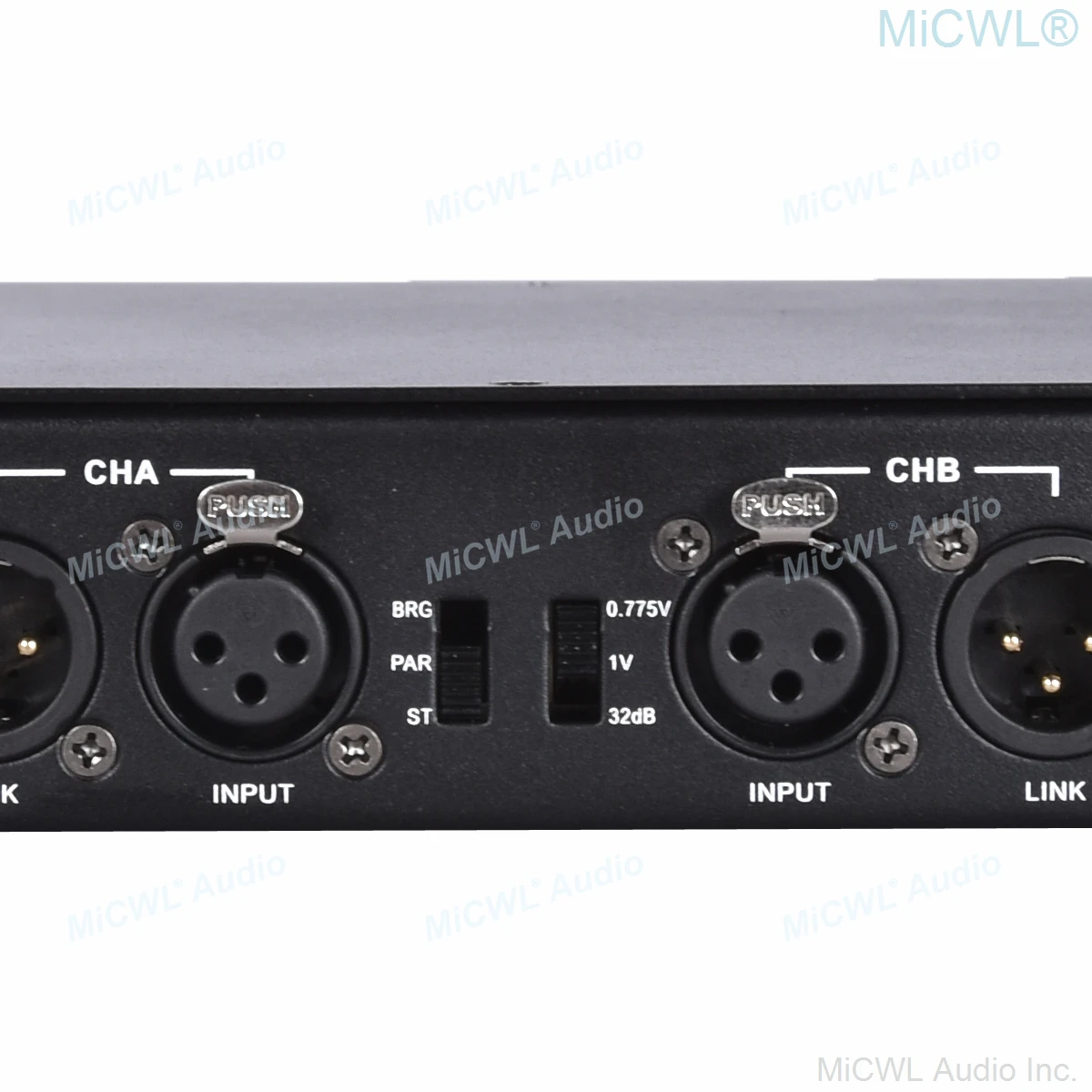

Connecting terminal Connector:
Input (CH1-2): XLR input connector; output (CH1-2): Speakon output terminal; power: AC power supply input (CH1-2): xlr input
connector; output (ch1-2): Speakon Output; Power: AC Power Supply.

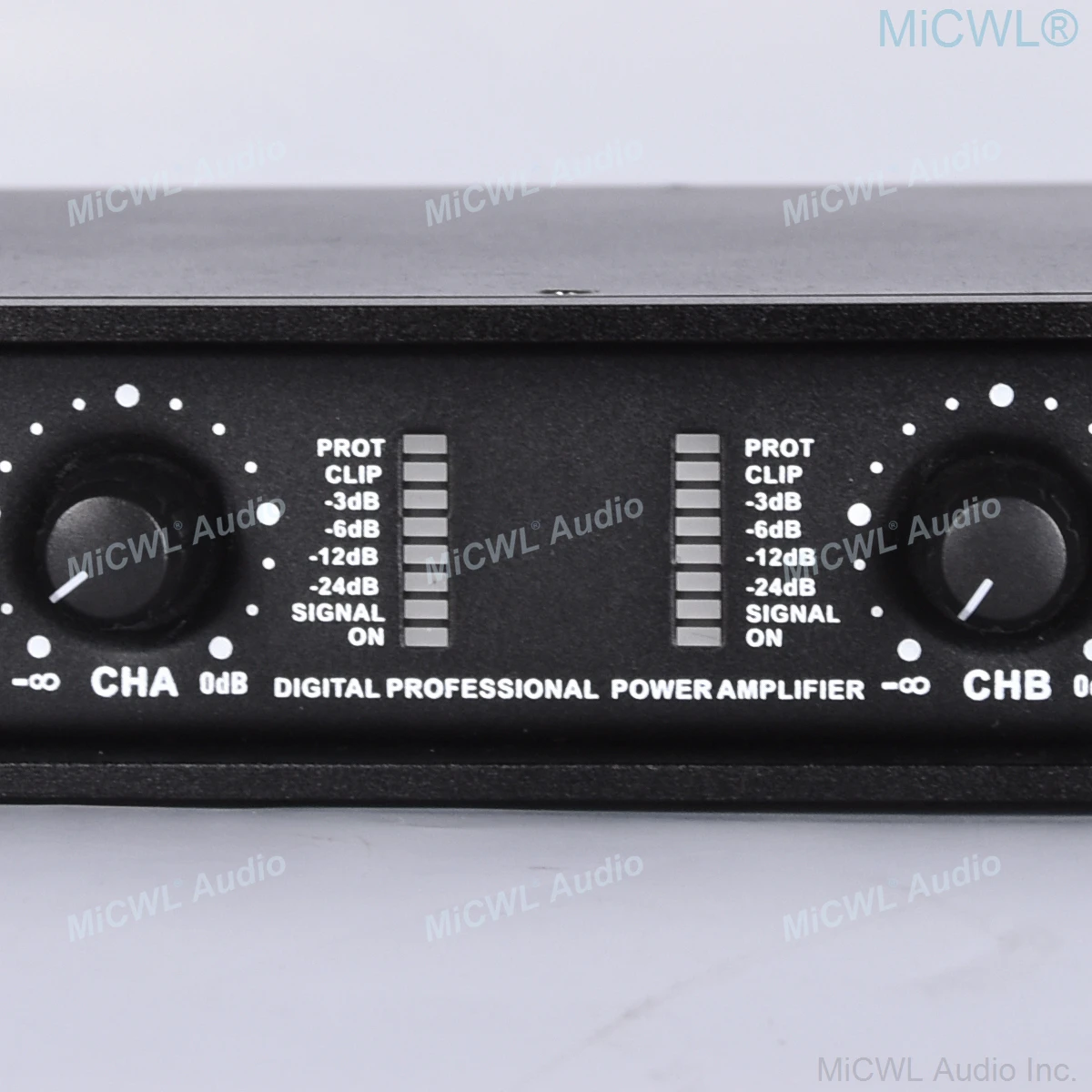

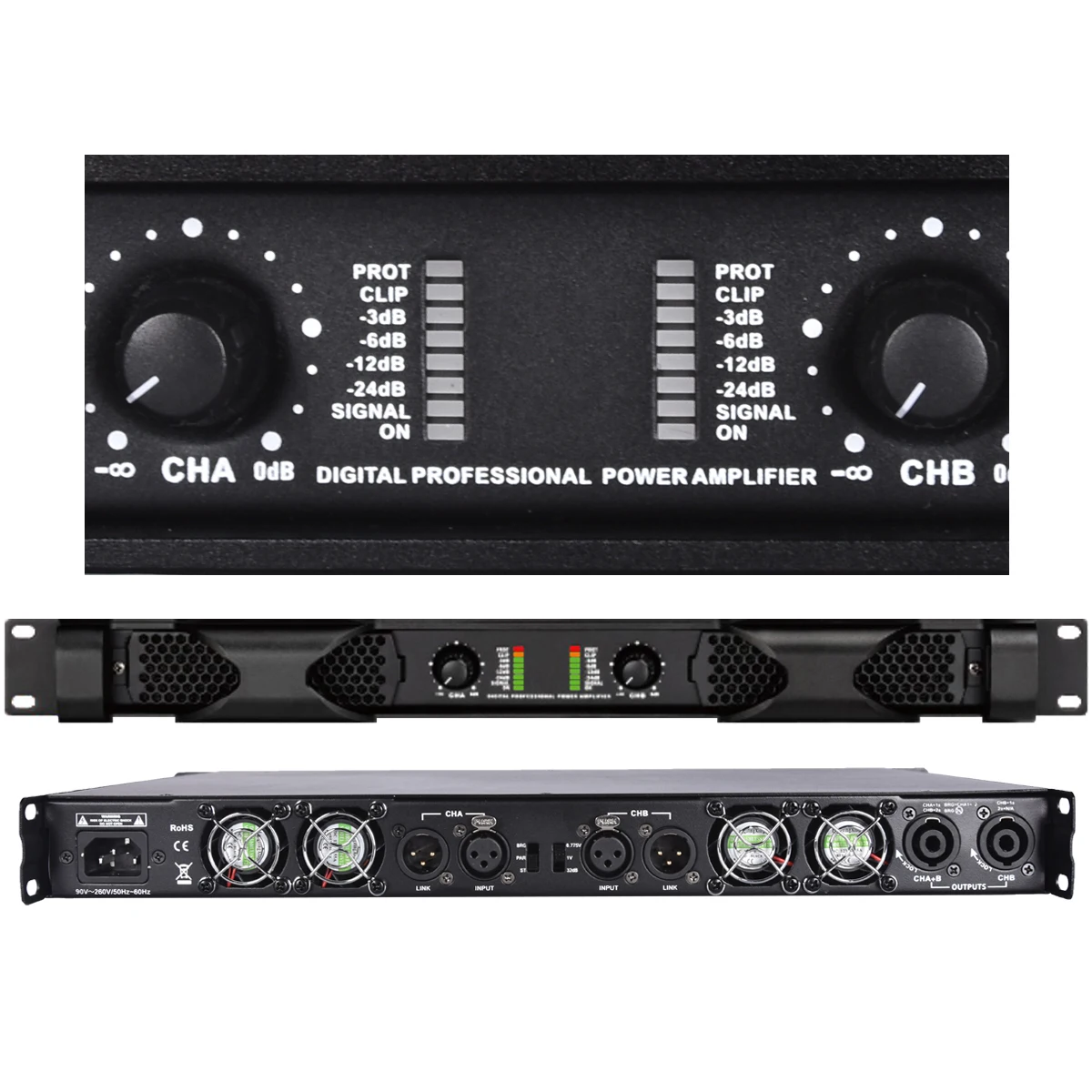

Display light Indicator Lights:
Power display light x1 (green); input display light x 2 (yellow); peak display light x 2 (red); protecting circuit action display
light x 1 (red) Power Inicator x 1 (Green), input Indicator X 2 (YELLOW ), Peak Indicator X 2 (Red); Feedback Protect Indicator X
1 (Red)
Power voltage/Power Supply Voltage:
AC110 ~ 120V, 50/60Hz AC220 ~ 240V, 50/60Hz (using internal jump switch/via inside jumping switch)
1/8 rated movement 1/8 Rated Activity Consumed Power: 50W, 80W, 110W
The temperature range of using the environment is worn tempeature range: 0 ~ 50 ℃
The humidity range of the environment is working with Humidity Range:
Below 90% RH/Under 90% RH
How much Speaker can this amplifier drive:
2400W each Channel:
It Can Drive 2400W or less 2400W @ 8 Ohm Sound Speaker each Channel ( 3600W @ 4 Ohm each channel)
- If your speaker is no more than2400 watts, this amplifier is enough to drive.
( 2 Channel can Drive 2 Unit 2400W Speakers at 8Ohm. one channel suggest just derve 1pcs speaker)
Also have Super power each Channel Digital Power Amplifier for Choice (please check our company store or contact us)
professional
sound engineers,
working musicians and professional DJ's. For its price range, it's rare to find a professional power amplifier that compares with
the D2400 awesome performance,
flexibility and crystal clear sound quality.
◆ Ultra -large switching power amplifier
◆ The protection functions such as automatic limit output, short -circuit, overload, over -temperature, boot delay and other
protection functions
◆ The power amplifier is equipped with a delay startup system, which is damaged by protecting the speaker from impact
◆ The rear panel is equipped with dual channels,
◆ Balance input interface
◆ Speakon output connector
◆ 483mm standard rack structure
◆ The power amplifier part of the switching power supply part has a separate cooling system
◆ The heat dissipation fan is controlled by advanced stepless transmission circuit
◆ 1U design, light body, easy to carry and install
2x Channel versions ( 4 Power Versions options )
7200 Watts @ 4 Ohms ( 2 x 3600W )
4800 Watts @ 8 Ohms ( 2x 2400W )
Output/output (8Ω, 1kHz): 2x240W
Output/OUTPUT (4Ω, 1kHz): 2x3600W
Frequency response/FREQUENCY Response: 20Hz ~ 20KHz ± 3dB
Total distortion/Total Distortion:
1%(8Ω, 350W/time)
Enter sensitivity/Input Sensitivity:+4DB * (1.23V)
Input impedance/input Impedance: 10kΩ (electronic balance/BALANCED)
Signal ratio/S/N Ratio: ≥80dB
Connecting terminal Connector:
Input (CH1-2): XLR input connector; output (CH1-2): Speakon output terminal; power: AC power supply input (CH1-2): xlr input
connector; output (ch1-2): Speakon Output; Power: AC Power Supply.
Display light Indicator Lights:
Power display light x1 (green); input display light x 2 (yellow); peak display light x 2 (red); protecting circuit action display
light x 1 (red) Power Inicator x 1 (Green), input Indicator X 2 (YELLOW ), Peak Indicator X 2 (Red); Feedback Protect Indicator X
1 (Red)
Power voltage/Power Supply Voltage:
AC110 ~ 120V, 50/60Hz AC220 ~ 240V, 50/60Hz (using internal jump switch/via inside jumping switch)
1/8 rated movement 1/8 Rated Activity Consumed Power: 50W, 80W, 110W
The temperature range of using the environment is worn tempeature range: 0 ~ 50 ℃
The humidity range of the environment is working with Humidity Range:
Below 90% RH/Under 90% RH
How much Speaker can this amplifier drive:
2400W each Channel:
It Can Drive 2400W or less 2400W @ 8 Ohm Sound Speaker each Channel ( 3600W @ 4 Ohm each channel)
- If your speaker is no more than2400 watts, this amplifier is enough to drive.
( 2 Channel can Drive 2 Unit 2400W Speakers at 8Ohm. one channel suggest just derve 1pcs speaker)
Also have Super power each Channel Digital Power Amplifier for Choice (please check our company store or contact us)
1 x Digital Amplifier
1 x Power Cable
1 x Power Cable
Warranty:
One Year Warranty Covered by MICWL Audio Inc.
One Year Warranty Covered by MICWL Audio Inc.
