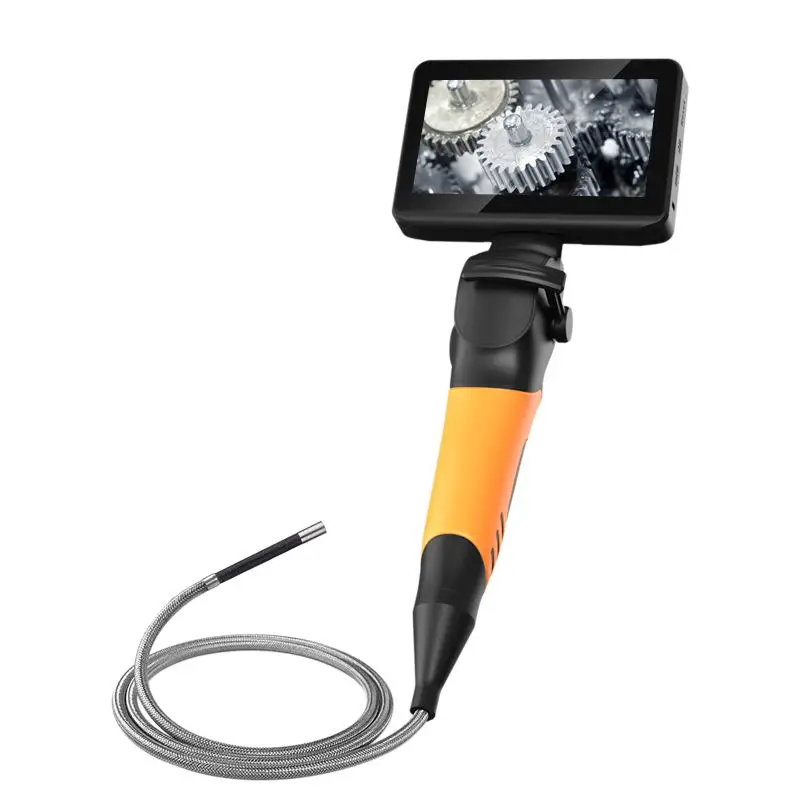

Handheld inspection borescope camera with 1/9inch, 120 Degrees angle of field, 8 LED light sources

model

CS60

external diameter

Φ 6.0mm

Pixel point

1 MP

Probe length

13 mm

Image sensor

1/9inch

depth of field

From 10-100 mm

angle of field

120 Degrees

Observe the direction

foresight

Lighting type

8 LED light sources

Bend Angle (top / bottom)

180°

The joystick controls with

Directional direction

Two directions (top / bottom)

Camera shell

alloy steel

Angle lock

Fixed internal resistance

Insert tube length

Standard 1 m

Insert tube material

Stainless steel wire woven tube

System weight

Complete equipment, including chassis: 05kg bare machine: <1 kg

Host size

12.3 cm X 8.5 cm X 4.4 cm

source

Lithium battery: 3.7V, 2200 Charging current: Type-C charging port port 5V / 2V

construction material

Plastic PC case

LCD

A 4.5-inch active matrix color display

aiming

Manually adjust the 3 gear

The Data I / O port

NO

internal storage

32G High-speed SD Card

Key function

Menu manipulation, videos, Freeze, enlarge

white balance

automatic white balance

Image function

Image mirror, preview

linguistic support

4 languages (Chinese, English, Japanese, Simplified)

image resolution ratio

1280*720JPG

Video resolution

1280*720avi

Host system operating temperature

0°C to 40°C

ambient humidity

15-90%RH

Video probe operating temperature

0°C 60°C, below 0°C should reduce boot operations

waterproof

Probe and objective lens can withstand IP67 waterproof

storage temperature

0°C to 60°C

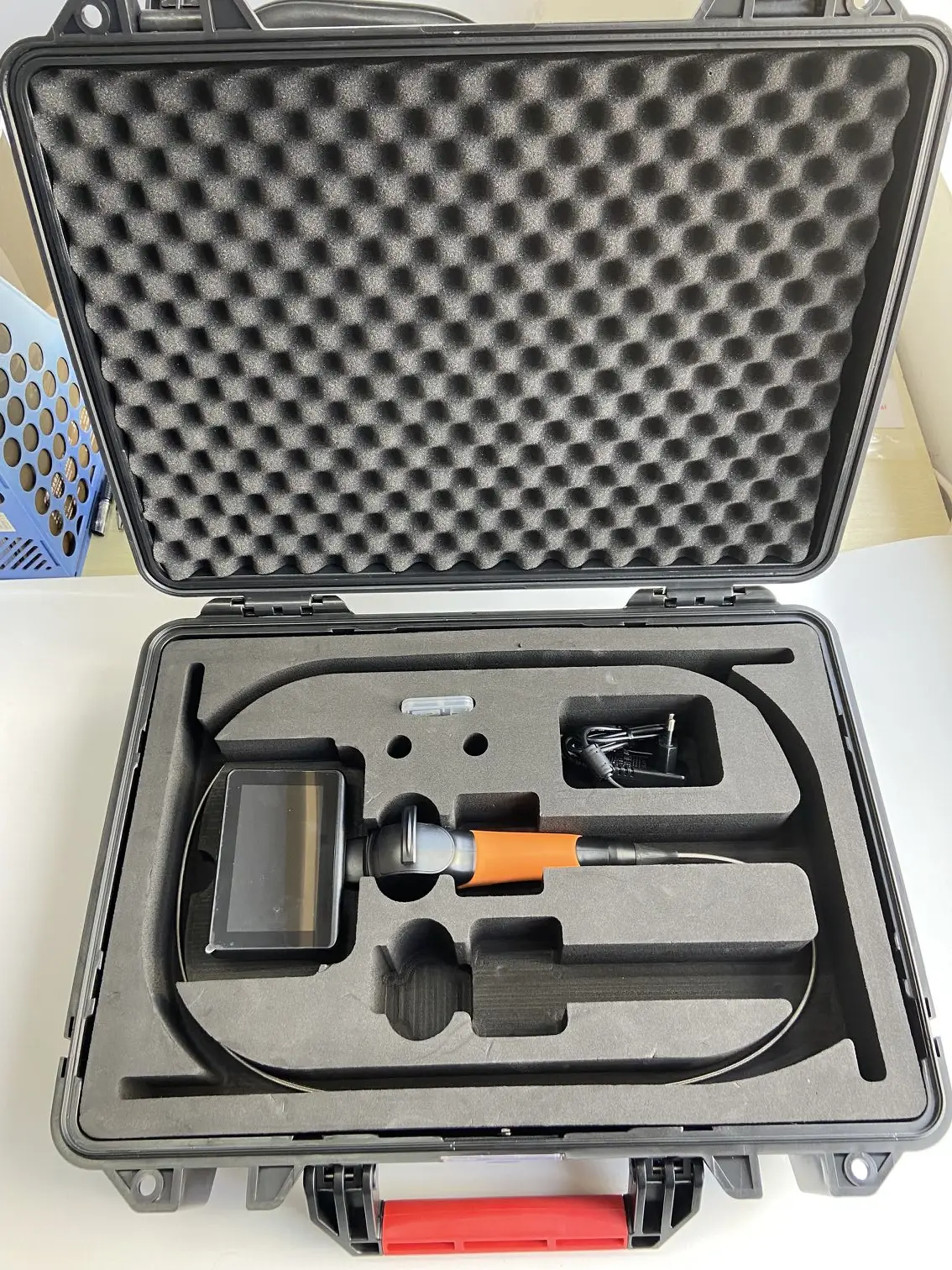

Packaging accessories

instrument container.instructions.charger.Card reader et al
