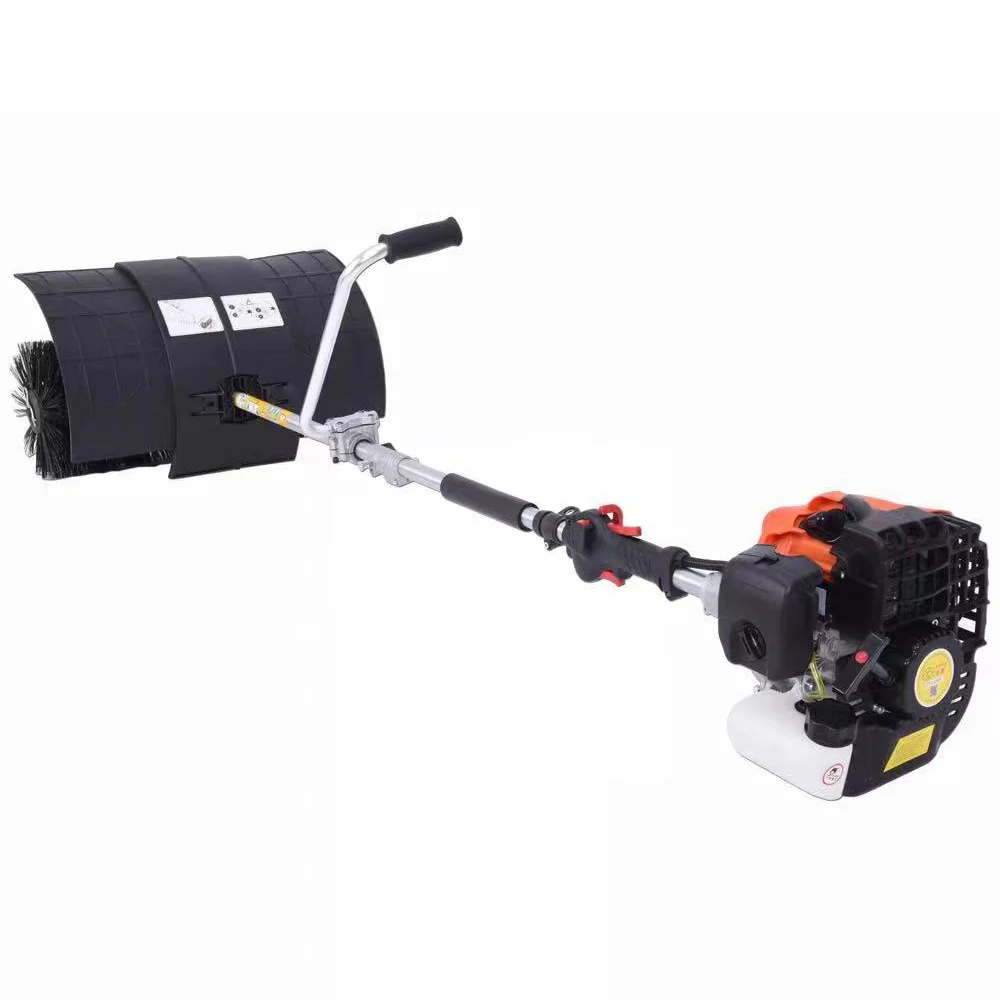

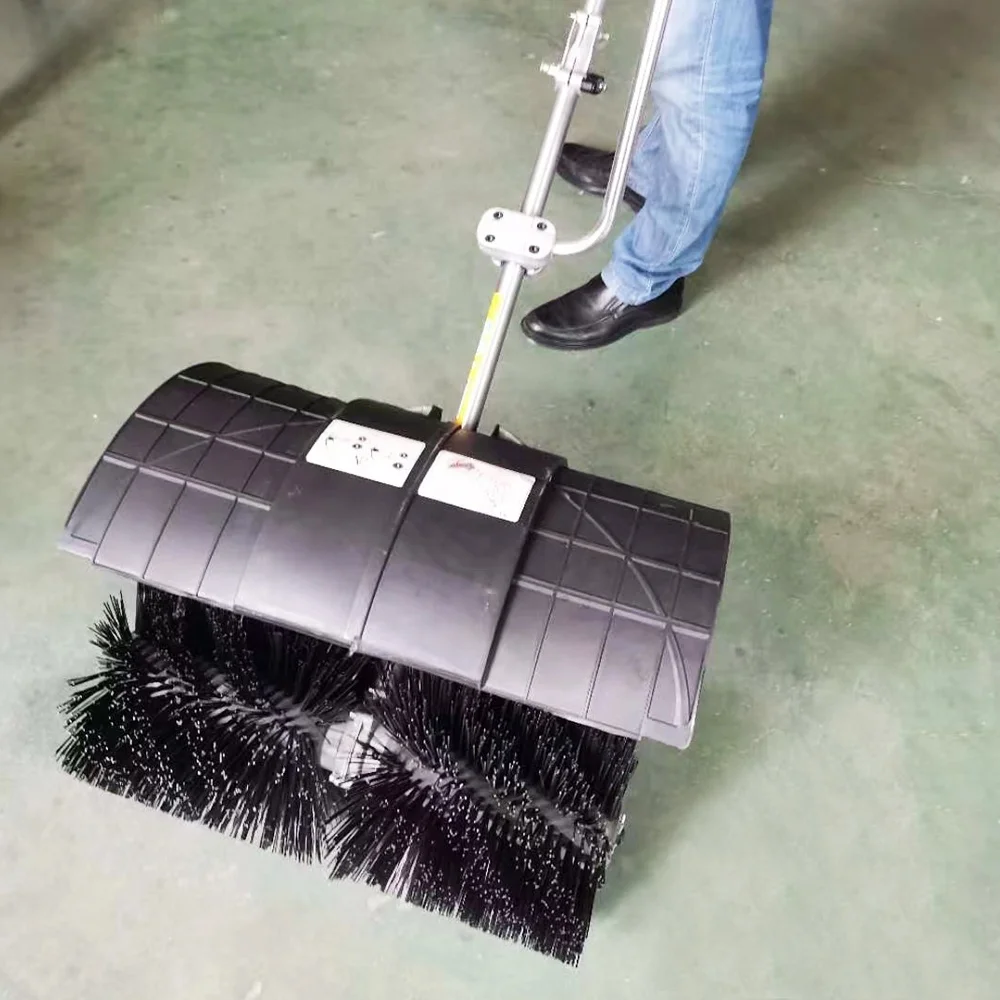

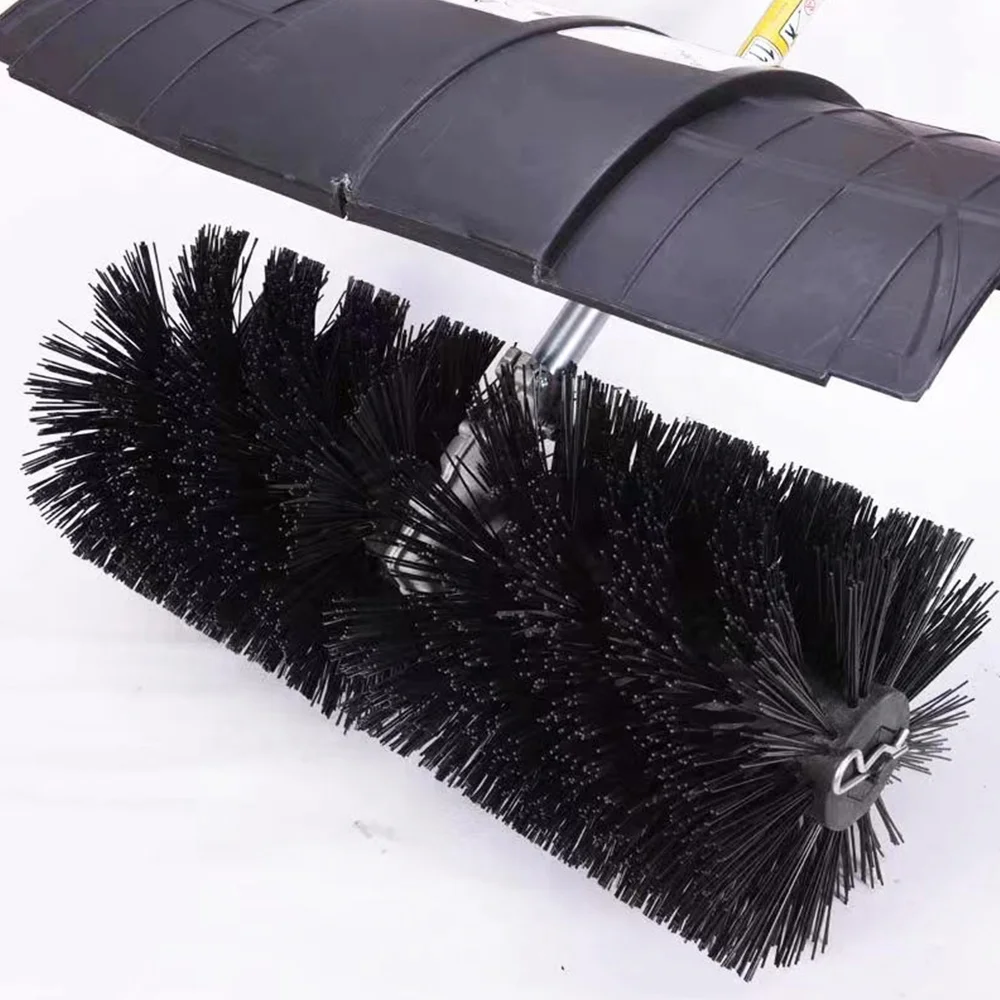

Good performance handheld floor garden sweeping lawn machine
- Category: >>>
- Supplier: Sunwing Industries Ltd.
Share on (1600926936745):
Product Overview
Description
Products Description
Product Name | handheld sweeping machine | ||||||
Sweeping width | 600 (mm) | ||||||
Type | gasoline powered drive | ||||||
Driving horsepower | two-stroke gasoline engine Roll brush diameter 26cm, brush width 58cm | ||||||
Displacement | 52CC | ||||||
Power | 1.7kw/2.3HP | ||||||
Speed | 8500-10500rpm | ||||||
Fuel ratio | 1:25 | ||||||
Transmission rod | aluminum tube diameter 26mm, internal transmission shaft 8mm, spline 9T | ||||||
Detailed image
Installtion
1. Protective cover
2 Brush drive rod
3 Brush drive shaft
4 Loosen the two setscrews and carefully insert the drivenod into the appropriate position from the protective cover.
5 Connect the brush head following by the brush installation steps
6 Tip: The protective cover plays a partial protection rolewihich is designed to protect operators safety and avoid caused by rising sand, bouncing level and due to duration operation Protective cover can be installed based on usersneed

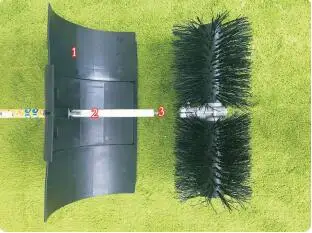

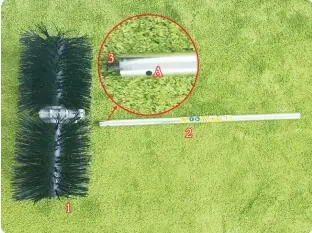

1. Sweeping Brush
2. Brush driven rod
3. Brush driven shaft(position A)
4. To connect 2 to 1:1. Insert 3 into 1 spline slot2. Insert 2 into the bottom

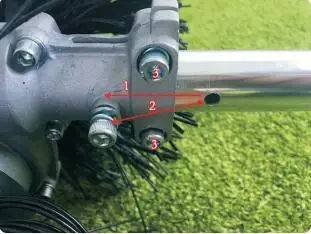

1 . Insert the driven rod to the bottom of the brush
2 . Remove the setscrew and turn the driven rod to make theposition hole overlap with the setscrew hole , then put thesetscrew back and tighten it
3 , Tighten the fixing bolts

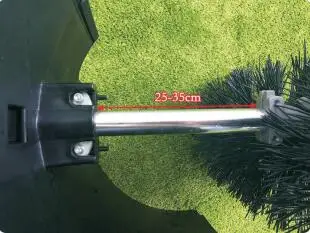

Tighten the fixing bolts on the protective coverThe recommended distance between the protective coverand the brush is between 25-35cm
The assembly of brush part is completed

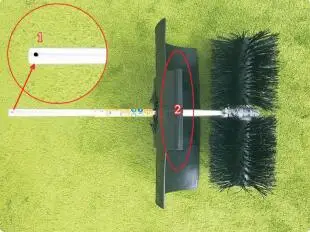

1 . As shown in the picture , the fixing hole of the quickconnector of drive rod is positioned upwards .
2 . As shown , the tongue of the protective cover is facingdown ( Ground）

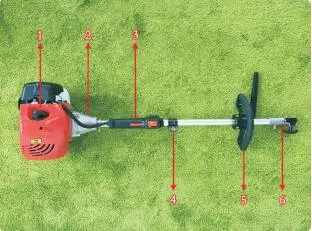

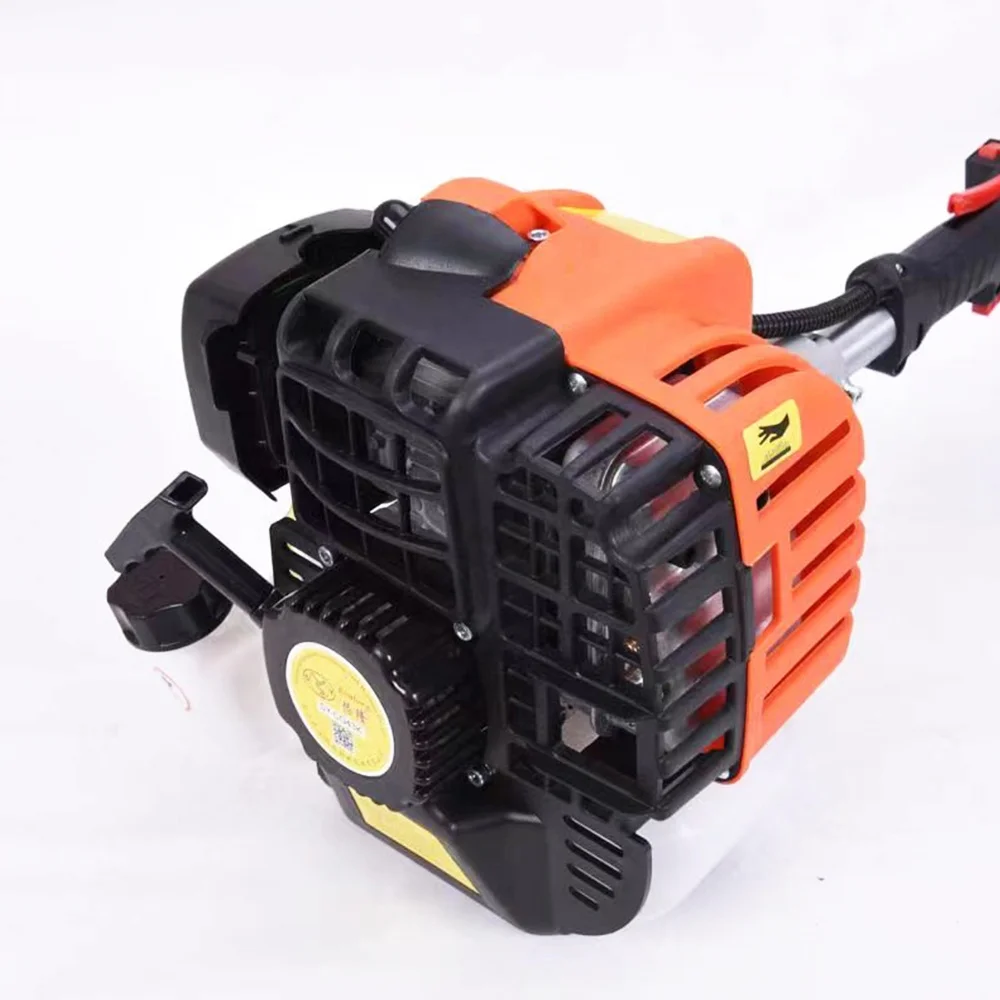

1 . Engine
2 . Connection plate
3 . Operating handle
4 . strap buckle
5 . D-type front handle

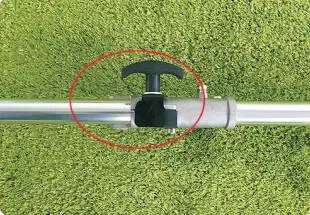

6 . Quick connector

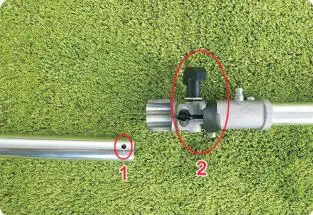

1 . Facing the positioning hole upwards and instert into thequick connector .
2 . Loosen the quick connector knob

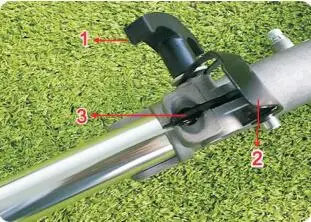

1.Quick connector knob
2 . Locating pin cover
3 . Locating pin
4 . After inserting the drive rod , turn it gently and confirmthat the locating pin is inserted into the positioning hole
5 . Press the locating pin cover and tighten the quicconnector knob
6 . To disassemble : Loosen the quick connector knob , pressthe pin , gently turn the drive rod and pull it out .
The assembly of the operating rod is completed

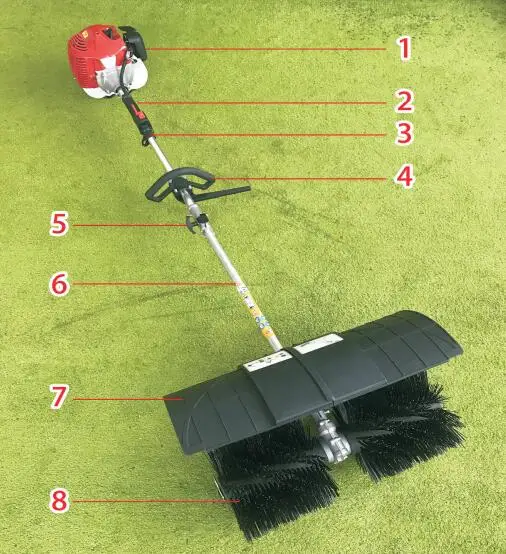

1 . Engine
2 . Operating handle
3 . Strap buckle
4 . d-type font handle
5 . Quick connector
6 . Brush driven rod
7 . Protective cover
8 . Sweeping Brush
Why Choose Us
We promise:
(1)Samples will be sent for customers' approval. Then arrange the mass production.
(2)For mass production, worker on each production line will finish their task as per production schedule so that we can assure the lead time.
(3)Before packing, our quality control personnel will inspect the product. And inspection report will be checked by responsible sales.
(4)Different packing methods can be customized to meet various demands.

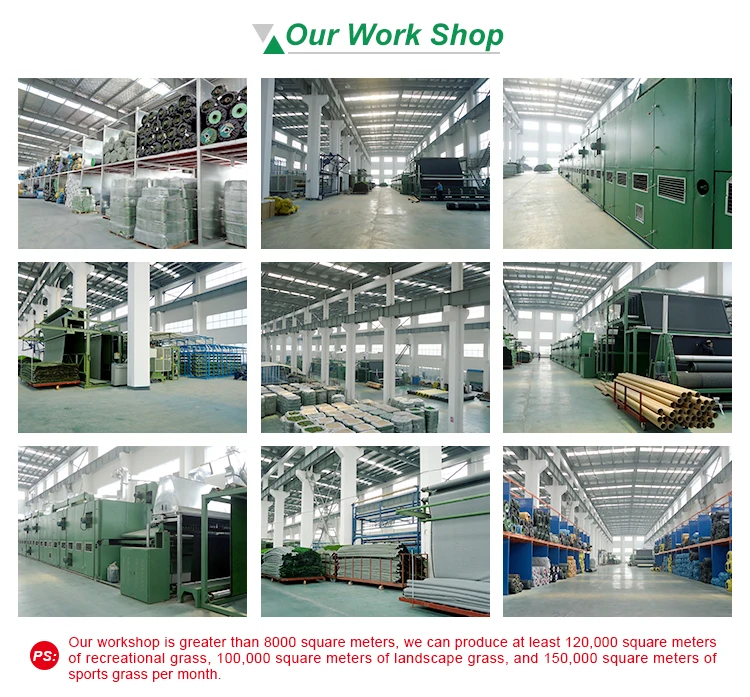

We have around 80 workers in factory, which is around 8600 square meters.
