china manufacturer fabric fiberglass 1068 2313
- Category: >>>
- Supplier: Zibo Scaler Composite Material Co. Ltd.
Share on (1600926958588):
Product Overview
Description
Product Description
Specification
item | value |
Place of Origin | China |
Shandong | |
Brand Name | LW |
Model Number | 7628 |
Application | Blind |
Weight | 210g/sqm |
Surface Treatment | Aluminum Foil |
Width | 900mm-1300mm |
Weave Type | Plain Woven |
Yarn Type | E-glass |
Alkali Content | Alkali Free |
Standing Temperature | 800 |
Processing Service | Bending, Decoiling, Moulding, Welding |
Color | White |
Material | fiberglass |
Advantage | no fuzz |
Product Process
Warping and Sizing：Purpose of warping is line up the warp yarn on warping beam according to width and weight of fabric, hence may

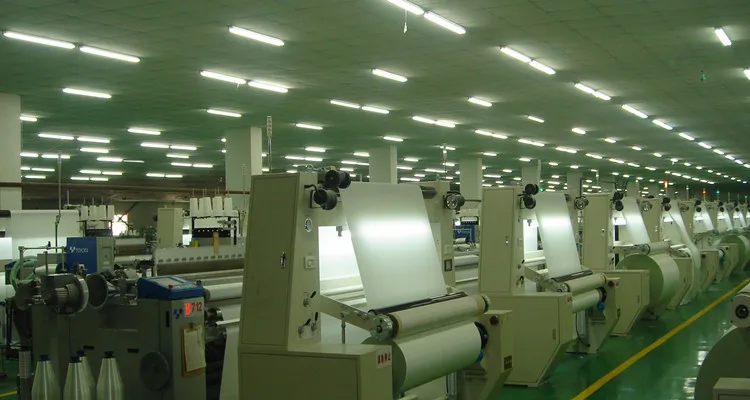

ready for sizing process. Purpose of sizing is avoiding the damage of warp yarn by friction of weaving parts to yarn breakage or damage on surface. It also may combine several warp beams into one weaving beam to reach enough yarn ends. Heddling：Before weaving beam loading on weaving loom, all warp yarn need to be hooked up with heddles, droppers & reed. Weaving：We weave fiberglass fabric by high speed Toyota air jet looms. De-Sizing and Silane finish： After weaving, the sizing need to be removed from fabric, fiber
glass fabric could be remove most of sizing out by using high temperature treatment . After the 1st step desizing, the coffee color fabric is set in a batch oven to continue heat treated to remove the rest about 10% sizing off. After desizing, the fabric would be treated by silane to improve the interlocking ability between the glass fabric and epoxy resin. Including three step, the first two step is desizing, the third step is coating silane. The first step is delete the sizing of the fabric rolls by the fabric roll running through the KH furnace, the fabric color became coffee color, we call this fabric KH fabric or carmelized fabric. Most of the sizing on the yarn is delete after this, this carmelized fabric LOI is about 0.16 The second step is put the coffee color fabric into the BH furnace, and keep it about 48 hours in the furnace to delete the left sizing. after this step the fabric color turned to white color, and this fabric we called BH fabric, its LOI is now about 0.04 The third step is coating silane on the BH fabric, after this the LOI is about 0.11, and the break strengh will raise after dip silane. the silane could help epoxy resin coating on the fabric. Laminate: Make the fiberglass cloth to prepreg by impregnating with epoxy resin,then press the prepreg to epoxy sheet or laminate. And the copper clad laminate will be make after press the copper foil on the suface of the laminate.
ready for sizing process. Purpose of sizing is avoiding the damage of warp yarn by friction of weaving parts to yarn breakage or damage on surface. It also may combine several warp beams into one weaving beam to reach enough yarn ends. Heddling：Before weaving beam loading on weaving loom, all warp yarn need to be hooked up with heddles, droppers & reed. Weaving：We weave fiberglass fabric by high speed Toyota air jet looms. De-Sizing and Silane finish： After weaving, the sizing need to be removed from fabric, fiber
glass fabric could be remove most of sizing out by using high temperature treatment . After the 1st step desizing, the coffee color fabric is set in a batch oven to continue heat treated to remove the rest about 10% sizing off. After desizing, the fabric would be treated by silane to improve the interlocking ability between the glass fabric and epoxy resin. Including three step, the first two step is desizing, the third step is coating silane. The first step is delete the sizing of the fabric rolls by the fabric roll running through the KH furnace, the fabric color became coffee color, we call this fabric KH fabric or carmelized fabric. Most of the sizing on the yarn is delete after this, this carmelized fabric LOI is about 0.16 The second step is put the coffee color fabric into the BH furnace, and keep it about 48 hours in the furnace to delete the left sizing. after this step the fabric color turned to white color, and this fabric we called BH fabric, its LOI is now about 0.04 The third step is coating silane on the BH fabric, after this the LOI is about 0.11, and the break strengh will raise after dip silane. the silane could help epoxy resin coating on the fabric. Laminate: Make the fiberglass cloth to prepreg by impregnating with epoxy resin,then press the prepreg to epoxy sheet or laminate. And the copper clad laminate will be make after press the copper foil on the suface of the laminate.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
ZiBo Scaler Composite Material Co.,Ltd was established in 2007,located in Zibo city of Shandong province.
We are specializing in E-glass fabric series more than ten years, the products mainly used in the copper clad laminate and printed circuit board, which used widely for aerospace, IT, telephones, wind power industry etc, after more than ten years of development, we have a world-leading set of processing equipment,industry-leading technical team and modem management concepts. We currently have eight hundred Toyota woven machines, our capacity around 80 million metere-glass fabric one year.
We also have the advanced equipment for copper clad laminate, and supplied very good quality products to our customers domestic and international.
We also have the production line to produce the Fire-proof and insulating material, like the E-glass needled mat, fiberglass felt, BIO soluble ceramic fiber cloth,ceramic fiber and felt etc.
The fiber glass products: alkali resistant fiberglass roving (AR fiberglass roving)and chopped strands for PP PE PVE and Friction product etc; e-glass multi-end roving; direct roving etc, woven roving, chopped stand mat , electronic grade glass fiber yarn etc.
Productquality is the life of the company, to win the trust of our customers, we always focus on the best quality and service after sales. After ten years efforts, we have sold our products around the world more than 30 countries andregions
Scaler Composite, the pursuit of perfection! We will consistently adhere to the quality first, the concept of win-win cooperation, development together with you, to create a better future.
We are specializing in E-glass fabric series more than ten years, the products mainly used in the copper clad laminate and printed circuit board, which used widely for aerospace, IT, telephones, wind power industry etc, after more than ten years of development, we have a world-leading set of processing equipment,industry-leading technical team and modem management concepts. We currently have eight hundred Toyota woven machines, our capacity around 80 million metere-glass fabric one year.
We also have the advanced equipment for copper clad laminate, and supplied very good quality products to our customers domestic and international.
We also have the production line to produce the Fire-proof and insulating material, like the E-glass needled mat, fiberglass felt, BIO soluble ceramic fiber cloth,ceramic fiber and felt etc.
The fiber glass products: alkali resistant fiberglass roving (AR fiberglass roving)and chopped strands for PP PE PVE and Friction product etc; e-glass multi-end roving; direct roving etc, woven roving, chopped stand mat , electronic grade glass fiber yarn etc.
Productquality is the life of the company, to win the trust of our customers, we always focus on the best quality and service after sales. After ten years efforts, we have sold our products around the world more than 30 countries andregions
Scaler Composite, the pursuit of perfection! We will consistently adhere to the quality first, the concept of win-win cooperation, development together with you, to create a better future.
FAQ
1. who are we?
We are based in Shandong, China, start from 2015,sell to Southeast Asia(50.00%),Eastern Europe(30.00%),South America(10.00%),Africa(5.00%),North America(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiberglass Fabirc,Fibergalsss roving,AR-Fiberglass,Milled Fiberglas,Fiberglass powder
4. why should you buy from us not from other suppliers?
More then 15 years manufacture and trading experience for all fiberglass material etc,many years design and resaerch
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2015,sell to Southeast Asia(50.00%),Eastern Europe(30.00%),South America(10.00%),Africa(5.00%),North America(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiberglass Fabirc,Fibergalsss roving,AR-Fiberglass,Milled Fiberglas,Fiberglass powder
4. why should you buy from us not from other suppliers?
More then 15 years manufacture and trading experience for all fiberglass material etc,many years design and resaerch
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
