Product Overview
Description
Product Overview

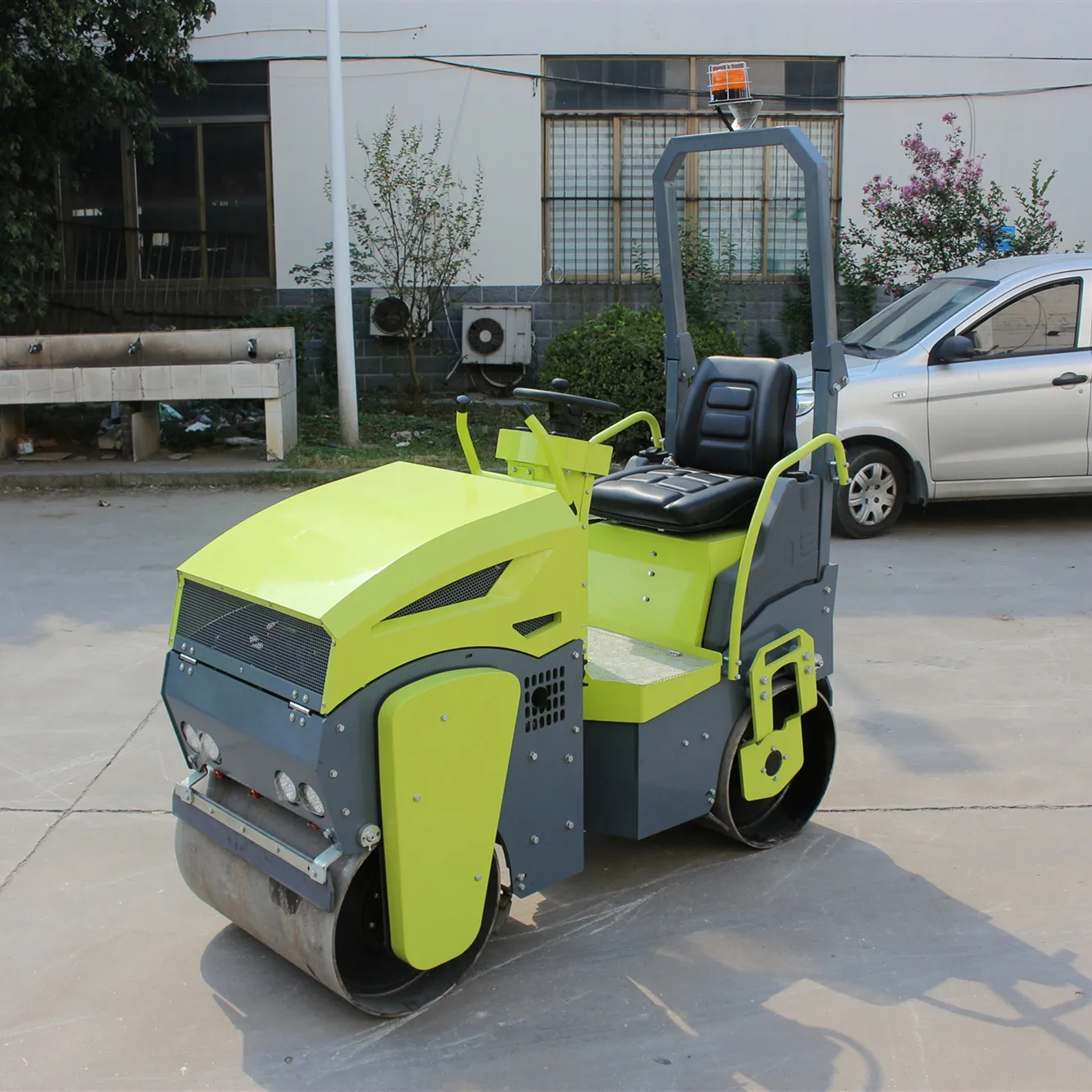

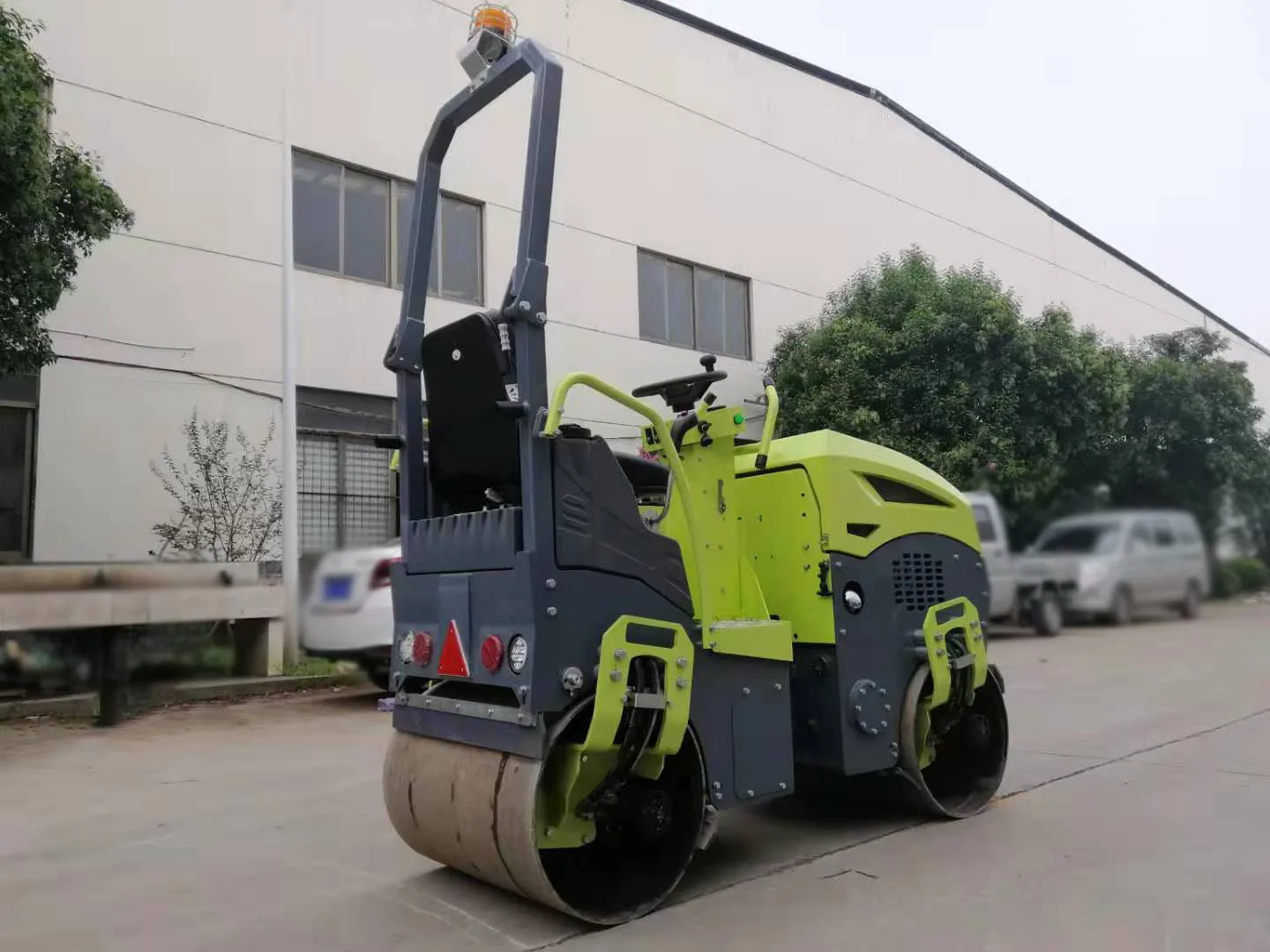

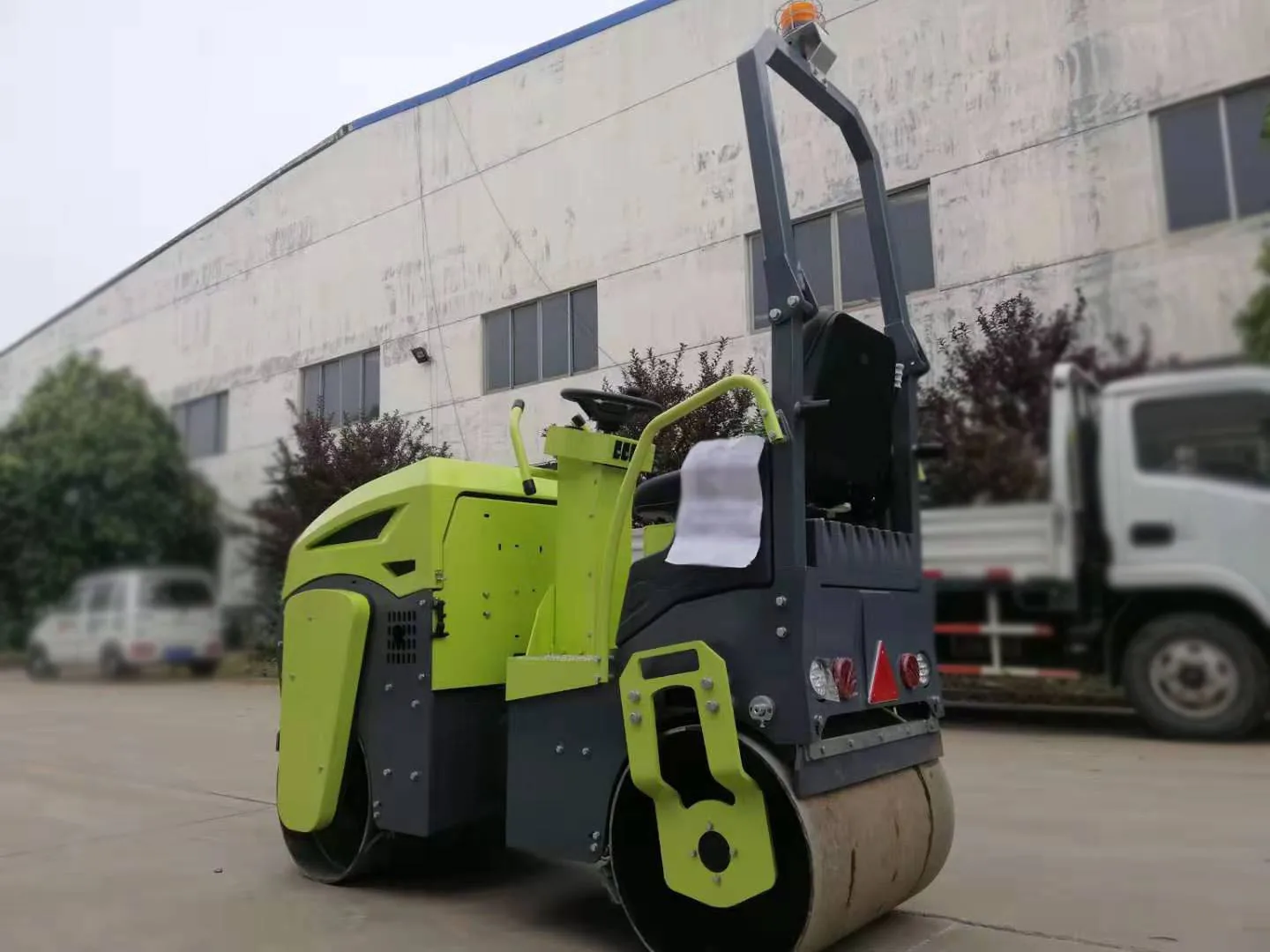

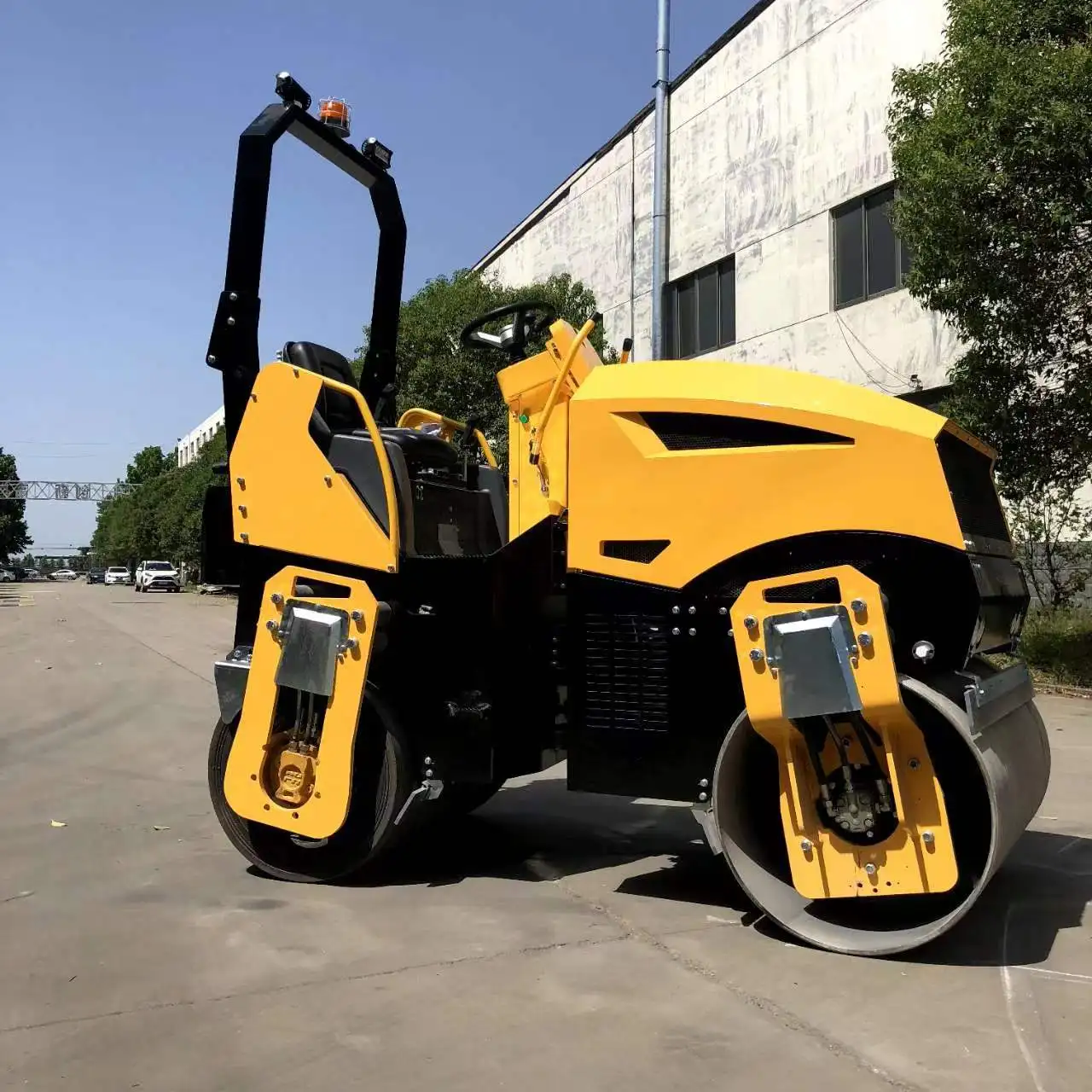

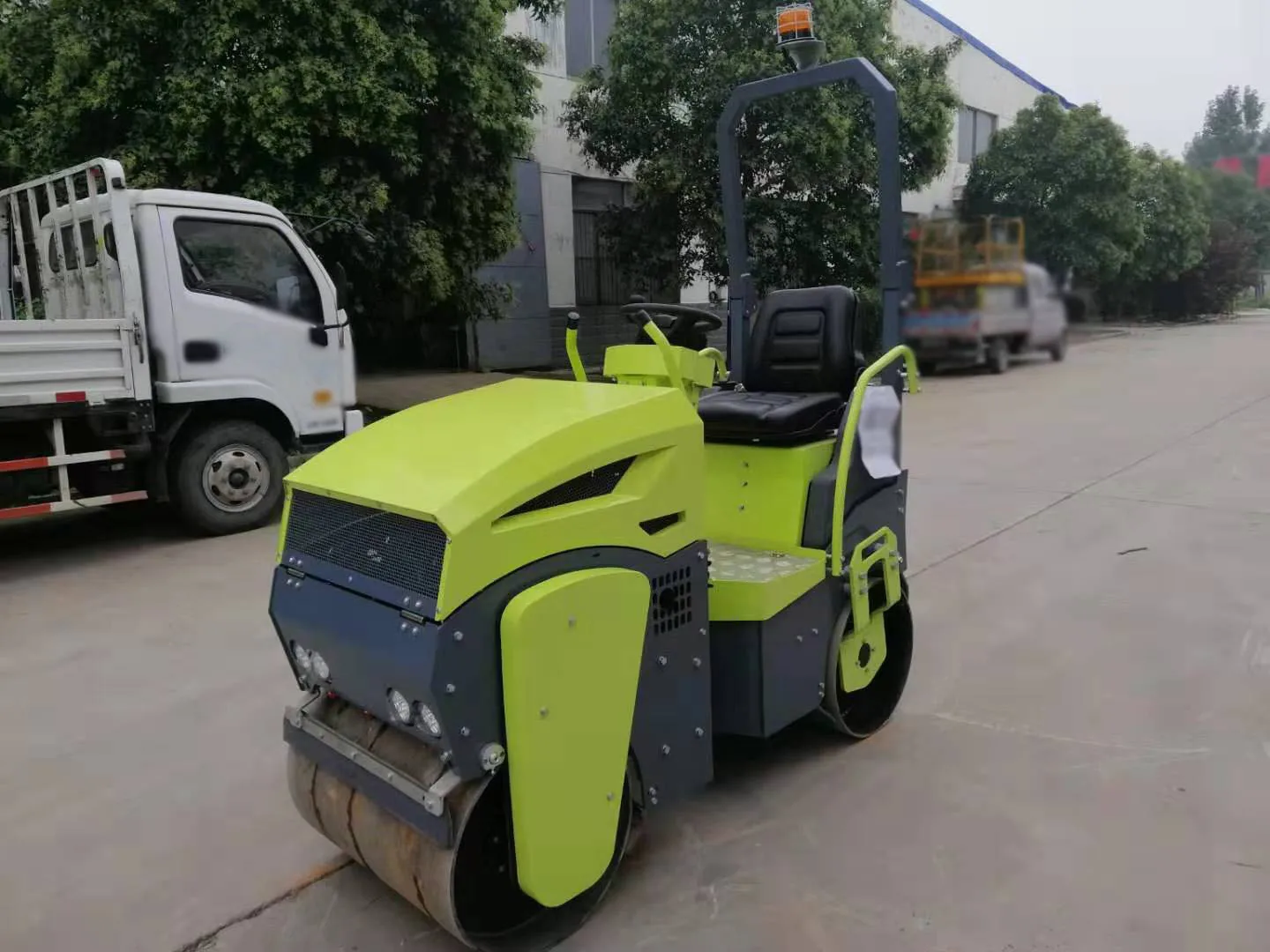

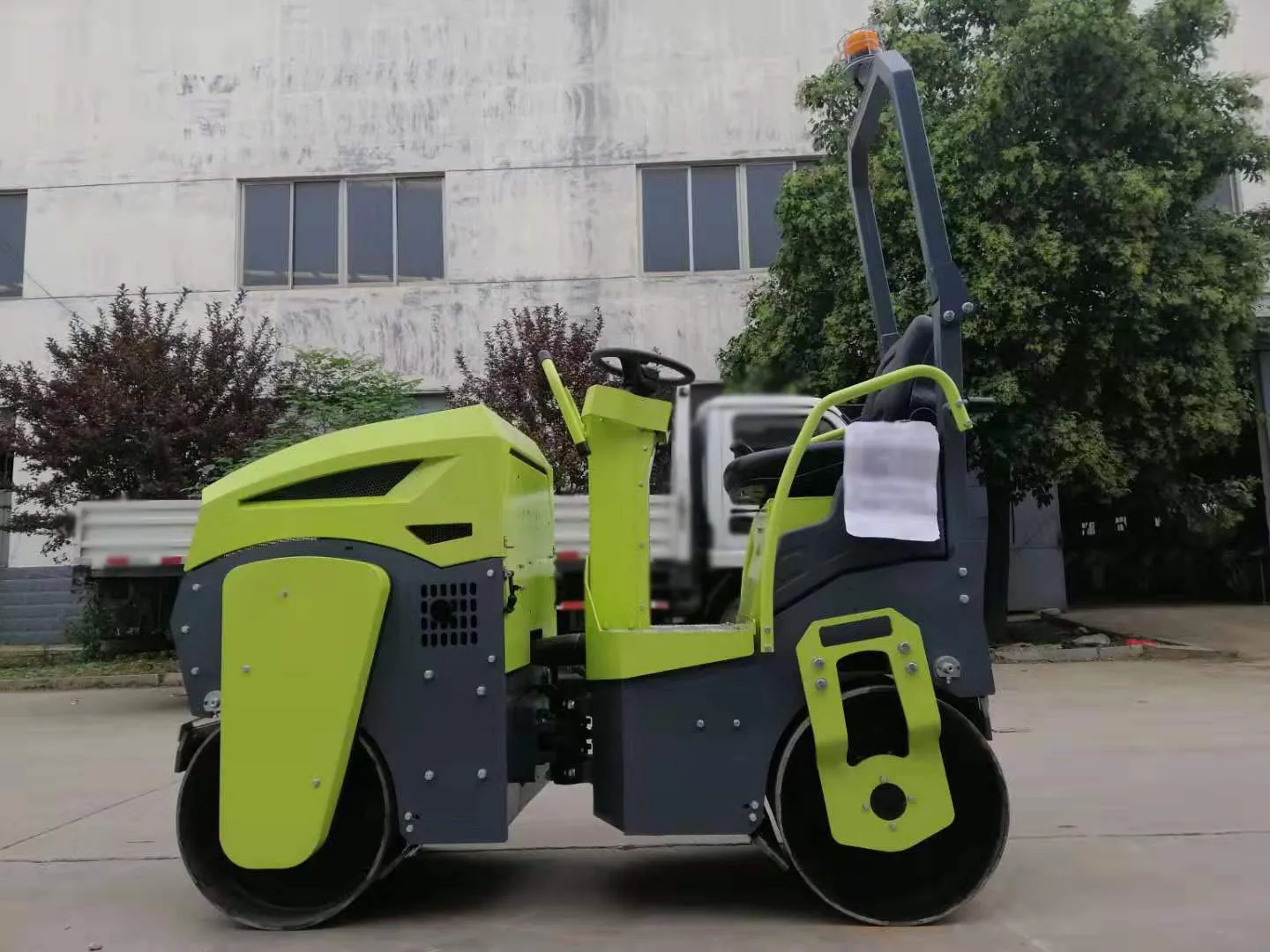

Articulated double drum vibratory roller
ST1200 road roller can be used for compaction of soil, asphalt roads, sidewalks, Bridges and culverts, parking lots, sports venues and narrow venues, vertical vibration, large vibration force, high compaction efficiency, is the ideal equipment for highway, municipal departments to build roads, streets, squares.
1.Equipped with well-known brand strength, quality assurance, superior performance
2.Eagle-eye body design, wide field of vision, beautiful and generous
3.Imported hydraulic variable pump and quantitative motor, stepless speed change, walking forward and backward
4.The control panel is fully functional, one-key operation
5.Front and rear lighting and warning lights can be constructed at night
6.Ergonomic driving
7.The product has passed CE certification and won the Red Star 8.Design Award
2.Eagle-eye body design, wide field of vision, beautiful and generous
3.Imported hydraulic variable pump and quantitative motor, stepless speed change, walking forward and backward
4.The control panel is fully functional, one-key operation
5.Front and rear lighting and warning lights can be constructed at night
6.Ergonomic driving
7.The product has passed CE certification and won the Red Star 8.Design Award
FEATURES AT A GLANCE

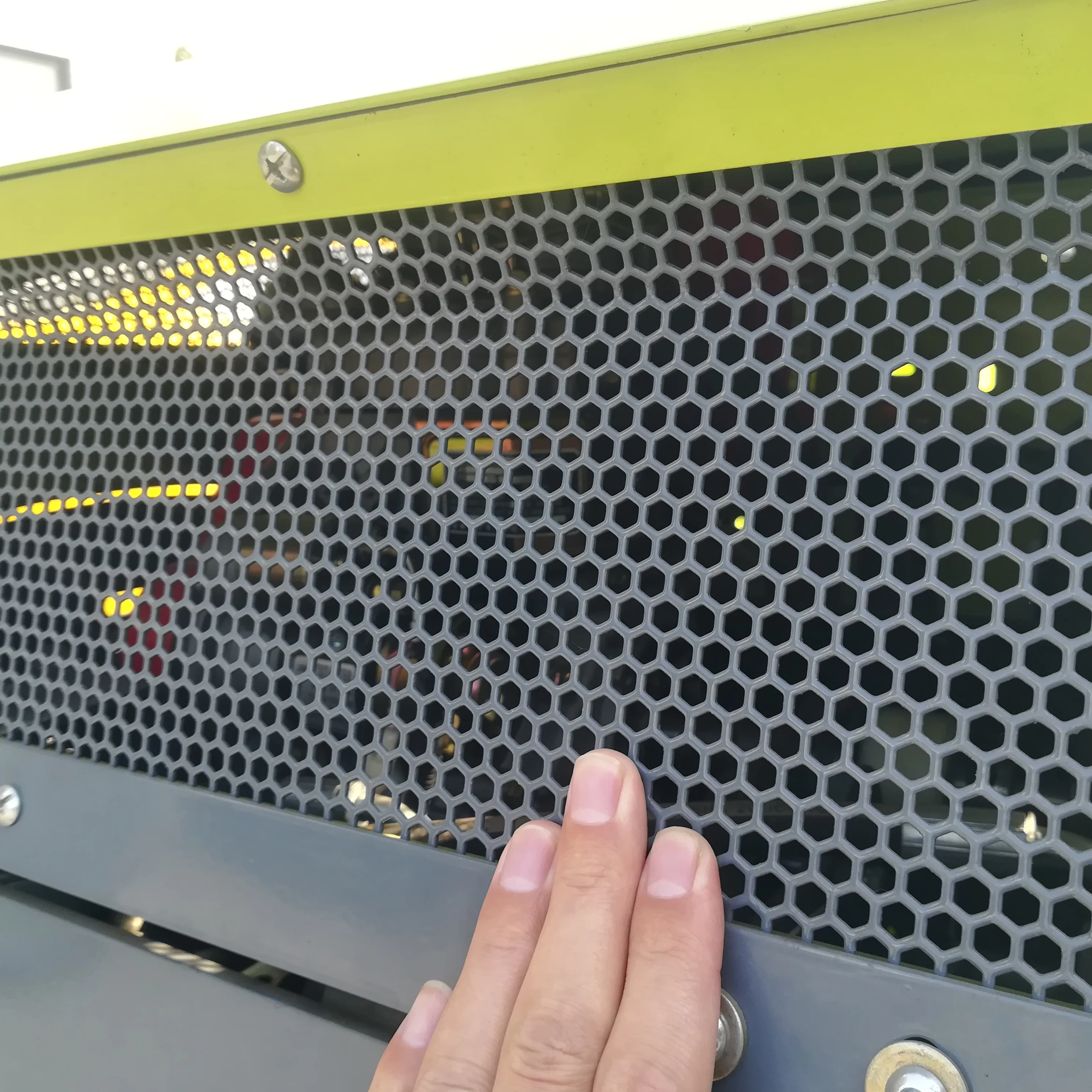

The motor will get hot for a long time, and the heat dissipation hole can reduce the temperature of the machine.

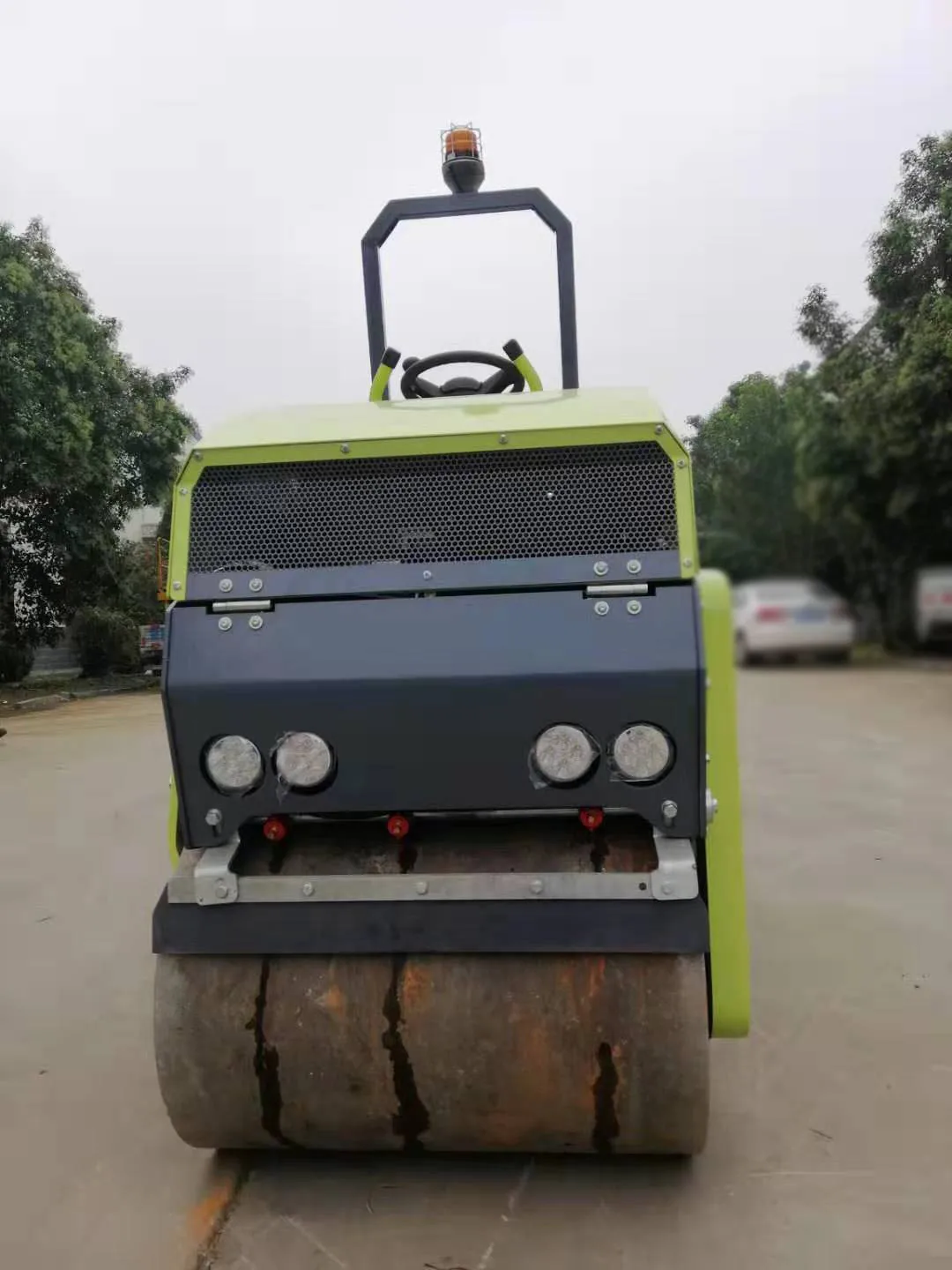

Equipped with light.
Making night work possible
Improve safety at work

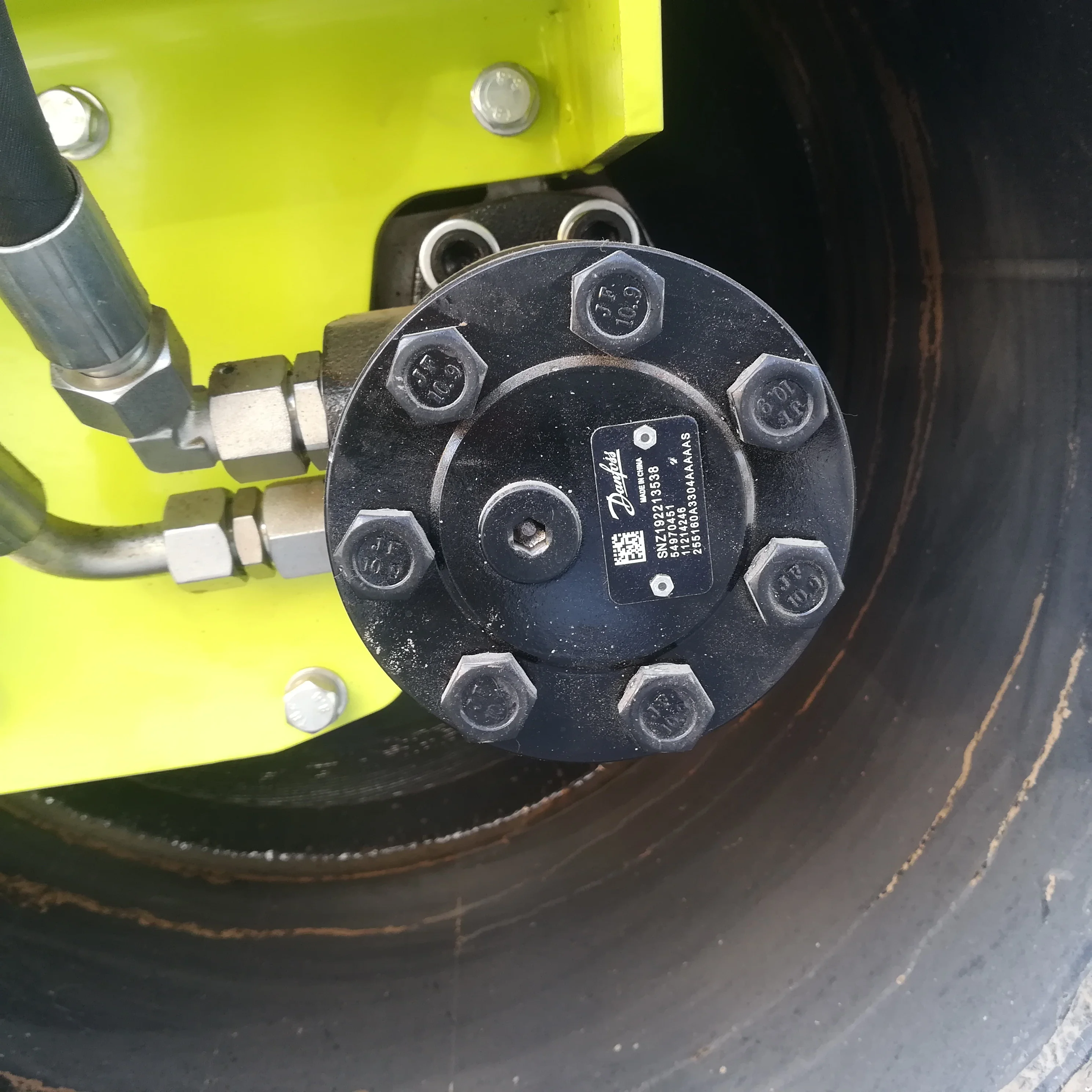

Driving the machine to walk,
Our product divides into single motor and double motors.
This product in the picture has double motors.

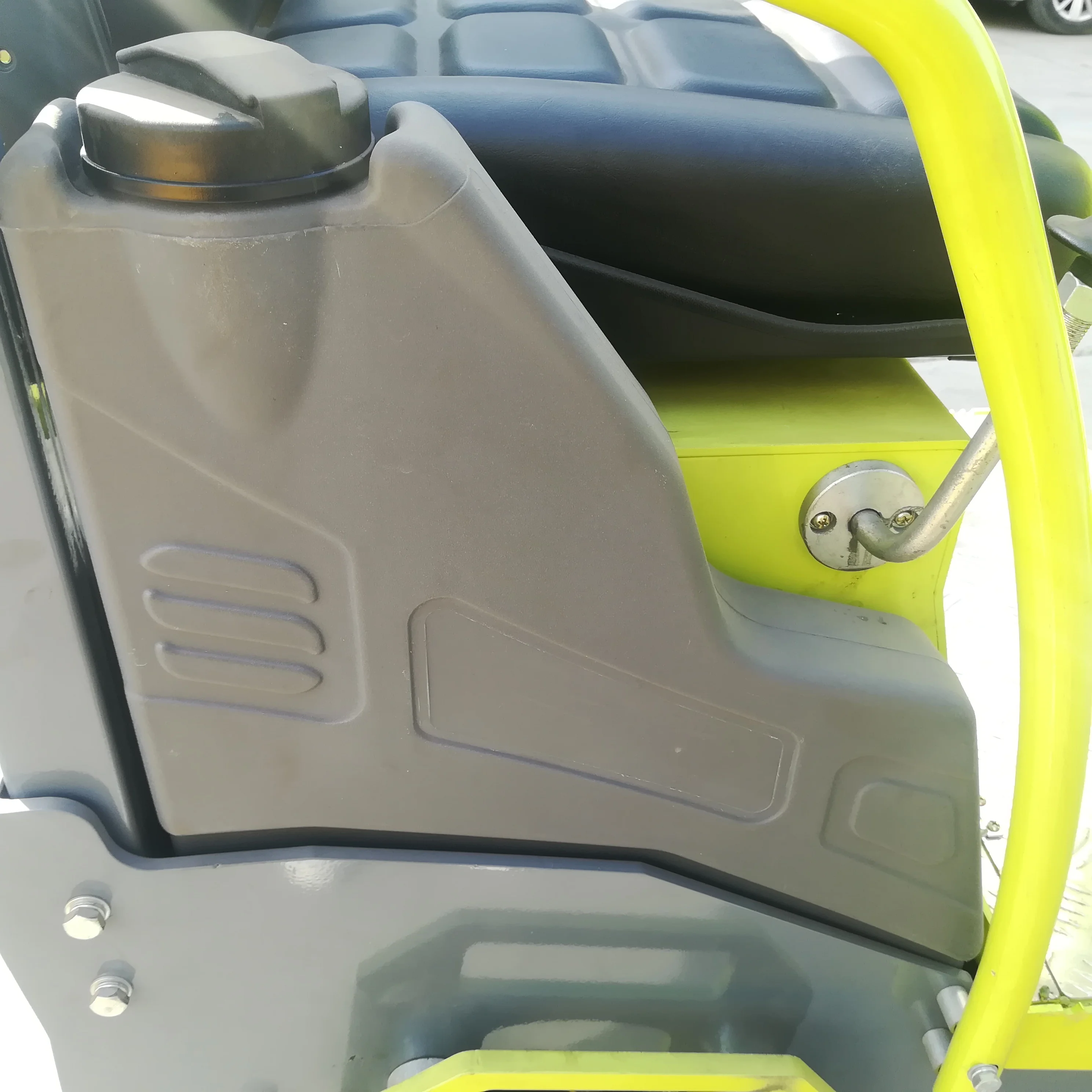

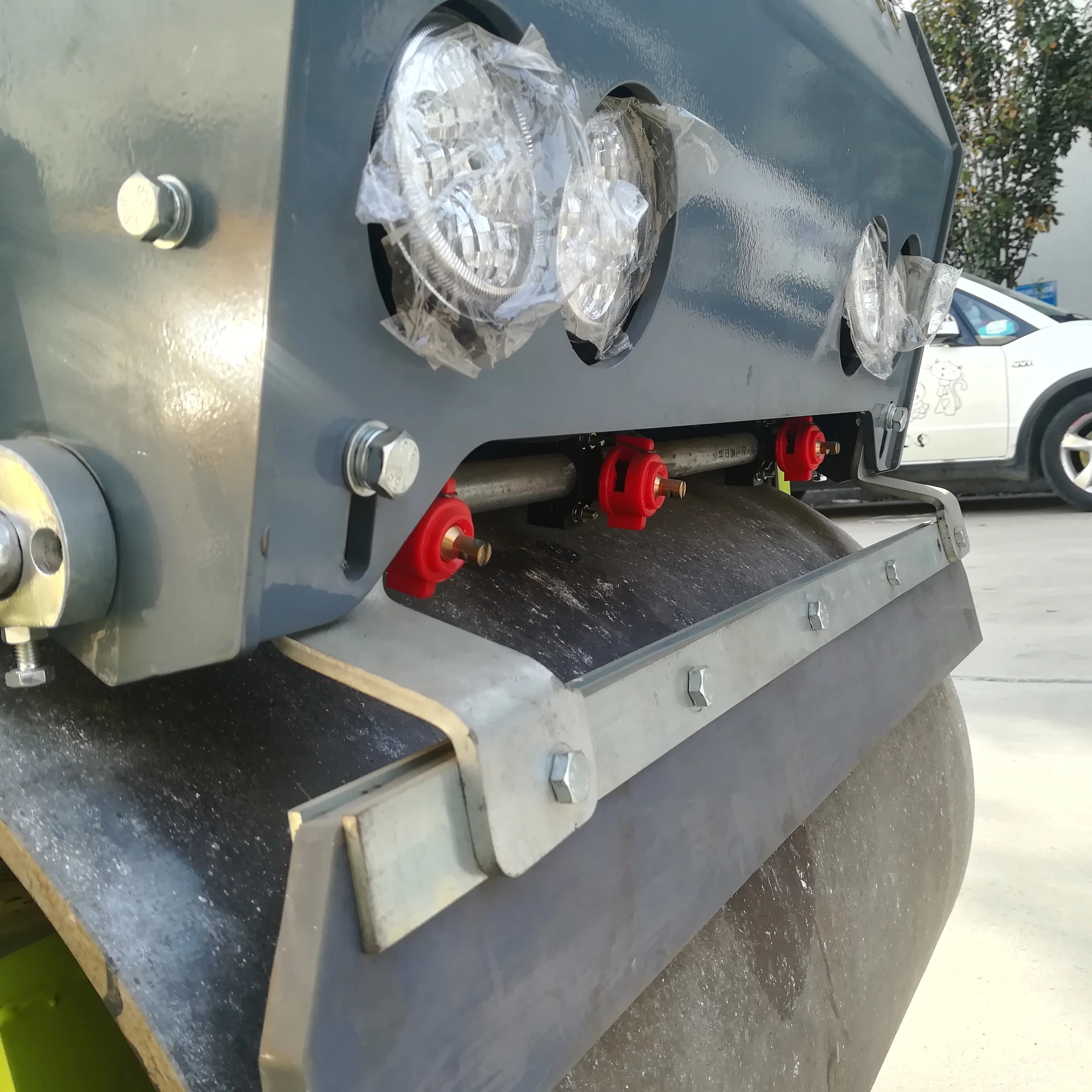

The iron water tank is easy to rust and easy to block the spray nozzle.
Rotomized water tank is more durable.
PRODUCT SPECIFICATIONS
Model | ST1200A | ST1200B | ST1200S | |||||
Operating weight kg | 1100 | 1100 | 1130 | |||||
Static line load n/cm | 56/ 77 | 56/77 | 58/77 | |||||
Size | ||||||||
Overall length | mm | 1780 | ||||||
Working width (W) | mm | 825 | ||||||
Overall height(H) | mm | 1985 | ||||||
Minimum height (HI) | mm | 1450 | ||||||
Drum width (WI) | mm | 700 | ||||||
Wheelbase | mm | 1230 | ||||||
Drive | ||||||||
Engine brand | HONDA | CHANGFA CHANGCHAI | FUZHOU GOLDEN FLYING FISH | |||||
Engine model | GX390 | 186F | RD90N-1 | |||||
Engine type | GASOLINESINGLE-CYLIND: ERVERTICALFOUR-STROKE OVERHEAD VALVE | SINGLE CYLINDER VERTICAL AIR COOLINGFOUR-STROKE DIESEL ENGINE | SINGLE CYLINDER HORIZONTAL WATER COOLING FOUR-STROKE DIESEL ENGINE | |||||
Number of cylinders | 1 | 1 | 1 | |||||
Output Power | kw | 9.7 | 6 | 5.88 | ||||
Rotating speed | rpm | 3600 | 3600 | 3600 | ||||
Electrical Equipment | V | 12 | ||||||
Drive mode | Variable displacement piston pump infinitely variable two-wheel series | |||||||
Walking characteristics | ||||||||
Speed | km/h | 0-5 | ||||||
Theoretical climbing ability | 30 | |||||||
Brake | ||||||||
Working brake | Variable displacement piston pump | |||||||
Turn | ||||||||
Steering method | Hydraulic steering | |||||||
Steering system | Swing articulated | |||||||
Vibration system | ||||||||
Vibrating drum | Front | |||||||
Drive form | Mechanical transmission Electromagnetic clutch | |||||||
Vibration frequency | hz | 70 | 65 | |||||
Vibration amplitude | mm | 0.5 | ||||||
Exciting force | kn | 25 | ||||||
Sprinkler system | ||||||||
Form | Intermittent pressure spray | |||||||
Capacity | ||||||||
Hydraulic oil capacity | L | 15 | ||||||
Fuel capacity | L | 6.5 | 5.5 | 10 | ||||
Water tank capacity | L | 75 | ||||||
