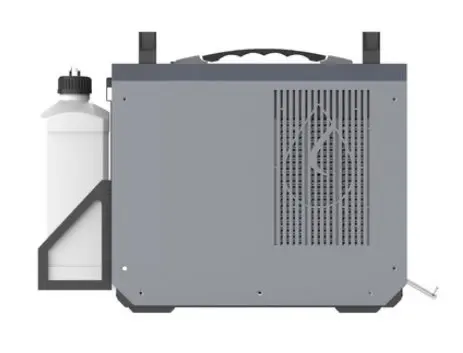

50W Portable Direct Methanol Fuel Cell DMFC Power Generator for Commercial Applications

Product Overview

Description

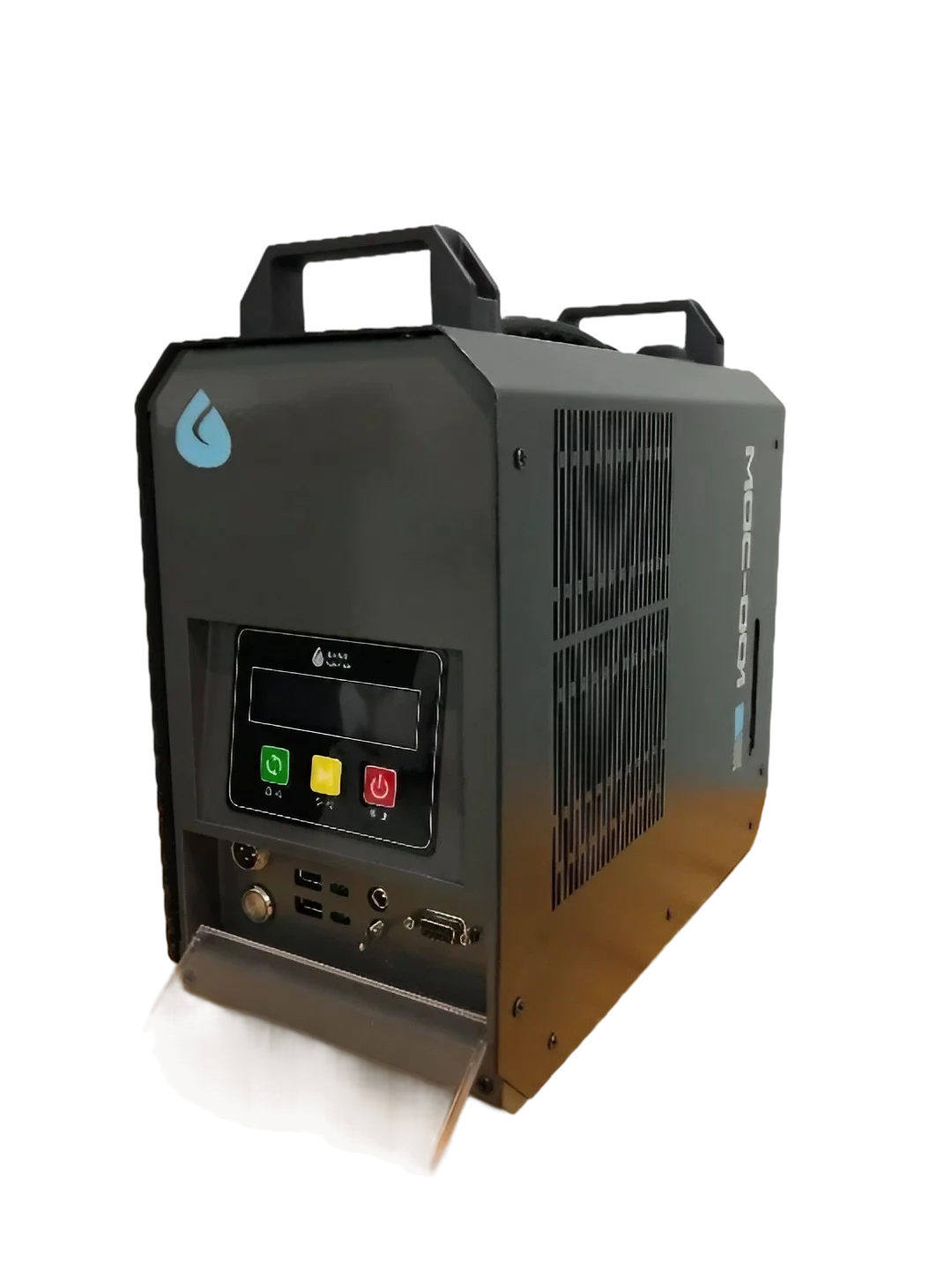

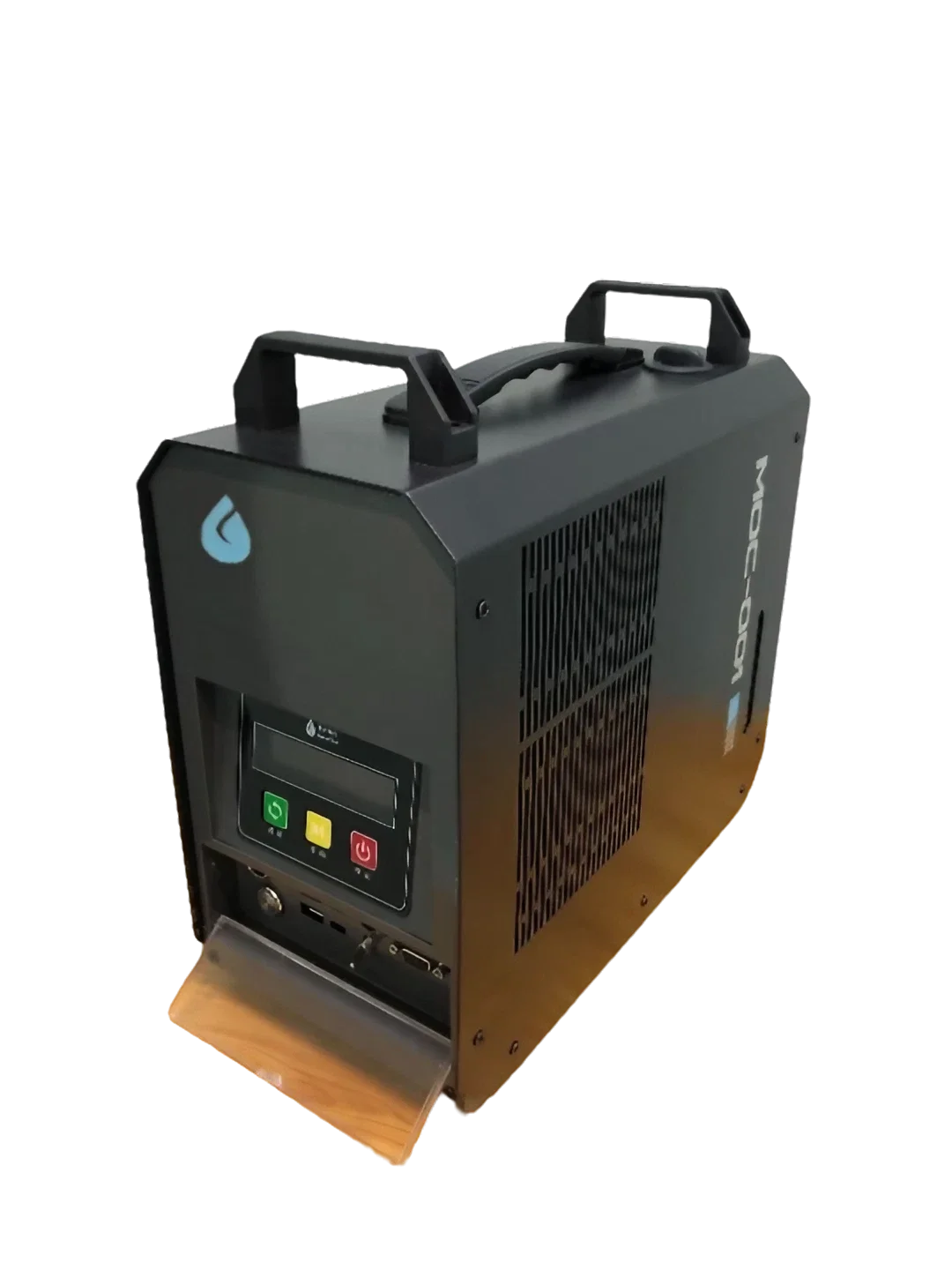

50W Portable Direct Methanol Fuel Cell Power Generator





Methanol is oxidized to form carbon dioxide with action of anode catalyst, and electrons and protons are released.  The protons are transferred to the cathode through electrolyte membrane, while the electrons working through the external circuit are transferred to the cathode region. The electrochemical reduction reaction occurs with protons and oxygen reaching the cathode catalytic layer under the action of the cathode electrocatalyst to produce water. Under standard conditions, the specific energy of methanol fuel is 600Wh/kg.

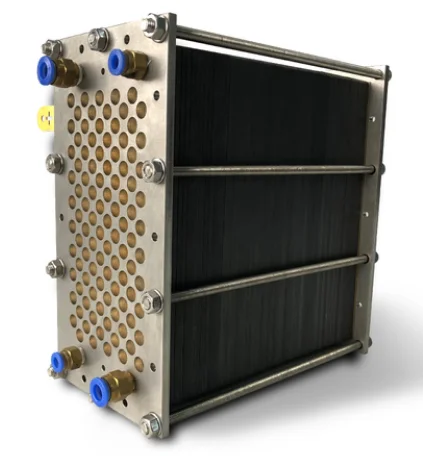

The configuration of DMFC is shown below.

Features:

The portable DMFC power pack uses methanol as fuel to generate electric energy. It can charge batteries or directly power equipment. It is a reliable portable power source.

Low characteristic signal; resistant to EMI
Converting chemical energy directly to electricity, and the working cost is only 1/3~1/2 of gasoline or diesel generators
The only byproducts are water and little carbon dioxide
Supply power for equipments in the vehicle to meet mobile power needs

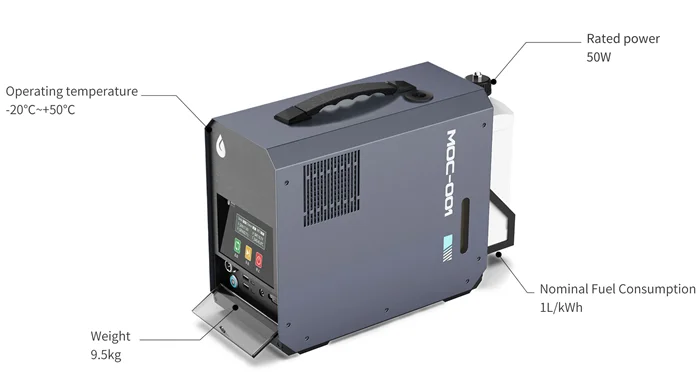

Specifications:

Rated power: 50W

Rated Voltage: 12VDC

Maximum Current: 5A

Built-in Battery:7.5Ah

Noise@1m: ≤65dB

Fuel Consumption:1L/kWh

Work Temperature:-20°C~+S0°C

Protection level: IP42 (waterproof version available)

Dimension:284x149x265mm

Weight: 9.5kg

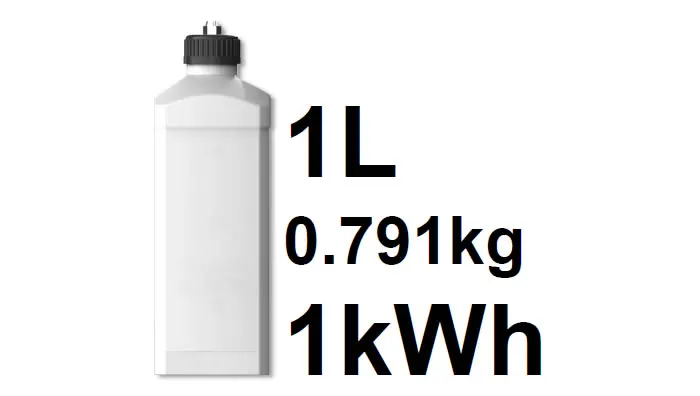

Standard Fuel Cartridge

Volume: 1L

Weight: 820g

Nominal Energy: 1kWh

Dimension: 75x75x260mm



Package List

50W DMFC Generator 1

Start Fluid 200ml  1

Fuel Cartridge       1

Manual  1
