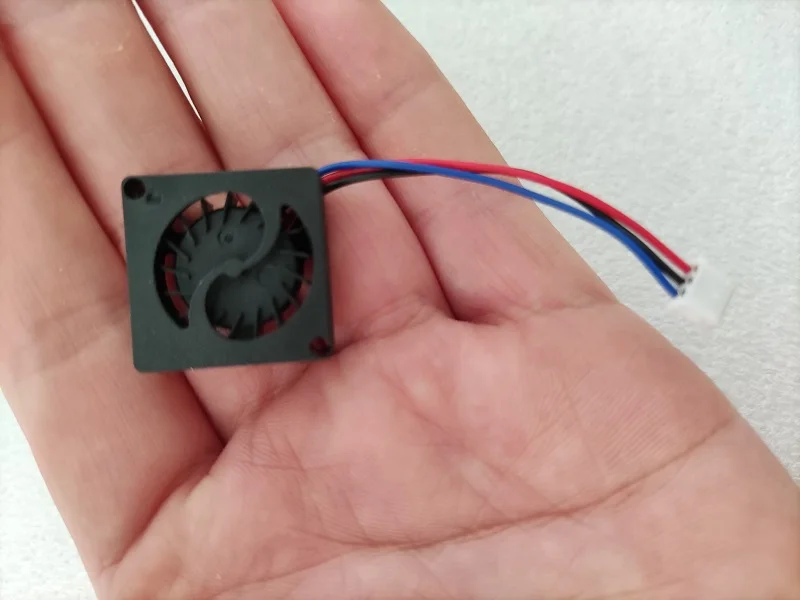

Factory Direct Sales 2008 Blower Micro Fan For Air Detector Handheld 20x20x8mm Mini Centrifugal Blower
- Category: >>>
- Supplier: Shenzhen Feng Huishun Technology Development Co. Ltd.
Share on (1600927034622):
Product Overview
Description
Product Description
Product Name | DC Blower Fan |
Product Dimension | 20x20x8mm(Length* Width *Thickness) |
Material | Plastic impeller & frame |
Rated Voltage | 3.3V/5V |
Speed | 7500RPM~11000RPM |
Max Air Flow | 0.66CFM (It can also do other CFM according to your requirements) |
Bearing | Hydraulic bearing |
Life Expectancy | 30000hours at 25°C |
Function (optional) | PWM Control / FG Tacho / RD Alarm |
Feature (optional ) | Locked Motor Protection,Auto Restart,Polarity Protection,Soft Start |

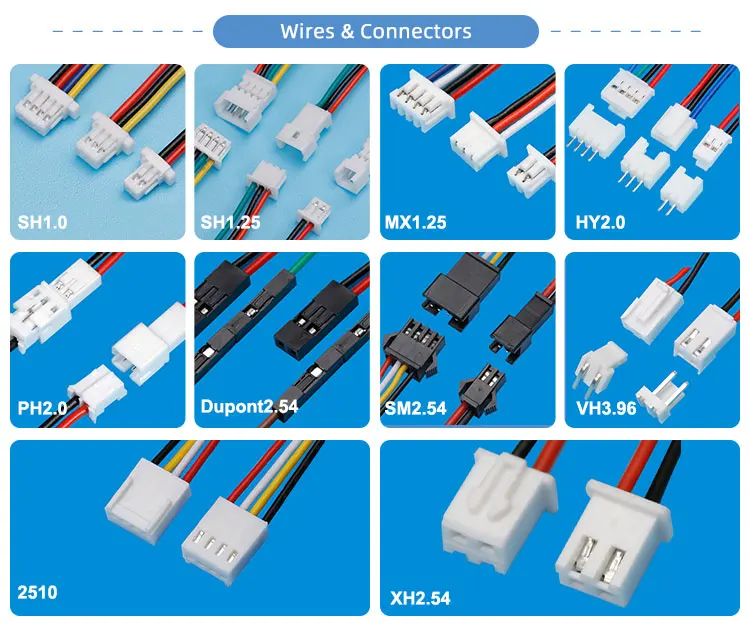

Wire & Connector & Tube | Wire length & Connector model ( as required ) |
Storage temperature range | -30~+70 C° (No-condensing) |
Operating temperature range | -10~ +70 C° (No-condensing) |
Package | Carton box,we can also according to the requirements of customers. |

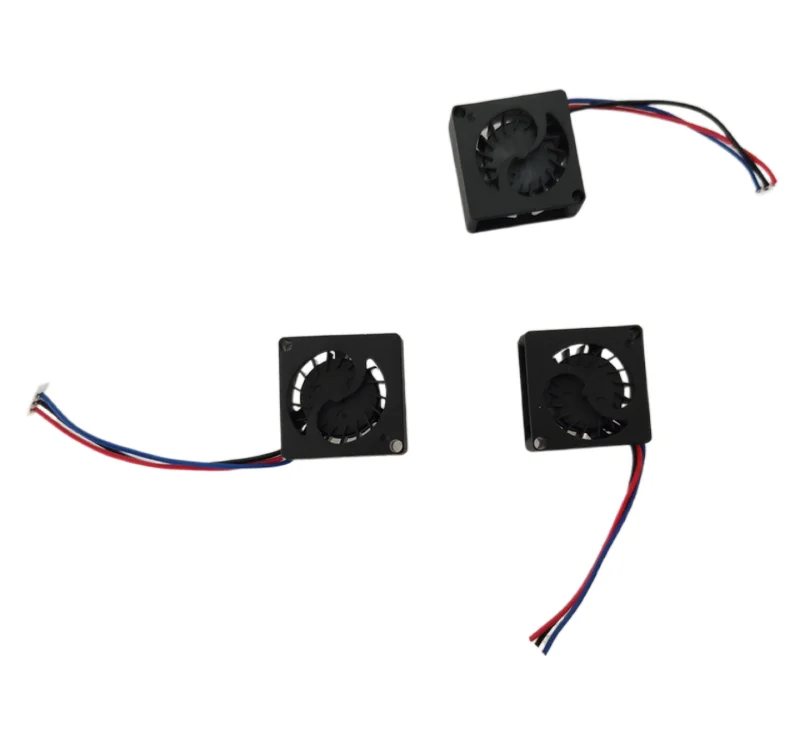

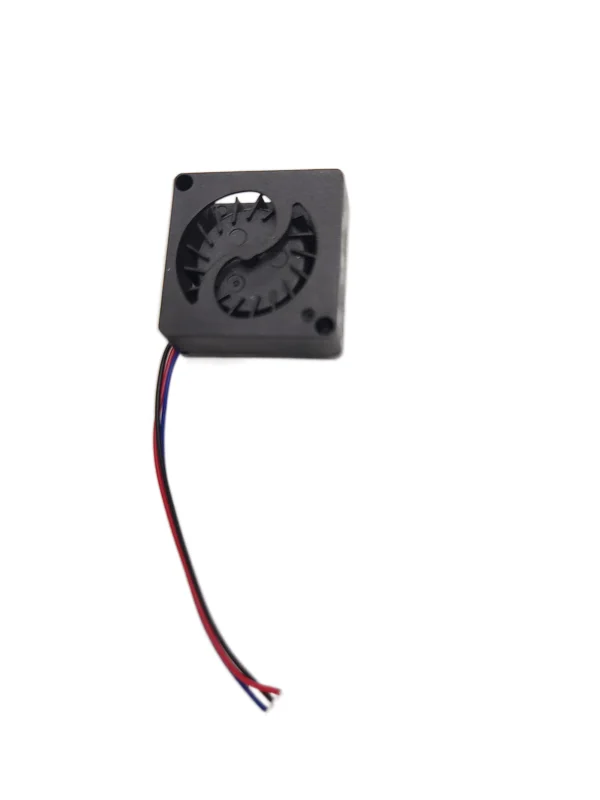

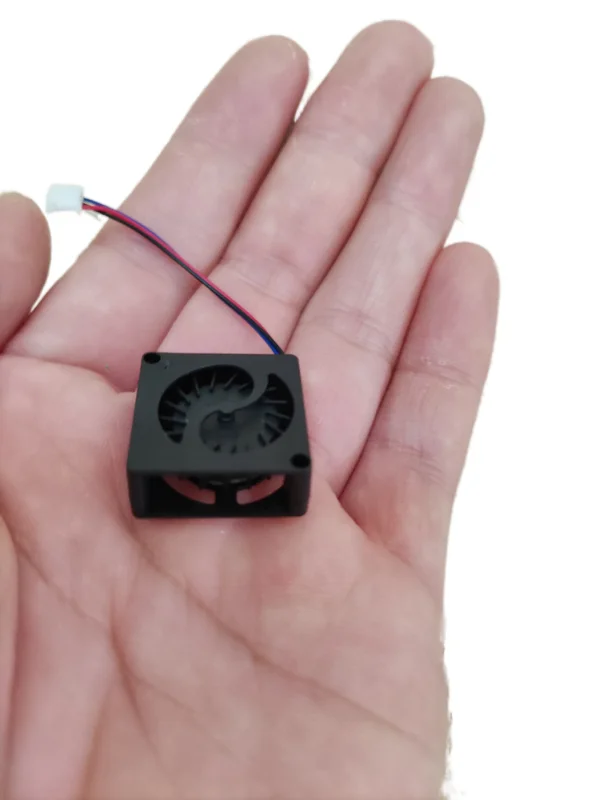

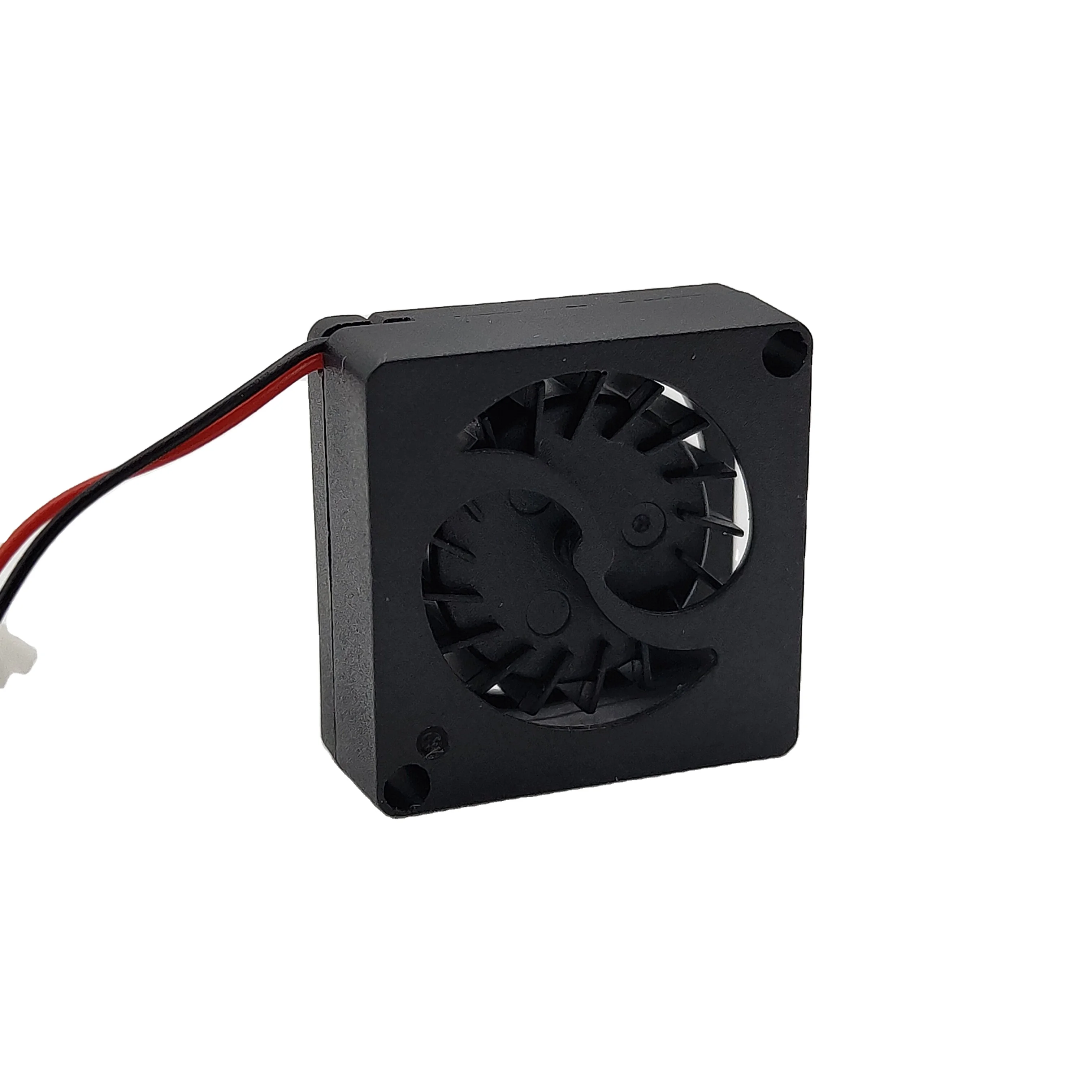

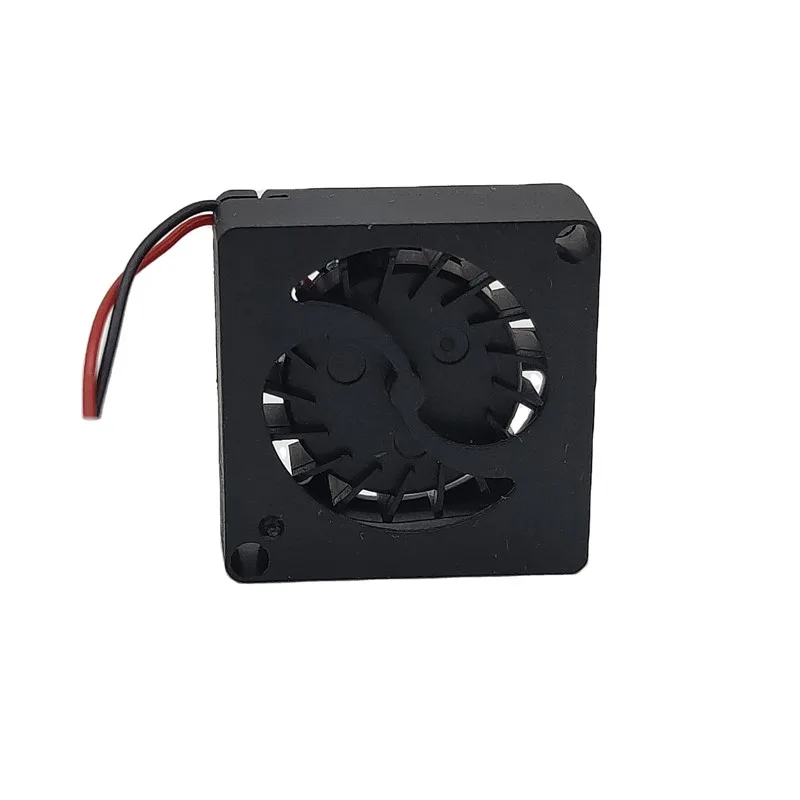

Details Images

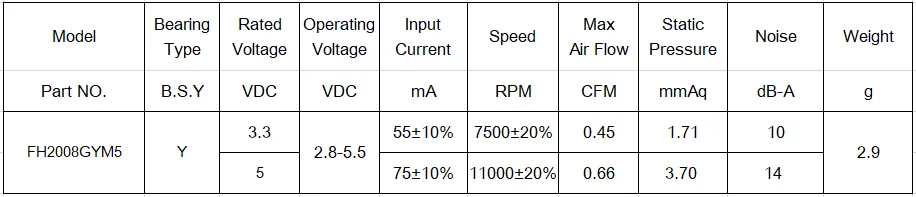

Product Specification

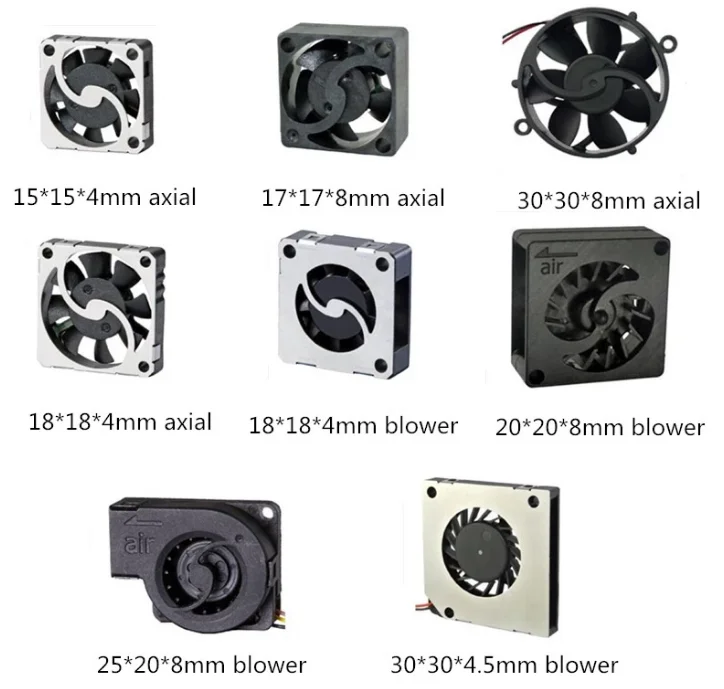

The specifications of some models are as follows:
Remarks
Other RPM/CFM/Voltage/Current...please contact us see the specification for more details. All models could be customized on voltage or any other requirements to fit your needs.

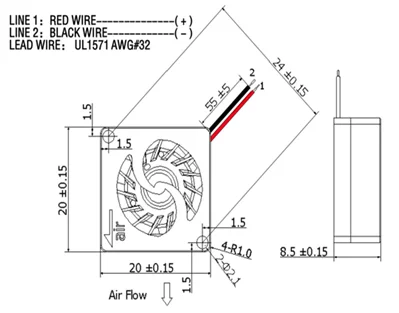

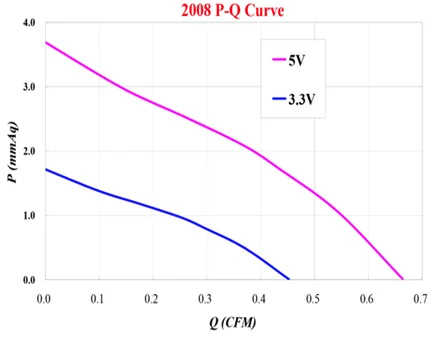

Dimensions(Unit：mm) Fan Performance Curve
Recommend Products

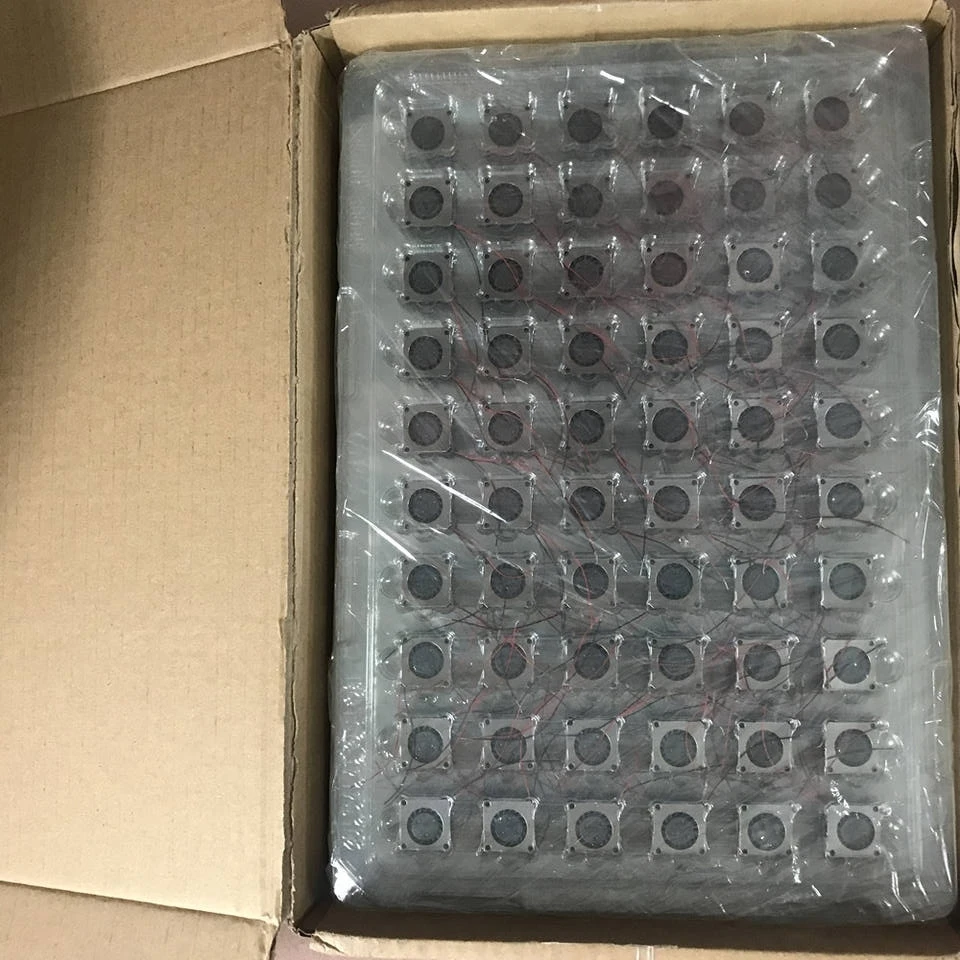

Packing&Shipping
1. Standard Packaging, inside single package, out carton package.
2. Upon customers' request, but the price is different with neutral packing.
Usually we deliver the goods to express by DHL/UPS/FEDEX,ect. If you have any questions, you can also consult The Customer Service Center or our sales for details,thanks for your cooperation.
Company Introduction
Shenzhen Feng Huishun Technology Development Co., Ltd. (Funfan) is a professional manufacturer of brushless cooling fans, including dc axial-flow fans, blower fans, centrifugal fans, cross flow fans, AC/EC fans etc.The products are widely used in the computer information industry, network communication industry, industrial production equipment, air purification, automobile, Commercial household appliances and other fields.
The fan of our company has stable quality, good heat dissipation effect, strong air flow, low noise, high temperature resistance, low temperature resistance, long service life, low consumption, beautiful appearance and other advantages.
Feel free to contact us for any customized fans solutions.
The fan of our company has stable quality, good heat dissipation effect, strong air flow, low noise, high temperature resistance, low temperature resistance, long service life, low consumption, beautiful appearance and other advantages.
Feel free to contact us for any customized fans solutions.
Factory
Sales department
Workshop
Assembly line 1
Assembly line 2
Quality control
Product test
Packaging
Warehousing
FAQ
1. What are kinds of cooling fan or centrifugal fan supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan,blower fan,centrifugal fan and cross flow fan.
2. What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3. How many types bearing of our cooling fan are there in our company at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000-80,000 hours.
4. How to detect the data of cooling fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5. How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan,blower fan,centrifugal fan and cross flow fan.
2. What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3. How many types bearing of our cooling fan are there in our company at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000-80,000 hours.
4. How to detect the data of cooling fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5. How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
6. What is your warranty ?
Answer: we offer an 12 months warranty and on line engineer support.
Answer: we offer an 12 months warranty and on line engineer support.
7. Can you produce according to the samples?
Answer: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Answer: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
8.Can you provide OEM/ODM services?
Answer: sure ,like tooling , packing and others, our engineer will do our best to meet with your requirement!
Answer: sure ,like tooling , packing and others, our engineer will do our best to meet with your requirement!
