Product Overview

Description



Product Description

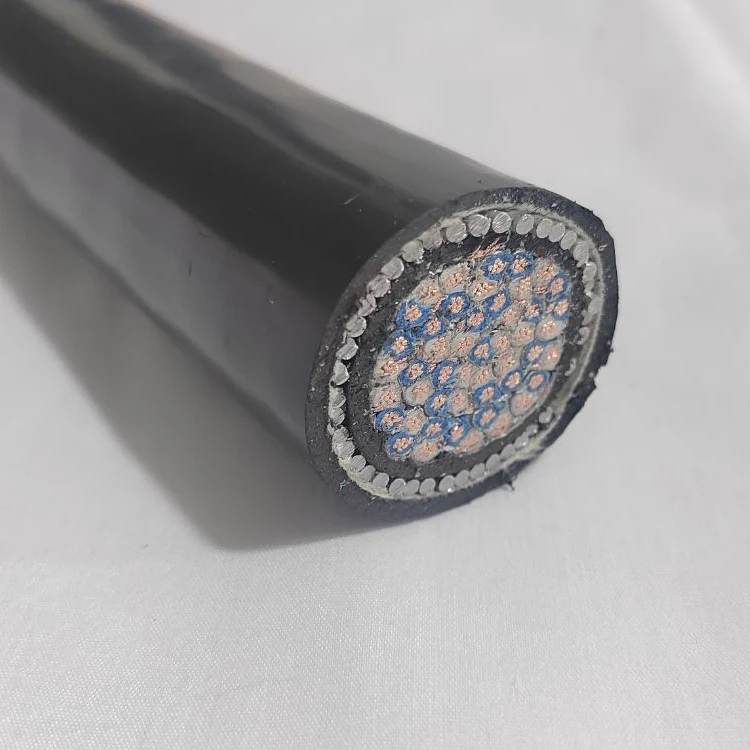

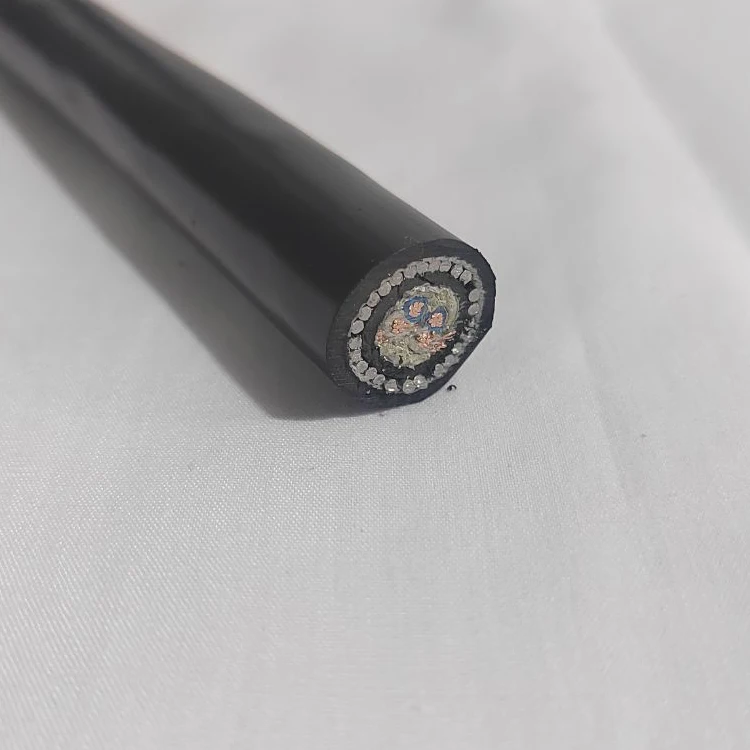

DC Power 300/500V 12A Stranded Copper Conductor Power Con Instrument Cable 20 Pairs

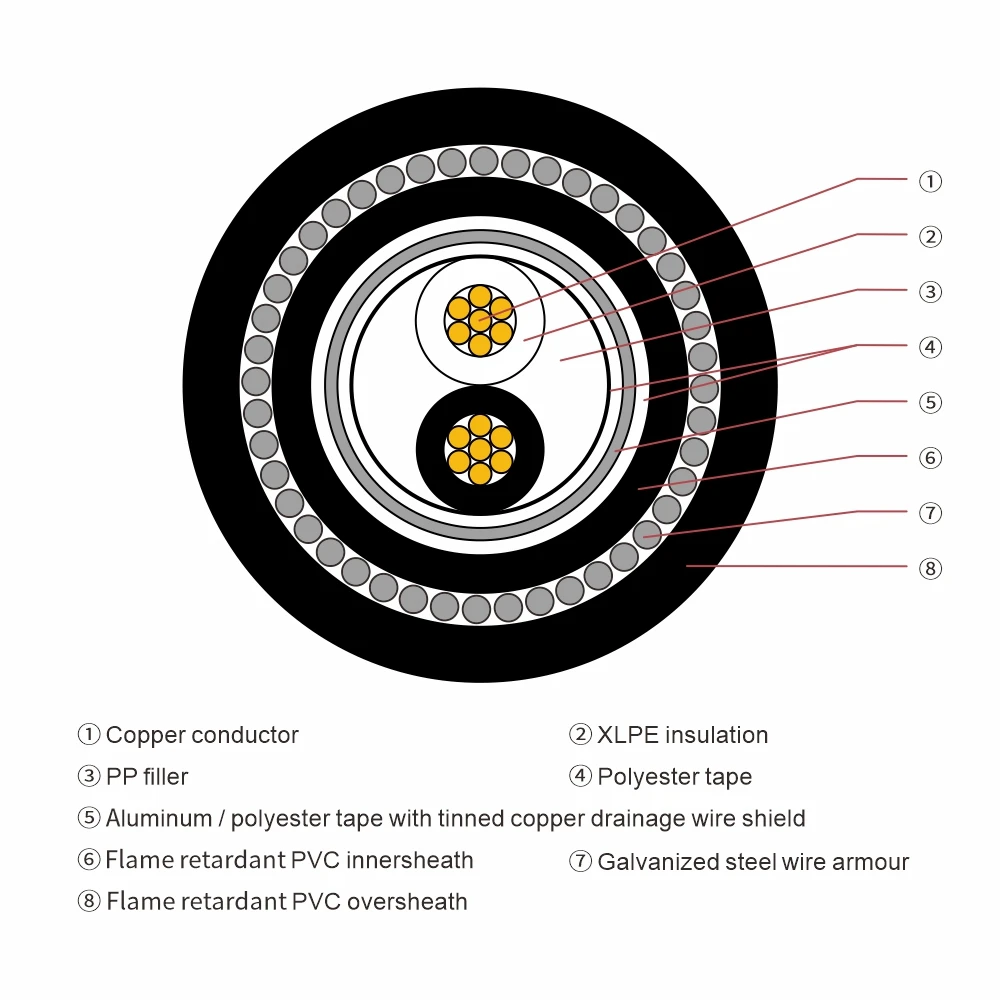

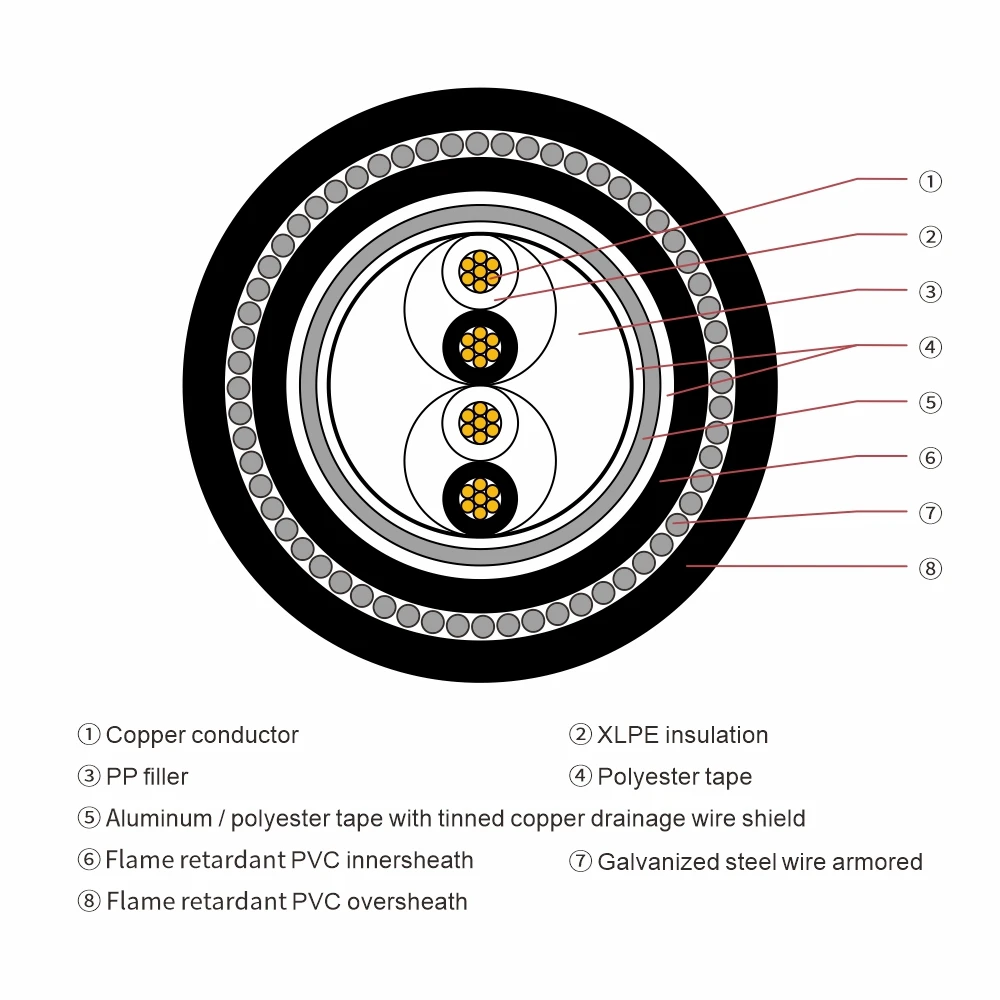

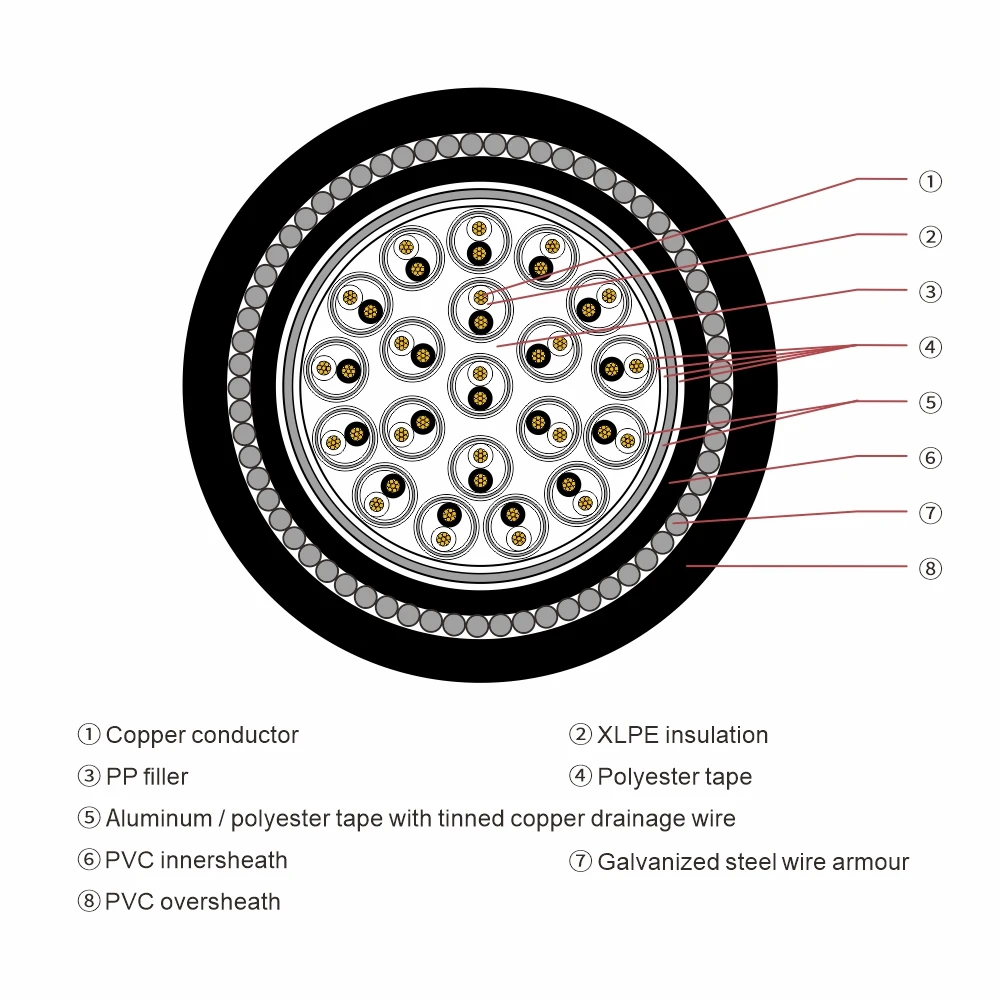

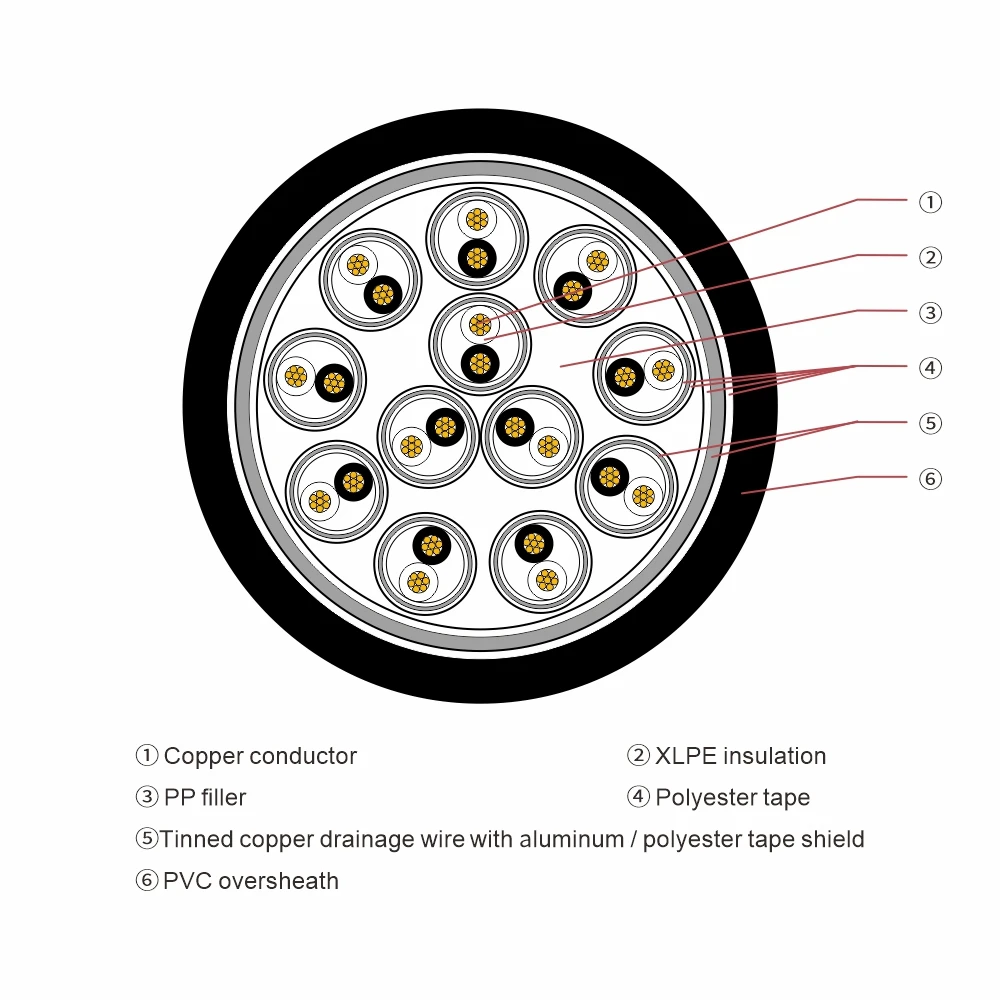

Conductor : Stranded copper conductor
Insulation : PE/XLPE/PVC
Armoring : Galvanized steel wire or others
Sheath : PVC(polyvinyl chioride)






Pairing : two insulated cores shall be uniformly twisted together to form a pair with maximum lay length of 100mm.
Overall screening : Accumulated pairs screened with aluminum/mytar tape, helically applied with the metallic side down in electrical contact with a tinned annealed copper drain wire 0.5mm2
Individual screening : each pairs screened with aluminum/mytar tape, helically applied with the metallic side down in electrical contact with a tinned annealed copper drain wire 0.5mm2
Cabling: twisted pairs are laid up together, if necessary filled with non-hygroscopic material compatible with the insulation.
Application : Instrumentation cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry






Specification




No. of Pairs
Stranding
Dia
Mom.
Insulation
thickness
Nom.
bedding
thickness
Approx.
dia.over
bedding
Nom.
Dia.of
armour
wire
Nom.
Outer
sheath
thickness
Approx.
Overall
Dia
Weight
Approx
mm
mm
mm
mm
mm
mm
mm
kg/km
0.5mm²(solid)
2
1/0.8
0.5
0.9
9.7
0.9
1.4
14.3
345
5
1/0.8
0.5
12
13.0
1.25
1.5
185
610
10
1/0.8
0.5
1.2
16.9
1.25
17
22.8
870
15
1/0.8
0.5
1.3
19.7
1.5
1.7
26.3
1265
20
1/0.8
0.5
1.3
22.3
1.6
1.8
29.1
1475
30
1/0.8
0.5
1.5
27.1
1.6
1.9
34.1
1915
50
1/0.8
0.5
2.0
35.0
2.0
2.2
43.4
3075
1.0 mm²(solid)
2
1/1.13
0.6
1.1
11.9
0.9
1.5
16.7
435
5
1/1.13
0.6
1.2
15.4
1.25
1.6
21.1
755
10
1/1.13
0.6
1.3
20.5
1.6
1.8
27.3
1300
15
11.13
0.8
1.5
24.1
1.6
1.9
31.
1665
20
1/1.13
0.6
1.7
27.7
2.0
2.0
35.7
2240
30
1/1.13
0.6
2.0
33.7
2.0
2.2
42.1
2950
50
1/1.13
0.6
2.2
42.5
2.5
2.5
52.5
4639
0.5 mm²(flexible)
2
16/0.2
0.6
1
11.2
0.9
1.5
16.0
400
5
16/0.2
0.6
1.2
14.5
1.25
1.6
20.2
680
10
16/0.2
0.6
1.3
19.3
1.6
1.8
26.1
1175
15
16/0.2
0.6
1.5
22.5
1.6
1.8
29.4
1420
20
16/0.2
0.6
1.5
25.7
1.6
19
327
1680
30
16/0.2
0.6
1.7
31.0
2.0
2.1
39.2
2415
50
16/0.2
0.6
2.2
39.9
2.5
2.4
48.7
3940
0.75mm²(flexible)
2
24/0.2
0.6
1.1
12.1
0.9
1.5
16.9
437
5
24/0.2
0.6
12
15.r
1.25
1.6
21.4
755
10
24/0.2
0.6
1.3
20.9
1.6
17
27.5
1291
15
24/0.2
0.6
1.5
24.6
1.6
1.9
31.6
1680
20
24/0.2
0.6
1.5
27.9
1.6
19
34.9
2202
30
24/0.2
0.6
2.0
34.4
2.0
2.2
42.8
2880
50
24/0.2
0.6
2.2
43.5
2.5
2.5
53.5
4406
1.5mm²(stranded)
2
7/0.52
0.6
1.2
13.6
1.25
1.6
19.3
635
5
7/0.52
0.6
1.3
17.7
1.6
1.7
24.3
1070
10
7/0.52
0.6
1.5
23.9
1.6
19
30.9
1605
15
7/0.52
0.6
1.7
28.0
2.0
2.0
36.0
2280
20
7/0.52
0.6
1.7
2.0
2.1
39.9
2730
30
7/0.52
0.6
2.0
38.6
2.5
2.5
48.5
4075
50
7/0.52
0.6
2.2
48.9
2.5
2.7
59.3
5765
