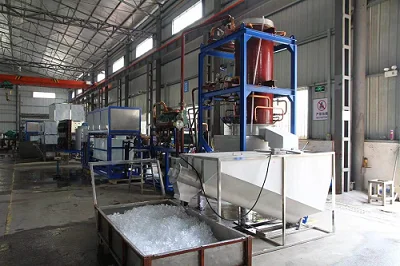

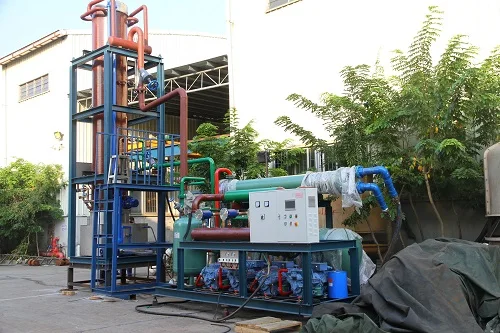

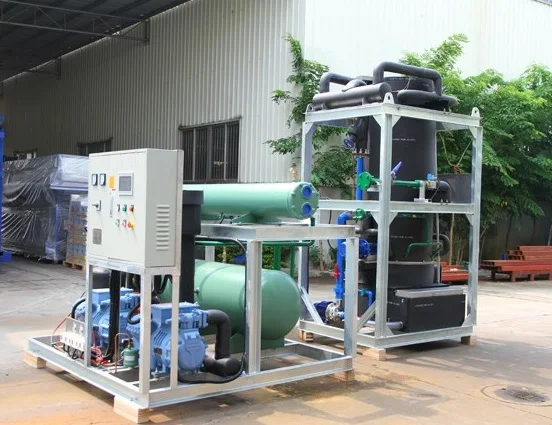

Industrial ice machine tube 10 ton with nice compressor water cooling
- Category: >>>
- Supplier: Jinan Robin Machinery Co. Ltd.
Share on (1600927058530):
Product Overview
Description
Product Description

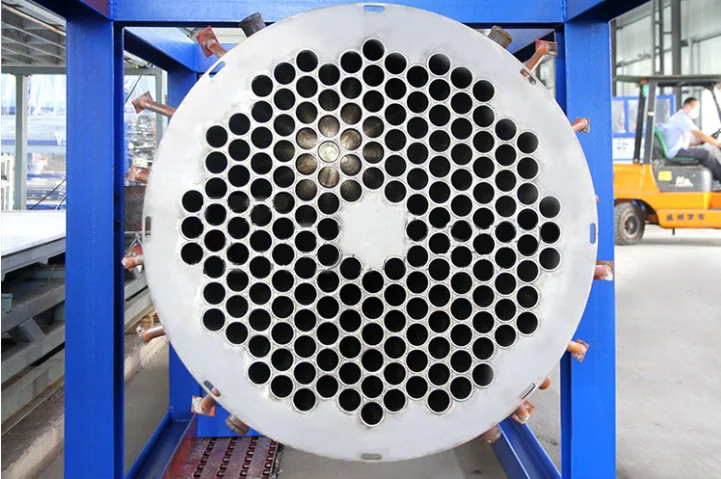

Robin tube ice machine is a type ice machine produces cylinder shape ice with a hole in the middle; it adopts flooded evaporator model, which improves ice making efficiency and capacity. Meanwhile, compact structure design can save installation space. Ice thickness and hollow part size can be adjusted accord: system to work automatically, the machine has high capacity, low-power consumption and minimal maintenance.
Tube Ice Machine Features
1. The ice tube looks like hollow cylinder. Tube ice outer diameter is 20mm, 26mm, 34mm, 40mm; tube ice length: 30mm, 35mm, 40mm, 45mm, 50mm. The inner diameter can be adjusted according to the ice making time. Usually i's between Smm-0mm.
2. The mainframe adopts SUS304 stainless steel. It can put the food directly nto the production room which cover a small area, low Production cost, high frozen efficiency, save energy, shor installation period and easy to operate.
3. The ice is quite thick and transparent, beautiful, long storage, not easy to melt ine permeability.
4. Main application: daily using, vegetable fresh-keeping, pelagic fishery fresh-keeping, chemical processing, building projects and other places need to use ice.
2. The mainframe adopts SUS304 stainless steel. It can put the food directly nto the production room which cover a small area, low Production cost, high frozen efficiency, save energy, shor installation period and easy to operate.
3. The ice is quite thick and transparent, beautiful, long storage, not easy to melt ine permeability.
4. Main application: daily using, vegetable fresh-keeping, pelagic fishery fresh-keeping, chemical processing, building projects and other places need to use ice.

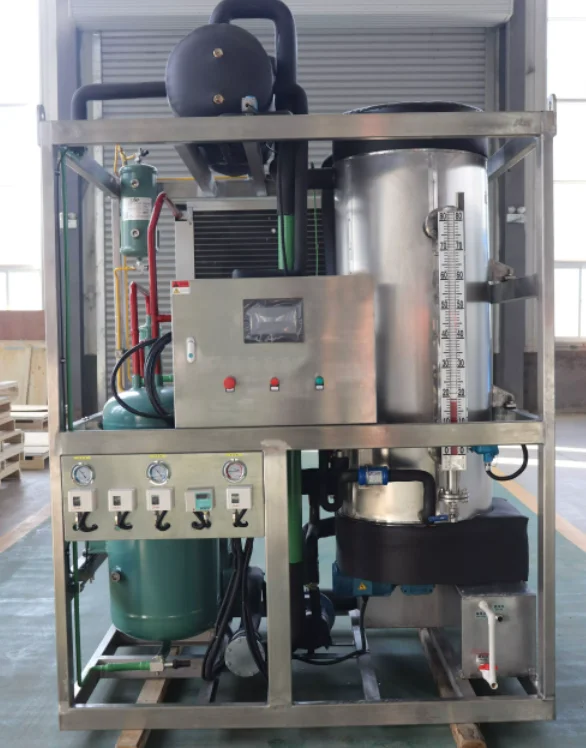

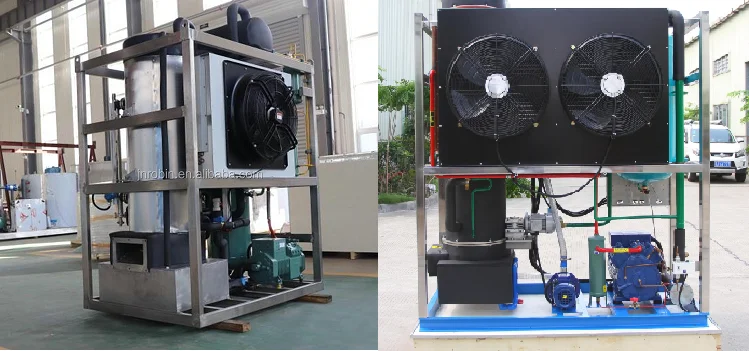

Air Cooling System
.

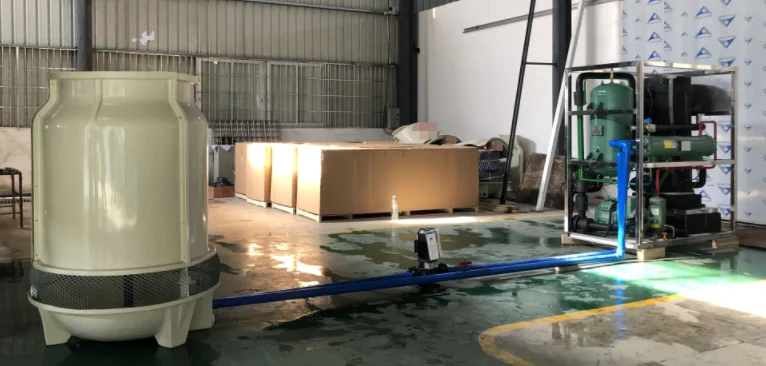

Water Cooling System

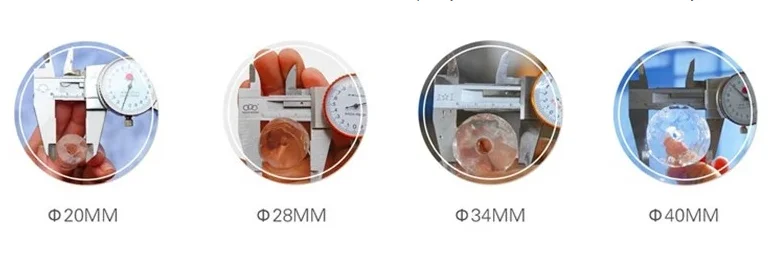

Ice tube Size
Tube ice outer diameter is 16mm, 22mm, 28mm, 34mm, 40mm; The inner diameter can be adjusted according to the ice making time.
External Diameter | Standard Length | Freezing Time |
20mm | 30mm | 16 minutes |
28mm | 35mm | 18 minutes |
34mm | 45mm | 20 minutes |
40mm | 55mm | 25 minutes |
Tube Ice Application
1. Edible ice factory
2. Ports and dock ice factories
3. Places where ice is used in coffee shops, bars, hotels, etc.
4. Commercial areas such as supermarkets, convenience stores, restaurants, etc.
5. Aquatic products and food preservation
6. Logistics preservation
7. Chemical and concrete engineering
3. Places where ice is used in coffee shops, bars, hotels, etc.
4. Commercial areas such as supermarkets, convenience stores, restaurants, etc.
5. Aquatic products and food preservation
6. Logistics preservation
7. Chemical and concrete engineering
Main brands on Tube Ice Machine
Parameters of Tube Ice Machine
Model | RBT-1T | RBT-3T | RBT-5T | RBT-10T | RBT-15T | |||||
Capacity(Tons/24hours) | 1 | 3 | 5 | 10 | 15 | |||||
Refrigerant | R22/R404A | |||||||||
Compressor Brand | Bitzer/Bock/Copeland/Franscold | |||||||||
Cooling Way | Water/Air | Water/Air | Water/Air | Water | Water | |||||
Compressor Power (HP) | 4 | 14 (12) | 28 | 50 (44) | 2*44 (34) | |||||
Ice Cutter Motor (KW) | 0.37 | 0.55 | 0.75 | 1.1 | 2.2 | |||||
Circulating Water Pump (KW) | 0.37 | 0.55 | 0.75 | 1.5 | 2.2 | |||||
Cooling Water Pump (KW) | 0.75 (Water) | 1.5 (Water) | 2.2 | 4 | 4 | |||||
Cooling Tower Motor (KW) | 0.18 (Water) | 0.37 (Water) | 0.75 | 1.5 | 1.5 | |||||
Cooling Fan Motor (KW) | 0.38 (Air) | 1.92 (Air) | / | / | / | |||||
Length (MM) | 1520/1600 | 1680/1700 | 1790 | 2200 | 4530 | |||||
Width (MM) | 1000/1350 | 950/1400 | 1080 | 1900 | 1800 | |||||
Height (MM) | 2020/2010 | 2200/2430 | 2270 | 2550 | 3000 | |||||
Weight(KG) | 900 | 1750 | 2070 | 3200 | tube Ice maker part & refrigerationsystem are separate | |||||
We also have 2T, 8T, 12T, 20T model for your choice, you can contact with me Supply Power: 380V~420V, SOHz/, 3P; 220V~240V/380V, 60Hz, 3P; 440V~480V, 60Hz, 3P; Working Conditions: Input Water Temp: 21°C; Evaporating Temp: -15C; Condensing Temp: 40C; (Notice: the actual ice production will be changed with input water temp and ambient temp.) | ||||||||||
Company Profile
Jinan Robin Machinery CO., LTD is located in Jinan, Shandong, which is an comprehensive enterprise specializing in design,production,technical support and services for ice making machine, such as flake ice machine, seawater machine, block ice machine,tube ice machine, cold room, refrigeration equipment. The large, medium and small sized ice machine can applied to the supermarket, hotel, Marine fishery, aquatic products processing, food processing, chemical industry, concrete cooling and the coalmine cooling etc.
Based on the principle of "Customer First, Credit First", Robin Machinery has established long-term cooperative relationships with many companies. Sincerely welcome friends from all walks of life to visit, inspect and negotiate business.
Based on the principle of "Customer First, Credit First", Robin Machinery has established long-term cooperative relationships with many companies. Sincerely welcome friends from all walks of life to visit, inspect and negotiate business.
Certificate

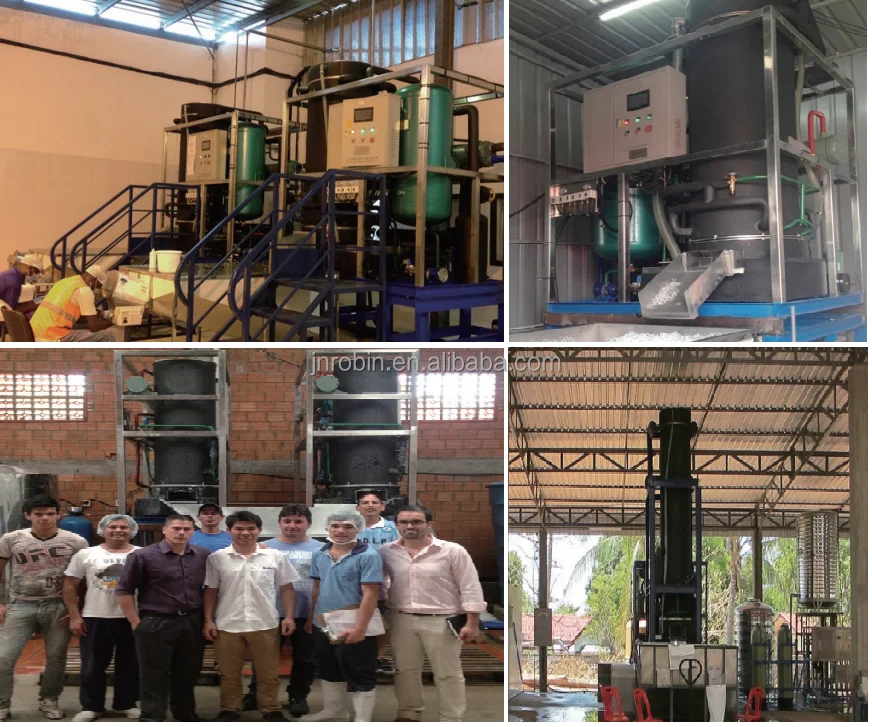

Exhibition and Customer visit
Services
Service before sale
1.One-on-one exclusive customer service staff, 24 hours online.
2.Inquiry, email, message will be replied at first time.
3.Supply professional technical parameters, video picture sharing, project design.
Service on sale
1.Ensure customer payment security.
2.Ensure the customer's price is stable and reasonable.
3.Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service after sale
1.Arrange high-efficiency delivery and safe transport.
2.Supply installation training, direction for use, maintenance instructions, techinical support, all necessary documents you need and oversea service.
1.One-on-one exclusive customer service staff, 24 hours online.
2.Inquiry, email, message will be replied at first time.
3.Supply professional technical parameters, video picture sharing, project design.
Service on sale
1.Ensure customer payment security.
2.Ensure the customer's price is stable and reasonable.
3.Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service after sale
1.Arrange high-efficiency delivery and safe transport.
2.Supply installation training, direction for use, maintenance instructions, techinical support, all necessary documents you need and oversea service.
FAQ
1. Can I customize the machine?
Yes. You can choose output, material, accessories brand, etc.
2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release
your payment to us.
6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods
arrive at the port, you can go to the port to pick them up with the bill of lading.
Yes. You can choose output, material, accessories brand, etc.
2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release
your payment to us.
6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods
arrive at the port, you can go to the port to pick them up with the bill of lading.
