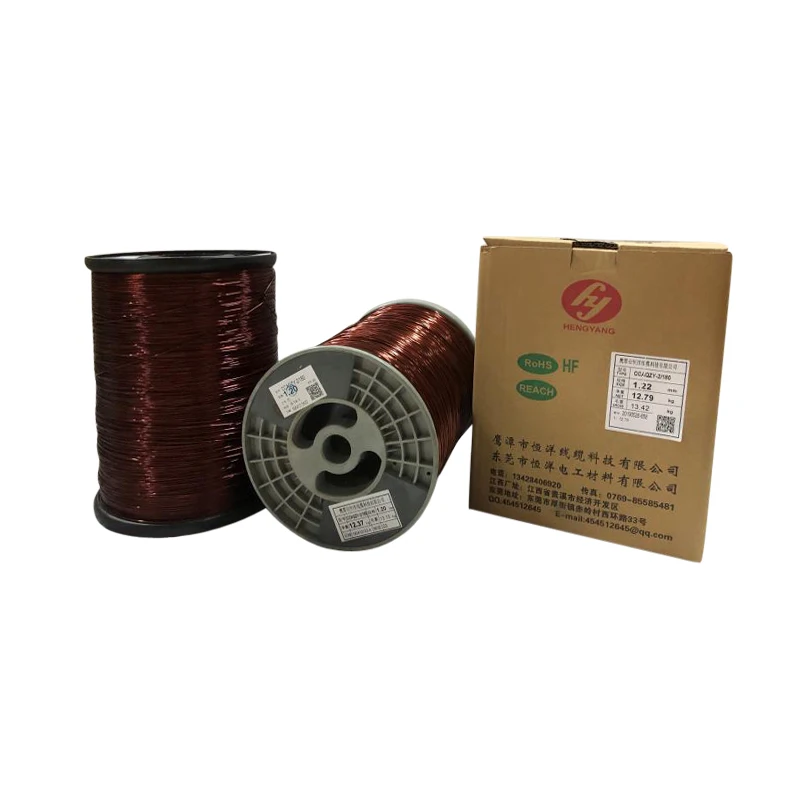

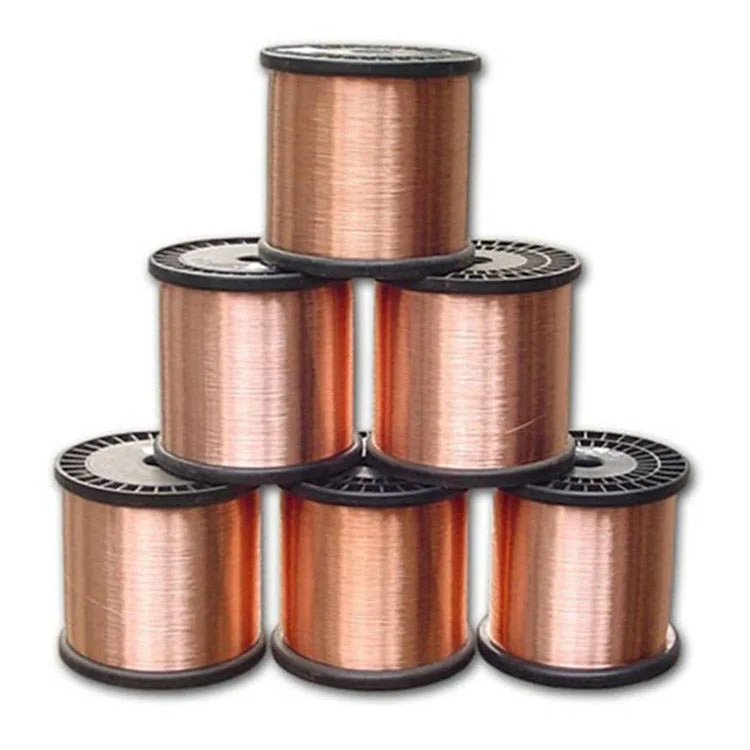

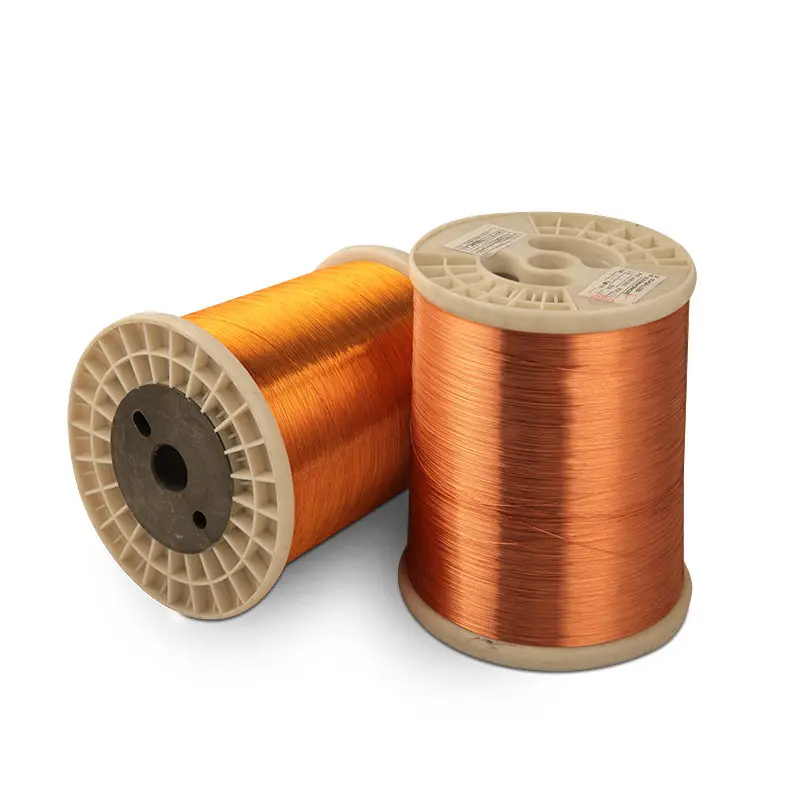

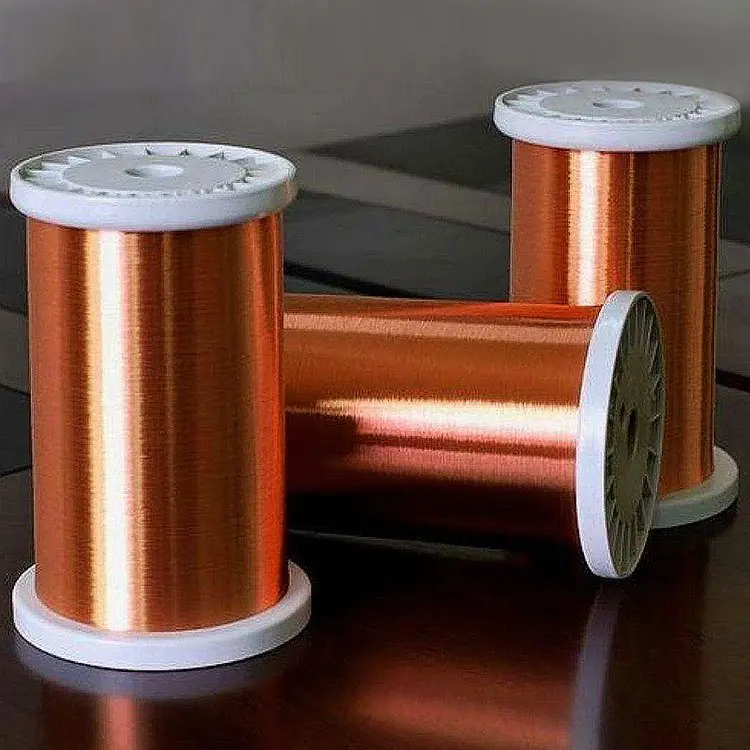

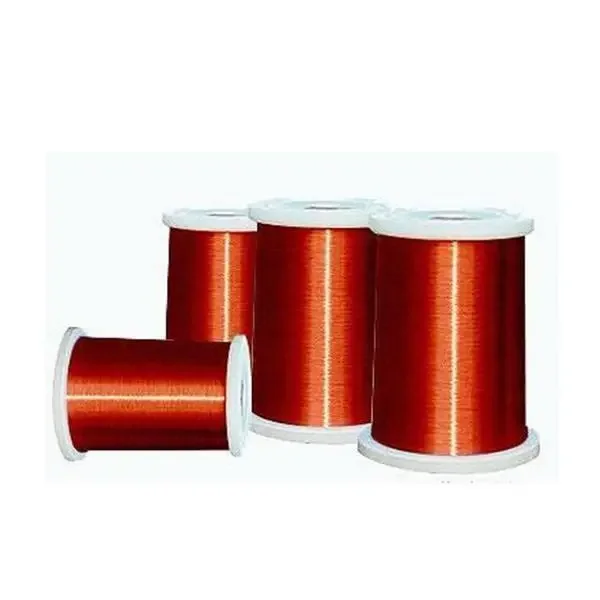

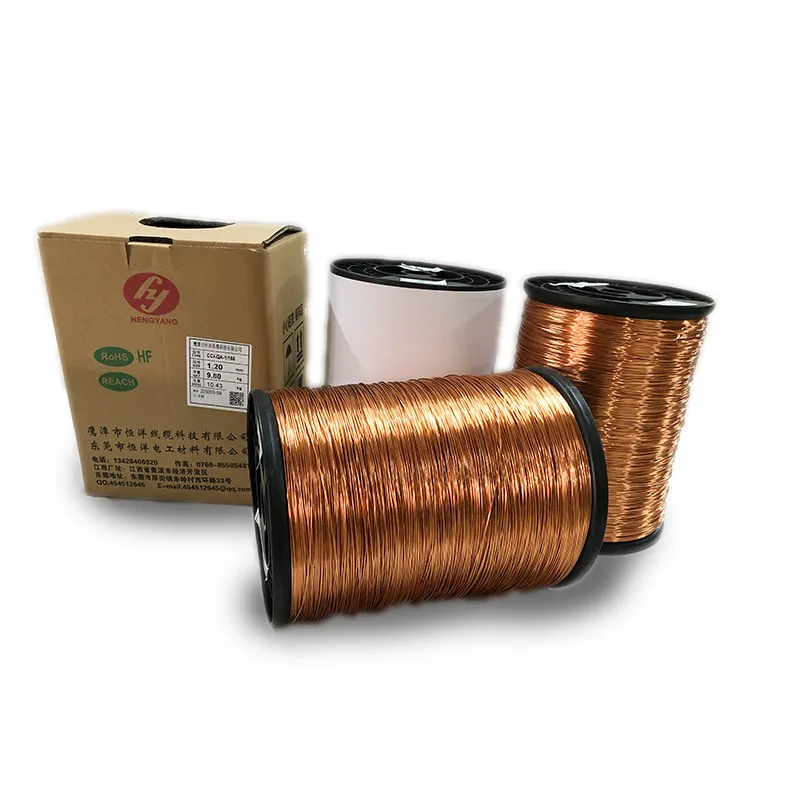

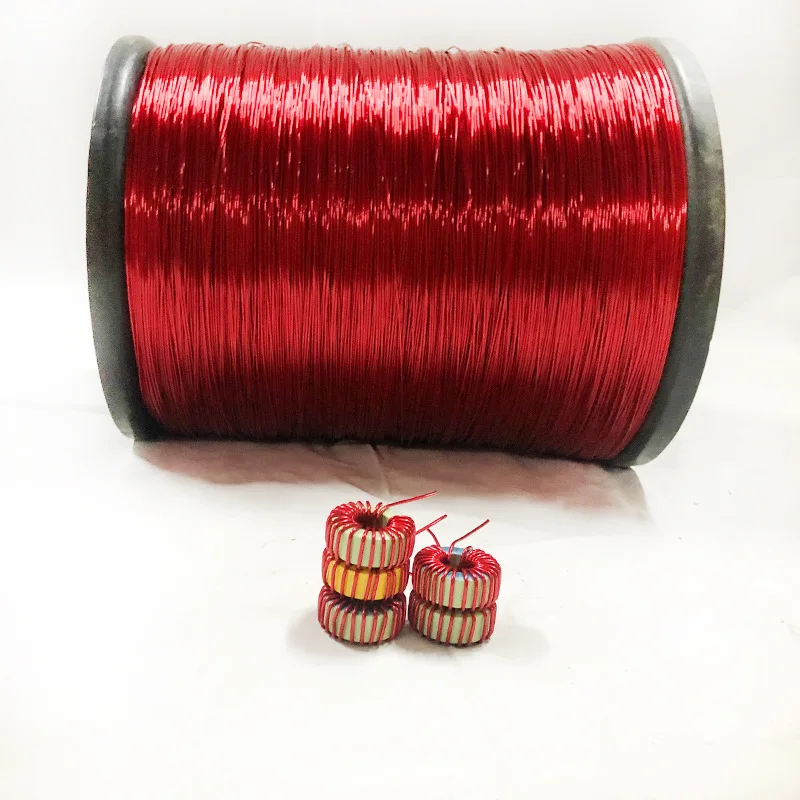

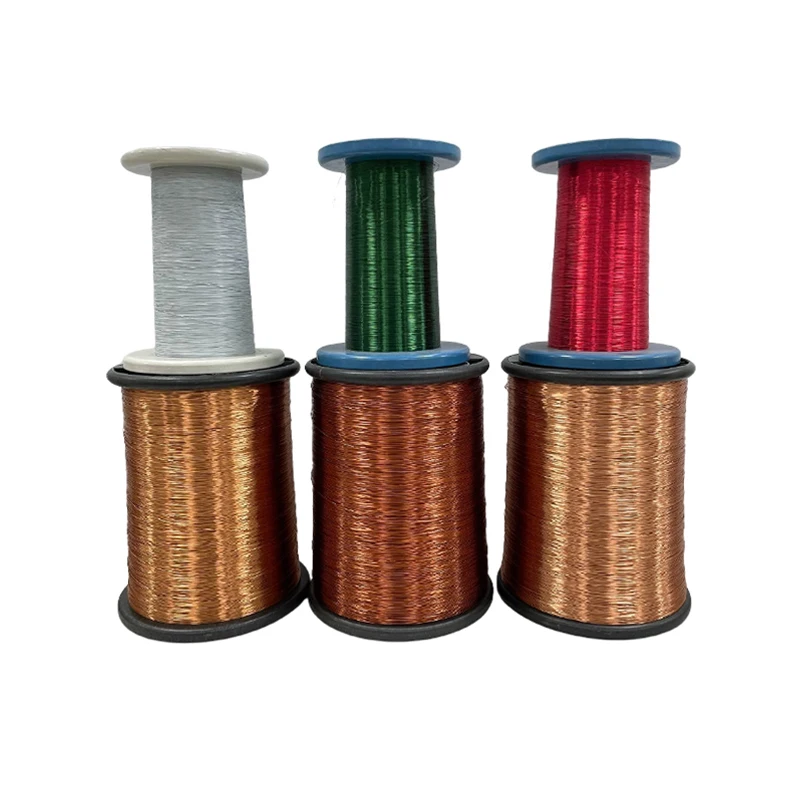

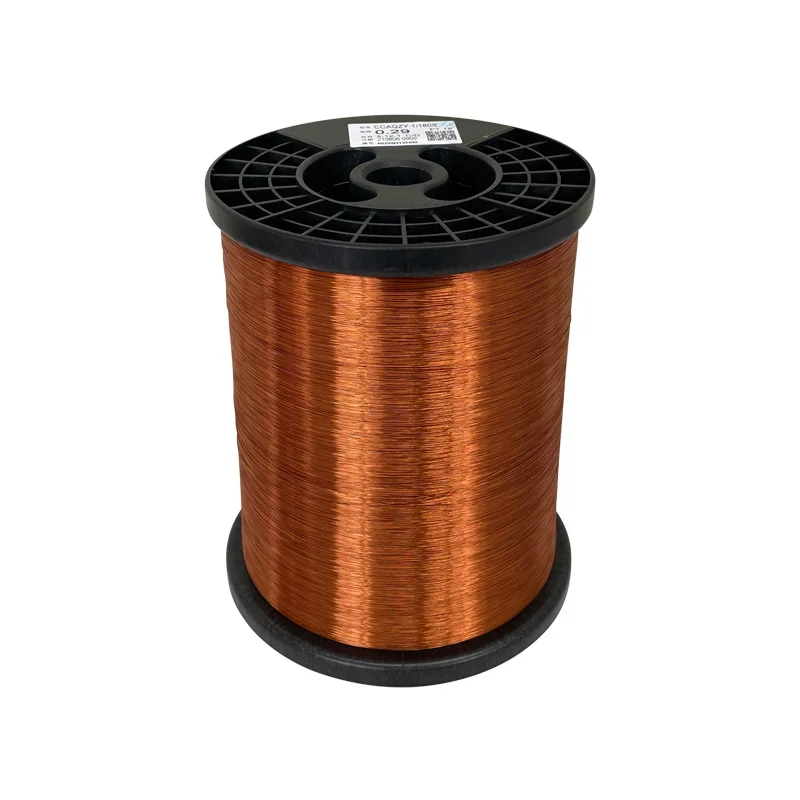

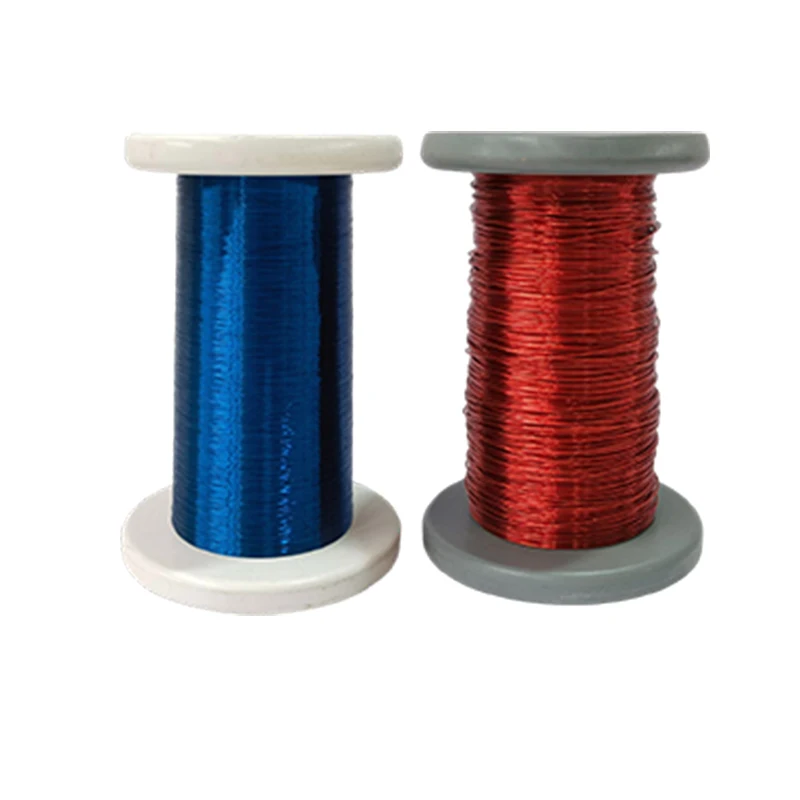

Manufacturer Enameled copper clad aluminum wire Enameled CCA Wire for motor transformer
- Category: >>>
- Supplier: Kunbian Power Equipment (Shandong) Co. Ltd.
Share on (1600927101302):
Product Overview
Description
Products Description

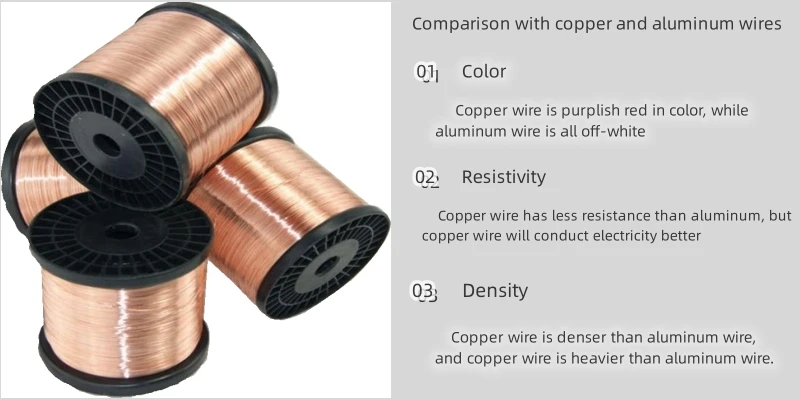

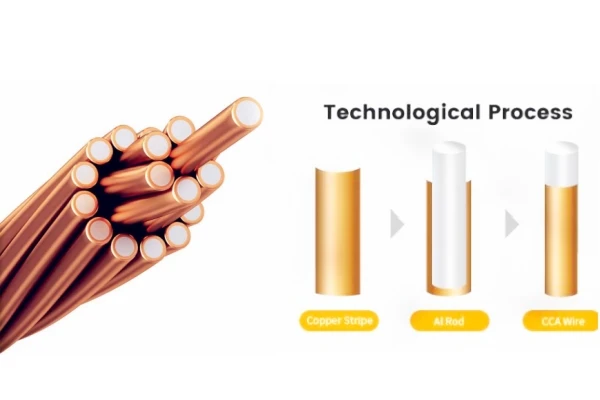

Advantages of copper clad aluminum wire
1, The price is lower, in the weight of the unit of measurement is meters rather than weight, so save transportation costs.
2, Due to high-frequency signals have a "skin effect" characteristics, so the CCA wire and CCS wire in the transmission of high-frequency signals (greater than 5MHz), with the same conductive properties of pure copper wire.
1, The price is lower, in the weight of the unit of measurement is meters rather than weight, so save transportation costs.
2, Due to high-frequency signals have a "skin effect" characteristics, so the CCA wire and CCS wire in the transmission of high-frequency signals (greater than 5MHz), with the same conductive properties of pure copper wire.

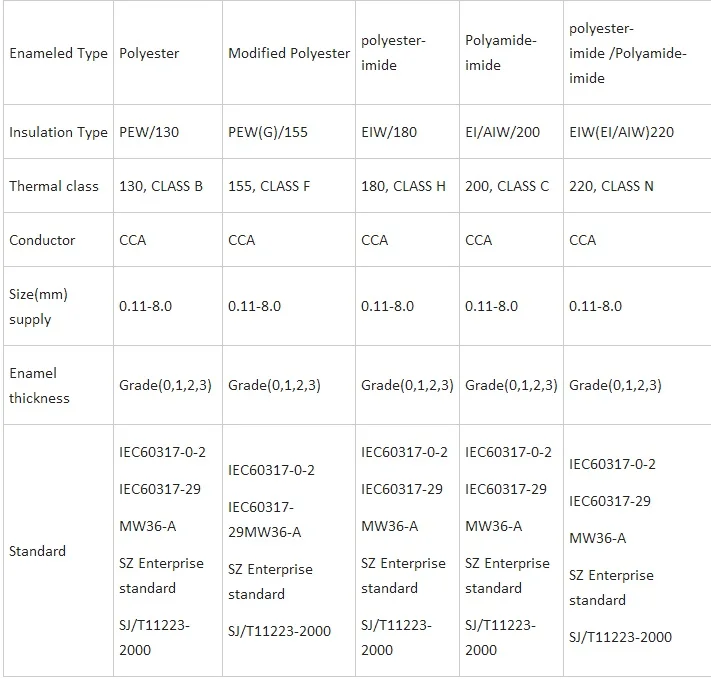

Enameled Copper-clad aluminum wire data reference

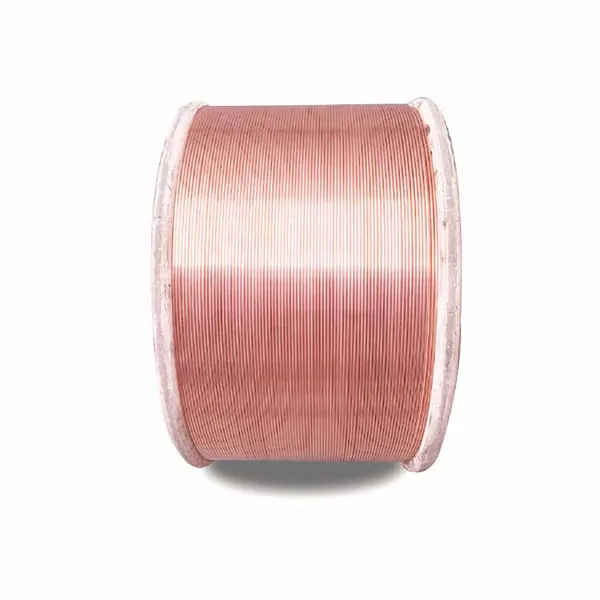

CCA Copper-clad aluminum wire data reference
Technical Parameters | Flammable | Related types | ||||||||||
10H | 10A | 15H | 15A | (H) | (A) | |||||||
Size range (mm) | 0.12-8.00 | 0.12-8.00 | 0.12-8.00 | 0.12-8.00 | 0.12-8.00 | 0.12-8.00 | ||||||
Copper content (wt%) | 25-31 | 25-31 | 32-40 | 32-40 | 6-15 | 6-15 | ||||||
Conductivity of 20℃(%) | 62 | 62 | 64 | 64 | 60 | 60 | ||||||
DC Resistivity (Ω.mm²/ m） | 0.02743 | 0.02743 | 0.02676 | 0.02676 | 0.02756 | 0.02756 | ||||||
Tensile Strengths (Mpa) | ≥150 | ≥110 | ≥150 | ≥110 | ≥150 | ≥110 | ||||||
Extend (%) | ≥1 | ≥8 | ≥1 | ≥8 | ≥1 | ≥8 | ||||||
Density (g/cm³) | 3.32 | 3.32 | 3.63 | 3.63 | 2.85 | 2.85 | ||||||
Note: Products can be customized according to special requirements | ||||||||||||
CCAM Copper clad aluminum magnesium wire data reference
Technical Parameters | Flammable | plated | ||||||
15H | 15A | (H) | (A) | |||||
Size range (mm) | 0.12-8.00 | 0.12-8.00 | 0.12-8.00 | 0.12-8.00 | ||||
Copper content (wt%) | 36 – 40 | 36 – 40 | 6-15 | 6-15 | ||||
Conductivity of 20℃(%) | 55 | 55 | 35 – 43 | 35 – 43 | ||||
DC Resistivity (Ω.mm²/ m） | 0.03085 | 0.03085 | 0.04718 | 0.04718 | ||||
Tensile Strengths (Mpa) | ≥220 | ≥160 | ≥250 | ≥180 | ||||
Extend (%) | ≥1 | ≥8 | ≥1 | ≥8 | ||||
Density (g/cm³) | 3.63 | 3.63 | 2.85 | 2.85 | ||||
Note: Products can be customized according to special requirements | ||||||||
Product Details

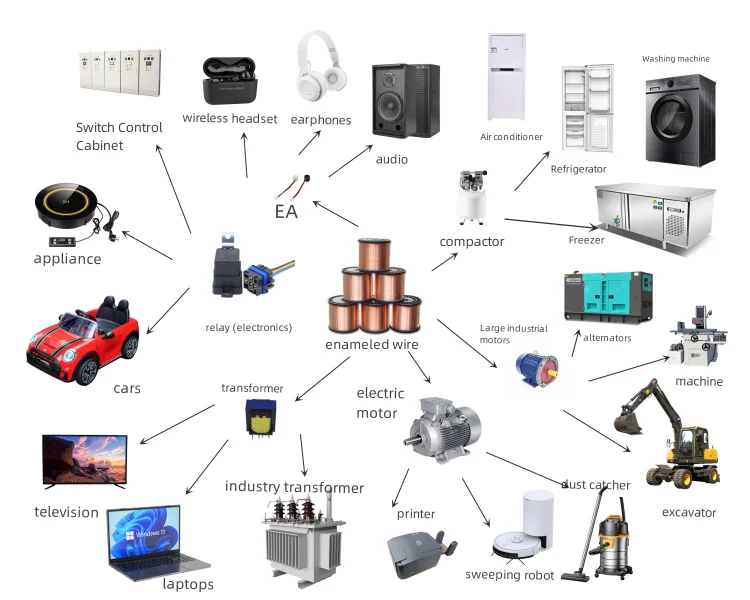

Scope of Application
Scope of Application:
1.Cable television subscriber lines
2.Parallel two-core telephone subscriber communication line conductor;
3.Computer bureau LAN
4.Connectors for various electronic components;
5.Overhead lines for power transmission and telephone lines;
6.Overhead lines for contact networks of electrified railroads and rail transit lines
7.Conductor materials for connection lines of medical equipment and devices.
8.Power transmission
9.Power cable conductor materials
10.Control cable inner conductor
11.Inner conductor of automobile and locomotive special cables
12.Fuse
1.Cable television subscriber lines
2.Parallel two-core telephone subscriber communication line conductor;
3.Computer bureau LAN
4.Connectors for various electronic components;
5.Overhead lines for power transmission and telephone lines;
6.Overhead lines for contact networks of electrified railroads and rail transit lines
7.Conductor materials for connection lines of medical equipment and devices.
8.Power transmission
9.Power cable conductor materials
10.Control cable inner conductor
11.Inner conductor of automobile and locomotive special cables
12.Fuse

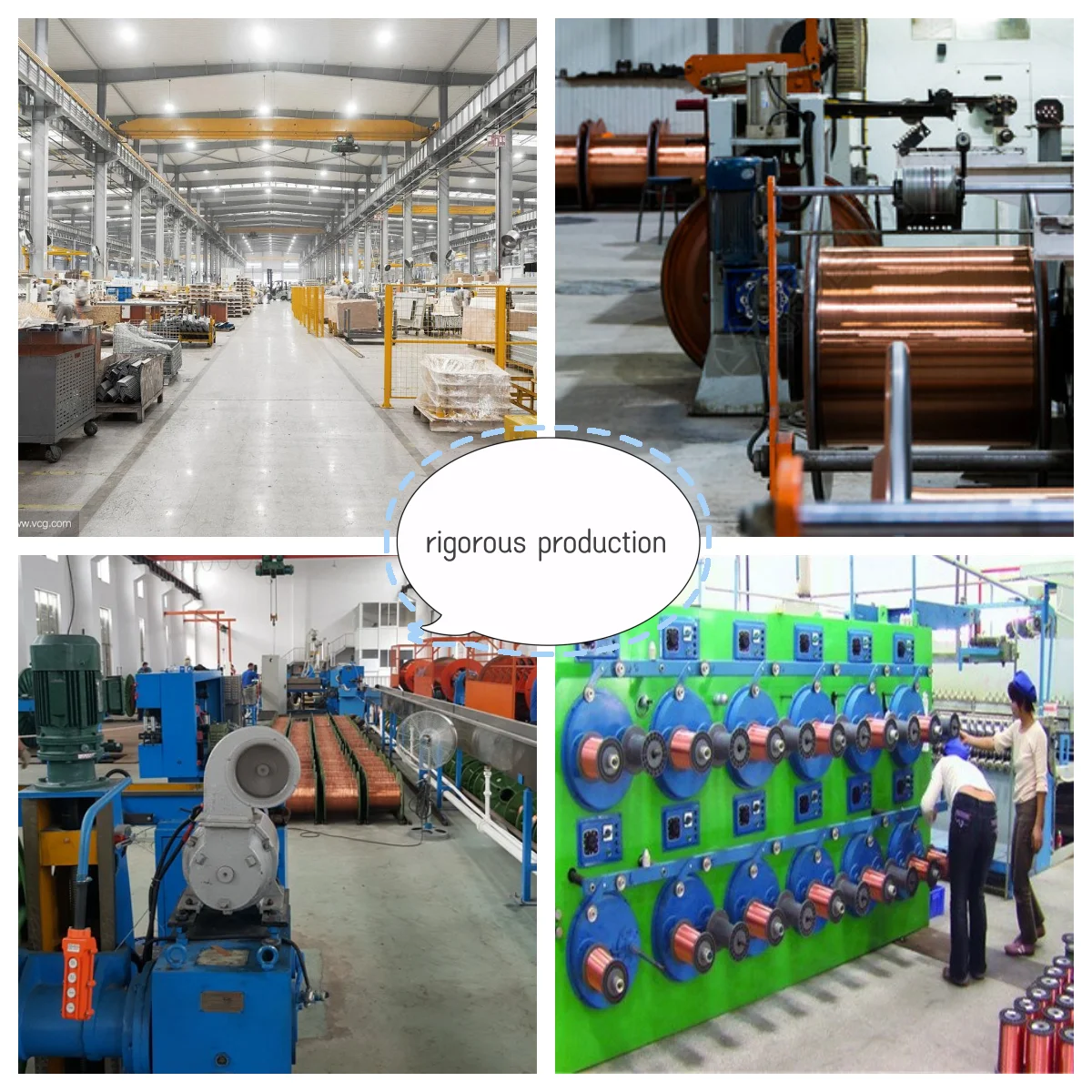

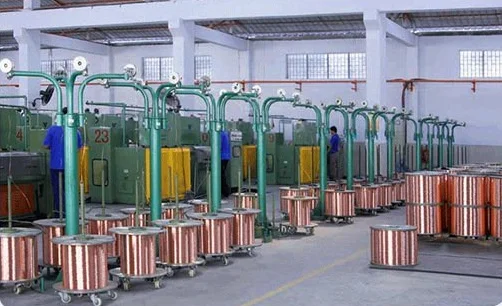

Workshop
Certifications
Why Choose Us
Packing & Delivery
Packaging methods include plastic film packaging, carton packaging and so on.
Plastic film packaging using a sealing machine for sealing, to ensure that the wire sealing and moisture-proof; carton packaging will be packaged wire into the carton, and then use tape or sealing glue sealing.
Plastic film packaging using a sealing machine for sealing, to ensure that the wire sealing and moisture-proof; carton packaging will be packaged wire into the carton, and then use tape or sealing glue sealing.
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team ?
A2: Yes, we can customize products as your requirements.
Q3: Do you provide free samples ?
A3: Yes, we provide free sample for weight within 1Kg. Customer need to take the international express freight.
Q4: Can we be your distributor ?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package ?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time ?
A6: It depends on the quantity you need, 1-25 days usually.
A1: We are manufacturer.
Q2: Do you have your own R&D team ?
A2: Yes, we can customize products as your requirements.
Q3: Do you provide free samples ?
A3: Yes, we provide free sample for weight within 1Kg. Customer need to take the international express freight.
Q4: Can we be your distributor ?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package ?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time ?
A6: It depends on the quantity you need, 1-25 days usually.
