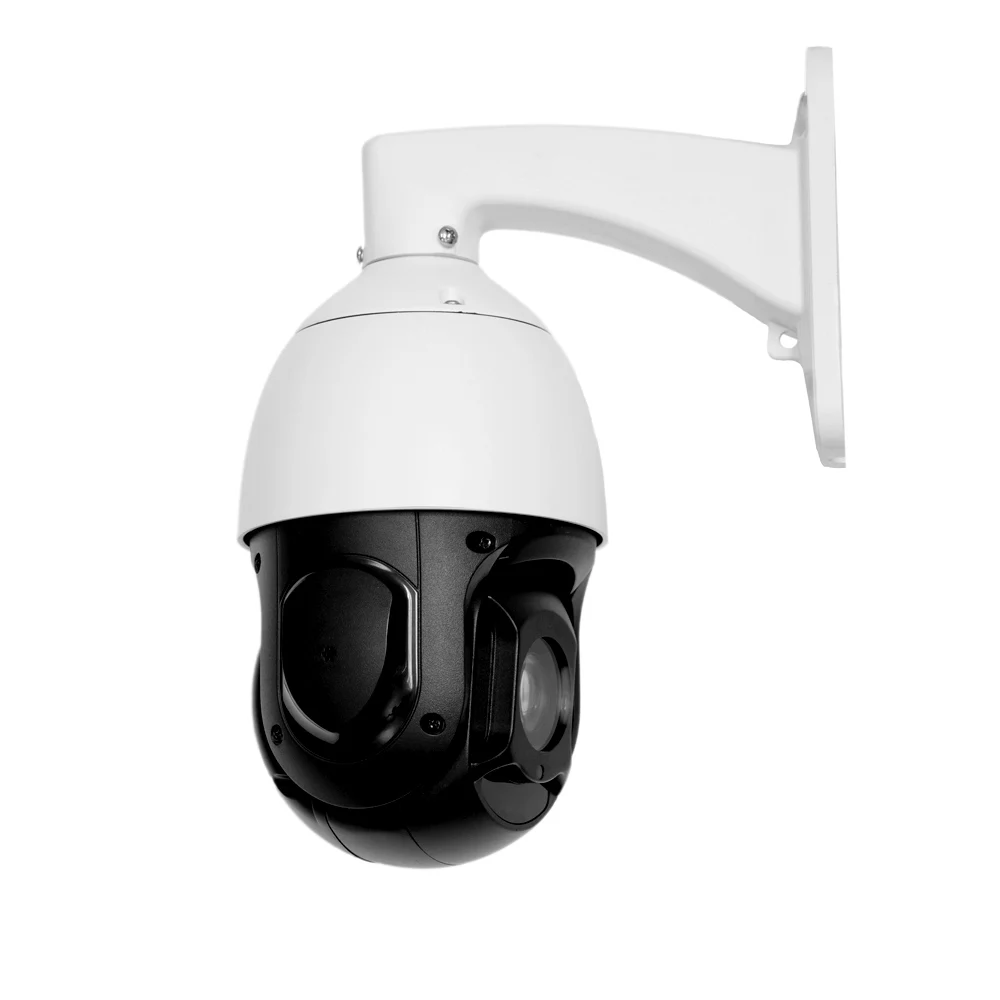

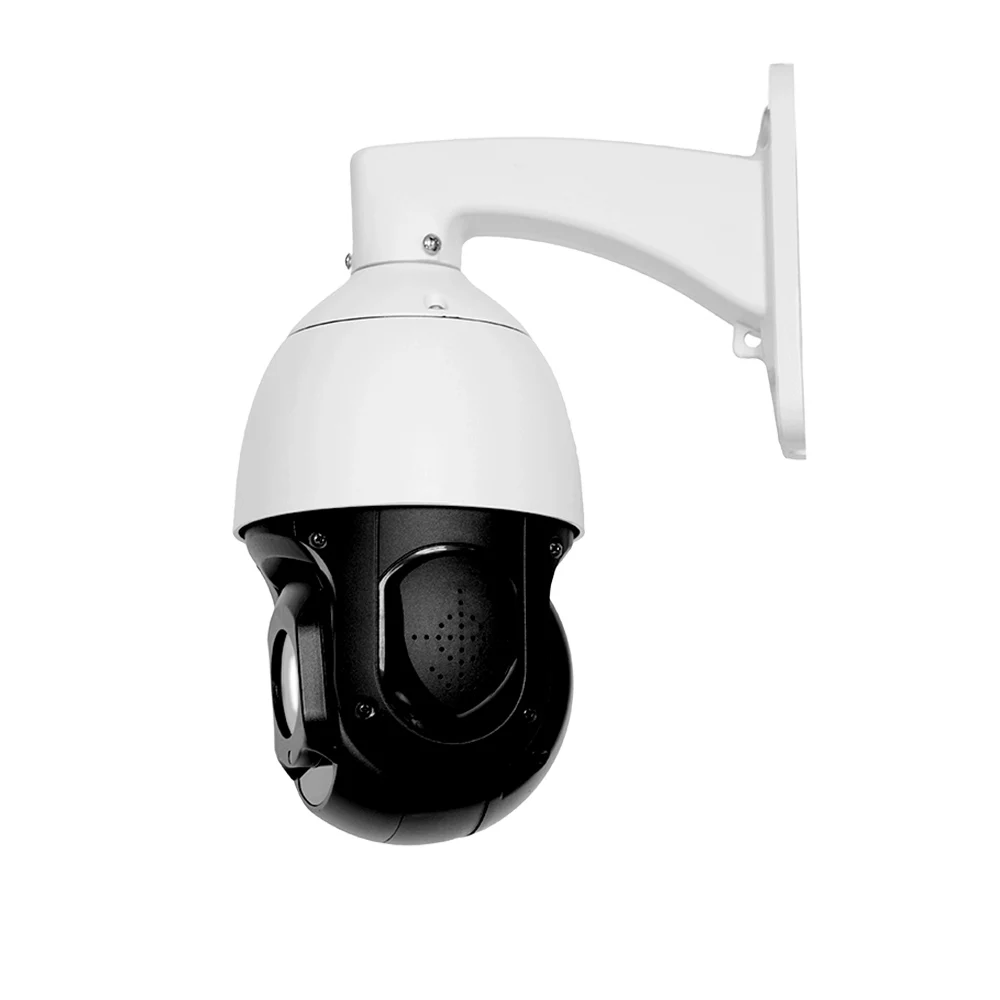

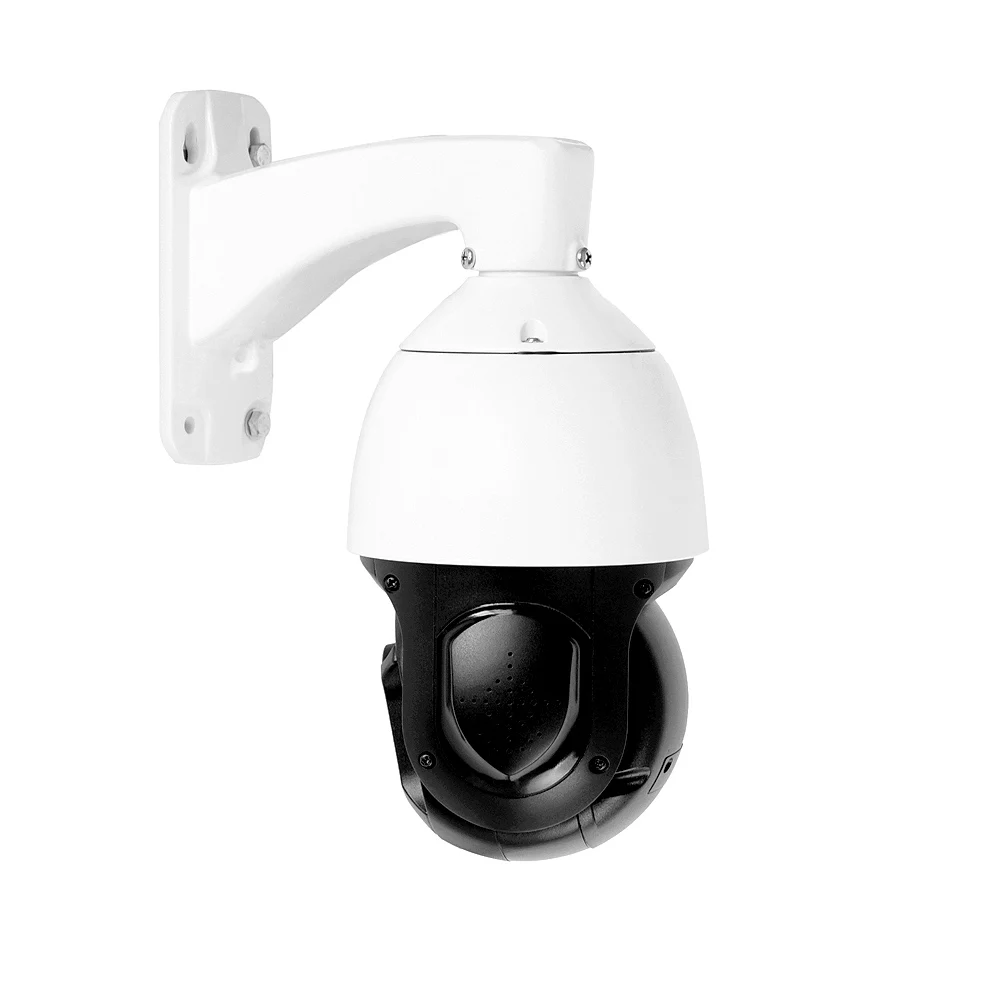

8 megapixel 20 times auto tracking optical zoom high quality ptz netwok outdoor security camera 4 k IP poe camera
- Category: >>>
- Supplier: Shenzhen Anto Technology Co. Ltd.
Share on (1600927173172):
Product Overview
Description
Products Description

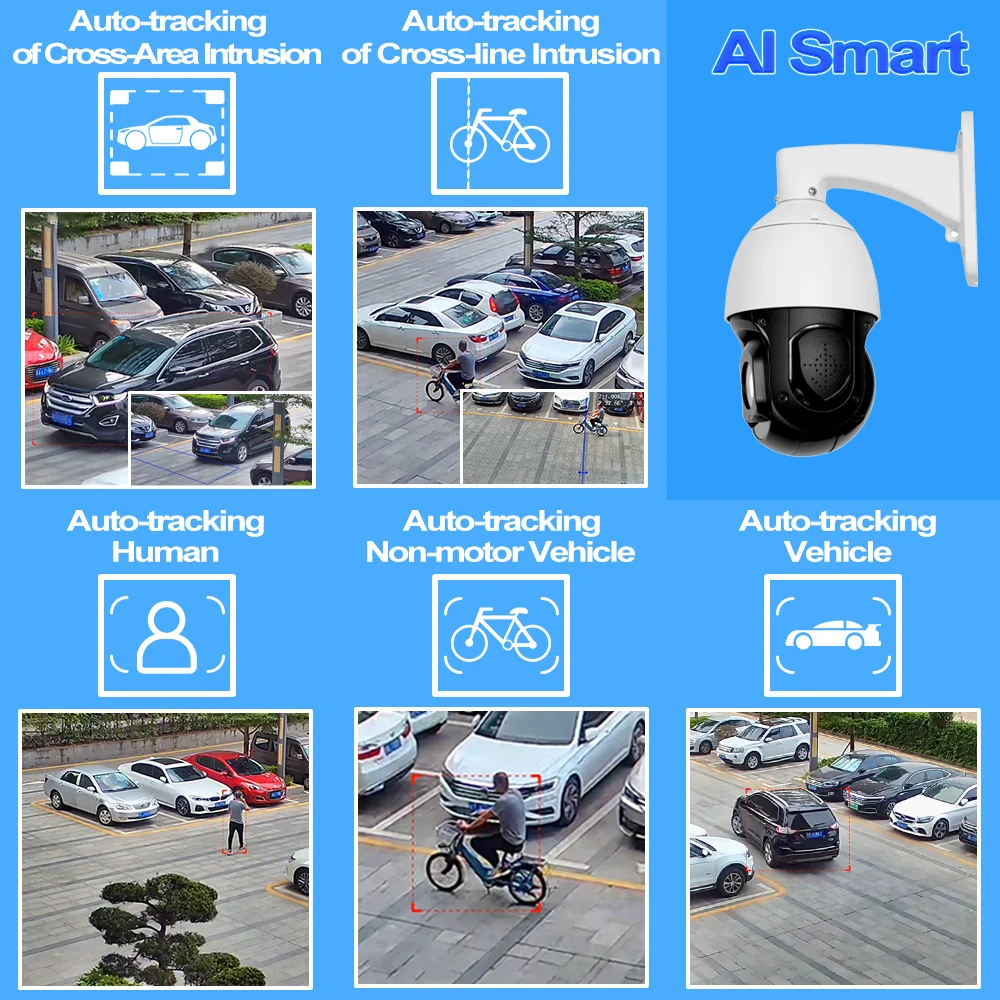

AI SMART FUNCTIONS
Perimeter Protection:Cross Line,Enter Area,Leave Area,Intrusion
Auto Tracking:Track Human,Vehicle,Non-motor Vehicle
Can be triggered by Perimeter Protection
Events:Motion Detection,Tampering Alarm,Audio Detection
ZP4BV-BP | ||
Manual speed | Pan（0.1°～200°/s） | |
Tilt（0.1°～200°/s） | ||

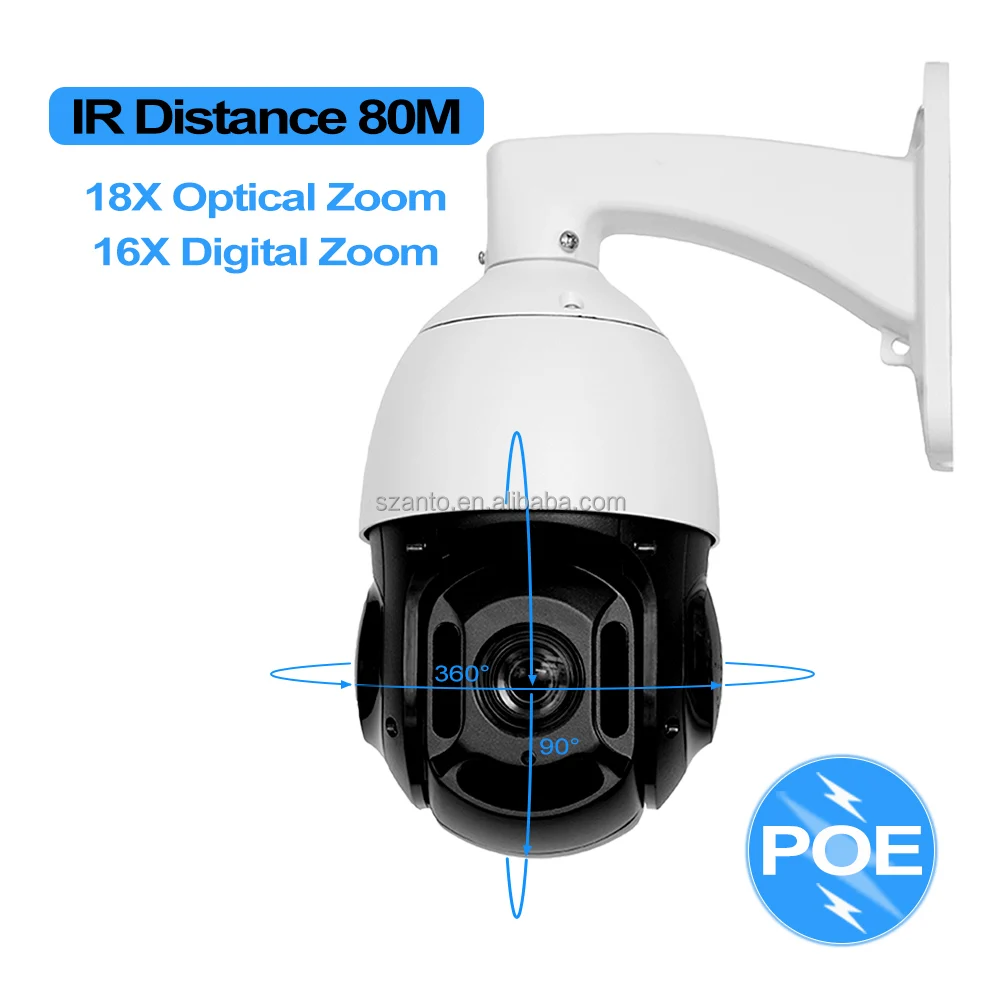

Rotation | Pan continuously 360°, tilt 0～90° with auto-flip | |
Preset | 128 preset | |
Auto-flip | Tilt down 90°, with auto-flip 180° | |
Patrol | 16 Patrol | |
Power up run | tour/preset/pattern/scan can be set | |
Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples | |
CAM SPEC | ||
Chispset | 1/2.8",3.0 megapixel, progressive scan, CMOS | |
Effective Pixels | 3M/30FPS/S | |
OPTICS Zoom | Optical x 18, f =4.5mm ~ 81 mm | |
Digital Zoom | Digital:16X | |
Angle | Appr.(D) 60.4°(Wide) to 4.4°(Tele);(H) 53.3°(Wide) to 3.8°(Tele);(V) 30.7°(Wide) to 2.2°(Tele); | |
Iris | F1.7 | |
Auto Focus | Auto / one push / Manual | |
Min. Illumination | Colour: 0.005 lux (F1.7, AGC ON);0 lux with IR | |
Shutter Time | Auto/Manual; shutter time: 1 ~ 1/100000 s | |
Defog | Digital Defog | |
Noise reduction | 2D/3D DNR | |
Wide dynamic | 120dB | |
VIDEO | ||
Video Compression | Ultra 265,H.265, H.264, MJPEG | |
H.264 code profile | Baseline profile, Main Profile, High Profile | |
Frame Rate | Main Stream:(3M)2304*1296、1280*720、720*576（D1）、640*360 | |
Sub Stream:1280*720、720*576（D1）、640*360 | ||
Third Stream:720*576（D1）、640*360、704*288（2CIF）、352*288（CIF） | ||
Privacy Mask | Up to 8 areas | |
Audio | ||
Audio Compression | G.711 | |
Two-way audio | 1 line audio in/ 1 line audio out | |
Suppression | Supported | |
Sampling Rate | 8 KHZ | |
microphones | Support(built-in) | |
loudspeaker | 2W(built-in) | |
IR | ||
IR irradiation distance | 80m | |
IR irradiation angle | Adjustable by zoom | |
ICR | Manual/Auto | |
SMART | ||
Perimeter Protection | Cross line,Enter Area,Leave Area,Intrusion | |
Object Detection | Face Detection | |
People Counting | People Flow Counting,Crowd Density Monitoring | |

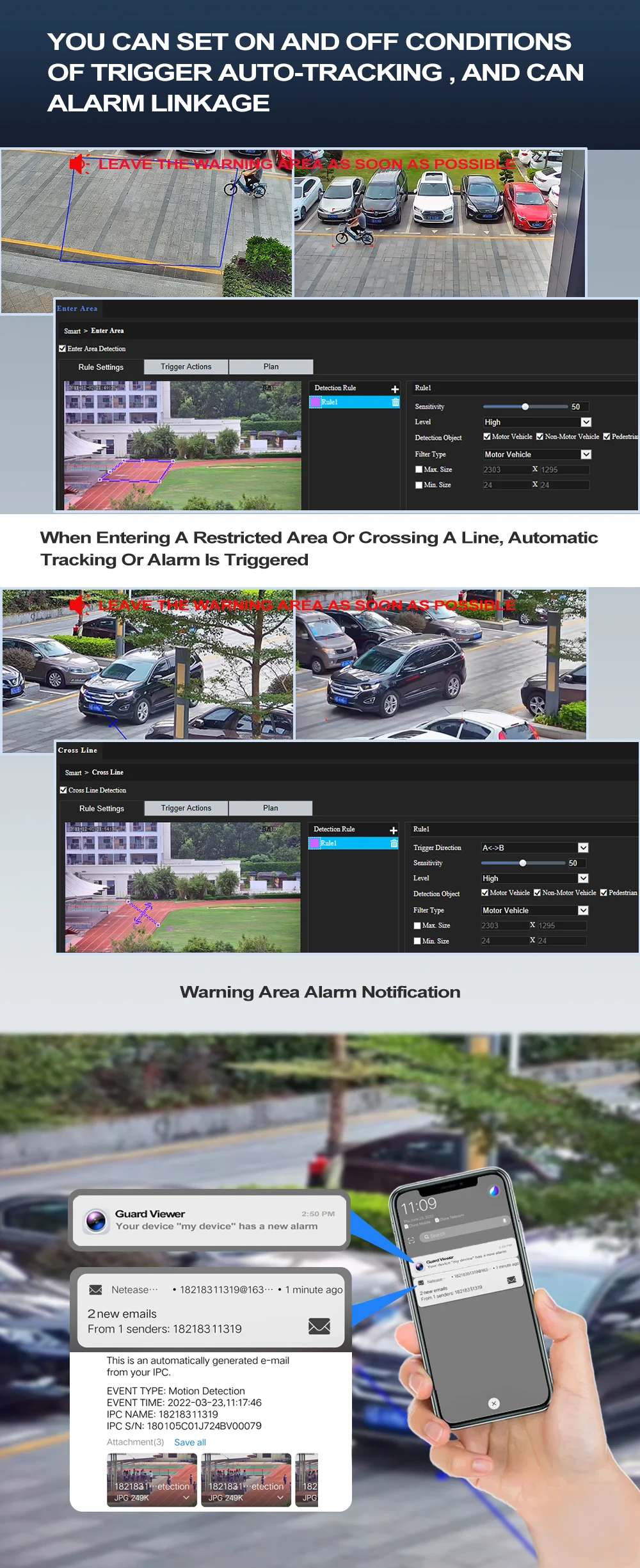

Auto Tracking | Auto Tracking(Can be triggered by Perimeter Protection) | |
Security | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |
Events | Motion Detection,Tampering Alarm,Audio Detection | |
Storage | ||
Edge Storage | Micro SD, up to 256 GB | |
Network Storage | ANR | |
Network | ||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,TLS,SSL | |
Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API | |
Network | 1 RJ45 10M/100M Base-TX Ethernet | |
P2P | Guard Viewer | |
General | ||
Power consumption | 9W/35W(IR_LED ON) | |
Power supply | DC 12V/3A | |
POE | IEEE802.3at 30W | |
Temperature | -40℃～+60℃ | |

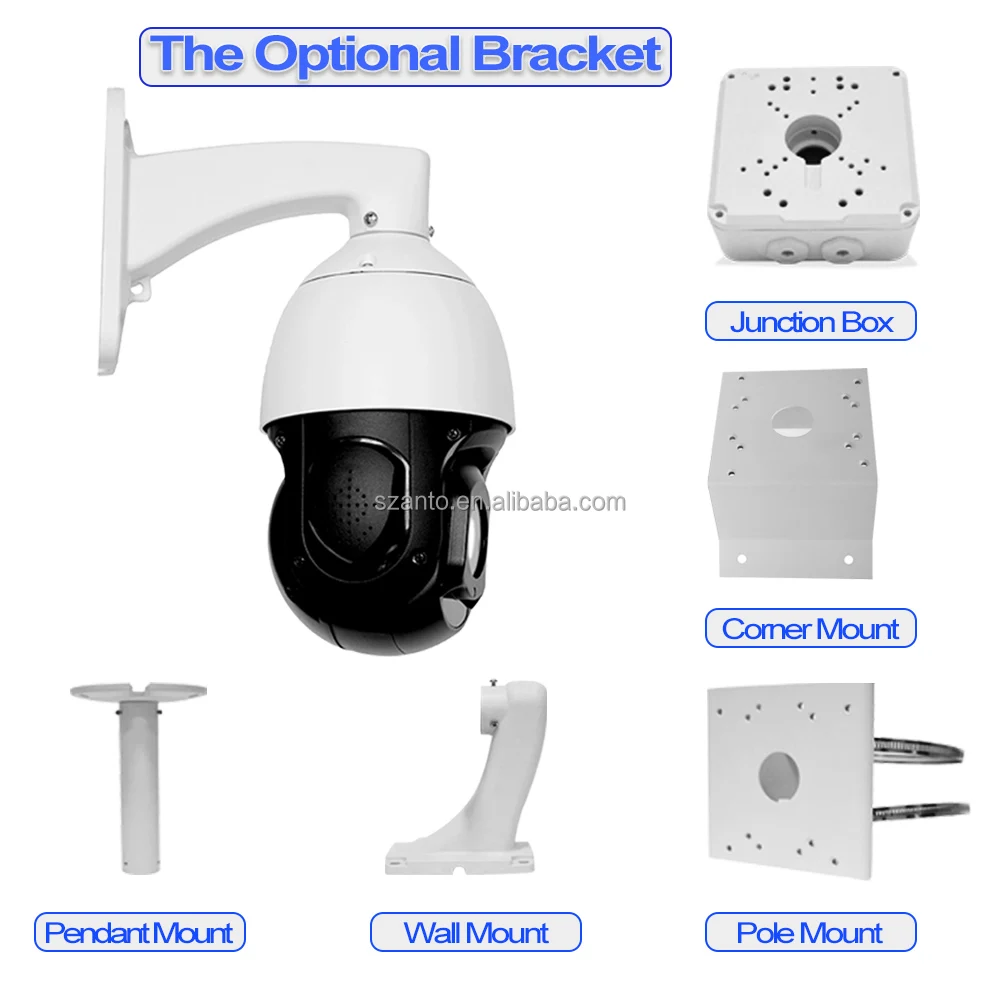

Installation | Wall /Corner/Pole/Pendant installation | |
Net weight | 2.1kg | |
Size | Product size 280*128*207mm， Packing size 255*205*273mm | |
Protection Level: | IP65 standard (outdoor PTZ) | |
TVS lightning protection, surge protection and voltage transient protection | ||
