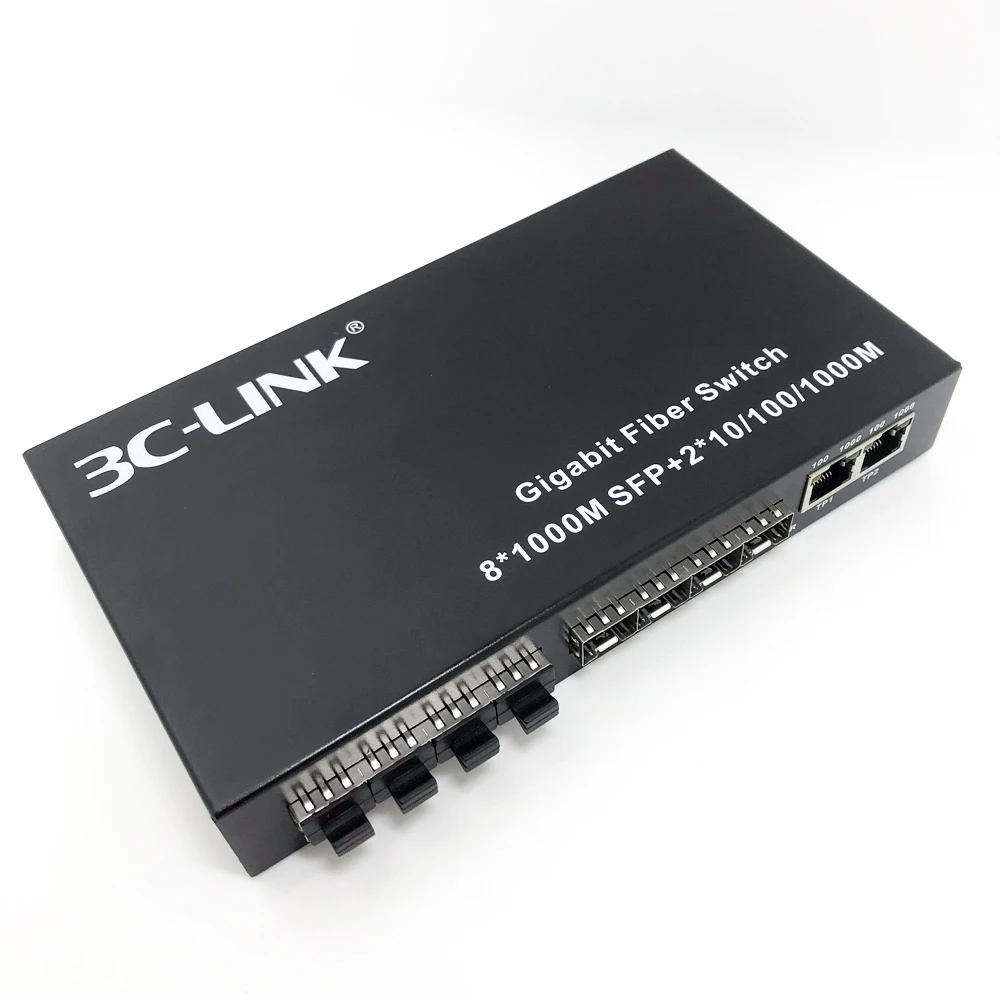

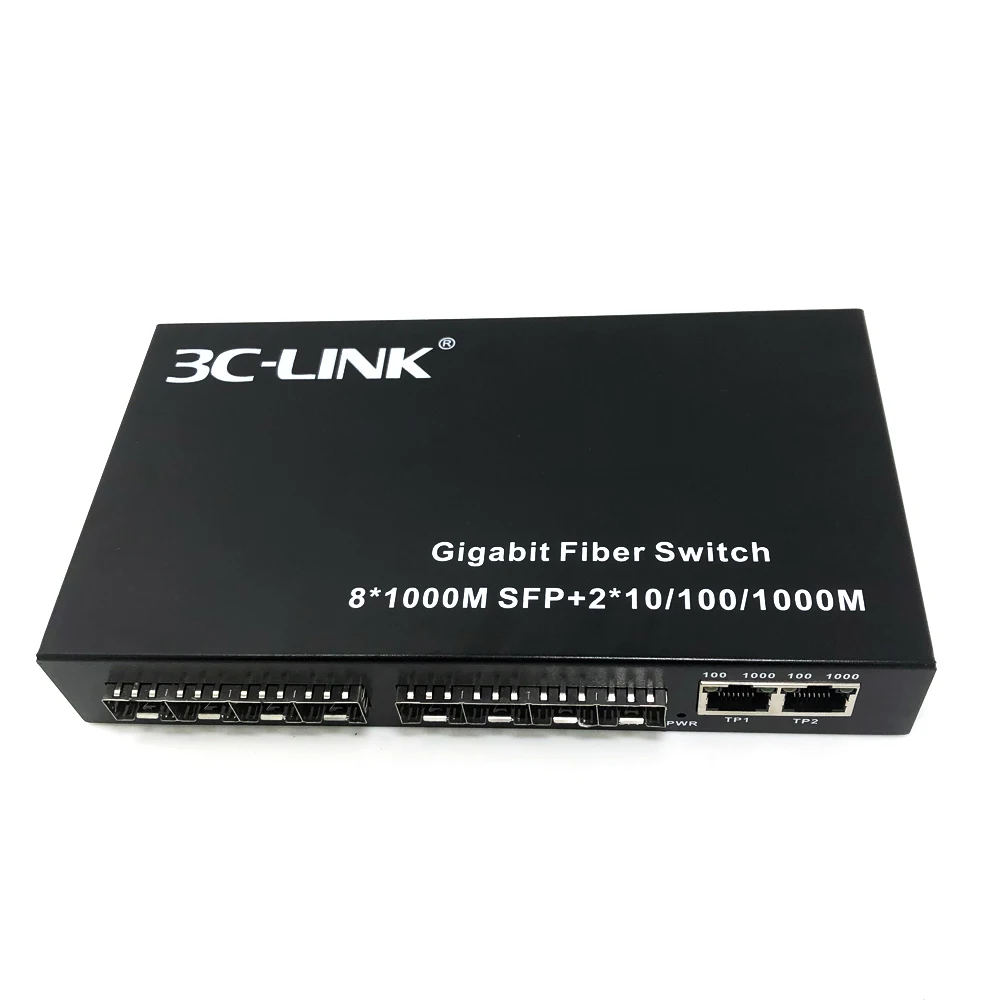

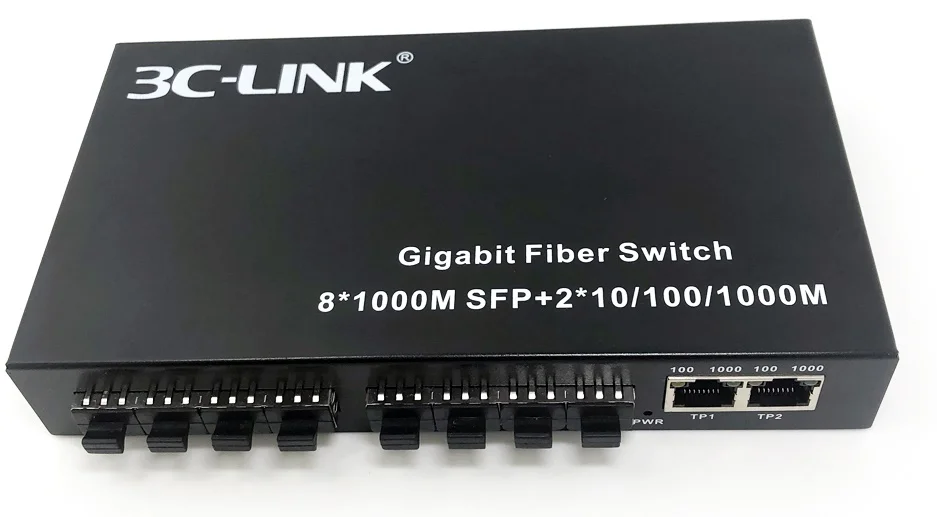

Network switches 8 fiber optical SFP 2 port Rj45 Plug and play Converter poe industrial Switch
- Category: >>>
- Supplier: Shenzhen 3C-Link Opto Co. Ltd.
Share on (1600927200693):
Product Overview
Description
10/100/1000M SFP Media Converter
3C-Link offers a full suite of networking products to be your one-stop-shop for all your business networking needs, including unmanaged, Easy Smart, Smart Managed, and PoE switches, outdoor long-range wireless point-to-point networking (CPE product line), and accessories like SFP modules, media converters, and PoE splitters/injectors. Enterprise products are mostly backed by a-limited lifetime protection.

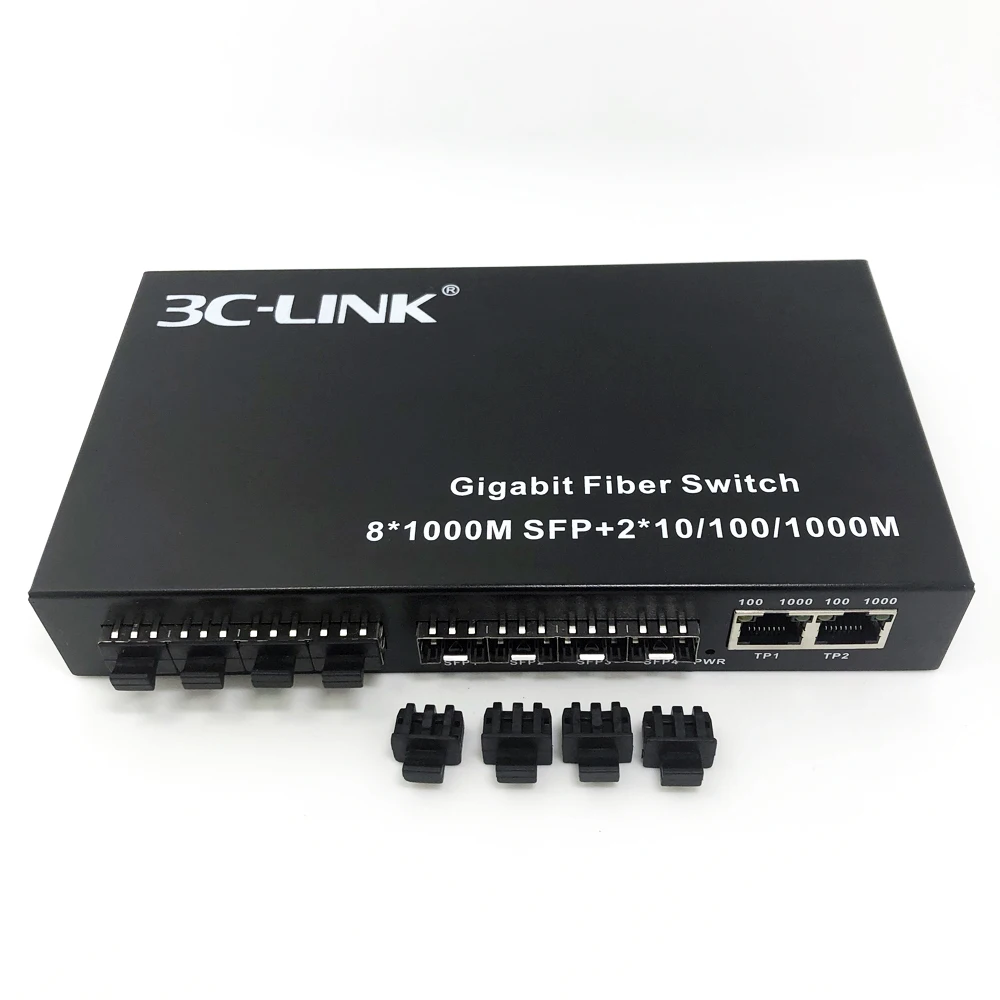

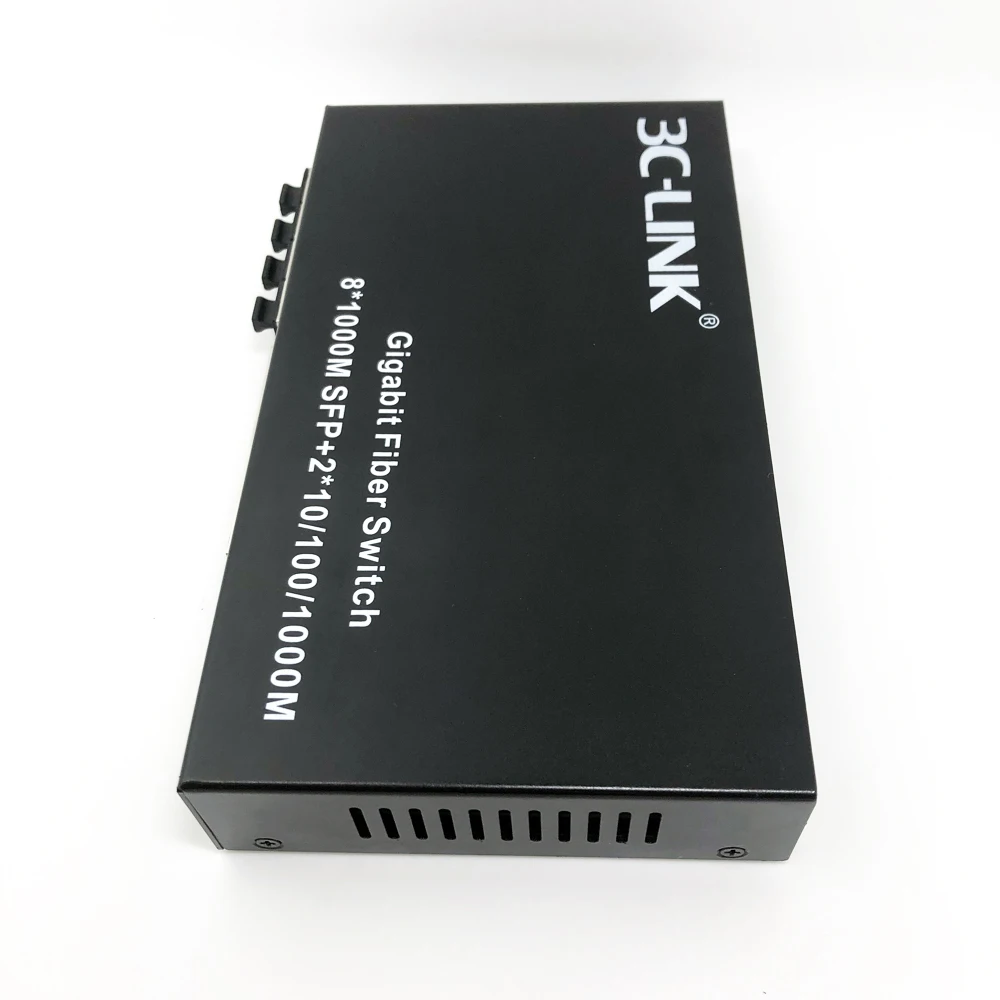

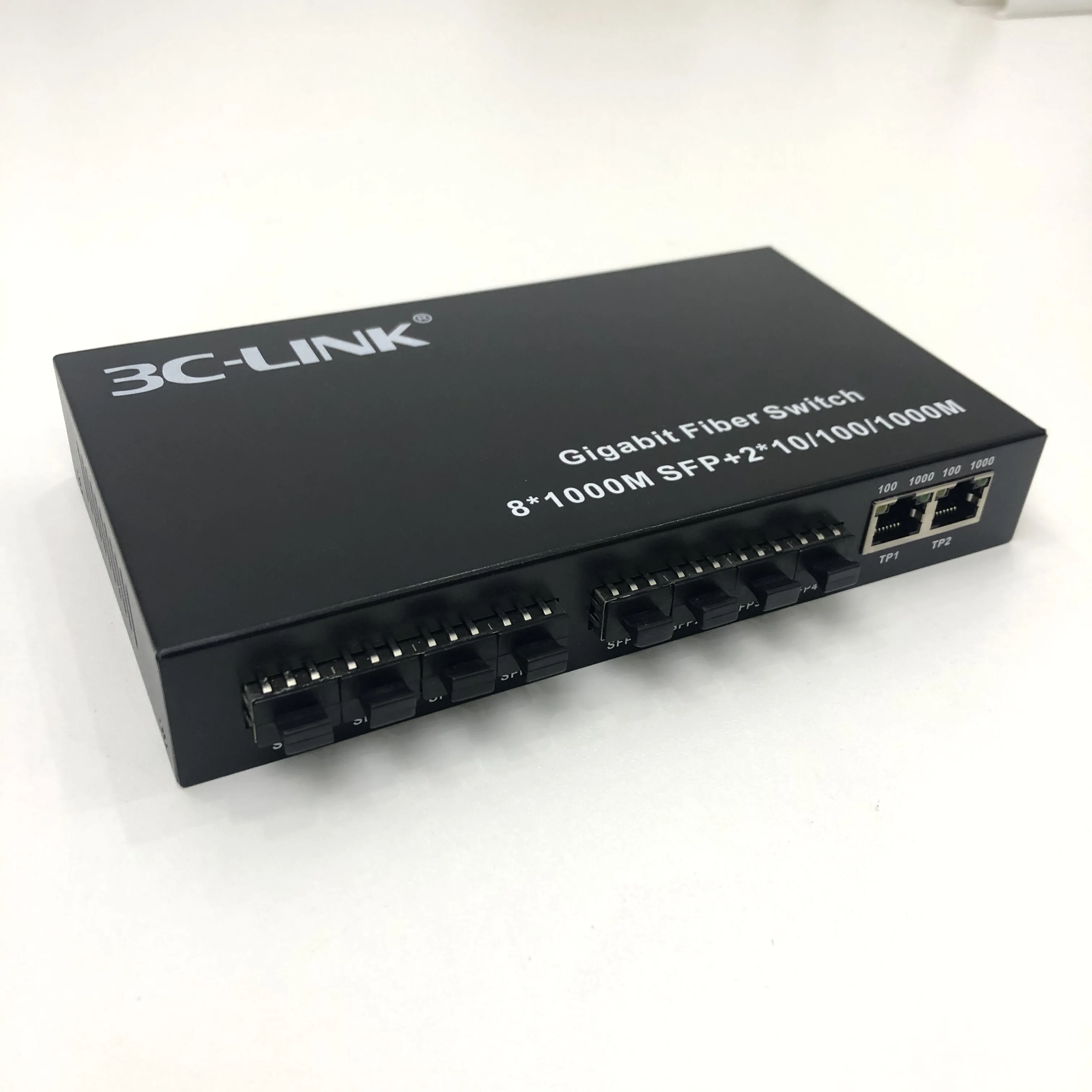

Gigabit Ethernet Switch has two 10/100/1000M UTP ports and eight 1000M SFP sockets. Customer
can choose different 1000M SFP module according as his demand, such as 1000Base-T、1000Base-SX or 1000Base-LX etc. The product is possessed of stable performance, excellent quality and reasonable price with
adopting latest IC from USA. It is applicable to use in constructing of Optical Fiber Ethernet.
* Ideal for Integrating Your 2 10/100/1000 UTP Ports and 8 SFP 1000Base-FX Provide Dedicated Bandwidth in Half or Full-Duplex Modes
* Transparent transfer all protocols such as TCP/IP, IPX, XNS, Appletalk, Vines, DECnet, ARP, DECLAT and Lansoft etc.
* Compatible with All Major Network Operating Systems
* Advanced Store-and-Forward Packet Switching Optimizes Data Transfers
* Full wire-speed layer 2 switch on all ports
* 6M Buffer Memory
* Internal 1k MAC address table per port
* Auto address learning
* Auto address aging (default 300 Seconds)
* Supports both Full/Half duplex ports
* Flow control capabilities
* Automatic Transmit delay control capabilities and maximum delay guarantee
* Filtering/Forwarding/Learning Rates
* 20.0 Gbps aggregate bandwidth with speeds of up to 2000Mbps per port
* Support WEB Smart management
* Auto address learning
* Auto address aging (default 300 Seconds)
* Supports both Full/Half duplex ports
* Flow control capabilities
* Automatic Transmit delay control capabilities and maximum delay guarantee
* Filtering/Forwarding/Learning Rates
* 20.0 Gbps aggregate bandwidth with speeds of up to 2000Mbps per port
* Support WEB Smart management
OEM/ODM available
We support different ethernet switch performance requirements such as ports, Data rate 10/100/1000 Mbps, Transmission Distance, POE / Without POE, etc.The fiber distance can choice from 0-2km via multi-Mode fiber and 10-120km via the Single-Mode fiber.we also can provide printing, logo, and customized model for you.
Security control strategy
Support storm control to suppress network storms, prevent devices from being affected, and isolate storms to prevent other network areas from being affected by storms Port mirroring is enabled to monitor the services and traffic of the monitoring port to optimize deployment andmalicious attack monitoring.
High Quality Chip
Industrial-grade switches use industrial-grade switch chips,with heat sink to ensure fast transmission and more stable performance.provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets.
Standards and Protocols Supported | IEEE802.3z、 IEEE802.3u 、 IEEE802.3x IEEE802.1Q | ||||||
Wavelength | 850nm/1310nm/1550nm | ||||||
Distance | Dual Fiber MM ： 2km Dual Fiber SM ： 20/40/60/80/ 100km Single Fiber SM ： 20/40/60/ 80km | ||||||
MAC | 1K | ||||||
CPU | 150Mhz or above | ||||||
Memory | 16MB or above | ||||||
Input Voltage Range | 9-15V/DC | ||||||
Consumption | Max.6W | ||||||
Operating Temperature | 0 ℃ ~ 45 ℃ | ||||||
Storage Temperature | -40 ℃ ~ 70 ℃ | ||||||
Operating Humidity | 10%~90% RH no condensing | ||||||
Storage Humidity | 5%~90% RH no condensing | ||||||
LED | PWR，SFP1-8 Link/Act；TP1～TP4 Link/Act | ||||||
Dimensions | 30(high)×182(width)×101(length)mm | ||||||
MOQ
Although we exoect vou to place biocer order to benefit a good discount. we undertand that you may like to test the quality and market first. Our MOQ for industrial ethernet switch is 1-10 pcs.
Lead Time
Normally our lead time is 5-7 days, but sometimes we can provide priority production for urgent case.
Payment
For samples: Paypal and western union are accepted, as they are fast to receive payment.
For bulk order. Below $5000, we accept full payment: Above $5000, we could accept 30% deposit in advance,the balance to arranged before shipment.
Warranty
5 Yeas starts from the date of delivery. The technical service is free of charge under warranty period.Technical service: Includes E-mail support, phone support, on-site support and repairation / replacement service.
Q1：What are your company's advantage?
A1：3C-link is a high-tech enterprise that focus on providing broadband network access devices PON,FTTH,FTTB and network equipment for 13 years,If you have doubts about adaptation options, we can provide you with different fiber solutions to make them work smoothly and one-stop service from pre-sales to after-sales.
Q2：How can we guarantee quality?
A2：Always a pre-production sample before mass producet.
Always final inspection before shipment.
Q3：What is your payment term?
A3：30-50% deposit before production, balance before delivery. And we accept prepayment byAlibaba,T/T bank transfer, etc. You can select the terms of payment which is convenient for you.
